VOLVO S80 2009 Owner´s Manual

03 Your driving environment
Lighting
03``91
NOTE
•
Regulations regarding the use of the
hazard warning flasher may vary,
depending on where you live.
•
The hazard warning flashers will be acti-
vated automatically if an airbag
deploys.
Turn signals
2121
G023315
Turn signalsWhen changing lanes The driver can automatically flash the turn
signals 3 times by moving the turn signal lever
up or down to the first position and releasing it.
When turning Move the lever as far up or down as possi-
ble to start the turn signals. The turn signals will
be cancelled automatically by the movement of
the steering wheel, or the lever can be returned
to its initial position by hand.
NOTE
•
This automatic flashing sequence can
be interrupted by immediately moving
the lever in the opposite direction.
•
If the turn signal indicator flashes faster
than normal, check for a burned-out
turn signal bulb.
Interior lighting, front
G021149
Light switches, front roof lighting
Drivers side front reading light, on/offPassenger's side front reading light, on/offOverhead courtesy lighting.
The lighting in the front part of the passenger
compartment is controlled with the buttons (1)
and (2) in the roof console.
Switch (3) has three positions for all passenger
compartment lighting:
•
Off – right side depressed, automatic light-
ing off.
•
Neutral position.
•
On – left side depressed, passenger com-
partment lighting on.

03 Your driving environmentLighting
0392
Interior lighting, rear
G021150
Rear reading lightsThe lights are switched on or off by pressing
each respective button.Courtesy lights/door step lighting
(option)The courtesy lights/door step lighting switch
on/off automatically when one of the front
doors is opened/closed.Glove compartment lightingThe glove compartment lighting switches on/
off automatically when the lid is opened/
closed.
Overhead courtesy lightingThe passenger compartment lighting is
switched on and off automatically when button
(3) is in the neutral position.
The lighting comes on and remains on for
30 seconds if:•
the vehicle is unlocked from the outside
with the key or remote control
•
the engine is switched off and the ignition
is in mode 0.
The lighting switches off when:
•
the engine is started
•
the vehicle is locked from the outside.
The lighting comes on and remains on for two
minutes if one of the doors is open.
The passenger compartment lighting can be
switched on and off manually within 30 minutes
after the vehicle has been unlocked.
If the lighting is switched on manually and the
vehicle is locked, the courtesy lighting will
switch off automatically after one minute.
Home safe lightingWhen you leave your vehicle at night, you can
make use of the home safe lighting function to
illuminate the area in front of the vehicle.
1. Remove the key from the ignition slot.
2. Pull the direction indicator lever as far as
possible towards the steering wheel and
release it.
3. Exit the vehicle and lock the doors.
The headlights, parking lights, turn signals,
lights in the door mirrors, license plate lights,
and footwell lighting will illuminate and remain
on for 30
2, 60 or 90 seconds. The time interval
can be set under Car settings
Light
settings
Home safe lighting. For a
description of the menu system, see
page 120.
Approach lightingApproach lighting is activated by pressing the
approach light button on the remote key (see
the illustration on page 52).
When the function has been activated, the
parking lights, indicator lights, door mirror
lights, license plate lighting, dome lighting and
door step lighting come on.
2Factory setting

03 Your driving environment
Lighting
0393
The time interval for this lighting can be set
underCar settings
Light settings
Approach lighting. For a description of the
menu system, see page 120.

03 Your driving environmentWipers and washers
0394
Windshield wipers/washers
G018663
Windshield wipers and washers
Rain sensor (option) on/offThumb wheel sensitivity/frequencyCAUTION
•
Use ample washer fluid when washing
the windshield. The windshield should
be thoroughly wet when the wipers are
in operation.
•
Before using the wipers, ice and snow
should be removed from the wind-
shield/rear window. Be sure the wiper
blades are not frozen in place.
Windshield wipers off
Move the lever to position 0 to switch
off the windshield wipers.
Single sweep
Move the lever upward from position
0 to sweep the windshield one stroke
at a time for as long as the lever is held up.
Intermittent wiping
With the lever in this position, you can
set the wiper interval by twisting the
thumb wheel upward to increase wiper speed
or downward to decrease the speed.
Continuous wiping
The wipers operate at normal speed.The wipers operate at high speed.
Rain sensor (option)The rain sensor automatically regulates wiper
speed according to the amount of water on the
windshield. The sensitivity of the rain sensor
can be adjusted moving the thumb wheel up
(the wipers will sweep the windshield more fre-
quently) or down (the wipers will sweep the
windshield less frequently).
NOTE
The wipers will make an extra sweep each
time the thumb wheel is adjusted upward.When the rain sensor is activated, the symbol
will illuminate in the instrument panel.
Activating and setting the sensitivityWhen activating the rain sensor, the vehicle
must be running or in ignition mode II and the
windshield wiper lever must be in position 0 or
in the single sweep position.
Activate the rain sensor by pressing the button
. The windshield wipers will make one
sweep.
Press the lever up for the wipers to make an
extra sweep. The rain sensor returns to active
mode when the stalk is released back to posi-
tion0.
DeactivatingDeactivate the rain sensor by pressing the but-
ton
or press the lever down to another
wiper position.
The rain sensor is automatically deactivated
when the key is removed from the ignition slot
or five minutes after the ignition has been
switched off.

03 Your driving environment
Wipers and washers
0395
CAUTION
The rain sensor should be deactivated when
washing the car in an automatic car wash,
etc. If the rain sensor function is left on, the
wipers will start inadvertently in the car
wash and could be damaged.Windshield washing
G019401
Washing functionMove the lever toward the steering wheel to
start the windshield and headlight washers.
After the lever is released the wipers make sev-
eral extra sweeps.Heated washer nozzles (option)The washer nozzles are heated automatically
in cold weather to help prevent the washer fluid
from freezing.
High-pressure headlight washing
(option)High-pressure headlight washing consumes a
large quantity of washer fluid. To save fluid, the
headlights are washed using two alternatives:•
Low/high beam headlights on. The head-
lights will be washed the first time the wind-
shield is washed. Thereafter, the head-
lights will only be washed once for every
five times the windshield is washed within
a 10-minute period.
•
Parking lights on. Optional Active Bi-
XenonŸ headlights will be washed once for
every five times the windshield is washed.
Normal halogen headlights will not be
washed.CAUTION
Use ample washer fluid when washing the
windshield. The windshield should be thor-
oughly wet when the wipers are in opera-
tion.
NOTE
One headlight is washed at a time.

03 Your driving environmentPower windows
0396
Power windows
G018516
Driver's door control panel
Switch for power child safety locks
1 and
disengaging rear power window buttons,
see page 47
Rear window controlsFront window controls.
WARNING
•
Always remove the ignition key when
the vehicle is unattended.
•
Never leave children unattended in the
vehicle.
•
Make sure that the windows are com-
pletely unobstructed before they are
operated.
Operating
G018517
Operating the power windows
Manual up/downAuto up/down.
All power windows can be operated using the
control panel in the driver's door. The controlpanels in the other doors only operate the win-
dow in the respective doors.
For the power windows to function, the ignition
must be in at least mode I. When the vehicle
has been running, the power windows can be
operated for several minutes after the remote
key has been removed from the ignition slot, or
until a door has been opened.
NOTE
•
Movement of the windows will stop if
they are obstructed in any way.
•
To reduce buffeting wind noise if the
rear windows are opened, also open the
front windows slightly.
Manual up/down±
Move one of the controls up/down slightly.
> The power windows move up/down as
long as the control is held in position.Auto up/down±
Move one of the controls up/down as far
as possible and release it.
> The window will open or close com-
pletely.
1Option on certain markets only.

03 Your driving environment
Power windows
0397

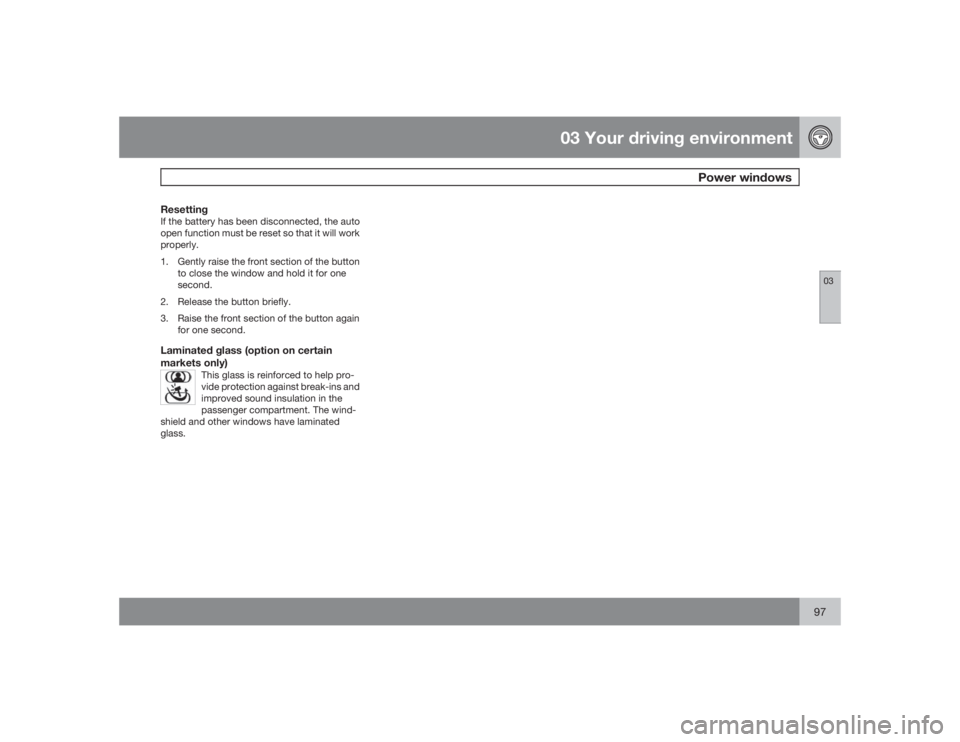

ResettingIf the battery has been disconnected, the auto
open function must be reset so that it will work
properly.
1. Gently raise the front section of the button
to close the window and hold it for one
second.
2. Release the button briefly.
3. Raise the front section of the button again
for one second.Laminated glass (option on certain
markets only)
This glass is reinforced to help pro-
vide protection against break-ins and
improved sound insulation in the
passenger compartment. The wind-
shield and other windows have laminated
glass.

03 Your driving environmentMirrors
0398

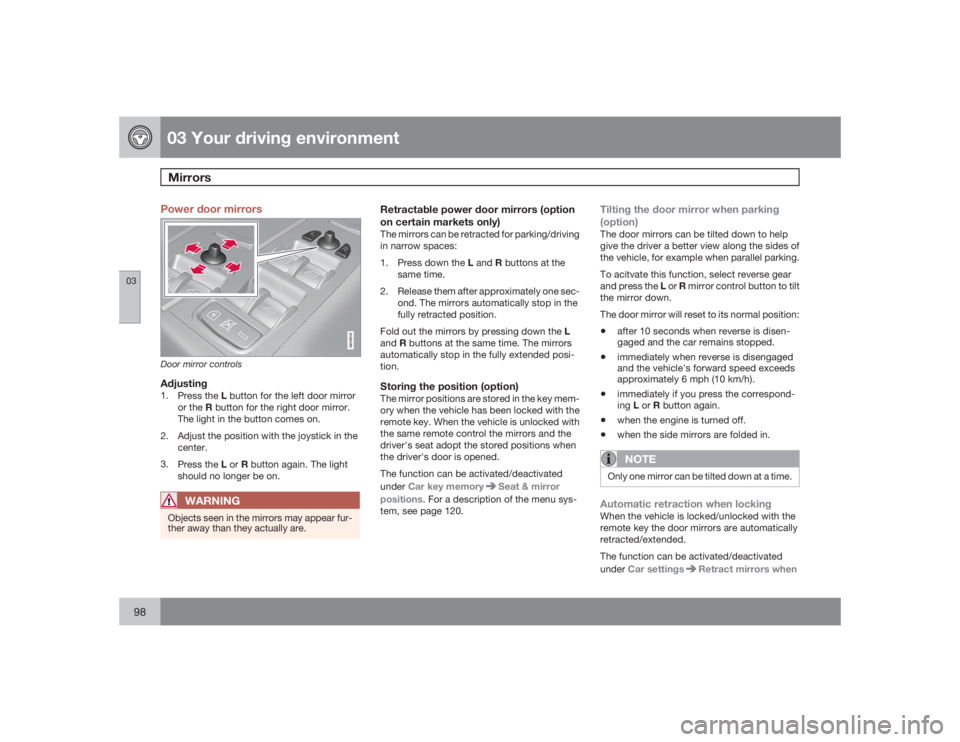

Power door mirrors
G018518
Door mirror controlsAdjusting1.
Press the L button for the left door mirror
or the R button for the right door mirror.
The light in the button comes on.
2. Adjust the position with the joystick in the
center.
3.
Press the L or R button again. The light
should no longer be on.
WARNING
Objects seen in the mirrors may appear fur-
ther away than they actually are.
Retractable power door mirrors (option
on certain markets only)The mirrors can be retracted for parking/driving
in narrow spaces:
1.
Press down the L and R buttons at the
same time.
2. Release them after approximately one sec-
ond. The mirrors automatically stop in the
fully retracted position.
Fold out the mirrors by pressing down the L
andR buttons at the same time. The mirrors
automatically stop in the fully extended posi-
tion.Storing the position (option)The mirror positions are stored in the key mem-
ory when the vehicle has been locked with the
remote key. When the vehicle is unlocked with
the same remote control the mirrors and the
driver's seat adopt the stored positions when
the driver's door is opened.
The function can be activated/deactivated
underCar key memory
Seat & mirror
positions. For a description of the menu sys-
tem, see page 120.
Tilting the door mirror when parking
(option)The door mirrors can be tilted down to help
give the driver a better view along the sides of
the vehicle, for example when parallel parking.
To acitvate this function, select reverse gear
and press the L or R mirror control button to tilt
the mirror down.
The door mirror will reset to its normal position:•
after 10 seconds when reverse is disen-
gaged and the car remains stopped.
•
immediately when reverse is disengaged
and the vehicle's forward speed exceeds
approximately 6 mph (10 km/h).
•
immediately if you press the correspond-
ingL or R button again.
•
when the engine is turned off.
•
when the side mirrors are folded in.NOTE
Only one mirror can be tilted down at a time.Automatic retraction when lockingWhen the vehicle is locked/unlocked with the
remote key the door mirrors are automatically
retracted/extended.
The function can be activated/deactivated
underCar settings
Retract mirrors when

03 Your driving environment
Mirrors
0399

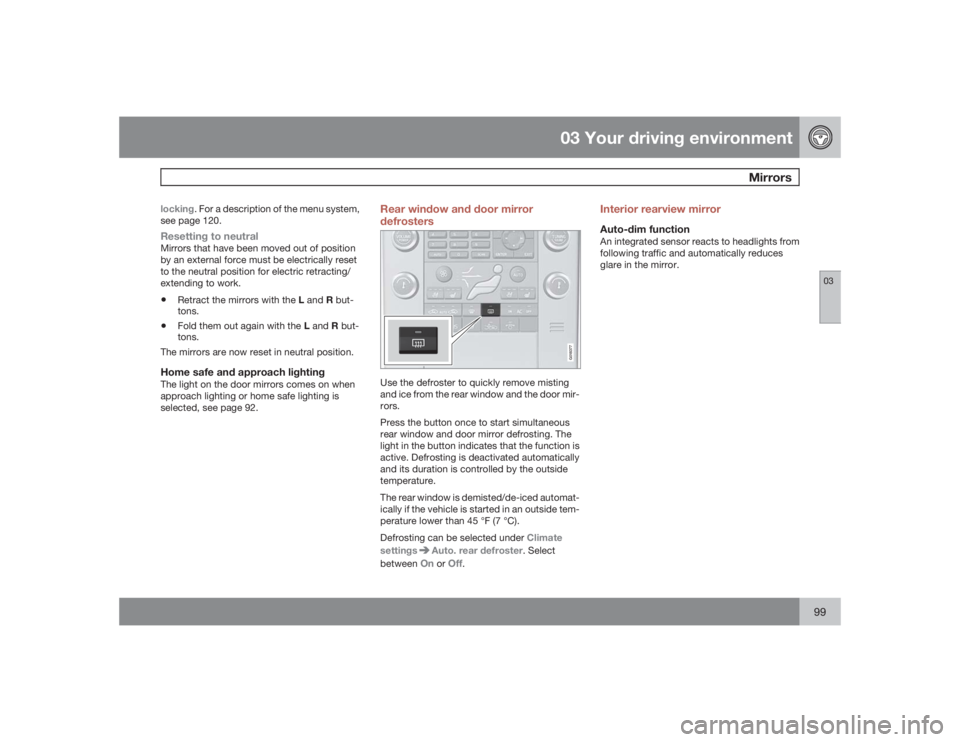

locking. For a description of the menu system,
see page 120.Resetting to neutralMirrors that have been moved out of position
by an external force must be electrically reset
to the neutral position for electric retracting/
extending to work.•
Retract the mirrors with the L and R but-
tons.
•
Fold them out again with the L and R but-
tons.
The mirrors are now reset in neutral position.
Home safe and approach lightingThe light on the door mirrors comes on when
approach lighting or home safe lighting is
selected, see page 92.
Rear window and door mirror
defrosters
G018377
Use the defroster to quickly remove misting
and ice from the rear window and the door mir-
rors.
Press the button once to start simultaneous
rear window and door mirror defrosting. The
light in the button indicates that the function is
active. Defrosting is deactivated automatically
and its duration is controlled by the outside
temperature.
The rear window is demisted/de-iced automat-
ically if the vehicle is started in an outside tem-
perature lower than 45 °F (7 °C).
Defrosting can be selected under Climate
settings
Auto. rear defroster. Select
betweenOn
or
Off
.
Interior rearview mirrorAuto-dim functionAn integrated sensor reacts to headlights from
following traffic and automatically reduces
glare in the mirror.

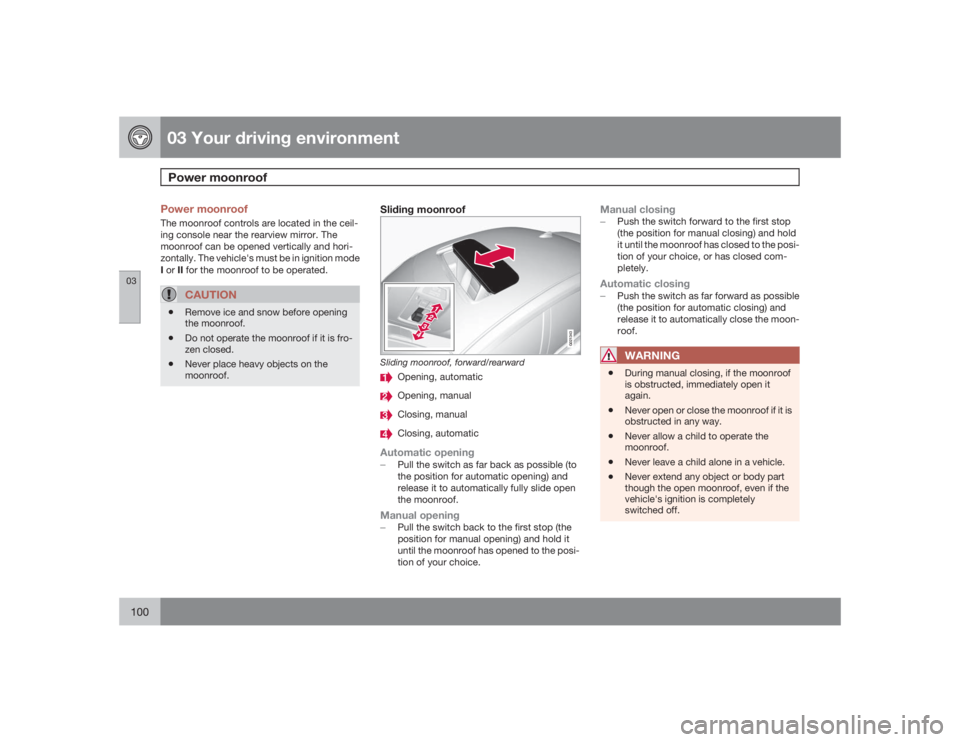

03 Your driving environmentPower moonroof
03100
Power moonroofThe moonroof controls are located in the ceil-
ing console near the rearview mirror. The
moonroof can be opened vertically and hori-
zontally. The vehicle's must be in ignition mode
I or II for the moonroof to be operated.
CAUTION
•
Remove ice and snow before opening
the moonroof.
•
Do not operate the moonroof if it is fro-
zen closed.
•
Never place heavy objects on the
moonroof.
Sliding moonroof
G021343
Sliding moonroof, forward/rearward
Opening, automaticOpening, manualClosing, manualClosing, automatic
Automatic opening±
Pull the switch as far back as possible (to
the position for automatic opening) and
release it to automatically fully slide open
the moonroof.Manual opening±
Pull the switch back to the first stop (the
position for manual opening) and hold it
until the moonroof has opened to the posi-
tion of your choice.
Manual closing±
Push the switch forward to the first stop
(the position for manual closing) and hold
it until the moonroof has closed to the posi-
tion of your choice, or has closed com-
pletely.Automatic closing±
Push the switch as far forward as possible
(the position for automatic closing) and
release it to automatically close the moon-
roof.
WARNING
•
During manual closing, if the moonroof
is obstructed, immediately open it
again.
•
Never open or close the moonroof if it is
obstructed in any way.
•
Never allow a child to operate the
moonroof.
•
Never leave a child alone in a vehicle.
•
Never extend any object or body part
though the open moonroof, even if the
vehicle's ignition is completely
switched off.
