VOLVO S80 2009 Owner´s Manual

VOLVO S80Owner's manual
Web Edition

Welcome to the world-wide family of Volvo owners. We trust
that you will enjoy many years of safe driving in your Volvo, an
automobile designed with your safety and comfort in mind. We
encourage you to familiarize yourself with the equipment
descriptions and operating instructions in this manual. We also
urge you and your passengers to wear seat belts at all times in
this (or any other) vehicle. And, of course, please do not operate
a vehicle if you may be affected by alcohol, medication or any
impairment that could hinder your ability to drive.
Your Volvo is designed to meet all applicable safety and emis-
sion standards. For further information please contact your
retailer, or:
In the USA: Volvo Cars of North America, LLC Customer Care
Center
P.O. Box 914
Rockleigh, New Jersey 07647-0914
1-800-458-1552
www.volvocars.us
In Canada: Volvo Cars of Canada Corp
National Customer Service
175 Gordon Baker Road
North York, Ontario M2H 2N7
1-800-663-8255
www.volvocanada.com
2008 © Volvo Car Corporation, All rights reserved.

Contents
4
00
00 IntroductionImportant information................................. 8
Important warnings..................................... 9
Environment.............................................. 10
01
01 SafetyOccupant safety........................................ 14
Reporting safety defects........................... 15
Seat belts ................................................. 16
Supplemental Restraint System (SRS) .... 18
Occupant Weight Sensor ......................... 23
Side impact protection (SIPS) airbags ..... 27
Volvo Inflatable Curtain (VIC) ................... 29
Whiplash Protection System – WHIPS..... 30
Crash mode.............................................. 32
Child safety............................................... 33
Child restraint systems............................. 35
Infant seats............................................... 37
Convertible seats...................................... 39
Booster cushions...................................... 41
ISOFIX lower anchors............................... 42
Top tether anchors.................................... 43
Child restraint registration and recalls...... 44
Integrated booster cushion....................... 45
Child safety locks...................................... 47
02
02 Locks and alarmRemote key and key blade....................... 50
Valet locking ............................................. 57
Keyless drive............................................. 58
Locks........................................................ 61
Alarm......................................................... 64

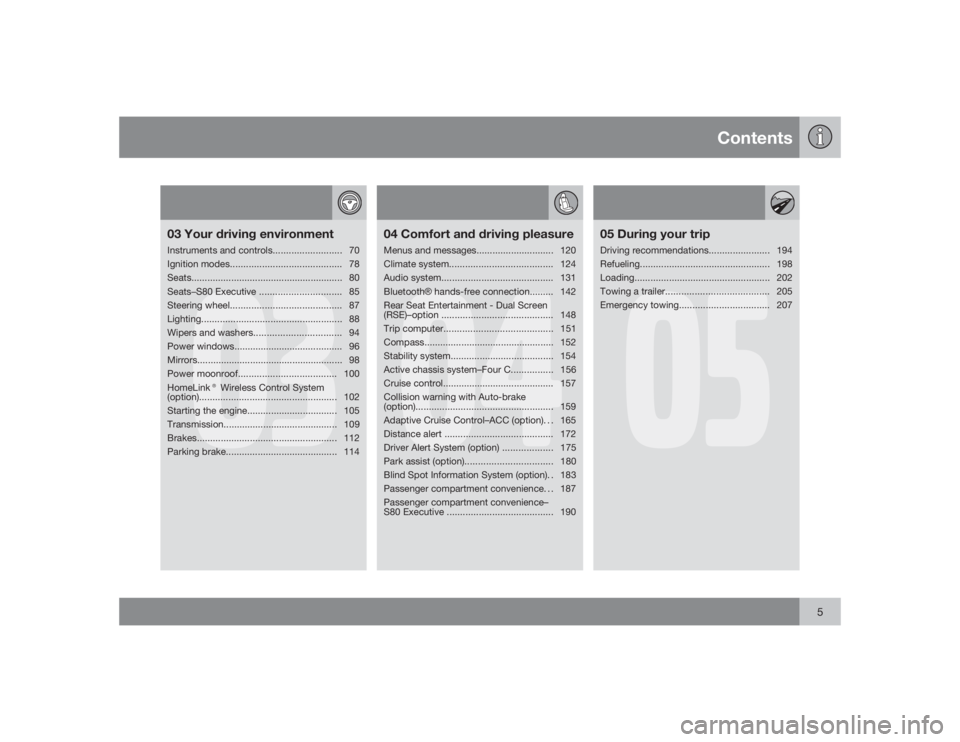

Contents
5
03
03 Your driving environmentInstruments and controls.......................... 70
Ignition modes.......................................... 78
Seats......................................................... 80
Seats ¥S80 Executive ............................... 85
Steering wheel.......................................... 87
Lighting..................................................... 88
Wipers and washers................................. 94
Power windows......................................... 96
Mirrors....................................................... 98
Power moonroof..................................... 100
HomeLink® Wireless Control System
(option).................................................... 102
Starting the engine.................................. 105
Transmission...........................................109
Brakes..................................................... 112
Parking brake.......................................... 114
04
04 Comfort and driving pleasureMenus and messages............................. 120
Climate system....................................... 124
Audio system.......................................... 131
BluetoothŸ hands-free connection......... 142
Rear Seat Entertainment - Dual Screen
(RSE)–option.......................................... 148
Trip computer.........................................151
Compass................................................. 152
Stability system....................................... 154
Active chassis system–Four C................156
Cruise control.......................................... 157
Collision warning with Auto-brake
(option).................................................... 159
Adaptive Cruise Control–ACC (option). . . 165
Distance alert ......................................... 172
Driver Alert System (option) ...................175
Park assist (option).................................180
Blind Spot Information System (option). . 183
Passenger compartment convenience. . . 187
Passenger compartment convenience–
S80 Executive ........................................ 190
05
05 During your tripDriving recommendations....................... 194
Refueling................................................. 198
Loading................................................... 202
Towing a trailer....................................... 205
Emergency towing.................................. 207

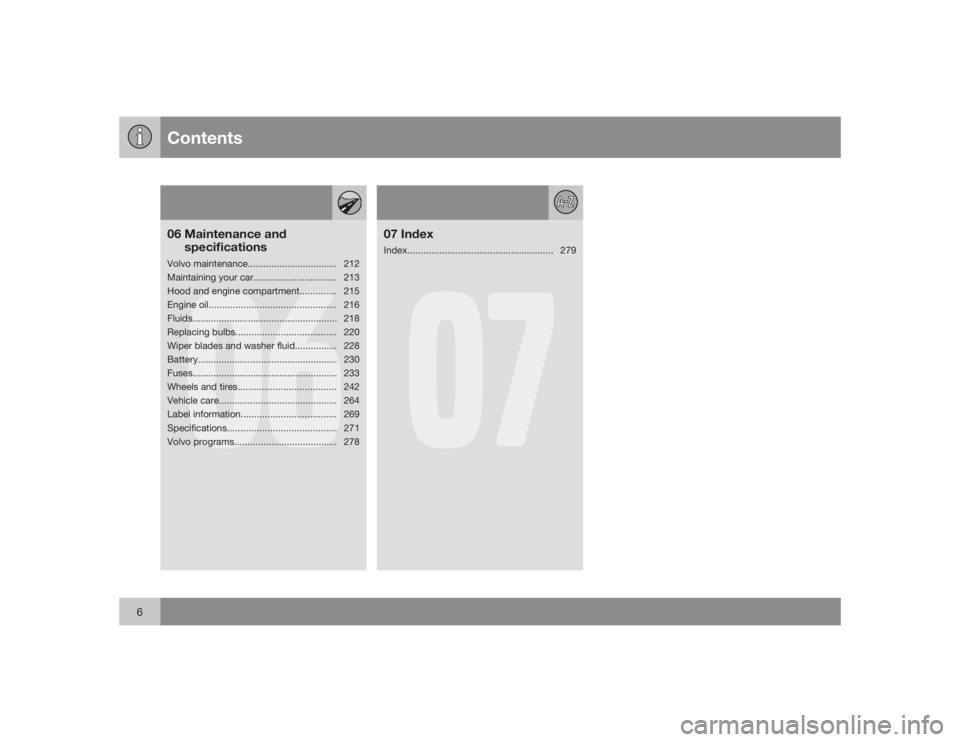

Contents
6
06
06 Maintenance and
specificationsVolvo maintenance.................................. 212
Maintaining your car............................... 213
Hood and engine compartment.............. 215
Engine oil................................................ 216
Fluids....................................................... 218
Replacing bulbs...................................... 220
Wiper blades and washer fluid................ 228
Battery..................................................... 230
Fuses....................................................... 233
Wheels and tires..................................... 242
Vehicle care............................................. 264
Label information.................................... 269
Specifications.........................................271
Volvo programs....................................... 278
07
07 IndexIndex.......................................................279

Contents
7

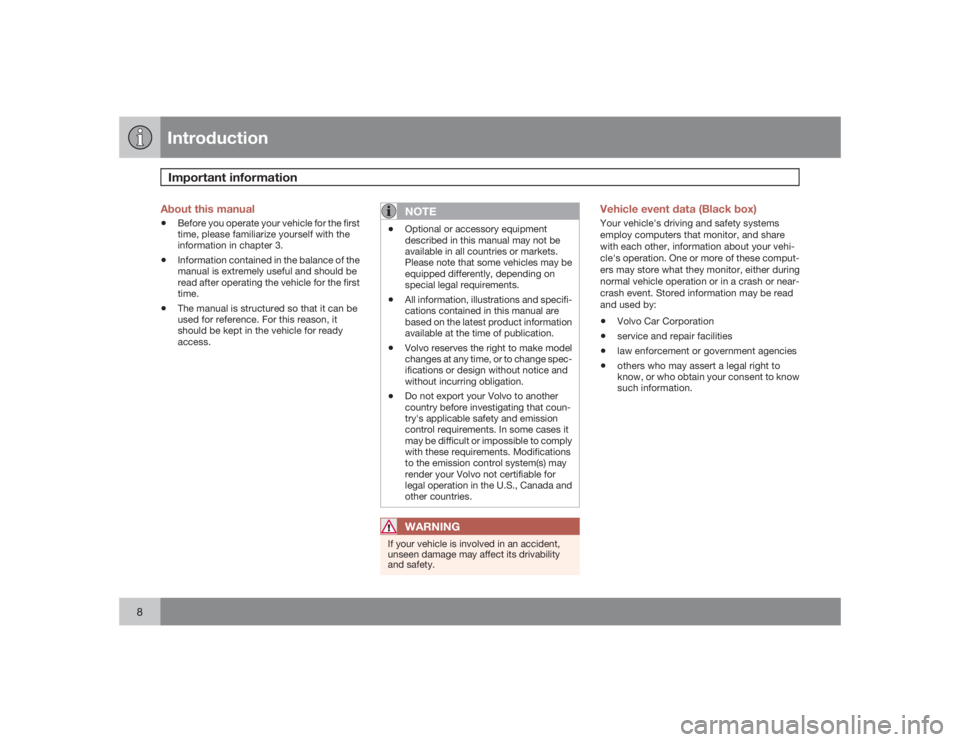

IntroductionImportant information
8
About this manual•
Before you operate your vehicle for the first
time, please familiarize yourself with the
information in chapter 3.
•
Information contained in the balance of the
manual is extremely useful and should be
read after operating the vehicle for the first
time.
•
The manual is structured so that it can be
used for reference. For this reason, it
should be kept in the vehicle for ready
access.
NOTE
•
Optional or accessory equipment
described in this manual may not be
available in all countries or markets.
Please note that some vehicles may be
equipped differently, depending on
special legal requirements.
•
All information, illustrations and specifi-
cations contained in this manual are
based on the latest product information
available at the time of publication.
•
Volvo reserves the right to make model
changes at any time, or to change spec-
ifications or design without notice and
without incurring obligation.
•
Do not export your Volvo to another
country before investigating that coun-
try's applicable safety and emission
control requirements. In some cases it
may be difficult or impossible to comply
with these requirements. Modifications
to the emission control system(s) may
render your Volvo not certifiable for
legal operation in the U.S., Canada and
other countries.WARNING
If your vehicle is involved in an accident,
unseen damage may affect its drivability
and safety.
Vehicle event data (Black box)Your vehicle's driving and safety systems
employ computers that monitor, and share
with each other, information about your vehi-
cle's operation. One or more of these comput-
ers may store what they monitor, either during
normal vehicle operation or in a crash or near-
crash event. Stored information may be read
and used by:•
Volvo Car Corporation
•
service and repair facilities
•
law enforcement or government agencies
•
others who may assert a legal right to
know, or who obtain your consent to know
such information.

Introduction
Important warnings
9 Driver distraction
A driver has a responsibility to do everything
possible to ensure his or her own safety and
the safety of passengers in the vehicle and oth-
ers sharing the roadway. Avoiding distractions
is part of that responsibility.
Driver distraction results from driver activities
that are not directly related to controlling the
vehicle in the driving environment. Your new
Volvo is, or can be, equipped with many fea-
ture-rich entertainment and communication
systems. These include hands-free cellular tel-
ephones, navigation systems, and multipur-
pose audio systems. You may also own other
portable electronic devices for your own con-
venience. When used properly and safely, they
enrich the driving experience. Improperly used,
any of these could cause a distraction.
For all of these systems, we want to provide the
following warning that reflects the strong Volvo
concern for your safety.Never use these devi-
ces or any feature of your vehicle in a way that
distracts you from the task of driving safely.
Distraction can lead to a serious accident. In
addition to this general warning, we offer the
following guidance regarding specific newer
features that may be found in your vehicle•
Never use a hand-held cellular telephone
while driving. Some jurisdictions prohibitcellular telephone use by a driver while the
vehicle is moving.
•
If your vehicle is equipped with a naviga-
tion system, set and make changes to your
travel itinerary only with the vehicle parked.
•
Never program your audio system while
the vehicle is moving. Program radio pre-
sets with the vehicle parked, and use your
programmed presets to make radio use
quicker and simpler.
•
Never use portable computers or personal
digital assistants while the vehicle is mov-
ing.
Accessory installation•
We strongly recommend that Volvo owners
install only genuine, Volvo-approved
accessories, and that accessory installa-
tions be performed only by a trained and
qualified Volvo service technician.
•
Genuine Volvo accessories are tested to
ensure compatibility with the performance,
safety, and emission systems in your vehi-
cle. Additionally, a trained and qualified
Volvo service technician knows where
accessories may and may not be safely
installed in your Volvo. In all cases, please
consult a trained and qualified Volvo serv-
ice technician before installing any acces-
sory in or on your vehicle.
•
Accessories that have not been approved
by Volvo may or may not be specifically
tested for compatibility with your vehicle.
Additionally, an inexperienced installer
may not be familiar with some of your car's
systems.
•
Any of your car's performance and safety
systems could be adversely affected if you
install accessories that Volvo has not tes-
ted, or if you allow accessories to be instal-
led by someone unfamiliar with your vehi-
cle.
•
Damage caused by unapproved or
improperly installed accessories may not
be covered by your new vehicle warranty.
See your Warranty and Service Records
Information booklet for more warranty
information. Volvo assumes no responsi-
bility for death, injury, or expenses that
may result from the installation of non-gen-
uine accessories.

IntroductionEnvironment
10
Volvo and the environmentVolvo is committed to the well being of its cus-
tomers. As a natural part of this commitment,
we care about the environment in which we all
live. Caring for the environment means an
everyday involvement in reducing our environ-
mental impact. Volvo's environmental activities
are based on a holistic view, which means we
consider the overall environmental impact of a
product throughout its complete life cycle. In
this context, design, production, product use,
and recycling are all important considerations.
In production, Volvo has partly or completely
phased out several chemicals including CFCs,
lead chromates, asbestos, and cadmium; and
reduced the number of chemicals used in our
plants 50% since 1991.
Volvo was the first in the world to introduce into
production a three-way catalytic converter with
a Lambda sond, now called the heated oxygen
sensor, in 1976. The current version of this
highly efficient system reduces emissions of
harmful substances (CO, HC, NOx) from the
exhaust pipe by approximately 95 – 99% and
the search to eliminate the remaining emis-
sions continues. Volvo is the only automobile
manufacturer to offer CFC-free retrofit kits for
the air conditioning system of all models as far
back as the 1975 model 240. Advanced elec-
tronic engine controls and cleaner fuels are
bringing us closer to our goal. After Volvo vehi-cles and parts have fulfilled their use, recycling
is the next critical step in completing the life
cycle. The metal content is about 75% of the
total weight of a vehicle, which makes the vehi-
cle among the most recycled industrial prod-
ucts. In order to have efficient and well-
controlled recycling, dismantling information is
available for all Volvo models. For Volvo, all
homogeneous plastic parts weighing more
than 3.4 oz. (100 grams) are marked with inter-
national symbols that indicate how the com-
ponent is to be sorted for recycling. In addition
to continuous environmental refinement of
conventional gasoline-powered internal com-
bustion engines, Volvo is actively looking at
advanced technology alternative-fuel vehicles.
When you drive a Volvo, you become our part-
ner in the work to lessen the car's impact on
the environment. To reduce your vehicle's
environmental impact, you can:
•
Maintain proper air pressure in your tires.
Tests have shown decreased fuel econ-
omy with improperly inflated tires.
•
Follow the recommended maintenance
schedule in your Warranty and Service
Records Information booklet.
•
Drive at a constant speed whenever pos-
sible.
•
See a trained and qualified Volvo service
technician as soon as possible for inspec-
tion if the check engine (malfunction indi-cator) light illuminates, or stays on after the
vehicle has started.
•
Properly dispose of any vehicle-related
waste such as used motor oil, used batter-
ies, brake pads, etc.
•
When cleaning your vehicle, please use
genuine Volvo car care products. All Volvo
car care products are formulated to be
environmentally friendly.WARNING
PROPOSITION 65 WARNING!
Engine exhaust, some of its constituents,
and certain vehicle components contain or
emit chemicals known to the state of Cali-
fornia to cause cancer, and birth defects or
other reproductive harm. In addition, certain
fluids contained in vehicles and certain
products of component wear contain or
emit chemicals known to the State of Cali-
fornia to cause cancer, and birth defects or
other reproductive harm.
