VOLVO S80 2009 Quick Guide

wELCOME TO T hE gLOBAL fAM iLY O f vOL vO
O w NER s!
Getting to know your new vehicle is an exciting experience.
Please browse through this Quick Guide to get the full benefits from
your new Volvo. For detailed information, please refer to your Owner´s
Manual.
Warning texts and other important information are only provided in the
Owner’s Manual - not in this folder. The Owner’s Manual contains the
most up-to-date information.
For additional information, contact Customer Service:
U.S.A.: 1-800-458-1552 www.volvocars.us
CANADA: 1-800-663-8255 www.volvocanada.com
vOLvO s80
Quick Guide

1
2

3
4

1
2

KEY & REMOTE CONTROL
Locks the doors and trunk, and arms the alarm.
Unlocks the doors and trunk, and disarms the alarm1.
Trunk (press once to unlock, press twice to open trunk slightly).
Approach lighting (30 seconds) illuminates lights in door mirrors, cabin, footwells, license plates. Turn signals and parking lights illuminate.
“Panic” alarm. Press and hold to sound the alarm. Press again to deac-tivate.
sTARTiNg ThE ENgiNE
swiTChiNg Off ThE ENgiNE ANd REMOviNg ThE REMOTE KEY i nsert the remote key in the ignition as
shown in the illustration, with the buttons upward.
Push lightly on the remote key. The key will be pulled into the slot in the correct position.
Press the brake pedal.
Press the sTART/ sTOP EN giNE button to start the engine2.2 After cold starts, your engine will idle at a higher speed for a short time.
Park the vehicle and press the sTART/
s TOP EN giNE button to switch off the engine.Press in the remote key. It will be partially ejected from the ignition slot. The gear selec-tor must be in the P position.
1 Automatic relock occurs if no door/trunk is opened within 2 minutes after unlock.

12
3
4
PERsONAL CAR COMMUNiCATOR (PCC) wiTh KEYLEss dRivE (OPTiON)
1 g reen light: Vehicle is locked.
2 Yellow light: Vehicle is unlocked.
3 f lashing red light: Someone may be in the vehicle.
4 Red light: Alarm has been triggered.
information is gathered when the vehicle is within range. Press the button and wait for 5 seconds. If the button is pressed when the vehicle is out of range, the PCC will use a memory function to show if the vehicle is locked or unlocked.
sTARTiNg wiTh KEYLEss dRivE
Enter the car with a PCC in e.g., your pocket. Press the brake pedal.
1 After cold starts, your engine will idle at a higher speed for a short time.
swiTChiNg Off ThE ENgiNE
Park the vehicle and press the sTART/
s TOP
EN giNE button to switch off the engine.
NOTE
With keyless drive, it is only necessary to have a PCC in the passenger compartment. Keep it e.g., in your pocket when driving or when you leave the vehicle.
The door unlocks automatically when its outside handle is pulled.
When the vehicle is parked, simply press a button in one of the outside door handles to lock the vehicle. You must have a remote key in your possession and all doors and the trunk must be closed.
LEAThER CARE BLis – BLiNd sPOT iNfORMATiON
sYsTEM (OPTiON)
Leather upholstery requires regular care. Treat the leather with protectant cream, one to four times a year as necessary. Consult your Volvo retailer for leather care products.
If the BLIS indicator lights illuminate even when there are no vehicles in the blind area, this may be due to light reflected from a wet road sur-face, the vehicle’s own shadow against a large, light, smooth surface, or sunlight directly in the camera when the sun is low on the horizon. In the event of a fault, Blind spot syst. service required will be displayed.
Press the
sTART/ sTOP EN giNE
button to start the engine1.

1
AUdiO sYsTEM
fOLdiNg ThE REAR sEAT BACKREsT
Pull the respective handles to fold down the left and/or right sections of the backrest.The rear head restraints must be in the upright position. fold down the backrest.
2
6
34157
2
BLUETOOTh®
Make the cell phone searchable/visible.
Press the PhONE button on the audio sys-tem control panel briefly.
Select “Add phone” in the audio system display.
Select the cell phone to be connected.
Enter the numbers shown in the audio sys-tem display using the cell phone’s keypad.
1.
2.
3.
4.
5.
1 POwER/ vOLUME
Press for on/off. Turn to adjust volume. Radio and Volvo Navigation System (option) volume are stored individually.
2 select AM, f M1, f M2, C d, or MOdE. Use MOdE to activate Sirius satellite radio (option), the accessory iPod interface or AUX for e.g., MP3 player, and to adjust the auxiliary device’s volume. Set the iPod/MP3 player’s volume to medium for best sound quality.
3 sound settings Press to select e.g., BASS, TREBLE, etc. Turn to adjust.
Cd1
4 Change tracks with the left/right arrows, or turn (3).
select a Cd (optional CD changer only) with the up/down arrows.
6 C
d eject
Press to eject current CD.
Press and hold to eject all CDs (optional
CD changer only).
7 C d changer (option): select CD 1–6.
1 CDs containing files in MP3 and WMA formats can also be played
RAdiO
3 Turn to select a station
4 s earch for stations with the left/right ar-rows. Store up to 20 stations by holding in buttons 0–9 in FM1 och 0–9 in FM2. A message is displayed when a station has been stored.
5 Autostore the 10 strongest stations Press AUTO for 2 seconds. AUTOSTOR-ING... is displayed while the search is in progress.
s elect and listen to a stored station using buttons 0–9.

1
2

ELECTRONiC CLiMATE CONTROL—ECCMANUAL CONTROL
Blower speed
Air distribution
defroster quickly removes mist from the windshield and front, side windows.
Recirculation.
Air conditioning off/on
AUTOMATiC CONTROL
In AUTO mode, ECC controls all functions automatically and makes driving more pleasant with optimal air quality.
1 Temperature Turn the control to the desired tempera-ture. The set temperature is shown in the display.
2 Press AUTO to automatically control the temperature and other functions.
sTORAgE sPACEs, 12-vOLT sOCKET & AUX CONNECTOR
CAUT
iON
Using the 12-volt sockets with the engine switched off will drain the battery.
The center console’s front and rear 12-volt sockets function in ignition mode i or higher.

500 milesto empty tank
mph
12345612.3
01
T2
362415

89
7

OdOMETER ANd TRiP COMPUTER
Trip odometer The vehicle has two separate trip odom-eters, T1 and T2, which are always active. Press (6) for 2 seconds to reset the cur-rently displayed trip odometer. Press (6) briefly to toggle between T1 and T2.
2 f uel gauge The arrow show the side of the vehicle that the fuel filler door is on.
3 Low fuel level indicator When the symbol illuminates, refuel as soon as possible. The fuel level indicator in the gauge moves from right to left as the amount of fuel in the tank decreases.
4 M iLE s TO EMPTY TANK Use the trip computer’s thumb wheel (8) to display the calculated distance until the fuel tank is empty.
NOTE
MiLE s TO EMPTY TANK is an approxima-tion, based on recent average fuel consump-tion.
5 Clock Turn the control (6) clockwise or counter-clockwise to set the clock.
6 Multi-function control Press to reset or toggle between trip odometers T1 and T2. Turn to adjust the clock.
7 REA d Press to read messages in the display. Press again to confirm the message.
8 Trip computer Display the desired trip computer informa-tion by turning the thumb wheel.
9 Resets all functions
sTEERiNg whEEL AdjUsTMENT REfUELiNg
w ARN iN g !
Never adjust the steering wheel while driving.Press the button to open the fuel filler door

A B
C
0
D
E
F
G

1
2
2
1
2
2

LighTiNg PANEL
display & instrument panel lighting
front fog lights
Rear fog light
Automatic headlights. High beam flash only.
Parking lights
h eadlights: turn off when ignition is switched off, high/low beams can be selected with the lever.
h igh beam flash.
Toggle between high/low beams.
wiNdshiELd wiPERs ANd RAiN sENsOR (OPTiON) RAiN sENsOR
A Press to activate the rain sensor when the lever is in position 0.
B Turn to adjust rain sensor sensitivity.
dRivER’s dOOR CONTROL PANEL
Lock /unlock all doors.
Retractable door mirrors (option), press L and R at the same time.
L Rd
oor mirror controls
Open/close a window partially
2Open/close a window fully
Cutout switch for rear windows and doors (option) (child safety locks)
s
ymbol in display (rain sensor on)
Csingle wiper sweep
Dintermittent wipers. Turn (B) to adjust interval.
ENormal speed
Fh igh speed
Gw indshield/headlight washers

2
1

+-
3
21
544352

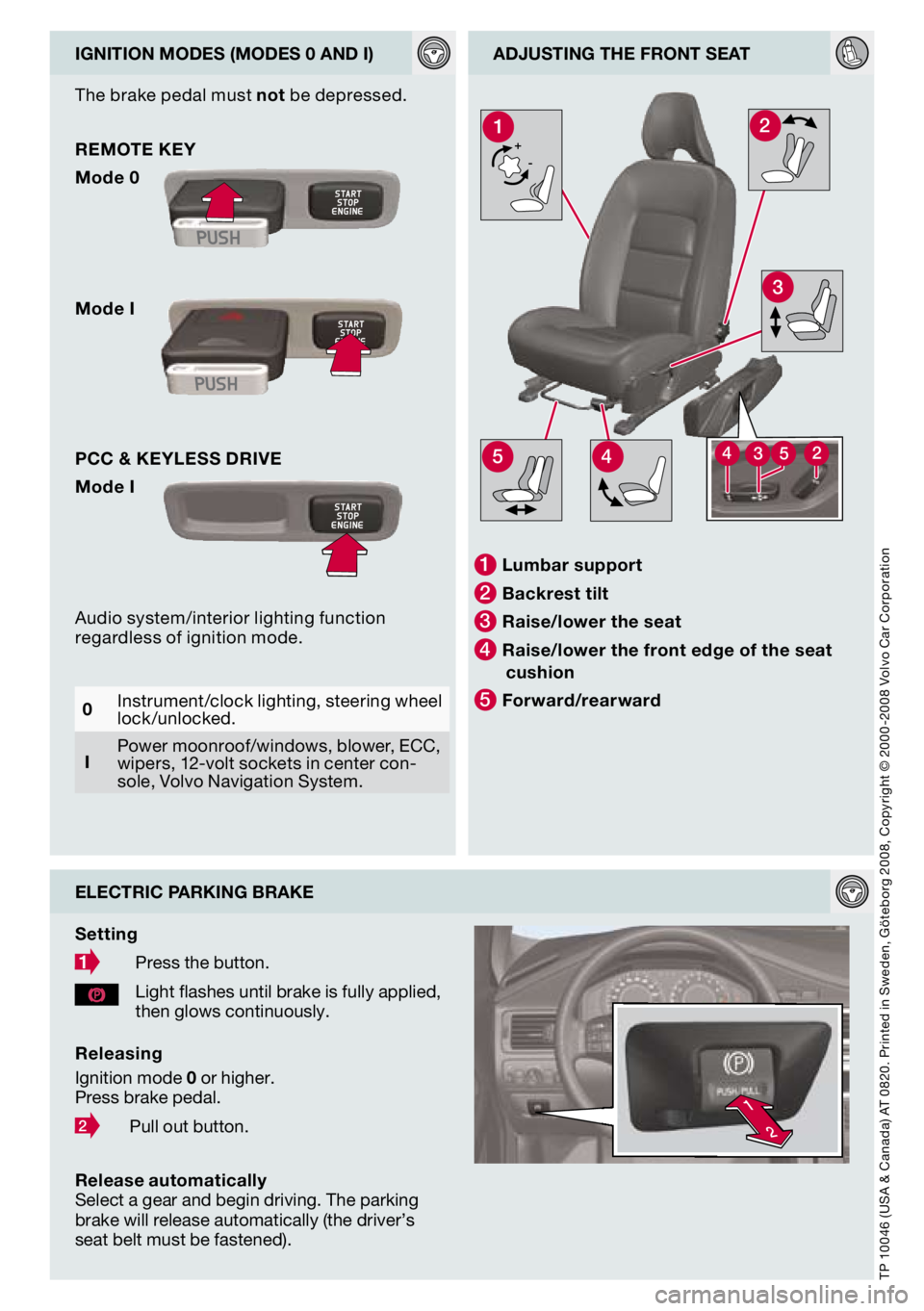

igNiTiON MOdEs (MOdEs 0 ANd i)AdjUsTiNg ThE fRONT sEAT
TP 10046 (USA & Canada) AT 0820. Printed in Sweden, Göteborg 2008, Copyright © 2000 -2008 Volvo Car Corporation
ELECTRiC PARKiNg BRAKE
setting

Press the button.
Light flashes until brake is fully applied, then glows continuously.
1 Lumbar support
2 Backrest tilt
3 Raise/lower the seat
4 Raise/lower the front edge of the seat cushion
5 f
orward/rearward0Instrument/clock lighting, steering wheel lock /unlocked.
iPower moonroof/windows, blower, ECC, wipers, 12-volt sockets in center con-sole, Volvo Navigation System.
The brake pedal must not be depressed.
REMOTE KEY
Mode 0
Mode i
PCC & KEYLE ss d Riv E
Mode i
Audio system/interior lighting function regardless of ignition mode.

Releasing
Ignition mode 0 or higher. Press brake pedal.
2Pull out button.
Release automatically Select a gear and begin driving. The parking brake will release automatically (the driver’s seat belt must be fastened).
