VOLVO S80 2009 Owner´s Manual

01 Safety

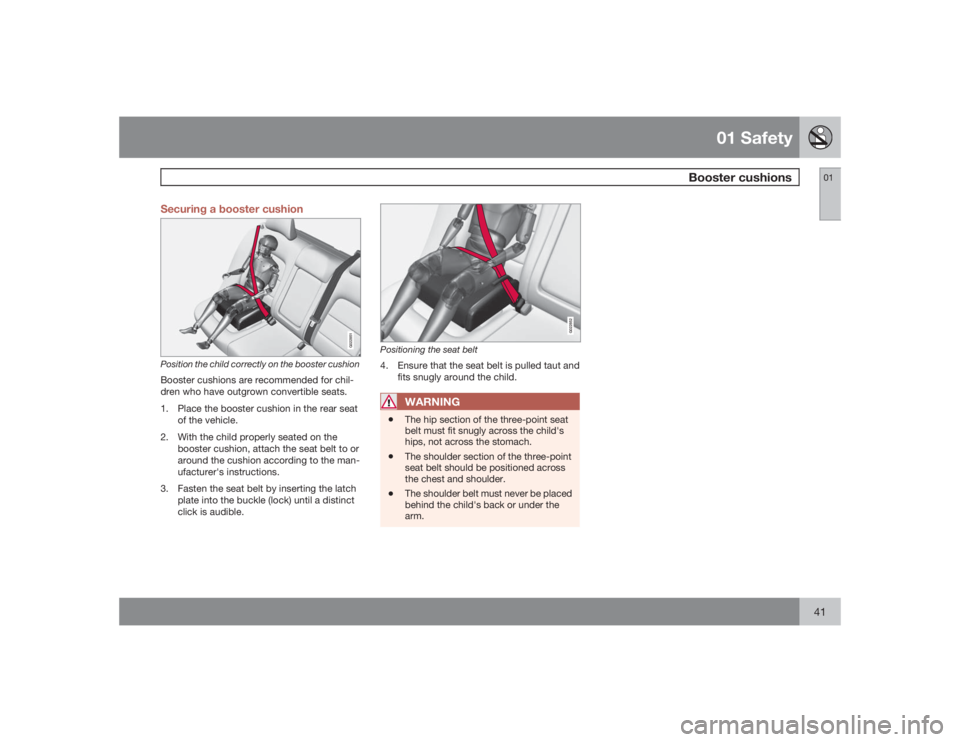

Booster cushions
0141 Securing a booster cushion
G022851
Position the child correctly on the booster cushionBooster cushions are recommended for chil-
dren who have outgrown convertible seats.
1. Place the booster cushion in the rear seat
of the vehicle.
2. With the child properly seated on the
booster cushion, attach the seat belt to or
around the cushion according to the man-
ufacturer's instructions.
3. Fasten the seat belt by inserting the latch
plate into the buckle (lock) until a distinct
click is audible.
G022852
Positioning the seat belt4. Ensure that the seat belt is pulled taut and
fits snugly around the child.
WARNING
•
The hip section of the three-point seat
belt must fit snugly across the child's
hips, not across the stomach.
•
The shoulder section of the three-point
seat belt should be positioned across
the chest and shoulder.
•
The shoulder belt must never be placed
behind the child's back or under the
arm.

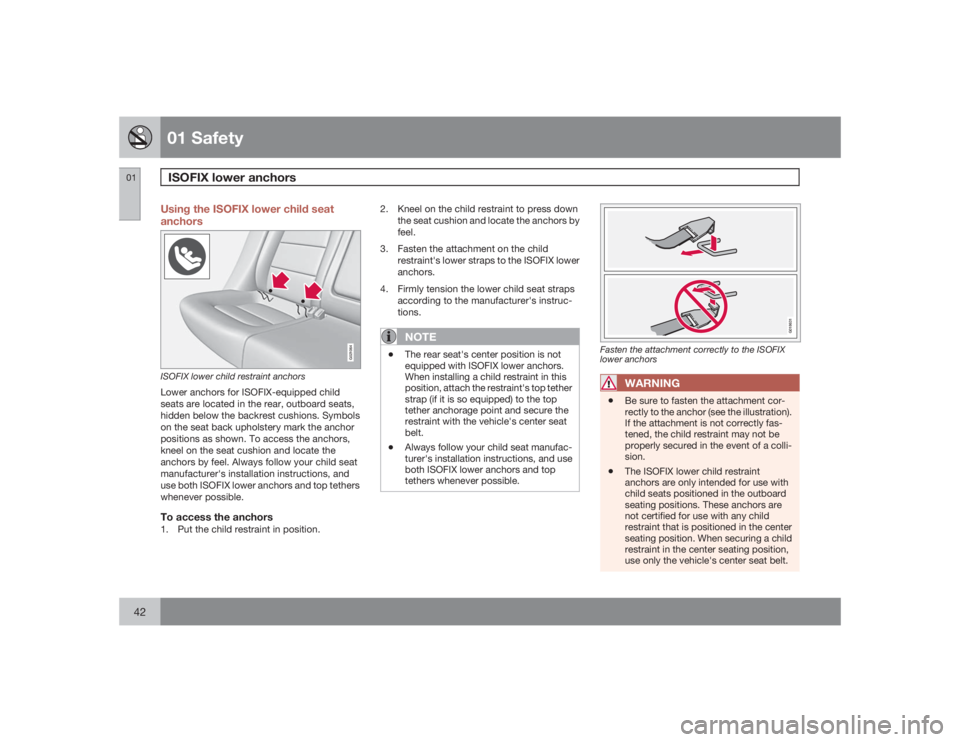

01 SafetyISOFIX lower anchors
0142
Using the ISOFIX lower child seat
anchors
G021064
ISOFIX lower child restraint anchorsLower anchors for ISOFIX-equipped child
seats are located in the rear, outboard seats,
hidden below the backrest cushions. Symbols
on the seat back upholstery mark the anchor
positions as shown. To access the anchors,
kneel on the seat cushion and locate the
anchors by feel. Always follow your child seat
manufacturer's installation instructions, and
use both ISOFIX lower anchors and top tethers
whenever possible.To access the anchors1. Put the child restraint in position.2. Kneel on the child restraint to press down
the seat cushion and locate the anchors by
feel.
3. Fasten the attachment on the child
restraint's lower straps to the ISOFIX lower
anchors.
4. Firmly tension the lower child seat straps
according to the manufacturer's instruc-
tions.
NOTE
•
The rear seat's center position is not
equipped with ISOFIX lower anchors.
When installing a child restraint in this
position, attach the restraint's top tether
strap (if it is so equipped) to the top
tether anchorage point and secure the
restraint with the vehicle's center seat
belt.
•
Always follow your child seat manufac-
turer's installation instructions, and use
both ISOFIX lower anchors and top
tethers whenever possible.
G018631
Fasten the attachment correctly to the ISOFIX
lower anchors
WARNING
•
Be sure to fasten the attachment cor-
rectly to the anchor (see the illustration).
If the attachment is not correctly fas-
tened, the child restraint may not be
properly secured in the event of a colli-
sion.
•
The ISOFIX lower child restraint
anchors are only intended for use with
child seats positioned in the outboard
seating positions. These anchors are
not certified for use with any child
restraint that is positioned in the center
seating position. When securing a child
restraint in the center seating position,
use only the vehicle's center seat belt.

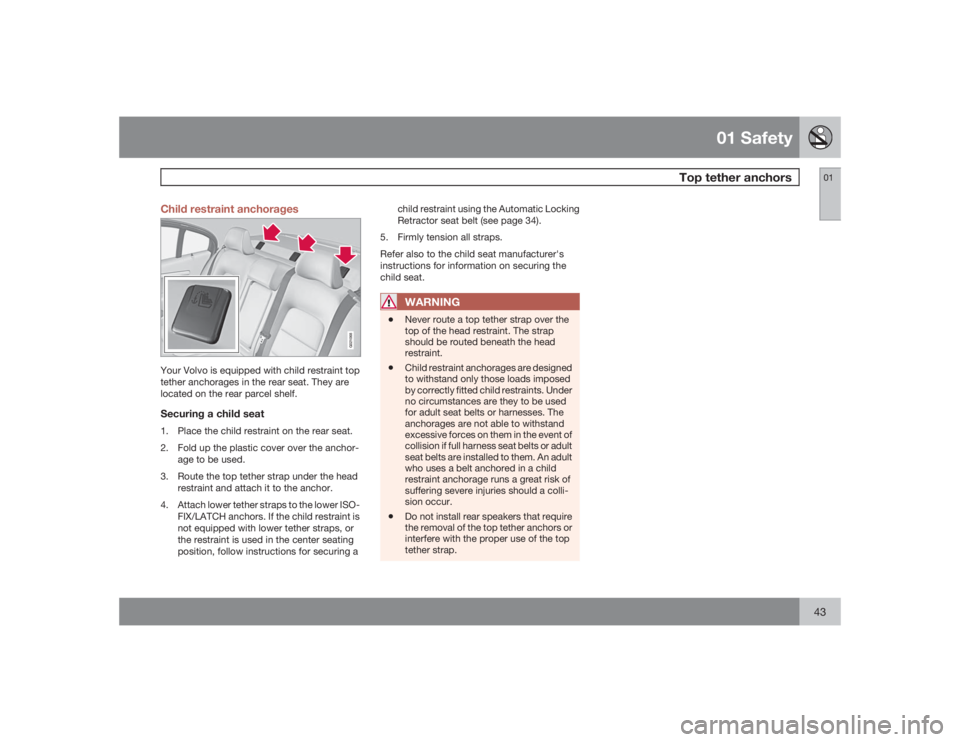

01 Safety
Top tether anchors
0143 Child restraint anchorages
G021068
Your Volvo is equipped with child restraint top
tether anchorages in the rear seat. They are
located on the rear parcel shelf.Securing a child seat1. Place the child restraint on the rear seat.
2. Fold up the plastic cover over the anchor-
age to be used.
3. Route the top tether strap under the head
restraint and attach it to the anchor.
4. Attach lower tether straps to the lower ISO-
FIX/LATCH anchors. If the child restraint is
not equipped with lower tether straps, or
the restraint is used in the center seating
position, follow instructions for securing achild restraint using the Automatic Locking
Retractor seat belt (see page 34).
5. Firmly tension all straps.
Refer also to the child seat manufacturer's
instructions for information on securing the
child seat.
WARNING
•
Never route a top tether strap over the
top of the head restraint. The strap
should be routed beneath the head
restraint.
•
Child restraint anchorages are designed
to withstand only those loads imposed
by correctly fitted child restraints. Under
no circumstances are they to be used
for adult seat belts or harnesses. The
anchorages are not able to withstand
excessive forces on them in the event of
collision if full harness seat belts or adult
seat belts are installed to them. An adult
who uses a belt anchored in a child
restraint anchorage runs a great risk of
suffering severe injuries should a colli-
sion occur.
•
Do not install rear speakers that require
the removal of the top tether anchors or
interfere with the proper use of the top
tether strap.

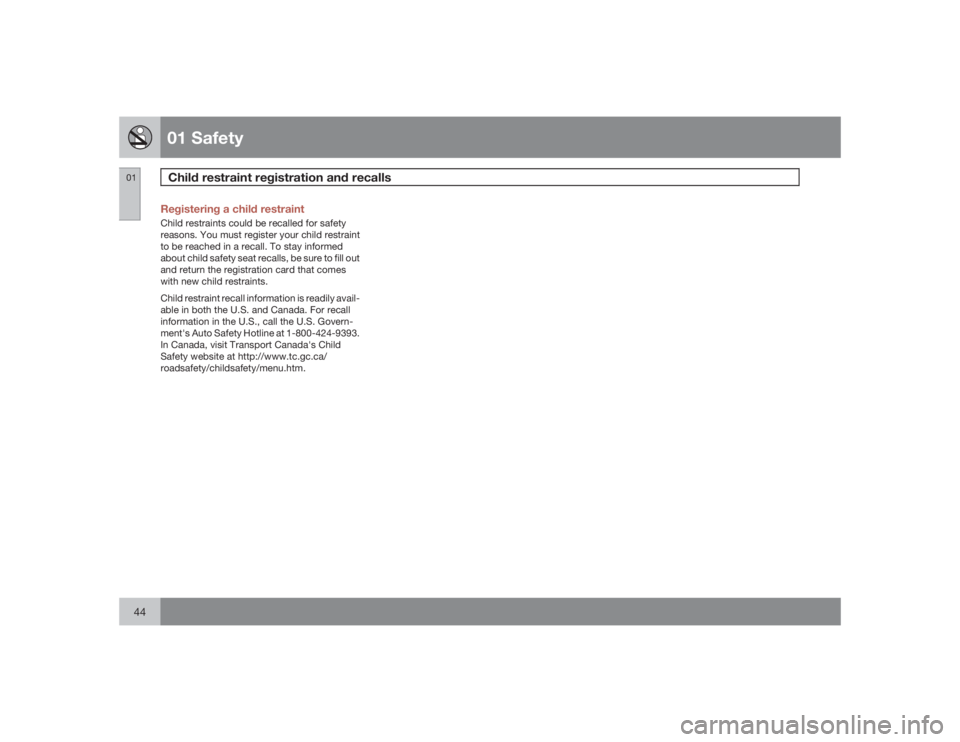

01 SafetyChild restraint registration and recalls
0144
Registering a child restraintChild restraints could be recalled for safety
reasons. You must register your child restraint
to be reached in a recall. To stay informed
about child safety seat recalls, be sure to fill out
and return the registration card that comes
with new child restraints.
Child restraint recall information is readily avail-
able in both the U.S. and Canada. For recall
information in the U.S., call the U.S. Govern-
ment's Auto Safety Hotline at 1-800-424-9393.
In Canada, visit Transport Canada's Child
Safety website at http://www.tc.gc.ca/
roadsafety/childsafety/menu.htm.

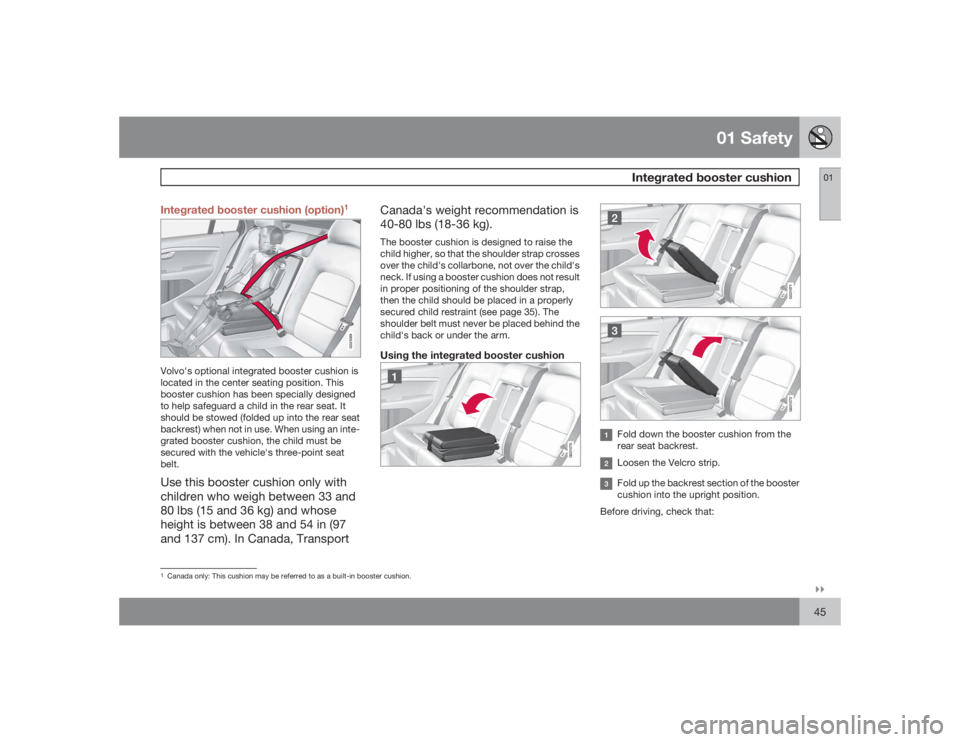

01 Safety
Integrated booster cushion
01``45 Integrated booster cushion (option)
1G021069
Volvo's optional integrated booster cushion is
located in the center seating position. This
booster cushion has been specially designed
to help safeguard a child in the rear seat. It
should be stowed (folded up into the rear seat
backrest) when not in use. When using an inte-
grated booster cushion, the child must be
secured with the vehicle's three-point seat
belt.Use this booster cushion only with
children who weigh between 33 and
80 lbs (15 and 36 kg) and whose
height is between 38 and 54 in (97
and 137 cm). In Canada, TransportCanada's weight recommendation is
40-80 lbs (18-36 kg).
The booster cushion is designed to raise the
child higher, so that the shoulder strap crosses
over the child's collarbone, not over the child's
neck. If using a booster cushion does not result
in proper positioning of the shoulder strap,
then the child should be placed in a properly
secured child restraint (see page 35). The
shoulder belt must never be placed behind the
child's back or under the arm.Using the integrated booster cushion
G021070
G021071G021072
Fold down the booster cushion from the
rear seat backrest.Loosen the Velcro strip.Fold up the backrest section of the booster
cushion into the upright position.
Before driving, check that:
1Canada only: This cushion may be referred to as a built-in booster cushion.

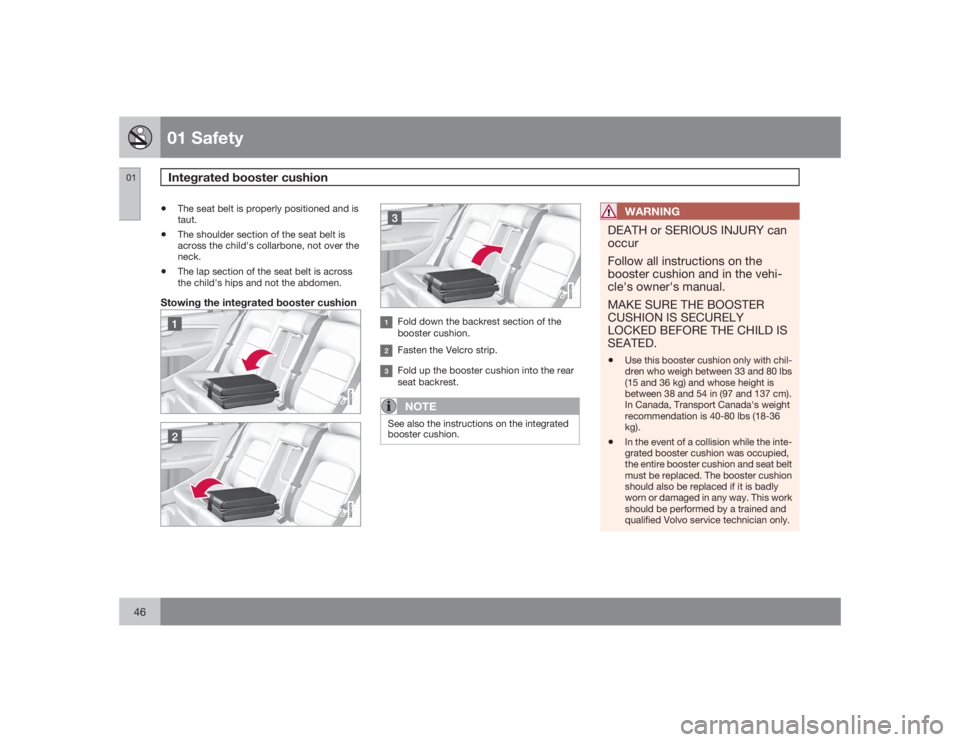

01 SafetyIntegrated booster cushion
0146
•
The seat belt is properly positioned and is
taut.
•
The shoulder section of the seat belt is
across the child's collarbone, not over the
neck.
•
The lap section of the seat belt is across
the child's hips and not the abdomen.
Stowing the integrated booster cushion
G021074G021075
G021076
Fold down the backrest section of the
booster cushion.Fasten the Velcro strip.Fold up the booster cushion into the rear
seat backrest.NOTE
See also the instructions on the integrated
booster cushion.
WARNING
DEATH or SERIOUS INJURY can
occur
Follow all instructions on the
booster cushion and in the vehi-
cle's owner's manual.
MAKE SURE THE BOOSTER
CUSHION IS SECURELY
LOCKED BEFORE THE CHILD IS
SEATED.
•
Use this booster cushion only with chil-
dren who weigh between 33 and 80 lbs
(15 and 36 kg) and whose height is
between 38 and 54 in (97 and 137 cm).
In Canada, Transport Canada's weight
recommendation is 40-80 lbs (18-36
kg).
•
In the event of a collision while the inte-
grated booster cushion was occupied,
the entire booster cushion and seat belt
must be replaced. The booster cushion
should also be replaced if it is badly
worn or damaged in any way. This work
should be performed by a trained and
qualified Volvo service technician only.

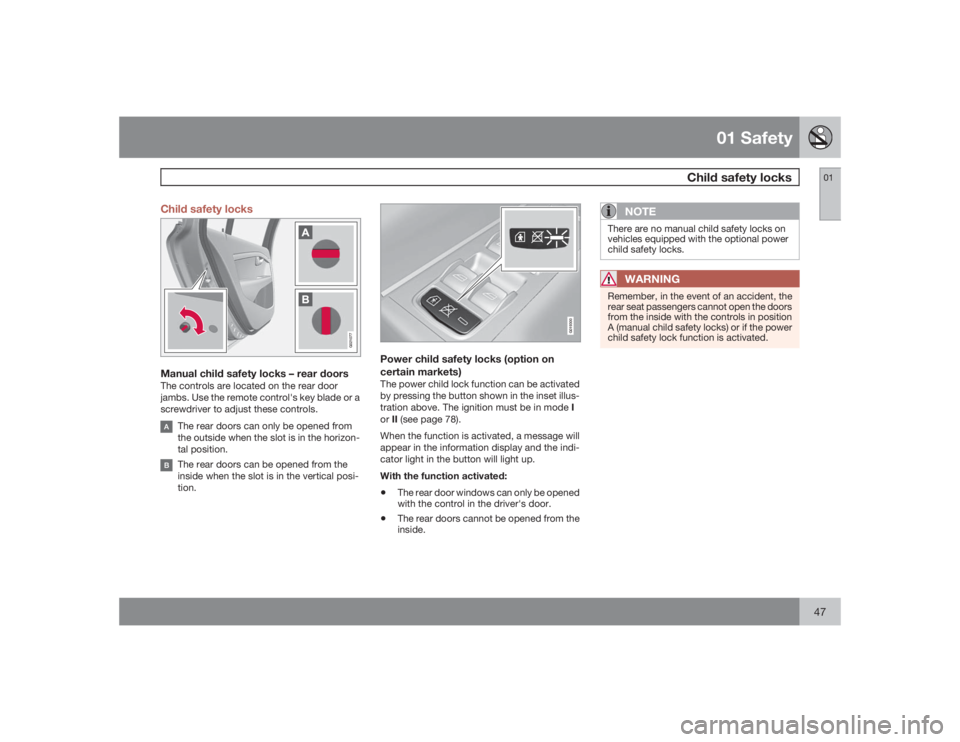

01 Safety
Child safety locks
0147 Child safety locks
G021077
Manual child safety locks – rear doorsThe controls are located on the rear door
jambs. Use the remote control's key blade or a
screwdriver to adjust these controls.
The rear doors can only be opened from
the outside when the slot is in the horizon-
tal position.The rear doors can be opened from the
inside when the slot is in the vertical posi-
tion.
G019300
Power child safety locks (option on
certain markets)The power child lock function can be activated
by pressing the button shown in the inset illus-
tration above. The ignition must be in mode I
orII (see page 78).
When the function is activated, a message will
appear in the information display and the indi-
cator light in the button will light up.
With the function activated:•
The rear door windows can only be opened
with the control in the driver's door.
•
The rear doors cannot be opened from the
inside.
NOTE
There are no manual child safety locks on
vehicles equipped with the optional power
child safety locks.
WARNING
Remember, in the event of an accident, the
rear seat passengers cannot open the doors
from the inside with the controls in position
A (manual child safety locks) or if the power
child safety lock function is activated.

48
Remote key and key blade..................................................................... 50
Valet locking ........................................................................................... 57
Keyless drive........................................................................................... 58
Locks....................................................................................................... 61
Alarm....................................................................................................... 64

02

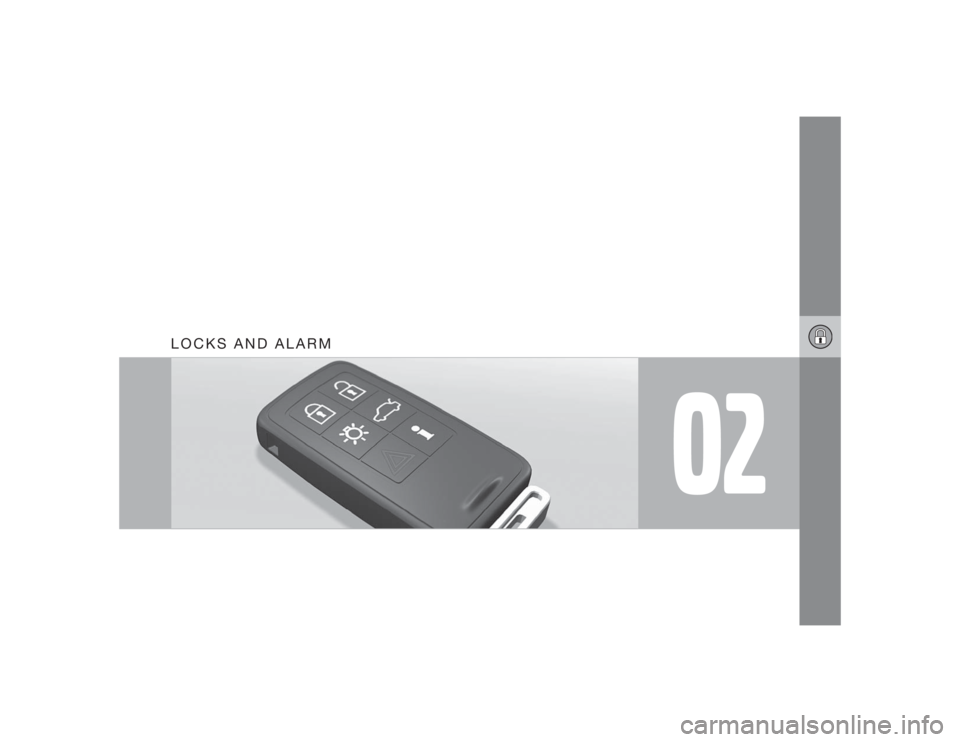

LOCKS AND ALARM

02 Locks and alarmRemote key and key blade
0250
IntroductionTwo remote keys or optional Personal Car
Communicators (PCC) are provided with your
vehicle. They enable you to unlock the doors
and trunk, and also function as ignition keys to
start the vehicle or operate electrical compo-
nents. The remote keys contain detachable
metal key blades for manually locking or
unlocking the driver's door and the glove com-
partment. Up to six remotes can be pro-
grammed for use on the same vehicle.
The PCCs have enhanced functionality com-
pared with the standard remote control.
NOTE
In the remainder of this chapter, all referen-
ces to the remote key also pertain to the
PCC unless otherwise stated.
WARNING
Never leave the remote key in the ignition if
children are to remain in the vehicle.Detachable key bladeEach remote key or PCC contains a detachable
metal key blade for mechanically locking or
unlocking the driver's door and the glove com-
partment, and to enable the valet locking func-
tion. See page 55 for more information on the
key blade and page see page 57 for informa-tion on the valet locking function. The key
blades have a unique code, which is used if
new ones need to be produced. This code is
available at an authorized Volvo retailer.
Loss of a remote keyIf a remote key is lost, the other one must be
taken with the vehicle to a trained and qualified
Volvo service technician. As an anti-theft
measure, the code of the lost remote must be
erased from the system.
The number of registered keys for the vehicle
can be found in the vehicle's menu under Car
settings
Car key memory
Number of
keys. See page 120 for a description of the
menu system.
USA-5WK49264
FCC ID:KR55WK49264 + Siemens VDO
5WK49236
FCC ID:KR55WK49236, 5WK49266
FCC ID:KR55WK49266 + Siemens VDO
5WK49233
FCC ID:KR55WK49233
This device complies with part 15 of the FCC
rules and RSS-210. Operation is subject to the
following conditions: (1) This device may not
cause harmful interference, and (2) this device
must accept any interference received, includ-ing interference that may cause undesired
operation.
Canada-5WK49264
IC:267T-5WK49264 + Siemens VDO
5WK49236
IC:267T-5WK49236, 5WK49266
IC:267T-5WK49266 + Siemens VDO
5WK49233
IC:267T-5WK49233
Operation is subject to the following condi-
tions: (1) this device may not cause interfer-
ence, and (2) this device must accept any
interference, including interference that may
cause undesired operation of the device.
Key memory – door mirrors and driver's
seatThe position of the side door mirrors and
optional power driver's seat are stored in the
remote keys when the vehicle is locked. The
next time the driver's door is unlocked with the
same remote key and the door is opened within
2 minutes, the power driver's seat and side
door mirrors will automatically move to the
position that they were in when the doors were
most recently locked with the same remote
key. See page 81 for more information.
