VOLVO S80 2011 Owner´s Manual

LOCKS AND ALARM

02 Locks and alarm
Remote key and key blade
02
52

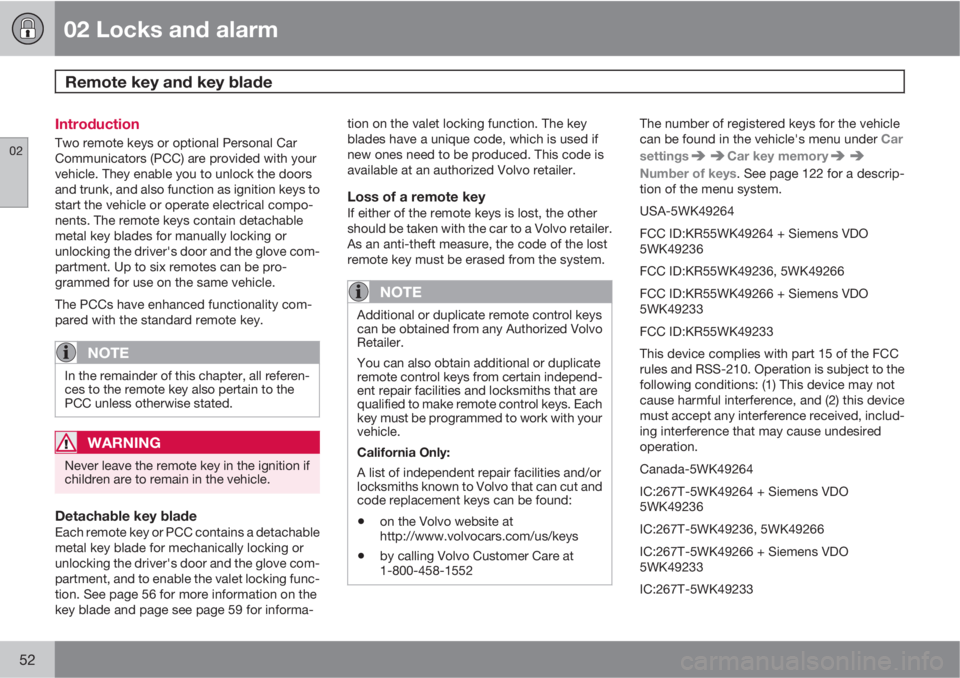

Introduction
Two remote keys or optional Personal Car
Communicators (PCC) are provided with your
vehicle. They enable you to unlock the doors
and trunk, and also function as ignition keys to
start the vehicle or operate electrical compo-
nents. The remote keys contain detachable
metal key blades for manually locking or
unlocking the driver's door and the glove com-
partment. Up to six remotes can be pro-
grammed for use on the same vehicle.
The PCCs have enhanced functionality com-
pared with the standard remote key.
NOTE
In the remainder of this chapter, all referen-
ces to the remote key also pertain to the
PCC unless otherwise stated.
WARNING
Never leave the remote key in the ignition if
children are to remain in the vehicle.
Detachable key bladeEach remote key or PCC contains a detachable
metal key blade for mechanically locking or
unlocking the driver's door and the glove com-
partment, and to enable the valet locking func-
tion. See page 56 for more information on the
key blade and page see page 59 for informa-tion on the valet locking function. The key
blades have a unique code, which is used if
new ones need to be produced. This code is
available at an authorized Volvo retailer.
Loss of a remote keyIf either of the remote keys is lost, the other
should be taken with the car to a Volvo retailer.
As an anti-theft measure, the code of the lost
remote key must be erased from the system.
NOTE
Additional or duplicate remote control keys
can be obtained from any Authorized Volvo
Retailer.
You can also obtain additional or duplicate
remote control keys from certain independ-
ent repair facilities and locksmiths that are
qualified to make remote control keys. Each
key must be programmed to work with your
vehicle.
California Only:
A list of independent repair facilities and/or
locksmiths known to Volvo that can cut and
code replacement keys can be found:
•on the Volvo website at
http://www.volvocars.com/us/keys
•by calling Volvo Customer Care at
1-800-458-1552
The number of registered keys for the vehicle
can be found in the vehicle's menu under Car
settings
Car key memory
Number of keys. See page 122 for a descrip-
tion of the menu system.
USA-5WK49264
FCC ID:KR55WK49264 + Siemens VDO
5WK49236
FCC ID:KR55WK49236, 5WK49266
FCC ID:KR55WK49266 + Siemens VDO
5WK49233
FCC ID:KR55WK49233
This device complies with part 15 of the FCC
rules and RSS-210. Operation is subject to the
following conditions: (1) This device may not
cause harmful interference, and (2) this device
must accept any interference received, includ-
ing interference that may cause undesired
operation.
Canada-5WK49264
IC:267T-5WK49264 + Siemens VDO
5WK49236
IC:267T-5WK49236, 5WK49266
IC:267T-5WK49266 + Siemens VDO
5WK49233
IC:267T-5WK49233

02 Locks and alarm
Remote key and key blade
02

53

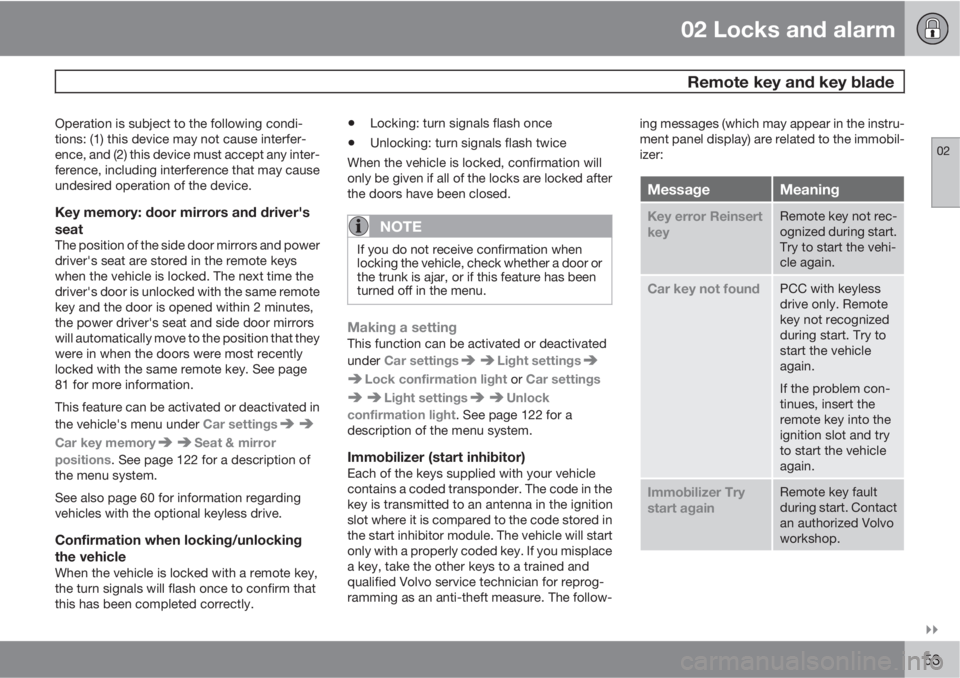

Operation is subject to the following condi-
tions: (1) this device may not cause interfer-
ence, and (2) this device must accept any inter-
ference, including interference that may cause
undesired operation of the device.
Key memory: door mirrors and driver's
seat
The position of the side door mirrors and power
driver's seat are stored in the remote keys
when the vehicle is locked. The next time the
driver's door is unlocked with the same remote
key and the door is opened within 2 minutes,
the power driver's seat and side door mirrors
will automatically move to the position that they
were in when the doors were most recently
locked with the same remote key. See page
81 for more information.
This feature can be activated or deactivated in
the vehicle's menu under Car settings
Car key memorySeat & mirror
positions. See page 122 for a description of
the menu system.
See also page 60 for information regarding
vehicles with the optional keyless drive.
Confirmation when locking/unlocking
the vehicle
When the vehicle is locked with a remote key,
the turn signals will flash once to confirm that
this has been completed correctly.
•Locking: turn signals flash once
•Unlocking: turn signals flash twice
When the vehicle is locked, confirmation will
only be given if all of the locks are locked after
the doors have been closed.
NOTE
If you do not receive confirmation when
locking the vehicle, check whether a door or
the trunk is ajar, or if this feature has been
turned off in the menu.
Making a settingThis function can be activated or deactivated
under Car settings
Light settings
Lock confirmation light or Car settings
Light settingsUnlock
confirmation light. See page 122 for a
description of the menu system.
Immobilizer (start inhibitor)Each of the keys supplied with your vehicle
contains a coded transponder. The code in the
key is transmitted to an antenna in the ignition
slot where it is compared to the code stored in
the start inhibitor module. The vehicle will start
only with a properly coded key. If you misplace
a key, take the other keys to a trained and
qualified Volvo service technician for reprog-
ramming as an anti-theft measure. The follow-ing messages (which may appear in the instru-
ment panel display) are related to the immobil-
izer:
MessageMeaning
Key error Reinsert
keyRemote key not rec-
ognized during start.
Try to start the vehi-
cle again.
Car key not foundPCC with keyless
drive only. Remote
key not recognized
during start. Try to
start the vehicle
again.
If the problem con-
tinues, insert the
remote key into the
ignition slot and try
to start the vehicle
again.
Immobilizer Try
start againRemote key fault
during start. Contact
an authorized Volvo
workshop.

02 Locks and alarm
Remote key and key blade
02
54* Option/accessory, for more information, see Introduction.

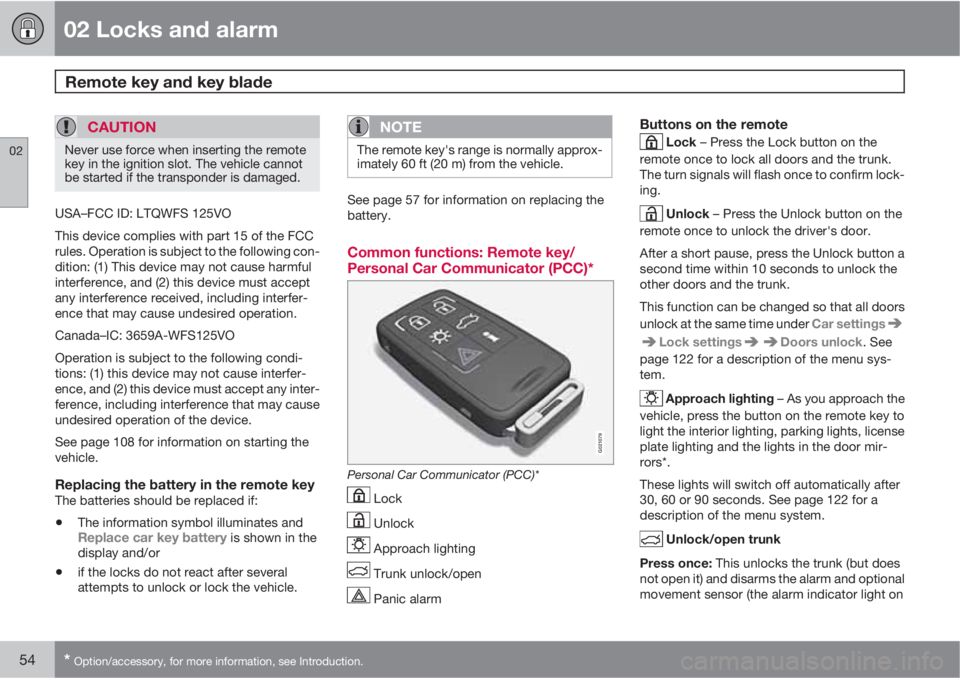

CAUTION
Never use force when inserting the remote
key in the ignition slot. The vehicle cannot
be started if the transponder is damaged.
USA–FCC ID: LTQWFS 125VO
This device complies with part 15 of the FCC
rules. Operation is subject to the following con-
dition: (1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
Canada–IC: 3659A-WFS125VO
Operation is subject to the following condi-
tions: (1) this device may not cause interfer-
ence, and (2) this device must accept any inter-
ference, including interference that may cause
undesired operation of the device.
See page 108 for information on starting the
vehicle.

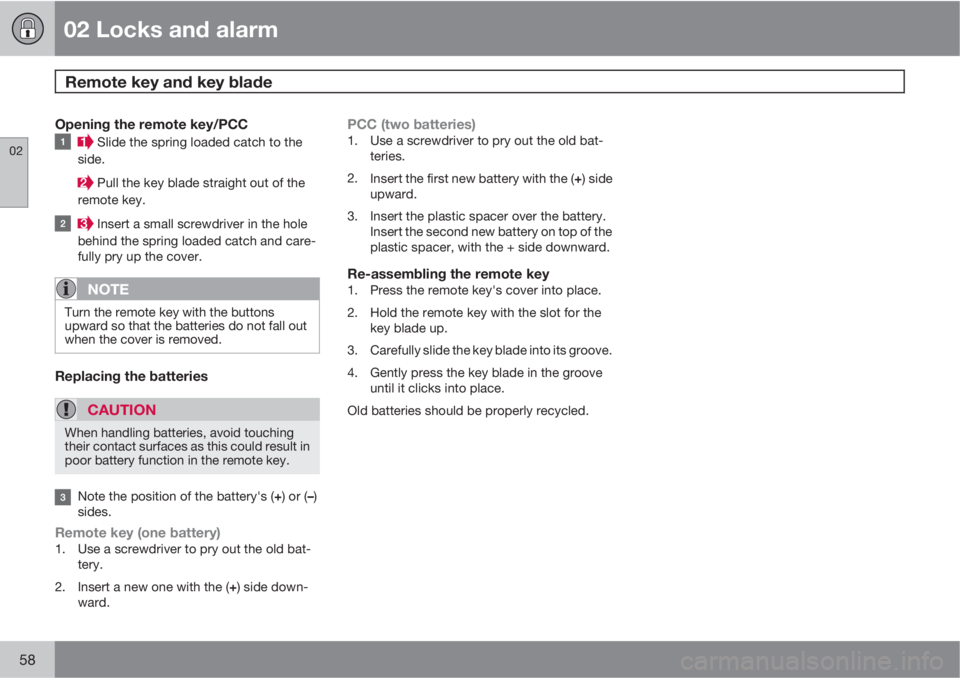

Replacing the battery in the remote keyThe batteries should be replaced if:
•The information symbol illuminates andReplace car key battery is shown in the
display and/or
•if the locks do not react after several
attempts to unlock or lock the vehicle.
NOTE
The remote key's range is normally approx-
imately 60 ft (20 m) from the vehicle.
See page 57 for information on replacing the
battery.
Common functions: Remote key/
Personal Car Communicator (PCC)*
G021079
Personal Car Communicator (PCC)*
Lock
Unlock
Approach lighting
Trunk unlock/open
Panic alarm
Buttons on the remote
Lock – Press the Lock button on the
remote once to lock all doors and the trunk.
The turn signals will flash once to confirm lock-
ing.
Unlock – Press the Unlock button on the
remote once to unlock the driver's door.
After a short pause, press the Unlock button a
second time within 10 seconds to unlock the
other doors and the trunk.
This function can be changed so that all doors
unlock at the same time under Car settings
Lock settingsDoors unlock. See
page 122 for a description of the menu sys-
tem.
Approach lighting – As you approach the
vehicle, press the button on the remote key to
light the interior lighting, parking lights, license
plate lighting and the lights in the door mir-
rors*.
These lights will switch off automatically after
30, 60 or 90 seconds. See page 122 for a
description of the menu system.
Unlock/open trunk
Press once: This unlocks the trunk (but does
not open it) and disarms the alarm and optional
movement sensor (the alarm indicator light on

02 Locks and alarm
Remote key and key blade
02

* Option/accessory, for more information, see Introduction.55

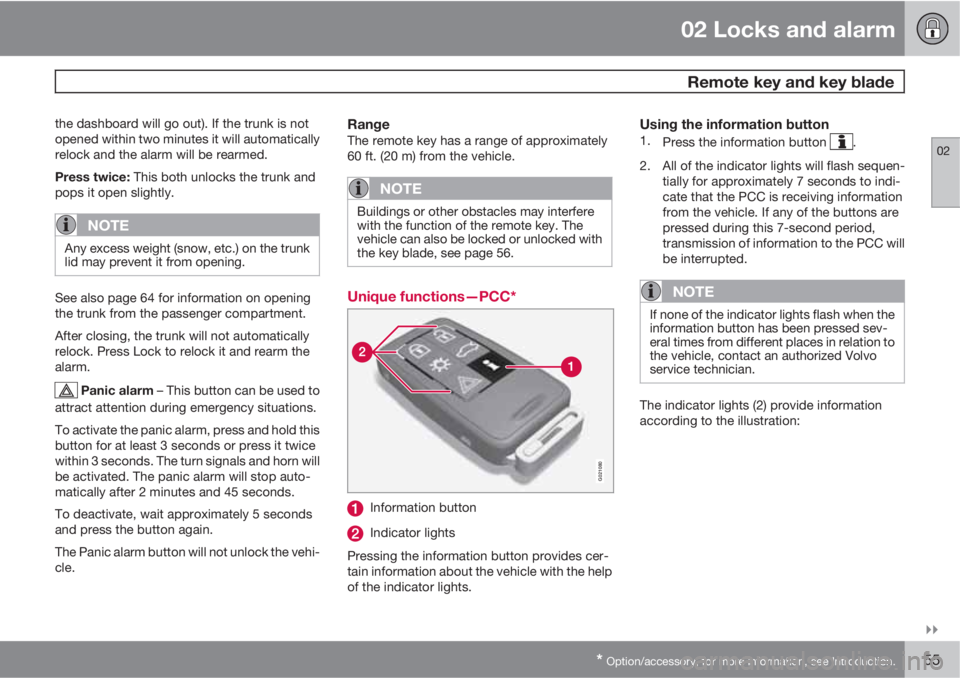

the dashboard will go out). If the trunk is not
opened within two minutes it will automatically
relock and the alarm will be rearmed.
Press twice: This both unlocks the trunk and
pops it open slightly.
NOTE
Any excess weight (snow, etc.) on the trunk
lid may prevent it from opening.
See also page 64 for information on opening
the trunk from the passenger compartment.
After closing, the trunk will not automatically
relock. Press Lock to relock it and rearm the
alarm.
Panic alarm – This button can be used to
attract attention during emergency situations.
To activate the panic alarm, press and hold this
button for at least 3 seconds or press it twice
within 3 seconds. The turn signals and horn will
be activated. The panic alarm will stop auto-
matically after 2 minutes and 45 seconds.
To deactivate, wait approximately 5 seconds
and press the button again.
The Panic alarm button will not unlock the vehi-
cle.
RangeThe remote key has a range of approximately
60 ft. (20 m) from the vehicle.
NOTE
Buildings or other obstacles may interfere
with the function of the remote key. The
vehicle can also be locked or unlocked with
the key blade, see page 56.
Unique functions—PCC*
G021080
Information button
Indicator lights
Pressing the information button provides cer-
tain information about the vehicle with the help
of the indicator lights.
Using the information button1.
Press the information button .
2. All of the indicator lights will flash sequen-
tially for approximately 7 seconds to indi-
cate that the PCC is receiving information
from the vehicle. If any of the buttons are
pressed during this 7-second period,
transmission of information to the PCC will
be interrupted.
NOTE
If none of the indicator lights flash when the
information button has been pressed sev-
eral times from different places in relation to
the vehicle, contact an authorized Volvo
service technician.
The indicator lights (2) provide information
according to the illustration:

02 Locks and alarm
Remote key and key blade
02
56

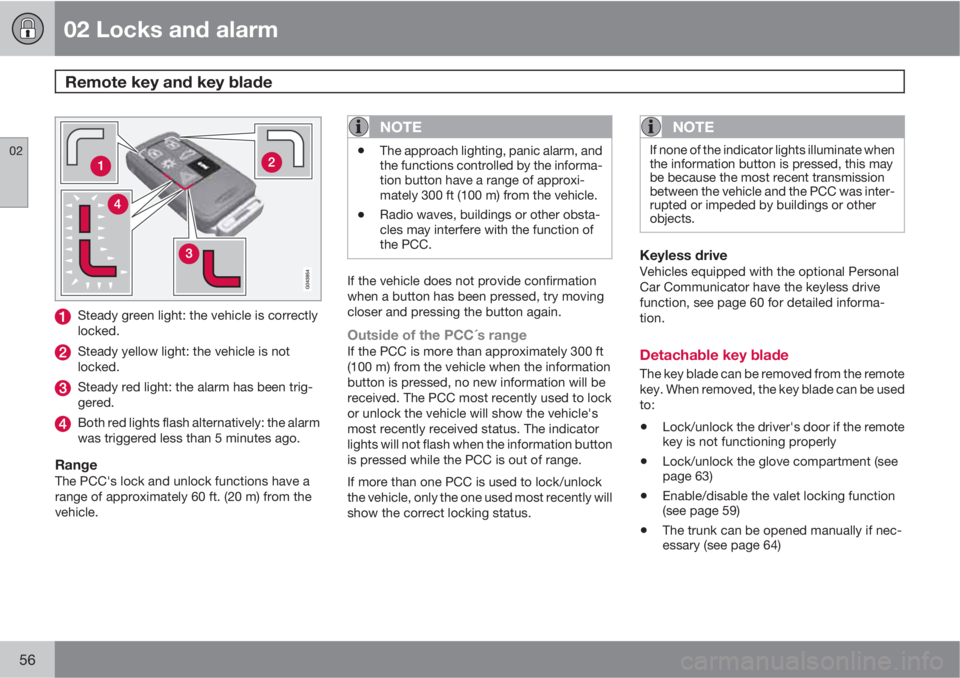

Steady green light: the vehicle is correctly
locked.
Steady yellow light: the vehicle is not
locked.
Steady red light: the alarm has been trig-
gered.
Both red lights flash alternatively: the alarm
was triggered less than 5 minutes ago.
RangeThe PCC's lock and unlock functions have a
range of approximately 60 ft. (20 m) from the
vehicle.
NOTE
•The approach lighting, panic alarm, and
the functions controlled by the informa-
tion button have a range of approxi-
mately 300 ft (100 m) from the vehicle.
•Radio waves, buildings or other obsta-
cles may interfere with the function of
the PCC.
If the vehicle does not provide confirmation
when a button has been pressed, try moving
closer and pressing the button again.
Outside of the PCC´s rangeIf the PCC is more than approximately 300 ft
(100 m) from the vehicle when the information
button is pressed, no new information will be
received. The PCC most recently used to lock
or unlock the vehicle will show the vehicle's
most recently received status. The indicator
lights will not flash when the information button
is pressed while the PCC is out of range.
If more than one PCC is used to lock/unlock
the vehicle, only the one used most recently will
show the correct locking status.
NOTE
If none of the indicator lights illuminate when
the information button is pressed, this may
be because the most recent transmission
between the vehicle and the PCC was inter-
rupted or impeded by buildings or other
objects.
Keyless driveVehicles equipped with the optional Personal
Car Communicator have the keyless drive
function, see page 60 for detailed informa-
tion.
Detachable key blade
The key blade can be removed from the remote
key. When removed, the key blade can be used
to:
•Lock/unlock the driver's door if the remote
key is not functioning properly
•Lock/unlock the glove compartment (see
page 63)
•Enable/disable the valet locking function
(see page 59)
•The trunk can be opened manually if nec-
essary (see page 64)

02 Locks and alarm
Remote key and key blade
02

57
Removing the key blade
G021082
Slide the spring loaded catch to the side.
Pull the key blade straight out of the remote
key.
Reinserting the key blade in the remote
key
1. Hold the remote key with the slot for the
key blade up.
2. Carefully slide the key blade into its groove.
3. Gently press the key blade in the groove
until it clicks into place.
Unlocking the doors with the detached
key blade
Insert the key blade as far as possible in the
driver's door lock. Turn the key blade clock-wise approximately one-quarter turn to unlock
the driver's door only.
NOTE
After unlocking the driver's door with the
key blade, opening the door will trigger the
alarm.
To disable the alarm:Insert the remote key in the ignition slot. This
also applies to vehicles equipped with the
optional keyless drive.
Replacing batteries in the remote key/
PCC
The battery/batteries in the remote key/PCC
should be replaced if:
•The information symbol lights up and a text
appears in the information display.
and/or
•the vehicle's locks repeatedly do not react
when a button on the remote key/PCC is
pressed within approximately 60 ft (20 m)
from the vehicle.
Battery type CR 2430, 3 V (one battery in the
remote key, two batteries in the PCC)

02 Locks and alarm
Remote key and key blade
02
58
Opening the remote key/PCC
Slide the spring loaded catch to the
side.
Pull the key blade straight out of the
remote key.
Insert a small screwdriver in the hole
behind the spring loaded catch and care-
fully pry up the cover.
NOTE
Turn the remote key with the buttons
upward so that the batteries do not fall out
when the cover is removed.
Replacing the batteries
CAUTION
When handling batteries, avoid touching
their contact surfaces as this could result in
poor battery function in the remote key.
Note the position of the battery's (+) or (–)
sides.
Remote key (one battery)1. Use a screwdriver to pry out the old bat-
tery.
2.
Insert a new one with the (+) side down-
ward.
PCC (two batteries)1. Use a screwdriver to pry out the old bat-
teries.
2.
Insert the first new battery with the (+) side
upward.
3. Insert the plastic spacer over the battery.
Insert the second new battery on top of the
plastic spacer, with the + side downward.
Re-assembling the remote key1. Press the remote key's cover into place.
2. Hold the remote key with the slot for the
key blade up.
3. Carefully slide the key blade into its groove.
4. Gently press the key blade in the groove
until it clicks into place.
Old batteries should be properly recycled.

02 Locks and alarm

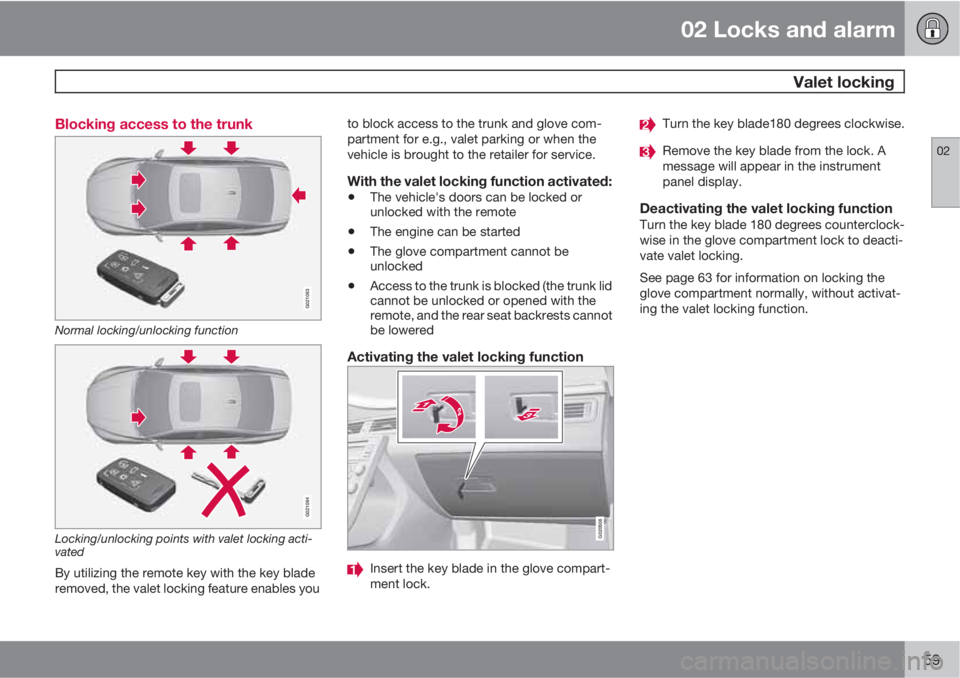

Valet locking
02
59 Blocking access to the trunk
G021083
Normal locking/unlocking function
G021084
Locking/unlocking points with valet locking acti-
vated
By utilizing the remote key with the key blade
removed, the valet locking feature enables youto block access to the trunk and glove com-
partment for e.g., valet parking or when the
vehicle is brought to the retailer for service.
With the valet locking function activated:
•The vehicle's doors can be locked or
unlocked with the remote
•The engine can be started
•The glove compartment cannot be
unlocked
•Access to the trunk is blocked (the trunk lid
cannot be unlocked or opened with the
remote, and the rear seat backrests cannot
be lowered
Activating the valet locking function
G020508
Insert the key blade in the glove compart-
ment lock.
Turn the key blade180 degrees clockwise.
Remove the key blade from the lock. A
message will appear in the instrument
panel display.
Deactivating the valet locking functionTurn the key blade 180 degrees counterclock-
wise in the glove compartment lock to deacti-
vate valet locking.
See page 63 for information on locking the
glove compartment normally, without activat-
ing the valet locking function.

02 Locks and alarm

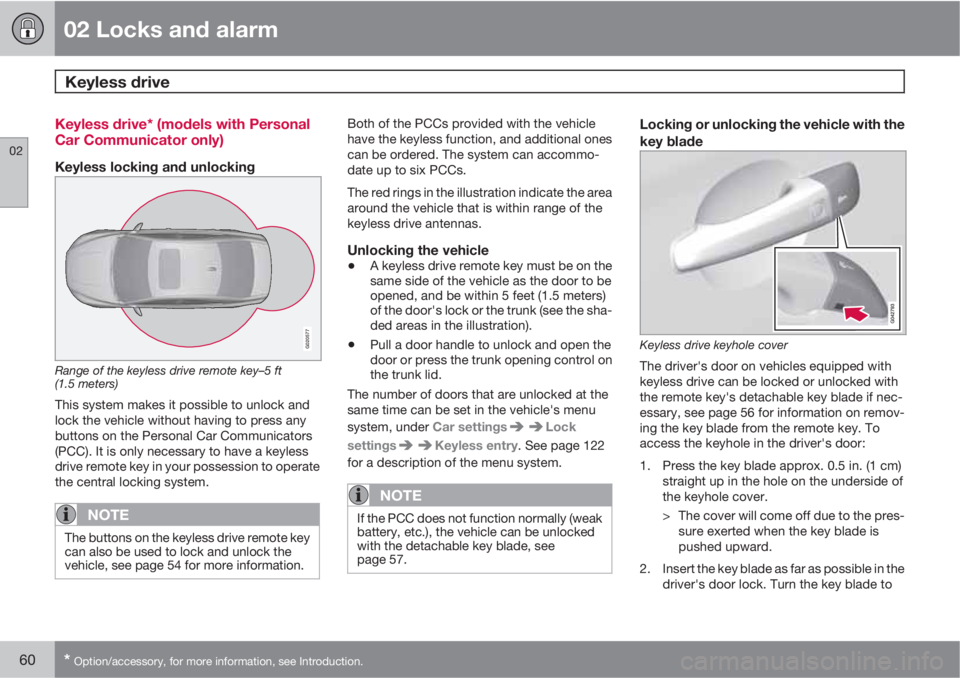

Keyless drive
02
60* Option/accessory, for more information, see Introduction.
Keyless drive* (models with Personal
Car Communicator only)
Keyless locking and unlocking
G020577
Range of the keyless drive remote key–5 ft
(1.5 meters)
This system makes it possible to unlock and
lock the vehicle without having to press any
buttons on the Personal Car Communicators
(PCC). It is only necessary to have a keyless
drive remote key in your possession to operate
the central locking system.
NOTE
The buttons on the keyless drive remote key
can also be used to lock and unlock the
vehicle, see page 54 for more information.
Both of the PCCs provided with the vehicle
have the keyless function, and additional ones
can be ordered. The system can accommo-
date up to six PCCs.
The red rings in the illustration indicate the area
around the vehicle that is within range of the
keyless drive antennas.
Unlocking the vehicle
•A keyless drive remote key must be on the
same side of the vehicle as the door to be
opened, and be within 5 feet (1.5 meters)
of the door's lock or the trunk (see the sha-
ded areas in the illustration).
•Pull a door handle to unlock and open the
door or press the trunk opening control on
the trunk lid.
The number of doors that are unlocked at the
same time can be set in the vehicle's menu
system, under Car settings
Lock
settings
Keyless entry. See page 122
for a description of the menu system.
NOTE
If the PCC does not function normally (weak
battery, etc.), the vehicle can be unlocked
with the detachable key blade, see
page 57.
Locking or unlocking the vehicle with the
key blade
Keyless drive keyhole cover
The driver's door on vehicles equipped with
keyless drive can be locked or unlocked with
the remote key's detachable key blade if nec-
essary, see page 56 for information on remov-
ing the key blade from the remote key. To
access the keyhole in the driver's door:
1. Press the key blade approx. 0.5 in. (1 cm)
straight up in the hole on the underside of
the keyhole cover.
> The cover will come off due to the pres-
sure exerted when the key blade is
pushed upward.
2. Insert the key blade as far as possible in the
driver's door lock. Turn the key blade to
