VOLVO S80 2011 Owner´s Manual

02 Locks and alarm
Keyless drive
02

61

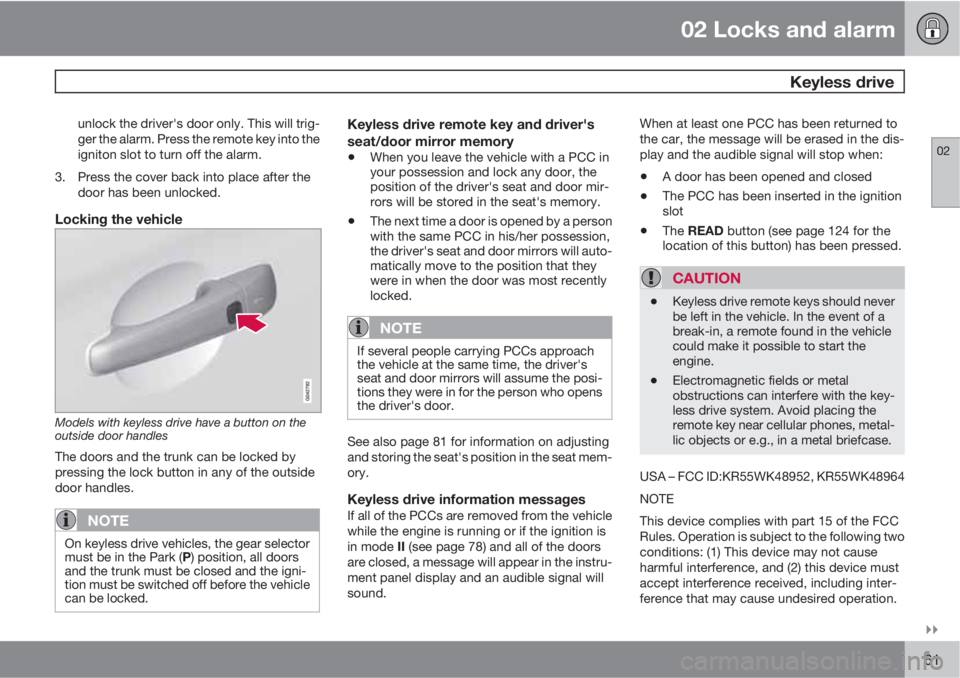

unlock the driver's door only. This will trig-
ger the alarm. Press the remote key into the
igniton slot to turn off the alarm.
3. Press the cover back into place after the
door has been unlocked.
Locking the vehicle
Models with keyless drive have a button on the
outside door handles
The doors and the trunk can be locked by
pressing the lock button in any of the outside
door handles.
NOTE
On keyless drive vehicles, the gear selector
must be in the Park (P) position, all doors
and the trunk must be closed and the igni-
tion must be switched off before the vehicle
can be locked.
Keyless drive remote key and driver's
seat/door mirror memory
•When you leave the vehicle with a PCC in
your possession and lock any door, the
position of the driver's seat and door mir-
rors will be stored in the seat's memory.
•The next time a door is opened by a person
with the same PCC in his/her possession,
the driver's seat and door mirrors will auto-
matically move to the position that they
were in when the door was most recently
locked.
NOTE
If several people carrying PCCs approach
the vehicle at the same time, the driver's
seat and door mirrors will assume the posi-
tions they were in for the person who opens
the driver's door.
See also page 81 for information on adjusting
and storing the seat's position in the seat mem-
ory.
Keyless drive information messagesIf all of the PCCs are removed from the vehicle
while the engine is running or if the ignition is
in mode II (see page 78) and all of the doors
are closed, a message will appear in the instru-
ment panel display and an audible signal will
sound.When at least one PCC has been returned to
the car, the message will be erased in the dis-
play and the audible signal will stop when:
•A door has been opened and closed
•The PCC has been inserted in the ignition
slot
•The READ button (see page 124 for the
location of this button) has been pressed.
CAUTION
•Keyless drive remote keys should never
be left in the vehicle. In the event of a
break-in, a remote found in the vehicle
could make it possible to start the
engine.
•Electromagnetic fields or metal
obstructions can interfere with the key-
less drive system. Avoid placing the
remote key near cellular phones, metal-
lic objects or e.g., in a metal briefcase.
USA – FCC ID:KR55WK48952, KR55WK48964
NOTE
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept interference received, including inter-
ference that may cause undesired operation.

02 Locks and alarm
Keyless drive
02
62

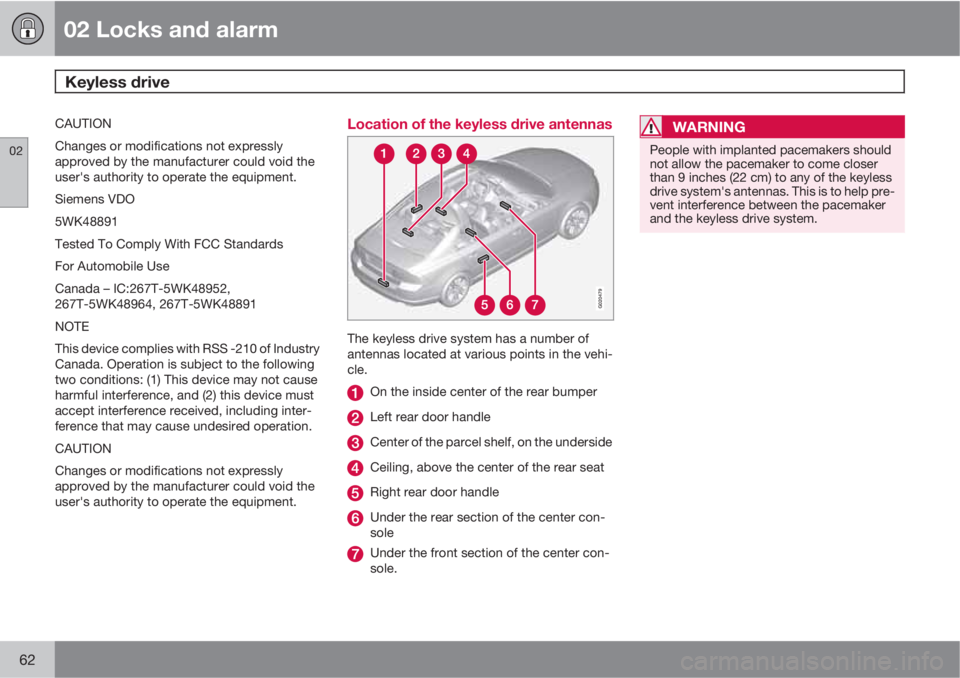

CAUTION
Changes or modifications not expressly
approved by the manufacturer could void the
user's authority to operate the equipment.
Siemens VDO
5WK48891
Tested To Comply With FCC Standards
For Automobile Use
Canada – IC:267T-5WK48952,
267T-5WK48964, 267T-5WK48891
NOTE
This device complies with RSS -210 of Industry
Canada. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept interference received, including inter-
ference that may cause undesired operation.
CAUTION
Changes or modifications not expressly
approved by the manufacturer could void the
user's authority to operate the equipment.Location of the keyless drive antennas
G020479
The keyless drive system has a number of
antennas located at various points in the vehi-
cle.
On the inside center of the rear bumper
Left rear door handle
Center of the parcel shelf, on the underside
Ceiling, above the center of the rear seat
Right rear door handle
Under the rear section of the center con-
sole
Under the front section of the center con-
sole.
WARNING
People with implanted pacemakers should
not allow the pacemaker to come closer
than 9 inches (22 cm) to any of the keyless
drive system's antennas. This is to help pre-
vent interference between the pacemaker
and the keyless drive system.

02 Locks and alarm
Locks
02

63 Locking and unlocking the vehicle
From outside the vehicleThe remote key locks all of the doors and the
trunk.
The first press on the unlock button unlocks the
driver's door and a second press unlocks the
other doors and the trunk (see also page 54).
NOTE
The vehicle cannot be locked if a door is
open.
From inside the vehicle (central locking
button)
Central locking button
The lock buttons on the door panel can be used
to lock or unlock all doors and the trunk at thesame time. Press
to lock and to
unlock.
When leaving the vehicle, the doors can be
locked by pressing
with the driver's door
open and then closing the door. This will lock
all of the doors and the trunk.
UnlockingThe vehicle can be unlocked from inside the
vehicle in two ways:
•By pressing the unlock button ().
•The door can be unlocked by pulling the
door handle once and opened by pulling
the handle again.
Locking
•Press the lock button () after the front
doors have been closed.
•Each door can be locked individually with
the lock button on the respective doors.
The door must be closed first.
Automatic relockingIf the doors are unlocked, the locks will auto-
matically reengage (re-lock) and the alarm will
rearm after 2 minutes unless a door or the trunk
has been opened.
Automatic lockingWhen the vehicle starts to move, the doors and
trunk can be locked automatically. This featurecan be turned on or off under Car settings
Lock settingsDoors automatic
lock. See page 122 for a description of the
menu system.
Glove compartment
G020548
The glove compartment can only be locked
and unlocked using the detachable key blade
in the remote key. See page 56 for information
on removing the key blade from the remote
key.
Insert the key blade in the glove compart-
ment lock.
Turn the key blade 90 degrees clockwise.
Remove the key blade from the lock.

02 Locks and alarm
Locks
02
64

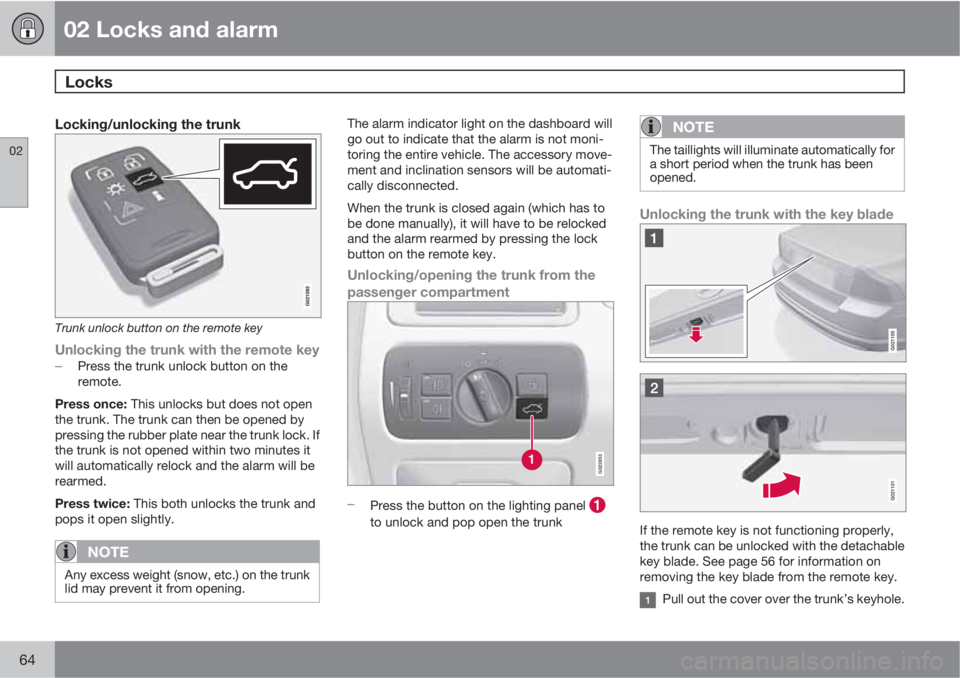

Locking/unlocking the trunk
Trunk unlock button on the remote key
Unlocking the trunk with the remote key
Press the trunk unlock button on the
remote.
Press once: This unlocks but does not open
the trunk. The trunk can then be opened by
pressing the rubber plate near the trunk lock. If
the trunk is not opened within two minutes it
will automatically relock and the alarm will be
rearmed.
Press twice: This both unlocks the trunk and
pops it open slightly.
NOTE
Any excess weight (snow, etc.) on the trunk
lid may prevent it from opening.
The alarm indicator light on the dashboard will
go out to indicate that the alarm is not moni-
toring the entire vehicle. The accessory move-
ment and inclination sensors will be automati-
cally disconnected.
When the trunk is closed again (which has to
be done manually), it will have to be relocked
and the alarm rearmed by pressing the lock
button on the remote key.
Unlocking/opening the trunk from the
passenger compartment
G022853

Press the button on the lighting panel
to unlock and pop open the trunk
NOTE
The taillights will illuminate automatically for
a short period when the trunk has been
opened.
Unlocking the trunk with the key blade
If the remote key is not functioning properly,
the trunk can be unlocked with the detachable
key blade. See page 56 for information on
removing the key blade from the remote key.
Pull out the cover over the trunk’s keyhole.

02 Locks and alarm
Locks
02
65

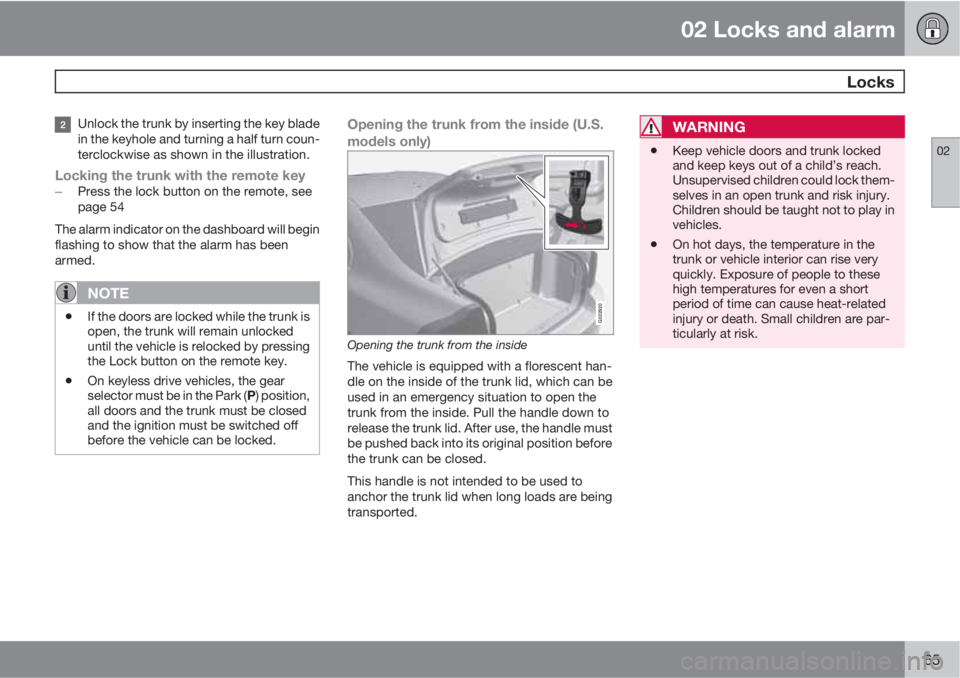

Unlock the trunk by inserting the key blade
in the keyhole and turning a half turn coun-
terclockwise as shown in the illustration.
Locking the trunk with the remote key
Press the lock button on the remote, see
page 54
The alarm indicator on the dashboard will begin
flashing to show that the alarm has been
armed.
NOTE
•If the doors are locked while the trunk is
open, the trunk will remain unlocked
until the vehicle is relocked by pressing
the Lock button on the remote key.
•On keyless drive vehicles, the gear
selector must be in the Park (P) position,
all doors and the trunk must be closed
and the ignition must be switched off
before the vehicle can be locked.
Opening the trunk from the inside (U.S.
models only)
G022920
Opening the trunk from the inside
The vehicle is equipped with a florescent han-
dle on the inside of the trunk lid, which can be
used in an emergency situation to open the
trunk from the inside. Pull the handle down to
release the trunk lid. After use, the handle must
be pushed back into its original position before
the trunk can be closed.
This handle is not intended to be used to
anchor the trunk lid when long loads are being
transported.
WARNING
•Keep vehicle doors and trunk locked
and keep keys out of a child’s reach.
Unsupervised children could lock them-
selves in an open trunk and risk injury.
Children should be taught not to play in
vehicles.
•On hot days, the temperature in the
trunk or vehicle interior can rise very
quickly. Exposure of people to these
high temperatures for even a short
period of time can cause heat-related
injury or death. Small children are par-
ticularly at risk.

02 Locks and alarm
Alarm
02
66

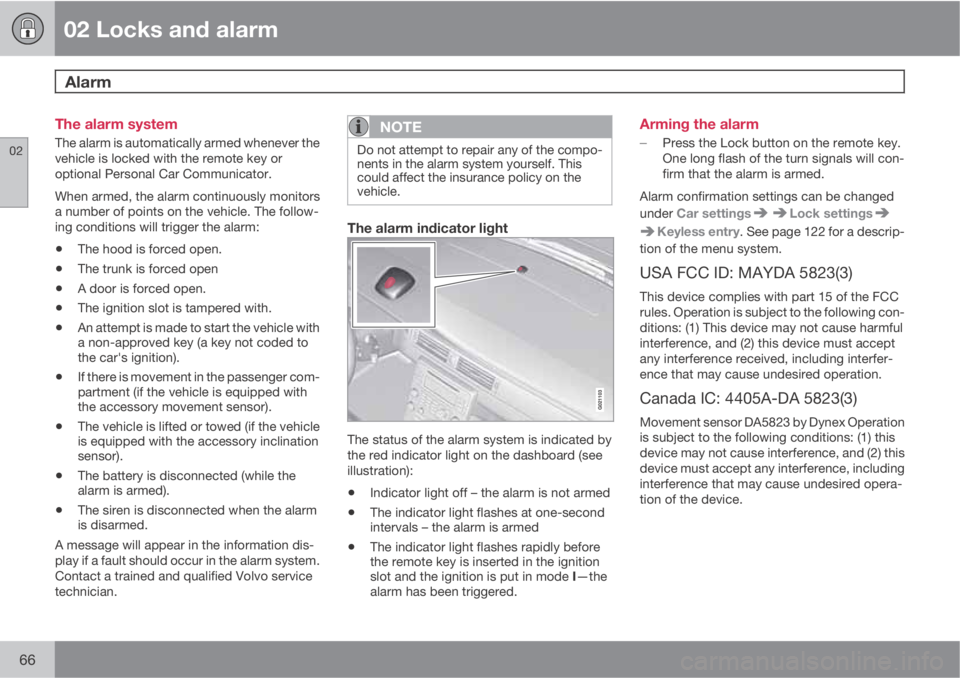

The alarm system
The alarm is automatically armed whenever the
vehicle is locked with the remote key or
optional Personal Car Communicator.
When armed, the alarm continuously monitors
a number of points on the vehicle. The follow-
ing conditions will trigger the alarm:
•The hood is forced open.
•The trunk is forced open
•A door is forced open.
•The ignition slot is tampered with.
•An attempt is made to start the vehicle with
a non-approved key (a key not coded to
the car's ignition).
•If there is movement in the passenger com-
partment (if the vehicle is equipped with
the accessory movement sensor).
•The vehicle is lifted or towed (if the vehicle
is equipped with the accessory inclination
sensor).
•The battery is disconnected (while the
alarm is armed).
•The siren is disconnected when the alarm
is disarmed.
A message will appear in the information dis-
play if a fault should occur in the alarm system.
Contact a trained and qualified Volvo service
technician.
NOTE
Do not attempt to repair any of the compo-
nents in the alarm system yourself. This
could affect the insurance policy on the
vehicle.
The alarm indicator light
The status of the alarm system is indicated by
the red indicator light on the dashboard (see
illustration):
•Indicator light off – the alarm is not armed
•The indicator light flashes at one-second
intervals – the alarm is armed
•The indicator light flashes rapidly before
the remote key is inserted in the ignition
slot and the ignition is put in mode I—the
alarm has been triggered.
Arming the alarm

Press the Lock button on the remote key.
One long flash of the turn signals will con-
firm that the alarm is armed.
Alarm confirmation settings can be changed
under Car settings
Lock settings
Keyless entry. See page 122 for a descrip-
tion of the menu system.
USA FCC ID: MAYDA 5823(3)
This device complies with part 15 of the FCC
rules. Operation is subject to the following con-
ditions: (1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
Canada IC: 4405A-DA 5823(3)
Movement sensor DA5823 by Dynex Operation
is subject to the following conditions: (1) this
device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired opera-
tion of the device.

02 Locks and alarm
Alarm
02

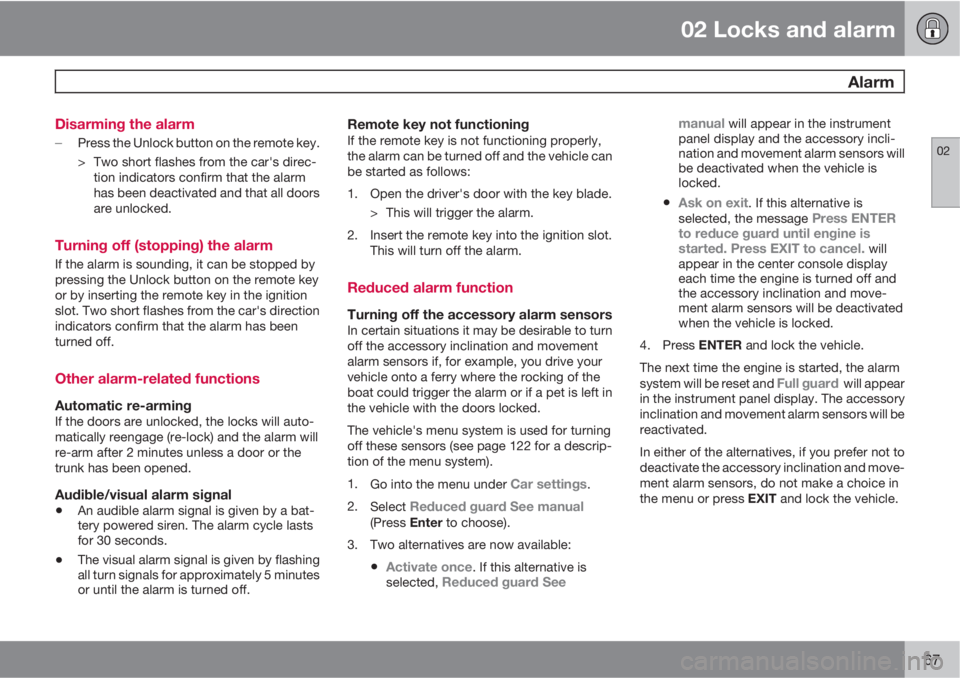

67 Disarming the alarm

Press the Unlock button on the remote key.
> Two short flashes from the car's direc-
tion indicators confirm that the alarm
has been deactivated and that all doors
are unlocked.
Turning off (stopping) the alarm
If the alarm is sounding, it can be stopped by
pressing the Unlock button on the remote key
or by inserting the remote key in the ignition
slot. Two short flashes from the car's direction
indicators confirm that the alarm has been
turned off.
Other alarm-related functions
Automatic re-armingIf the doors are unlocked, the locks will auto-
matically reengage (re-lock) and the alarm will
re-arm after 2 minutes unless a door or the
trunk has been opened.
Audible/visual alarm signal
•An audible alarm signal is given by a bat-
tery powered siren. The alarm cycle lasts
for 30 seconds.
•The visual alarm signal is given by flashing
all turn signals for approximately 5 minutes
or until the alarm is turned off.
Remote key not functioningIf the remote key is not functioning properly,
the alarm can be turned off and the vehicle can
be started as follows:
1. Open the driver's door with the key blade.
> This will trigger the alarm.
2. Insert the remote key into the ignition slot.
This will turn off the alarm.
Reduced alarm function
Turning off the accessory alarm sensorsIn certain situations it may be desirable to turn
off the accessory inclination and movement
alarm sensors if, for example, you drive your
vehicle onto a ferry where the rocking of the
boat could trigger the alarm or if a pet is left in
the vehicle with the doors locked.
The vehicle's menu system is used for turning
off these sensors (see page 122 for a descrip-
tion of the menu system).
1.
Go into the menu under
Car settings.
2.
Select
Reduced guard See manual(Press Enter to choose).
3. Two alternatives are now available:
•Activate once. If this alternative is
selected, Reduced guard Seemanual
will appear in the instrument
panel display and the accessory incli-
nation and movement alarm sensors will
be deactivated when the vehicle is
locked.
•Ask on exit. If this alternative is
selected, the message Press ENTER
to reduce guard until engine is
started. Press EXIT to cancel.
will
appear in the center console display
each time the engine is turned off and
the accessory inclination and move-
ment alarm sensors will be deactivated
when the vehicle is locked.
4.
Press ENTER and lock the vehicle.
The next time the engine is started, the alarm
system will be reset and
Full guard will appear
in the instrument panel display. The accessory
inclination and movement alarm sensors will be
reactivated.
In either of the alternatives, if you prefer not to
deactivate the accessory inclination and move-
ment alarm sensors, do not make a choice in
the menu or press EXIT and lock the vehicle.

68* Option/accessory, for more information, see Introduction.
Instruments and controls........................................................................ 70
Ignition modes........................................................................................ 78
Seats....................................................................................................... 80
Seats¥S80 Executive ............................................................................. 86
Steering wheel........................................................................................ 88
Lighting................................................................................................... 89
Wipers and washers................................................................................ 95
Power windows....................................................................................... 98
Mirrors................................................................................................... 100
Compass*.............................................................................................. 102
Power moonroof*.................................................................................. 103
HomeLink® Wireless Control System*................................................. 105
Starting the engine................................................................................ 108
Transmission......................................................................................... 112
Brakes................................................................................................... 115
Parking brake........................................................................................ 117

YOUR DRIVING ENVIRONMENT

03 Your driving environment
Instruments and controls
03
70

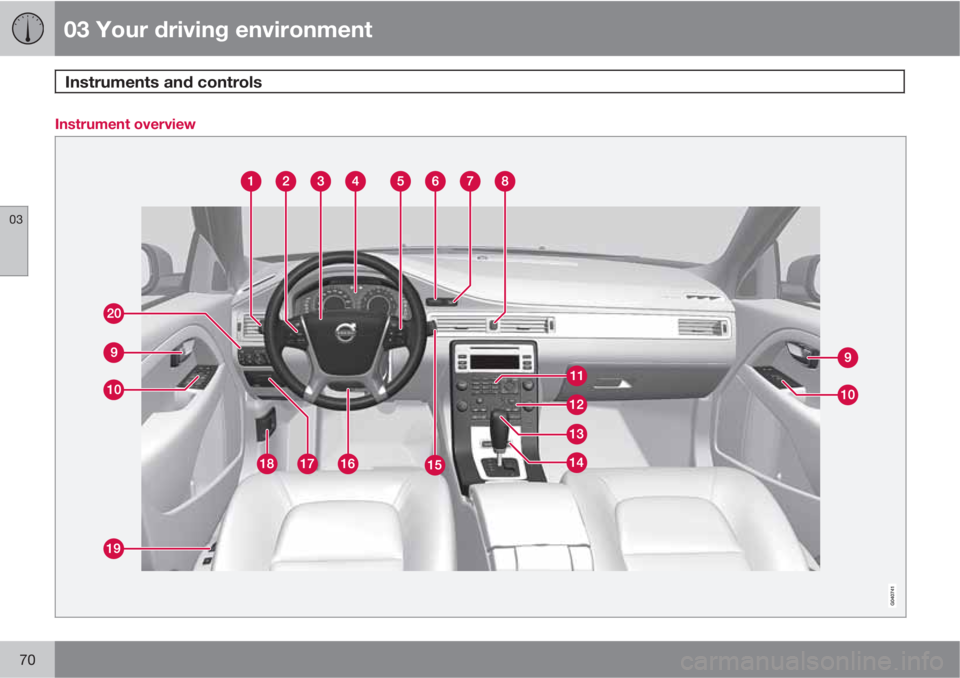

Instrument overview
