Page 101 of 166

VOLVO S90 T8 2018  Owner´s Manual PRACTICAL INFORMATION
* Option/accessory.99

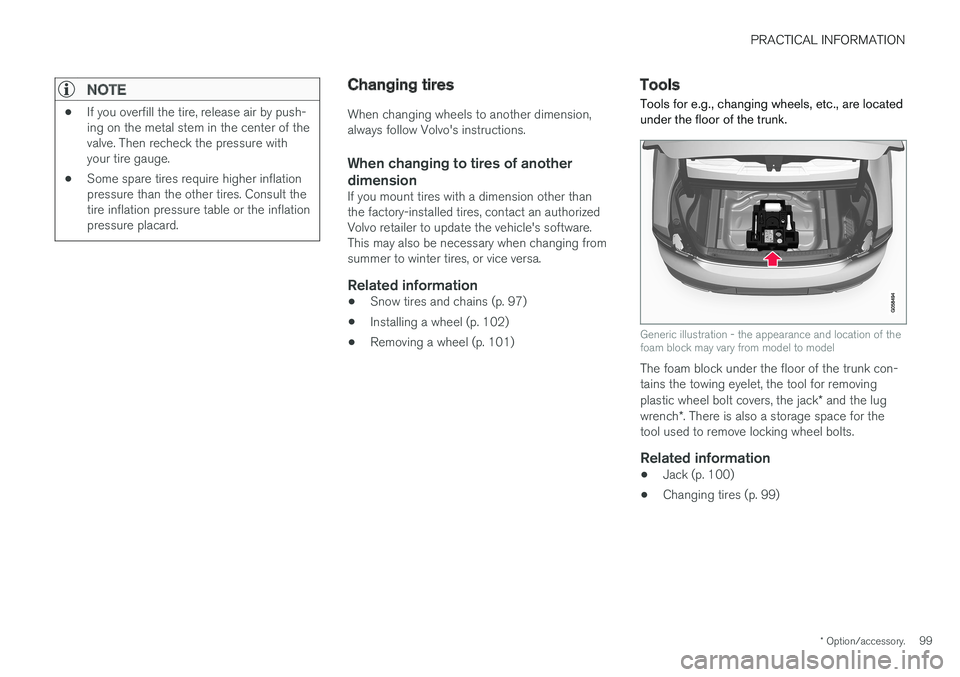

NOTE
•If you overfill the tire, release air by push- ing on the metal stem in the center of thevalve. Then recheck the pressure withyour tire gauge.
• S

Page 102 of 166

VOLVO S90 T8 2018  Owner´s Manual PRACTICAL INFORMATION
* Option/accessory.
100

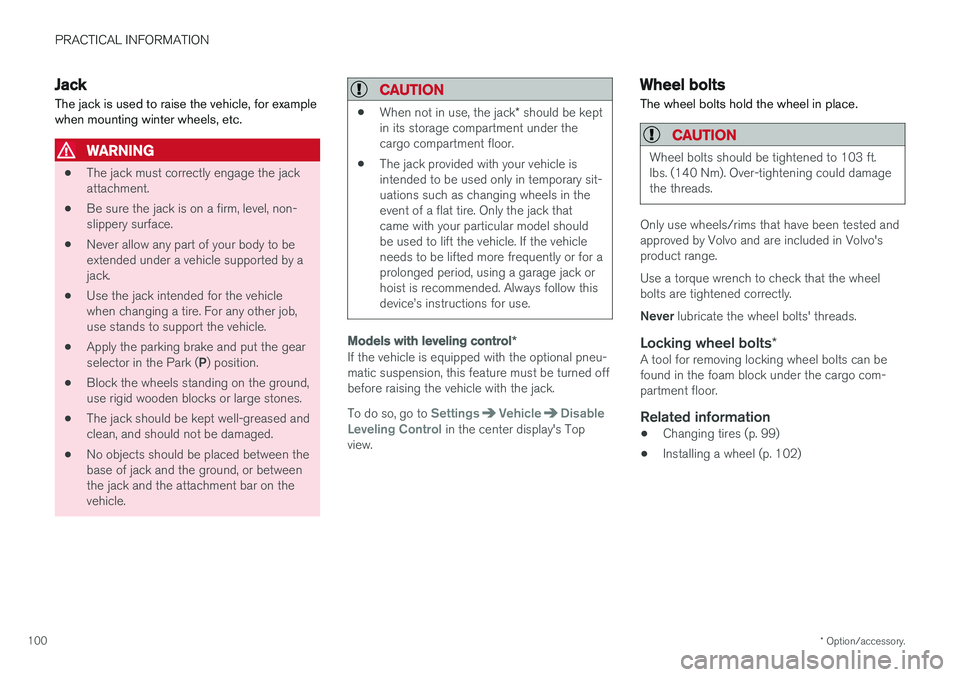

Jack
The jack is used to raise the vehicle, for example when mounting winter wheels, etc.
WARNING
• The jack must correctly engage the jack attachment.

Page 103 of 166

VOLVO S90 T8 2018  Owner´s Manual PRACTICAL INFORMATION
}}
* Option/accessory.101

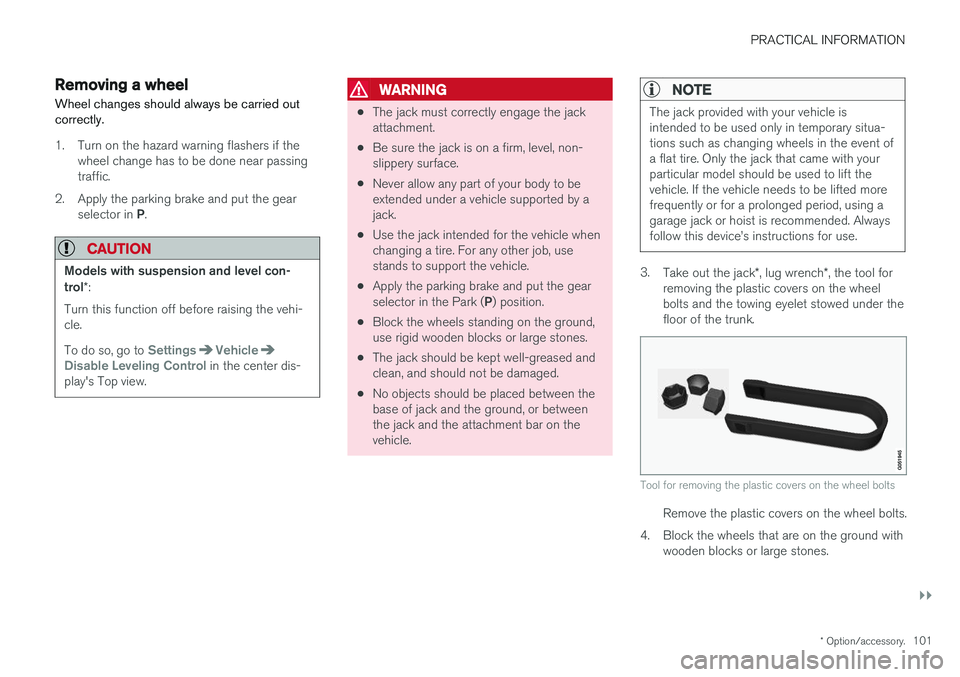

Removing a wheel
Wheel changes should always be carried out correctly.
1. Turn on the hazard warning flashers if the wheel change has to be done near pa

Page 104 of 166

VOLVO S90 T8 2018  Owner´s Manual ||
PRACTICAL INFORMATION
1025.

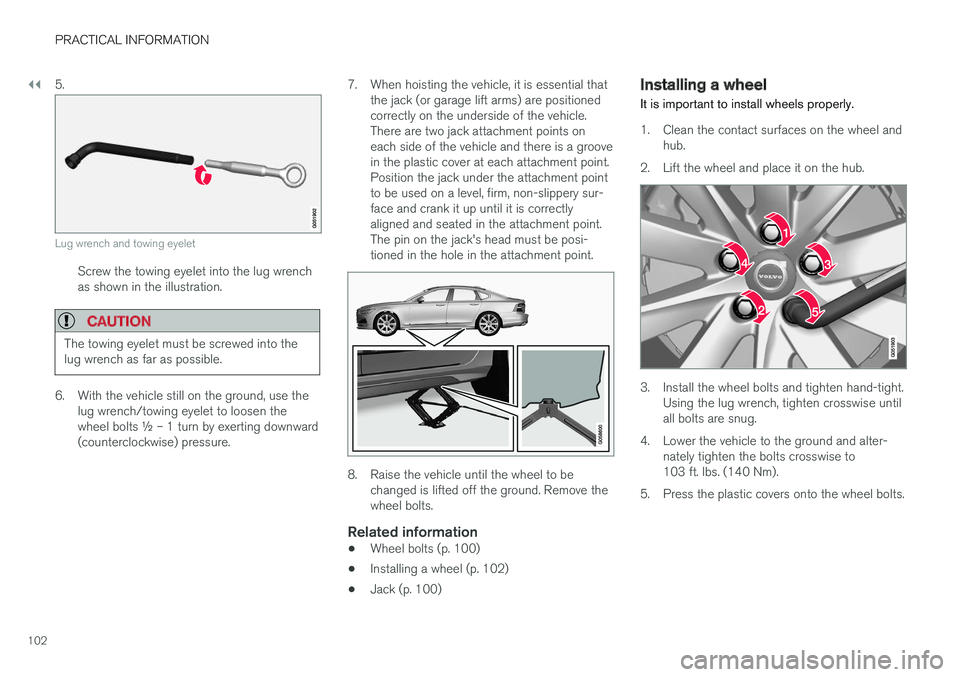

Lug wrench and towing eyelet
Screw the towing eyelet into the lug wrench as shown in the illustration.
CAUTION
The towing eyelet must be screwed into the lug wrench as f

Page 105 of 166

VOLVO S90 T8 2018  Owner´s Manual PRACTICAL INFORMATION
}}
103

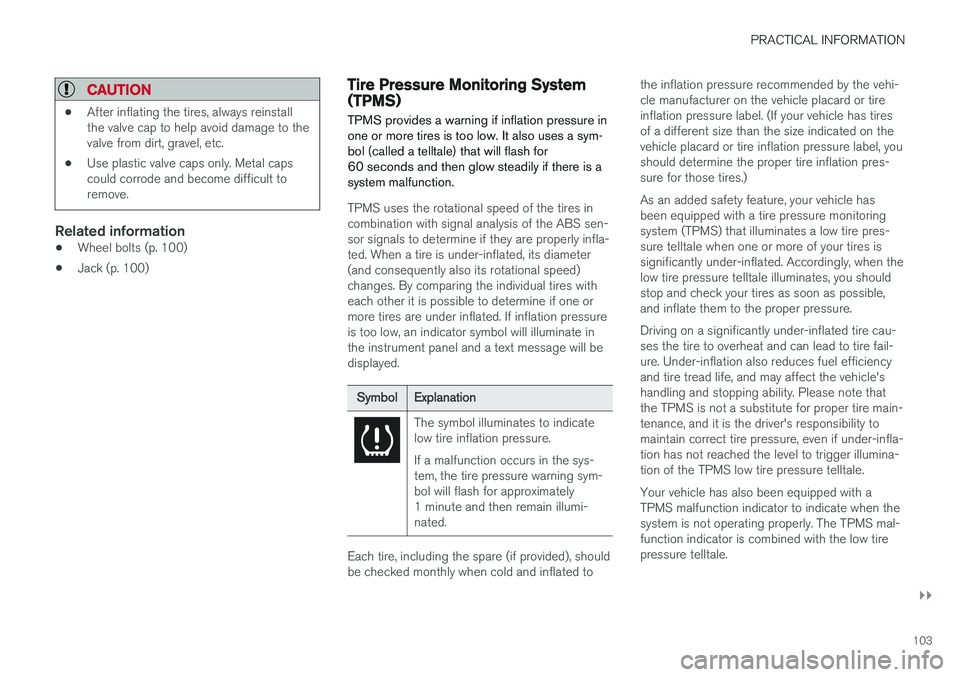

CAUTION
•After inflating the tires, always reinstall the valve cap to help avoid damage to thevalve from dirt, gravel, etc.
• Use plastic valve caps only. Metal capsco

Page 106 of 166

VOLVO S90 T8 2018  Owner´s Manual ||
PRACTICAL INFORMATION

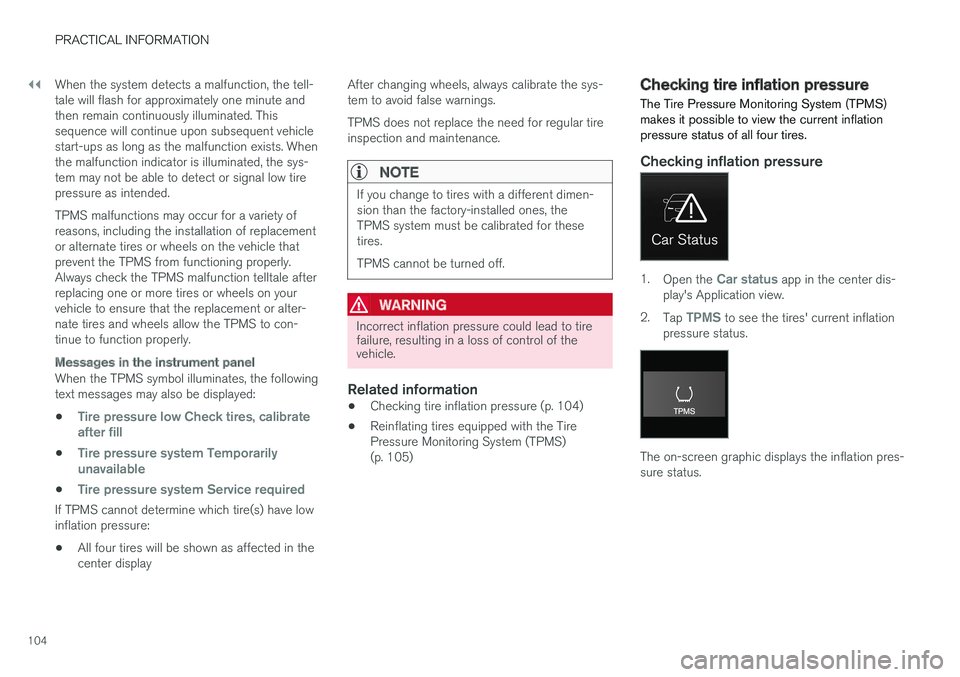

104When the system detects a malfunction, the tell- tale will flash for approximately one minute andthen remain continuously illuminated. Thissequence will continue upon subse

Page 107 of 166

VOLVO S90 T8 2018  Owner´s Manual PRACTICAL INFORMATION
}}
105

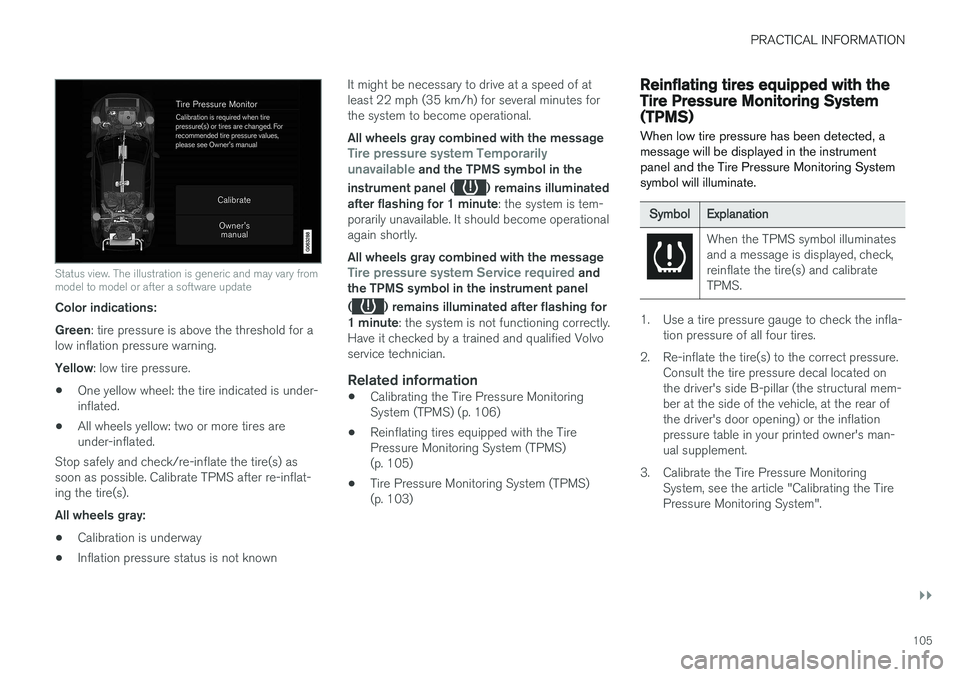

Status view. The illustration is generic and may vary from model to model or after a software update
Color indications: Green: tire pressure is above the threshold for a
l

Page 108 of 166

VOLVO S90 T8 2018  Owner´s Manual ||
PRACTICAL INFORMATION

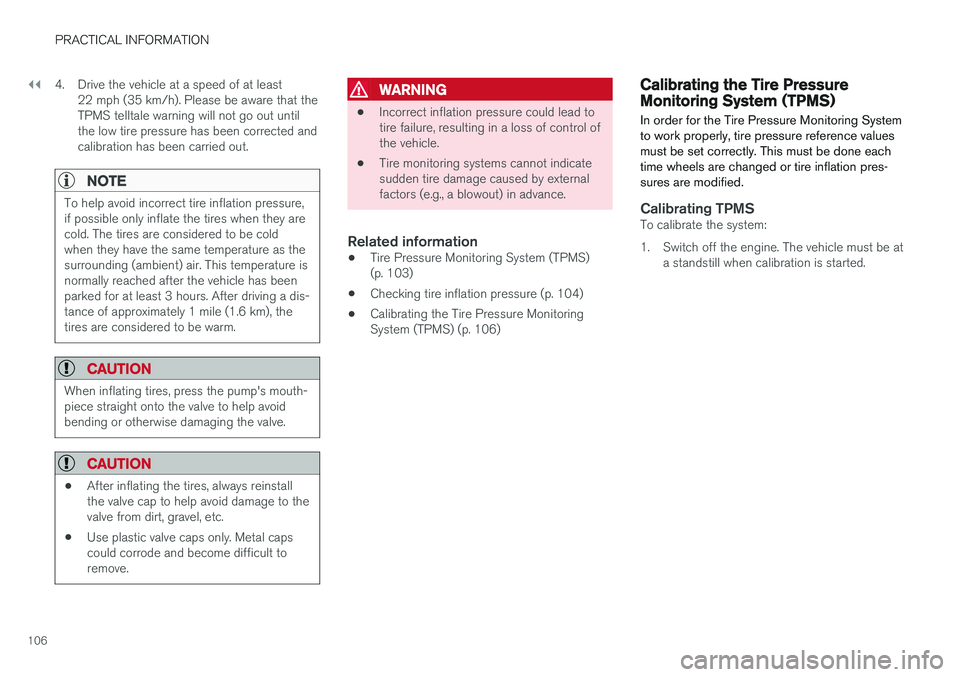

1064. Drive the vehicle at a speed of at least
22 mph (35 km/h). Please be aware that the TPMS telltale warning will not go out untilthe low tire pressure has been corrected a

Page 109 of 166

VOLVO S90 T8 2018  Owner´s Manual PRACTICAL INFORMATION
}}
107

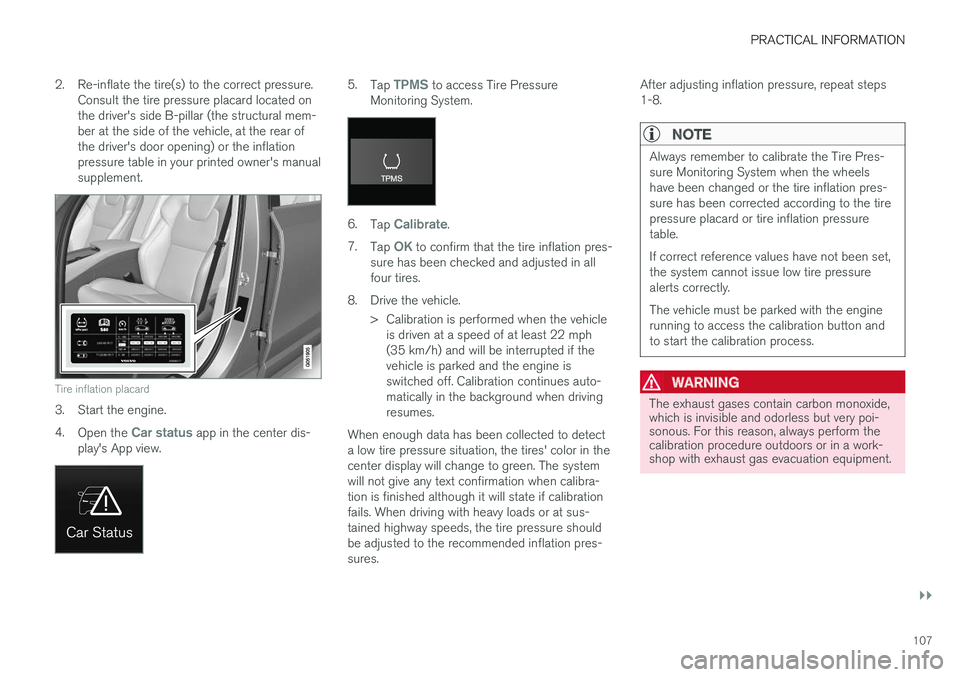

2. Re-inflate the tire(s) to the correct pressure.
Consult the tire pressure placard located on the driver's side B-pillar (the structural mem-ber at the side of the v

Page 110 of 166

VOLVO S90 T8 2018  Owner´s Manual ||
PRACTICAL INFORMATION
* Option/accessory.
108

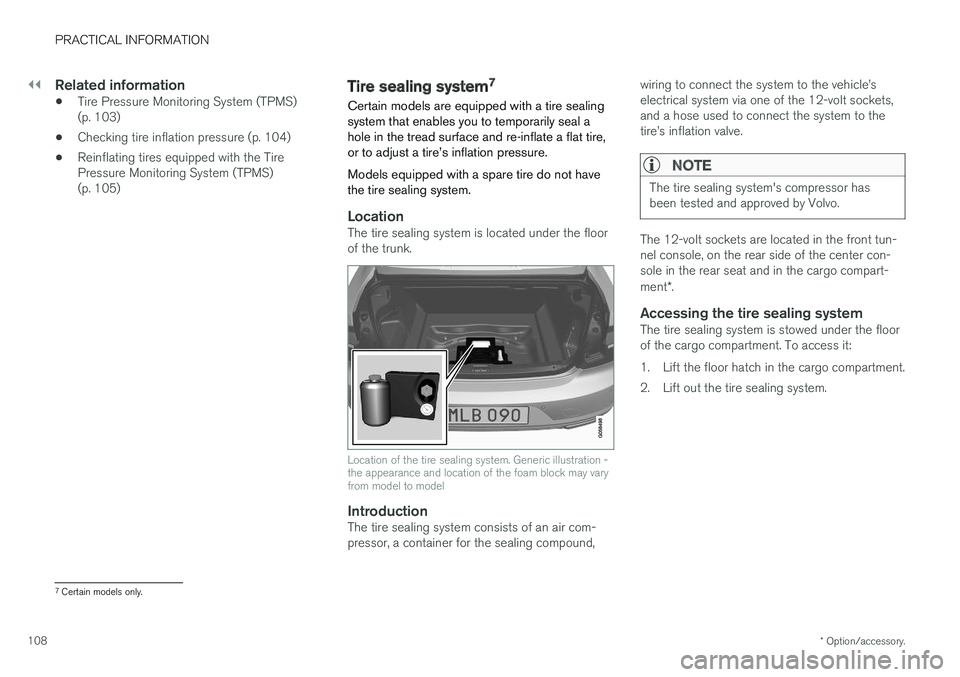

Related information
• Tire Pressure Monitoring System (TPMS) (p. 103)
• Checking tire inflation pressure (p. 104)
• Reinflating tires equipped wi
