DRIVER SUPPORT
* Option/accessory.349
Related information
BLIS* (p. 347)
BLIS limitations
BLIS73 functionality may be reduced in certainsituations.
Keep the marked area clean (on both the left and rightsides of the vehicle)74.
Examples of limitations:
Dirt, ice and snow covering the sensors mayreduce functionality and prevent the systemfrom providing warnings.
The BLIS function is automatically deacti-vated if a trailer, bicycle holder or similar isconnected to the vehicle's electrical system.
For BLIS to function optimally, bicycle hold-ers, luggage racks or similar should not bemounted on the vehicle's towbar.
WARNING
BLIS does not work in sharp curves.
BLIS does not work when the vehicle isbeing reversed.
Related information
BLIS* (p. 347)
71Blind Spot Information72Note: This illustration is general and details may vary depending on model.73Blind Spot Information74Note: This illustration is general and details may vary depending on model.
Page 352 of 669
DRIVER SUPPORT
* Option/accessory.350

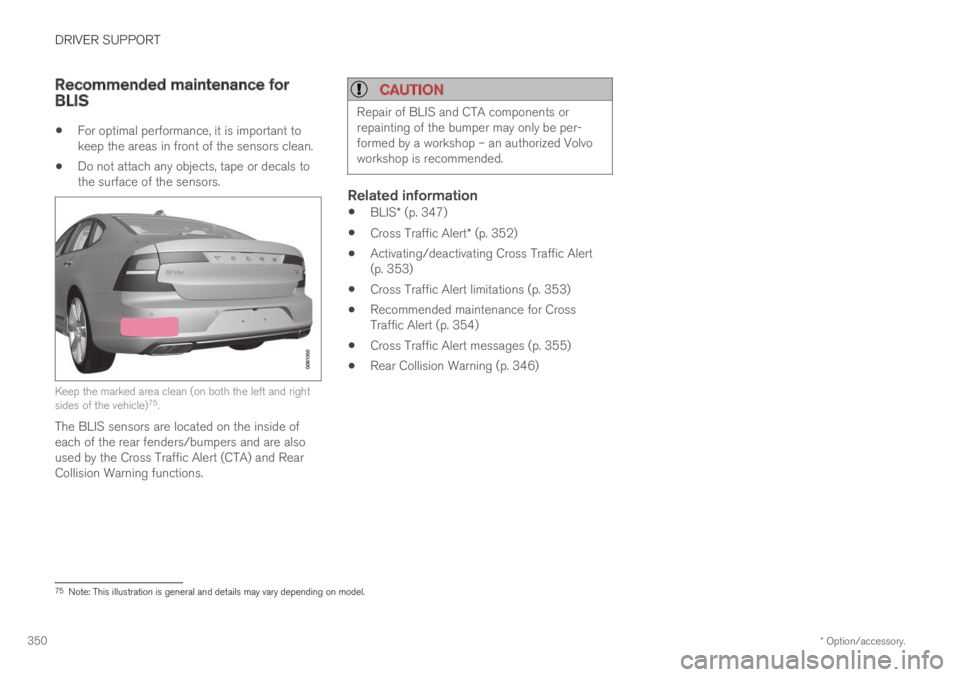

Recommended maintenance forBLIS
For optimal performance, it is important tokeep the areas in front of the sensors clean.
Do not attach any objects, tape or decals tothe surface of the sensors.
Keep the marked area clean (on both the left and rightsides of the vehicle)75.
The BLIS sensors are located on the inside ofeach of the rear fenders/bumpers and are alsoused by the Cross Traffic Alert (CTA) and RearCollision Warning functions.
CAUTION
Repair of BLIS and CTA components orrepainting of the bumper may only be per-formed by a workshop – an authorized Volvoworkshop is recommended.
Related information
BLIS* (p. 347)
Cross Traffic Alert* (p. 352)
Activating/deactivating Cross Traffic Alert(p. 353)
Cross Traffic Alert limitations (p. 353)
Recommended maintenance for CrossTraffic Alert (p. 354)
Cross Traffic Alert messages (p. 355)
Rear Collision Warning (p. 346)
75Note: This illustration is general and details may vary depending on model.
Page 353 of 669
DRIVER SUPPORT
* Option/accessory.351
BLIS messages
A number of messages related to BLIS76 maybe displayed in the instrument panel.Some examples of symbols and messages are shown in the table below.
MessageMeaning
Blind spot sensor
Service required
The system is not functioning as intended. Contact a workshop ‒ an authorized Volvo workshop is recommended.
Blind spot system off
Trailer attached
BLIS and CTA have been deactivated because a trailer has been connected to the vehicle's electrical system.
A text message can be erased by briefly pressing
the button in the center of the right-sidesteering wheel keypad.
If the message persists: Contact a workshop ‒ anauthorized Volvo workshop is recommended.
Related information
BLIS* (p. 347)
76Blind Spot Information
Page 354 of 669
DRIVER SUPPORT
* Option/accessory.352
Cross Traffic Alert*
CTA77 is a supplementary driver support system
to BLIS78 that is intended to help the driverdetect vehicles crossing behind the vehiclewhile backing up.
CTA overview.
CTA supplements BLIS by detecting traffic cross-ing from the side, e.g. when backing out of aparking space.
CTA is primarily designed to detect vehicles, butin certain cases can also detect pedestrians orsmaller objects such as bicycles.
CTA is only active when the vehicle is movingbackward or if reverse gear is engaged.
If CTA detects that something is approachingyour vehicle from the side:
an audible signal will sound from either theleft or right speaker, depending on whichside of your vehicle the object is approachingfrom.
an icon will illuminate in the PAS79 graphicon the screen.
an icon will appear in the Park Assist Cam-era's Top view.
Illuminated CTA icon in the PAS graphic80 on thescreen.
WARNING
The Cross Traffic Alert function is supple-mentary driver support intended to facili-tate driving and make it safer – it cannothandle all situations in all traffic, weatherand road conditions.
The responsibility for reversing the vehiclesafely and using good judgment alwaysrests with the driver.
Cross Traffic Alert is not a substitute forthe driver's attention and judgment. Thedriver is always responsible for ensuringthe vehicle is driven in a safe manner, atthe appropriate speed, with an appropri-ate distance to other vehicles, and inaccordance with current traffic rules andregulations.
Related information
Activating/deactivating Cross Traffic Alert(p. 353)
Cross Traffic Alert limitations (p. 353)
Recommended maintenance for CrossTraffic Alert (p. 354)
Cross Traffic Alert messages (p. 355)
77Cross Traffic Alert78Blind Spot Information79Park Assist System: Parking assistance with reversing sensors80Note: This illustration is general and details may vary depending on model.
Page 355 of 669
DRIVER SUPPORT
}}
* Option/accessory.353
Activating/deactivating Cross TrafficAlert
The driver can choose to deactivate the CTA81
function as follows:
Press the Cross Traffic Alertbutton in the center display'sFunction view.
GRAY button indicator light - CTA is deacti-vated.
GREEN button indicator light - CTA is acti-vated.
CTA is automatically activated each time theengine is started.
Related information
Cross Traffic Alert* (p. 352)
Cross Traffic Alert limitations
CTA82 functionality may be reduced in certainsituations.
CTA does not function optimally in all situationsand has certain limitations. The CTA sensors, forexample, cannot "see" through other parkedvehicles or objects blocking the vehicle.
Below are a few examples of situations in whichCTA's field of vision may be initially limited andapproaching vehicles may therefore not bedetected until they are very close to your vehicle:
The vehicle is parked very far into a parking space.
In a diagonal parking space, CTA may be completely"blind" on one side of your vehicle.
CTA's blind zone.
CTA's field of vision.
However, as you back your vehicle slowly out of aparking space, CTA's field of vision changes inrelation to the obstructing vehicle/object and itsblind zone is reduced.
81Cross Traffic Alert82Cross Traffic Alert
Page 356 of 669
||
DRIVER SUPPORT
* Option/accessory.354
Examples of further limitations
Dirt, ice and snow covering the sensors mayreduce functionality and prevent the systemfrom providing warnings. For additional infor-mation, see the section "Recommendedmaintenance for Cross Traffic Alert".
CTA is automatically deactivated if a trailer,bicycle holder or similar is connected to thevehicle's electrical system.
For CTA to function optimally, bicycle hold-ers, luggage racks or similar should not bemounted on the vehicle's towbar.
Related information
Cross Traffic Alert* (p. 352)
Recommended maintenance for CrossTraffic Alert (p. 354)
Recommended maintenance forCross Traffic Alert
For optimal performance, it is important tokeep the areas in front of the sensors clean.
Do not attach any objects, tape or decals tothe surface of the sensors.
Keep the marked area clean (on both the left and rightsides of the vehicle)83.
The CTA sensors are located on the inside ofeach of the rear fenders/bumpers and are also
used by the BLIS84 and Rear Collision Warningfunctions.
CAUTION
Repair of BLIS and CTA components orrepainting of the bumper may only be per-formed by a workshop – an authorized Volvoworkshop is recommended.
Related information
Cross Traffic Alert* (p. 352)
BLIS* (p. 347)
Rear Collision Warning (p. 346)
83Note: This illustration is general and details may vary depending on model.84Blind Spot Information
Page 357 of 669
DRIVER SUPPORT
* Option/accessory.355

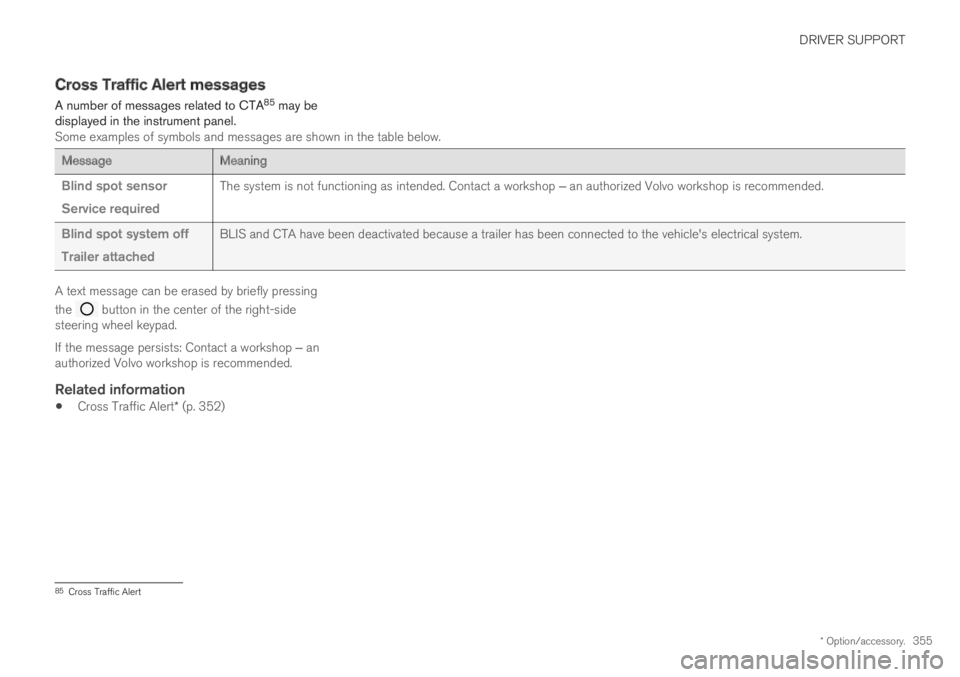

Cross Traffic Alert messages
A number of messages related to CTA85 may bedisplayed in the instrument panel.Some examples of symbols and messages are shown in the table below.
MessageMeaning
Blind spot sensor
Service required
The system is not functioning as intended. Contact a workshop ‒ an authorized Volvo workshop is recommended.
Blind spot system off
Trailer attached
BLIS and CTA have been deactivated because a trailer has been connected to the vehicle's electrical system.
A text message can be erased by briefly pressing
the button in the center of the right-sidesteering wheel keypad.
If the message persists: Contact a workshop ‒ anauthorized Volvo workshop is recommended.
Related information
Cross Traffic Alert* (p. 352)
85Cross Traffic Alert
Page 358 of 669
DRIVER SUPPORT
* Option/accessory.356
Road Sign Information*
The Road Sign Information (RSI86) function canhelp the driver observe speed-related roadsigns.
Examples of signs that can be detected87.
Example87 of registered speed information.
If the vehicle passes a speed limit sign, it will bedisplayed in the instrument panel and the head-up display*.
NOTE
In certain markets, the Road Sign Informationfunction (RSI) is only available in combinationwith Sensus Navigation*.
WARNING
The Road Sign Information function issupplementary driver support intended tofacilitate driving and help make it safer –it cannot handle all situations in all traffic,weather and road conditions.
Road Sign Information is not a substitutefor the driver's attention and judgment.The driver is always responsible forensuring the vehicle is driven in a safemanner, at the appropriate speed, with anappropriate distance to other vehicles,and in accordance with current trafficrules and regulations.
Related information
Activating/deactivating Road Sign Informa-tion (p. 357)
Road Sign Information and sign displays(p. 358)
Road Sign Information and SensusNavigation (p. 358)
Road Sign Information with Speed Warningand Settings (p. 359)
Activating/deactivating Speed Warning inRoad Sign Information (p. 360)
86Road Sign Information87Road signs differ according to market ‒ the illustrations shown here are just some examples.
Page 359 of 669
DRIVER SUPPORT
* Option/accessory.357
Road Sign Information with speed camerainformation (p. 360)
Road Sign Information limitations (p. 361)

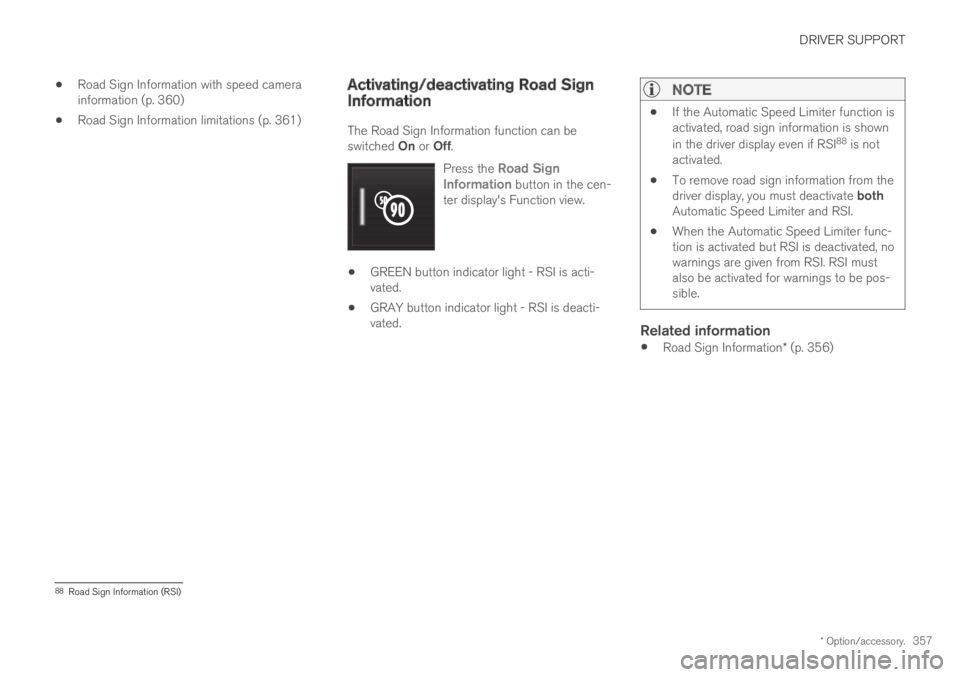

Activating/deactivating Road SignInformation
The Road Sign Information function can beswitched On or Off.
Press the Road SignInformation button in the cen-ter display's Function view.
GREEN button indicator light - RSI is acti-vated.
GRAY button indicator light - RSI is deacti-vated.
NOTE
If the Automatic Speed Limiter function isactivated, road sign information is shown
in the driver display even if RSI88 is notactivated.
To remove road sign information from thedriver display, you must deactivate bothAutomatic Speed Limiter and RSI.
When the Automatic Speed Limiter func-tion is activated but RSI is deactivated, nowarnings are given from RSI. RSI mustalso be activated for warnings to be pos-sible.
Related information
Road Sign Information* (p. 356)
88Road Sign Information (RSI)
Page 360 of 669
DRIVER SUPPORT
* Option/accessory.358
Road Sign Information and signdisplays
Road Sign Information (RSI89) displays roadsigns in different ways depending on the signand situation.
Example90 of registered speed information.
When RSI has registered a speed limit sign, thesign will be displayed as a symbol in the instru-ment panel and a colored marking will be shownin the speedometer's speed scale.
If the vehicle is equipped with SensusNavigation*, speed-related information will alsobe retrieved from map data, which means that theinstrument panel can display or change informa-tion about speed limits even if the vehicle has notpassed a speed-related sign.
Signs for "School" and "Children
playing"
If the warning sign90 "School"or "Children playing" isincluded in the satellite naviga-
tor's map data91, a symbol ofthis type will be displayed in theinstrument panel.
Related information
Road Sign Information* (p. 356)
Activating/deactivating Road Sign Informa-tion (p. 357)
Road Sign Information with Speed Warningand Settings (p. 359)
Road Sign Information and SensusNavigation
If the vehicle is equipped with Sensus Navigation,speed-related information will be provided in thefollowing situations:
In cases where the speed limit is given indi-rectly, e.g. signs for highways or other majorroads.
If a previously detected speed sign isdeemed to be no longer valid and no newsign has been passed.
NOTE
In certain markets, the Road Sign Informationfunction (RSI) is only available in combinationwith Sensus Navigation*.
NOTE
If a downloaded third-party app is used fornavigation, there is no support for speed-rela-ted information.
Related information
Road Sign Information* (p. 356)
