DRIVER SUPPORT
}}
* Option/accessory.389
Related information
Park Assist Camera views (p. 389)
Park Assist Camera trajectory lines (p. 391)
Sensor field from Park Assist for Park AssistCamera (p. 393)
Starting the Park Assist Camera (p. 394)
Park Assist Camera limitations (p. 395)
Recommended maintenance of the ParkAssist Camera (p. 396)
Park Assist Camera symbols and messages(p. 397)
Activating/deactivating Park Assist (p. 384)
Cross Traffic Alert* (p. 352)

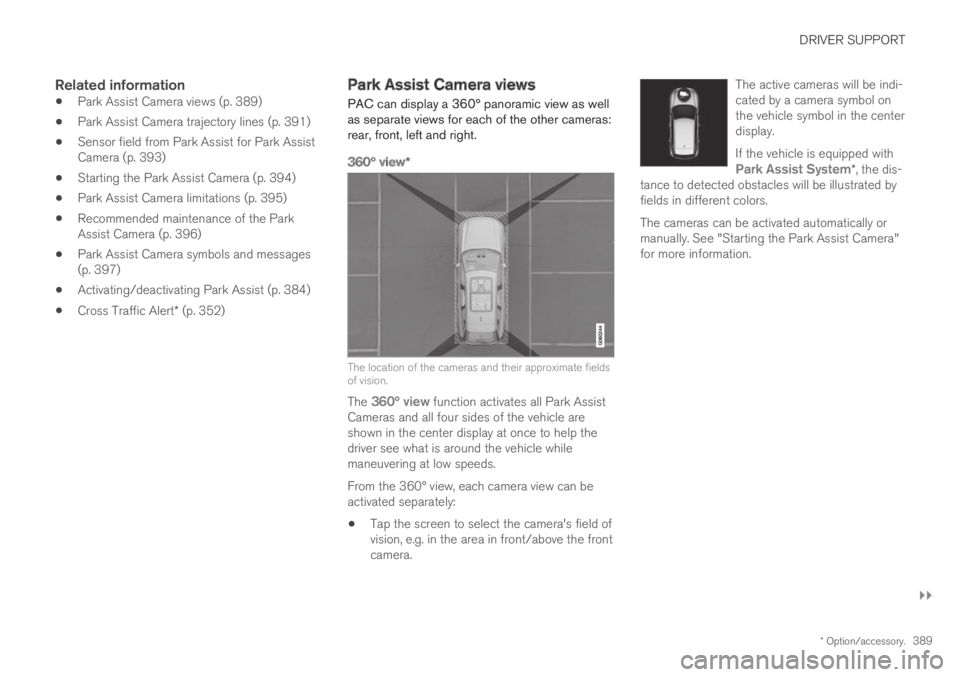

Park Assist Camera views
PAC can display a 360° panoramic view as wellas separate views for each of the other cameras:rear, front, left and right.
360° view *
The location of the cameras and their approximate fieldsof vision.
The 360° view function activates all Park AssistCameras and all four sides of the vehicle areshown in the center display at once to help thedriver see what is around the vehicle whilemaneuvering at low speeds.
From the 360° view, each camera view can beactivated separately:
Tap the screen to select the camera's field ofvision, e.g. in the area in front/above the frontcamera.
The active cameras will be indi-cated by a camera symbol onthe vehicle symbol in the centerdisplay.
If the vehicle is equipped withPark Assist System*, the dis-tance to detected obstacles will be illustrated byfields in different colors.
The cameras can be activated automatically ormanually. See "Starting the Park Assist Camera"for more information.
Page 392 of 669
||
DRIVER SUPPORT
* Option/accessory.390
Back
The rear camera112 is located above the license plate.
The rear camera shows a wide area behind thevehicle. On certain models, part of the bumperand the towbar (if installed) may be visible.
Objects on the center display may appear to beleaning slightly. This is normal.
Front camera
The front Park Assist Camera113 is located in the grille.
The front camera can be useful when pulling outfrom areas with limited visibility, such as a drive-way surrounded by a hedge. The front camera isactive at speeds up to 25 km/h (16 mph) and isautomatically turned off when the vehicleexceeds this speed.
If the vehicle does not reach a speed of 50 km/h(30 mph) and speed falls below 22 km/h(14 mph) within 1 minute after the front cameraturns off, the camera will be reactivated.
Side cameras
The side cameras113 are located in the rearview mirrors.
The side cameras can show views along eachside of the vehicle.
Related information
Park Assist Camera* (p. 388)
Starting the Park Assist Camera (p. 394)
112Note: This illustration is general and details may vary depending on model.113Note: This illustration is general and details may vary depending on model.
Page 393 of 669
DRIVER SUPPORT
}}
391
Park Assist Camera trajectory lines
The Park Assist Camera uses trajectory linesand fields on the screen to indicate the vehicle'sposition in relation to its immediate surround-ings.
Example114 of trajectory lines.
The trajectory lines show the anticipated trajec-tory for the vehicle's outermost dimensions basedon the current position of the steering wheel to
help simplify parallel parking, backing into tightspaces or attaching a trailer.
The lines on the screen are projected as if theywere painted lines on the ground behind thevehicle and are directly affected by the way inwhich the steering wheel is turned. This enablesthe driver to see path the vehicle will take, even ifhe/she turns the steering wheel.
These lines also indicate the outermost limits thatany object (towbar, rearview mirrors, corners ofthe body, etc.) extends out from the vehicle.
NOTE
When reversing with a trailer that is notelectrically connected to the vehicle, thescreen guide lines show the path thevehicle will take – not the trailer.
The screen does not show guide lineswhen a trailer is electrically connected tothe vehicle's electrical system.
Guide lines are not shown when zoomingin.
CAUTION
Bear in mind that when the rearwardcamera view is selected, the screen onlyshows the area behind the vehicle – payattention to the sides and front of thevehicle when steering while reversing.
The same applies to the reverse – payattention to what is happening with therear parts of the vehicle when the frontcamera view is selected.
Note that the guide lines show the short-est path – pay extra attention to ensurethat the vehicle sides do not come incontact with/travel over anything whensteering while driving forward or that thevehicle front moves toward/over anythingwhen steering while reversing.
114The illustration is generic - details may vary according to vehicle model.
Page 394 of 669
||
DRIVER SUPPORT
* Option/accessory.392
Trajectory lines in 360° view *
360° view with trajectory lines114.
In the 360° view, trajectory lines are shownbehind, in front of, or to the sides of the vehicle,depending on the direction of travel.
When driving forward: Front lines
When backing up: Side lines and rear lines.
When the front or rear camera is selected, thetrajectory lines will be shown regardless of thevehicle's direction of travel.
With a side camera selected, the trajectory lineswill only be shown if the vehicle is backing up.
Trajectory lines for a towbar *
Towbar with trajectory line114.
Towbar - activate trajectory lines for towbar.
Zoom - zoom in/out.
The camera can help make hitching a trailer eas-ier by showing an anticipated trajectory line forthe towbar's path toward the trailer.
1.Tap Towbar (1).
> The trajectory line for the towbar's antici-pated path toward the vehicle will appearand the vehicle's trajectory lines will dis-appear.
Trajectory lines cannot be displayed forboth the vehicle and the towbar at thesame time.
2.Tap Zoom (2) for a close-up view for moreprecise maneuvering.
> The camera will zoom in.
Related information
Park Assist Camera* (p. 388)
114The illustration is generic - details may vary according to vehicle model.
Page 395 of 669
DRIVER SUPPORT
}}
393
Sensor field from Park Assist forPark Assist Camera
If the vehicle is equipped with Park Assist, dis-tances will be shown in the 360° view with col-ored fields for each sensor that has detected anobstacle.
Front and rear sensors
The screen can display colored sensor fields on thevehicle symbol115.
The front and rear fields change colors (fromYELLOW to ORANGE to RED) as the vehiclemoves closer to an obstacle.
Field color rear-wardDistance in meters (feet)
Yellow0.6-1.5 (2.0-4.9)
Orange0,3–0,6 (1,0–2,0)
Red0-0.3 (0-1.0)
Field color forward Distance in meters (feet)
Yellow0,6–0,8 (2,0–2,6)
Orange0,3–0,6 (1,0–2,0)
Red0-0.3 (0-1.0)
When the sensor field color is red, the audiblepulsing sounds will change to a continuous tone.
Side sensor fields
Warning signals vary depending on the vehicle'sintended direction of travel. Depending on thesteering wheel position, warnings may be givenfor obstacles diagonally in front of or behind thevehicle, not only directly behind the vehicle.
Parking sensor sectors where obstacles can bedetected115.
Left-side front sensor field
Obstacle sector in the vehicle's intendeddirection of travel forward – varies accordingto steering wheel position
Sector with RED field color and rapidly puls-ing tone
Right-side rear sensor field
Obstacle sector in the vehicle's intendeddirection of travel rearward – varies accordingto steering wheel position.
115The illustration is generic - details may vary according to vehicle model.
Page 396 of 669
||
DRIVER SUPPORT
* Option/accessory.394
The color of the side field changes as the vehiclemoves closer to the object – from YELLOW toRED.
Side field color Distance in meters (feet)
Yellow0,25–0,9 (0,8–3,0)
Red0–0,25 (0–0,8)
When the sensor field is RED, the audible pulsingsignal will become more rapid.
Related information
Park Assist Camera* (p. 388)
Starting the Park Assist Camera
The Park Assist Camera starts automaticallywhen reverse gear is engaged or can be startedmanually using one of the center display's func-tion buttons.
Camera view when backing up
When reverse gear is engaged, the screen shows
the rear view116.
Camera view when manually starting
the camera
Start the Park Assist Camerausing this button in the centerdisplay's Function view.
The screen will first show themost recently used cameraview. However, each time theengine is started, the previous side view will bereplaced by the 360° view and a previously dis-played zoomed-in rear view will be replaced bythe regular rear view.
Automatically deactivating the camera
Front view switches off when the vehicle's speedreaches 25 km/h (16 mph) to help avoid dis-tracting the driver. It will be automatically reactiva-ted if the vehicle's speed falls below 22 km/h(14 mph) within 1 minute as long as the vehicle'sspeed has not exceeded 50 km/h (31 mph).
Other camera views switch off at 15 km/h(9 mph) and are not reactivated.
Related information
Park Assist Camera* (p. 388)
116In Canada, it is also possible to select the 360° view.
Page 397 of 669
DRIVER SUPPORT
}}
395

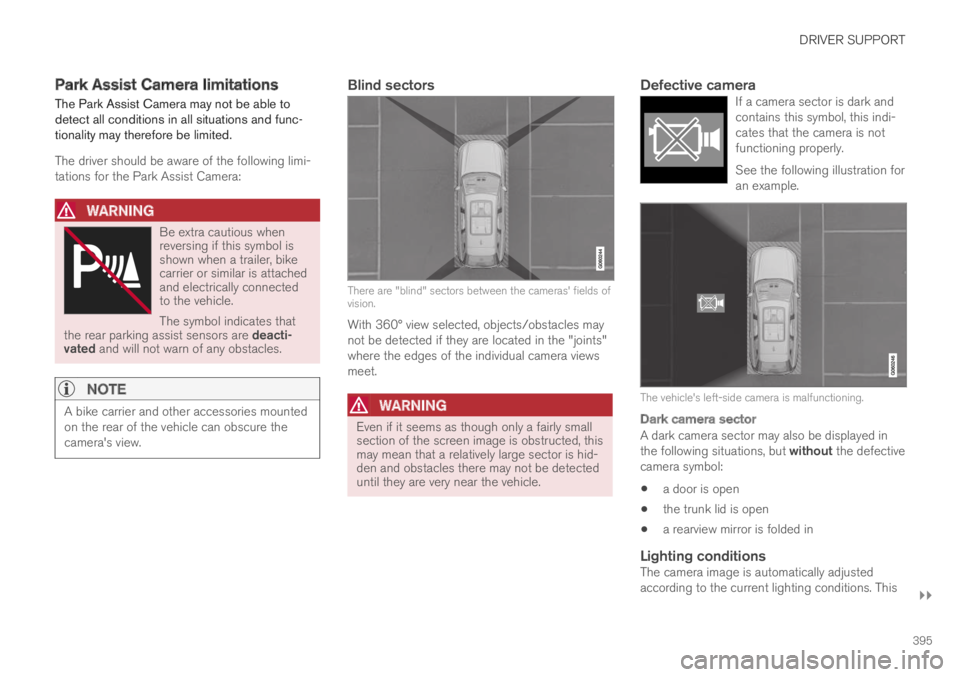

Park Assist Camera limitations
The Park Assist Camera may not be able todetect all conditions in all situations and func-tionality may therefore be limited.
The driver should be aware of the following limi-tations for the Park Assist Camera:
WARNING
Be extra cautious whenreversing if this symbol isshown when a trailer, bikecarrier or similar is attachedand electrically connectedto the vehicle.
The symbol indicates thatthe rear parking assist sensors are deacti-vated and will not warn of any obstacles.
NOTE
A bike carrier and other accessories mountedon the rear of the vehicle can obscure thecamera's view.
Blind sectors
There are "blind" sectors between the cameras' fields ofvision.
With 360° view selected, objects/obstacles maynot be detected if they are located in the "joints"where the edges of the individual camera viewsmeet.
WARNING
Even if it seems as though only a fairly smallsection of the screen image is obstructed, thismay mean that a relatively large sector is hid-den and obstacles there may not be detecteduntil they are very near the vehicle.
Defective camera
If a camera sector is dark andcontains this symbol, this indi-cates that the camera is notfunctioning properly.
See the following illustration foran example.
The vehicle's left-side camera is malfunctioning.
Dark camera sector
A dark camera sector may also be displayed inthe following situations, but without the defectivecamera symbol:
a door is open
the trunk lid is open
a rearview mirror is folded in
Lighting conditions
The camera image is automatically adjustedaccording to the current lighting conditions. This
Page 398 of 669
||
DRIVER SUPPORT
* Option/accessory.396
means that the brightness and quality of theimage may vary slightly. Poor lighting conditionsmay result in reduced image quality.
Related information
Park Assist Camera* (p. 388)

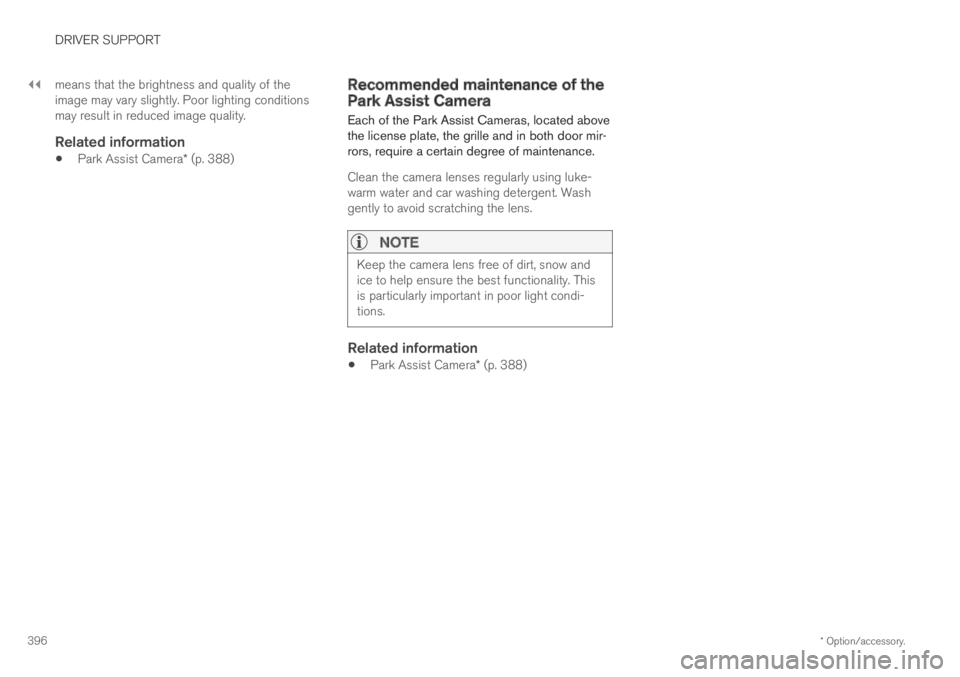

Recommended maintenance of thePark Assist Camera
Each of the Park Assist Cameras, located abovethe license plate, the grille and in both door mir-rors, require a certain degree of maintenance.
Clean the camera lenses regularly using luke-warm water and car washing detergent. Washgently to avoid scratching the lens.
NOTE
Keep the camera lens free of dirt, snow andice to help ensure the best functionality. Thisis particularly important in poor light condi-tions.
Related information
Park Assist Camera* (p. 388)
Page 399 of 669
DRIVER SUPPORT
* Option/accessory.397

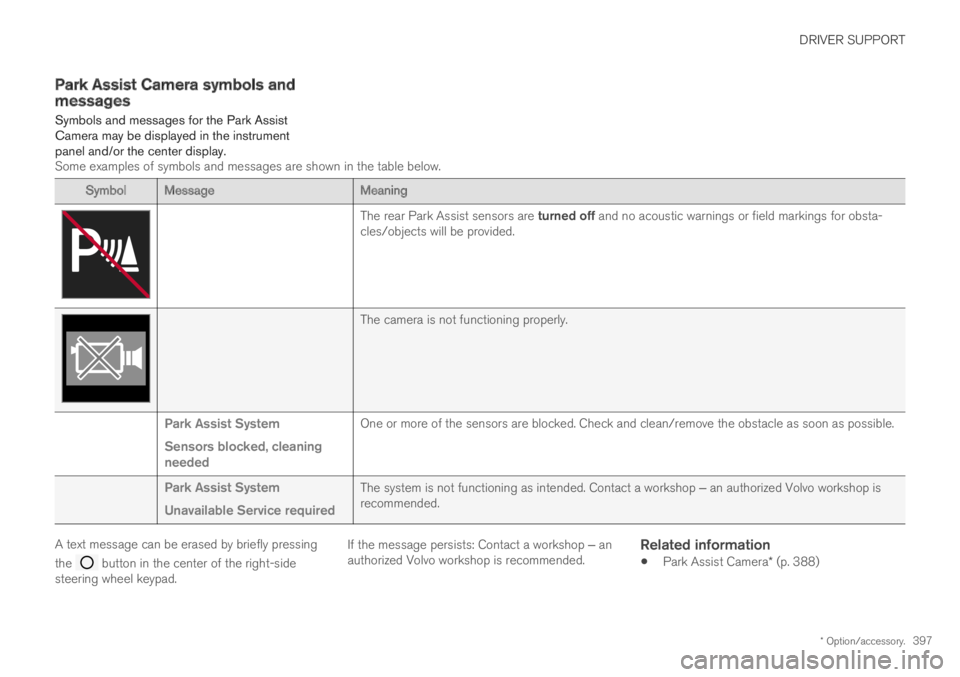

Park Assist Camera symbols andmessages
Symbols and messages for the Park AssistCamera may be displayed in the instrumentpanel and/or the center display.Some examples of symbols and messages are shown in the table below.
Symbol MessageMeaning
The rear Park Assist sensors are turned off and no acoustic warnings or field markings for obsta-cles/objects will be provided.
The camera is not functioning properly.
Park Assist System
Sensors blocked, cleaningneeded
One or more of the sensors are blocked. Check and clean/remove the obstacle as soon as possible.
Park Assist System
Unavailable Service required
The system is not functioning as intended. Contact a workshop ‒ an authorized Volvo workshop isrecommended.
A text message can be erased by briefly pressing
the button in the center of the right-sidesteering wheel keypad.
If the message persists: Contact a workshop ‒ anauthorized Volvo workshop is recommended.
Related information
Park Assist Camera* (p. 388)
Page 400 of 669
DRIVER SUPPORT
* Option/accessory.398

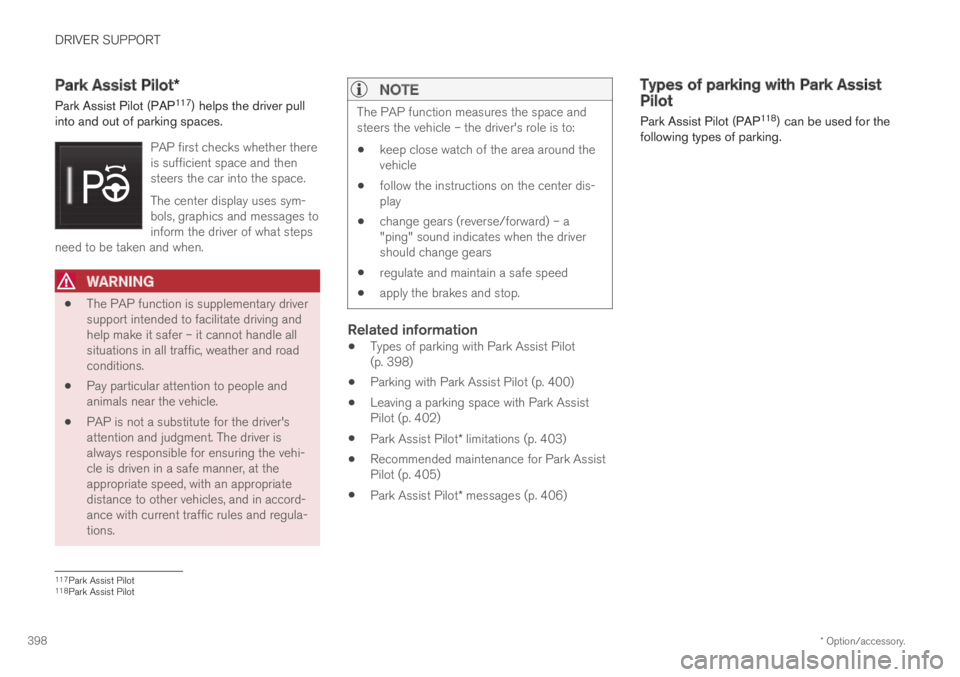

Park Assist Pilot*
Park Assist Pilot (PAP117) helps the driver pullinto and out of parking spaces.
PAP first checks whether thereis sufficient space and thensteers the car into the space.
The center display uses sym-bols, graphics and messages toinform the driver of what stepsneed to be taken and when.
WARNING
The PAP function is supplementary driversupport intended to facilitate driving andhelp make it safer – it cannot handle allsituations in all traffic, weather and roadconditions.
Pay particular attention to people andanimals near the vehicle.
PAP is not a substitute for the driver'sattention and judgment. The driver isalways responsible for ensuring the vehi-cle is driven in a safe manner, at theappropriate speed, with an appropriatedistance to other vehicles, and in accord-ance with current traffic rules and regula-tions.
NOTE
The PAP function measures the space andsteers the vehicle – the driver's role is to:
keep close watch of the area around thevehicle
follow the instructions on the center dis-play
change gears (reverse/forward) – a"ping" sound indicates when the drivershould change gears
regulate and maintain a safe speed
apply the brakes and stop.
Related information
Types of parking with Park Assist Pilot(p. 398)
Parking with Park Assist Pilot (p. 400)
Leaving a parking space with Park AssistPilot (p. 402)
Park Assist Pilot* limitations (p. 403)
Recommended maintenance for Park AssistPilot (p. 405)
Park Assist Pilot* messages (p. 406)
Types of parking with Park AssistPilot
Park Assist Pilot (PAP118) can be used for thefollowing types of parking.
