Page 223 of 669
CLIMATE CONTROL
}}
221
Setting the temperature for thefront seats
The temperature can be set to the desired num-ber of degrees for the front seat climate zones.
Temperature buttons in the climate bar.
1. Tap the left- or right-side temperature but-tons in the center display's climate bar toopen the control.
Temperature control.
2. Set the temperature by doing one of the fol-lowing:
dragging the control to the desired tem-perature, or
tapping +− to raise/lower the tempera-ture.
> The temperature will be set and the but-ton will display the new temperature.
NOTE
Heating/cooling cannot be accelerated bychoosing a higher/lower temperature thanthe desired temperature.
Related information
Climate system controls (p. 207)
Setting the temperature for the rearseats
The temperature can be set to the desired num-ber of degrees for the rear seat climate zones.
Setting the temperature for the rear
seats from the front seats
Temperature buttons in the Rear climate tab in Climateview.
1. Open Climate view in the center display andselect the Rear climate tab.
2. Tap the left- or right-side temperature buttonto open the control.
Page 224 of 669
||
CLIMATE CONTROL
222
Temperature control.
3. Set the temperature by:
dragging the control to the desired tem-perature
tapping +− to raise/lower the tempera-ture.
> The temperature will be set and the but-ton will display the new temperature.
Setting the temperature for the rear
seats from the rear seats
1. Tap the unlock button on the tunnel con-sole's climate panel to access the controls.
Temperature controls on the rear climate panel of thetunnel console.
2.Tap the left or right side's <> buttons tolower/raise the temperature.
> The temperature will be changed and theclimate panel screen will show the newtemperature.
NOTE
Heating/cooling cannot be accelerated bychoosing a higher/lower temperature thanthe desired temperature.
Related information
Climate system controls (p. 207)
Synchronize temperature
The temperature in the different climate zones ofthe vehicle can be synchronized with the tem-perature set for the driver's side.
Synchronization button on the driver's side temperaturecontrol.
1. Tap the driver's side temperature button inthe center display's climate bar to open thecontrol.
2.Tap Synchronize temperature .
> The temperature for all of the vehicle's cli-mate zones will be synchronized with theone set for the driver's side and the syn-chronization symbol will be displayed nextto the temperature button.
Synchronization is stopped with another press onSynchronize temperature or by changing thetemperature setting for a climate zone other thanthe driver's.
Page 229 of 669
CLIMATE CONTROL
227
Adding and editing timer settingsfor preconditioning
The preconditioning timer can store up to 8 pre-set timer settings.
Adding a timer setting
Button for adding a timer setting in the Parking climatetab in Climate view.
1. Open Climate view in the center display.
2.Select the Parking climate tab.
3.Tap Add timer.
> A pop-up window will appear.
NOTE
It is not possible to add a time setting if thereare already 8 settings for the timer. Delete atime setting to be able to add a new one.
4.Tap Date to set a time for a specific date.
Tap Days to set a time for one or more daysof the week.
With Days: Activate/deactivate the repeatfunction by selecting/deselecting theRepeat weekly checkbox.
5.With Date: Select a date for preconditioningby scrolling in the date list using the arrows.
With Days: Select days of the week for pre-conditioning by tapping the buttons for thedays.
6. Set the time at which preconditioning shouldbe completed by scrolling using the arrows inthe clock.
7.Tap Confirm to add a timer setting.
> The timer setting will be added to the listand activated.
Editing a timer setting
1. Open Climate view in the center display.
2.Select the Parking climate tab.
3. Tap the timer setting you would like tochange.
>A pop-up window will appear.
4. To edit a timer setting, follow the proceduresdescribed under the heading "Adding a timersetting" above.
Related information
Preconditioning (p. 224)
Preconditioning timer (p. 226)
Activating and deactivating preconditioningtimer (p. 228)
Deleting preconditioning timer settings(p. 228)
Page 230 of 669
CLIMATE CONTROL
228
Activating and deactivatingpreconditioning timer
Timer settings in the preconditioning timer canbe activated or deactivated as needed.
Timer buttons in the Parking climate tab in Climateview.
1. Open Climate view in the center display.
2.Select the Parking climate tab.
3. Activate/deactivate a timer setting by tap-ping the timer button to the right of the set-ting.
>The timer setting is activated/deactivatedand the button lights up/goes out.
Related information
Preconditioning (p. 224)
Preconditioning timer (p. 226)
Adding and editing timer settings for precon-ditioning (p. 227)
Deleting preconditioning timer settings(p. 228)
Deleting preconditioning timersettings
A preconditioning timer setting that is no longerneeded can be deleted.
The button for editing a list/deleting a timer setting inthe Parking climate tab in Climate view.
1. Open Climate view in the center display.
2.Select the Parking climate tab.
3.Tap Edit list.
4. Tap the editing icon to the right in the list.
>The icon will change to the text Delete.
5.Tap Delete to confirm.
> The timer setting will be deleted from thelist.
Page 238 of 669
KEY, LOCKS AND ALARM
* Option/accessory.236
Lock indication
When the vehicle is locked or unlocked, the turnsignals will flash to indicate that the vehicle hasbeen locked or unlocked correctly.
Exterior confirmation
Locking
The turn signals will flash once and the door
mirrors will fold in1 to confirm the vehicle islocked.
Unlocking
The turn signals will flash twice and the door
mirrors will fold out1 to confirm the vehicle isunlocked.
All doors, trunk lid and hood must be closed forconfirmation to be given. If only the driver's door
is closed when the vehicle is locked2, the vehiclewill be locked but the turn signals will only flashto indicate locking when all doors and the hoodand trunk lid have been closed.
Lock and alarm indicator
The locks and alarm indicator on the dashboard will dis-play the status of the locking system.
A long flash indicates that the vehicle is locked.When the vehicle is locked, this will be indicatedby short, pulsing flashes.
Other indicators
The home safe lighting and approach lightingfunctions also indicate when the vehicle is lockedor unlocked.
Lock button indicators
Front door
Lock buttons with indicator lights in front door.
Illuminated indicator lights in both front door lockbuttons indicate that all doors are locked. If anydoor is opened, the lights in both doors will goout.
1Only vehicles with power folding mirrors.2Does not apply to vehicles equipped with keyless locking/unlocking (Passive Entry*).
Page 240 of 669
||
KEY, LOCKS AND ALARM
* Option/accessory.238
The keyless system for locking/unlocking thedoors and trunk lid (Passive Entry*) is available asan option. This system has a range in a semicirclewith a radius of approximately 1.5 meter (5 feet)out from the driver's door and approx. 1 meter(3 feet) out from the trunk lid.
With keyless start in combination with keylesslocking and unlocking, the remote key can belocated anywhere in the passenger compartmentor trunk in order to start the engine.
Each remote key supplied with the vehicle can belinked to a driver profile with unique settings forthe vehicle. When a key with a specific profile isused, the vehicle settings are adjusted accordingto that profile.
Buttonless key, Key Tag
For vehicles equipped with keyless locking andunlocking*, a smaller, lighter and button-less key
(Key Tag4) is also provided. It works the sameway as the regular remote key as regard keylessstart and keyless locking and unlocking. The keyis waterproof up to a depth of approx. 10 meters(30 feet) for up to 60 minutes. It does not have adetachable key blade and its battery cannot bereplaced.
Remote key buttons
The remote key has four buttons, one on the left sideand three on the right3.
Locking - Press once to lock the doors,trunk lid and fuel filler door and arm thealarm.
Press and hold to close all windows.
Unlocking - Press once to unlock thedoors and trunk lid and disarm the alarm.
Press and hold to open all windows at thesame time. This total airing function can beused to e.g. quickly air out the vehicle in hotweather.
Trunk lid - Press to unlock and disarm thetrunk lid only. On vehicles equipped with thepower trunk release*, press and hold to auto-matically open the tailgate. Press and hold to
close an open trunk lid (an audible warningsignal will be given). On vehicles not equip-ped with the power trunk release, pressingand holding will open the trunk lid mechani-cally due to the preloaded springs.
Panic alarm - Used to attract attention inemergency situations. Press and hold thebutton for at least 3 seconds or press twicewithin 3 seconds to activate the turn signalsand horn. To deactivate, wait at least 5 sec-onds and press the button again. If no actionis taken, the panic alarm will deactivate auto-matically after 3 minutes.
WARNING
If anyone is left in the vehicle, make sure thatpower to the power windows and panoramicroof is cut off by always taking the remote keywith you when you leave the vehicle.
4Även kallad sportnyckel.3The illustration is generic - details may vary according to vehicle model.
Page 242 of 669
KEY, LOCKS AND ALARM
* Option/accessory.240
Locking and unlocking using theremote key
All doors and the trunk lid can be locked andunlocked simultaneously using the buttons onthe remote key.
Locking with remote key
Remote key5.
–Press the button on the remote key tolock.
To activate the locking sequence, the driver's
door must be closed6. If any of the other doors orthe trunk lid are open, they will be locked and thealarm will be armed once they are closed.
NOTE
Be aware of the risk of locking the remotekey in the vehicle.
If the remote key or Key Tag is left in thevehicle, it will be deactivated when thevehicle is locked and the alarm set usinganother valid key. The deactivated key willbe reactivated when the vehicle isunlocked.
If the remote key or Red Key is left in thevehicle, it will be deactivated even if thevehicle is locked using Volvo On Call, andwill be reactivated when the vehicle isunlocked using Volvo On Call or bypressing the unlock button on the key.
Locking when the trunk lid is open
NOTE
If the vehicle is locked and the trunk lid is stillopen, make sure that the remote key is notleft in the trunk when the trunk lid is closed
and the entire vehicle is locked7.
Unlocking with remote key
–Press the button on the remote key tounlock.
Automatic relocking
If none of the doors or trunk lid are opened withintwo minutes after being unlocked, they will auto-matically relock. This function reduces the risk ofinadvertently leaving the vehicle unlocked.
Remote key not working
NOTE
Move closer to the vehicle and try to unlock itagain.
If the remote key is not working to lock or unlockthe vehicle, its battery may be discharged. Usethe detachable key blade to lock/unlock the driv-er's door instead.
Related information
Settings for remote and inside door unlock(p. 241)
Unlocking the trunk lid using the remote key(p. 241)
Remote key (p. 237)
Replacing the remote key's battery (p. 243)
Locking and unlocking with detachable keyblade (p. 249)
5The illustration is generic - details may vary according to vehicle model.6If the vehicle is equipped with keyless locking/unlocking, all side doors must be closed.7If the vehicle is equipped with keyless locking/unlocking and the key is detected inside the vehicle, the trunk lid will not lock when it is closed.*
Page 245 of 669
KEY, LOCKS AND ALARM
}}
* Option/accessory.243
Replacing the remote key's battery
The battery in the remote key must be replacedwhen it is discharged.
NOTE
All batteries have a limited service life andmust eventually be replaced (does not applyfor Key Tag). The battery's service life variesdepending on how often the vehicle/key isused.
The remote key battery should be replaced if:
the information symbol illuminates andthe message Vehicle key bat. lowSee Owner's manual is displayed inthe instrument panel
and/or
the locks do not react after several attemptsto lock or unlock the vehicle using theremote key within approx. 20 meter (65 feet)from the vehicle.
NOTE
Move closer to the vehicle and try to unlock itagain.
The battery in the smaller key without buttons9
(the Key Tag) cannot be replaced. A new key canbe ordered from an authorized Volvo workshop.
CAUTION
An end-of-life Key Tag must be turned in toan authorized Volvo workshop. The key mustbe deleted from the vehicle because it canstill be used to start the vehicle via backupstart.
Opening the key and replacing the
battery
Hold the remote key with the front side(with the Volvo logo) facing up and move thebutton on the key ring section to the right.Slide the front cover slightly upward.
The cover will loosen and can beremoved from the key.
9This key is provided with vehicles equipped with keyless locking/unlocking (Passive Entry*).

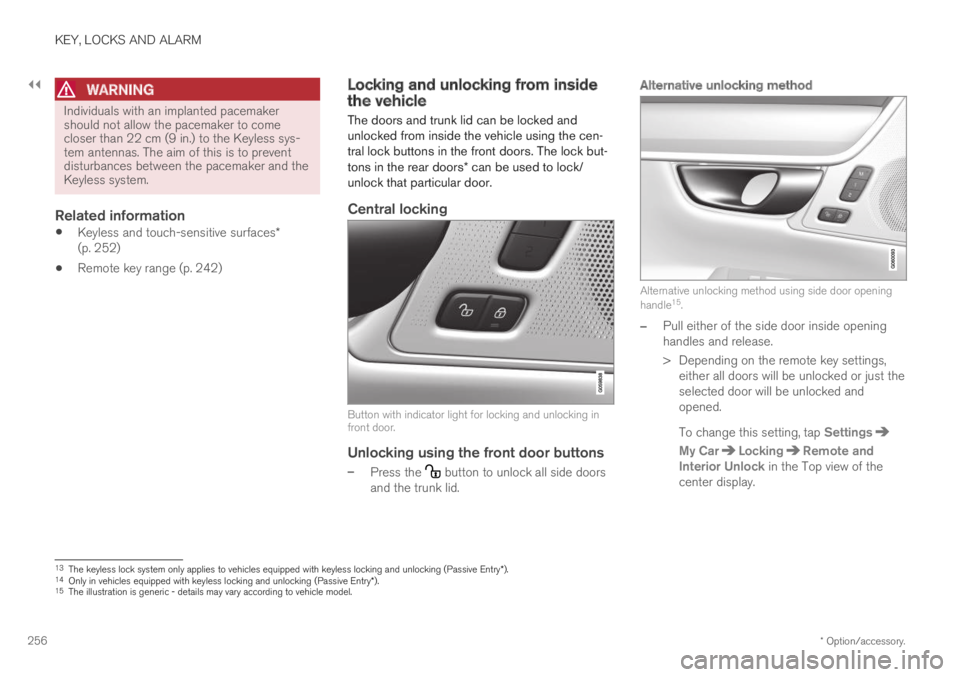

Page 258 of 669
||
KEY, LOCKS AND ALARM
* Option/accessory.256
WARNING
Individuals with an implanted pacemakershould not allow the pacemaker to comecloser than 22 cm (9 in.) to the Keyless sys-tem antennas. The aim of this is to preventdisturbances between the pacemaker and theKeyless system.
Related information
Keyless and touch-sensitive surfaces*(p. 252)
Remote key range (p. 242)
Locking and unlocking from insidethe vehicle
The doors and trunk lid can be locked andunlocked from inside the vehicle using the cen-tral lock buttons in the front doors. The lock but-tons in the rear doors* can be used to lock/unlock that particular door.
Central locking
Button with indicator light for locking and unlocking infront door.
Unlocking using the front door buttons
–Press the button to unlock all side doorsand the trunk lid.
Alternative unlocking method
Alternative unlocking method using side door openinghandle15.
–Pull either of the side door inside openinghandles and release.
> Depending on the remote key settings,either all doors will be unlocked or just theselected door will be unlocked andopened.
To change this setting, tap Settings
My CarLockingRemote andInterior Unlock in the Top view of thecenter display.
13The keyless lock system only applies to vehicles equipped with keyless locking and unlocking (Passive Entry*).14Only in vehicles equipped with keyless locking and unlocking (Passive Entry*).15The illustration is generic - details may vary according to vehicle model.
Page 259 of 669
KEY, LOCKS AND ALARM
}}
* Option/accessory.257
Locking using the front door buttons
–Press the button (both front doors mustbe closed).
> All doors and the trunk lid will lock.
Locking using the rear door button *
Button with indicator light for locking/unlocking in reardoor.
The lock buttons in the rear doors only lock/unlock that particular door.
Unlocking the rear door
1. Pull the opening handle to unlock the reardoor.
2. Pull the opening handle again to open the
rear door16.
Related information
Settings for remote and inside door unlock(p. 241)
Unlocking the trunk lid from inside the vehi-cle (p. 257)
Activating and deactivating child safety locks(p. 259)
Opening the trunk lid from inside the trunk(p. 258)
Unlocking the trunk lid from insidethe vehicle
The trunk lid can be unlocked from the insideusing a button on the dashboard.
1.
Press the button on the dashboard.
> The trunk lid will unlock and can beopened from the outside by pressing therubberized pressure plate on the handle.
2.With the optional power trunk lid* -
Press and hold the button on the dash-board.
> The trunk lid will open.
16Provided the child safety lock is not activated.
