KEY, LOCKS AND ALARM
* Option/accessory.238
The keyless system for locking/unlocking thedoors and trunk lid (Passive Entry*) is available asan option. This system has a range in a semicirclewith a radius of approximately 1.5 meter (5 feet)out from the driver's door and approx. 1 meter(3 feet) out from the trunk lid.
With keyless start in combination with keylesslocking and unlocking, the remote key can belocated anywhere in the passenger compartmentor trunk in order to start the engine.
Each remote key supplied with the vehicle can belinked to a driver profile with unique settings forthe vehicle. When a key with a specific profile isused, the vehicle settings are adjusted accordingto that profile.

Buttonless key, Key Tag
For vehicles equipped with keyless locking andunlocking*, a smaller, lighter and button-less key
(Key Tag4) is also provided. It works the sameway as the regular remote key as regard keylessstart and keyless locking and unlocking. The keyis waterproof up to a depth of approx. 10 meters(30 feet) for up to 60 minutes. It does not have adetachable key blade and its battery cannot bereplaced.
Remote key buttons
The remote key has four buttons, one on the left sideand three on the right3.
Locking - Press once to lock the doors,trunk lid and fuel filler door and arm thealarm.
Press and hold to close all windows.
Unlocking - Press once to unlock thedoors and trunk lid and disarm the alarm.
Press and hold to open all windows at thesame time. This total airing function can beused to e.g. quickly air out the vehicle in hotweather.
Trunk lid - Press to unlock and disarm thetrunk lid only. On vehicles equipped with thepower trunk release*, press and hold to auto-matically open the tailgate. Press and hold to
close an open trunk lid (an audible warningsignal will be given). On vehicles not equip-ped with the power trunk release, pressingand holding will open the trunk lid mechani-cally due to the preloaded springs.
Panic alarm - Used to attract attention inemergency situations. Press and hold thebutton for at least 3 seconds or press twicewithin 3 seconds to activate the turn signalsand horn. To deactivate, wait at least 5 sec-onds and press the button again. If no actionis taken, the panic alarm will deactivate auto-matically after 3 minutes.

WARNING
If anyone is left in the vehicle, make sure thatpower to the power windows and panoramicroof is cut off by always taking the remote keywith you when you leave the vehicle.
4Även kallad sportnyckel.3The illustration is generic - details may vary according to vehicle model.

KEY, LOCKS AND ALARM
}}
* Option/accessory.255
Keyless trunk lid unlock*
The trunk lid can be opened using the remotekey. The key only needs to be within range, e.g.in a pocket or bag.
The trunk lid is held closed by an electronic lock-ing mechanism.
To open the tailgate:
1. Lightly press the rubberized pressure plateon the underside of the trunk lid handle.
>The lock will disengage.

NOTE
One of the vehicle's remote keys must bewithin range behind the vehicle for unlockingto be possible.
2. Lift the outer handle to fully open the trunklid.
CAUTION
Only light pressure on the rubberized pres-sure plate is necessary to release thetrunk lid's locking mechanism.
Use the handle to lift the trunk lid and donot apply force to the rubberized pressureplate. Too much force can damage thepressure plate's electrical connections.
Hands-free opening of the trunk lid is also possi-ble using a foot movement under the rearbumper; see the separate section.

WARNING
Do not drive with the trunk lid open. Toxicexhaust fumes can be sucked into the vehiclethrough the trunk.

Related information
Opening and closing the trunk lid with footmovement* (p. 263)
Keyless and touch-sensitive surfaces*(p. 252)
Remote key range (p. 242)
Antenna locations for the start andlock system
The vehicle is equipped with a keyless start and
lock system13 that uses a number of integratedantennas positioned throughout the vehicle.
Location of the antennas.
Under the cup holder in the front section ofthe tunnel console
In the upper front section of the left-side rear
door14
In the upper front section of the right-side
rear door14
In the trunk14

KEY, LOCKS AND ALARM
}}
* Option/accessory.261

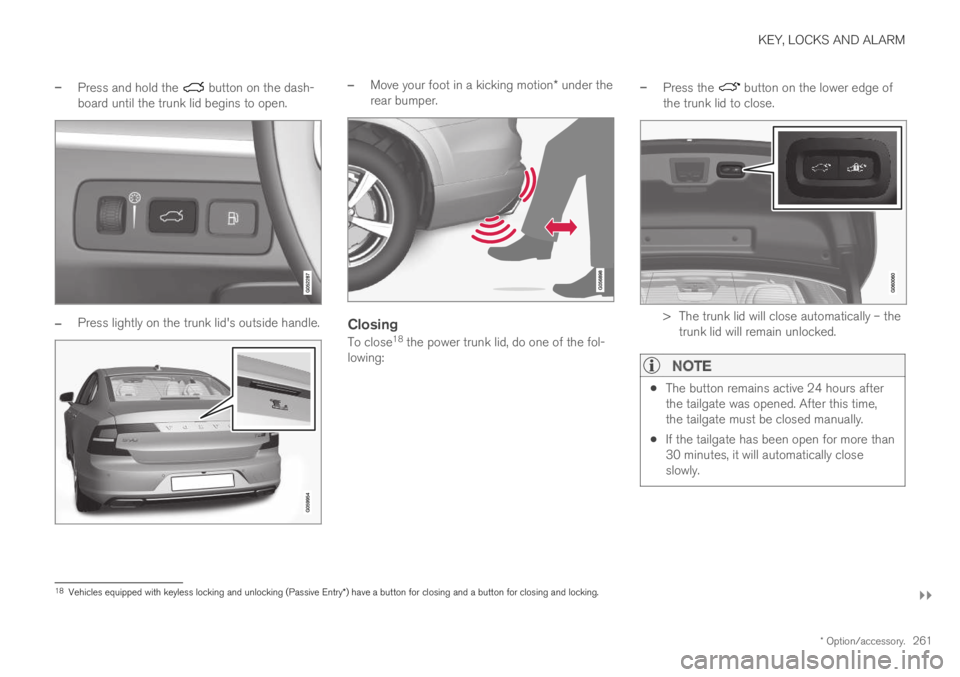

–Press and hold the button on the dash-board until the trunk lid begins to open.
–Press lightly on the trunk lid's outside handle.
–Move your foot in a kicking motion* under therear bumper.

Closing
To close18 the power trunk lid, do one of the fol-lowing:
–Press the button on the lower edge ofthe trunk lid to close.
> The trunk lid will close automatically – thetrunk lid will remain unlocked.

NOTE
The button remains active 24 hours afterthe tailgate was opened. After this time,the tailgate must be closed manually.
If the tailgate has been open for more than30 minutes, it will automatically closeslowly.
18Vehicles equipped with keyless locking and unlocking (Passive Entry*) have a button for closing and a button for closing and locking.

||
KEY, LOCKS AND ALARM
* Option/accessory.262
–Press and hold the button on theremote key.
> The trunk lid closes automatically and anaudible signal sounds - the trunk lid willremain unlocked.
–Press and hold the button on the dash-board.
> The trunk lid closes automatically and anaudible signal sounds - the trunk lid willremain unlocked.
–Move your foot in a kicking motion* underthe rear bumper.
> The trunk lid closes automatically and anaudible signal sounds - the trunk lid willremain unlocked.

Closing and locking 18
–Press the button on the lower edge ofthe trunk lid to close and simultaneously lockboth the trunk lid and doors (all doors mustbe closed in order to lock).
> The trunk lid closes automatically – thetrunk lid and doors lock, and the alarm* isarmed.

NOTE
One of the vehicle's remote keys must bewithin range for locking and unlocking tobe possible.
When the keyless locking or closing* func-tions are used, three audible signals willsound if the key is not detected closeenough to the tailgate.

CAUTION
When operating the trunk lid manually, openand close it slowly. If you encounter resis-tance, do not use force. This could lead todamage and loss of function.

Interrupting closing
Interrupt closing by doing one of the following:
Press the button on the dashboard.
Press the button on the remote key.
Press the close button on the underside ofthe trunk lid.
Press the rubberized pressure plate on theunderside of the tailgate's outer handle.
Using a foot movement*.
The trunk lid will stop closing and return to itsfully open position. The trunk lid can then beopened or closed manually.
Pinch protection
If anything obstructs the tailgate with enoughforce to prevent it from closing, pinch protectionwill be activated.
When closing - the trunk lid will stop andthen return to its fully open position. A longaudible signal will sound.

WARNING
Be aware of the risk of serious injury whenoperating the trunk lid. Before closing, makesure that no one is in the path of the tailgatewho could be injured by its movement.
Always operate the trunk lid with caution.

18
Vehicles equipped with keyless locking and unlocking (Passive Entry * ) have a button for closing and a button for closing and locking.
