VOLVO V60 2012 Owners Manual

03 Your driving environment
Lighting
03

* Option/accessory, for more information, see Introduction.89
Posi-
tionSpecification
Automatic dipped beam. Main
beam and main beam flash
work in this position
A/Deacti-
vated dipped beam.
Position/parking lamps
Dipped beam. Main beam and
main beam flash work in this
position.
AApplies to certain markets.
Main beam flashMove the stalk switch gently towards the steer-
ing wheel to the position for main beam flash.
Main beam comes on until the stalk switch is
released.
Dipped beamWhen the engine is started, dipped beam is
activated automatically2 if the headlamp con-
trol is in position
. If necessary, auto-
matic dipped beam for this position can be
deactivated by a workshop. Volvo recom-
mends that you contact an authorised Volvo
workshop.In position
dipped beam is always acti-
vated automatically when the engine is running
or when the remote control key is in position
II.
Main beamMain beam can be activated when the head-
lamp control is in position
2 or .
Activate/deactivate main beam by moving the
stalk switch towards the steering wheel to the
end position and release. Alternatively, the
main beam can be deactivated by a light press
of the stalk switch toward the steering wheel.
When main beam has been activated the sym-
bol
illuminates in the combined instru-
ment panel.
Active Xenon headlamps - ABL*
Headlamp pattern with function deactivated (left)
and activated (right) respectively.
If the car is equipped with active Xenon head-
lamps (Active Bending Lights - ABL) the light
from the headlamps follows the steering wheel
movement in order to provide maximum light-
ing in bends and junctions and so provide
increased safety.
The function is activated automatically when
the car is started. In the event of a fault in the
function the
symbol illuminates in the
combined instrument panel at the same time
as the information display shows an explana-
tory text and a further illuminated symbol.
2Applies to certain markets.
ProCarManuals.com

03 Your driving environment
Lighting
03
90* Option/accessory, for more information, see Introduction.
SymbolDisplaySpecifica-
tion
Headlamp
failure
Service
requiredThe system
is disen-
gaged. Visit
a workshop
if the mes-
sage
remains.
Volvo rec-
ommends
that you
contact an
authorised
Volvo work-
shop.
The function is only active in twilight or dark-
ness and only when the car is moving.
The function
3 can be deactivated/activated in
the menu system MY CAR under My V60
Active bending lights or under Settings
Car settingsLight settingsActive
bending lights. For a description of the menu
system, see page 145.
For headlamp pattern adjustment, see
page 93.
Auxiliary lamps*If the car has auxiliary lamps, the driver can use
the MY CAR menu system to choose whether
they should be deactivated or switched on/off
simultaneously with the main beam
4, see
page 146.
Position/parking lamps
Headlamp control in position for position/parking
lamps.
Turn the headlamp control to the centre posi-
tion (number plate lighting comes on at the
same time).
When it is dark outside and the tailgate is
opened the rear position lamps illuminate to
alert traffic behind. This takes place irrespec-tive of what position the headlamp control is in
or what position the ignition is in.
Brake lights
The brake light automatically comes on during
braking. For information on the Emergency
brake lights and automatic hazard warning
flashers, see page 131.
Rear fog lamp
Button for rear fog lamp.
The rear fog lamp consists of one rear lamp and
can only be switched on in combination with
main/dipped beam.
3Activated on delivery from the factory.4Auxiliary lamps must be connected to the electrical system by a workshop. Volvo recommends that you contact an authorised Volvo workshop.
ProCarManuals.com

03 Your driving environment
Lighting
03
91
Press the button for On/Off. The rear fog lamp
indicator symbol
on the combined
instrument panel and the light in the button illu-
minate when the rear fog lamp is switched on.
The rear fog lamp is switched off automatically
when the engine is switched off.
NOTE
Regulations for using rear fog lamps vary
between different countries.
Hazard warning flashers
Button for hazard warning flashers.
Press the button to activate the hazard warning
flashers. Both direction indicator symbols in
the combined instrument panel flash when the
hazard warning flashers are in use.The hazard warning flashers are activated
automatically when the car brakes so suddenly
that the emergency brake lights are activated
and speed is below 30 km/h. They remain on
when the car has stopped and are deactivated
automatically when the car is driven off again
or the button is depressed. For more informa-
tion on Emergency brake lights and automatic
hazard warning flashers, see page 131.
Direction indicators/flashers
Direction indicators/flashers.
Short flash sequenceMove the stalk switch up or down to the
first position and release. The direction
indicators flash three times. The function
can be activated/deactivated in the menu
system MY CAR under Settings
Car
settings
Light settingsTriple turn
signal. For a description of the menu sys-
tem, see page 145.
Continuous flash sequenceMove the stalk switch up or down to the
outer position.
The stalk switch remains in its position and is
moved back manually, or automatically by the
steering wheel movement.
Direction indicator symbolsFor direction indicator symbols, see page 74.
ProCarManuals.com

03 Your driving environment
Lighting
03
92
Interior lighting
G021149
Controls in roof console for the front reading
lamps and passenger compartment lighting.
Reading lamp, left-hand side
Reading lamp, right-hand side
Passenger compartment lighting
All lighting in the passenger compartment can
be switched on and off manually within
30 minutes from when:
•the engine has been switched off and the
remote control key is in position 0
•the car has been unlocked but the engine
has not been started.
Front roof lightingThe front reading lamps are switched on or off
by pressing the relevant button in the roof con-
sole.
Rear roof lighting
G021150
Rear roof lighting.
The lamps are switched on or off by pressing
each respective button.
Courtesy lightingCourtesy lighting (and passenger compart-
ment lighting) is switched on and off respec-
tively when a side door is opened or closed,
see page 88
Glovebox lightingGlovebox lighting is switched on and off
respectively when the lid is opened or closed.
Vanity mirrorThe lighting for the vanity mirror, see
page 217, is switched on and off respectively
when the cover is opened or closed.
Lighting, cargo areaThe lighting in the cargo area is switched on
and off respectively when the tailgate is
opened or closed.
Automatic lightingThe switch for passenger compartment light-
ing has three positions for the lighting in the
passenger compartment:
•Off – right-hand side pressed in, automatic
lighting deactivated.
•Neutral position – automatic lighting acti-
vated.
•On – left-hand side pressed in, passenger
compartment lighting switched on.
Neutral positionWhen the button is in neutral position the pas-
senger compartment lighting is switched on
and off automatically in accordance with the
following.
The passenger compartment lighting is
switched on and remains on for 30 seconds if:
ProCarManuals.com

03 Your driving environment
Lighting
03

93
•the car is unlocked with the remote control
key or key blade, see pages 47 or 50
•the engine has been switched off and the
remote control key is in position 0.
Passenger compartment lighting is switched
off when:
•the engine is started
•the car is locked.
The passenger compartment lighting comes
on and remains on for two minutes if one of the
doors is open.
If any lighting is switched on manually and the
car is locked then it will be switched off auto-
matically after two minutes.
Comfort lightingWhen the normal passenger compartment
lighting is switched off and the engine is run-
ning some of the LEDs illuminate, including one
in the ceiling lighting, in order to provide a low-
light and increase comfort while driving. This
lighting goes out for a little while after the nor-
mal passenger compartment lighting when the
car is locked.
Home safe light duration
Some of the exterior lighting can be kept
switched on to work as home safe lighting after
the car has been locked.
1. Remove the remote control key from the
ignition switch.
2. Move the left-hand stalk switch toward the
steering wheel to the end position and
release it. The function can be activated in
the same way as with main beam flash, see
page 88.
3. Get out of the car and lock the door.
When the function is activated, dipped beam,
parking lamps, door mirror lamps, number
plate lighting, interior roof lamps and courtesy
lighting are switched on.
The length of time for which the home safe
lighting should be kept on can be set in the
menu system MY CAR under Settings
Car
settings
Light settingsHome safe light
duration. For a description of the menu sys-
tem, see page 145.
Approach light duration
Approach lighting is switched on with the
remote control key, see page 47, and is used
to switch on the car's lighting at a distance.
When the function is activated with the remote
control, parking lamps, door mirror lamps,
number plate lighting, interior roof lamps and
courtesy lighting are switched on.
The length of time for which the approach light-
ing should be kept on can be set in the menu
system MY CAR under Settings
Car
settings
Light settingsApproach light
duration. For a description of the menu sys-
tem, see page 145.
Adjusting headlamp pattern
G021151
Headlamp pattern, left-hand traffic.
ProCarManuals.com

03 Your driving environment
Lighting
03
94* Option/accessory, for more information, see Introduction.
G021152
Headlamp pattern, right-hand traffic.
The headlamp pattern must be adjusted to
avoid dazzling oncoming motorists and can be
set for right or left-hand traffic. The correct pat-
tern will also better illuminate the verge.
Active Xenon headlamps*The car must be stationary with the engine run-
ning when the headlamp pattern is shifted
between right and left-hand traffic.
1.
Access the menu system MY CAR under
Settings
Car settingsLight
settings.
2.
Select between
Temporary RH trafficand Temporary LH traffic.
For a description of the menu system, see
page 145
Halogen headlampsThe headlamp pattern for halogen headlamps
is readjusted by masking the headlamp lens.
The headlamp pattern may not be as good.

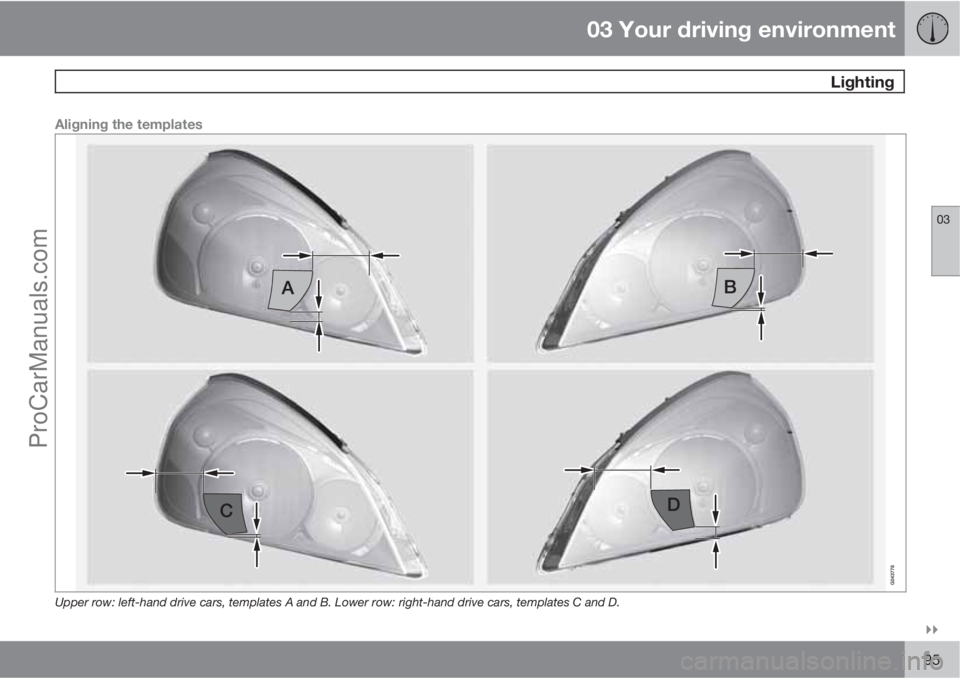

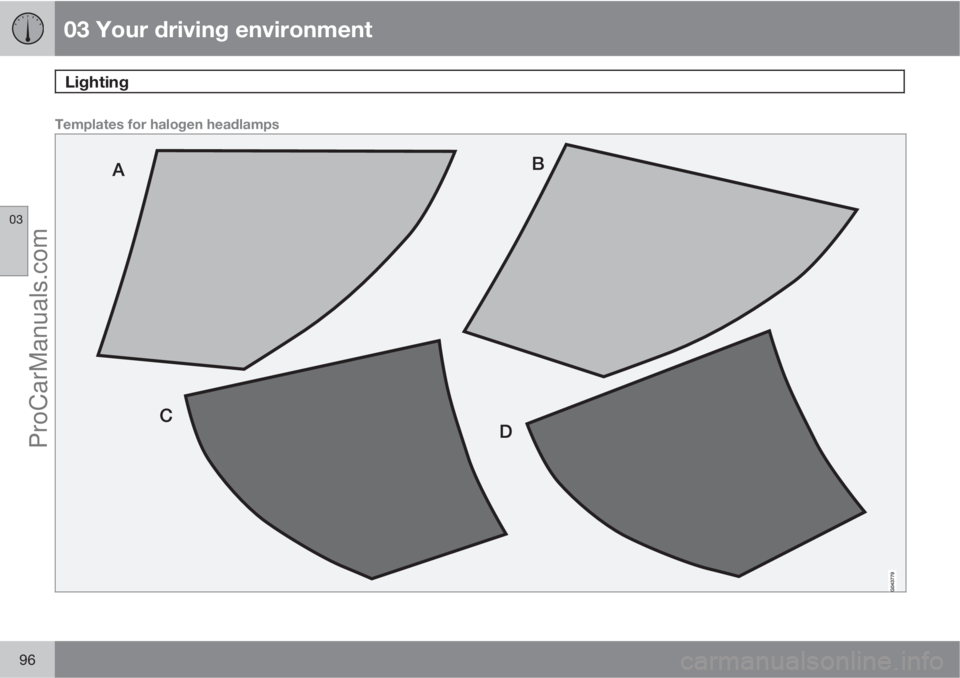

Masking the headlamps1. Copy the A and B templates for left-hand
drive cars or the C and D templates for
right-hand drive cars with a scale of 1:1,
see page 96:
•A = LHD Right (left-hand drive, right
lens)
•B = LHD Left (left-hand drive, left lens)
•C = RHD Right (right-hand drive, right
lens)
•D = RHD Left (right-hand drive, left lens)
2. Transfer the template to a self-adhesive
waterproof material and cut it out.
3. Position the self-adhesive templates at the
right distance from the edge of the head-
lamp lens using the illustration, see
page 95, and the dimensions in the fol-
lowing list:
•Template A: horizontal line approx.
80 mm, vertical line approx. 20 mm
•Template B: horizontal line approx.
80 mm, vertical line approx. 4 mm
•Template C: horizontal line approx.
120 mm, vertical line approx. 4 mm
•Template D: horizontal line approx.
85 mm, vertical line approx. 15 mm
ProCarManuals.com

03 Your driving environment
Lighting
03

95
Aligning the templates
Upper row: left-hand drive cars, templates A and B. Lower row: right-hand drive cars, templates C and D.
ProCarManuals.com

03 Your driving environment
Lighting
03
96
Templates for halogen headlamps
ProCarManuals.com

03 Your driving environment
Wipers and washing
03

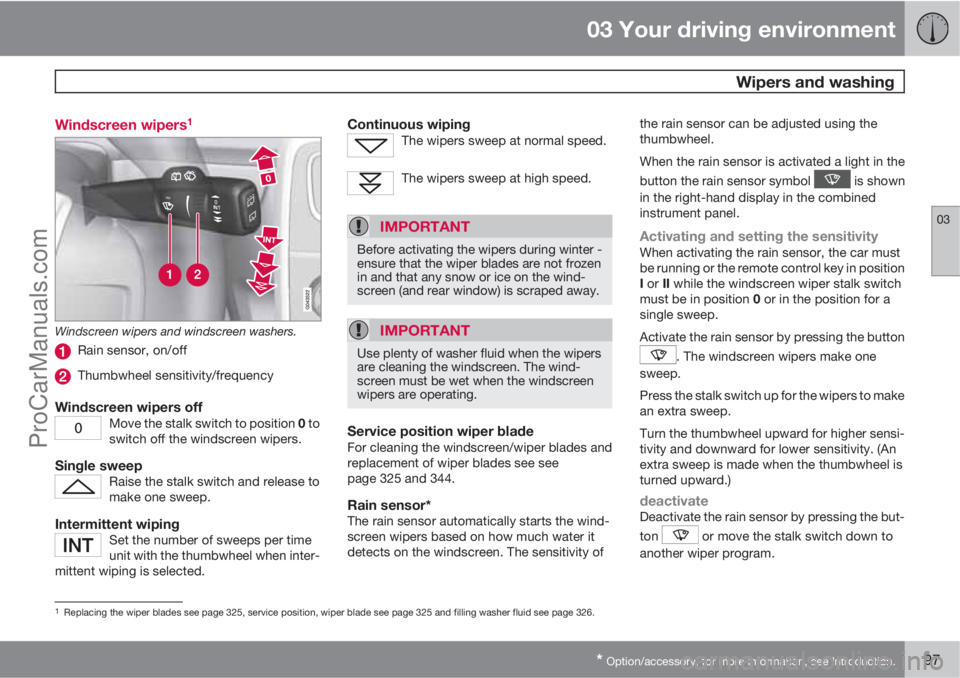

* Option/accessory, for more information, see Introduction.97 Windscreen wipers
1
Windscreen wipers and windscreen washers.
Rain sensor, on/off
Thumbwheel sensitivity/frequency
Windscreen wipers offMove the stalk switch to position 0 to
switch off the windscreen wipers.
Single sweepRaise the stalk switch and release to
make one sweep.
Intermittent wipingSet the number of sweeps per time
unit with the thumbwheel when inter-
mittent wiping is selected.
Continuous wipingThe wipers sweep at normal speed.
The wipers sweep at high speed.
IMPORTANT
Before activating the wipers during winter -
ensure that the wiper blades are not frozen
in and that any snow or ice on the wind-
screen (and rear window) is scraped away.
IMPORTANT
Use plenty of washer fluid when the wipers
are cleaning the windscreen. The wind-
screen must be wet when the windscreen
wipers are operating.
Service position wiper bladeFor cleaning the windscreen/wiper blades and
replacement of wiper blades see see
page 325 and 344.
Rain sensor*The rain sensor automatically starts the wind-
screen wipers based on how much water it
detects on the windscreen. The sensitivity ofthe rain sensor can be adjusted using the
thumbwheel.
When the rain sensor is activated a light in the
button the rain sensor symbol
is shown
in the right-hand display in the combined
instrument panel.
Activating and setting the sensitivityWhen activating the rain sensor, the car must
be running or the remote control key in position
I or II while the windscreen wiper stalk switch
must be in position 0 or in the position for a
single sweep.
Activate the rain sensor by pressing the button
. The windscreen wipers make one
sweep.
Press the stalk switch up for the wipers to make
an extra sweep.
Turn the thumbwheel upward for higher sensi-
tivity and downward for lower sensitivity. (An
extra sweep is made when the thumbwheel is
turned upward.)
deactivateDeactivate the rain sensor by pressing the but-
ton
or move the stalk switch down to
another wiper program.
1Replacing the wiper blades see page 325, service position, wiper blade see page 325 and filling washer fluid see page 326.
ProCarManuals.com

03 Your driving environment
Wipers and washing
03
98* Option/accessory, for more information, see Introduction.

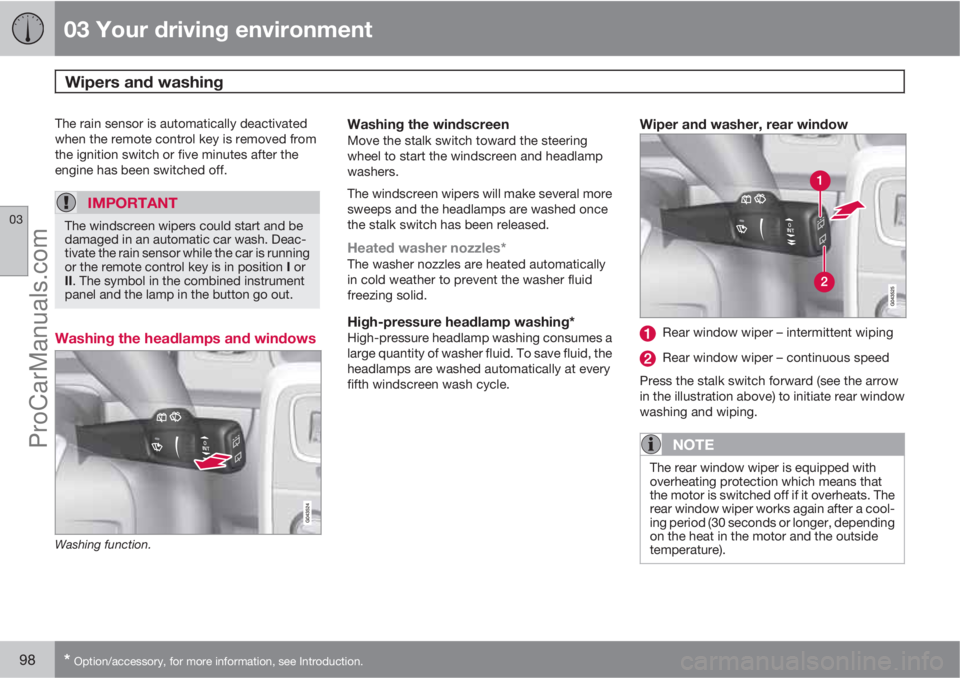

The rain sensor is automatically deactivated
when the remote control key is removed from
the ignition switch or five minutes after the
engine has been switched off.
IMPORTANT
The windscreen wipers could start and be
damaged in an automatic car wash. Deac-
tivate the rain sensor while the car is running
or the remote control key is in position I or
II. The symbol in the combined instrument
panel and the lamp in the button go out.
Washing the headlamps and windows
Washing function.
Washing the windscreenMove the stalk switch toward the steering
wheel to start the windscreen and headlamp
washers.
The windscreen wipers will make several more
sweeps and the headlamps are washed once
the stalk switch has been released.
Heated washer nozzles*The washer nozzles are heated automatically
in cold weather to prevent the washer fluid
freezing solid.
High-pressure headlamp washing*High-pressure headlamp washing consumes a
large quantity of washer fluid. To save fluid, the
headlamps are washed automatically at every
fifth windscreen wash cycle.
Wiper and washer, rear window
Rear window wiper – intermittent wiping
Rear window wiper – continuous speed
Press the stalk switch forward (see the arrow
in the illustration above) to initiate rear window
washing and wiping.
NOTE
The rear window wiper is equipped with
overheating protection which means that
the motor is switched off if it overheats. The
rear window wiper works again after a cool-
ing period (30 seconds or longer, depending
on the heat in the motor and the outside
temperature).
ProCarManuals.com
