03 Your driving environment
DRIVe Start/Stop*
03
* Option/accessory, for more information, see Introduction.129 Limitations
The engine does not auto-stopEven if the Start/Stop function is activated, the
engine does not stop automatically if:
ConditionsM/AA
the car has not achieved
approx. 5 km/h (= fast walking
pace) first after a key start or the
last auto-stop.M + A
the driver has opened the seat-
belt's buckle.M + A
the capacity of the battery is
below the minimum permissible
level.M + A
the engine does not have normal
operating temperature.M + A
outside temperature is below
freezing point or above
approx. 30 °C.M + A
the environment in the passenger
compartment differs from the
preset values - indicated by the
ventilation fan running at a high
speed.M + A
ConditionsM/AA
the car is reversed.M + A
battery temperature is below
freezing point or above
approx. 55 °C.M + A
the driver makes greater steering
wheel movements.M + A
the exhaust system's particulate
filter is full - the temporarily dis-
engaged Start/Stop function is
reactivated once an automatic
cleaning cycle has been per-
formed (see page 290).M + A
the road is very steep.M + A
a trailer is connected electrically
to the car’s electrical system.M + A
the atmospheric air pressure is
less than equivalent to 1500-2000
metres above sea level - the cur-
rent air pressure varies with the
prevailing weather conditions.A
adaptive cruise control Queue
Assist is activated.A
ConditionsM/AA
the driver’s door has been
opened with the gear selector in
D position.A
the gear selector is moved out of
the D position to S positionB or
"+/-".
A
AM = Manual gearbox, A = Automatic gearbox.BSport mode.
The engine auto-startsAn engine that has stopped automatically may
restart in some cases without the driver having
decided that the journey should continue. In
the following cases the engine also starts auto-
matically if the driver has not depressed the
clutch pedal (manual gearbox) or takes his/her
foot off the brake pedal (automatic gearbox):
ConditionsM/AA
Misting forms on the windows.M + A
The environment in the passen-
ger compartment deviates from
the preset values.M + A
The outside temperature falls
below freezing point or exceeds
approx. 30 °C.M + A
ProCarManuals.com
Page 132 of 422
03 Your driving environment
DRIVe Start/Stop*
03
130* Option/accessory, for more information, see Introduction.
ConditionsM/AA
There is a temporarily high cur-
rent take-off or battery capacity
drops below the lowest permissi-
ble level.M + A
Repeated pumping of the brake
pedal.M + A
The car starts to roll - faster than
the equivalent normal walking
pace.M
The driver's belt lock is opened
with the gear selector in D or N
position.A
Steering wheel movements.A
The gear selector is moved from
the D position to "+/-" or R.A
The driver's door is opened with
the gear selector in D position - a
"ping" sound and text message
inform that the Start/Stop func-
tion is active.A
AM = Manual gearbox, A = Automatic gearbox.
WARNING
Do not open the bonnet when the engine
has stopped automatically - the engine may
suddenly start automatically. First switch off
the engine as normal using the START/
STOP ENGINE button before opening the
bonnet.
The engine does not auto-startIn the following cases the engine does not
auto-start after having auto-stopped:
ConditionsM/AA
A gear is engaged without
declutching - a display text
prompts the driver to set the gear
lever in neutral position in order to
enable automatic starting.M
The driver is unrestrained, the
gear selector is in P position and
the driver’s door is open - a nor-
mal engine start must take place.A
The gear selector is moved to P
position - press the START/
STOP ENGINE button to restart
the engine.
If the driver's door is opened
before starting the engine with
the START/STOP ENGINE but-
ton, the Start/Stop function is
switched off.A
AM = Manual gearbox, A = Automatic gearbox.
Involuntary engine stop with manual
gearbox
In the event that a start-up fails and the engine
stops, proceed as follows:
ProCarManuals.com

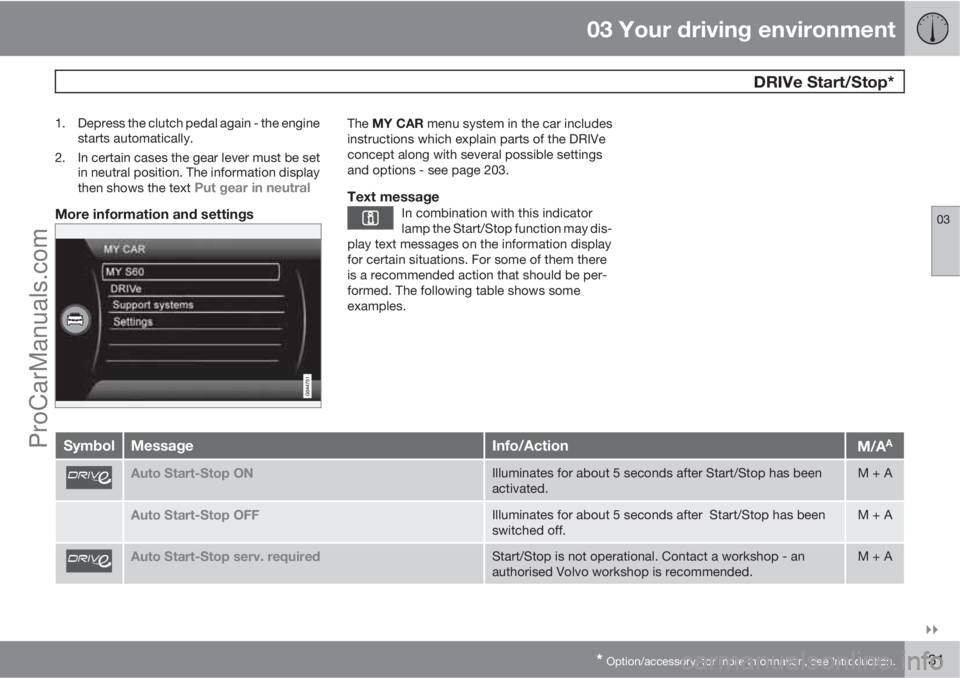

Page 133 of 422
03 Your driving environment
DRIVe Start/Stop*
03
* Option/accessory, for more information, see Introduction.131
1. Depress the clutch pedal again - the engine
starts automatically.
2. In certain cases the gear lever must be set
in neutral position. The information display
then shows the text
Put gear in neutral
More information and settings
The MY CAR menu system in the car includes
instructions which explain parts of the DRIVe
concept along with several possible settings
and options - see page 203.
Text messageIn combination with this indicator
lamp the Start/Stop function may dis-
play text messages on the information display
for certain situations. For some of them there
is a recommended action that should be per-
formed. The following table shows some
examples.
SymbolMessageInfo/ActionM/AA
Auto Start-Stop ONIlluminates for about 5 seconds after Start/Stop has been
activated.M + A
Auto Start-Stop OFFIlluminates for about 5 seconds after Start/Stop has been
switched off.M + A
Auto Start-Stop serv. requiredStart/Stop is not operational. Contact a workshop - an
authorised Volvo workshop is recommended.M + A
ProCarManuals.com

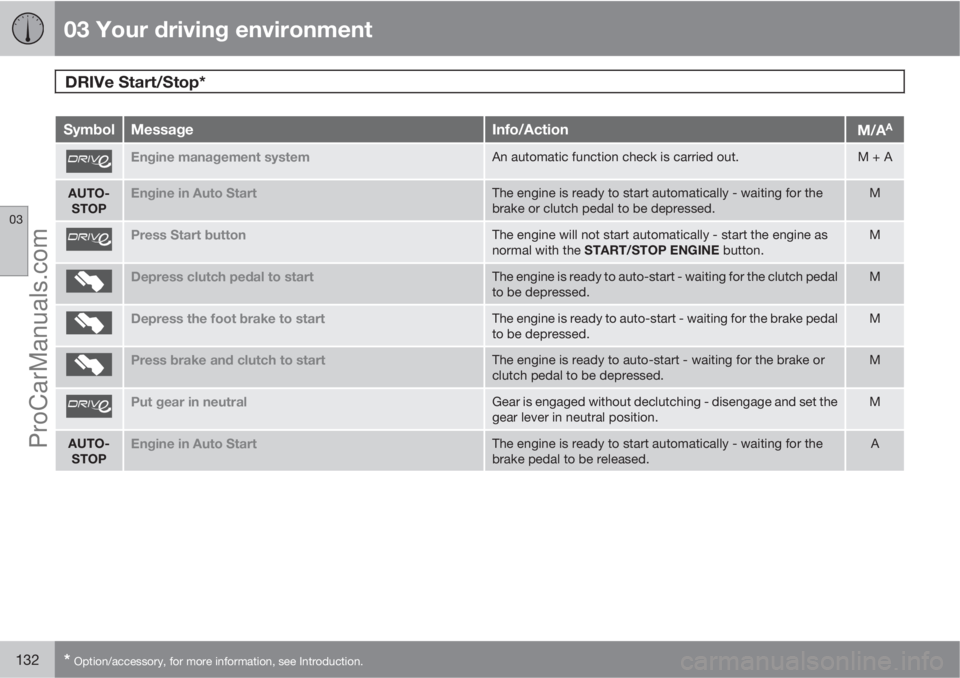

Page 134 of 422
03 Your driving environment
DRIVe Start/Stop*
03
132* Option/accessory, for more information, see Introduction.
SymbolMessageInfo/ActionM/AA
Engine management systemAn automatic function check is carried out.M + A
AUTO-
STOPEngine in Auto StartThe engine is ready to start automatically - waiting for the
brake or clutch pedal to be depressed.M
Press Start buttonThe engine will not start automatically - start the engine as
normal with the START/STOP ENGINE button.M
Depress clutch pedal to startThe engine is ready to auto-start - waiting for the clutch pedal
to be depressed.M
Depress the foot brake to startThe engine is ready to auto-start - waiting for the brake pedal
to be depressed.M
Press brake and clutch to startThe engine is ready to auto-start - waiting for the brake or
clutch pedal to be depressed.M
Put gear in neutralGear is engaged without declutching - disengage and set the
gear lever in neutral position.M
AUTO-
STOPEngine in Auto StartThe engine is ready to start automatically - waiting for the
brake pedal to be released.A
ProCarManuals.com

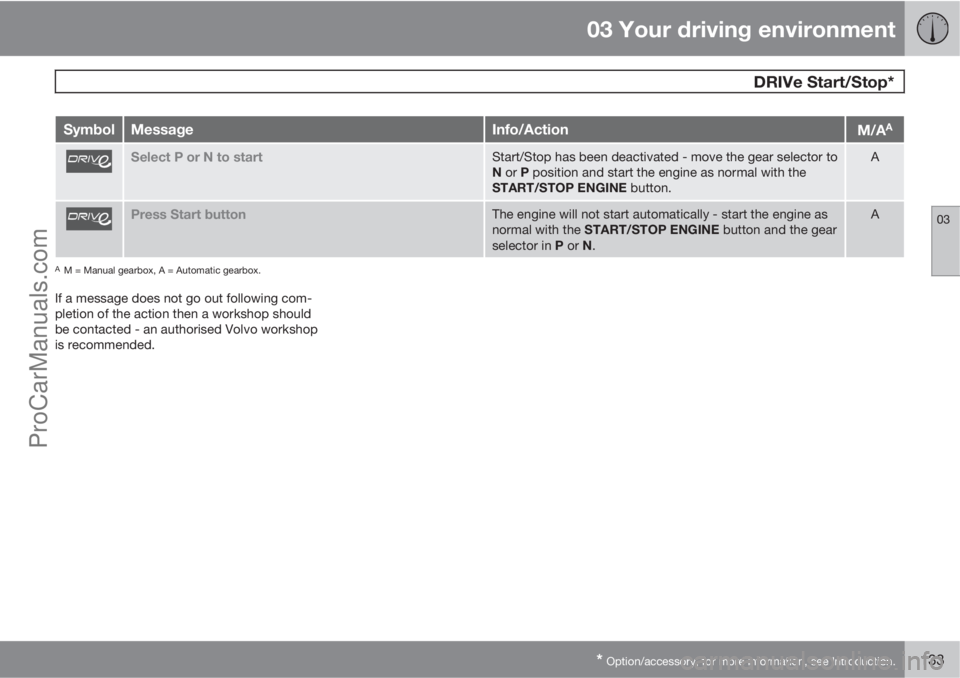

Page 135 of 422
03 Your driving environment
DRIVe Start/Stop*
03
* Option/accessory, for more information, see Introduction.133
SymbolMessageInfo/ActionM/AA
Select P or N to startStart/Stop has been deactivated - move the gear selector to
N or P position and start the engine as normal with the
START/STOP ENGINE button.A
Press Start buttonThe engine will not start automatically - start the engine as
normal with the START/STOP ENGINE button and the gear
selector in P or N.A
AM = Manual gearbox, A = Automatic gearbox.
If a message does not go out following com-
pletion of the action then a workshop should
be contacted - an authorised Volvo workshop
is recommended.
ProCarManuals.com

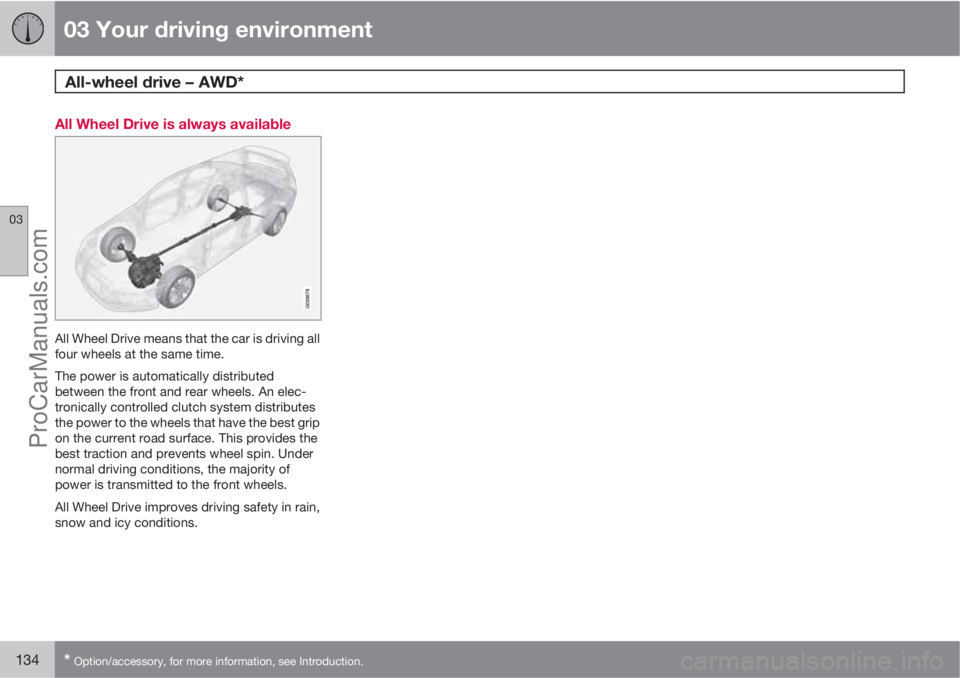

Page 136 of 422
03 Your driving environment
All-wheel drive – AWD*
03
134* Option/accessory, for more information, see Introduction.
All Wheel Drive is always available
All Wheel Drive means that the car is driving all
four wheels at the same time.
The power is automatically distributed
between the front and rear wheels. An elec-
tronically controlled clutch system distributes
the power to the wheels that have the best grip
on the current road surface. This provides the
best traction and prevents wheel spin. Under
normal driving conditions, the majority of
power is transmitted to the front wheels.
All Wheel Drive improves driving safety in rain,
snow and icy conditions.
ProCarManuals.com

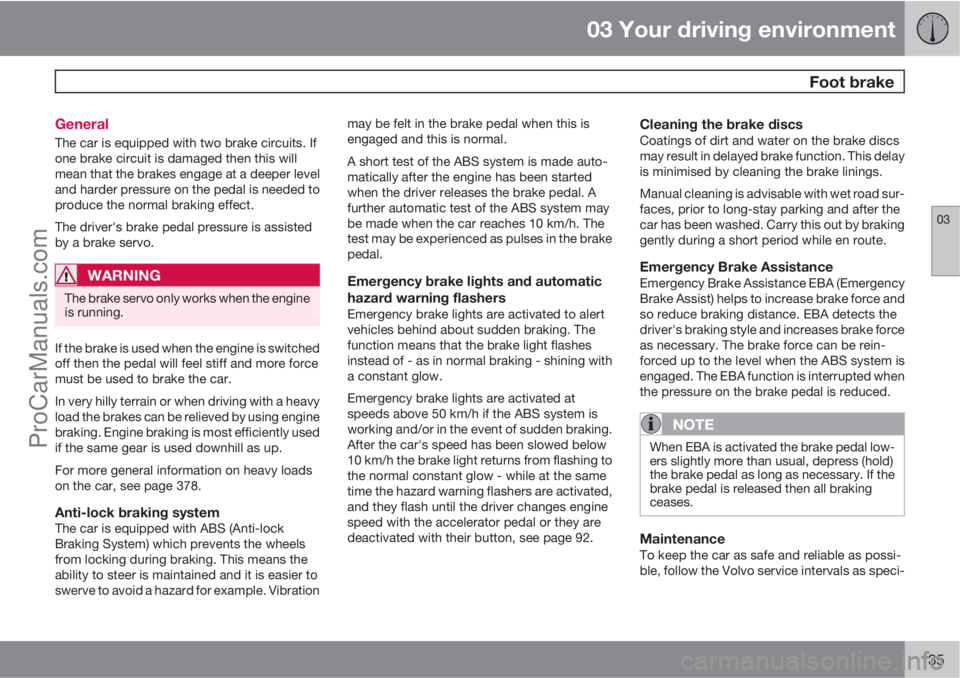

Page 137 of 422
03 Your driving environment
Foot brake
03
135 General
The car is equipped with two brake circuits. If
one brake circuit is damaged then this will
mean that the brakes engage at a deeper level
and harder pressure on the pedal is needed to
produce the normal braking effect.
The driver's brake pedal pressure is assisted
by a brake servo.
WARNING
The brake servo only works when the engine
is running.
If the brake is used when the engine is switched
off then the pedal will feel stiff and more force
must be used to brake the car.
In very hilly terrain or when driving with a heavy
load the brakes can be relieved by using engine
braking. Engine braking is most efficiently used
if the same gear is used downhill as up.
For more general information on heavy loads
on the car, see page 378.
Anti-lock braking systemThe car is equipped with ABS (Anti-lock
Braking System) which prevents the wheels
from locking during braking. This means the
ability to steer is maintained and it is easier to
swerve to avoid a hazard for example. Vibrationmay be felt in the brake pedal when this is
engaged and this is normal.
A short test of the ABS system is made auto-
matically after the engine has been started
when the driver releases the brake pedal. A
further automatic test of the ABS system may
be made when the car reaches 10 km/h. The
test may be experienced as pulses in the brake
pedal.
Emergency brake lights and automatic
hazard warning flashers
Emergency brake lights are activated to alert
vehicles behind about sudden braking. The
function means that the brake light flashes
instead of - as in normal braking - shining with
a constant glow.
Emergency brake lights are activated at
speeds above 50 km/h if the ABS system is
working and/or in the event of sudden braking.
After the car's speed has been slowed below
10 km/h the brake light returns from flashing to
the normal constant glow - while at the same
time the hazard warning flashers are activated,
and they flash until the driver changes engine
speed with the accelerator pedal or they are
deactivated with their button, see page 92.
Cleaning the brake discsCoatings of dirt and water on the brake discs
may result in delayed brake function. This delay
is minimised by cleaning the brake linings.
Manual cleaning is advisable with wet road sur-
faces, prior to long-stay parking and after the
car has been washed. Carry this out by braking
gently during a short period while en route.
Emergency Brake AssistanceEmergency Brake Assistance EBA (Emergency
Brake Assist) helps to increase brake force and
so reduce braking distance. EBA detects the
driver's braking style and increases brake force
as necessary. The brake force can be rein-
forced up to the level when the ABS system is
engaged. The EBA function is interrupted when
the pressure on the brake pedal is reduced.
NOTE
When EBA is activated the brake pedal low-
ers slightly more than usual, depress (hold)
the brake pedal as long as necessary. If the
brake pedal is released then all braking
ceases.
MaintenanceTo keep the car as safe and reliable as possi-
ble, follow the Volvo service intervals as speci-
ProCarManuals.com

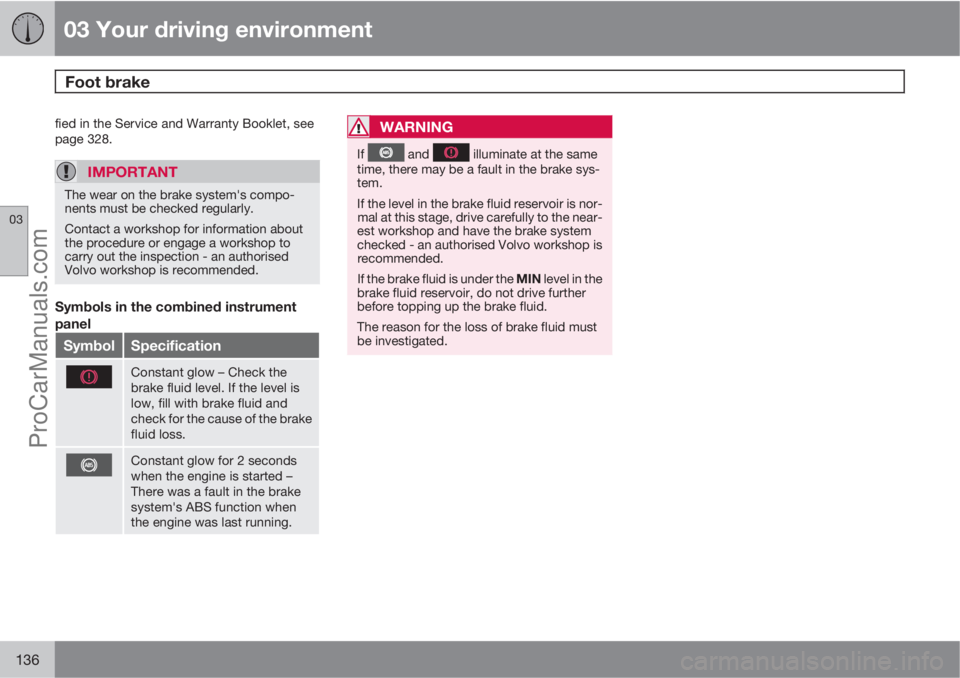

Page 138 of 422
03 Your driving environment
Foot brake
03
136
fied in the Service and Warranty Booklet, see
page 328.
IMPORTANT
The wear on the brake system's compo-
nents must be checked regularly.
Contact a workshop for information about
the procedure or engage a workshop to
carry out the inspection - an authorised
Volvo workshop is recommended.
Symbols in the combined instrument
panel
SymbolSpecification
Constant glow – Check the
brake fluid level. If the level is
low, fill with brake fluid and
check for the cause of the brake
fluid loss.
Constant glow for 2 seconds
when the engine is started –
There was a fault in the brake
system's ABS function when
the engine was last running.
WARNING
If and illuminate at the same
time, there may be a fault in the brake sys-
tem.
If the level in the brake fluid reservoir is nor-
mal at this stage, drive carefully to the near-
est workshop and have the brake system
checked - an authorised Volvo workshop is
recommended.
If the brake fluid is under the MIN level in the
brake fluid reservoir, do not drive further
before topping up the brake fluid.
The reason for the loss of brake fluid must
be investigated.
ProCarManuals.com
Page 139 of 422

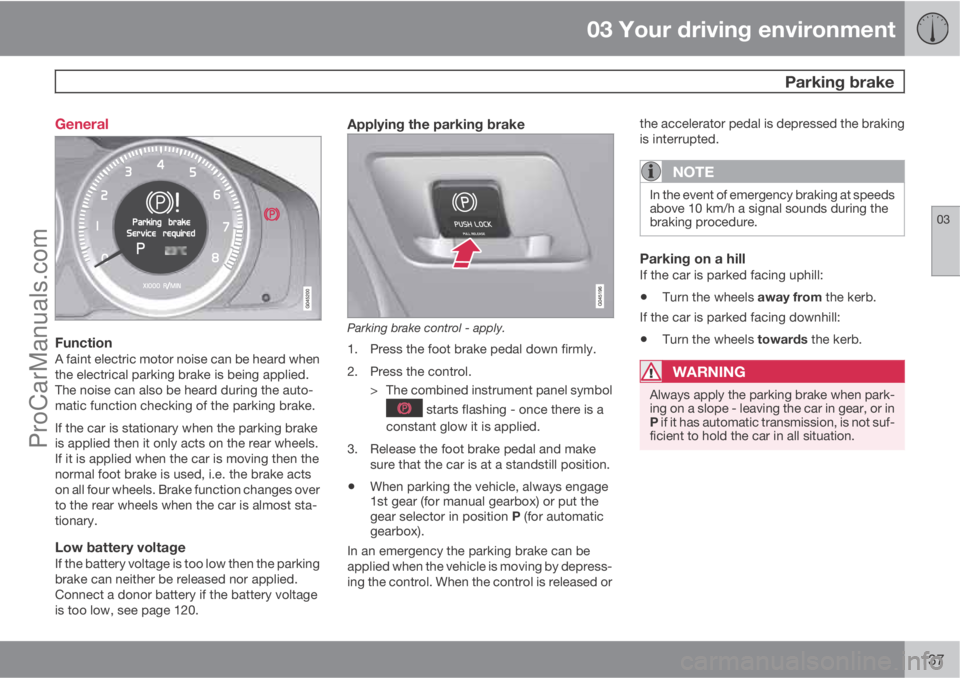

03 Your driving environment
Parking brake
03
137 General
FunctionA faint electric motor noise can be heard when
the electrical parking brake is being applied.
The noise can also be heard during the auto-
matic function checking of the parking brake.
If the car is stationary when the parking brake
is applied then it only acts on the rear wheels.
If it is applied when the car is moving then the
normal foot brake is used, i.e. the brake acts
on all four wheels. Brake function changes over
to the rear wheels when the car is almost sta-
tionary.
Low battery voltageIf the battery voltage is too low then the parking
brake can neither be released nor applied.
Connect a donor battery if the battery voltage
is too low, see page 120.
Applying the parking brake
Parking brake control - apply.
1. Press the foot brake pedal down firmly.
2. Press the control.
> The combined instrument panel symbol
starts flashing - once there is a
constant glow it is applied.
3. Release the foot brake pedal and make
sure that the car is at a standstill position.
•When parking the vehicle, always engage
1st gear (for manual gearbox) or put the
gear selector in position P (for automatic
gearbox).
In an emergency the parking brake can be
applied when the vehicle is moving by depress-
ing the control. When the control is released orthe accelerator pedal is depressed the braking
is interrupted.
NOTE
In the event of emergency braking at speeds
above 10 km/h a signal sounds during the
braking procedure.
Parking on a hillIf the car is parked facing uphill:
•Turn the wheels away from the kerb.
If the car is parked facing downhill:
•Turn the wheels towards the kerb.
WARNING
Always apply the parking brake when park-
ing on a slope - leaving the car in gear, or in
P if it has automatic transmission, is not suf-
ficient to hold the car in all situation.
ProCarManuals.com
Page 140 of 422
03 Your driving environment
Parking brake
03
138
Disengaging the parking brake
Parking brake control - release.
Cars with manual gearbox
Releasing manually
1. Insert the remote control key in the ignition
switch.1
2. Press the foot brake pedal down firmly.
3. Pull the control.
> The parking brake releases and the
combined instrument panel symbol
goes out.
NOTE
The parking brake can also be released
manually by depressing the clutch pedal
instead of the brake pedal. Volvo recom-
mends the use of the brake pedal.
Releasing automatically1. Start the engine.
2. Engage 1st gear or reverse gear.
3. Ease up the clutch and depress the accel-
erator.
> The parking brake releases and the
combined instrument panel symbol
goes out.
Cars with automatic gearbox
Releasing manually
1. Insert the remote control key in the ignition
switch1.
2. Press the foot brake pedal down firmly.
3. Pull the control.
> The parking brake releases and the
combined instrument panel symbol
goes out.
Releasing automatically1. Put the seatbelt on.
2. Start the engine.
3. Press the foot brake pedal down firmly.
4.
Move the gear selector to position D or R
and depress the accelerator.
> The parking brake releases and the
combined instrument panel symbol
goes out.
NOTE
For safety reasons, the parking brake is only
released automatically if the engine is run-
ning and the driver is wearing a seatbelt. The
parking brake is released immediately on
cars with automatic gearbox when the
accelerator pedal is depressed and the gear
selector is in position D or R.
Heavy load uphillA heavy load, such as a trailer, can cause the
car to roll backward when the parking brake is
released automatically on a steep incline.
Avoid this by depressing the control while driv-
ing off. Release the control when the engine
achieves traction.
1For a car with the Keyless system: Press START/STOP ENGINE.
ProCarManuals.com
