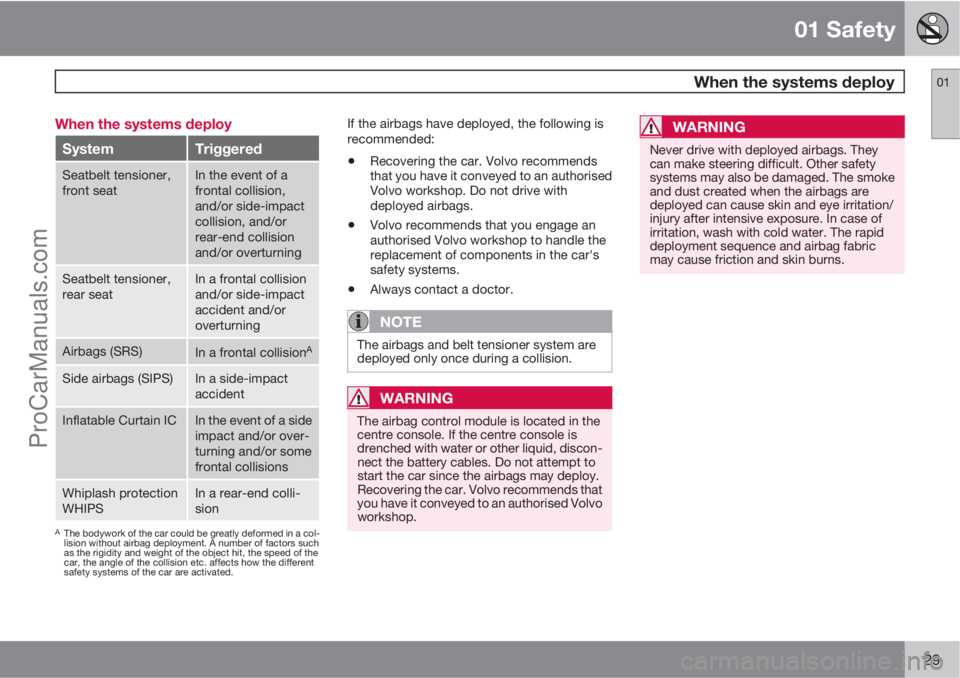

01 Safety
When the systems deploy01
29 When the systems deploy
SystemTriggered
Seatbelt tensioner,
front seatIn the event of a
frontal collision,
and/or side-impact
collision, and/or
rear-end collision
and/or overturning
Seatbelt tensioner,
rear seatIn a frontal collision
and/or side-impact
accident and/or
overturning
Airbags (SRS)In a frontal collisionA
Side airbags (SIPS)In a side-impact
accident
Inflatable Curtain ICIn the event of a side
impact and/or over-
turning and/or some
frontal collisions
Whiplash protection
WHIPSIn a rear-end colli-
sion
AThe bodywork of the car could be greatly deformed in a col-
lision without airbag deployment. A number of factors such
as the rigidity and weight of the object hit, the speed of the
car, the angle of the collision etc. affects how the different
safety systems of the car are activated.
If the airbags have deployed, the following is
recommended:
•Recovering the car. Volvo recommends
that you have it conveyed to an authorised
Volvo workshop. Do not drive with
deployed airbags.
•Volvo recommends that you engage an
authorised Volvo workshop to handle the
replacement of components in the car's
safety systems.
•Always contact a doctor.
NOTE
The airbags and belt tensioner system are
deployed only once during a collision.
WARNING
The airbag control module is located in the
centre console. If the centre console is
drenched with water or other liquid, discon-
nect the battery cables. Do not attempt to
start the car since the airbags may deploy.
Recovering the car. Volvo recommends that
you have it conveyed to an authorised Volvo
workshop.
WARNING
Never drive with deployed airbags. They
can make steering difficult. Other safety
systems may also be damaged. The smoke
and dust created when the airbags are
deployed can cause skin and eye irritation/
injury after intensive exposure. In case of
irritation, wash with cold water. The rapid
deployment sequence and airbag fabric
may cause friction and skin burns.
ProCarManuals.com

01 Safety
Safety mode 01
30
Driving after a collision
If the car is involved in a collision, the textSafety mode See manual may appear on the
information display. This means that the car
has reduced functionality. Safety mode is a
protective state that is enforced when the col-
lision may have damaged any of the car's vital
functions, such as the fuel lines, sensors for
one of the safety systems, or the brake system.
Attempting to start the carFirst, check that no fuel is leaking from the car.
There must be no smell of fuel either.
If everything seems normal and you have
checked for indications of fuel leakage, you
may attempt to start the car.
Remove the remote control key and open the
driver's door. If a message is now shown to theeffect that the ignition is on, press the start
button. Then close the door and reinsert the
remote control key. The car's electronics will
now try to reset themselves to normal mode.
Then try to start the car.
If the message
Safety mode See manual is
still shown on the display then the car must not
be driven or towed, but a vehicle recovery serv-
ice used instead. Even if the car appears to be
driveable, hidden damage may make the car
impossible to control once moving.
Moving the car
If Normal mode is shown after Safety mode
See manual has been reset, the car can be
moved carefully out of a dangerous position.
Do not move the car further than necessary.
WARNING
Never attempt to repair your car or reset the
electronics yourself if the car has been in
safety mode. This could result in personal
injury or the car not functioning as normal.
Volvo recommends that you engage an
authorised Volvo workshop to check and
restore the car to normal status after
Safety
mode See manual has been displayed.
WARNING
Never, under any circumstances, attempt to
restart the car if it smells of fuel when the
Safety mode See manual message is dis-
played. Leave the car at once.
WARNING
If the car is in safety mode it must not be
towed. It must be transported from its loca-
tion. Volvo recommends that it is transpor-
ted to an authorised Volvo workshop.
ProCarManuals.com

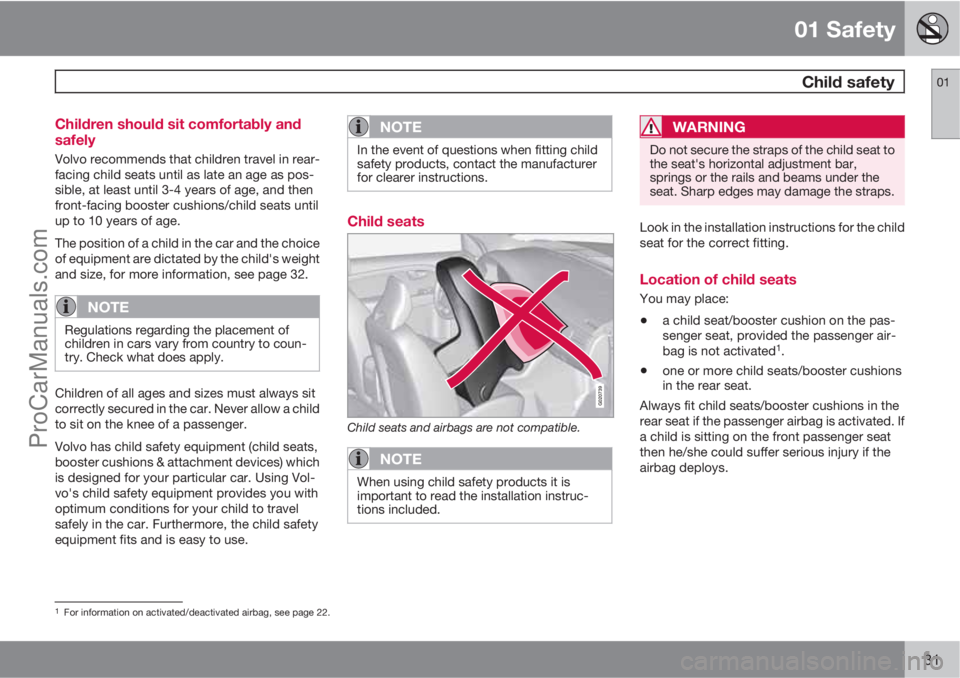

01 Safety
Child safety01
31 Children should sit comfortably and
safely
Volvo recommends that children travel in rear-
facing child seats until as late an age as pos-
sible, at least until 3-4 years of age, and then
front-facing booster cushions/child seats until
up to 10 years of age.
The position of a child in the car and the choice
of equipment are dictated by the child's weight
and size, for more information, see page 32.
NOTE
Regulations regarding the placement of
children in cars vary from country to coun-
try. Check what does apply.
Children of all ages and sizes must always sit
correctly secured in the car. Never allow a child
to sit on the knee of a passenger.
Volvo has child safety equipment (child seats,
booster cushions & attachment devices) which
is designed for your particular car. Using Vol-
vo's child safety equipment provides you with
optimum conditions for your child to travel
safely in the car. Furthermore, the child safety
equipment fits and is easy to use.
NOTE
In the event of questions when fitting child
safety products, contact the manufacturer
for clearer instructions.
Child seats
G020739
Child seats and airbags are not compatible.
NOTE
When using child safety products it is
important to read the installation instruc-
tions included.
WARNING
Do not secure the straps of the child seat to
the seat's horizontal adjustment bar,
springs or the rails and beams under the
seat. Sharp edges may damage the straps.
Look in the installation instructions for the child
seat for the correct fitting.
Location of child seats
You may place:
•a child seat/booster cushion on the pas-
senger seat, provided the passenger air-
bag is not activated
1.
•one or more child seats/booster cushions
in the rear seat.
Always fit child seats/booster cushions in the
rear seat if the passenger airbag is activated. If
a child is sitting on the front passenger seat
then he/she could suffer serious injury if the
airbag deploys.
1For information on activated/deactivated airbag, see page 22.
ProCarManuals.com

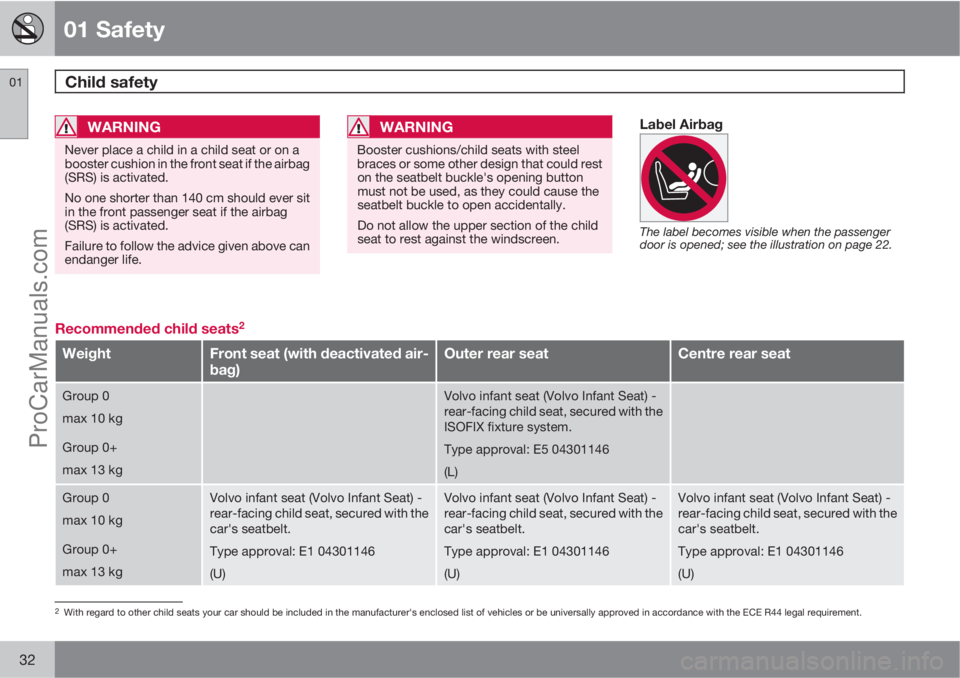

01 Safety
Child safety 01
32
WARNING
Never place a child in a child seat or on a
booster cushion in the front seat if the airbag
(SRS) is activated.
No one shorter than 140 cm should ever sit
in the front passenger seat if the airbag
(SRS) is activated.
Failure to follow the advice given above can
endanger life.
WARNING
Booster cushions/child seats with steel
braces or some other design that could rest
on the seatbelt buckle's opening button
must not be used, as they could cause the
seatbelt buckle to open accidentally.
Do not allow the upper section of the child
seat to rest against the windscreen.
Label Airbag
The label becomes visible when the passenger
door is opened; see the illustration on page 22.
Recommended child seats2
WeightFront seat (with deactivated air-
bag)Outer rear seatCentre rear seat
Group 0
max 10 kg
Group 0+
max 13 kgVolvo infant seat (Volvo Infant Seat) -
rear-facing child seat, secured with the
ISOFIX fixture system.
Type approval: E5 04301146
(L)
Group 0
max 10 kg
Group 0+
max 13 kgVolvo infant seat (Volvo Infant Seat) -
rear-facing child seat, secured with the
car's seatbelt.
Type approval: E1 04301146
(U)Volvo infant seat (Volvo Infant Seat) -
rear-facing child seat, secured with the
car's seatbelt.
Type approval: E1 04301146
(U)Volvo infant seat (Volvo Infant Seat) -
rear-facing child seat, secured with the
car's seatbelt.
Type approval: E1 04301146
(U)
2With regard to other child seats your car should be included in the manufacturer's enclosed list of vehicles or be universally approved in accordance with the ECE R44 legal requirement.
ProCarManuals.com

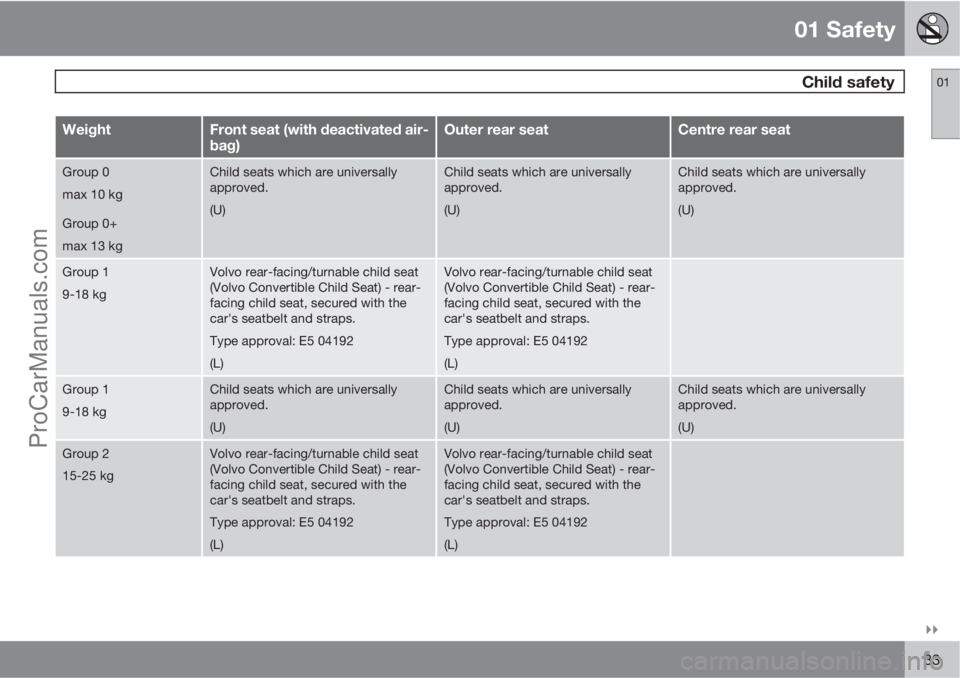

01 Safety
Child safety01

33
WeightFront seat (with deactivated air-
bag)Outer rear seatCentre rear seat
Group 0
max 10 kg
Group 0+
max 13 kgChild seats which are universally
approved.
(U)Child seats which are universally
approved.
(U)Child seats which are universally
approved.
(U)
Group 1
9-18 kgVolvo rear-facing/turnable child seat
(Volvo Convertible Child Seat) - rear-
facing child seat, secured with the
car's seatbelt and straps.
Type approval: E5 04192
(L)Volvo rear-facing/turnable child seat
(Volvo Convertible Child Seat) - rear-
facing child seat, secured with the
car's seatbelt and straps.
Type approval: E5 04192
(L)
Group 1
9-18 kgChild seats which are universally
approved.
(U)Child seats which are universally
approved.
(U)Child seats which are universally
approved.
(U)
Group 2
15-25 kgVolvo rear-facing/turnable child seat
(Volvo Convertible Child Seat) - rear-
facing child seat, secured with the
car's seatbelt and straps.
Type approval: E5 04192
(L)Volvo rear-facing/turnable child seat
(Volvo Convertible Child Seat) - rear-
facing child seat, secured with the
car's seatbelt and straps.
Type approval: E5 04192
(L)
ProCarManuals.com

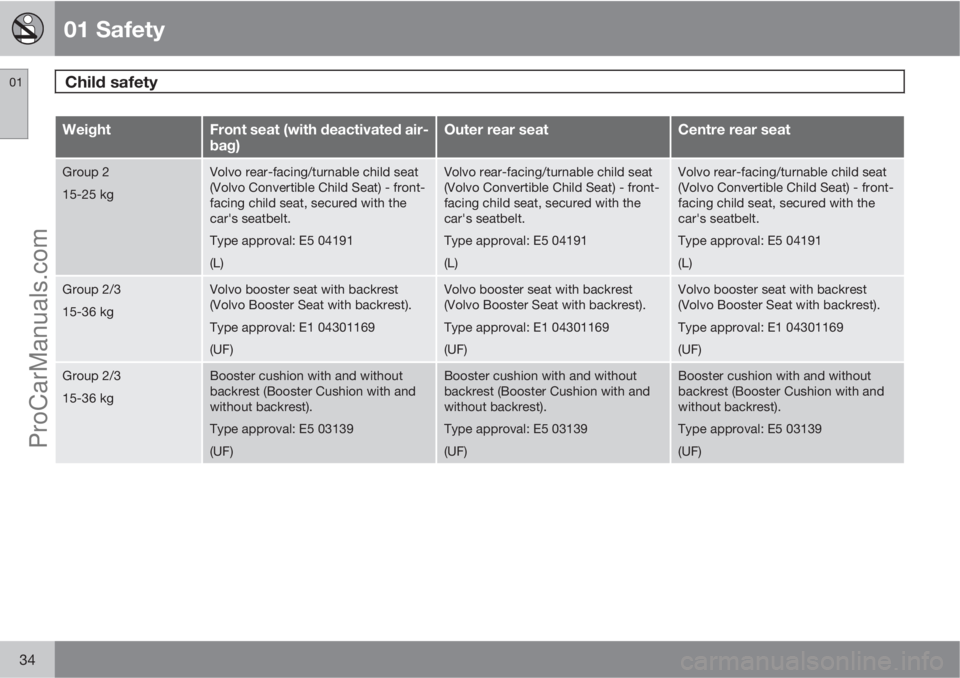

01 Safety
Child safety 01
34
WeightFront seat (with deactivated air-
bag)Outer rear seatCentre rear seat
Group 2
15-25 kgVolvo rear-facing/turnable child seat
(Volvo Convertible Child Seat) - front-
facing child seat, secured with the
car's seatbelt.
Type approval: E5 04191
(L)Volvo rear-facing/turnable child seat
(Volvo Convertible Child Seat) - front-
facing child seat, secured with the
car's seatbelt.
Type approval: E5 04191
(L)Volvo rear-facing/turnable child seat
(Volvo Convertible Child Seat) - front-
facing child seat, secured with the
car's seatbelt.
Type approval: E5 04191
(L)
Group 2/3
15-36 kgVolvo booster seat with backrest
(Volvo Booster Seat with backrest).
Type approval: E1 04301169
(UF)Volvo booster seat with backrest
(Volvo Booster Seat with backrest).
Type approval: E1 04301169
(UF)Volvo booster seat with backrest
(Volvo Booster Seat with backrest).
Type approval: E1 04301169
(UF)
Group 2/3
15-36 kgBooster cushion with and without
backrest (Booster Cushion with and
without backrest).
Type approval: E5 03139
(UF)Booster cushion with and without
backrest (Booster Cushion with and
without backrest).
Type approval: E5 03139
(UF)Booster cushion with and without
backrest (Booster Cushion with and
without backrest).
Type approval: E5 03139
(UF)
ProCarManuals.com

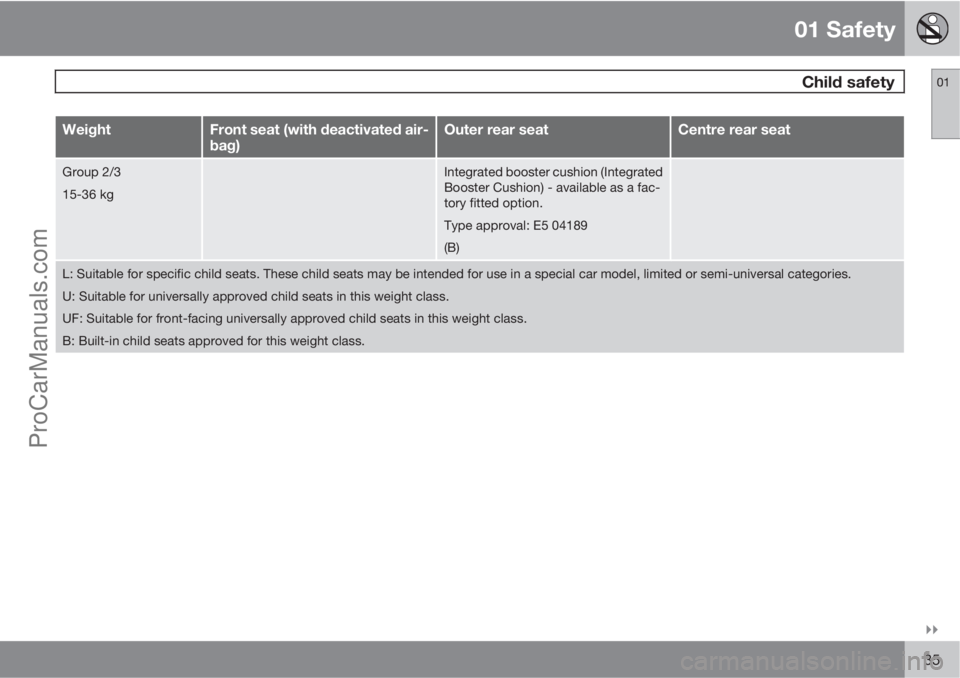

01 Safety
Child safety01

35
WeightFront seat (with deactivated air-
bag)Outer rear seatCentre rear seat
Group 2/3
15-36 kgIntegrated booster cushion (Integrated
Booster Cushion) - available as a fac-
tory fitted option.
Type approval: E5 04189
(B)
L: Suitable for specific child seats. These child seats may be intended for use in a special car model, limited or semi-universal categories.
U: Suitable for universally approved child seats in this weight class.
UF: Suitable for front-facing universally approved child seats in this weight class.
B: Built-in child seats approved for this weight class.
ProCarManuals.com

01 Safety
Child safety 01
36* Option/accessory, for more information, see Introduction.
Integrated two-stage booster
cushions*
Correct position, the seatbelt should be posi-
tioned in on the shoulder.
Incorrect position, the head restraint must be
adjusted as high as the head and the seatbelt must
not be below the shoulder.
The booster cushions are specially designed to
provide optimum safety. In combination with
the seatbelt they are approved for children who
weigh between 15 and 36 kg and who are at
least 95 cm in height.
Check before driving that:
•the integrated 2-stage booster cushion is
correctly set (see table page 36) and in
locked position
•the seatbelt is in contact with the child's
body and is not slack or twisted
•the seatbelt does not lie across the child's
throat or below the shoulder (see preced-
ing illustrations)
•the lap section of the seatbelt is positioned
low over the pelvis to provide optimal pro-
tection.
For instructions on adjusting the booster cush-
ion's two levels, see pages 36–37.

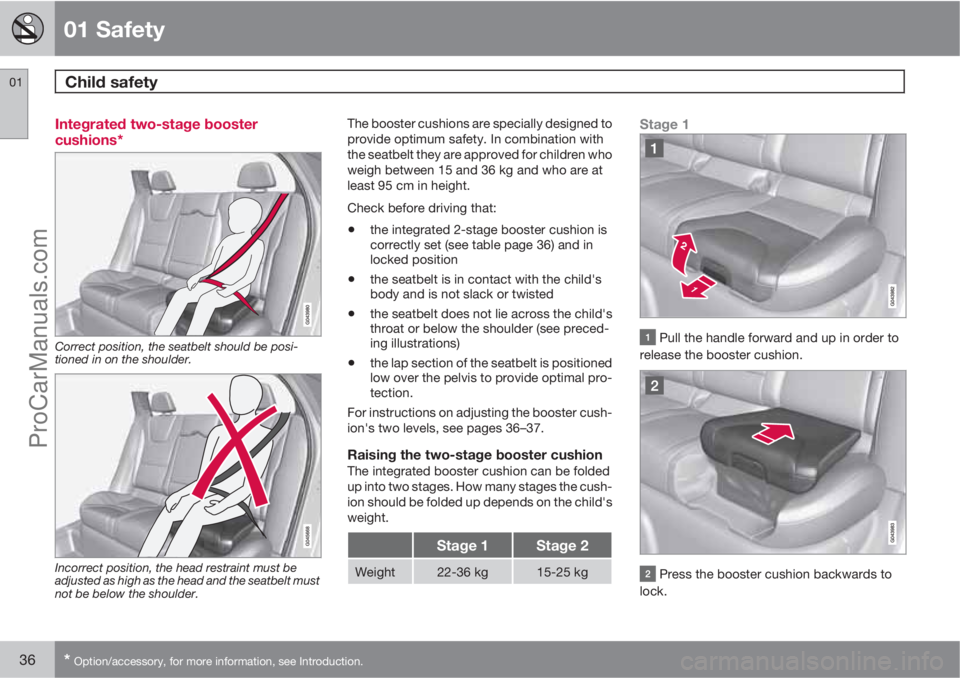

Raising the two-stage booster cushionThe integrated booster cushion can be folded
up into two stages. How many stages the cush-
ion should be folded up depends on the child's
weight.
Stage 1Stage 2
Weight22-36 kg15-25 kg
Stage 1
Pull the handle forward and up in order to
release the booster cushion.
Press the booster cushion backwards to
lock.
ProCarManuals.com

01 Safety
Child safety01
37

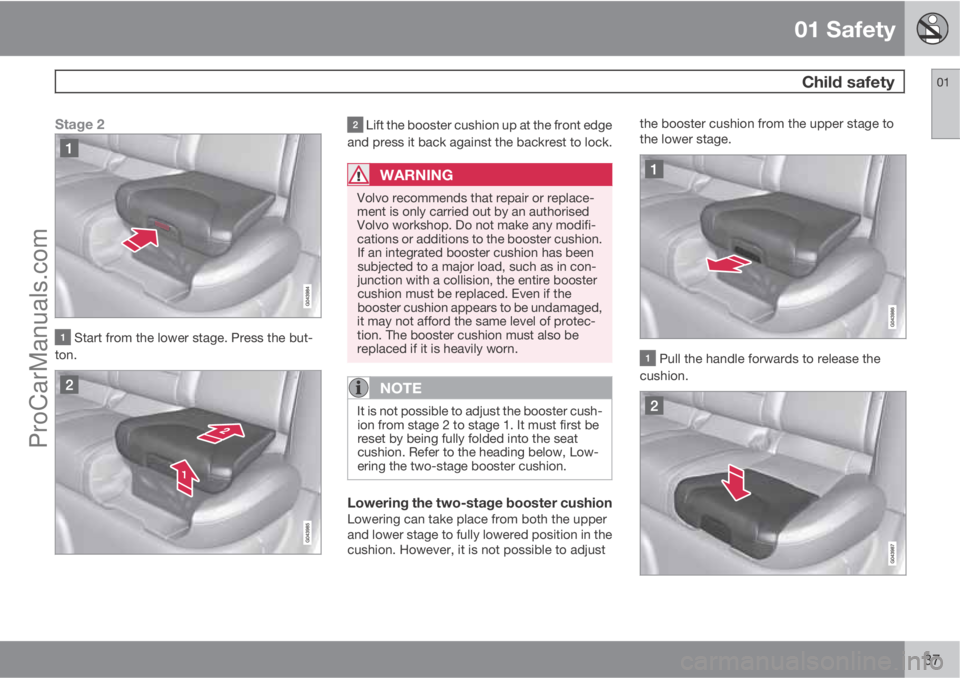

Stage 2
Start from the lower stage. Press the but-
ton.
Lift the booster cushion up at the front edge
and press it back against the backrest to lock.
WARNING
Volvo recommends that repair or replace-
ment is only carried out by an authorised
Volvo workshop. Do not make any modifi-
cations or additions to the booster cushion.
If an integrated booster cushion has been
subjected to a major load, such as in con-
junction with a collision, the entire booster
cushion must be replaced. Even if the
booster cushion appears to be undamaged,
it may not afford the same level of protec-
tion. The booster cushion must also be
replaced if it is heavily worn.
NOTE
It is not possible to adjust the booster cush-
ion from stage 2 to stage 1. It must first be
reset by being fully folded into the seat
cushion. Refer to the heading below, Low-
ering the two-stage booster cushion.
Lowering the two-stage booster cushionLowering can take place from both the upper
and lower stage to fully lowered position in the
cushion. However, it is not possible to adjustthe booster cushion from the upper stage to
the lower stage.
Pull the handle forwards to release the
cushion.
ProCarManuals.com

01 Safety
Child safety 01
38
Press down with your hand in the centre of
the cushion in order to lock it.
WARNING
If the instructions regarding the two-stage
booster cushion are not followed then this
could cause serious injury to a child in the
event of an accident.
IMPORTANT
Check that there are no loose objects (e.g.
toys) left behind in the space under the
cushion before lowering.
NOTE
The booster cushion must be lowered first
when lowering the backrest.
Child safety locks, rear doors
The controls for operating the rear door power
windows and the rear door opening handles
can be blocked from opening from the inside.
For more information, see page 62.
ISOFIX fixture system for child seats
Mounting points for the ISOFIX fixture system
are concealed behind the lower section of the
rear seat backrest, in the outer seats.
The location of the mounting points is indicated
by symbols in the backrest upholstery (see pre-
ceding illustration).
Press the seat cushion down to access the
mounting points.
Always follow the manufacturer's installation
instructions when connecting a child seat to
the ISOFIX mounting points.
Size classesChild seats are in different sizes – cars are in
different sizes. This means that not all child
seats are suitable for all seats in all car models.Consequently, there is a size classification for
child seats using the ISOFIX fixture system in
order to assist users in choosing the correct
child seat (see the following table).
Size
classDescription
AFull size, front-facing child
seat
BReduced size (alt. 1), front-
facing child seat
B1Reduced size (alt.2), front-
facing child seat
CFull size, rear-facing child
seat
DReduced size, rear-facing
child seat
ERear-facing infant seat
FTransverse infant seat, left-
hand
GTransverse infant seat, right-
hand
ProCarManuals.com
