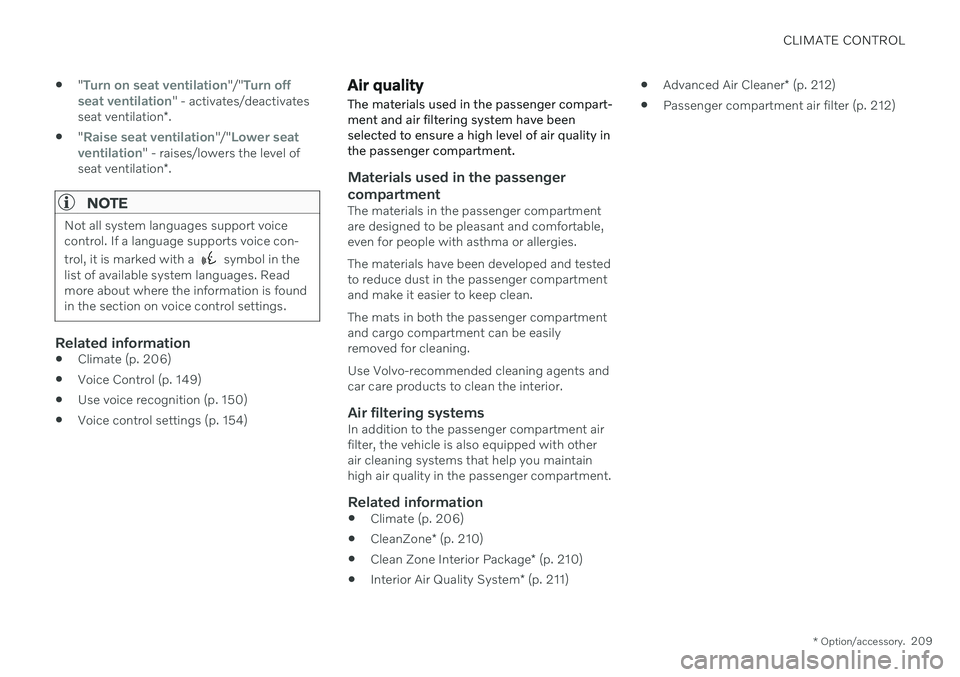

VOLVO V90 CROSS COUNTRY 2021 Owners Manual

CLIMATE CONTROL
* Option/accessory.209

"
Turn on seat ventilation"/"Turn off
seat ventilation" - activates/deactivates
seat ventilation *.
"
Raise seat ventilation"/"Lower seat
ventilation" - raises/lowers the level of
seat ventilation *.
NOTE
Not all system languages support voice control. If a language supports voice con- trol, it is marked with a
symbol in the
list of available system languages. Read more about where the information is foundin the section on voice control settings.
Related information
Climate (p. 206)
Voice Control (p. 149)
Use voice recognition (p. 150)
Voice control settings (p. 154)
Air quality The materials used in the passenger compart- ment and air filtering system have beenselected to ensure a high level of air quality inthe passenger compartment.
Materials used in the passenger compartment
The materials in the passenger compartment are designed to be pleasant and comfortable,even for people with asthma or allergies. The materials have been developed and tested to reduce dust in the passenger compartmentand make it easier to keep clean. The mats in both the passenger compartment and cargo compartment can be easilyremoved for cleaning. Use Volvo-recommended cleaning agents and car care products to clean the interior.
Air filtering systemsIn addition to the passenger compartment airfilter, the vehicle is also equipped with otherair cleaning systems that help you maintainhigh air quality in the passenger compartment.
Related information
Climate (p. 206)
CleanZone
* (p. 210)
Clean Zone Interior Package
* (p. 210)
Interior Air Quality System
* (p. 211)
Advanced Air Cleaner
* (p. 212)
Passenger compartment air filter (p. 212)

CLIMATE CONTROL
* Option/accessory.
210

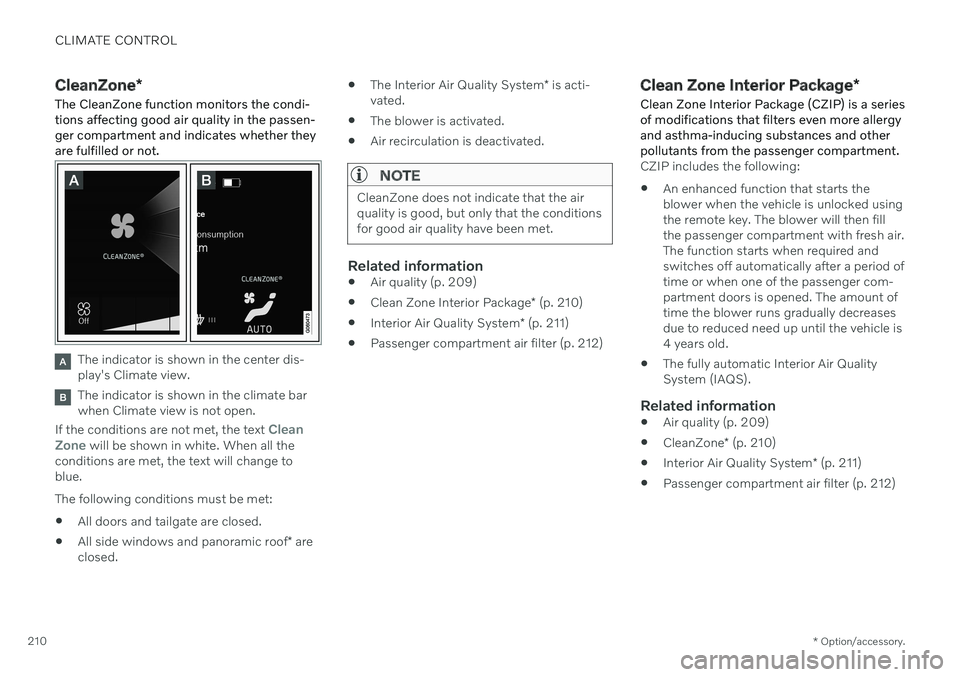

CleanZone *
The CleanZone function monitors the condi- tions affecting good air quality in the passen-ger compartment and indicates whether theyare fulfilled or not.
The indicator is shown in the center dis- play's Climate view.
The indicator is shown in the climate bar when Climate view is not open.
If the conditions are not met, the text
Clean
Zone will be shown in white. When all the
conditions are met, the text will change to blue. The following conditions must be met:
All doors and tailgate are closed.
All side windows and panoramic roof
* are
closed.
The Interior Air Quality System
* is acti-
vated.
The blower is activated.
Air recirculation is deactivated.
NOTE
CleanZone does not indicate that the air quality is good, but only that the conditionsfor good air quality have been met.
Related information
Air quality (p. 209)
Clean Zone Interior Package
* (p. 210)
Interior Air Quality System
* (p. 211)
Passenger compartment air filter (p. 212)
Clean Zone Interior Package
*
Clean Zone Interior Package (CZIP) is a series of modifications that filters even more allergyand asthma-inducing substances and otherpollutants from the passenger compartment.
CZIP includes the following:
An enhanced function that starts the blower when the vehicle is unlocked usingthe remote key. The blower will then fillthe passenger compartment with fresh air.The function starts when required andswitches off automatically after a period oftime or when one of the passenger com-partment doors is opened. The amount oftime the blower runs gradually decreasesdue to reduced need up until the vehicle is4 years old.
The fully automatic Interior Air QualitySystem (IAQS).
Related information
Air quality (p. 209)
CleanZone
* (p. 210)
Interior Air Quality System
* (p. 211)
Passenger compartment air filter (p. 212)

CLIMATE CONTROL
* Option/accessory.211
Interior Air Quality System *
Interior Air Quality System (IAQS) is a fully automatic air quality system that removesgases and particles to reduce odors and con-taminants in the passenger compartment.
IAQS is part of the Clean Zone Interior Package (CZIP) and removes air contaminantssuch as particles, hydrocarbons, nitric oxidesand ground-level ozone. If the system's air quality sensors detect con- taminants in the outside air, the air intakecloses and air recirculation is activated.
NOTE
To ensure optimal air quality in the passen- ger compartment, the air quality sensorshould always be engaged. Recirculation is limited in cold weather to prevent fogging. In the event of fogging, use the defroster functions for the windshield, side windowsand rear window.
Related information
Activating and deactivating the air quality sensor
* (p. 211)
Air quality (p. 209)
CleanZone
* (p. 210)
Clean Zone Interior Package
* (p. 210)
Passenger compartment air filter (p. 212)
Activating and deactivating the air quality sensor
*
The air quality sensor is part of the fully auto- mated Interior Air Quality System (IAQS).
The air quality sensor can be switched on or off. 1. Tap
Settings in the Top view in the center
display.
2. Tap
Climate.
3. Select
Air Quality Sensor to activate/
deactivate the air quality sensor.
Related information
Interior Air Quality System
* (p. 211)

CLIMATE CONTROL
* Option/accessory.
212
Passenger compartment air filter
All air entering the passenger compartment through the climate control system intake isfiltered.
Replacing the passenger compartment filter
To maintain the high performance of the cli- mate control system, the filter must bereplaced regularly. Follow Volvo's serviceschedule for recommended replacement inter-vals. When driving in areas with a lot of smog,dust, etc., the filter may need to be changedmore frequently.
NOTE
There are two types of passenger compart- ment filters. Make sure that the correct fil-ter is installed.
Related information
Air quality (p. 209)
CleanZone
* (p. 210)
Clean Zone Interior Package
* (p. 210)
Interior Air Quality System
* (p. 211)
Advanced Air Cleaner *
Advanced Air Cleaner is a fully automatic air cleaner that traps airborne particulate matter,exhaust and other pollutants in the passengercompartment air filter, which improves theclimate in the passenger compartment.
The function starts automatically when the blower starts. Airborne particulate matter are also known as PM 2.5 (particles smaller than 2.5 µm), and the
concentrations of these particles in the vehicleare measured by one of the vehicle's climatecontrol sensors. The concentration in the vehi-cle is presented in the downloadable app AirQuality.
Related information
Air quality (p. 209)
Interior Air Quality System
* (p. 211)
CleanZone
* (p. 210)
Clean Zone Interior Package
* (p. 210)
Passenger compartment air filter (p. 212)
Climate control sensors (p. 207)
Air distribution
The climate system distributes incoming air through a number of vents in the passengercompartment.
Automatic and manual air distributionWhen the auto-climate feature is on, air distri- bution is regulated automatically. Air distribu-tion can also be controlled manually.
Adjustable air ventsCertain air vents in the vehicle are adjustable,which means they can be opened/closed andthe direction of the air flow from the vent canbe adjusted.

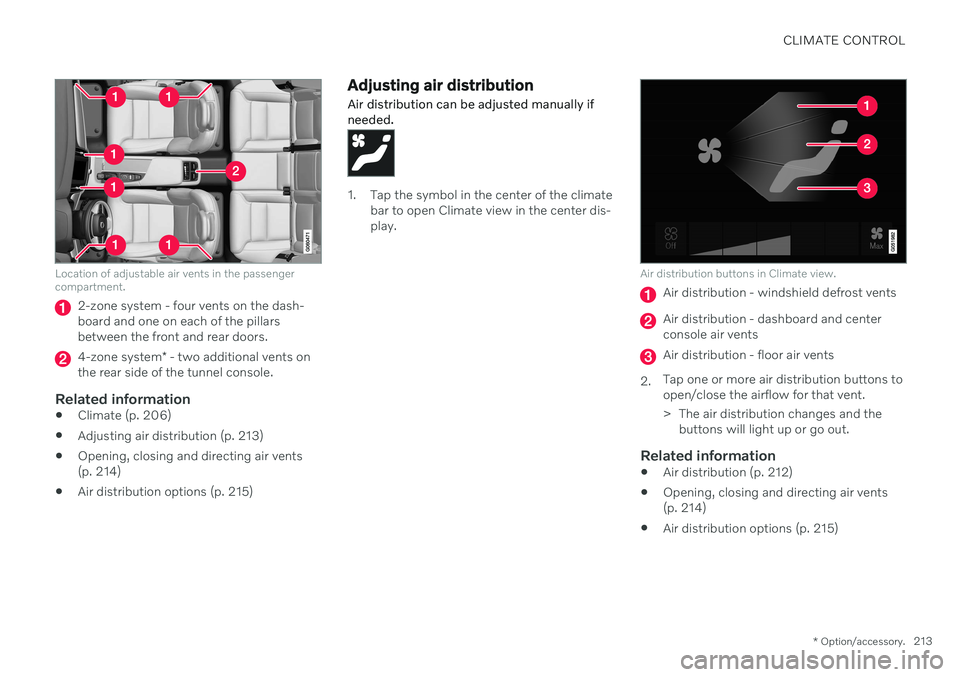

CLIMATE CONTROL
* Option/accessory.213
Location of adjustable air vents in the passenger compartment.
2-zone system - four vents on the dash- board and one on each of the pillarsbetween the front and rear doors.
4-zone system* - two additional vents on
the rear side of the tunnel console.
Related information
Climate (p. 206)
Adjusting air distribution (p. 213)
Opening, closing and directing air vents (p. 214)
Air distribution options (p. 215)
Adjusting air distribution
Air distribution can be adjusted manually if needed.
1. Tap the symbol in the center of the climate bar to open Climate view in the center dis- play.
Air distribution buttons in Climate view.
Air distribution - windshield defrost vents
Air distribution - dashboard and center console air vents
Air distribution - floor air vents
2. Tap one or more air distribution buttons to open/close the airflow for that vent.
> The air distribution changes and the
buttons will light up or go out.
Related information
Air distribution (p. 212)
Opening, closing and directing air vents (p. 214)
Air distribution options (p. 215)

CLIMATE CONTROL
* Option/accessory.
214

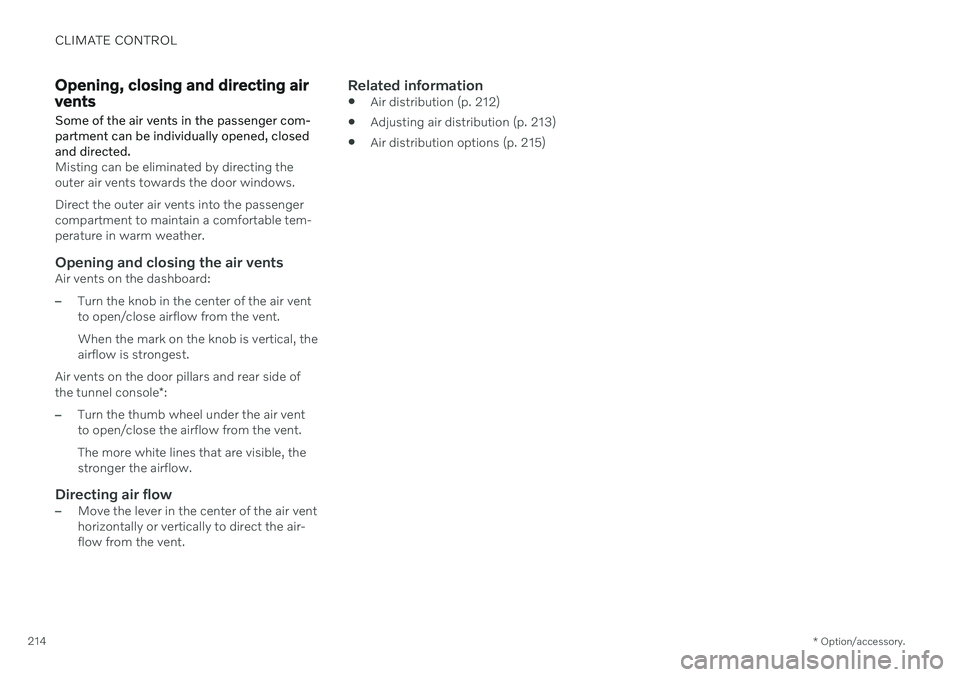

Opening, closing and directing air vents
Some of the air vents in the passenger com- partment can be individually opened, closedand directed.
Misting can be eliminated by directing the outer air vents towards the door windows. Direct the outer air vents into the passenger compartment to maintain a comfortable tem-perature in warm weather.
Opening and closing the air ventsAir vents on the dashboard:
–Turn the knob in the center of the air vent to open/close airflow from the vent. When the mark on the knob is vertical, the airflow is strongest.
Air vents on the door pillars and rear side of the tunnel console *:
–Turn the thumb wheel under the air vent to open/close the airflow from the vent. The more white lines that are visible, the stronger the airflow.
Directing air flow–Move the lever in the center of the air vent horizontally or vertically to direct the air-flow from the vent.
Related information
Air distribution (p. 212)
Adjusting air distribution (p. 213)
Air distribution options (p. 215)

CLIMATE CONTROL
}}
215

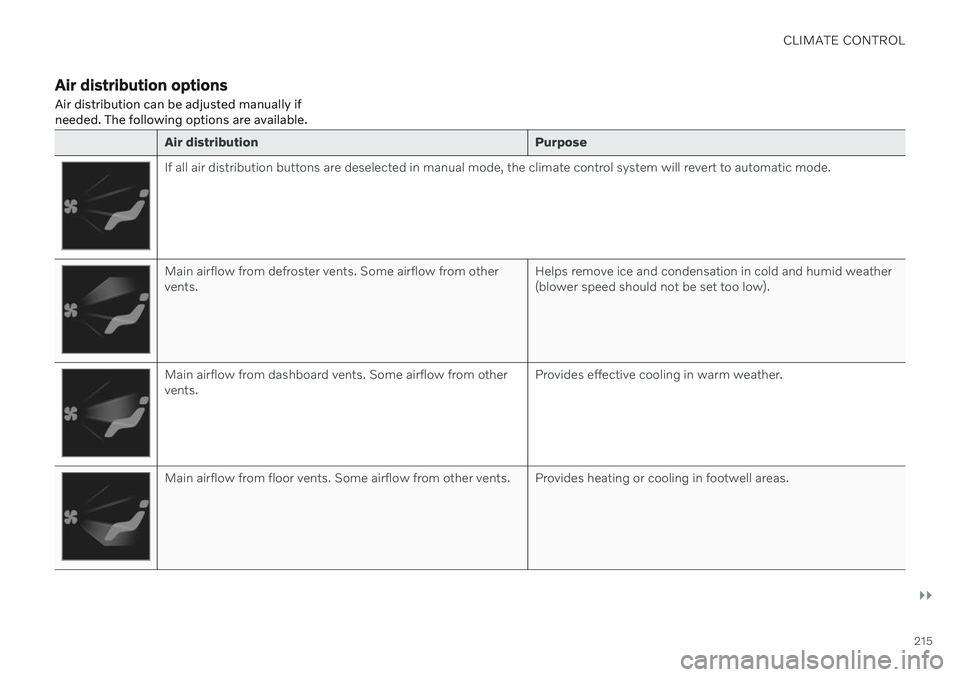

Air distribution options
Air distribution can be adjusted manually if needed. The following options are available.
Air distribution Purpose
If all air distribution buttons are deselected in manual mode, the climate control system will revert to automatic mode.
Main airflow from defroster vents. Some airflow from other vents.Helps remove ice and condensation in cold and humid weather(blower speed should not be set too low).
Main airflow from dashboard vents. Some airflow from other vents.Provides effective cooling in warm weather.
Main airflow from floor vents. Some airflow from other vents. Provides heating or cooling in footwell areas.

||
CLIMATE CONTROL
216
Air distributionPurpose
Main airflow from defroster and dashboard vents. Some air- flow from other vents.Provides a comfortable climate in warm and dry weather.
Main airflow from defroster and floor vents. Some airflow from other vents.Provides a comfortable climate and effective defogging in coldand humid weather.
Main airflow from dashboard and floor vents. Some airflow from other vents.Provides a comfortable climate in sunny, cool weather.
Main airflow from defroster, dashboard and floor vents. Provides balanced comfort in the passenger compartment.

CLIMATE CONTROL
217

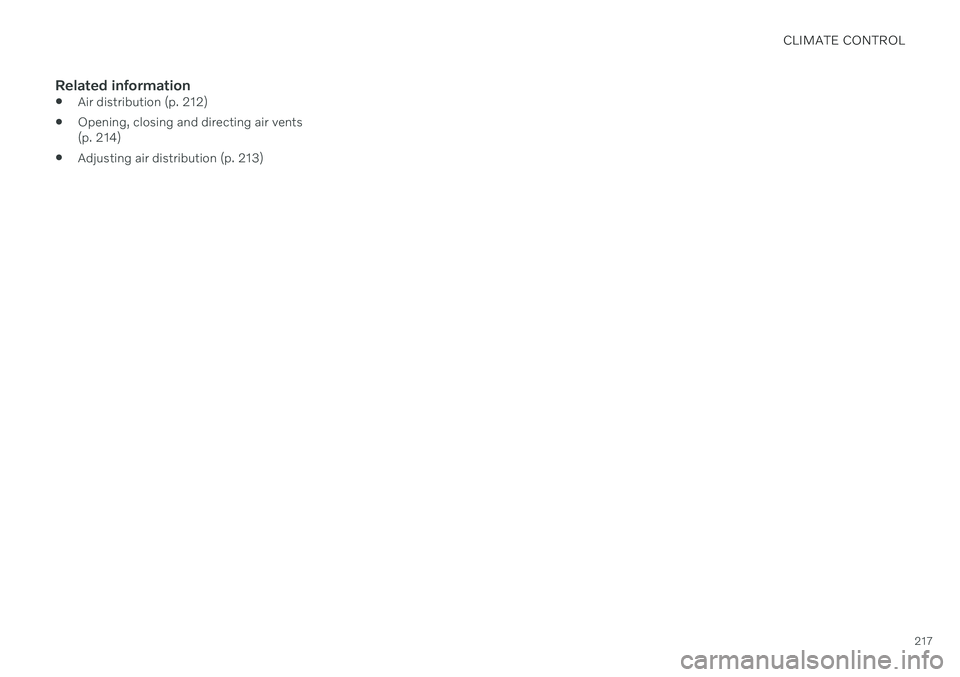

Related information
Air distribution (p. 212)
Opening, closing and directing air vents (p. 214)
Adjusting air distribution (p. 213)

CLIMATE CONTROL
* Option/accessory.
218

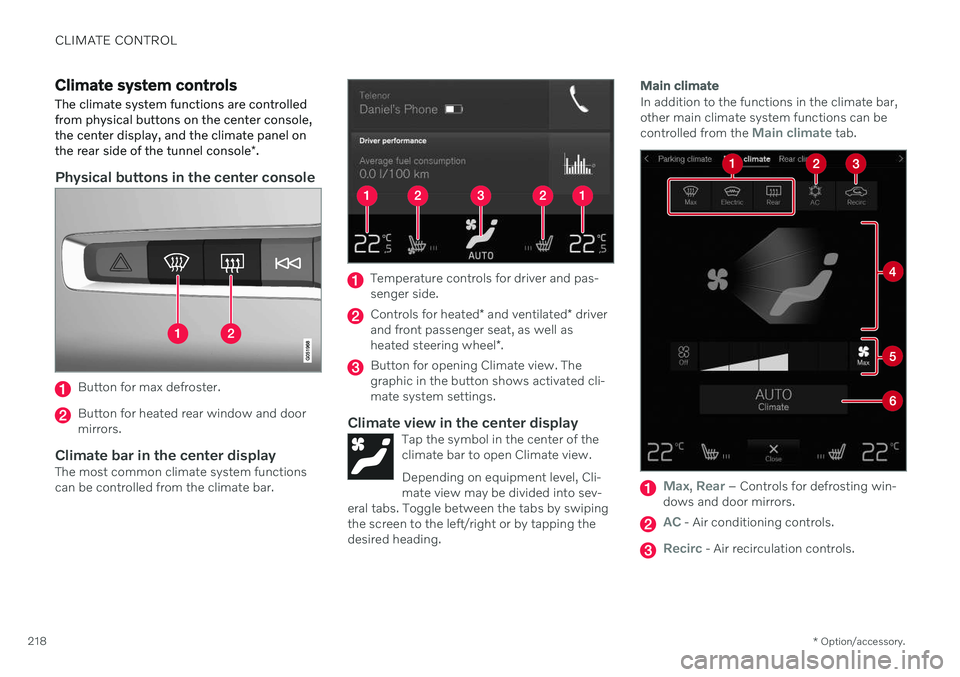

Climate system controls
The climate system functions are controlled from physical buttons on the center console,the center display, and the climate panel on the rear side of the tunnel console *.
Physical buttons in the center console
Button for max defroster.
Button for heated rear window and door mirrors.
Climate bar in the center displayThe most common climate system functionscan be controlled from the climate bar.
Temperature controls for driver and pas- senger side.
Controls for heated * and ventilated * driver
and front passenger seat, as well as heated steering wheel *.
Button for opening Climate view. The graphic in the button shows activated cli-mate system settings.
Climate view in the center displayTap the symbol in the center of theclimate bar to open Climate view. Depending on equipment level, Cli- mate view may be divided into sev-
eral tabs. Toggle between the tabs by swipingthe screen to the left/right or by tapping thedesired heading.
Main climate
In addition to the functions in the climate bar, other main climate system functions can be controlled from the
Main climate tab.
Max, Rear – Controls for defrosting win-
dows and door mirrors.
AC - Air conditioning controls.
Recirc - Air recirculation controls.
