VOLVO V90 CROSS COUNTRY 2021 Owners Manual

LOADING, STORAGE AND PASSENGER COMPARTMENT
* Option/accessory.569

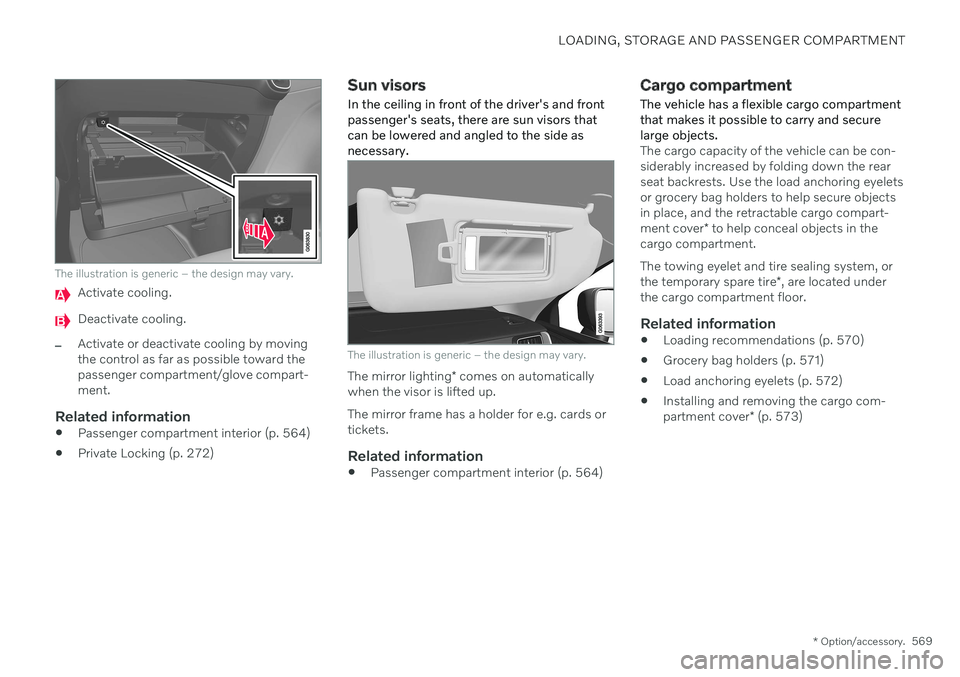

The illustration is generic – the design may vary.
Activate cooling.
Deactivate cooling.
–Activate or deactivate cooling by moving the control as far as possible toward thepassenger compartment/glove compart-ment.
Related information
Passenger compartment interior (p. 564)
Private Locking (p. 272)
Sun visors
In the ceiling in front of the driver's and front passenger's seats, there are sun visors thatcan be lowered and angled to the side asnecessary.
The illustration is generic – the design may vary.
The mirror lighting * comes on automatically
when the visor is lifted up. The mirror frame has a holder for e.g. cards or tickets.
Related information
Passenger compartment interior (p. 564)
Cargo compartment
The vehicle has a flexible cargo compartment that makes it possible to carry and securelarge objects.
The cargo capacity of the vehicle can be con- siderably increased by folding down the rearseat backrests. Use the load anchoring eyeletsor grocery bag holders to help secure objectsin place, and the retractable cargo compart- ment cover * to help conceal objects in the
cargo compartment. The towing eyelet and tire sealing system, or the temporary spare tire *, are located under
the cargo compartment floor.
Related information
Loading recommendations (p. 570)
Grocery bag holders (p. 571)
Load anchoring eyelets (p. 572)
Installing and removing the cargo com-partment cover
* (p. 573)

LOADING, STORAGE AND PASSENGER COMPARTMENT
* Option/accessory.
570

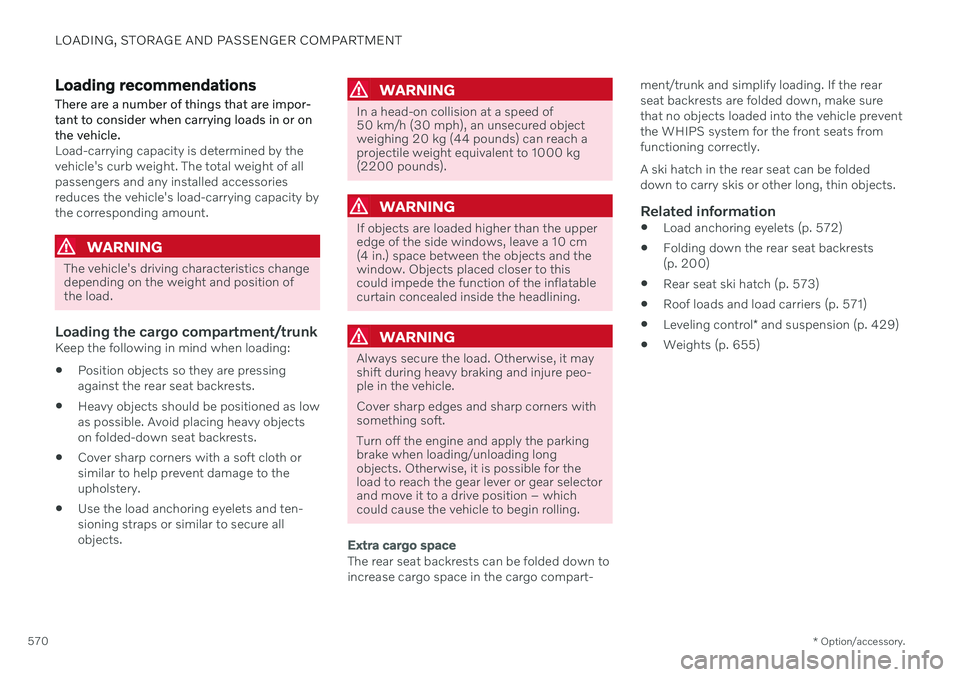

Loading recommendations
There are a number of things that are impor- tant to consider when carrying loads in or onthe vehicle.
Load-carrying capacity is determined by the vehicle's curb weight. The total weight of allpassengers and any installed accessoriesreduces the vehicle's load-carrying capacity bythe corresponding amount.
WARNING
The vehicle's driving characteristics change depending on the weight and position ofthe load.
Loading the cargo compartment/trunkKeep the following in mind when loading:
Position objects so they are pressing against the rear seat backrests.
Heavy objects should be positioned as lowas possible. Avoid placing heavy objectson folded-down seat backrests.
Cover sharp corners with a soft cloth orsimilar to help prevent damage to theupholstery.
Use the load anchoring eyelets and ten-sioning straps or similar to secure allobjects.
WARNING
In a head-on collision at a speed of 50 km/h (30 mph), an unsecured objectweighing 20 kg (44 pounds) can reach aprojectile weight equivalent to 1000 kg(2200 pounds).
WARNING
If objects are loaded higher than the upper edge of the side windows, leave a 10 cm(4 in.) space between the objects and thewindow. Objects placed closer to thiscould impede the function of the inflatablecurtain concealed inside the headlining.
WARNING
Always secure the load. Otherwise, it may shift during heavy braking and injure peo-ple in the vehicle. Cover sharp edges and sharp corners with something soft. Turn off the engine and apply the parking brake when loading/unloading longobjects. Otherwise, it is possible for theload to reach the gear lever or gear selectorand move it to a drive position – whichcould cause the vehicle to begin rolling.
Extra cargo space
The rear seat backrests can be folded down to increase cargo space in the cargo compart- ment/trunk and simplify loading. If the rearseat backrests are folded down, make surethat no objects loaded into the vehicle preventthe WHIPS system for the front seats fromfunctioning correctly. A ski hatch in the rear seat can be folded down to carry skis or other long, thin objects.
Related information

Load anchoring eyelets (p. 572)
Folding down the rear seat backrests(p. 200)
Rear seat ski hatch (p. 573)
Roof loads and load carriers (p. 571)
Leveling control
* and suspension (p. 429)
Weights (p. 655)

LOADING, STORAGE AND PASSENGER COMPARTMENT
}}
571

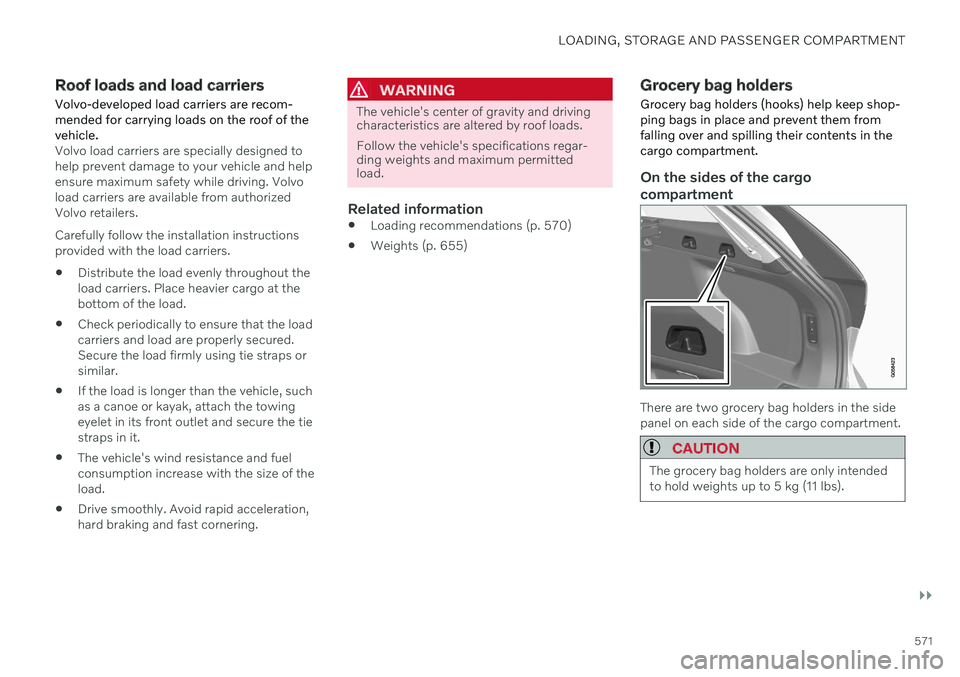

Roof loads and load carriers
Volvo-developed load carriers are recom- mended for carrying loads on the roof of thevehicle.
Volvo load carriers are specially designed to help prevent damage to your vehicle and helpensure maximum safety while driving. Volvoload carriers are available from authorizedVolvo retailers. Carefully follow the installation instructions provided with the load carriers. Distribute the load evenly throughout the load carriers. Place heavier cargo at thebottom of the load.
Check periodically to ensure that the loadcarriers and load are properly secured.Secure the load firmly using tie straps orsimilar.
If the load is longer than the vehicle, suchas a canoe or kayak, attach the towingeyelet in its front outlet and secure the tiestraps in it.
The vehicle's wind resistance and fuelconsumption increase with the size of theload.
Drive smoothly. Avoid rapid acceleration,hard braking and fast cornering.
WARNING
The vehicle's center of gravity and driving characteristics are altered by roof loads. Follow the vehicle's specifications regar- ding weights and maximum permittedload.
Related information
Loading recommendations (p. 570)
Weights (p. 655)
Grocery bag holders Grocery bag holders (hooks) help keep shop- ping bags in place and prevent them fromfalling over and spilling their contents in thecargo compartment.
On the sides of the cargo compartment
There are two grocery bag holders in the side panel on each side of the cargo compartment.
CAUTION
The grocery bag holders are only intended to hold weights up to 5 kg (11 lbs).

||
LOADING, STORAGE AND PASSENGER COMPARTMENT
* Option/accessory.
572

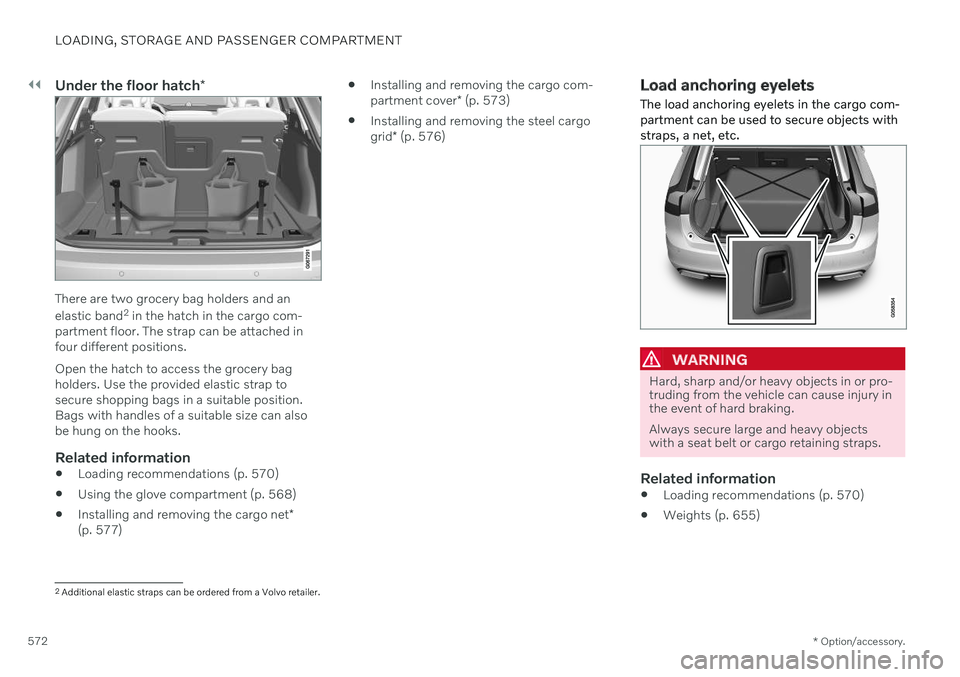

Under the floor hatch *
There are two grocery bag holders and an elastic band2
in the hatch in the cargo com-
partment floor. The strap can be attached in four different positions. Open the hatch to access the grocery bag holders. Use the provided elastic strap tosecure shopping bags in a suitable position.Bags with handles of a suitable size can alsobe hung on the hooks.
Related information
Loading recommendations (p. 570)
Using the glove compartment (p. 568)
Installing and removing the cargo net
*
(p. 577)
Installing and removing the cargo com- partment cover
* (p. 573)
Installing and removing the steel cargogrid
* (p. 576)
Load anchoring eyelets The load anchoring eyelets in the cargo com- partment can be used to secure objects withstraps, a net, etc.
WARNING
Hard, sharp and/or heavy objects in or pro- truding from the vehicle can cause injury inthe event of hard braking. Always secure large and heavy objects with a seat belt or cargo retaining straps.
Related information
Loading recommendations (p. 570)
Weights (p. 655)
2
Additional elastic straps can be ordered from a Volvo retailer.

LOADING, STORAGE AND PASSENGER COMPARTMENT
}}
* Option/accessory.573

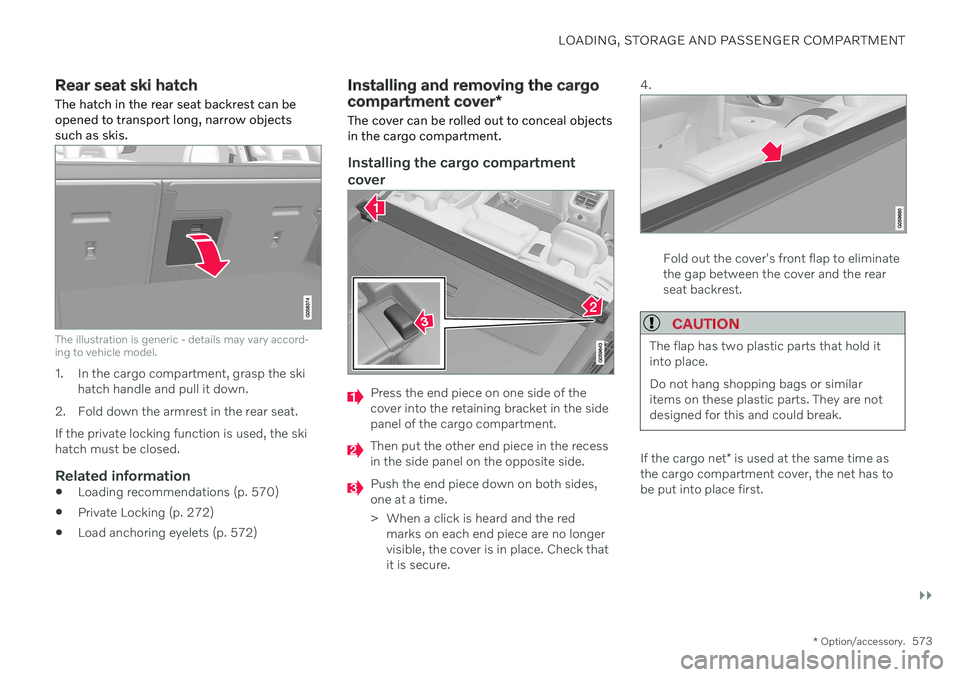

Rear seat ski hatch
The hatch in the rear seat backrest can be opened to transport long, narrow objectssuch as skis.
The illustration is generic - details may vary accord- ing to vehicle model.
1. In the cargo compartment, grasp the ski hatch handle and pull it down.
2. Fold down the armrest in the rear seat. If the private locking function is used, the ski hatch must be closed.
Related information
Loading recommendations (p. 570)
Private Locking (p. 272)
Load anchoring eyelets (p. 572)
Installing and removing the cargo compartment cover
*
The cover can be rolled out to conceal objects in the cargo compartment.
Installing the cargo compartment cover
Press the end piece on one side of the cover into the retaining bracket in the sidepanel of the cargo compartment.
Then put the other end piece in the recess in the side panel on the opposite side.
Push the end piece down on both sides, one at a time.
> When a click is heard and the red marks on each end piece are no longer visible, the cover is in place. Check thatit is secure. 4.
Fold out the cover's front flap to eliminate the gap between the cover and the rearseat backrest.
CAUTION
The flap has two plastic parts that hold it into place. Do not hang shopping bags or similar items on these plastic parts. They are notdesigned for this and could break.
If the cargo net
* is used at the same time as
the cargo compartment cover, the net has to be put into place first.

||
LOADING, STORAGE AND PASSENGER COMPARTMENT
* Option/accessory.
574

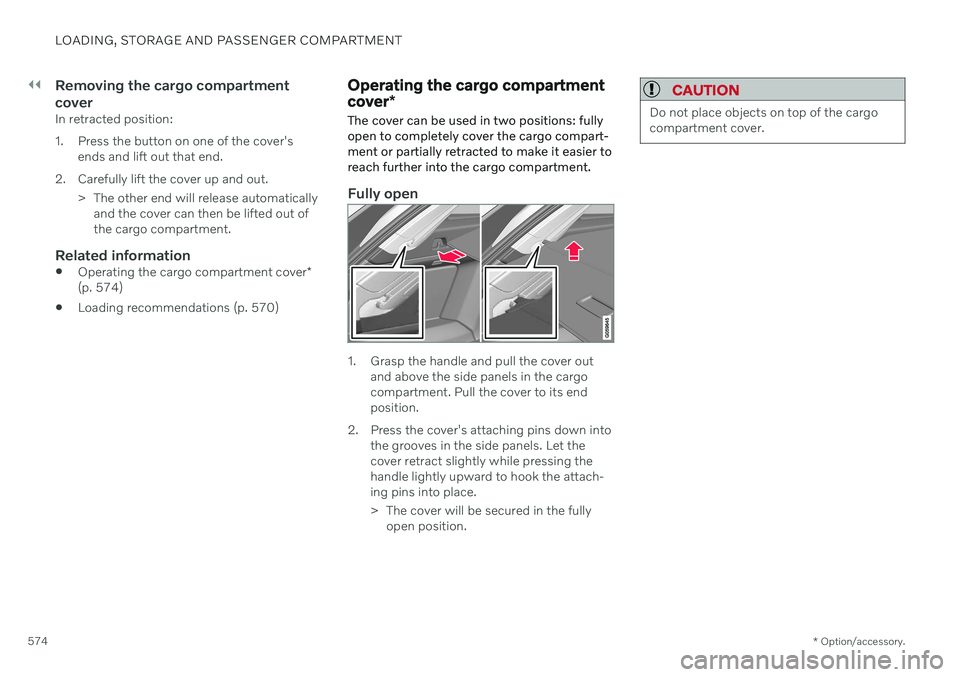

Removing the cargo compartment cover
In retracted position:
1. Press the button on one of the cover's
ends and lift out that end.
2. Carefully lift the cover up and out. > The other end will release automaticallyand the cover can then be lifted out of the cargo compartment.
Related information
Operating the cargo compartment cover
*
(p. 574)
Loading recommendations (p. 570)
Operating the cargo compartment cover
*
The cover can be used in two positions: fully open to completely cover the cargo compart-ment or partially retracted to make it easier toreach further into the cargo compartment.
Fully open
1. Grasp the handle and pull the cover out and above the side panels in the cargo compartment. Pull the cover to its endposition.
2. Press the cover's attaching pins down into the grooves in the side panels. Let thecover retract slightly while pressing thehandle lightly upward to hook the attach-ing pins into place.
> The cover will be secured in the fullyopen position.
CAUTION
Do not place objects on top of the cargo compartment cover.

LOADING, STORAGE AND PASSENGER COMPARTMENT
* Option/accessory.575

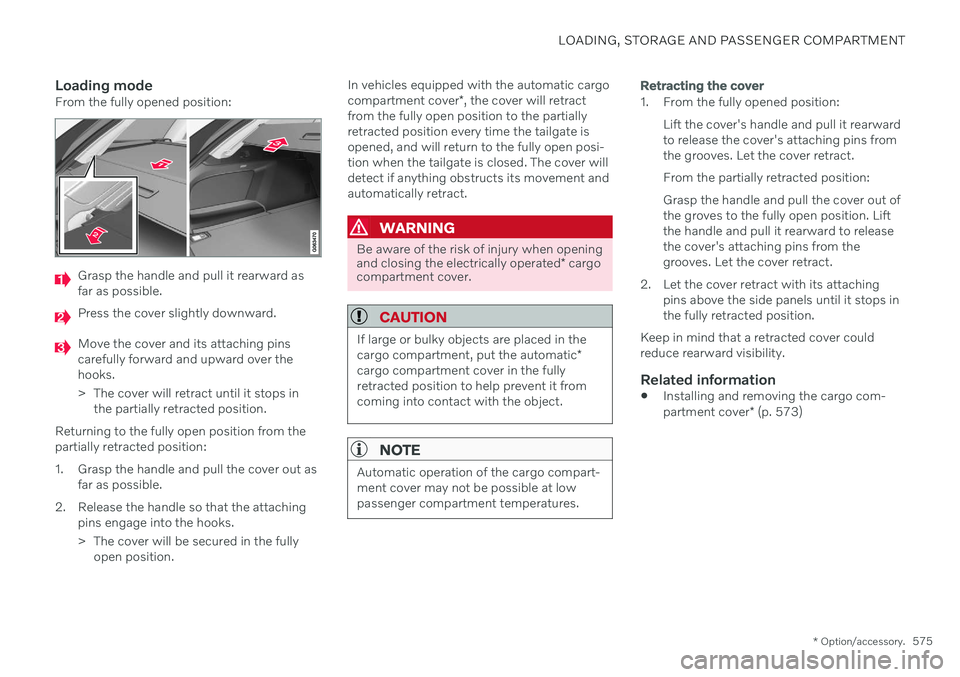

Loading modeFrom the fully opened position:
Grasp the handle and pull it rearward as far as possible.
Press the cover slightly downward.
Move the cover and its attaching pins carefully forward and upward over thehooks.
> The cover will retract until it stops in
the partially retracted position.
Returning to the fully open position from the partially retracted position:
1. Grasp the handle and pull the cover out as far as possible.
2. Release the handle so that the attaching pins engage into the hooks.
> The cover will be secured in the fullyopen position. In vehicles equipped with the automatic cargo compartment cover
*, the cover will retract
from the fully open position to the partially retracted position every time the tailgate isopened, and will return to the fully open posi-tion when the tailgate is closed. The cover willdetect if anything obstructs its movement andautomatically retract.
WARNING
Be aware of the risk of injury when opening and closing the electrically operated * cargo
compartment cover.
CAUTION
If large or bulky objects are placed in the cargo compartment, put the automatic *
cargo compartment cover in the fully retracted position to help prevent it fromcoming into contact with the object.
NOTE
Automatic operation of the cargo compart- ment cover may not be possible at lowpassenger compartment temperatures.
Retracting the cover
1. From the fully opened position:
Lift the cover's handle and pull it rearward to release the cover's attaching pins fromthe grooves. Let the cover retract. From the partially retracted position:Grasp the handle and pull the cover out of the groves to the fully open position. Liftthe handle and pull it rearward to releasethe cover's attaching pins from thegrooves. Let the cover retract.
2. Let the cover retract with its attaching pins above the side panels until it stops inthe fully retracted position.
Keep in mind that a retracted cover couldreduce rearward visibility.
Related information
Installing and removing the cargo com- partment cover
* (p. 573)

LOADING, STORAGE AND PASSENGER COMPARTMENT
* Option/accessory.
576
Installing and removing the steel cargo grid *
The steel cargo grid prevents loads or pets in the cargo compartment from being thrownforward into the passenger compartmentduring hard braking.
For safety reasons, the steel grid must always be installed and secured correctly.
WARNING
Under no circumstances may a person be in the cargo compartment when the vehi-cle is moving. Heavy braking or a collisioncould lead to serious injury.
Installation
CAUTION
The steel cargo grid may only be used in the rear position (behind the rear seat)described here.
Before installing the steel grid, the existing plastic ceiling mounting consoles must bereplaced with steel consoles. Volvo recom-mends that the ceiling consoles are onlyreplaced by an authorized Volvo workshop orretailer.
1. Fold down the rear seat backrests.
2. Make sure that the steel grid is facing the right direction. Lift the grid into the vehicle through one of the rear doors. 3.
Position the grid's attachment points in the ceiling consoles. The next step will be easier if two people hold the steel grid in the right position.

LOADING, STORAGE AND PASSENGER COMPARTMENT
}}
* Option/accessory.577

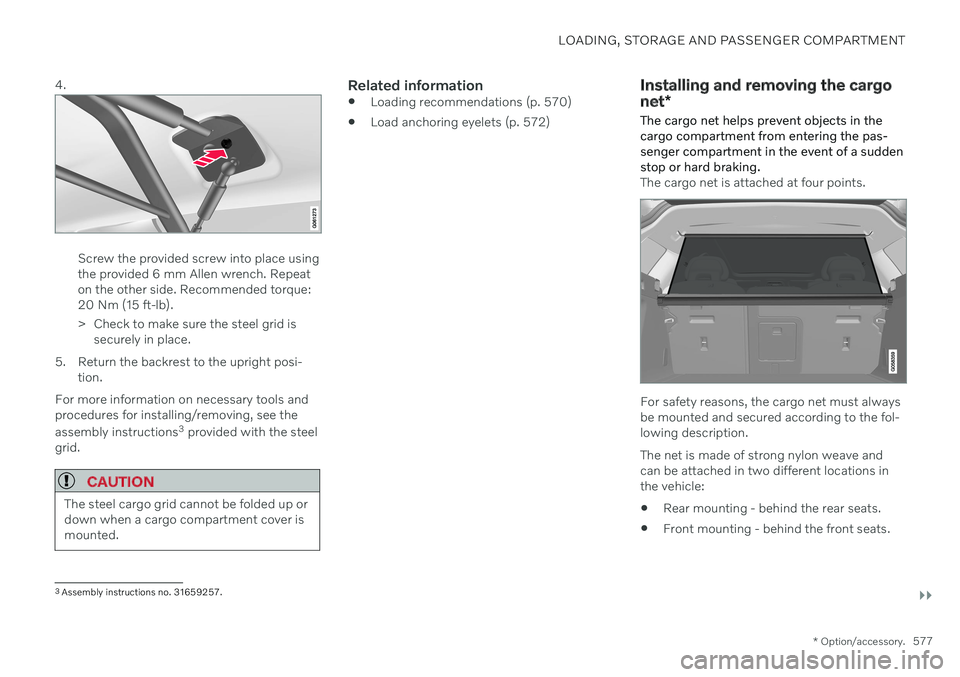

4.
Screw the provided screw into place using the provided 6 mm Allen wrench. Repeaton the other side. Recommended torque:20 Nm (15 ft-lb).
> Check to make sure the steel grid is
securely in place.
5. Return the backrest to the upright posi- tion.
For more information on necessary tools and procedures for installing/removing, see the assembly instructions 3
provided with the steel
grid.
CAUTION
The steel cargo grid cannot be folded up or down when a cargo compartment cover ismounted.
Related information
Loading recommendations (p. 570)
Load anchoring eyelets (p. 572)
Installing and removing the cargo net
*
The cargo net helps prevent objects in the cargo compartment from entering the pas-senger compartment in the event of a suddenstop or hard braking.
The cargo net is attached at four points.
For safety reasons, the cargo net must always be mounted and secured according to the fol-lowing description. The net is made of strong nylon weave and can be attached in two different locations inthe vehicle:
Rear mounting - behind the rear seats.
Front mounting - behind the front seats.
3
Assembly instructions no. 31659257.

||
LOADING, STORAGE AND PASSENGER COMPARTMENT
578
WARNING
Objects in the cargo compartment must always be securely anchored, even with acorrectly installed cargo net.

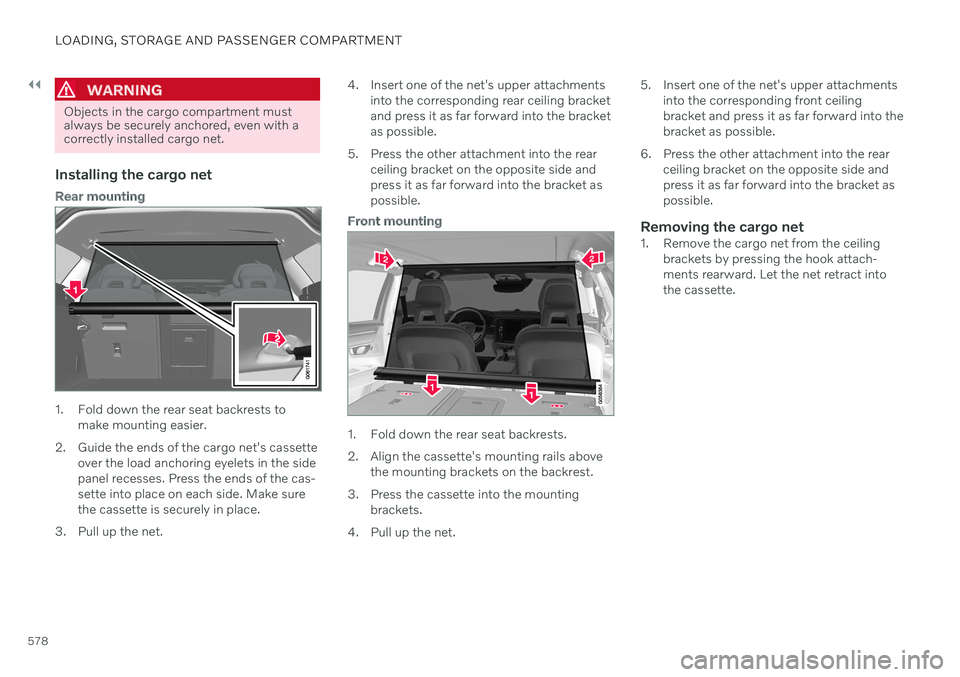

Installing the cargo net
Rear mounting
1. Fold down the rear seat backrests tomake mounting easier.
2. Guide the ends of the cargo net's cassette over the load anchoring eyelets in the side panel recesses. Press the ends of the cas-sette into place on each side. Make surethe cassette is securely in place.
3. Pull up the net. 4. Insert one of the net's upper attachments
into the corresponding rear ceiling bracketand press it as far forward into the bracketas possible.
5. Press the other attachment into the rear ceiling bracket on the opposite side andpress it as far forward into the bracket aspossible.
Front mounting
1. Fold down the rear seat backrests.
2. Align the cassette's mounting rails abovethe mounting brackets on the backrest.
3. Press the cassette into the mounting brackets.
4. Pull up the net. 5. Insert one of the net's upper attachments
into the corresponding front ceiling bracket and press it as far forward into thebracket as possible.
6. Press the other attachment into the rear ceiling bracket on the opposite side andpress it as far forward into the bracket aspossible.
Removing the cargo net1. Remove the cargo net from the ceilingbrackets by pressing the hook attach-ments rearward. Let the net retract intothe cassette.
