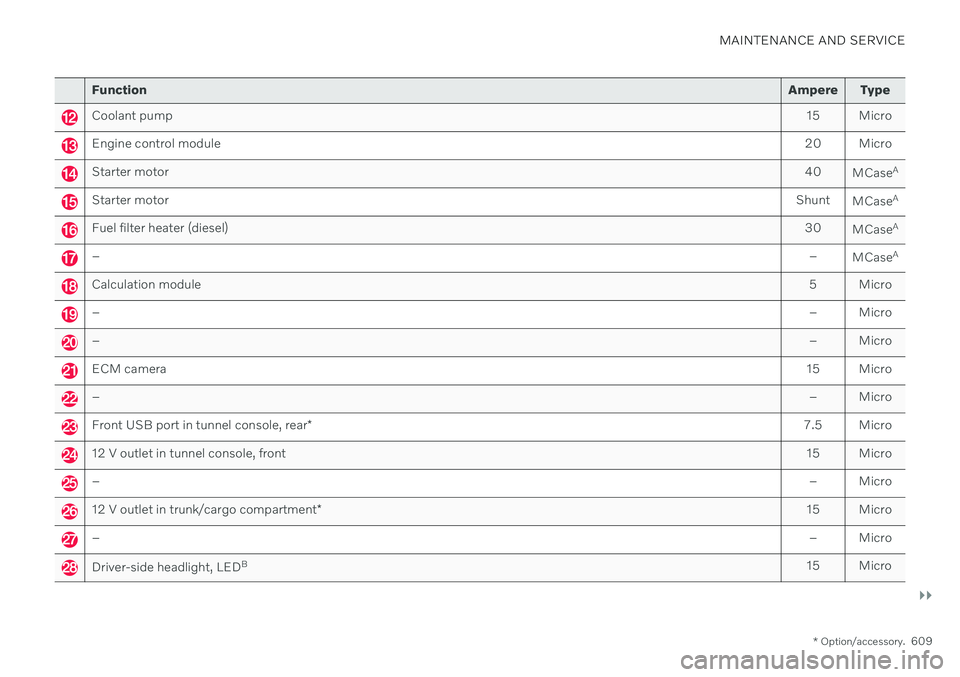

Function Ampere Type
Coolant pump 15 Micro
Engine control module20 Micro
Starter motor40
MCaseA
Starter motor
Shunt
MCaseA
Fuel filter heater (diesel)
30
MCaseA
–
–
MCaseA
Calculation module
5 Micro
–– Micro
–– Micro
ECM camera15 Micro
– – Micro
Front USB port in tunnel console, rear* 7.5 Micro
12 V outlet in tunnel console, front
15 Micro
– – Micro
12 V outlet in trunk/cargo compartment* 15 Micro
–
– Micro
Driver-side headlight, LEDB
15 Micro

||
MAINTENANCE AND SERVICE
* Option/accessory.
610

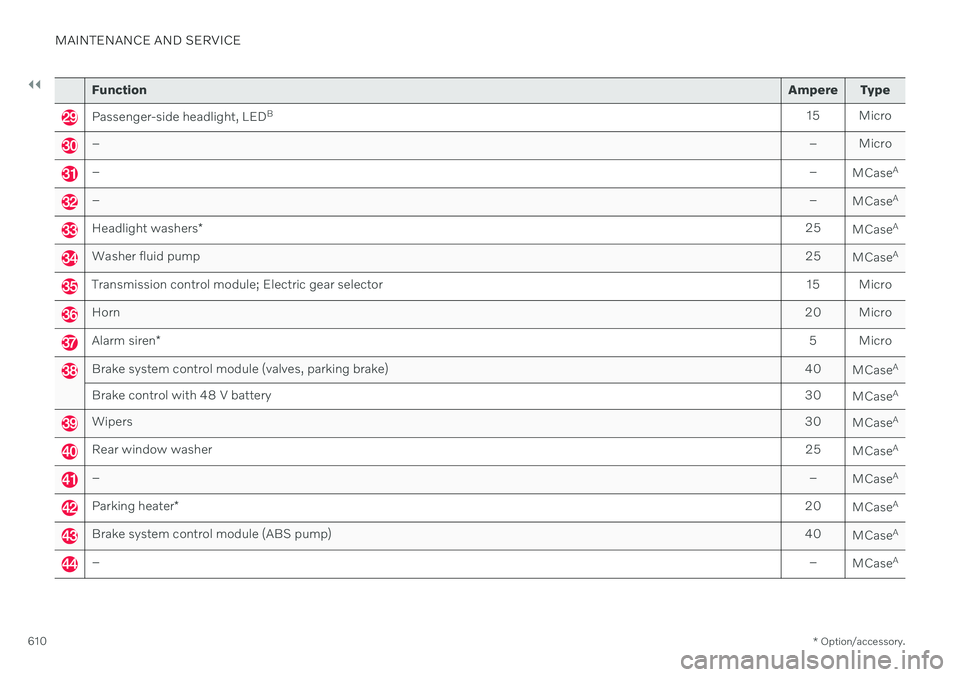

Function Ampere Type
Passenger-side headlight, LEDB
15 Micro
– – Micro
––
MCaseA
–
–
MCaseA
Headlight washers
* 25
MCaseA
Washer fluid pump
25
MCaseA
Transmission control module; Electric gear selector
15 Micro
Horn20 Micro
Alarm siren* 5 Micro
Brake system control module (valves, parking brake)
40
MCaseA
Brake control with 48 V battery 30
MCaseA
Wipers
30
MCaseA
Rear window washer
25
MCaseA
–
–
MCaseA
Parking heater
* 20
MCaseA
Brake system control module (ABS pump)
40
MCaseA
–
–
MCaseA

MAINTENANCE AND SERVICE
611
FunctionAmpere Type
– –
MCaseA
Fed when ignition is on: engine control module, transmission components, electrical power steering, central electrical module, brake system control module 5 Micro
–
– Micro
Passenger-side headlight, LEDB
15 Micro
– – Micro
Transmission control module10 Micro
Battery connection control module 5 Micro
Airbags; Passenger weight sensor5 Micro
Driver-side headlight, LEDB
15 Micro
Accelerator pedal sensor 5 Micro
A
This type of fuse should be replaced by a workshop. An authorized Volvo workshop is recommended.
B LED (Light Emitting Diode)
Related information
Fuses and fuseboxes (p. 605)
Replacing fuses (p. 605)

MAINTENANCE AND SERVICE
612

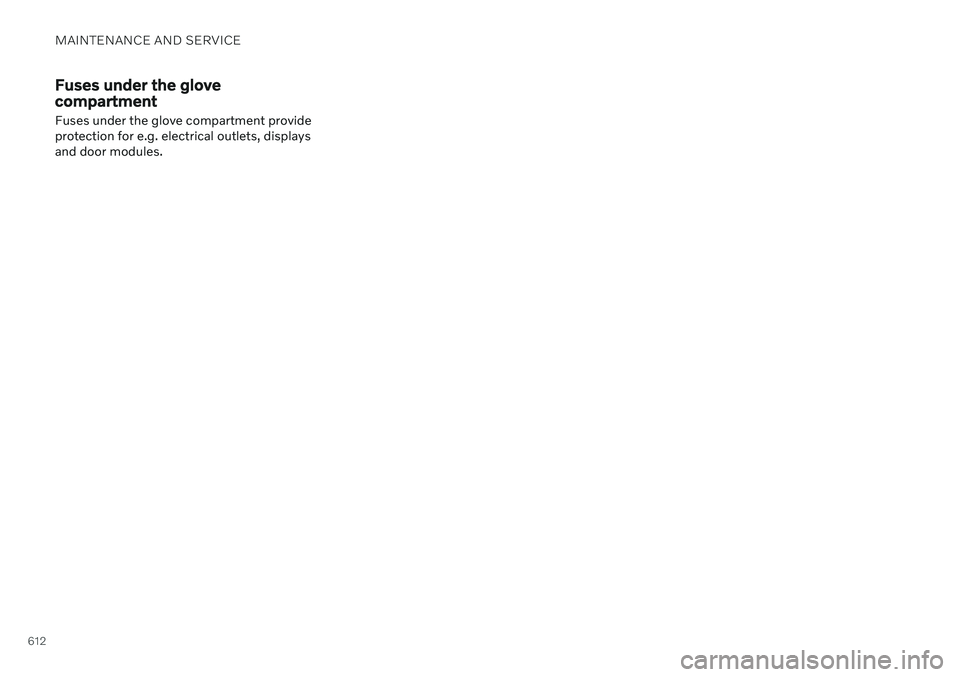

Fuses under the glove compartment Fuses under the glove compartment provide protection for e.g. electrical outlets, displaysand door modules.

MAINTENANCE AND SERVICE
}}
613

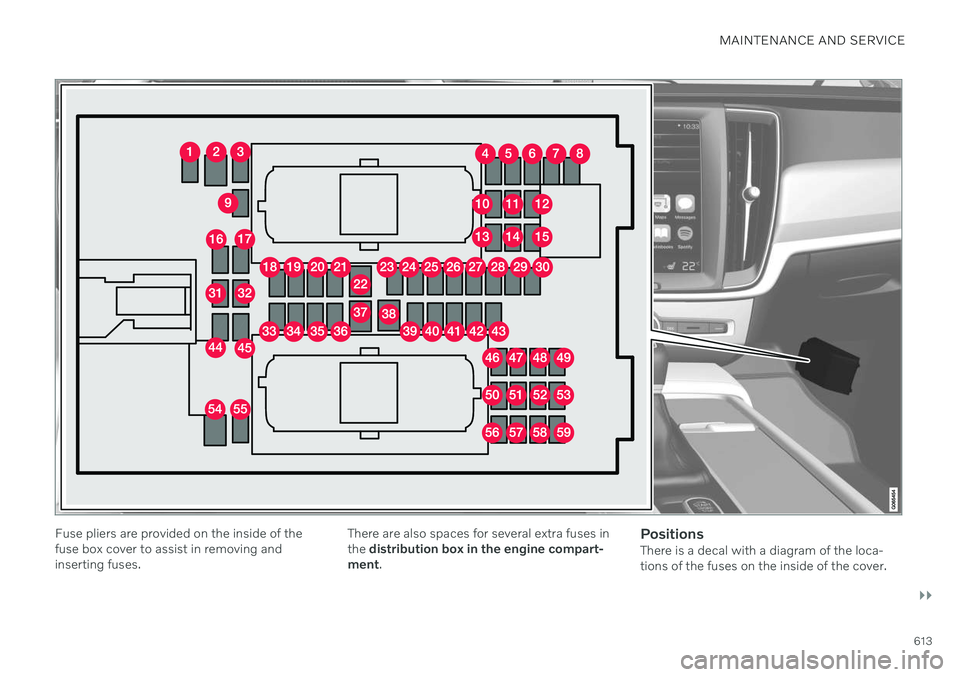

Fuse pliers are provided on the inside of the fuse box cover to assist in removing andinserting fuses.There are also spaces for several extra fuses inthe
distribution box in the engine compart-
ment .PositionsThere is a decal with a diagram of the loca-tions of the fuses on the inside of the cover.

||
MAINTENANCE AND SERVICE
* Option/accessory.
614
Function Ampere Type
Medium voltage moduleA
10 Micro
– –
MCaseB
–
– Micro
Movement sensor* 5 Micro
–
– Micro
Instrument panel 5 Micro
Center console buttons5 Micro
Sun sensor5 Micro
–– Micro
–– Micro
Steering wheel module 5 Micro
Module for start knob and parking brake controls5 Micro
Heated steering wheel* module 15 Micro
–
– Micro
–– Micro
–– Micro
Rear lamp housing control modules15 Micro

MAINTENANCE AND SERVICE
}}
* Option/accessory.615
Function Ampere Type
Climate system control module 10 Micro
– – Micro
Data link connector OBD-II10 Micro
Center display 5 Micro
Climate system blower module (front)40
MCaseB
USB HUB
5 Micro
Instrument lighting; Interior lighting; Rearview mirror auto-dim function*; Rain and light sensors *; Rear tunnel console
keypad, rear seat *; Power front seats *; Rear door control panels; Climate system blower module left/right 7.5 Micro
Control module for driver support functions
5 Micro
Panoramic roof with sun curtain* 20 Micro
Head-up display
* 5 Micro
Passenger compartment lighting
5 Micro
Wireless charging pad5 Micro
Ceiling console display (seat belt reminder/front passenger side airbag indicator)5 Micro
–– Micro
–– Micro
–– Micro

||
MAINTENANCE AND SERVICE
* Option/accessory.
616

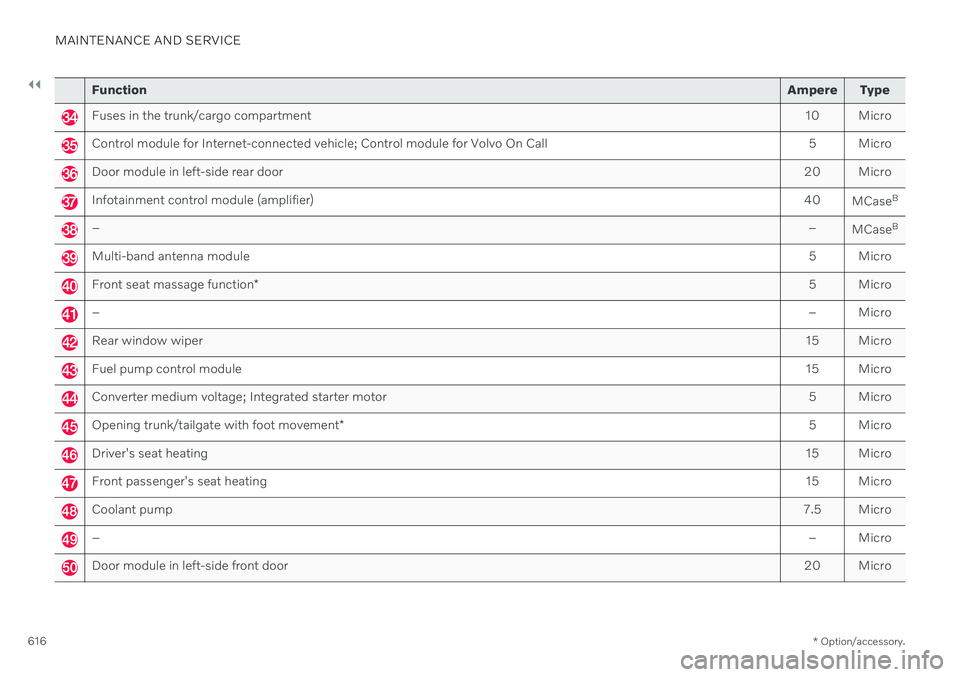

Function Ampere Type
Fuses in the trunk/cargo compartment 10 Micro
Control module for Internet-connected vehicle; Control module for Volvo On Call 5 Micro
Door module in left-side rear door20 Micro
Infotainment control module (amplifier)40
MCaseB
–
–
MCaseB
Multi-band antenna module
5 Micro
Front seat massage function* 5 Micro
–
– Micro
Rear window wiper15 Micro
Fuel pump control module15 Micro
Converter medium voltage; Integrated starter motor 5 Micro
Opening trunk/tailgate with foot movement* 5 Micro
Driver's seat heating
15 Micro
Front passenger's seat heating15 Micro
Coolant pump7.5 Micro
– – Micro
Door module in left-side front door20 Micro

MAINTENANCE AND SERVICE
* Option/accessory.617

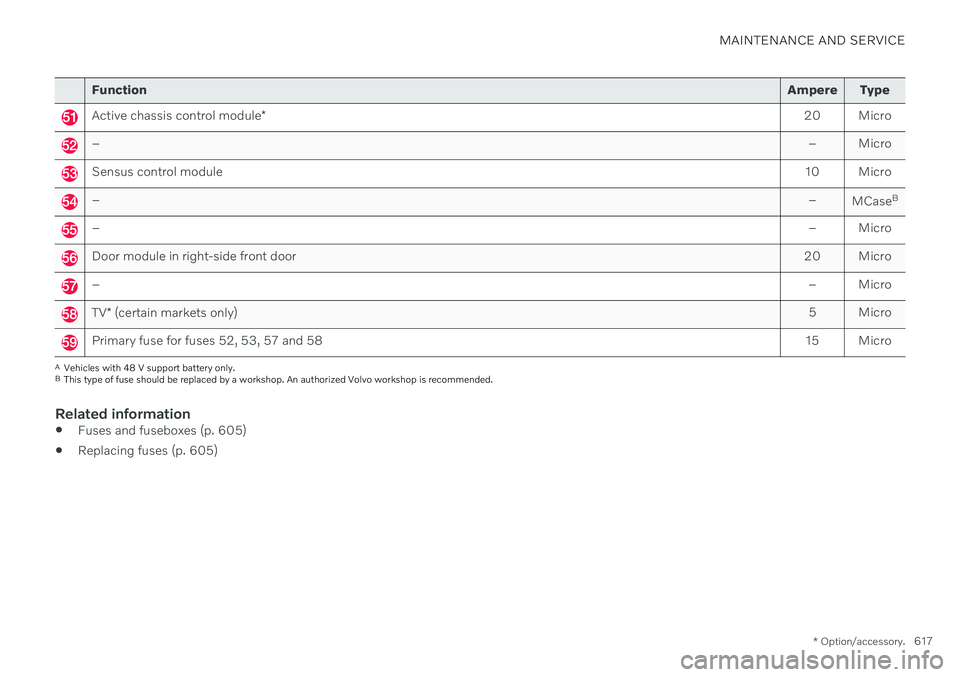

Function Ampere Type
Active chassis control module* 20 Micro
–
– Micro
Sensus control module10 Micro
– –
MCaseB
–
– Micro
Door module in right-side front door20 Micro
– – Micro
TV* (certain markets only) 5 Micro
Primary fuse for fuses 52, 53, 57 and 58
15 Micro
A
Vehicles with 48 V support battery only.
B This type of fuse should be replaced by a workshop. An authorized Volvo workshop is recommended.
Related information
Fuses and fuseboxes (p. 605)
Replacing fuses (p. 605)

MAINTENANCE AND SERVICE
* Option/accessory.
618

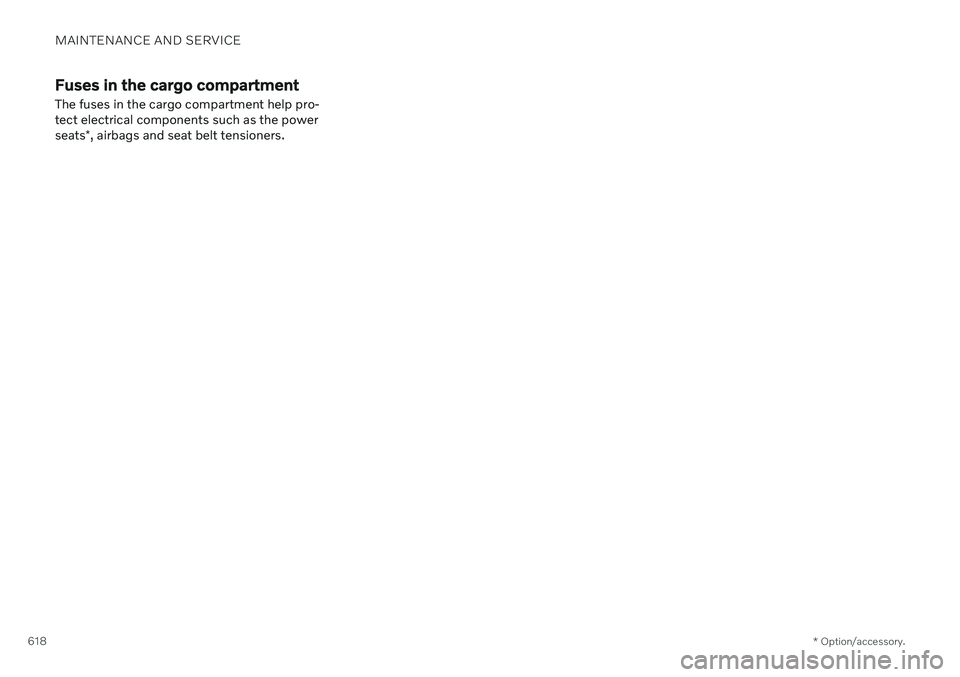

Fuses in the cargo compartment
The fuses in the cargo compartment help pro- tect electrical components such as the power seats *, airbags and seat belt tensioners.
