VOLVO XC60 2017 Owner´s Manual

SPECIFICATIONS
}}
369
DimensionsThis section lists your vehicle's most important dimensions.

||
SPECIFICATIONS
370

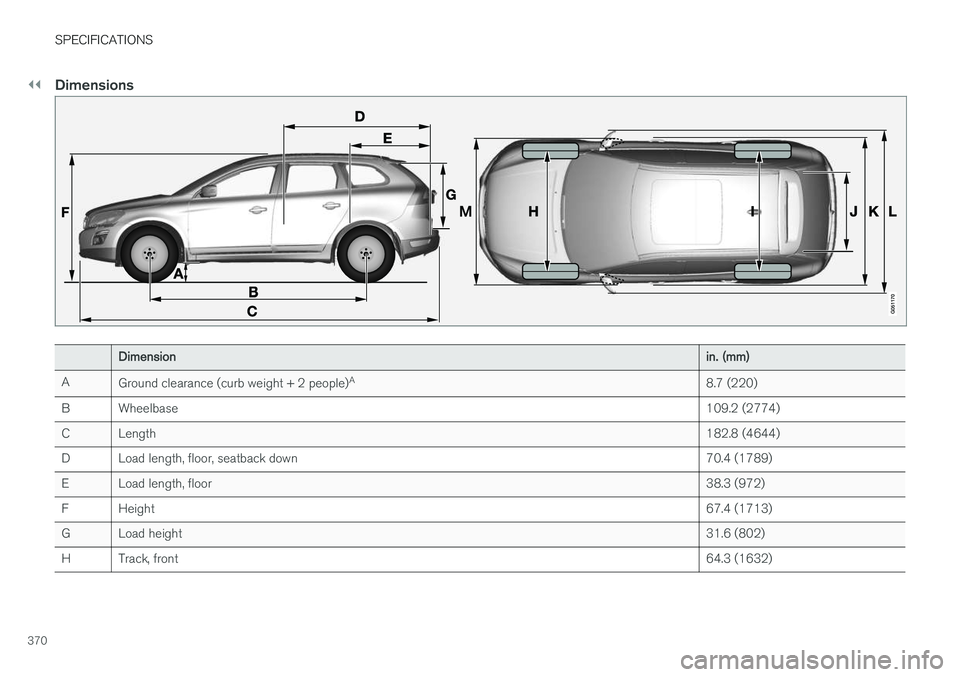

Dimensions
Dimensionin. (mm)
AGround clearance (curb weight + 2 people)A8.7 (220)
BWheelbase109.2 (2774)
CLength182.8 (4644)
DLoad length, floor, seatback down70.4 (1789)
ELoad length, floor38.3 (972)
FHeight67.4 (1713)
GLoad height31.6 (802)
HTrack, front64.3 (1632)

SPECIFICATIONS
371

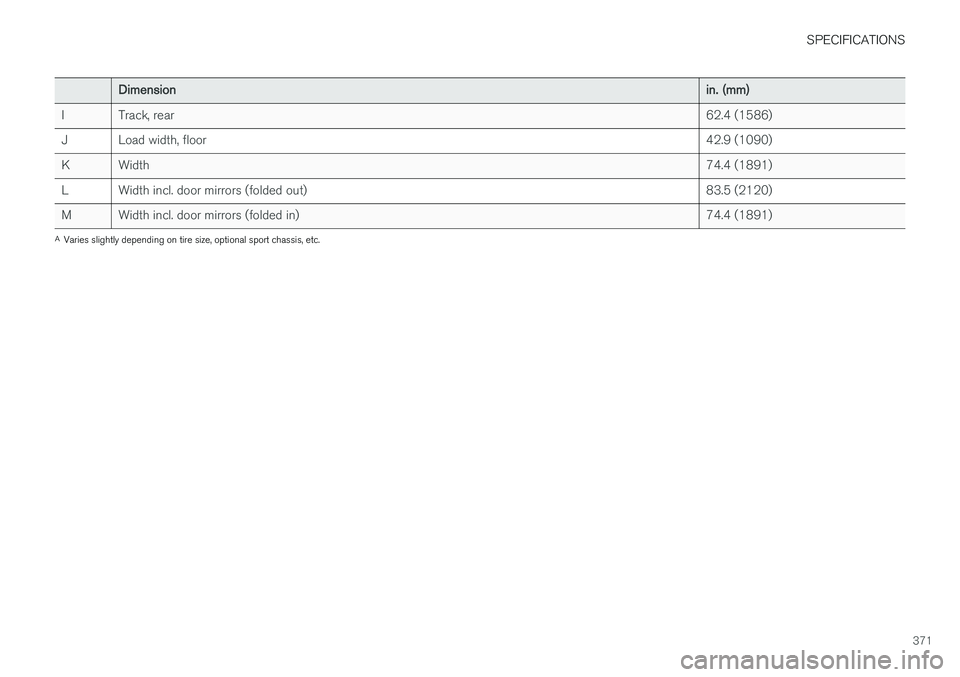

Dimensionin. (mm)
ITrack, rear62.4 (1586)
JLoad width, floor42.9 (1090)
KWidth74.4 (1891)
LWidth incl. door mirrors (folded out)83.5 (2120)
MWidth incl. door mirrors (folded in)74.4 (1891)
AVaries slightly depending on tire size, optional sport chassis, etc.

SPECIFICATIONS
372

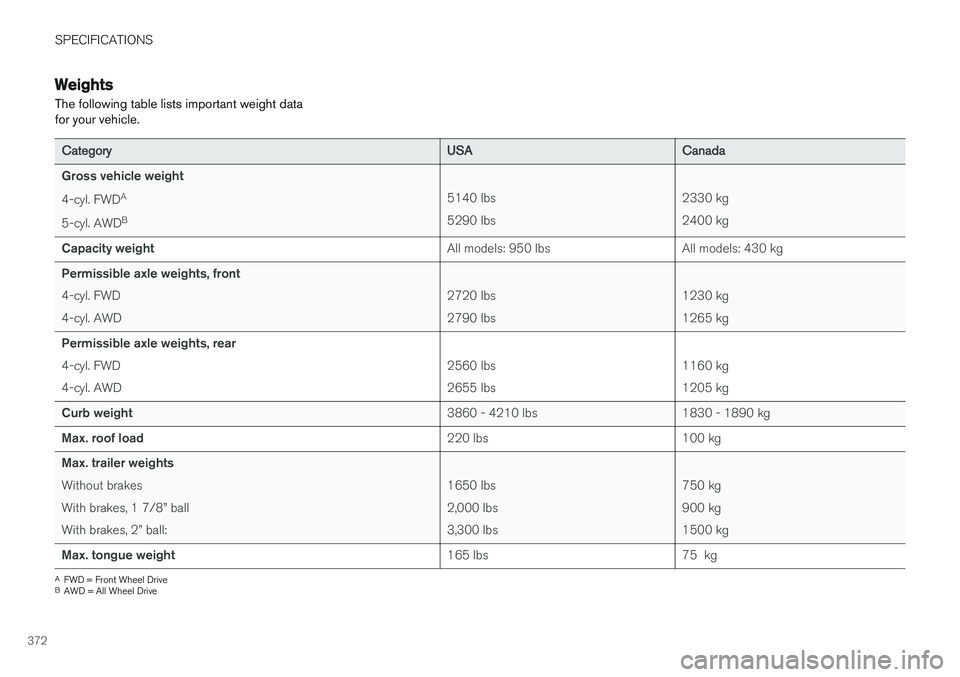

Weights The following table lists important weight data for your vehicle.
CategoryUSACanada
Gross vehicle weight 4-cyl. FWDA
5-cyl. AWD B
5140 lbs 5290 lbs2330 kg 2400 kg
Capacity weightAll models: 950 lbsAll models: 430 kg
Permissible axle weights, front 4-cyl. FWD 4-cyl. AWD
2720 lbs 2790 lbs1230 kg 1265 kg
Permissible axle weights, rear 4-cyl. FWD 4-cyl. AWD
2560 lbs 2655 lbs1160 kg 1205 kg
Curb weight3860 - 4210 lbs1830 - 1890 kg
Max. roof load220 lbs100 kg
Max. trailer weights Without brakes With brakes, 1 7/8” ballWith brakes, 2” ball:
1650 lbs 2,000 lbs3,300 lbs750 kg 900 kg1500 kg
Max. tongue weight165 lbs75 kg
A
FWD = Front Wheel Drive
B AWD = All Wheel Drive

SPECIFICATIONS
373

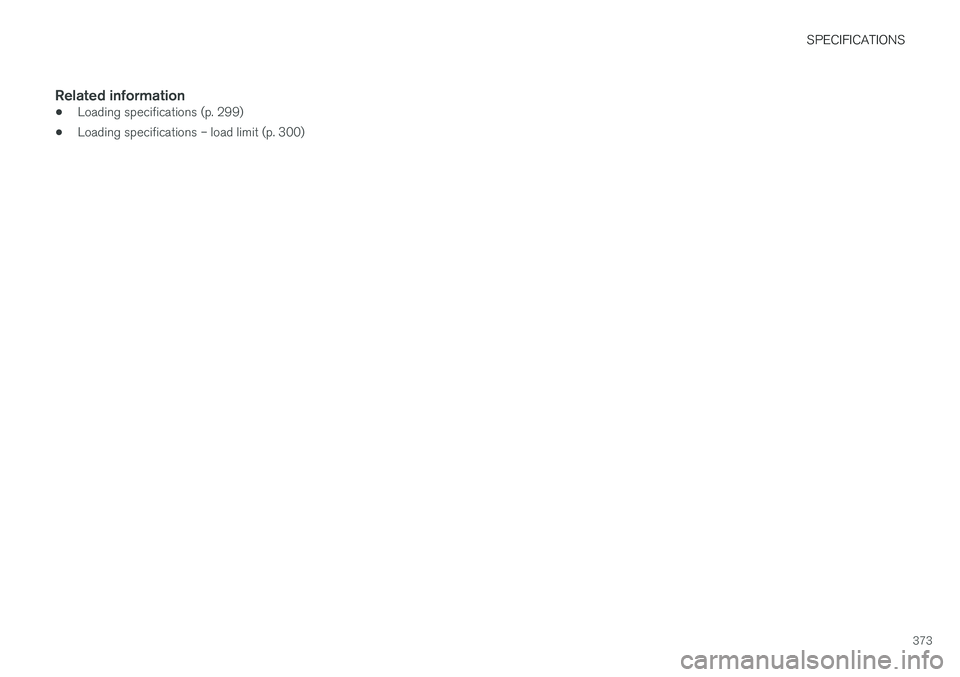

Related information
•Loading specifications (p. 299)
• Loading specifications – load limit (p. 300)

SPECIFICATIONS
374

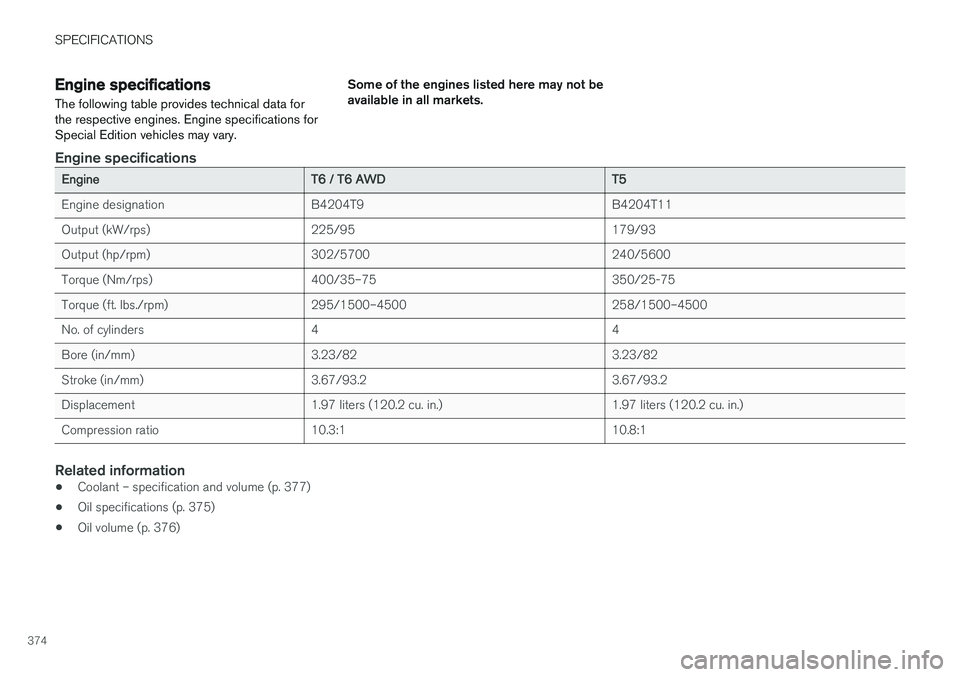

Engine specificationsThe following table provides technical data for the respective engines. Engine specifications forSpecial Edition vehicles may vary. Some of the engines listed here may not beavailable in all markets.
Engine specifications
EngineT6 / T6 AWDT5
Engine designationB4204T9B4204T11
Output (kW/rps)225/95179/93
Output (hp/rpm)302/5700240/5600
Torque (Nm/rps)400/35–75350/25-75
Torque (ft. lbs./rpm)295/1500–4500258/1500–4500
No. of cylinders44
Bore (in/mm)3.23/823.23/82
Stroke (in/mm)3.67/93.23.67/93.2
Displacement1.97 liters (120.2 cu. in.)1.97 liters (120.2 cu. in.)
Compression ratio10.3:110.8:1
Related information
•
Coolant – specification and volume (p. 377)
• Oil specifications (p. 375)
• Oil volume (p. 376)

SPECIFICATIONS
375
Oil specifications
Full synthetic engine oil meeting the minimum
ACEA A5/B5 must be used. Lower quality oils may not offer the same fuel economy, engineperformance, or engine protection.
Volvo recommends:
Refer to the warranty and Service Records infor- mation booklet for information on oil changeintervals and oil type requirements.
NOTE
This vehicle comes from the factory with syn- thetic oil.
Oil additives must not be used.
Oil viscosityIncorrect viscosity oil can shorten engine life under normal use. SAE 5W-30 will provide goodfuel economy and engine protection. See the vis-cosity chart.
Viscosity chart
Extreme engine operation
SAE 0W-30 oil meeting ACEA A5/B5 require- ments is recommended for extreme driving con-ditions.
CAUTION
4-cylinder engines only: Volvo oil VCC
RBS0-2AE/SAE 0W20 is recommended for extreme driving conditions. This oil must never be used in 5- or 6-cylin-
der engines.
Related information
• Oil volume (p. 376)
• Engine compartment – engine oil (p. 329)

SPECIFICATIONS
376

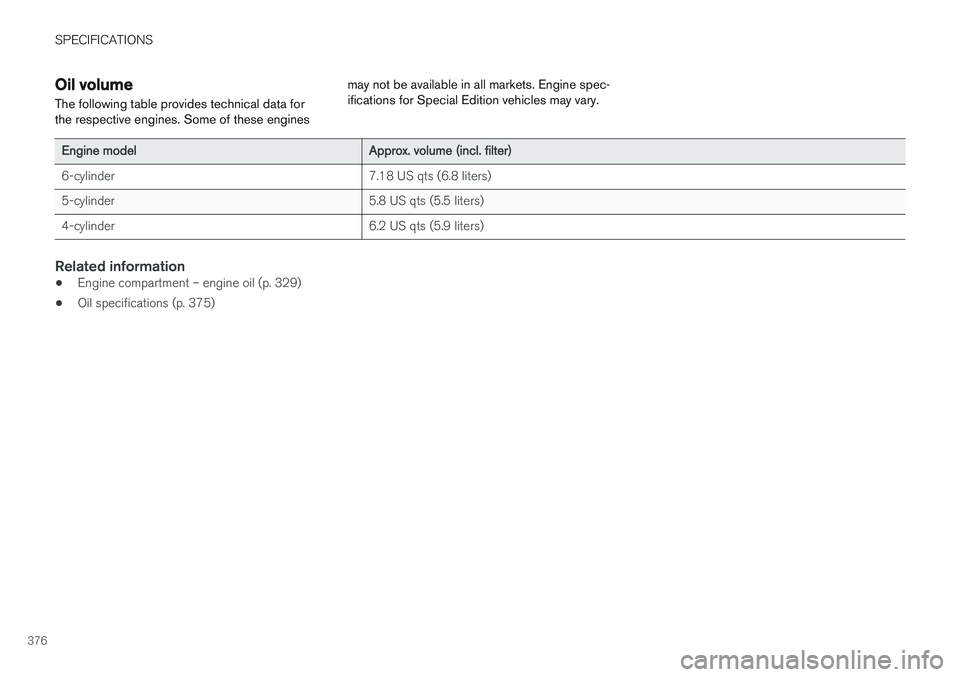

Oil volume
The following table provides technical data for the respective engines. Some of these engines may not be available in all markets. Engine spec-ifications for Special Edition vehicles may vary.
Engine modelApprox. volume (incl. filter)
6-cylinder7.18 US qts (6.8 liters)
5-cylinder5.8 US qts (5.5 liters)
4-cylinder6.2 US qts (5.9 liters)
Related information
•
Engine compartment – engine oil (p. 329)
• Oil specifications (p. 375)

SPECIFICATIONS
377

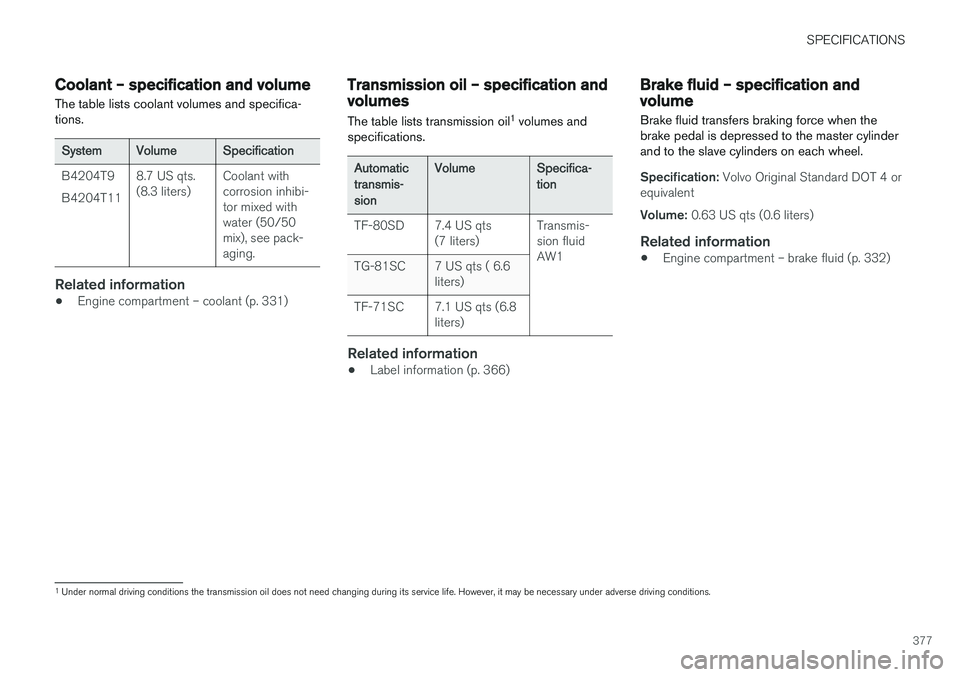

Coolant – specification and volume The table lists coolant volumes and specifica- tions.
SystemVolumeSpecification
B4204T9 B4204T118.7 US qts. (8.3 liters)Coolant with corrosion inhibi-tor mixed withwater (50/50mix), see pack-aging.
Related information
•Engine compartment – coolant (p. 331)
Transmission oil – specification and volumes The table lists transmission oil 1
volumes and
specifications.
Automatic transmis-sionVolumeSpecifica- tion
TF-80SD7.4 US qts (7 liters)Transmis- sion fluidAW1
TG-81SC7 US qts ( 6.6 liters)
TF-71SC7.1 US qts (6.8 liters)
Related information
• Label information (p. 366)
Brake fluid – specification and volume
Brake fluid transfers braking force when the brake pedal is depressed to the master cylinderand to the slave cylinders on each wheel.
Specification: Volvo Original Standard DOT 4 or
equivalent Volume: 0.63 US qts (0.6 liters)
Related information
•Engine compartment – brake fluid (p. 332)
1
Under normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions.

SPECIFICATIONS
378

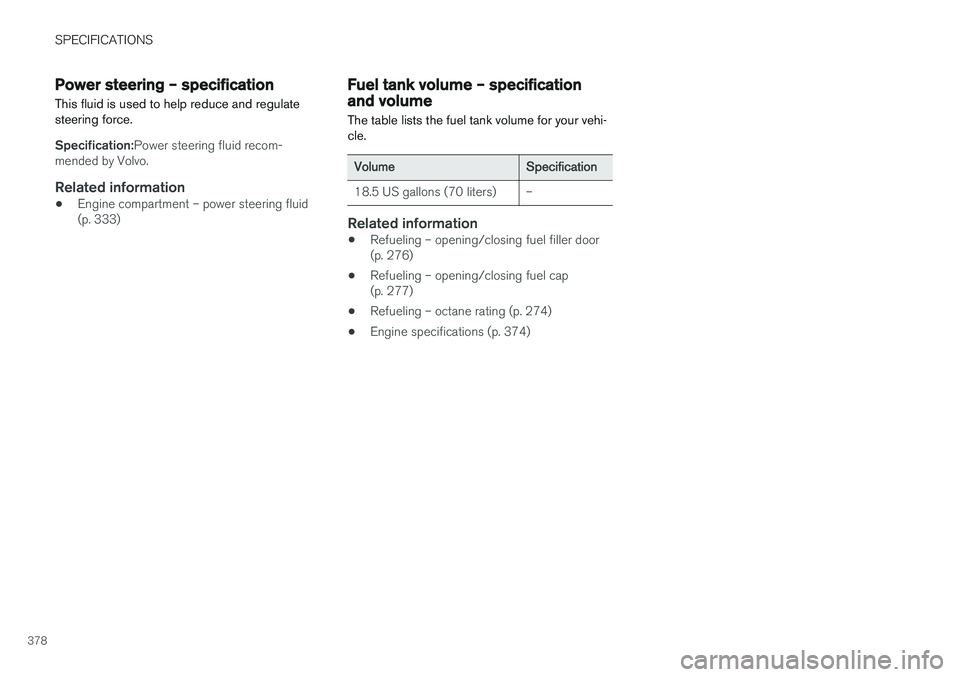

Power steering – specification
This fluid is used to help reduce and regulate steering force.
Specification: Power steering fluid recom-
mended by Volvo.
Related information
• Engine compartment – power steering fluid (p. 333)
Fuel tank volume – specification and volume The table lists the fuel tank volume for your vehi- cle.
VolumeSpecification
18.5 US gallons (70 liters)–
Related information
•Refueling – opening/closing fuel filler door (p. 276)
• Refueling – opening/closing fuel cap(p. 277)
• Refueling – octane rating (p. 274)
• Engine specifications (p. 374)
