VOLVO XC60 2017 Owner´s Manual

SPECIFICATIONS
379

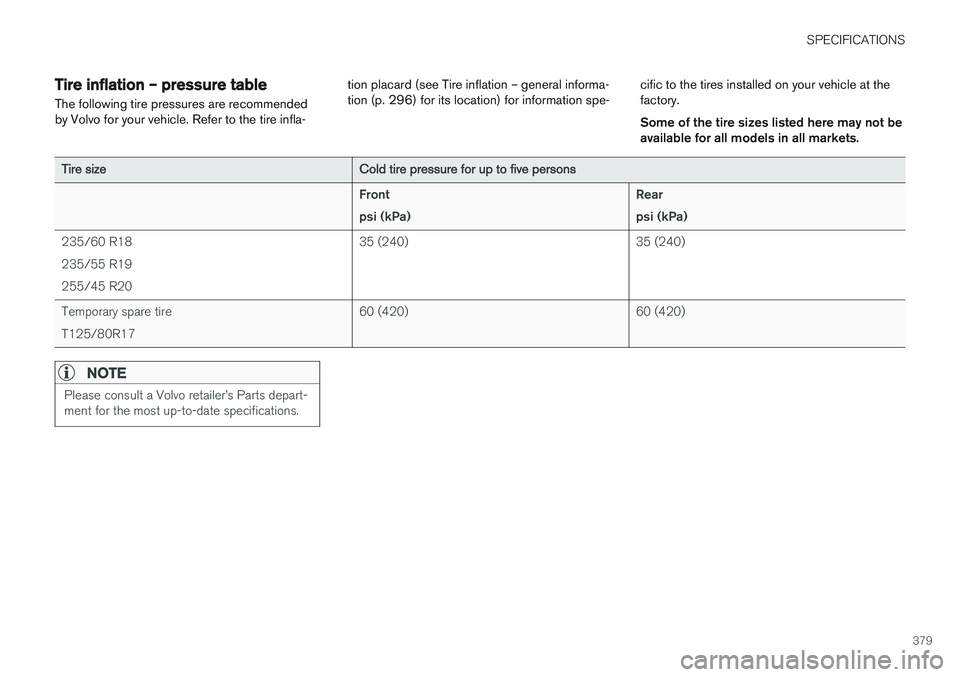

Tire inflation – pressure table
The following tire pressures are recommended by Volvo for your vehicle. Refer to the tire infla- tion placard (see Tire inflation – general informa-tion (p. 296) for its location) for information spe-
cific to the tires installed on your vehicle at thefactory. Some of the tire sizes listed here may not be available for all models in all markets.
Tire sizeCold tire pressure for up to five persons
Front psi (kPa)Rear psi (kPa)
235/60 R18 235/55 R19255/45 R2035 (240)35 (240)
Temporary spare tire T125/80R1760 (420)60 (420)
NOTE
Please consult a Volvo retailer

SPECIFICATIONS
380

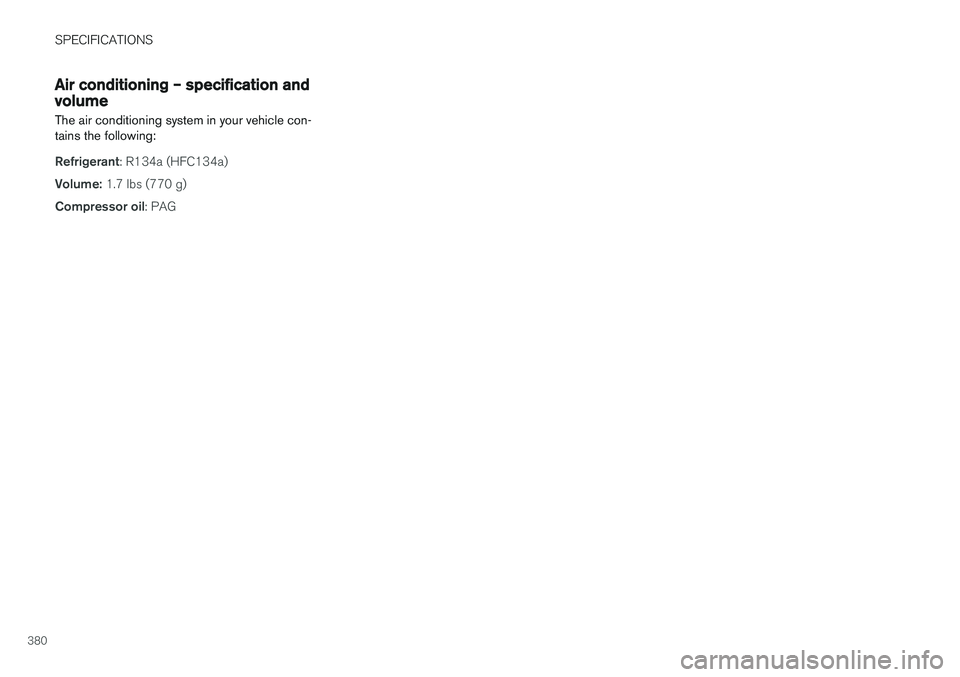

Air conditioning – specification and volume
The air conditioning system in your vehicle con- tains the following:
Refrigerant : R134a (HFC134a)
Volume: 1.7 lbs (770 g)
Compressor oil : PAG

SPECIFICATIONS
* Option/accessory, for more information, see Introduction.381
Battery specifications If the battery is replaced, replace it with a battery of the same cold start capacity as the original(see the decal on the battery).
General information
WARNING
PROPOSITION 65 WARNING! Battery posts, terminals, and related accesso- ries contain lead and lead compounds, chemi-cals known to the state of California to causecancer and reproductive harm. Wash handsafter handling. 12 volt system with a voltage-regulated alterna- tor. Single pole system in which the chassis andengine block are used as conductors. The nega-tive terminal is connected to the chassis.
MotorVoltage (V)Cold start capacity
CCA (Cold Cranking Amperes) (A)
Engines with Start/Stop *12800A
All other engines12520–800
A
AGM (Absorbed Glass Mat) batteries have to be used on models with Start/Stop

SPECIFICATIONS
382

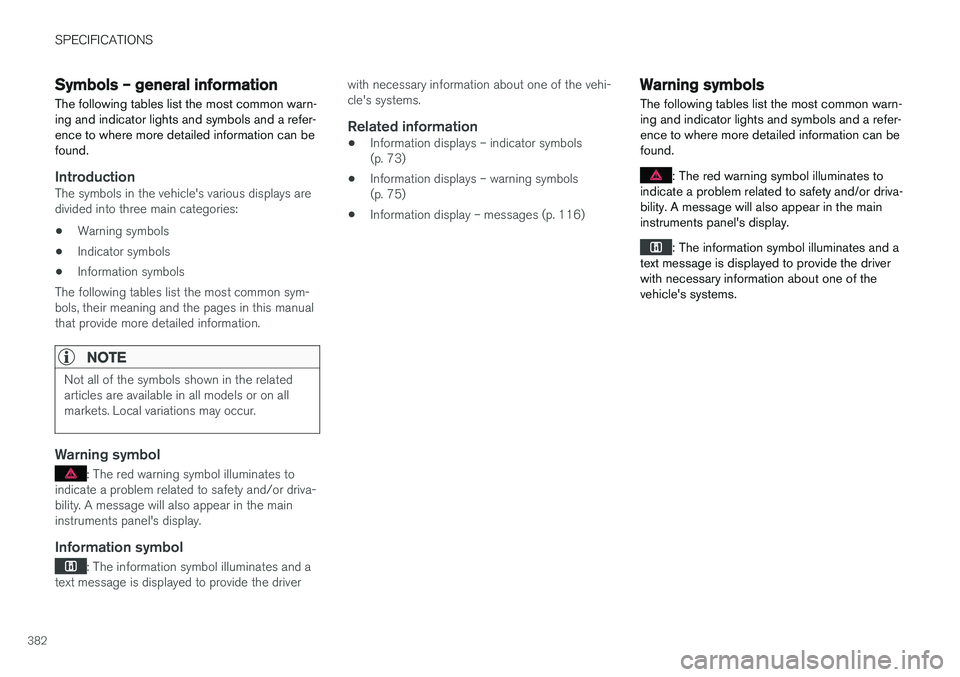

Symbols – general information The following tables list the most common warn- ing and indicator lights and symbols and a refer-ence to where more detailed information can befound.
IntroductionThe symbols in the vehicle's various displays are divided into three main categories: •Warning symbols
• Indicator symbols
• Information symbols
The following tables list the most common sym- bols, their meaning and the pages in this manualthat provide more detailed information.
NOTE
Not all of the symbols shown in the related articles are available in all models or on allmarkets. Local variations may occur.
Warning symbol
: The red warning symbol illuminates to
indicate a problem related to safety and/or driva- bility. A message will also appear in the maininstruments panel's display.
Information symbol
: The information symbol illuminates and a
text message is displayed to provide the driver with necessary information about one of the vehi- cle's systems.
Related information
•
Information displays – indicator symbols(p. 73)
• Information displays – warning symbols(p. 75)
• Information display – messages (p. 116)
Warning symbols
The following tables list the most common warn- ing and indicator lights and symbols and a refer-ence to where more detailed information can befound.
: The red warning symbol illuminates to
indicate a problem related to safety and/or driva- bility. A message will also appear in the maininstruments panel's display.
: The information symbol illuminates and a
text message is displayed to provide the driver with necessary information about one of thevehicle's systems.

SPECIFICATIONS
* Option/accessory, for more information, see Introduction.383

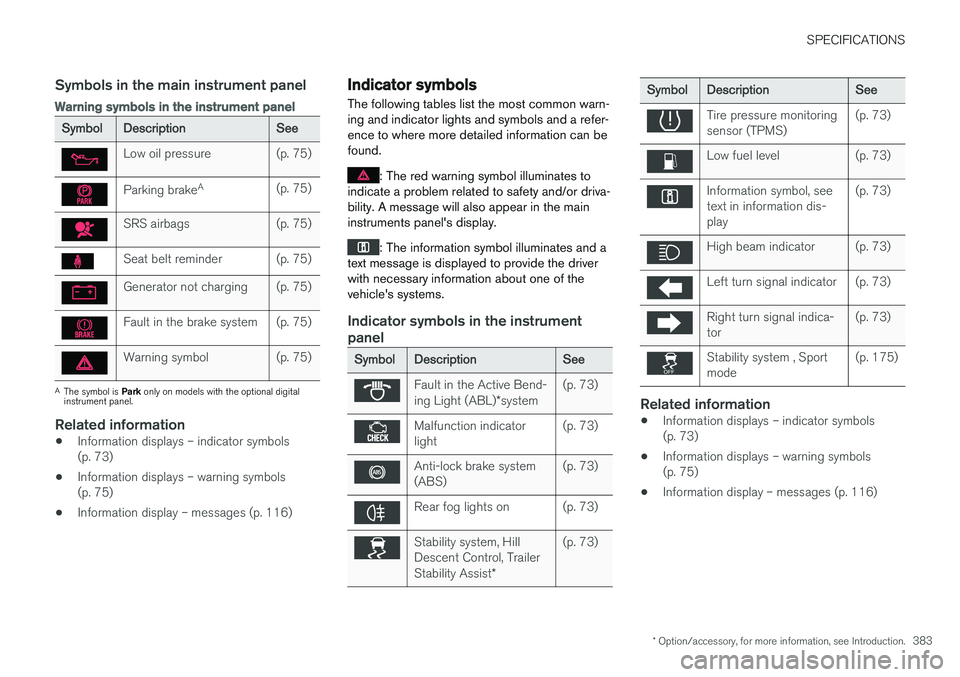

Symbols in the main instrument panel
Warning symbols in the instrument panel
SymbolDescriptionSee
Low oil pressure(p. 75)
Parking brakeA(p. 75)
SRS airbags(p. 75)
Seat belt reminder(p. 75)
Generator not charging(p. 75)
Fault in the brake system(p. 75)
Warning symbol(p. 75)
A
The symbol is Park only on models with the optional digital
instrument panel.
Related information
• Information displays – indicator symbols (p. 73)
• Information displays – warning symbols(p. 75)
• Information display – messages (p. 116)
Indicator symbols
The following tables list the most common warn- ing and indicator lights and symbols and a refer-ence to where more detailed information can befound.
: The red warning symbol illuminates to
indicate a problem related to safety and/or driva- bility. A message will also appear in the maininstruments panel's display.
: The information symbol illuminates and a
text message is displayed to provide the driver with necessary information about one of thevehicle's systems.
Indicator symbols in the instrument panel
SymbolDescriptionSee
Fault in the Active Bend- ing Light (ABL) *system(p. 73)
Malfunction indicator light(p. 73)
Anti-lock brake system (ABS)(p. 73)
Rear fog lights on(p. 73)
Stability system, Hill Descent Control, Trailer Stability Assist *(p. 73)
SymbolDescriptionSee
Tire pressure monitoring sensor (TPMS)(p. 73)
Low fuel level(p. 73)
Information symbol, see text in information dis-play(p. 73)
High beam indicator(p. 73)
Left turn signal indicator(p. 73)
Right turn signal indica- tor(p. 73)
Stability system , Sport mode(p. 175)
Related information
•Information displays – indicator symbols (p. 73)
• Information displays – warning symbols(p. 75)
• Information display – messages (p. 116)

SPECIFICATIONS
* Option/accessory, for more information, see Introduction.
384

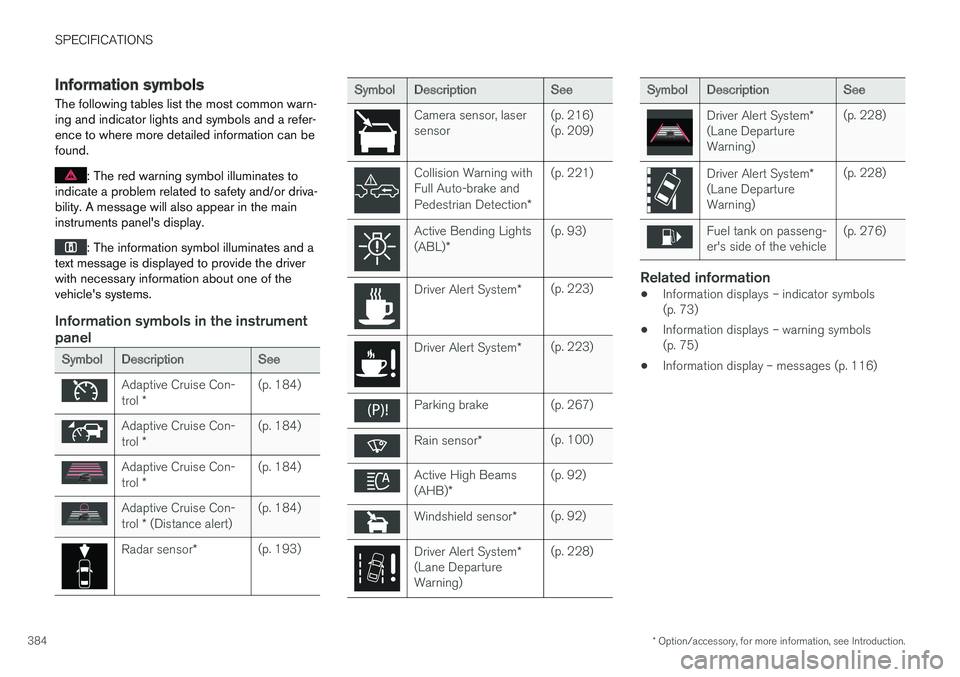

Information symbols
The following tables list the most common warn- ing and indicator lights and symbols and a refer-ence to where more detailed information can befound.
: The red warning symbol illuminates to
indicate a problem related to safety and/or driva- bility. A message will also appear in the maininstruments panel's display.
: The information symbol illuminates and a
text message is displayed to provide the driver with necessary information about one of thevehicle's systems.
Information symbols in the instrument panel
SymbolDescriptionSee
Adaptive Cruise Con- trol *(p. 184)
Adaptive Cruise Con- trol *(p. 184)
Adaptive Cruise Con- trol *(p. 184)
Adaptive Cruise Con- trol * (Distance alert)(p. 184)
Radar sensor *(p. 193)
SymbolDescriptionSee
Camera sensor, laser sensor(p. 216) (p. 209)
Collision Warning with Full Auto-brake and Pedestrian Detection *(p. 221)
Active Bending Lights (ABL)*(p. 93)
Driver Alert System *(p. 223)
Driver Alert System*(p. 223)
Parking brake(p. 267)
Rain sensor*(p. 100)
Active High Beams (AHB)*(p. 92)
Windshield sensor *(p. 92)
Driver Alert System *
(Lane Departure Warning)(p. 228)
SymbolDescriptionSee
Driver Alert System *
(Lane Departure Warning)(p. 228)
Driver Alert System *
(Lane Departure Warning)(p. 228)
Fuel tank on passeng- er's side of the vehicle(p. 276)
Related information
• Information displays – indicator symbols (p. 73)
• Information displays – warning symbols(p. 75)
• Information display – messages (p. 116)

SPECIFICATIONS
* Option/accessory, for more information, see Introduction.385

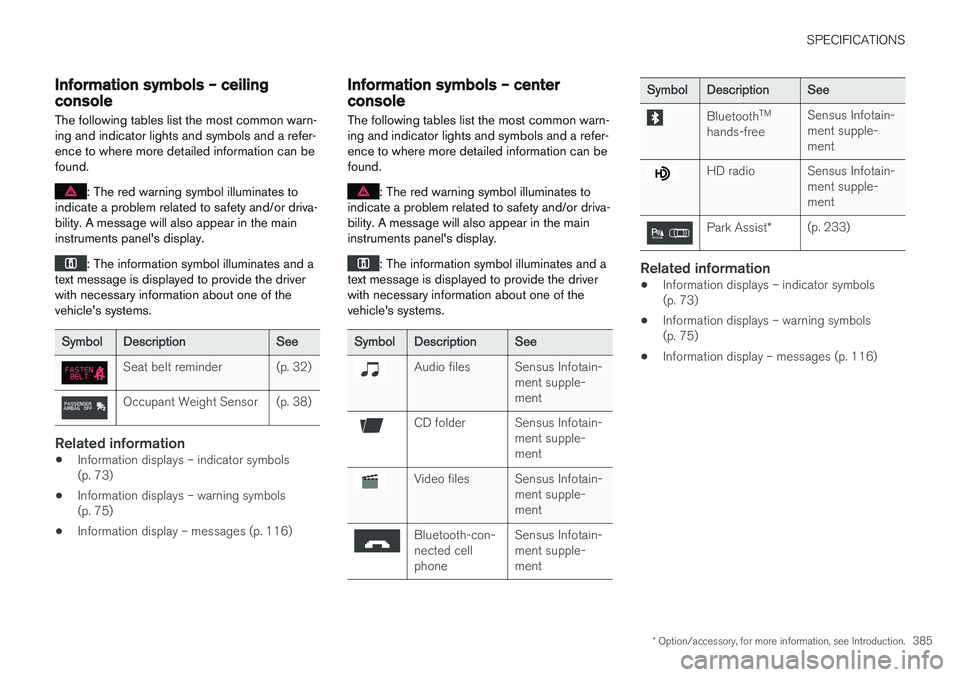

Information symbols – ceiling console
The following tables list the most common warn- ing and indicator lights and symbols and a refer-ence to where more detailed information can befound.
: The red warning symbol illuminates to
indicate a problem related to safety and/or driva- bility. A message will also appear in the maininstruments panel's display.
: The information symbol illuminates and a
text message is displayed to provide the driver with necessary information about one of thevehicle's systems.
SymbolDescriptionSee
Seat belt reminder(p. 32)
Occupant Weight Sensor(p. 38)
Related information
• Information displays – indicator symbols (p. 73)
• Information displays – warning symbols(p. 75)
• Information display – messages (p. 116)
Information symbols – center console
The following tables list the most common warn- ing and indicator lights and symbols and a refer-ence to where more detailed information can befound.
: The red warning symbol illuminates to
indicate a problem related to safety and/or driva- bility. A message will also appear in the maininstruments panel's display.
: The information symbol illuminates and a
text message is displayed to provide the driver with necessary information about one of thevehicle's systems.
SymbolDescriptionSee
Audio filesSensus Infotain- ment supple-ment
CD folderSensus Infotain- ment supple-ment
Video filesSensus Infotain- ment supple-ment
Bluetooth-con- nected cellphoneSensus Infotain- ment supple-ment
SymbolDescriptionSee
Bluetooth TM
hands-freeSensus Infotain- ment supple-ment
HD radioSensus Infotain- ment supple-ment
Park Assist *(p. 233)
Related information
•Information displays – indicator symbols (p. 73)
• Information displays – warning symbols(p. 75)
• Information display – messages (p. 116)

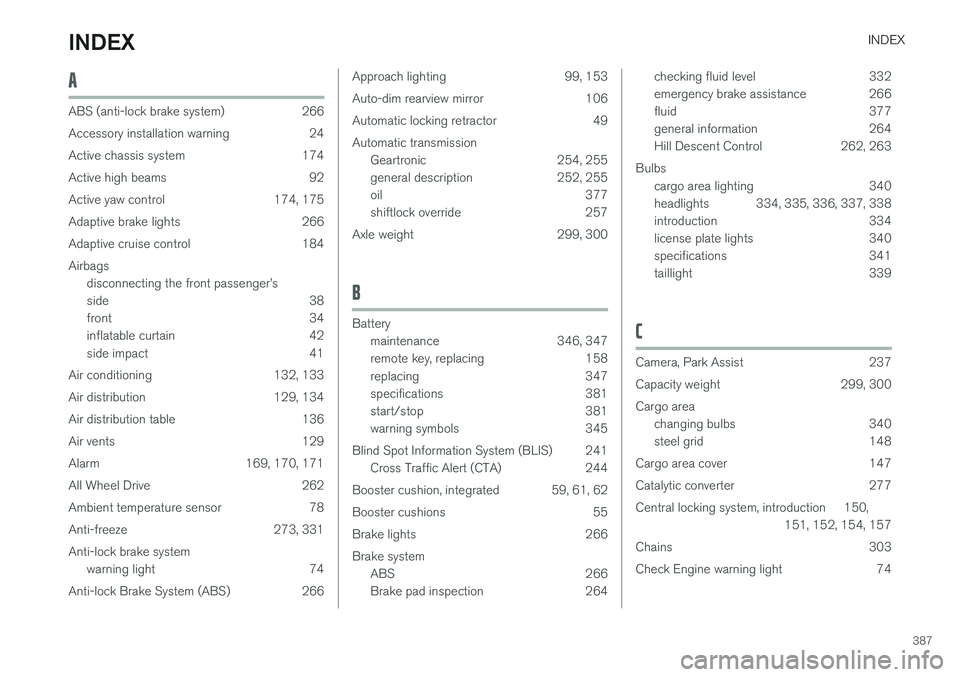

INDEX
387
A
ABS (anti-lock brake system) 266
Accessory installation warning 24
Active chassis system 174
Active high beams 92
Active yaw control 174, 175
Adaptive brake lights 266
Adaptive cruise control 184Airbagsdisconnecting the front passenger

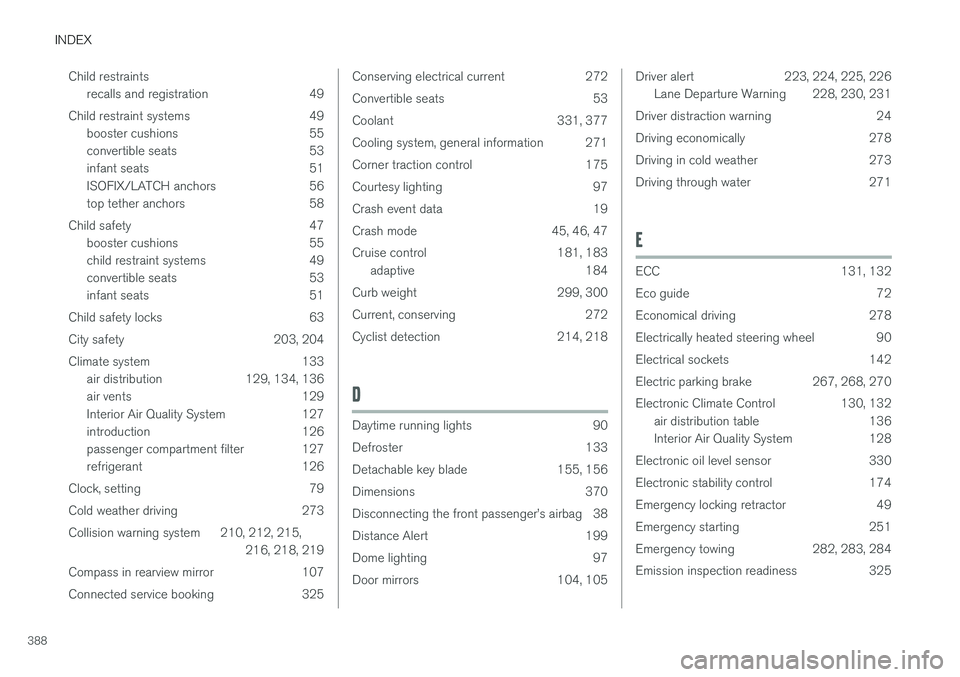

INDEX
388Child restraints
recalls and registration 49
Child restraint systems 49 booster cushions 55
convertible seats 53
infant seats 51
ISOFIX/LATCH anchors 56
top tether anchors 58
Child safety 47 booster cushions 55
child restraint systems 49
convertible seats 53
infant seats 51
Child safety locks 63
City safety 203, 204
Climate system 133 air distribution 129, 134, 136
air vents 129
Interior Air Quality System 127
introduction 126
passenger compartment filter 127
refrigerant 126
Clock, setting 79
Cold weather driving 273
Collision warning system 210, 212, 215, 216, 218, 219
Compass in rearview mirror 107
Connected service booking 325
Conserving electrical current 272
Convertible seats 53
Coolant 331, 377
Cooling system, general information 271
Corner traction control 175
Courtesy lighting 97
Crash event data 19
Crash mode 45, 46, 47
Cruise control 181, 183 adaptive 184
Curb weight 299, 300
Current, conserving 272
Cyclist detection 214, 218
D
Daytime running lights 90
Defroster 133
Detachable key blade 155, 156
Dimensions 370
Disconnecting the front passenger
