VOLVO XC60 T8 2018 Owner´s Manual

SPECIFICATIONS
649

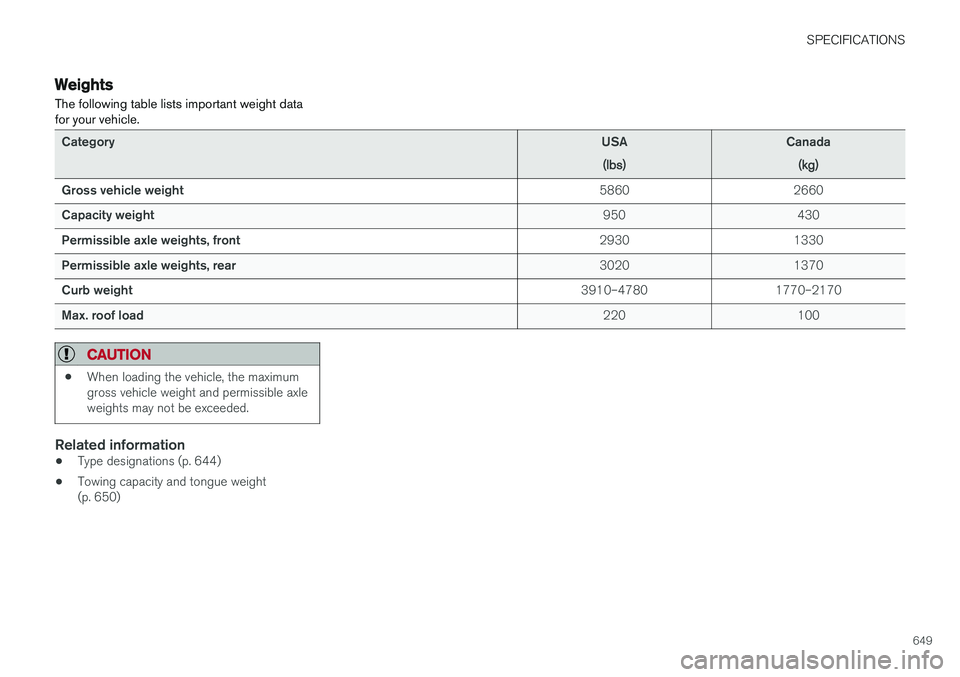

Weights The following table lists important weight data for your vehicle.
CategoryUSA
(lbs)Canada(kg)
Gross vehicle weight 5860 2660
Capacity weight 950 430
Permissible axle weights, front 2930 1330
Permissible axle weights, rear 3020 1370
Curb weight 3910–4780 1770–2170
Max. roof load 220 100
CAUTION
•When loading the vehicle, the maximum gross vehicle weight and permissible axleweights may not be exceeded.
Related information
• Type designations (p. 644)
• Towing capacity and tongue weight (p. 650)

SPECIFICATIONS
* Option/accessory.
650

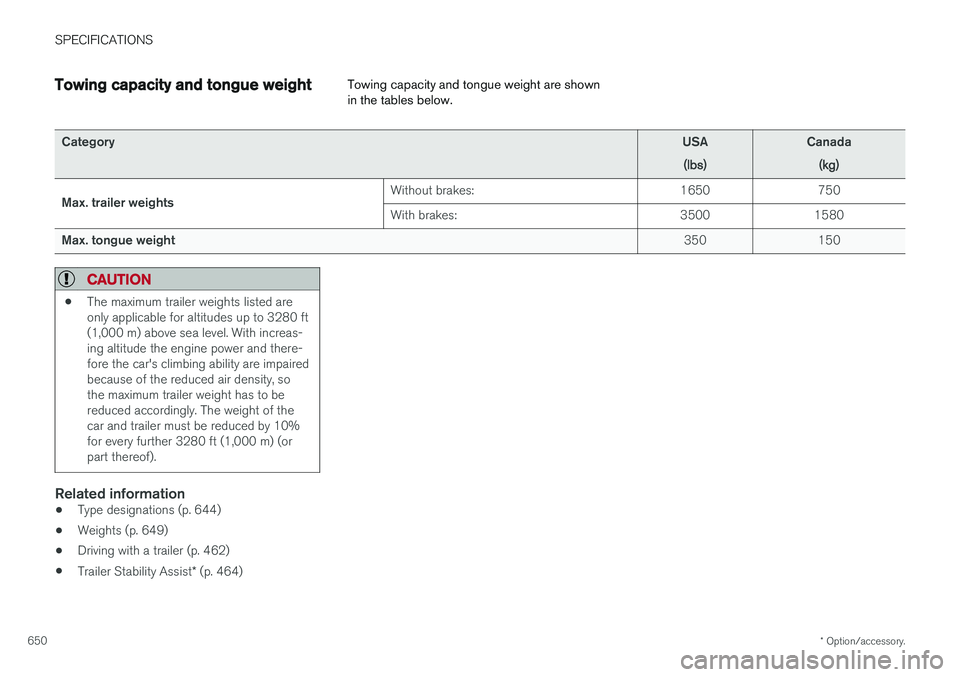

Towing capacity and tongue weight Towing capacity and tongue weight are shown in the tables below.
Category
USA
(lbs)Canada(kg)
Max. trailer weights Without brakes: 1650 750 With brakes:
3500 1580
Max. tongue weight 350 150
CAUTION
•The maximum trailer weights listed are only applicable for altitudes up to 3280 ft(1,000 m) above sea level. With increas-ing altitude the engine power and there-fore the car's climbing ability are impairedbecause of the reduced air density, sothe maximum trailer weight has to bereduced accordingly. The weight of thecar and trailer must be reduced by 10%for every further 3280 ft (1,000 m) (orpart thereof).
Related information
•
Type designations (p. 644)
• Weights (p. 649)
• Driving with a trailer (p. 462)
• Trailer Stability Assist
* (p. 464)

SPECIFICATIONS
651

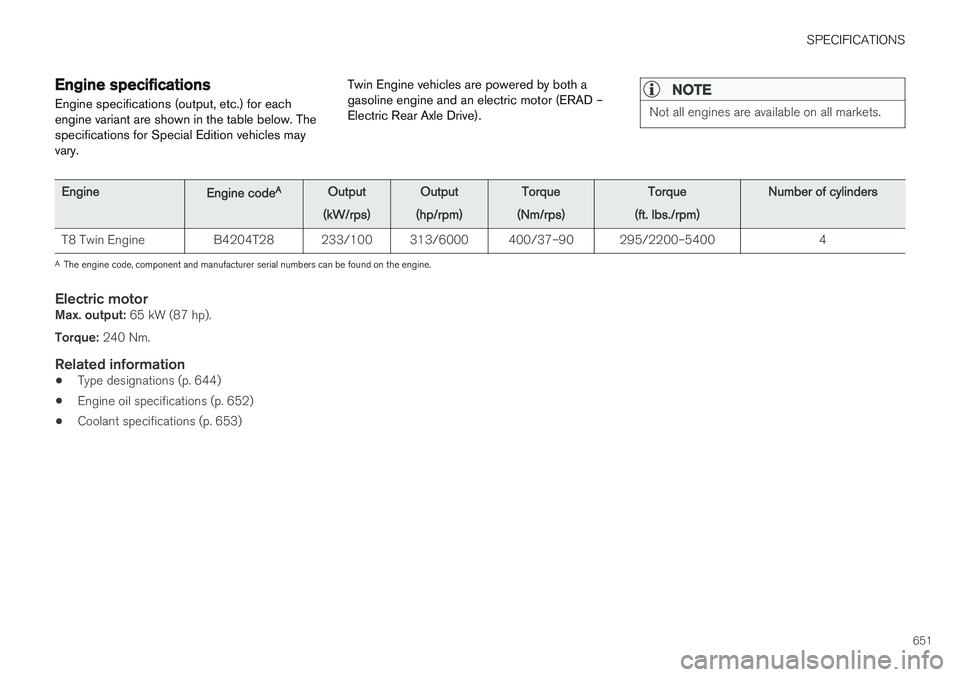

Engine specificationsEngine specifications (output, etc.) for each engine variant are shown in the table below. Thespecifications for Special Edition vehicles mayvary. Twin Engine vehicles are powered by both agasoline engine and an electric motor (ERAD –Electric Rear Axle Drive).NOTE
Not all engines are available on all markets.
EngineEngine codeAOutput
(kW/rps)
Output
(hp/rpm)
Torque
(Nm/rps)
Torque
(ft. lbs./rpm)
Number of cylinders
T8 Twin Engine B4204T28 233/100 313/6000 400/37–90 295/2200–5400 4
A The engine code, component and manufacturer serial numbers can be found on the engine.
Electric motorMax. output: 65 kW (87 hp).
Torque: 240 Nm.
Related information
•Type designations (p. 644)
• Engine oil specifications (p. 652)
• Coolant specifications (p. 653)

SPECIFICATIONS
652

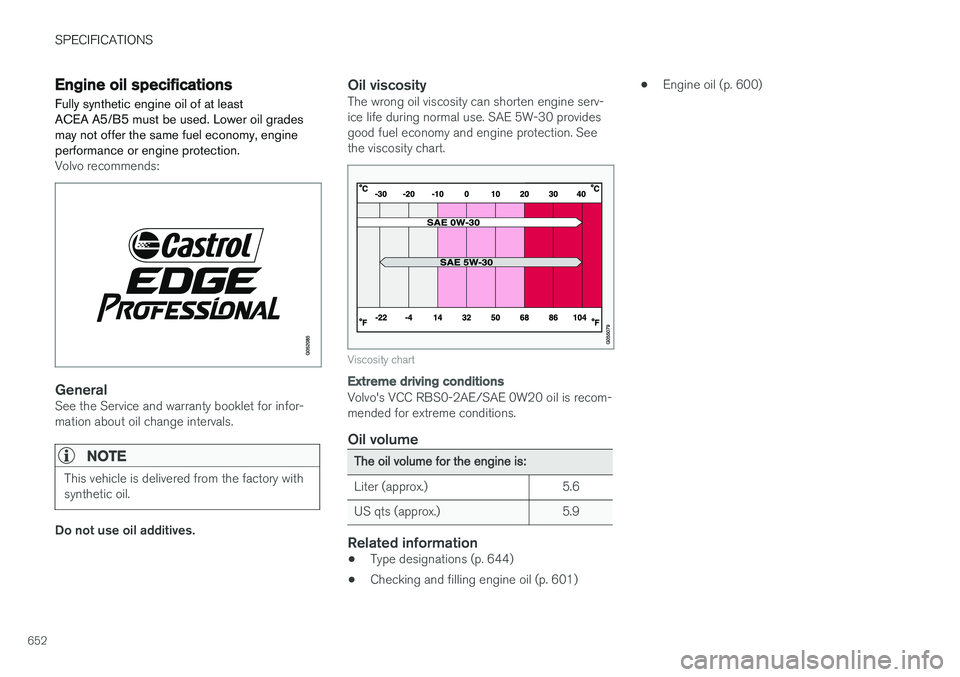

Engine oil specificationsFully synthetic engine oil of at least ACEA A5/B5 must be used. Lower oil gradesmay not offer the same fuel economy, engineperformance or engine protection.
Volvo recommends:
GeneralSee the Service and warranty booklet for infor- mation about oil change intervals.
NOTE
This vehicle is delivered from the factory with synthetic oil.
Do not use oil additives.
Oil viscosityThe wrong oil viscosity can shorten engine serv- ice life during normal use. SAE 5W-30 providesgood fuel economy and engine protection. Seethe viscosity chart.
Viscosity chart
Extreme driving conditions
Volvo's VCC RBS0-2AE/SAE 0W20 oil is recom- mended for extreme conditions.
Oil volume
The oil volume for the engine is:
Liter (approx.) 5.6
US qts (approx.) 5.9
Related information
• Type designations (p. 644)
• Checking and filling engine oil (p. 601) •
Engine oil (p. 600)

SPECIFICATIONS
653

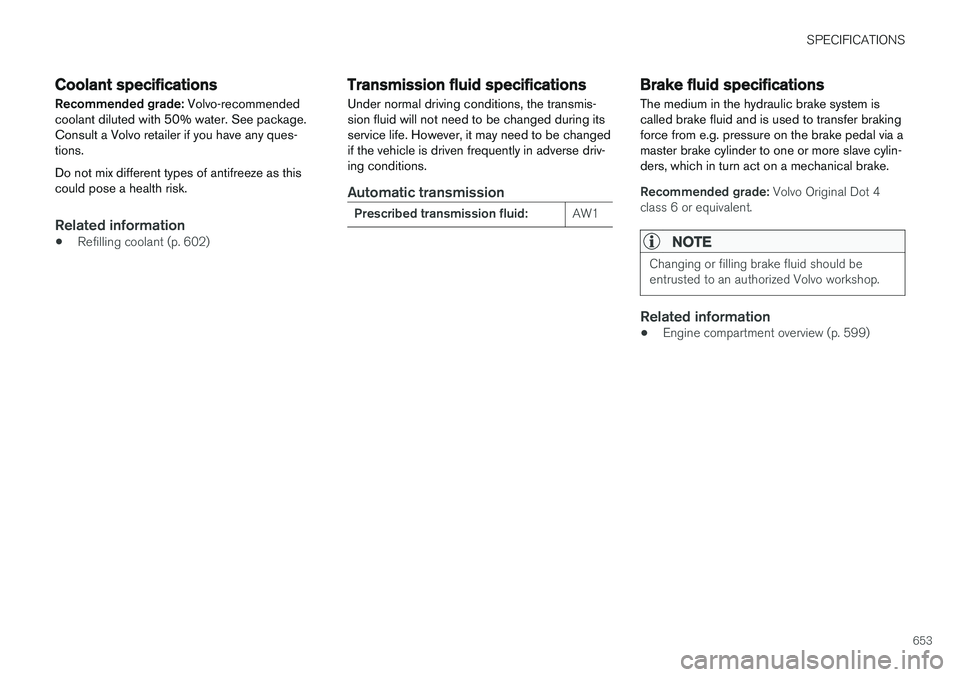

Coolant specifications
Recommended grade: Volvo-recommended
coolant diluted with 50% water. See package. Consult a Volvo retailer if you have any ques-tions. Do not mix different types of antifreeze as this could pose a health risk.
Related information
• Refilling coolant (p. 602)
Transmission fluid specifications
Under normal driving conditions, the transmis- sion fluid will not need to be changed during itsservice life. However, it may need to be changedif the vehicle is driven frequently in adverse driv-ing conditions.
Automatic transmission
Prescribed transmission fluid: AW1
Brake fluid specifications The medium in the hydraulic brake system is called brake fluid and is used to transfer brakingforce from e.g. pressure on the brake pedal via amaster brake cylinder to one or more slave cylin-ders, which in turn act on a mechanical brake.
Recommended grade:
Volvo Original Dot 4
class 6 or equivalent.
NOTE
Changing or filling brake fluid should be entrusted to an authorized Volvo workshop.
Related information
• Engine compartment overview (p. 599)

SPECIFICATIONS
654

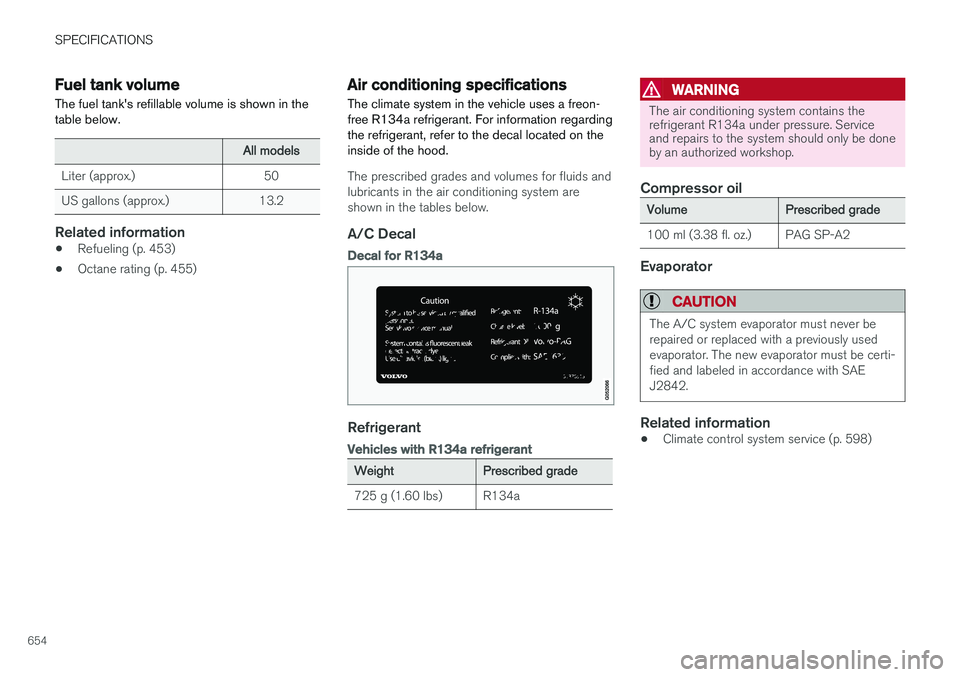

Fuel tank volumeThe fuel tank's refillable volume is shown in the table below.
All models
Liter (approx.) 50
US gallons (approx.) 13.2
Related information
• Refueling (p. 453)
• Octane rating (p. 455)
Air conditioning specifications
The climate system in the vehicle uses a freon- free R134a refrigerant. For information regardingthe refrigerant, refer to the decal located on theinside of the hood.
The prescribed grades and volumes for fluids and lubricants in the air conditioning system areshown in the tables below.
A/C Decal
Decal for R134a
Refrigerant
Vehicles with R134a refrigerant
WeightPrescribed grade
725 g (1.60 lbs) R134a
WARNING
The air conditioning system contains the refrigerant R134a under pressure. Serviceand repairs to the system should only be doneby an authorized workshop.
Compressor oil
VolumePrescribed grade
100 ml (3.38 fl. oz.) PAG SP-A2
Evaporator
CAUTION
The A/C system evaporator must never be repaired or replaced with a previously usedevaporator. The new evaporator must be certi-fied and labeled in accordance with SAEJ2842.
Related information
• Climate control system service (p. 598)

SPECIFICATIONS
655

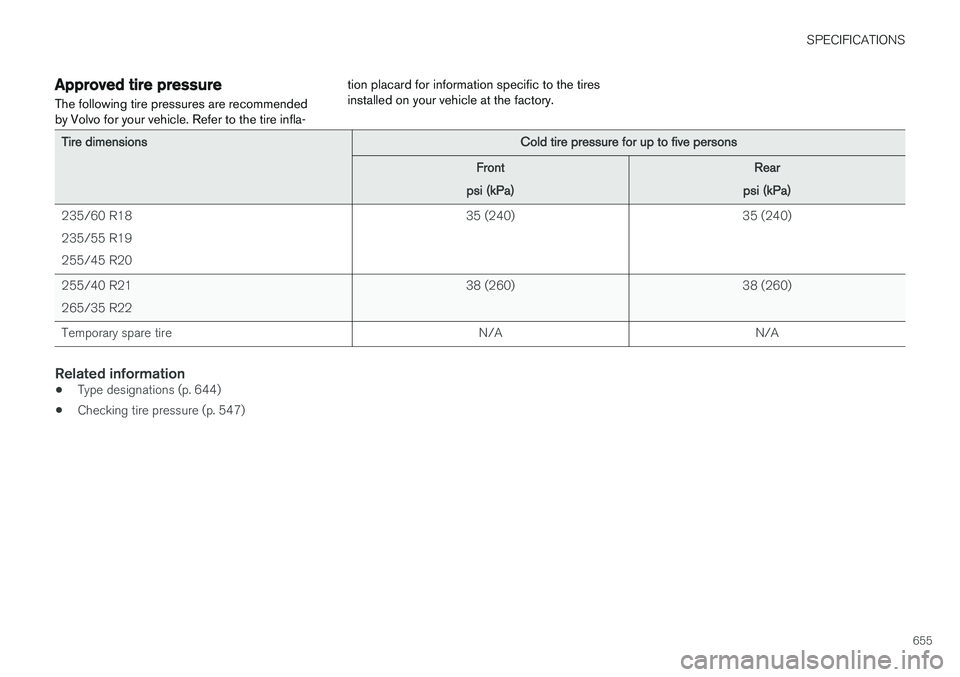

Approved tire pressureThe following tire pressures are recommended by Volvo for your vehicle. Refer to the tire infla- tion placard for information specific to the tiresinstalled on your vehicle at the factory.
Tire dimensionsCold tire pressure for up to five persons
Front
psi (kPa)
Rear
psi (kPa)
235/60 R18 235/55 R19255/45 R20 35 (240)
35 (240)
255/40 R21265/35 R22 38 (260)
38 (260)
Temporary spare tire N/AN/A
Related information
•Type designations (p. 644)
• Checking tire pressure (p. 547)
