engine VOLVO XC60 TWIN ENGINE 2019 Owners Manual

STARTING AND DRIVING
}}
451

Available drive modes
WARNING
Keep in mind that the vehicle does not emitany engine noise when using the electricmotor and may therefore be difficult to detectfor children, pedestrians, cyclists or animals.This is particularly true at low speeds, e.g. inparking lots.

WARNING
Do not leave the vehicle in an unventilatedarea with a drive mode activated and the com-bustion engine switched off. The engine willstart automatically if the charge level in thehybrid battery is low and the resulting exhaustgases can be very harmful to people and ani-mals.

HYBRID
This is the default mode in which the electricmotor and combustion engine work together.
The vehicle starts in Hybrid mode. The controlsystem uses both the electric motor and the gas-oline engine - separately or in tandem - and cal-culates optimal utilization with regard to perform-ance, fuel consumption and comfort. At highspeeds, ground clearance is automatically low-
ered3 to reduce air resistance. Driving capacity onthe electric motor alone is determined by factors
such as the hybrid battery's charge level, theneed for heat/cooling in the passenger compart-ment, etc.
If there is sufficient charge in the battery, it ispossible to drive solely on electric power. Whenthe accelerator pedal is pressed, only the electricmotor will be activated until the battery reaches acertain charge level. Above this level, the currentin the battery cannot supply the power requestedby the accelerator pedal and the combustionengine will start.
When the hybrid battery's charge level is low, thecombustion engine will start more frequently tosave the remaining current in the battery. Chargethe hybrid battery from a 120-240 volt outletusing a charging cable, or activate Charge inFunction view to reset the option of only usingthe electric motor.
This drive mode is designed for low energy con-sumption with an optimized mix between theelectric motor and gasoline engine, without com-promising on climate comfort or driving experi-ence. When faster acceleration is requested bythe driver, the electric driveline will be utilized tohelp provide maximum additional power. Thevehicle also monitors the driving conditions andautomatically engages all-wheel drive if neces-sary. All-wheel drive and extra electric power arealways available regardless of the battery'scharging status.
Information in the instrument panel
When driving in Hybrid mode, a hybrid gauge willbe displayed in the instrument panel. The gaugewill indicate the amount of electrical currentrequired when the driver depresses the accelera-tor pedal. The marker between the lightning andthe drop shows how much current is available.
The instrument panel gauge when both the electricmotor and the combustion engine are being used.
The instrument panel also shows howmuch current is being restored to thebattery (regenerated) during light brak-ing.
3For vehicles with pneumatic suspension.

||
STARTING AND DRIVING
452

PURE
Uses the electric motor only, with the lowestpossible energy consumption and carbondioxide emissions.
This drive mode maximizes the use of the hybrid
battery. Ground clearance is lowered3 to reduceair resistance and certain climate system func-tions are reduced to provide the longest possibledriving distance using only electricity.
Pure mode is available when the hybrid battery issufficiently charged. Even in Pure mode, the com-bustion engine will start if the charge level in thebattery gets too low. The combustion engine willalso start
if the vehicle's speed goes above 125 km/h(78 mph)
if the driver requests more power than theelectric motor can provide
if factors such as cold weather affect thesystem or components.
This drive mode is optimized for maximum drivingdistance with electric propulsion and is primarilyintended for use in city driving. Pure helps pro-vide the lowest possible consumption even whenthe hybrid battery is fully discharged. ECO climateis activated to control the climate in the passen-ger compartment, and in slippery road conditionsslightly more wheel spin may be permitted beforeall-wheel drive is automatically activated.
ECO Climate
In Pure mode, ECO climate is automatically acti-vated in the passenger compartment to helpreduce energy consumption.

NOTE
When the Pure drive mode is activated, set-tings for certain climate system and electricityconsuming functions are reduced. Some ofthese settings can be reset manually, but fullfunctionality will only be restored by leavingPure mode or adapting the Individual drivemode to full climate system functionality.
If condensation forms on the windows, tap themax defroster button, which will function normally.

OFF ROAD
Maximizes the vehicle's ability to traverse dif-ficult terrain or poor roads.
In this mode, ground clearance3 is high, steeringis light, and all-wheel drive and Hill DescentControl are activated.
This drive mode is only available at low speeds,up to 40 km/h (25 mph). If this speed is excee-ded, Off road mode will be cancelled and AWDmode will be activated instead.
All-wheel drive requires both the combustion andelectric motor to be in continuous operation,which results in higher fuel consumption.
In Off road mode, a compass will be displayedbetween the speedometer and the tachometer inthe instrument panel. The permissible speedrange will be shown in the speedometer.
3For vehicles with pneumatic suspension.

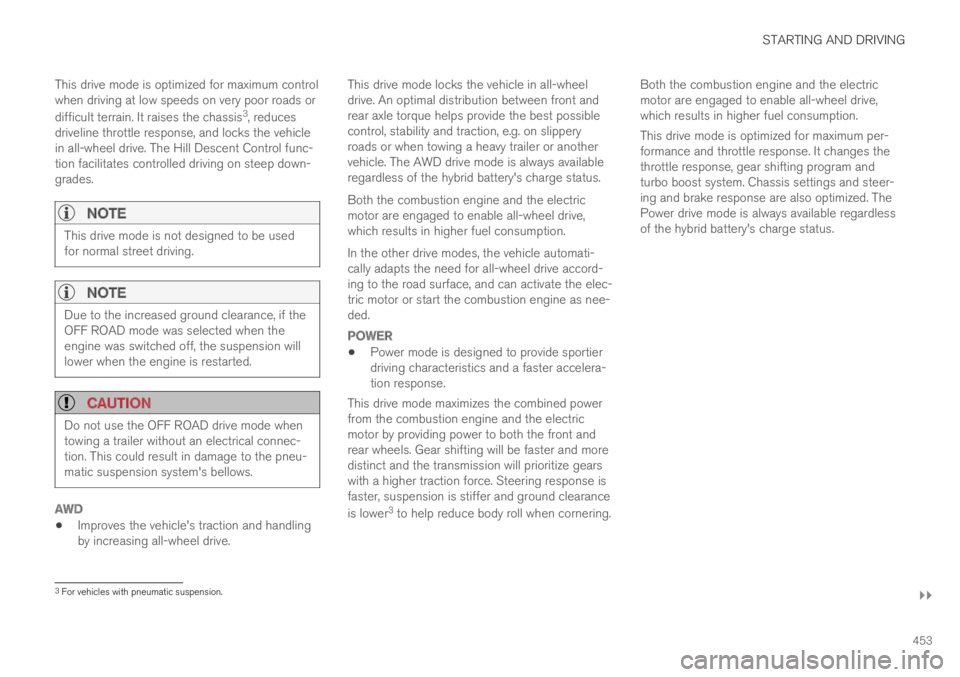

STARTING AND DRIVING
}}
453
This drive mode is optimized for maximum controlwhen driving at low speeds on very poor roads or
difficult terrain. It raises the chassis3, reducesdriveline throttle response, and locks the vehiclein all-wheel drive. The Hill Descent Control func-tion facilitates controlled driving on steep down-grades.

NOTE
This drive mode is not designed to be usedfor normal street driving.

NOTE
Due to the increased ground clearance, if theOFF ROAD mode was selected when theengine was switched off, the suspension willlower when the engine is restarted.

CAUTION
Do not use the OFF ROAD drive mode whentowing a trailer without an electrical connec-tion. This could result in damage to the pneu-matic suspension system's bellows.

AWD
Improves the vehicle's traction and handlingby increasing all-wheel drive.
This drive mode locks the vehicle in all-wheeldrive. An optimal distribution between front andrear axle torque helps provide the best possiblecontrol, stability and traction, e.g. on slipperyroads or when towing a heavy trailer or anothervehicle. The AWD drive mode is always availableregardless of the hybrid battery's charge status.
Both the combustion engine and the electricmotor are engaged to enable all-wheel drive,which results in higher fuel consumption.
In the other drive modes, the vehicle automati-cally adapts the need for all-wheel drive accord-ing to the road surface, and can activate the elec-tric motor or start the combustion engine as nee-ded.
POWER
Power mode is designed to provide sportierdriving characteristics and a faster accelera-tion response.
This drive mode maximizes the combined powerfrom the combustion engine and the electricmotor by providing power to both the front andrear wheels. Gear shifting will be faster and moredistinct and the transmission will prioritize gearswith a higher traction force. Steering response isfaster, suspension is stiffer and ground clearance
is lower3 to help reduce body roll when cornering.
Both the combustion engine and the electricmotor are engaged to enable all-wheel drive,which results in higher fuel consumption.
This drive mode is optimized for maximum per-formance and throttle response. It changes thethrottle response, gear shifting program andturbo boost system. Chassis settings and steer-ing and brake response are also optimized. ThePower drive mode is always available regardlessof the hybrid battery's charge status.
3For vehicles with pneumatic suspension.

||

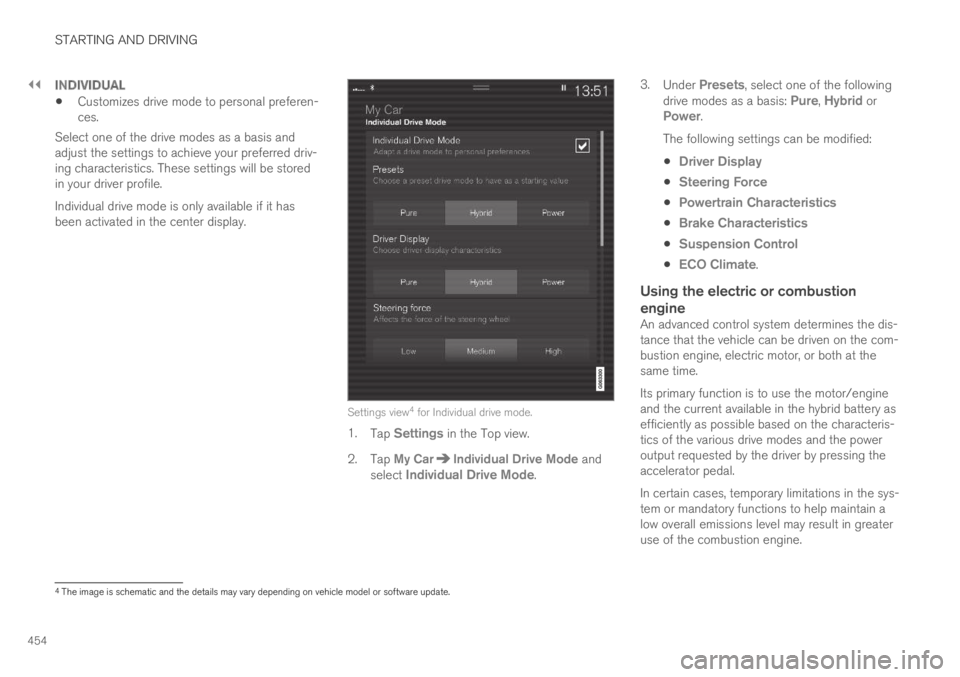

STARTING AND DRIVING
454

INDIVIDUAL
Customizes drive mode to personal preferen-ces.
Select one of the drive modes as a basis andadjust the settings to achieve your preferred driv-ing characteristics. These settings will be storedin your driver profile.
Individual drive mode is only available if it hasbeen activated in the center display.
Settings view4 for Individual drive mode.
1.Tap Settings in the Top view.
2.Tap My CarIndividual Drive Mode andselect Individual Drive Mode.
3.Under Presets, select one of the followingdrive modes as a basis: Pure, Hybrid orPower.
The following settings can be modified:
Driver Display
Steering Force
Powertrain Characteristics
Brake Characteristics
Suspension Control
ECO Climate.

Using the electric or combustion
engine
An advanced control system determines the dis-tance that the vehicle can be driven on the com-bustion engine, electric motor, or both at thesame time.
Its primary function is to use the motor/engineand the current available in the hybrid battery asefficiently as possible based on the characteris-tics of the various drive modes and the poweroutput requested by the driver by pressing theaccelerator pedal.
In certain cases, temporary limitations in the sys-tem or mandatory functions to help maintain alow overall emissions level may result in greateruse of the combustion engine.
4The image is schematic and the details may vary depending on vehicle model or software update.

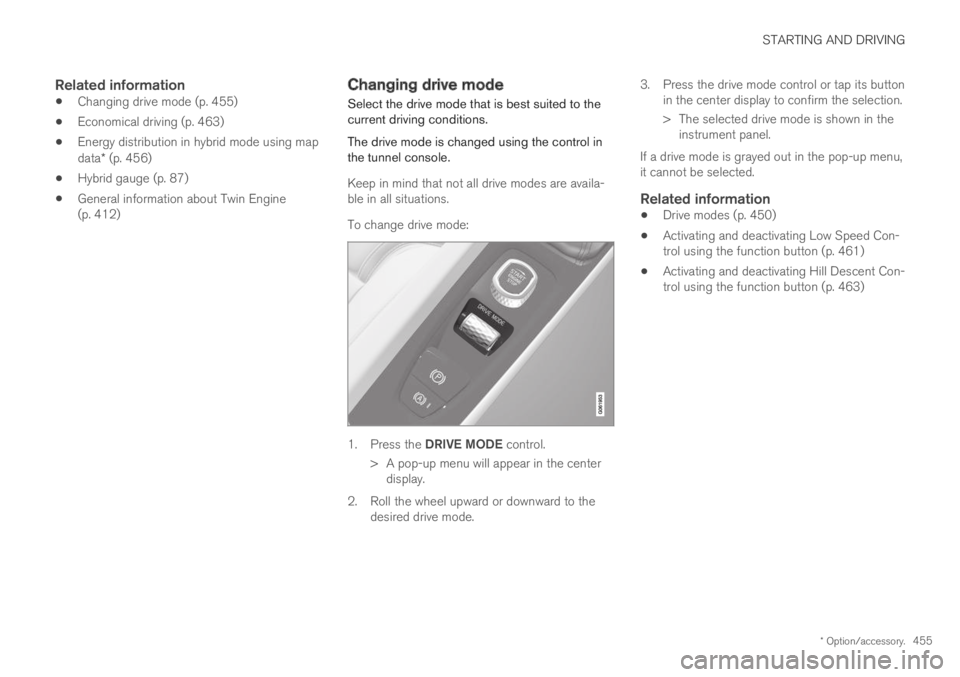

STARTING AND DRIVING
* Option/accessory.455

Related information
Changing drive mode (p. 455)
Economical driving (p. 463)
Energy distribution in hybrid mode using mapdata* (p. 456)
Hybrid gauge (p. 87)
General information about Twin Engine(p. 412)
Changing drive mode
Select the drive mode that is best suited to thecurrent driving conditions.
The drive mode is changed using the control inthe tunnel console.
Keep in mind that not all drive modes are availa-ble in all situations.
To change drive mode:
1.Press the DRIVE MODE control.
>A pop-up menu will appear in the centerdisplay.
2. Roll the wheel upward or downward to thedesired drive mode.
3. Press the drive mode control or tap its buttonin the center display to confirm the selection.
> The selected drive mode is shown in theinstrument panel.
If a drive mode is grayed out in the pop-up menu,it cannot be selected.

Related information
Drive modes (p. 450)
Activating and deactivating Low Speed Con-trol using the function button (p. 461)
Activating and deactivating Hill Descent Con-trol using the function button (p. 463)

STARTING AND DRIVING
* Option/accessory.456
Energy distribution in hybrid mode
using map data*
The Hybrid drive mode is the vehicle's defaultdrive mode in which the electric motor and thecombustion engine work separately or togetherin hybrid mode. If a destination has beenselected in the navigation system*, the Predictive
Efficiency5 function can use map data to effec-tively distribute the electric power throughout thetrip.
This can lower fuel consumption in comparisonwith normal hybrid mode, in which the vehicle firstruns on electricity and then switches to the com-bustion engine when the hybrid battery is dis-charged.
If the distance to the destination is greater thanthe calculated range on the electric motor, thefunction will distribute electric power optimally forthe entire trip. This makes it possible to avoid sit-uations in which normal hybrid mode would oth-erwise use a large portion of the electric powerto e.g. use the electric motor at high speeds on ahighway and then use the combustion engine atlower speeds during city driving.
The greatest fuel savings are attained when thetrip begins on a highway, is between 50 and 100km (30 and 60 miles) long, and the hybrid batteryis fully charged at the start of the trip.

Requirements for the function
Certain conditions must be met for the functionto be possible:
A destination must be set in the navigationsystem and the distance to the destinationmust be longer than the possible rangeusing only the electric motor.
Hybrid drive mode must be selected.
The Hold and Charge functions must bedisabled.
The hybrid battery must be charged.

Usage tips
If you commute and it is not possible to chargethe vehicle at work, enter your workplace as awaypoint and your home as the destination. Dis-charging of the hybrid battery will then be distrib-uted over the entire commute to and from work.
Add similar commutes, i.e. the route between twocharges, as Favorites in the navigation system tofacilitate access.

Related information
Drive modes (p. 450)
Economical driving (p. 463)
5Certain markets only.

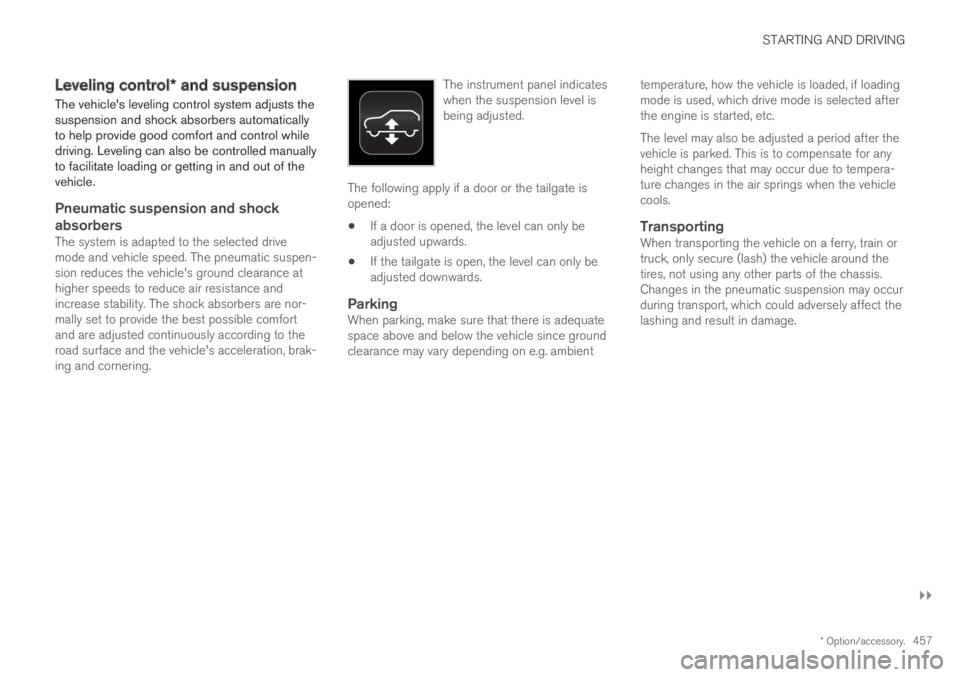

STARTING AND DRIVING
}}
* Option/accessory.457
Leveling control* and suspension
The vehicle's leveling control system adjusts thesuspension and shock absorbers automaticallyto help provide good comfort and control whiledriving. Leveling can also be controlled manuallyto facilitate loading or getting in and out of thevehicle.

Pneumatic suspension and shock
absorbers
The system is adapted to the selected drivemode and vehicle speed. The pneumatic suspen-sion reduces the vehicle's ground clearance athigher speeds to reduce air resistance andincrease stability. The shock absorbers are nor-mally set to provide the best possible comfortand are adjusted continuously according to theroad surface and the vehicle's acceleration, brak-ing and cornering.
The instrument panel indicateswhen the suspension level isbeing adjusted.
The following apply if a door or the tailgate isopened:
If a door is opened, the level can only beadjusted upwards.
If the tailgate is open, the level can only beadjusted downwards.

Parking
When parking, make sure that there is adequatespace above and below the vehicle since groundclearance may vary depending on e.g. ambient
temperature, how the vehicle is loaded, if loadingmode is used, which drive mode is selected afterthe engine is started, etc.
The level may also be adjusted a period after thevehicle is parked. This is to compensate for anyheight changes that may occur due to tempera-ture changes in the air springs when the vehiclecools.
Transporting
When transporting the vehicle on a ferry, train ortruck, only secure (lash) the vehicle around thetires, not using any other parts of the chassis.Changes in the pneumatic suspension may occurduring transport, which could adversely affect thelashing and result in damage.

STARTING AND DRIVING
* Option/accessory.460
Leveling control settings*
Turn off leveling control before lifting the vehiclewith a jack to help avoid problems with thepneumatic suspension.
The vehicle can be lowered or raised to make iteasier to load or for passengers to get in andout.

Adjusting loading mode
Use the buttons in the cargo compartment toraise or lower the rear section of the vehicle tofacilitate loading or unloading the vehicle or con-necting or disconnecting a trailer.

Center display settings
Easy Entry and Exit Suspension Control
The vehicle can be lowered to make it easier toget in and out.
Activating easy entry in the center display:
1.Tap Settings in the Top view.
2.Tap My CarMirrors and Convenience.
3.Select Easy Entry and Exit SuspensionControl.
>When the vehicle is parked and theengine is turned off, the level is lowered.(Level adjustment will stop if a side dooris opened and will resume after a slightdelay when the door has been closed.)When the engine is started and the vehi-cle begins to move, the level will be raisedto the height set by the selected drivemode.
Disable Leveling Control
In certain situations, this function must be turnedoff, e.g. before the vehicle is raised using a jack*.The level difference caused by raising the vehiclewith a jack could cause problems with the pneu-matic suspension.
Turning off the function in the center display:
1.Tap Settings in the Top view.
2.Tap My CarParking Brake andSuspension.
3.Select Disable Leveling Control.

Related information
Leveling control* and suspension (p. 457)
Loading recommendations (p. 595)
Low Speed Control
The low-speed function, Low Speed Control(LSC), facilitates and improves control and trac-tion on rough roads and slippery surfaces, e.g.when towing a trailer on grass or up boat ramps.
The function is included in the Off Road drivemode.
Low Speed Control is designed for driving onrough roads and when towing trailers at lowspeeds, up to approximately 40 km/h (25 mph).
When driving at low speeds, LSC prioritizes lowgears and all-wheel drive to help avoid wheel spinand improve traction on all wheels. The accelera-tor pedal will be less responsive to improve trac-tion and speed control at low speeds.
The function is activated together with HillDescent Control (HDC), which makes it possibleto control speed going down steep hills using theaccelerator pedal and reduces the need to usethe brake pedal. The system makes it possible tomaintain a low and uniform speed when drivingdown steep hills.

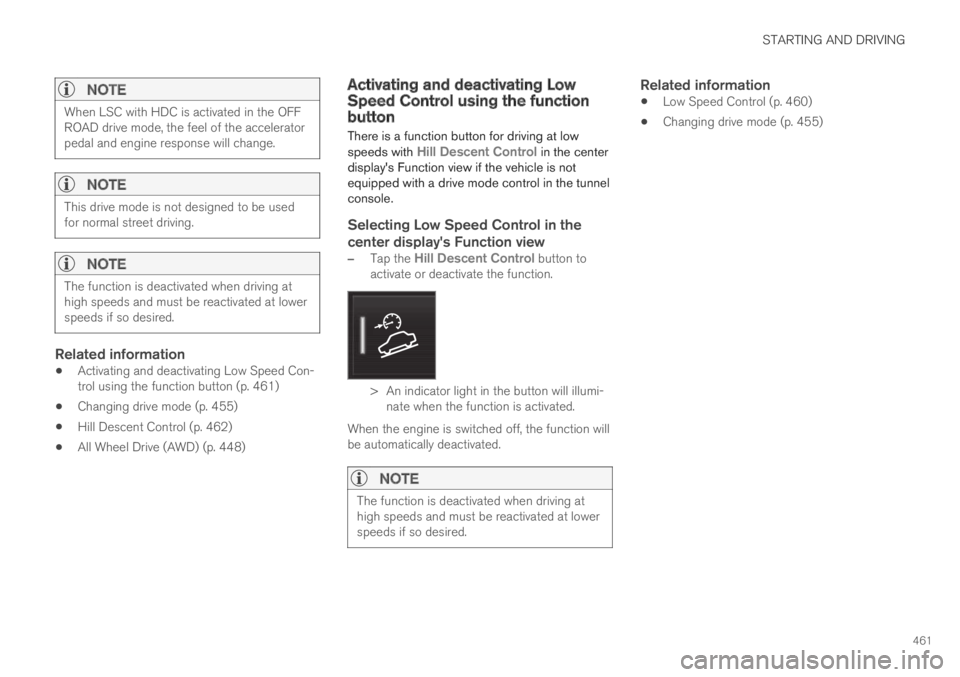

STARTING AND DRIVING
461

NOTE
When LSC with HDC is activated in the OFFROAD drive mode, the feel of the acceleratorpedal and engine response will change.

NOTE
This drive mode is not designed to be usedfor normal street driving.

NOTE
The function is deactivated when driving athigh speeds and must be reactivated at lowerspeeds if so desired.

Related information
Activating and deactivating Low Speed Con-trol using the function button (p. 461)
Changing drive mode (p. 455)
Hill Descent Control (p. 462)
All Wheel Drive (AWD) (p. 448)
Activating and deactivating LowSpeed Control using the functionbutton
There is a function button for driving at lowspeeds with Hill Descent Control in the centerdisplay's Function view if the vehicle is notequipped with a drive mode control in the tunnelconsole.
Selecting Low Speed Control in the
center display's Function view
–Tap the Hill Descent Control button toactivate or deactivate the function.
> An indicator light in the button will illumi-nate when the function is activated.
When the engine is switched off, the function willbe automatically deactivated.

NOTE
The function is deactivated when driving athigh speeds and must be reactivated at lowerspeeds if so desired.
Related information
Low Speed Control (p. 460)
Changing drive mode (p. 455)

STARTING AND DRIVING
462
Hill Descent Control
The function for assisting when driving downhill,Hill Descent Control (HDC), is a low-speedfunction with increased engine braking. Thefunction makes it possible to increase ordecrease the vehicle's speed on steep downhillgradients by only using the accelerator pedal,without applying the brakes.
The function is included in the Off Road drivemode.
HDC is designed for driving on rough roads atlow speeds and downhill gradients with slipperyor otherwise difficult road surfaces. The driverdoes not need to use the brake pedal but caninstead focus on steering.

WARNING
HDC is only intended to be a supplementarybraking aid and it does not function in all sit-uations.
The driver is always ultimately responsible foroperating the vehicle in a safe manner.

Function
Hill Descent Control allows the vehicle to moveforward or backward at very low speeds assistedby the brake system. The driver can increase thespeed by pressing the accelerator pedal. Whenthe accelerator pedal is released, the vehicle willreturn to very low speed regardless of how steep
the hill is and without the brakes needing to beapplied. The brake lights will illuminate when thefunction is activated.
The driver can brake to stop or slow the vehicleat any time by depressing the brake pedal.
HDC is activated along with Low Speed Control(LSC), which facilitates and improves traction andcontrol on rough and slippery surfaces. The sys-tem is intended to be used at low speeds, up toapproximately 40 km/h (25 mph).
To keep in mind when using HDC
If the function is switched off while driving ona steep downhill gradient, braking effect willbe gradually reduced.
HDC can be used in gear positions D and R,and in manual gears 1 or 2.
It is not possible to manually shift to thirdgear or higher when HDC is active.

NOTE
When LSC with HDC is activated in the OFFROAD drive mode, the feel of the acceleratorpedal and engine response will change.

NOTE
This drive mode is not designed to be usedfor normal street driving.
NOTE
The function is deactivated when driving athigh speeds and must be reactivated at lowerspeeds if so desired.

Related information
Activating and deactivating Hill Descent Con-trol using the function button (p. 463)
Changing drive mode (p. 455)
Low Speed Control (p. 460)
All Wheel Drive (AWD) (p. 448)
