engine VOLVO XC60 TWIN ENGINE 2019 Owners Manual

||
MAINTENANCE AND SERVICE
* Option/accessory.650

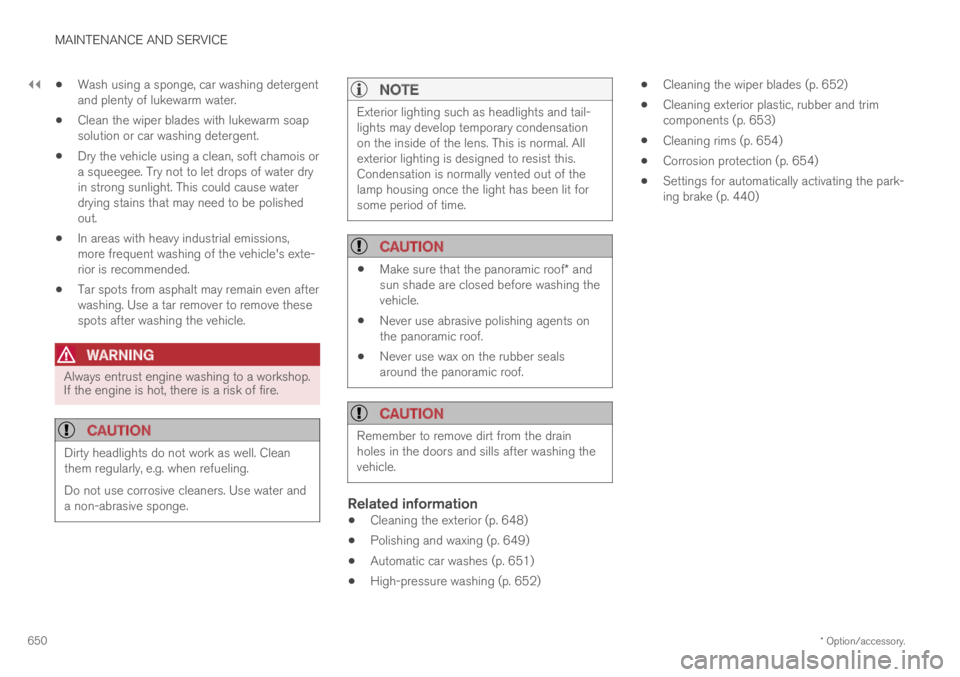

Wash using a sponge, car washing detergentand plenty of lukewarm water.
Clean the wiper blades with lukewarm soapsolution or car washing detergent.
Dry the vehicle using a clean, soft chamois ora squeegee. Try not to let drops of water dryin strong sunlight. This could cause waterdrying stains that may need to be polishedout.
In areas with heavy industrial emissions,more frequent washing of the vehicle's exte-rior is recommended.
Tar spots from asphalt may remain even afterwashing. Use a tar remover to remove thesespots after washing the vehicle.

WARNING
Always entrust engine washing to a workshop.If the engine is hot, there is a risk of fire.

CAUTION
Dirty headlights do not work as well. Cleanthem regularly, e.g. when refueling.
Do not use corrosive cleaners. Use water anda non-abrasive sponge.
NOTE
Exterior lighting such as headlights and tail-lights may develop temporary condensationon the inside of the lens. This is normal. Allexterior lighting is designed to resist this.Condensation is normally vented out of thelamp housing once the light has been lit forsome period of time.

CAUTION
Make sure that the panoramic roof* andsun shade are closed before washing thevehicle.
Never use abrasive polishing agents onthe panoramic roof.
Never use wax on the rubber sealsaround the panoramic roof.

CAUTION
Remember to remove dirt from the drainholes in the doors and sills after washing thevehicle.

Related information
Cleaning the exterior (p. 648)
Polishing and waxing (p. 649)
Automatic car washes (p. 651)
High-pressure washing (p. 652)
Cleaning the wiper blades (p. 652)
Cleaning exterior plastic, rubber and trimcomponents (p. 653)
Cleaning rims (p. 654)
Corrosion protection (p. 654)
Settings for automatically activating the park-ing brake (p. 440)

MAINTENANCE AND SERVICE
651
Automatic car washes
The vehicle should be washed as soon as itbecomes dirty. This makes the vehicle easier toclean because dirt does not attach as strongly. Italso reduces the risk of scratches and keeps thevehicle looking new.
An automatic car wash is a fast and easy way tokeep your vehicle clean, but it does not reach allareas of the vehicle. For best results, Volvo rec-ommends hand washing your vehicle or supple-menting automatic car washes with a hand wash.

NOTE
Volvo recommends not washing the vehicle inan automatic car wash during the first fewmonths; the paintwork on new vehicles takessome time to fully harden.

CAUTION
Before driving the vehicle into a car wash,deactivate the Automatic Braking when Sta-tionary and Automatic Parking Brake Applica-tion functions. If the functions are not deacti-vated, the brake system will seize when thevehicle is stationary and the vehicle will not beable to roll.
CAUTION
For automatic car washes in which the vehicleis pulled forward on rolling wheels:
1.Before washing the vehicle, make surethat the automatic rain sensor is deacti-vated. If it is not deactivated and inadver-tently starts, the wiper arms could bedamaged.
2. To help prevent damage from the auto-matic car wash machinery, make surethat the door mirrors are folded in, anten-nas retracted or removed, and any auxili-ary lights secured.
3. Drive into the automatic car wash.
4. Turn off the "Automatic Braking when
Stationary" function using the buttonin the tunnel console.
5.Turn off the "Automatic Parking BrakeApplication" function in the center dis-play's Top view.
6. Turn off the engine by turning the startknob in the tunnel console clockwise.Hold the knob in position for at least2 seconds.
The vehicle is now ready for the automatic carwash.
CAUTION
The system will automatically change to Pmode if the above steps are not followed. In Pmode, the wheels are locked, which theyshould not be when the vehicle is beingwashed in a car wash.

Related information
Cleaning the exterior (p. 648)
Polishing and waxing (p. 649)
Hand washing (p. 649)
High-pressure washing (p. 652)
Cleaning the wiper blades (p. 652)
Cleaning exterior plastic, rubber and trimcomponents (p. 653)
Cleaning rims (p. 654)
Corrosion protection (p. 654)

||
SPECIFICATIONS
664

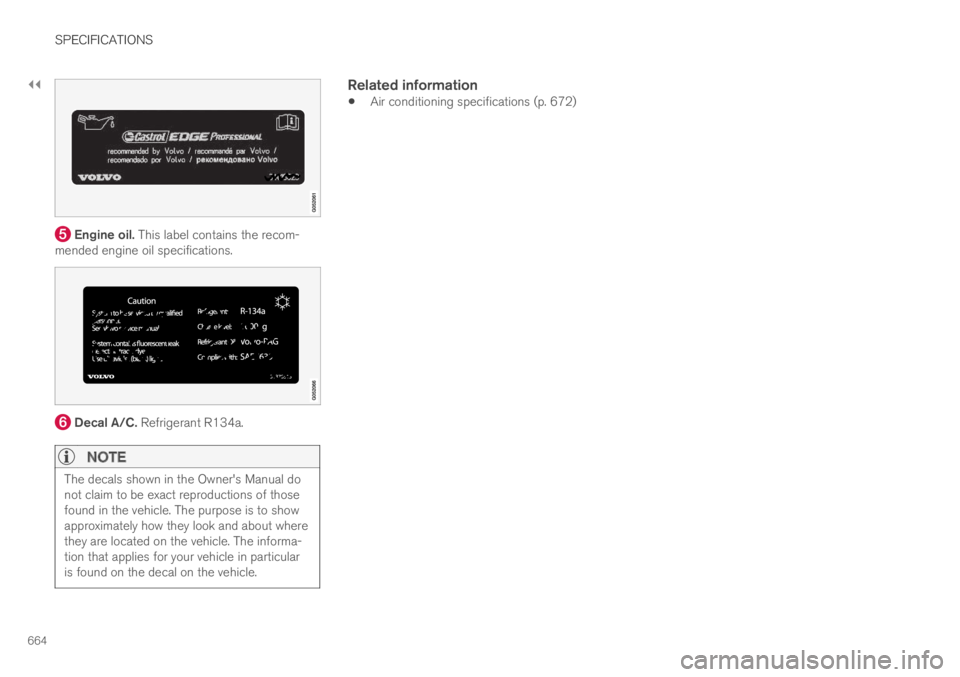

Engine oil. This label contains the recom-mended engine oil specifications.
Decal A/C. Refrigerant R134a.

NOTE
The decals shown in the Owner's Manual donot claim to be exact reproductions of thosefound in the vehicle. The purpose is to showapproximately how they look and about wherethey are located on the vehicle. The informa-tion that applies for your vehicle in particularis found on the decal on the vehicle.
Related information
Air conditioning specifications (p. 672)

SPECIFICATIONS
* Option/accessory.668

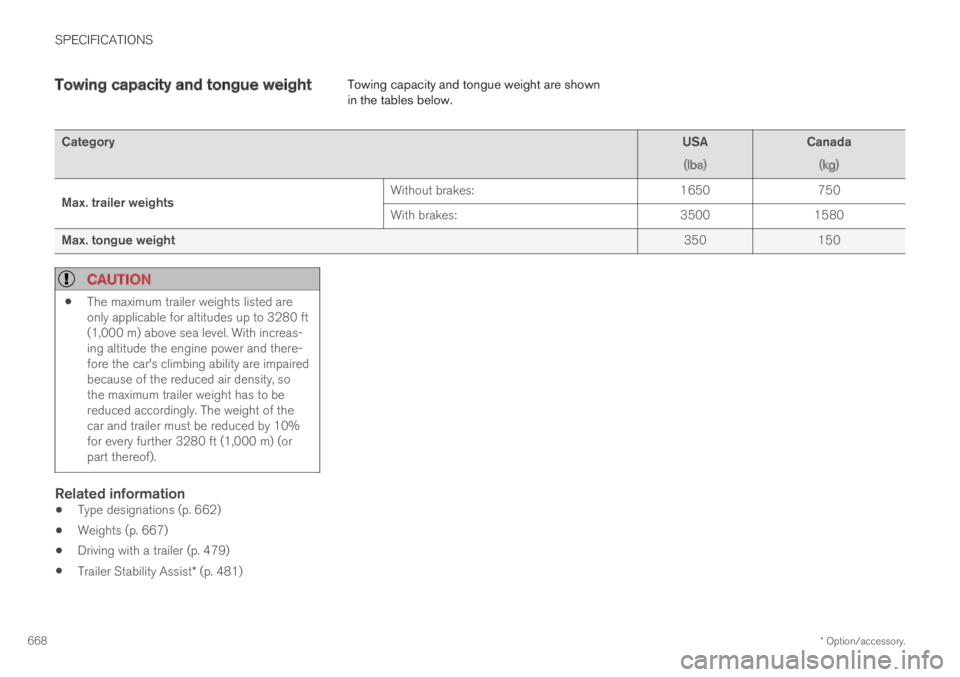

Towing capacity and tongue weightTowing capacity and tongue weight are shownin the tables below.
CategoryUSA
(lbs)
Canada
(kg)
Max. trailer weightsWithout brakes:1650750
With brakes:35001580
Max. tongue weight350150

CAUTION
The maximum trailer weights listed areonly applicable for altitudes up to 3280 ft(1,000 m) above sea level. With increas-ing altitude the engine power and there-fore the car's climbing ability are impairedbecause of the reduced air density, sothe maximum trailer weight has to bereduced accordingly. The weight of thecar and trailer must be reduced by 10%for every further 3280 ft (1,000 m) (orpart thereof).

Related information
Type designations (p. 662)
Weights (p. 667)
Driving with a trailer (p. 479)
Trailer Stability Assist* (p. 481)

SPECIFICATIONS
669

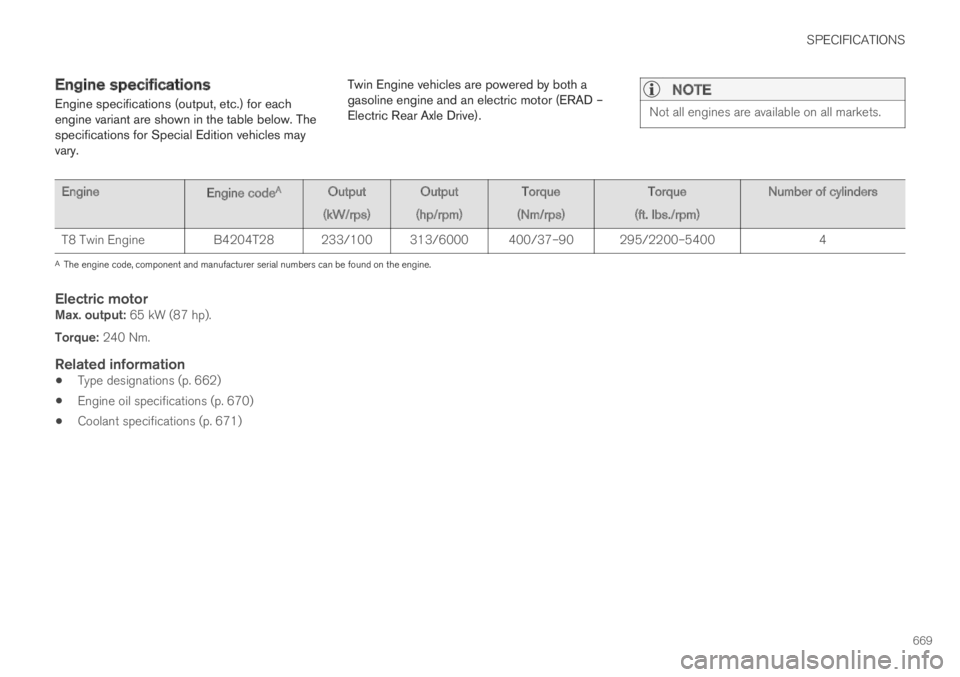

Engine specifications
Engine specifications (output, etc.) for eachengine variant are shown in the table below. Thespecifications for Special Edition vehicles mayvary.
Twin Engine vehicles are powered by both agasoline engine and an electric motor (ERAD –Electric Rear Axle Drive).

NOTE
Not all engines are available on all markets.
EngineEngine codeAOutput
(kW/rps)
Output
(hp/rpm)
Torque
(Nm/rps)
Torque
(ft. lbs./rpm)
Number of cylinders
T8 Twin EngineB4204T28 233/100 313/6000 400/37–90 295/2200–54004
AThe engine code, component and manufacturer serial numbers can be found on the engine.

Electric motor
Max. output: 65 kW (87 hp).
Torque: 240 Nm.

Related information
Type designations (p. 662)
Engine oil specifications (p. 670)
Coolant specifications (p. 671)

SPECIFICATIONS
670

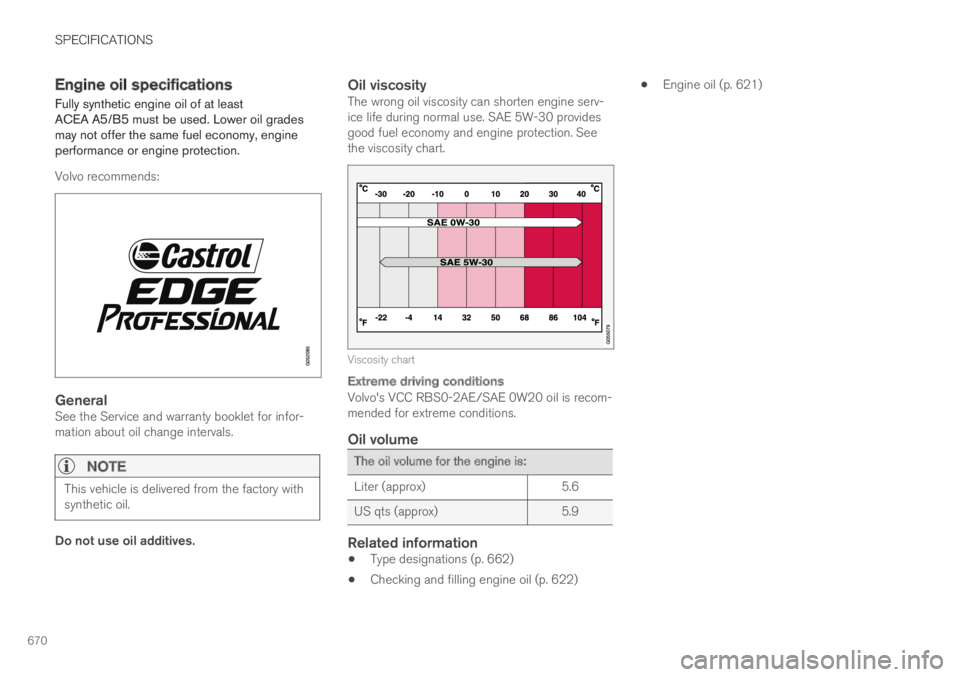

Engine oil specifications
Fully synthetic engine oil of at leastACEA A5/B5 must be used. Lower oil gradesmay not offer the same fuel economy, engineperformance or engine protection.
Volvo recommends:

General
See the Service and warranty booklet for infor-mation about oil change intervals.

NOTE
This vehicle is delivered from the factory withsynthetic oil.
Do not use oil additives.
Oil viscosity
The wrong oil viscosity can shorten engine serv-ice life during normal use. SAE 5W-30 providesgood fuel economy and engine protection. Seethe viscosity chart.
Viscosity chart

Extreme driving conditions
Volvo's VCC RBS0-2AE/SAE 0W20 oil is recom-mended for extreme conditions.

Oil volume
The oil volume for the engine is:
Liter (approx)5.6
US qts (approx)5.9

Related information
Type designations (p. 662)
Checking and filling engine oil (p. 622)
Engine oil (p. 621)

SPECIFICATIONS
671

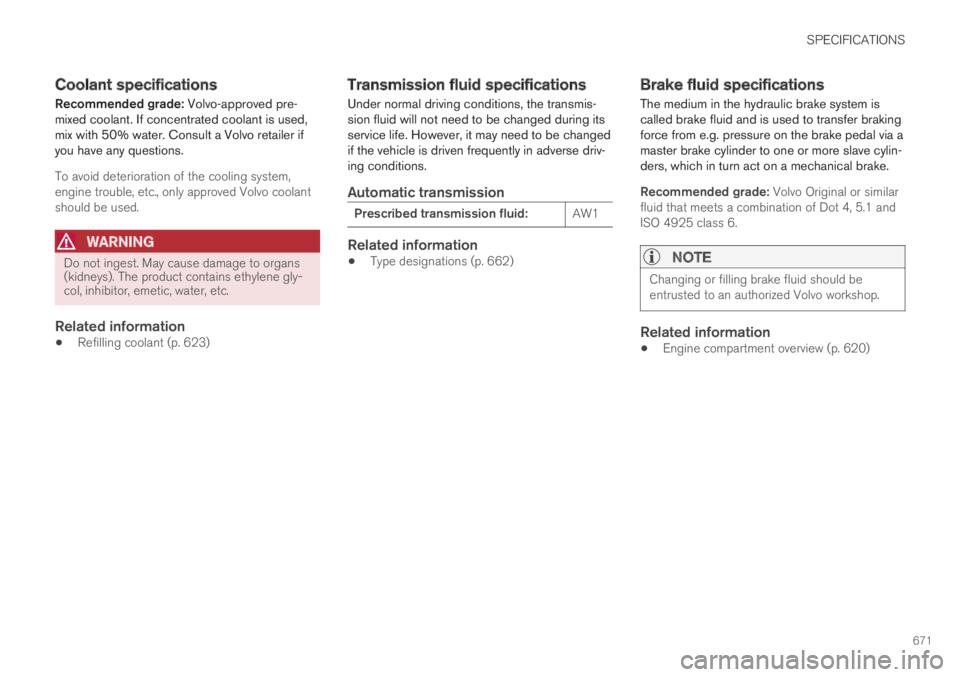

Coolant specifications
Recommended grade: Volvo-approved pre-mixed coolant. If concentrated coolant is used,mix with 50% water. Consult a Volvo retailer ifyou have any questions.
To avoid deterioration of the cooling system,engine trouble, etc., only approved Volvo coolantshould be used.

WARNING
Do not ingest. May cause damage to organs(kidneys). The product contains ethylene gly-col, inhibitor, emetic, water, etc.

Related information
Refilling coolant (p. 623)
Transmission fluid specifications
Under normal driving conditions, the transmis-sion fluid will not need to be changed during itsservice life. However, it may need to be changedif the vehicle is driven frequently in adverse driv-ing conditions.
Automatic transmission
Prescribed transmission fluid:AW1

Related information
Type designations (p. 662)
Brake fluid specifications
The medium in the hydraulic brake system iscalled brake fluid and is used to transfer brakingforce from e.g. pressure on the brake pedal via amaster brake cylinder to one or more slave cylin-ders, which in turn act on a mechanical brake.
Recommended grade: Volvo Original or similarfluid that meets a combination of Dot 4, 5.1 andISO 4925 class 6.

NOTE
Changing or filling brake fluid should beentrusted to an authorized Volvo workshop.

Related information
Engine compartment overview (p. 620)

INDEX
677
Charge
vehicle function 467
Charge level
vehicle function 467
Charging
hybrid battery 413
opening and closing the charging
door 418
start charging 419
Status 421, 423
stop charging 425
Charging cable 415
Charging current 415
Checking engine oil level 622
Child restraints 63, 65
booster cushions 71
convertible seats 69
infant seats 67
integrated booster cushion 75
ISOFIX/LATCH anchors 74
lower attachment points 73
recalls and registration 65
top tether anchors 72
Child safety 63
Child safety locks 258
Circuit breaker 417
City Safety 335, 336, 338, 339, 346, 348
City Safety braking for oncoming vehicles 345
City Safety during evasive maneuver343
City Safety in crossing traffic 341, 342
City Safety when evasive maneuver preven-
ted344
Cleaning645, 647, 648
automatic car wash651
car wash 648, 649, 651, 652, 653, 654
center display643
Seat belts645
textile upholstery643, 645, 646
upholstery 643, 645, 646, 647, 648
wheels654
Cleaning wheels654
Cleaning wiper blades652
Clean Zone203
Clean Zone Interior Package204
Climate200
auto-regulation216
blower control222
parking224
perceived temperature201
Sensors200
temperature control222, 223
voice control201
zones200
Climate controls212
center display212
rear seat212
Climate system 200, 212
Refrigerant 672
repairs 619
Clock, setting 93
Collision 42, 47, 52, 61
Collision warner
detection of pedestrians 339
radar sensor 326
Collision warning 335, 349
Color code, paintwork 656
Color codes 656
Compass 489
calibration 489
Condensation in headlights 649, 651,
652, 653
Connecting vehicle to Internet
No connection or poor connection 542
via a mobile device (WiFi) 539
via cellular phone (Bluetooth) 539
via vehicle's modem 540
Connect phone 529
Contact information 26
Convertible seats 69
coolant 671

INDEX
679
electric motor 449
Driving 465
Range 465
Electric parking brake 438
Electronic immobilizer 251
emergency brake lights 160
Emission inspection readiness 608
Energy distribution
using map data 456
Engine
automatic start and stop of combustion
engine 450
overheating 475
start 430
turn off 432
Engine braking 435, 445, 462
Engine compartment
coolant 623
engine oil 621
overview 620
Engine drag control 273
Engine oil 621
filling 622
filter 621
grade and volume 670
Engine shutdown 432
Engine specifications 669
Engine temperature
high475
Environment 27
Error messages
Adaptive Cruise Control 308
see Messages and symbols 308, 324
Error messages in BLIS 354
Ethanol content
max. 10% by volume 472
Exterior dimensions 665
Extra heater (Auxiliary heater) 232
F
Federal Clean Air Act608
Ferry transport457
Flat tire 578
Flooded road 469
Fluids, volumes 660, 672
Fluids and oils 671, 672
Fog lights
rear 159
Four-C 457
Front seat
blower 222
climate 212
heating213, 214
temperature222
ventilation 215
Front seat manual 184
Front seats, power 185
adjusting passenger seat from driver's
seat 192
adjusting seat 185
Lumbar support 191
massage 188, 189
multifunction control 188, 189, 190, 191
Side bolsters 190
store position 186, 187
FSC, environmental labeling 24
Fuel 472
Travel Link service 512
Fuel filling 471
Fuel gauge 87
Fuel requirements 472, 473
Fuel tank
volume 672
Fuse box 631
Fuses
below the glove compartment 636
general 630
in engine compartment 632
in the cargo compartment 639
replacing 631

INDEX
680
G
Gasoline grade472
Gauge
fuel gauge87
Gear selector positions
automatic transmission445
Glass
laminated/reinforced166
Glove compartment593
Gracenote®517
Grocery bag holders 597
Gross vehicle weight667
Guide lines for Park Assist Camera 394
H
Handbrake438, 439
Hand wash649
Hard disk
space544
Hazard warning flashers161
HDC462
HD radio501
Head restraint196
Head-up display142
activate and deactivate143
cleaning644
replacing windshield619
settings144
store position144, 186, 187
Heated wiper blades176
Heater232
auxiliary heater232
parking heater232
Heating
Seats213, 214
steering wheel215, 216
windows219, 221
Height adjustment457, 460
high beams156, 157
High engine temperature475
Hill Descent Control461, 462, 463
activate with function button 463
Hill Start Assist443
Hill Start Assist (HSA)443
Hoisting the vehicle616
Hold
vehicle function467
HomeLink®485
programming486
use487
HomeLink® remote control
programmable 485
Home safe lighting161
Honk197
Hood, opening618
Horn197
Hybrid battery629
Charging413
Hybrid battery gauge88
Hybrid gauge87
Hybrid mode450, 456
I
IAQS (Interior Air Quality System) 204
IC (Inflatable Curtain)60
ID, Volvo26
Identification number38
Ignition mode433, 434
Immobilizer251
Electronic immobilizer251
Indicator symbols94
Individual drive mode450
Infant seats67
Inflatable curtain60
