24 Relay for extended D1 feed: climate control system, power driver's se\
at, driver's info 10A
25 Ignition switch, relay starter motor, SRS, engine control module 10A
26 Climate control system blower 30A
27 -
28 Electronic module - courtesy lighting 10A
29 -
30 Left front/rear parking lights 7.5A
31 Right front/rear parking lights, license plate lights 7.5A
32 Central electrical module, vanity mirror lighting, power steering, gl\
ove compartment
light, interior courtesy lighting 10A
33 Fuel pump 15A
34 Power sun roof 15A
35 Central locking system, power windows - left door mirror 25A
36 Central locking system, power windows - right door mirror 25A
37 Rear power windows, power child safety 30A
38 Alarm siren 5A
* Please be aware that if this fuse is not intact, or if it is removed, \
the alarm will sound.

pg. 119 Fuses in the cargo area
Fuses in the cargo area
The fuses in the cargo area are located on the trim on the left-hand sid\
e. When replacing a blown fuse,
be sure to replace it with a new one of the same color and amperage (wr\
itten on the fuse).
file:///K|/ownersdocs/2003/2003_XC70/03xc70_08a.htm (6 of 21)12/30/200\
6 4:18:03 PM

2003 VOLVO XC70
Ordinary fuses
Location Amperage
1 Rear electrical module, cargo area lighting 10A
2 Rear fog light 10A
3 Brake lights 15A
4 Backup lights 10A
5 Rear window defroster, relay 15I -
accessories 5A
6 Unlocking tailgate 10A
7 Auxiliary 12 volt socket in cargo area
(option) 15A
8 Central locking rear doors/fuel filler door 20A
9 Trailer (30 feed) 15A
10 CD changer, VNS 10A
11 Accessory control module (AEM) 15A
12 Tailgate wiper 15A
13 Loudspeaker (subwoofer) cargo area -
option 15A
14 Brake lights 7.5A
15 Trailer (15I feed) 20A
16 -
17 All Wheel Drive control module 7.5A
18 -


pg. 120 Replacing bulbs

file:///K|/ownersdocs/2003/2003_XC70/03xc70_08a.htm (7 of 21)12/30/200\
6 4:18:03 PM

2003 VOLVO XC70

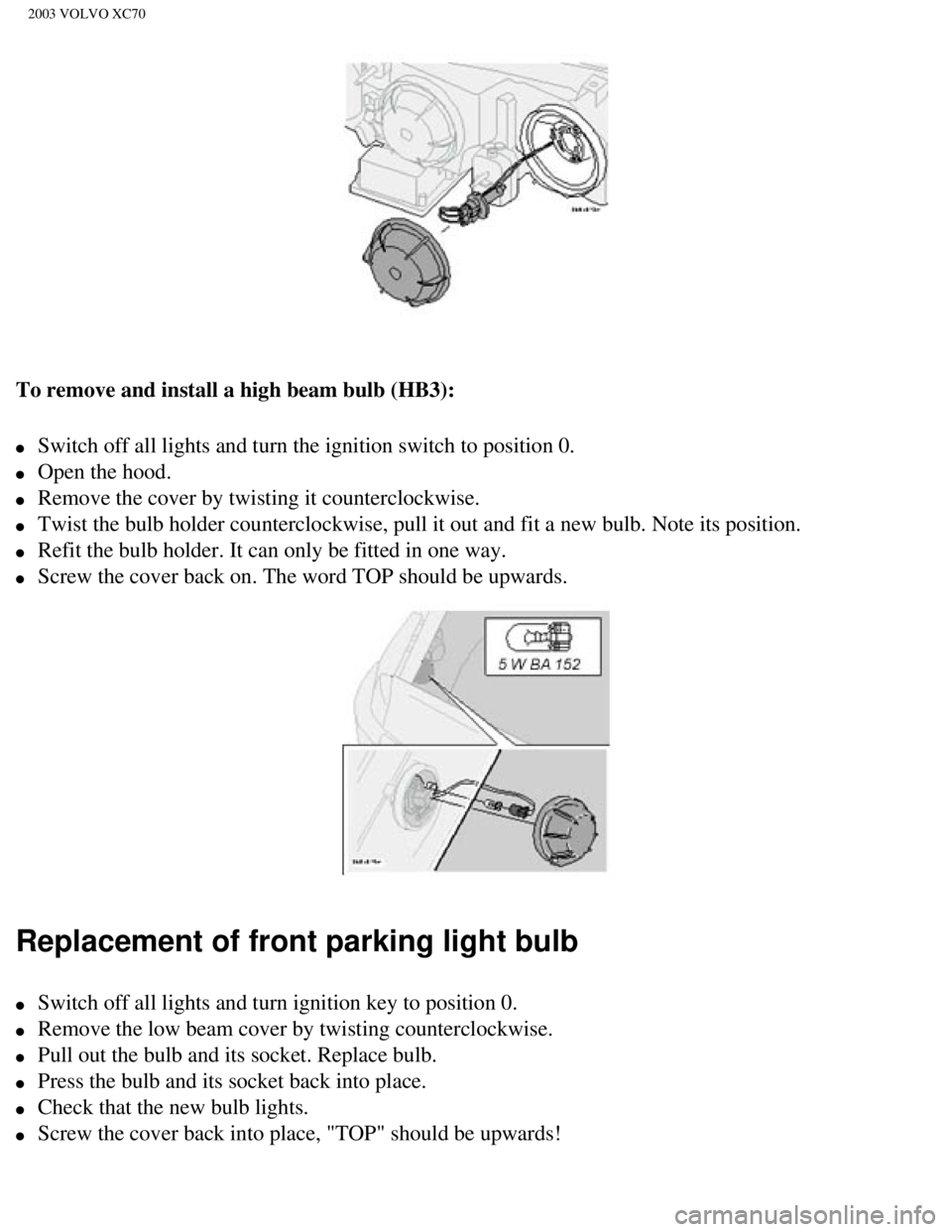

Replacing high/low beam headlight bulbs
The headlight bulbs must be replaced from the engine compartment.
CAUTION:
l Do not touch the glass on halogen bulbs with your fingers. Grease, oil o\
r any other impurities can be
carbonized onto the bulb and cause damage to the reflector.
l Be sure to use bulbs of the correct type and voltage.

Removing a defective bulb
To remove a defective low beam bulb:
l Switch off all lights and turn the ignition switch to position 0.
l Open the hood.
l Remove the plastic cover over the bulb (1) by turning it counterclockw\
ise.
file:///K|/ownersdocs/2003/2003_XC70/03xc70_08a.htm (8 of 21)12/30/200\
6 4:18:03 PM

2003 VOLVO XC70
l Remove the connector (2).
l Loosen the retaining spring (3) by first moving it to the right and th\
en moving it down, out of the way.
l Pull out the defective bulb. Note the position of the guide lug on the b\
ase of the bulb (4).

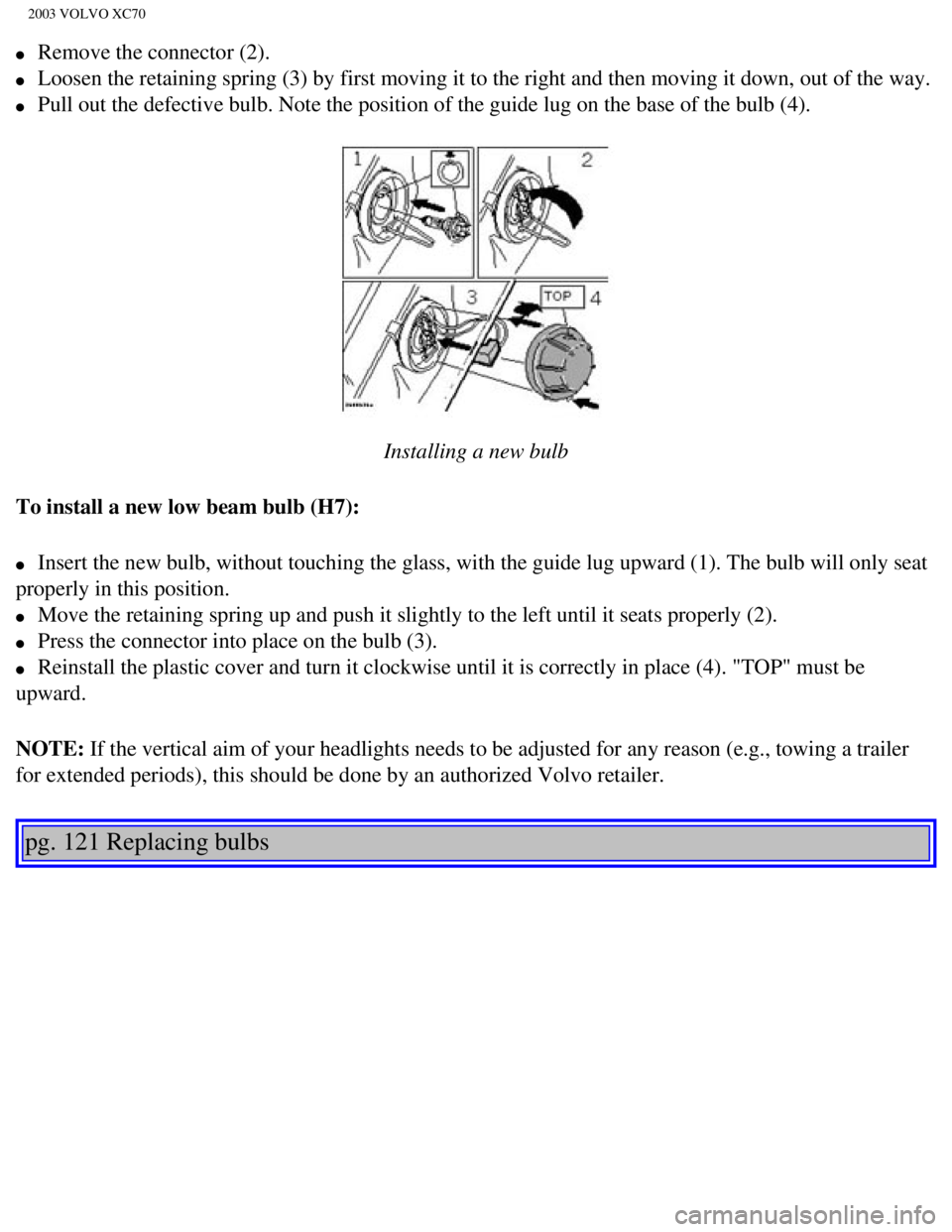

Installing a new bulb
To install a new low beam bulb (H7):
l Insert the new bulb, without touching the glass, with the guide lug upwa\
rd (1). The bulb will only seat
properly in this position.
l Move the retaining spring up and push it slightly to the left until it s\
eats properly (2).
l Press the connector into place on the bulb (3).
l Reinstall the plastic cover and turn it clockwise until it is correctly \
in place (4). "TOP" must be
upward.
NOTE: If the vertical aim of your headlights needs to be adjusted for any reas\
on (e.g., towing a trailer
for extended periods), this should be done by an authorized Volvo retai\
ler.

pg. 121 Replacing bulbs

file:///K|/ownersdocs/2003/2003_XC70/03xc70_08a.htm (9 of 21)12/30/200\
6 4:18:03 PM

2003 VOLVO XC70
To remove and install a high beam bulb (HB3):
l Switch off all lights and turn the ignition switch to position 0.
l Open the hood.
l Remove the cover by twisting it counterclockwise.
l Twist the bulb holder counterclockwise, pull it out and fit a new bulb. \
Note its position.
l Refit the bulb holder. It can only be fitted in one way.
l Screw the cover back on. The word TOP should be upwards.
Replacement of front parking light bulb
l Switch off all lights and turn ignition key to position 0.
l Remove the low beam cover by twisting counterclockwise.
l Pull out the bulb and its socket. Replace bulb.
l Press the bulb and its socket back into place.
l Check that the new bulb lights.
l Screw the cover back into place, "TOP" should be upwards!
file:///K|/ownersdocs/2003/2003_XC70/03xc70_08a.htm (10 of 21)12/30/20\
06 4:18:03 PM

2003 VOLVO XC70

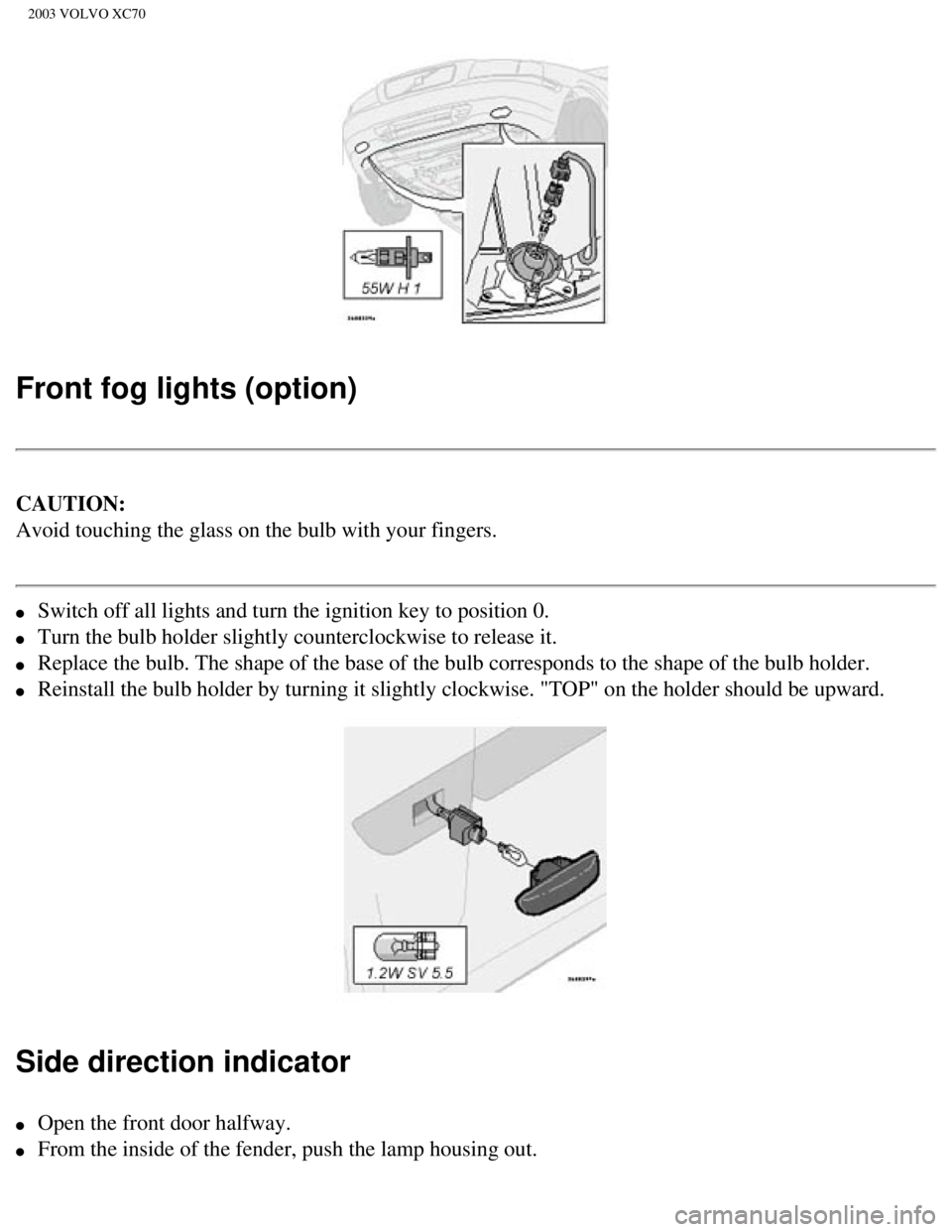

Changing the bulb in the turn signals at the front corners
l Switch off all lights and turn ignition key to position 0.
l Pull out the bulb and its socket by twisting counterclockwise. Replace b\
ulb.
l Press the bulb and its socket back into place.
l Check that the new bulb lights.

pg. 122 Replacing bulbs

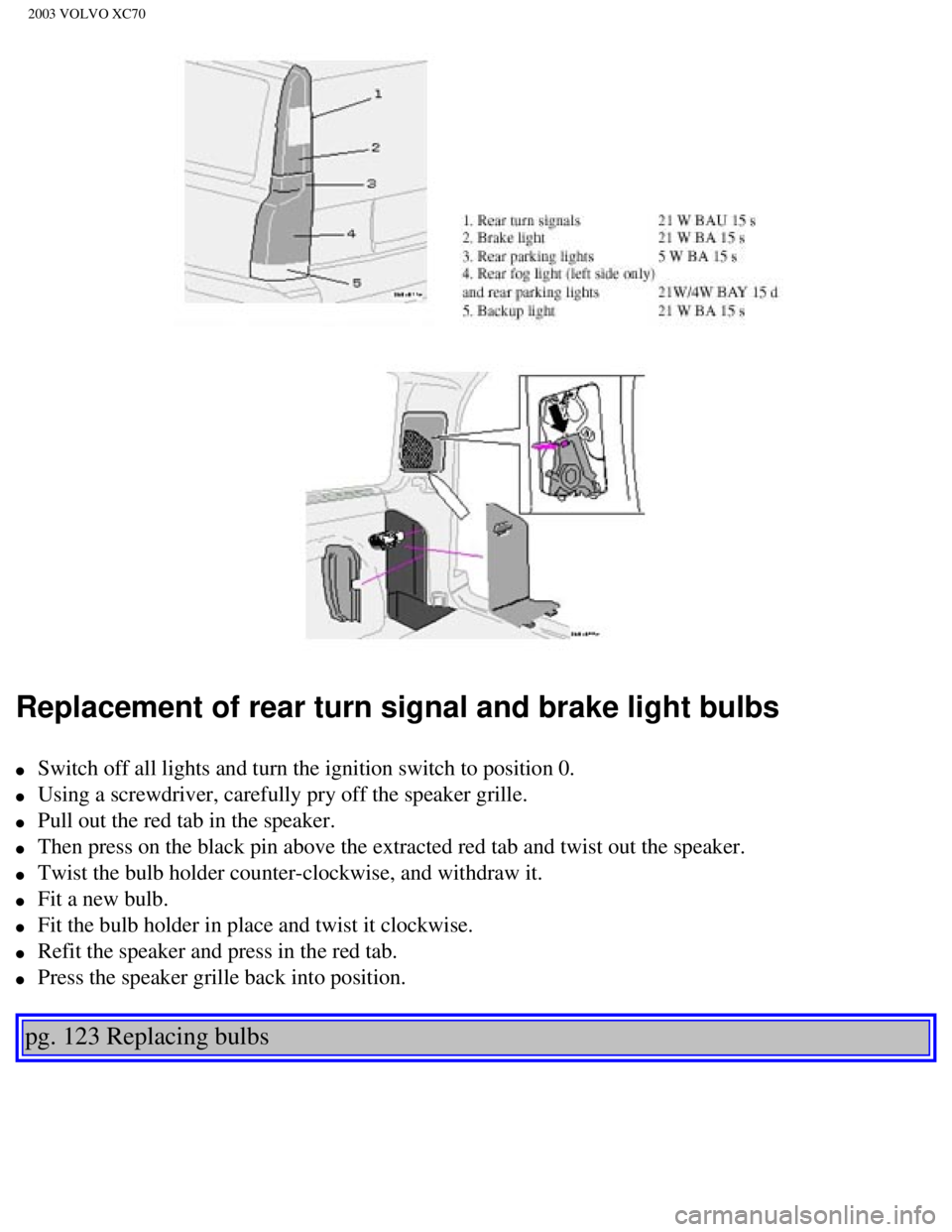

Replacement of bulbs in backup light, rear parking lights and
rear fog lights
l Switch off all lights and turn the ignition switch to position 0.
l Open the access panel.
l Remove the sound insulation behind it.
l Twist the bulb holder counterclockwise and remove it.
l Press the bulb inward, twist it counterclockwise and extract it.
l Fit a new bulb.
l Fit the bulb holder in place and twist it clockwise.
l Refit the sound insulation and put the access panel back in place.
file:///K|/ownersdocs/2003/2003_XC70/03xc70_08a.htm (11 of 21)12/30/20\
06 4:18:03 PM

2003 VOLVO XC70

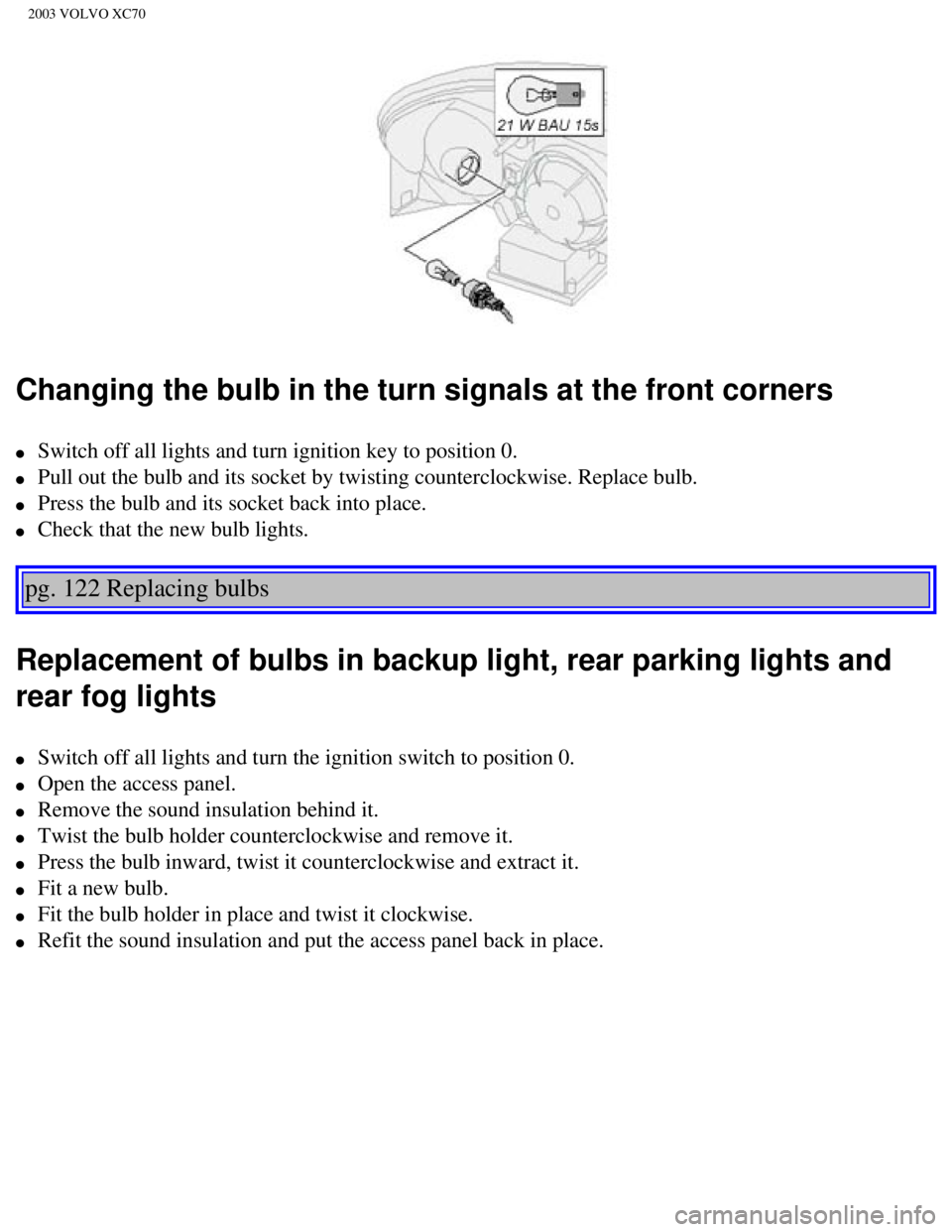

Replacement of rear turn signal and brake light bulbs
l Switch off all lights and turn the ignition switch to position 0.
l Using a screwdriver, carefully pry off the speaker grille.
l Pull out the red tab in the speaker.
l Then press on the black pin above the extracted red tab and twist out th\
e speaker.
l Twist the bulb holder counter-clockwise, and withdraw it.
l Fit a new bulb.
l Fit the bulb holder in place and twist it clockwise.
l Refit the speaker and press in the red tab.
l Press the speaker grille back into position.

pg. 123 Replacing bulbs

file:///K|/ownersdocs/2003/2003_XC70/03xc70_08a.htm (12 of 21)12/30/20\
06 4:18:03 PM

2003 VOLVO XC70
Front fog lights (option)
CAUTION:
Avoid touching the glass on the bulb with your fingers.
l Switch off all lights and turn the ignition key to position 0.
l Turn the bulb holder slightly counterclockwise to release it.
l Replace the bulb. The shape of the base of the bulb corresponds to the s\
hape of the bulb holder.
l Reinstall the bulb holder by turning it slightly clockwise. "TOP" on the\
holder should be upward.
Side direction indicator
l Open the front door halfway.
l From the inside of the fender, push the lamp housing out.
file:///K|/ownersdocs/2003/2003_XC70/03xc70_08a.htm (13 of 21)12/30/20\
06 4:18:03 PM

2003 VOLVO XC70
l Turn the bulb holder 1/4 turn counterclockwise and pull it out from the \
lens.
l Remove the defective bulb by pulling it straight out.
l Insert a new bulb.
l Reinsert the bulb holder in the lens and press the entire unit back into\
place on the fender.

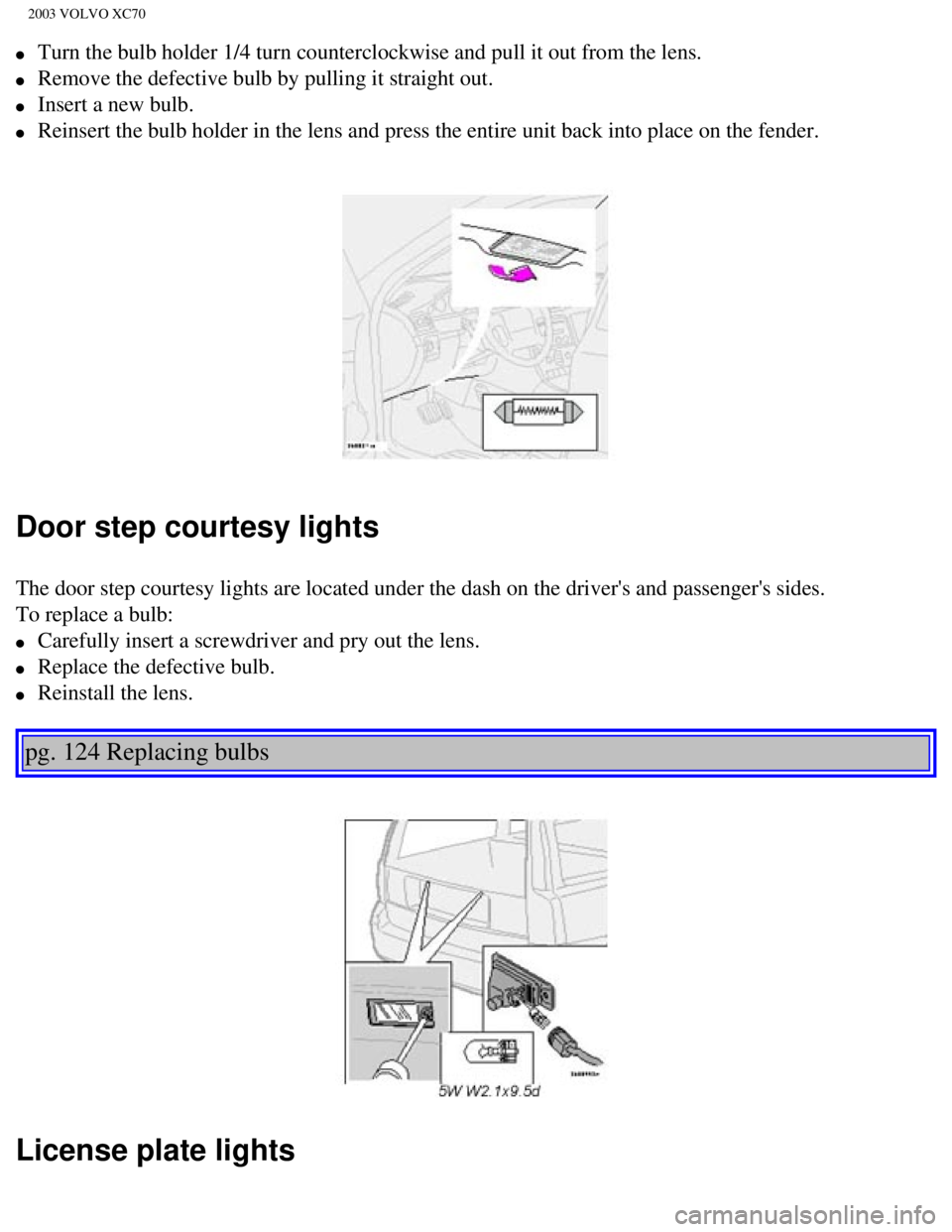

Door step courtesy lights
The door step courtesy lights are located under the dash on the driver's\
and passenger's sides.
To replace a bulb:
l Carefully insert a screwdriver and pry out the lens.
l Replace the defective bulb.
l Reinstall the lens.

pg. 124 Replacing bulbs

License plate lights
file:///K|/ownersdocs/2003/2003_XC70/03xc70_08a.htm (14 of 21)12/30/20\
06 4:18:03 PM

2003 VOLVO XC70
l Switch off the ignition.
l Loosen the screws with a Torx screwdriver.
l Carefully pull out the lamp housing.
l Turn the bulb holder counterclockwise and pull it out.
l Pull out the defective bulb and insert a new one.
l Reinsert the bulb holder into the housing and turn it clockwise.
l Reinstall the housing and screw it in place.

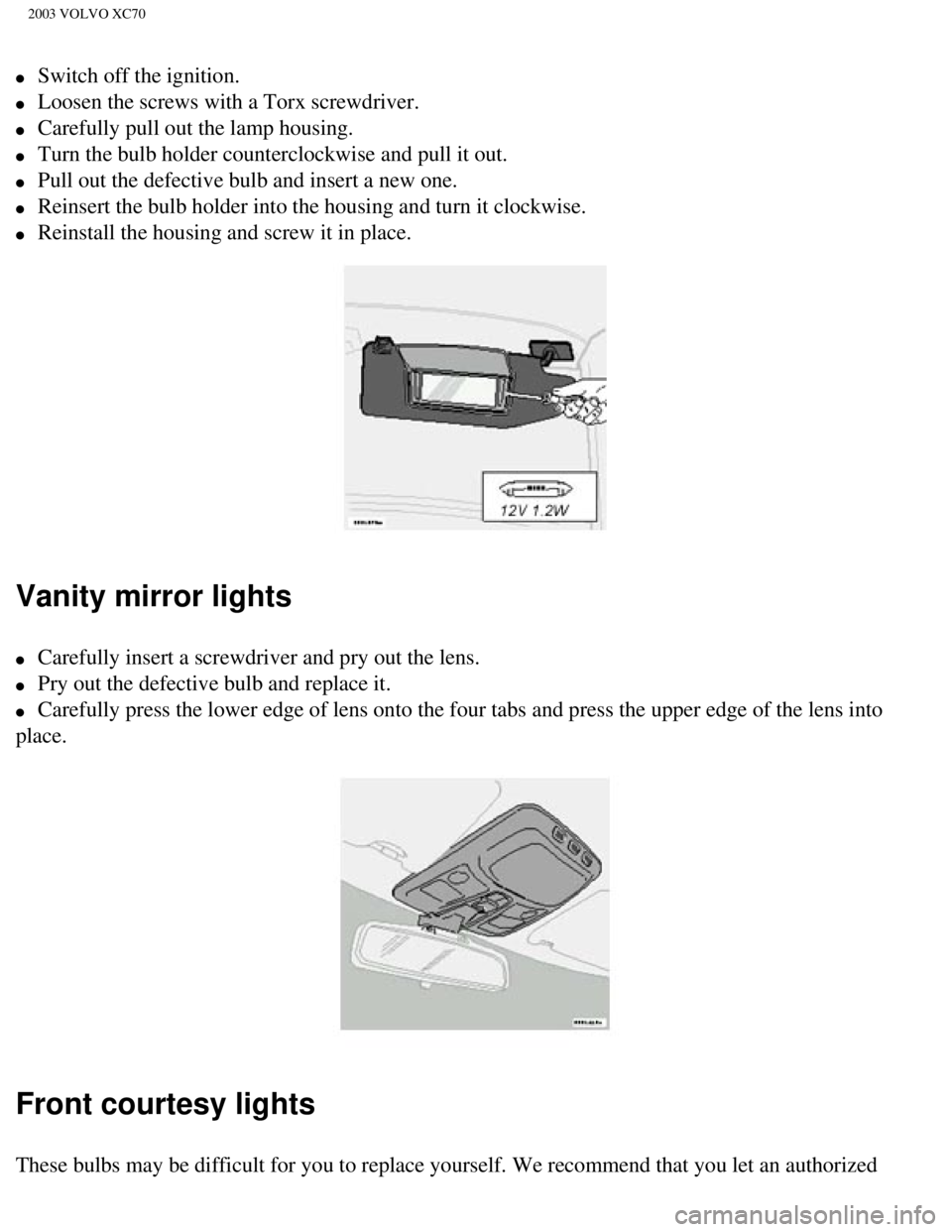

Vanity mirror lights
l Carefully insert a screwdriver and pry out the lens.
l Pry out the defective bulb and replace it.
l Carefully press the lower edge of lens onto the four tabs and press the \
upper edge of the lens into
place.
Front courtesy lights
These bulbs may be difficult for you to replace yourself. We recommend t\
hat you let an authorized
file:///K|/ownersdocs/2003/2003_XC70/03xc70_08a.htm (15 of 21)12/30/20\
06 4:18:03 PM
