This manual deals with the operation and care of your Volvo.
Welcome to the worldwide family of Volvo owners. We trust that you will \
enjoy many years of safe
file:///K|/ownersdocs/2004/2004_XC70/04xc70_00.htm (1 of 6)12/30/2006 \
4:32:53 PM
Page 2 of 241
2004 VOLVO XC70
driving in your Volvo, an automobile designed with your safety and comfo\
rt in mind. To help ensure
your satisfaction with this vehicle, we encourage you to familiarize you\
rself with the equipment
descriptions, operating instructions and maintenance requirements/recomm\
endations in this manual. We
also urge you and your passengers to wear seat belts at all times in thi\
s or any other automobile. And, of
course, please do not operate a vehicle if you may be affected by alcoho\
l, medication or any impairment
that could hinder your ability to drive.
Your Volvo is designed to meet all applicable safety and emission standa\
rds, as evidenced by the
certification labels attached to the driver's door opening and on the le\
ft wheel housing in the engine
compartment. For further information please contact your retailer, or:
In the USA: In Canada:
Volvo Cars of North America Volvo Cars of Canada Ltd.
Customer Relations 175 Gordon Baker Road
P.O. Box 914 North York, Ontario M2H 2N7
Rockleigh, New Jersey 07647-0914 800-663-8255
800-458-1552
We also invite you to visit our Home Page on the Internet at:
http://www.volvocars.com
Contents
Contents
Chapter 1 - Safety
Chapter 2 - Instruments, switches and controls
Chapter 3 - Climate control system
Chapter 4 - Interior
Chapter 5 - Keys, Locks, Alarm
Chapter 6 - Starting and driving
Chapter 7 - Wheels and tires
file:///K|/ownersdocs/2004/2004_XC70/04xc70_00.htm (2 of 6)12/30/2006 \
4:32:53 PM
Page 3 of 241
2004 VOLVO XC70
Chapter 8 - Maintenance/Servicing
Chapter 9 - Specifications
Chapter 10 - Audio systems
HomeLink® Universal Transceiver (option)
Index
Back Cover
General information
Shiftlock
When your car is parked, the gear selector is locked in the (P)ark pos\
ition. To release the selector from
this position, turn the ignition key to position II (or start the engin\
e), depress the brake pedal, press the
button on the front of the gear selector knob and move the selector from\
(P)ark.
Keylock
This means that when you switch off the ignition, the gear selector must\
be in the (P)ark position before
the key can be removed from the ignition switch.
Anti-lock Brake System (ABS)
The ABS system in your car performs a self-diagnostic test when the vehi\
cle first reaches the speed of
approximately 12 mph (20 km/h). The brake pedal will pulsate several t\
imes and a sound may be audible
from the ABS control module. This is normal.
Fuel filler door
Press the button on the light switch panel (see
page 34) when the car is at a standstill to unlock the fuel
filler door. Please note that the fuel filler door will remain unlocked \
until the car begins to move
forward. An audible click will be heard when the fuel filler door relock\
s.
Fuel filler cap
After refueling, close the fuel filler cap by turning it clockwise until\
it clicks into place. If this cap is not
closed tightly or if the engine is running when the car is refueled, the\
Malfunction Indicator Lamp
file:///K|/ownersdocs/2004/2004_XC70/04xc70_00.htm (3 of 6)12/30/2006 \
4:32:53 PM
Page 4 of 241
2004 VOLVO XC70
("Check Engine" light) may indicate a fault. WARNING! If your vehicle is involved in an accident, unseen damage may affect yo\
ur vehicle's
driveability and safety.
Important
Before you operate your car for the first time, please familiarize yours\
elf with the new-engine oil
consumption information on
page 137. You should also be familiar with the information in the
chapters one, two and four of this manual.
Information contained in the balance of the manual is extremely useful a\
nd should be read after
operating the vehicle for the first time.
The manual is structured so that it can be used for reference. For this \
reason, it should be kept in
the car for ready access.
Do not export your Volvo to another country before investigating that co\
untry's applicable safety
and exhaust emission requirements. In some cases it may be difficult or \
impossible to comply with
these requirements. Modifications to the emission control system(s) ma\
y render your Volvo not
certifiable for legal operation in the U.S., Canada and other countries.\
All information, illustrations and specifications contained in this manu\
al are based on the latest
product information available at the time of publication. Please note th\
at some vehicles may be
equipped differently, depending on special legal requirements and that o\
ptional equipment
described in this manual may not be available in all markets.
Volvo reserves the right to make model changes at any time, or to change\
specifications or design,
without notice and without incurring obligation.
CALIFORNIA Proposition 65 Warning
WARNING! Engine exhaust, some of its constituents, and certain vehicle c\
omponents contain or
emit chemicals known to the state of California to cause cancer, and bir\
th defects or other
reproductive harm. In addition, certain fluids contained in vehicles and\
certain products of component
wear contain or emit chemicals known to the State of California to cause\
cancer, and birth defects or
other reproductive harm.
Volvo and the environment
file:///K|/ownersdocs/2004/2004_XC70/04xc70_00.htm (4 of 6)12/30/2006 \
4:32:53 PM
Page 5 of 241
2004 VOLVO XC70
Volvo is committed to the well being of our customers. As a natural part\
of this commitment, we care
about the environment in which we all live. Caring for the environment m\
eans an everyday involvement
in reducing our environmental impact.
Volvo's environmental activities are based on a holistic view, which mea\
ns we consider the overall
environmental impact of a product throughout its complete life cycle. In\
this context, design, production,
product use, and recycling are all important considerations.
In production, Volvo has partly or completely phased out several chemica\
ls including freons, lead
chromates, naphtanates, asbestos, mercury and cadmium; and reduced the a\
mount of chemicals used in
our plants 50% since 1991.
In use, Volvo was the first in the world to introduce into production a \
three-way catalytic converter with
a Lambda sond, now called oxygen sensor, in 1976. The current version of\
this highly efficient system
reduces emissions of harmful substances (CO, HC, NOx) from the exhaust\
pipe by approximately 95%
and the search to eliminate the remaining emissions continues. Volvo is \
the only automobile
manufacturer to offer CFC-free retrofit kits for the air conditioning sy\
stem for all models as far back as
the M/Y 1975 240. Advanced electronic engine controls, refined purificat\
ion systems and cleaner fuels
are bringing us closer to our goal.
After Volvo cars and parts have fulfilled their use, recycling is the ne\
xt critical step in completing the
life cycle. The metal content is about 75% of the total weight of a car,\
which makes the car among the
most recycled industrial products. In order to have efficient and well c\
ontrolled recycling, many Volvo
variants have printed dismantling manuals, indicating the weight and mat\
erial of individual components.
For Volvo, all homogeneous plastic parts weighing more than 1.7 oz. (50\
grams) are marked with
international symbols that indicate how the component is to be sorted fo\
r recycling.
In addition to continuous environmental refinement of conventional gasol\
ine-powered internal
combustion engines, Volvo is actively looking at advanced technology alt\
ernative-fuel vehicles.
When you drive a Volvo, you become our partner in the work to lessen the\
car's impact on the
environment.
To reduce your vehicle's environmental impact, you can:
l Maintain proper air pressure in your tires. Tests have shown decreased f\
uel economy with improperly
inflated tires
l Follow the recommended maintenance schedule in your Warranty and Service\
Records Information
booklet.
l Drive at a constant speed
l See an authorized Volvo retailer as soon as possible for inspection if t\
he check engine (malfunction
file:///K|/ownersdocs/2004/2004_XC70/04xc70_00.htm (5 of 6)12/30/2006 \
4:32:53 PM
Page 6 of 241
2004 VOLVO XC70
indicator) lamp illuminates, or stays on after the vehicle has started \
l Properly dispose of any vehicle related waste such as used motor oil, us\
ed batteries, brake pads, etc.
l When cleaning your car, use Volvo's own car care products, all of which \
have systematically been
adapted to the environment
PremAir®
On the surface of the radiator in the engine compartment, there is a spe\
cial coating called PremAir®.
PremAir® works as a catalytic converter, converting most of the ozone\
passing through the radiator into
oxygen, thereby reducing harmful ground-level ozone.
For additional information regarding the environmental activities in whi\
ch Volvo Cars of North
America, LLC. and Volvo Cars of Canada, Ltd. are involved, visit our Int\
ernet Home Page at:
http://www.volvocars.com
Top of Page
file:///K|/ownersdocs/2004/2004_XC70/04xc70_00.htm (6 of 6)12/30/2006 \
4:32:53 PM
Page 7 of 241
2004 VOLVO XC70
2 0 0 4
VOLVO XC70
Chapter 1 - Safety
pg. 1 Safety
Not wearing a seat belt is like believing "It'll never happen to me!" Vo\
lvo, the inventor of the three-point
seat belt, urges you and all adult occupants of your car to wear seat be\
lts and ensure that children are
properly restrained, using an infant, car or booster seat determined by \
age, weight and height. Volvo also
believes no child should sit in the front seat of a car.
Fact: In every state and province, some type of child-restraint legislation h\
as been passed. Additionally,
most states and provinces have already made it mandatory for occupants o\
f a car to use seat belts.
So, urging you to "buckle up" is not just our recommendation - legislati\
on in your state or province may
mandate seat belt usage. The few seconds it takes to buckle up may one d\
ay allow you to say, "It's a
good thing I was wearing my seat belt."
Seat belts2
Center head restraint 3
Front airbags (SRS) 4
Side impact airbags (SIPS) 8
Volvo Inflatable Curtain (VIC) 9
Whiplash Protection System (WHIPS) 10
Child safety 11
Occupant safety 17
Brake system 18
Anti-lock Brake System (ABS) 19
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01a.htm (1 of 17)12/30/200\
6 4:32:54 PM
Page 8 of 241
2004 VOLVO XC70
Stability Traction Control (STC) 20
Dynamic Stability Traction Control
(DSTC) 20
pg. 2 Seat belts
Seat belts
Always fasten the seat belts before you drive or ride. A chime will soun\
d several times if the
driver's seat belt is not fastened.
To buckle:
Pull the belt out far enough to insert the latch plate into the receptac\
le until a distinct click is heard. The
seat belt retractor is normally "unlocked" and you can move freely, prov\
ided that the shoulder belt is not
pulled out too far. The retractor will lock up as follows:
l if the belt is pulled out rapidly
l during braking and acceleration
l if the vehicle is leaning excessively
l when driving in turns
For the seat belt to provide maximum protection in the event of an accid\
ent, it must be worn correctly.
When wearing the seat belt remember:
l The belt should not be twisted or turned.
l The lap belt must be positioned low on the hips (not pressing against t\
he abdomen).
Make sure that the shoulder belt is rolled up into its retractor and tha\
t the shoulder and lap belts are taut.
The seat belts are equipped with tensioners that reduce slack in the sea\
t belts. These tensioners are
triggered in situations where the airbags deploy.
The front seat belts also include a tension reducing device which, in th\
e event of a collision, limits the
peak forces exerted by the seat belt on the occupant.
Before exiting the car, check that the seat belt retracts fully after be\
ing unbuckled. If necessary, guide
the belt back into the retractor slot.
NOTE: Legislation in your state or province may mandate seat belt usage.
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01a.htm (2 of 17)12/30/200\
6 4:32:54 PM
Page 9 of 241
2004 VOLVO XC70

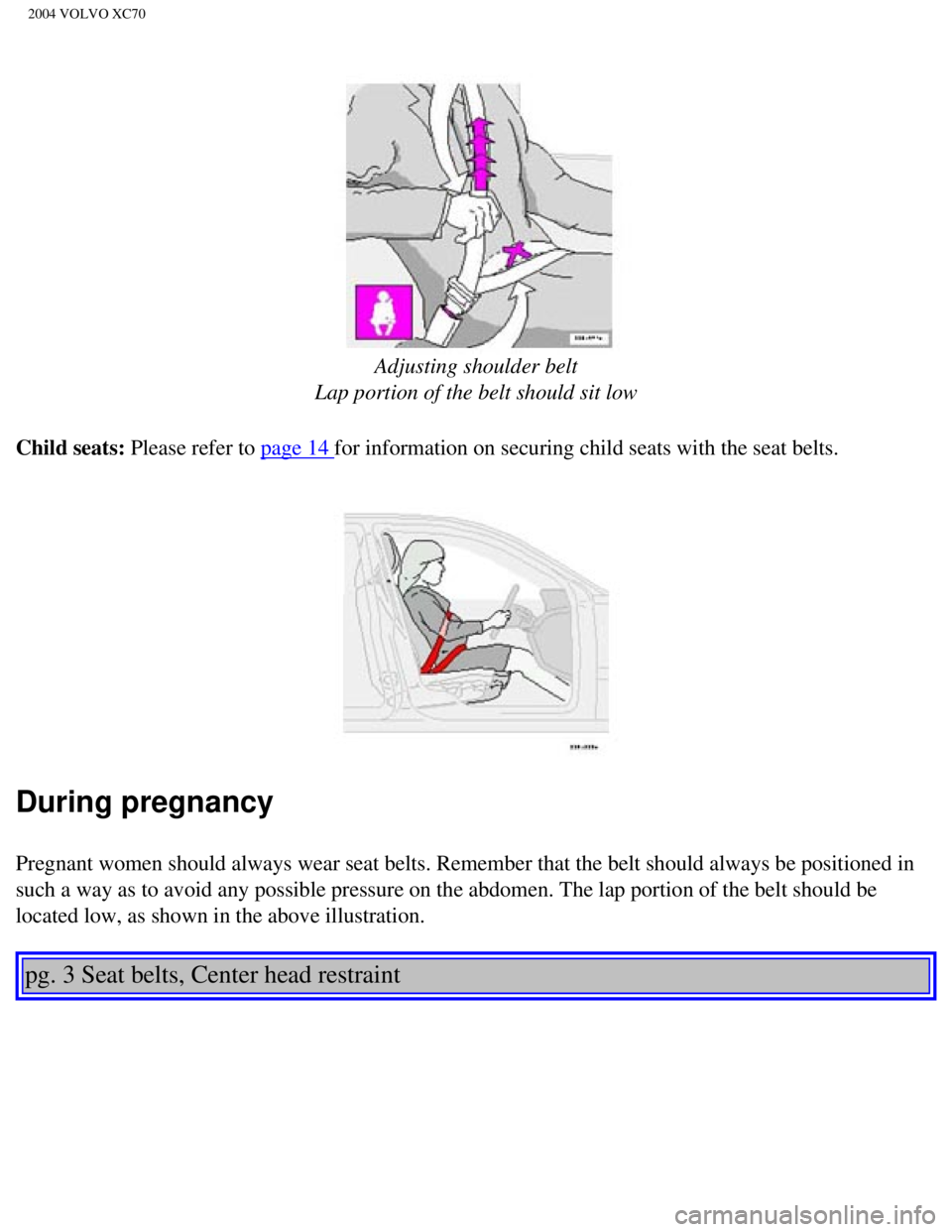

Adjusting shoulder belt
Lap portion of the belt should sit low
Child seats: Please refer to
page 14 for information on securing child seats with the seat belts.
During pregnancy
Pregnant women should always wear seat belts. Remember that the belt sho\
uld always be positioned in
such a way as to avoid any possible pressure on the abdomen. The lap por\
tion of the belt should be
located low, as shown in the above illustration.
pg. 3 Seat belts, Center head restraint
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01a.htm (3 of 17)12/30/200\
6 4:32:54 PM
Page 10 of 241
2004 VOLVO XC70

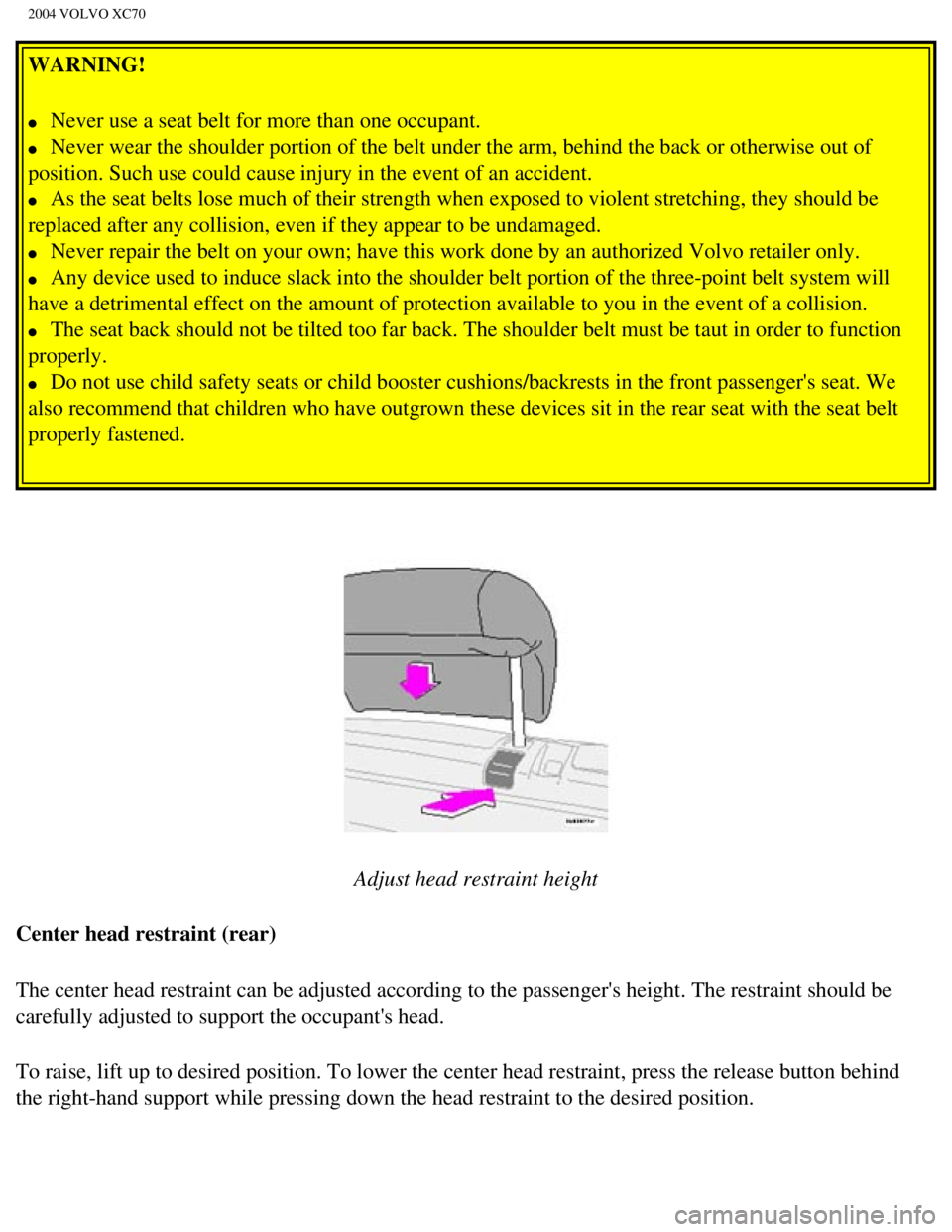

WARNING!
l Never use a seat belt for more than one occupant.
l Never wear the shoulder portion of the belt under the arm, behind the ba\
ck or otherwise out of
position. Such use could cause injury in the event of an accident.
l As the seat belts lose much of their strength when exposed to violent st\
retching, they should be
replaced after any collision, even if they appear to be undamaged.
l Never repair the belt on your own; have this work done by an authorized \
Volvo retailer only.
l Any device used to induce slack into the shoulder belt portion of the th\
ree-point belt system will
have a detrimental effect on the amount of protection available to you i\
n the event of a collision.
l The seat back should not be tilted too far back. The shoulder belt must \
be taut in order to function
properly.
l Do not use child safety seats or child booster cushions/backrests in the\
front passenger's seat. We
also recommend that children who have outgrown these devices sit in the \
rear seat with the seat belt
properly fastened.
Adjust head restraint height
Center head restraint (rear)
The center head restraint can be adjusted according to the passenger's h\
eight. The restraint should be
carefully adjusted to support the occupant's head.
To raise, lift up to desired position. To lower the center head restrain\
t, press the release button behind
the right-hand support while pressing down the head restraint to the des\
ired position.
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01a.htm (4 of 17)12/30/200\
6 4:32:54 PM
