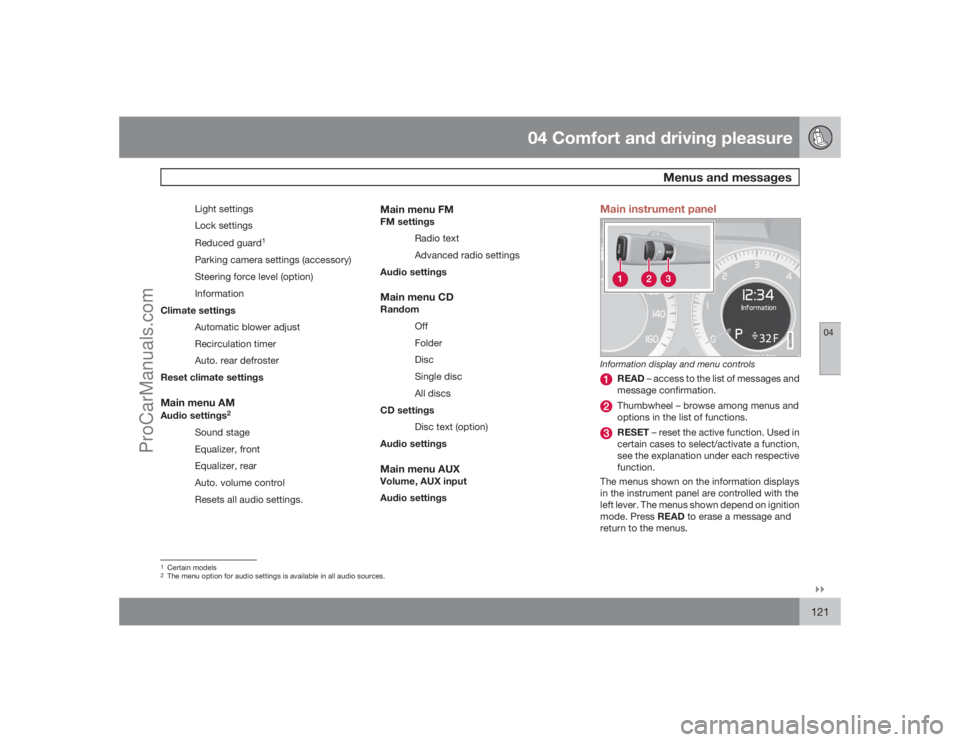

04 Comfort and driving pleasure
Menus and messages
04``121
Light settings
Lock settings
Reduced guard
1
Parking camera settings (accessory)
Steering force level (option)
Information
Climate settings
Automatic blower adjust
Recirculation timer
Auto. rear defroster
Reset climate settings
Main menu AMAudio settings
2
Sound stage
Equalizer, front
Equalizer, rear
Auto. volume control
Resets all audio settings.
Main menu FMFM settings
Radio text
Advanced radio settings
Audio settingsMain menu CDRandom
Off
Folder
Disc
Single disc
All discs
CD settings
Disc text (option)
Audio settingsMain menu AUXVolume, AUX input
Audio settings
Main instrument panel
G022908
Information display and menu controls
READ – access to the list of messages and
message confirmation.Thumbwheel – browse among menus and
options in the list of functions.RESET – reset the active function. Used in
certain cases to select/activate a function,
see the explanation under each respective
function.
The menus shown on the information displays
in the instrument panel are controlled with the
left lever. The menus shown depend on ignition
mode. Press READ to erase a message and
return to the menus.
1Certain models2The menu option for audio settings is available in all audio sources.
ProCarManuals.com

04 Comfort and driving pleasureMenus and messages
04122
Menu overviewDriving distance on current fuel reserve
Average
Instantaneous:
Average speed
Current speed in mph (Canadian models
only)
DSTCMessage
G028940
When a warning, information or indicator sym-
bol comes on, a corresponding message
appears on the information display. An error
message is stored in a memory list until the
fault is rectified.PressREAD to acknowledge and scroll among
the messages.
NOTE
If a warning message appears while you are
using the trip computer, the message must
be read and confirmed by pressing READ
before the previous activity can be
resumed.Message
Description
Stop safely
Stop and switch off
the engine. Serious
risk of damage.
Contact an author-
ized Volvo work-
shop.
Stopping the
engine
Stop and switch off
the engine. Serious
risk of damage.
Contact an author-
ized Volvo work-
shop.
Service urgent
Have the vehicle
checked by an
authorized Volvo
workshop immedi-
ately.
Message
Description
Service required
Have the vehicle
checked by an
authorized Volvo
workshop as soon
as possible.
See manual
Read the owner's
manual.
Book time for
maintenance
Time to book service
at an authorized
Volvo retailer.
Time for regular
maintenance
Time for regular
service at an author-
ized Volvo work-
shop. The timing is
determined by the
number of miles
driven, number of
months since the
last service, engine
running time.
ProCarManuals.com

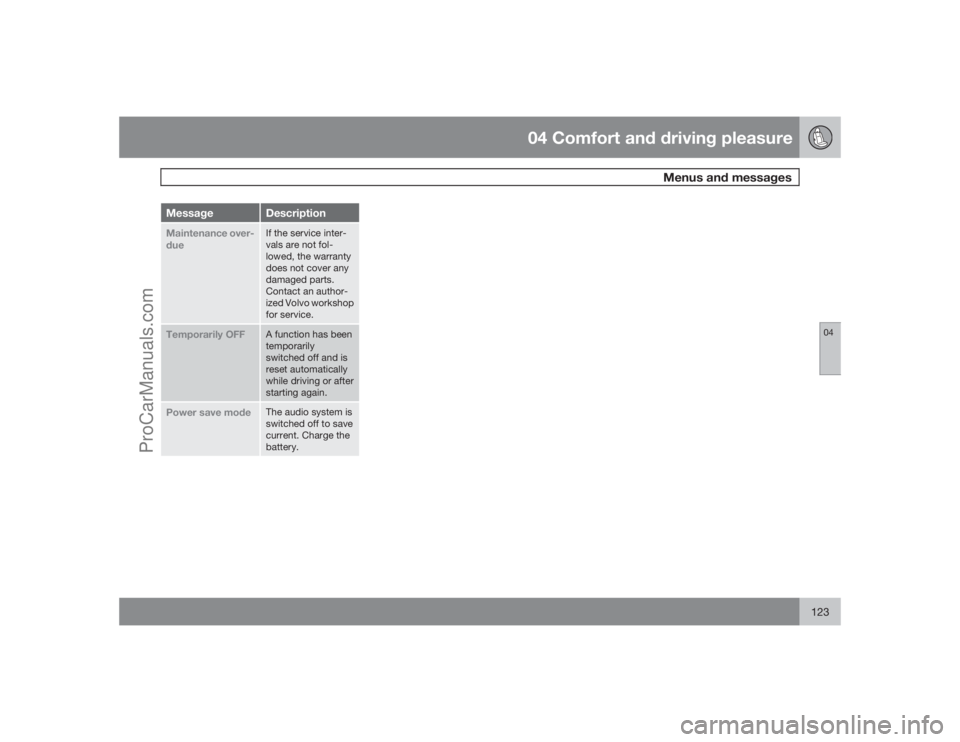

04 Comfort and driving pleasure
Menus and messages
04
123
Message
Description
Maintenance over-
due
If the service inter-
vals are not fol-
lowed, the warranty
does not cover any
damaged parts.
Contact an author-
ized Volvo workshop
for service.
Temporarily OFF
A function has been
temporarily
switched off and is
reset automatically
while driving or after
starting again.
Power save mode
The audio system is
switched off to save
current. Charge the
battery.
ProCarManuals.com

04 Comfort and driving pleasureClimate system
04124
IntroductionAir conditioningThe vehicle is equipped with Electronic Climate
Control (ECC). The climate control system
cools, heats or dehumidifies the air in the pas-
senger compartment.
NOTE
•
The air conditioning can be switched
off, but to ensure the best possible cli-
mate comfort in the passenger com-
partment and to prevent the windows
from misting, it should always be on.
•
In warm weather, a small amount of
water may accumulate under the car
when it has been parked. This water is
condensation from the A/C system and
is normal.
Sensor location•
The sunlight sensor is located on the top
side of the dashboard.
NOTE
The sunlight sensor monitors which side of
the car that is most exposed to sunlight.
This can mean that the temperature may
differ between the right and left-side air
vents, even if the temperatures set for both
sides of the passenger compartment are the
same.•
The temperature sensor for the passenger
compartment is located below the climate
control panel.
•
The outside temperature sensor is located
on the door mirror.
•
The humidity sensor (option) is located in
the interior rearview mirror.NOTE
Do not cover or block the sensors with
clothing or other objects.Side windows and moonroofTo ensure that the air conditioning works opti-
mally, the side windows, and the optional
moonroof should be closed.Fog on the inside of the windowsThe defroster function should be used to
remove fog or mist from the inside of the win-
dows. Keeping the windows clean with a com-mercially available window washing spray will
also help prevent fogging or misting.
Temporary shut-off of the air
conditioningThe air conditioning is momentarily disen-
gaged during full-throttle acceleration or when
driving uphill with a trailer. This may result in a
temporary increase in cabin temperature.Ice and snowAlways keep the air intake grille at the base of
the windshield free of snow.Climate system maintenanceSpecial tools and equipment are required to
maintain and carry out repairs on the climate
system. Work of this type should only be done
by a trained and qualified Volvo service tech-
nician.RefrigerantVolvo cares about the environment. The air
conditioning system in your car contains a
CFC-free refrigerant – R134a. This substance
will not deplete the ozone layer. The air condi-
tioning system contains 1.8 lbs (800 g) of
R134a. The systems uses PAG oil.Passenger compartment filterReplace the cabin air filter with a new one at
the recommended intervals. Please refer to
ProCarManuals.com

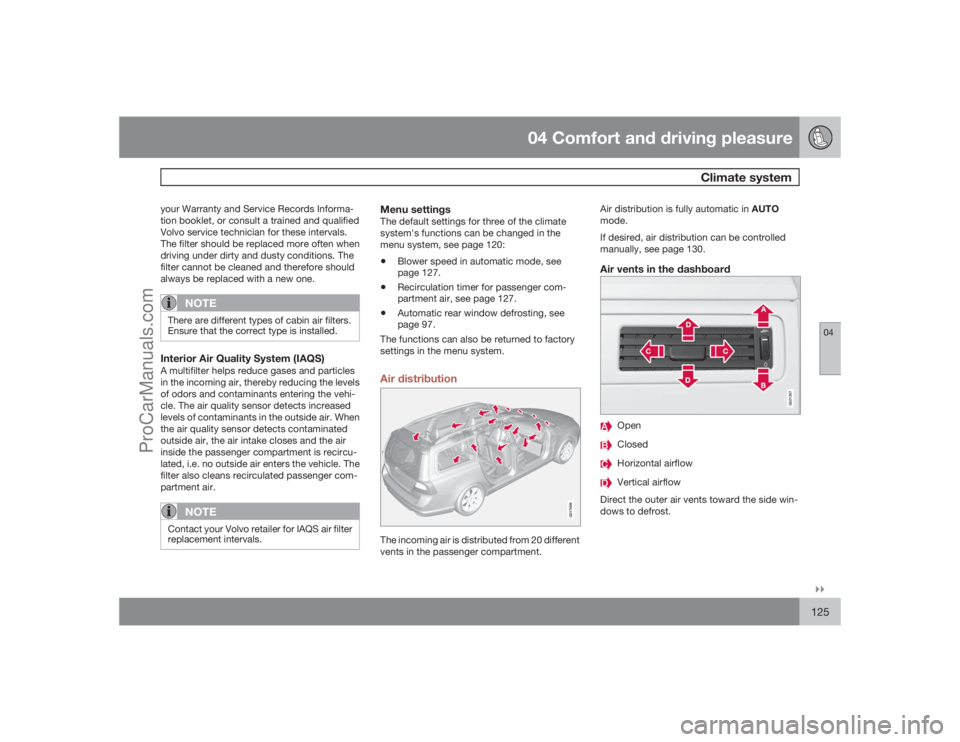

04 Comfort and driving pleasure
Climate system
04``125
your Warranty and Service Records Informa-
tion booklet, or consult a trained and qualified
Volvo service technician for these intervals.
The filter should be replaced more often when
driving under dirty and dusty conditions. The
filter cannot be cleaned and therefore should
always be replaced with a new one.
NOTE
There are different types of cabin air filters.
Ensure that the correct type is installed.Interior Air Quality System (IAQS)A multifilter helps reduce gases and particles
in the incoming air, thereby reducing the levels
of odors and contaminants entering the vehi-
cle. The air quality sensor detects increased
levels of contaminants in the outside air. When
the air quality sensor detects contaminated
outside air, the air intake closes and the air
inside the passenger compartment is recircu-
lated, i.e. no outside air enters the vehicle. The
filter also cleans recirculated passenger com-
partment air.
NOTE
Contact your Volvo retailer for IAQS air filter
replacement intervals.
Menu settingsThe default settings for three of the climate
system's functions can be changed in the
menu system, see page 120:•
Blower speed in automatic mode, see
page 127.
•
Recirculation timer for passenger com-
partment air, see page 127.
•
Automatic rear window defrosting, see
page 97.
The functions can also be returned to factory
settings in the menu system.
Air distribution
G017699
The incoming air is distributed from 20 different
vents in the passenger compartment.Air distribution is fully automatic in AUTO
mode.
If desired, air distribution can be controlled
manually, see page 130.
Air vents in the dashboard
G021367
OpenClosedHorizontal airflowVertical airflow
Direct the outer air vents toward the side win-
dows to defrost.
ProCarManuals.com

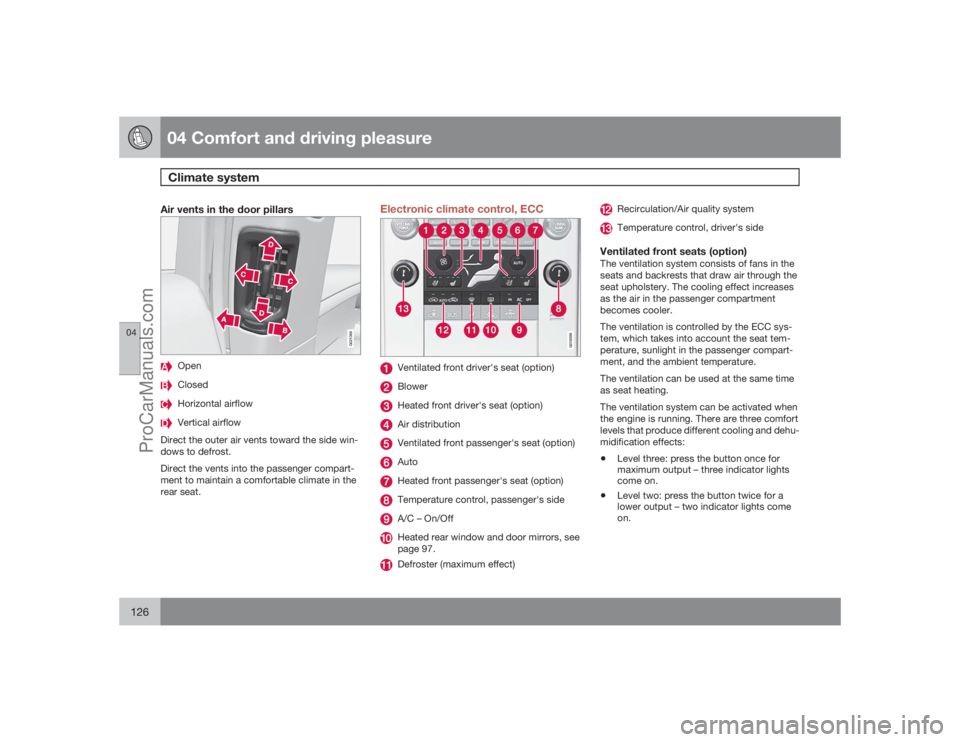

04 Comfort and driving pleasureClimate system
04126
Air vents in the door pillars
G021368
OpenClosedHorizontal airflowVertical airflow
Direct the outer air vents toward the side win-
dows to defrost.
Direct the vents into the passenger compart-
ment to maintain a comfortable climate in the
rear seat.
Electronic climate control, ECC
G018599
Ventilated front driver's seat (option)BlowerHeated front driver's seat (option)Air distributionVentilated front passenger's seat (option)AutoHeated front passenger's seat (option)Temperature control, passenger's sideA/C – On/OffHeated rear window and door mirrors, see
page 97.Defroster (maximum effect)
Recirculation/Air quality systemTemperature control, driver's side
Ventilated front seats (option)The ventilation system consists of fans in the
seats and backrests that draw air through the
seat upholstery. The cooling effect increases
as the air in the passenger compartment
becomes cooler.
The ventilation is controlled by the ECC sys-
tem, which takes into account the seat tem-
perature, sunlight in the passenger compart-
ment, and the ambient temperature.
The ventilation can be used at the same time
as seat heating.
The ventilation system can be activated when
the engine is running. There are three comfort
levels that produce different cooling and dehu-
midification effects:•
Level three: press the button once for
maximum output – three indicator lights
come on.
•
Level two: press the button twice for a
lower output – two indicator lights come
on.
ProCarManuals.com

04 Comfort and driving pleasure
Climate system
04``127
•
Level one: press the button three times for
the lowest output – one indicator light
comes on.
•
Press the button a fourth time to switch off
the function – the indicator light will go out.
Blower control
Turn the control clockwise to
increase or counterclockwise
to decrease the blower
speed. Pressing the AUTO
switch will automatically reg-
ulate blower speed and over-
ride manual adjustment.
NOTE
If the blower is turned off completely, the air
conditioning is disengaged, which may
result in fogging on the windows.Heated front seats (option)
Press the button once for the
highest heat level – three indi-
cator lights come on.
Press the button twice for a
lower heat level – two indica-
tor lights come on.
Press the button three times for the lowest heat
level – one indicator light comes on.
Press the button four times to switch off the
heat – no indicator lights come on.Heated rear seats
1
G021376
Heat control for the outboard seating positions
takes place in the same way as for the front
seat.Air distribution
The figure consists of three
buttons. When the buttons
are pressed, an indicator light
in front of the respective part
of the figure illuminates and
shows which air distribution is
selected, see page 130.
Auto
The function automatically
regulates cooling, heating,
blower speed, recirculation,
and air distribution to main-
tain the chosen temperature.
If you select one or more man-
ual functions, the other func-
tions continue to be controlled automatically.
The air quality sensor is engaged and all man-
ual settings are switched off when AUTO is
pressed. The display shows
AUTO
CLIMATE
.
Blower speed in automatic mode can be set
underClimate settings
Automatic blower
adjust. Choose between Low
,Normal
or
High
.NOTE
Selecting the lowest blower speed may
increases the risk of fog forming on the win-
dows.For a description of the menu system, see
page 120.
1Option on Canadian models only.
ProCarManuals.com

04 Comfort and driving pleasureClimate system
04128
Temperature control
The temperatures on the
driver and passenger sides
can be set independently.
When the vehicle is started,
the most recent setting is
resumed.
NOTE
Heating or cooling cannot be speeded up by
selecting a higher/lower temperature than
the actual temperature required.A/C – ON/OFF
The air conditioning is con-
trolled automatically by the
system when the ON light is
on. This cools/heats and
dehumidifies the incoming air.
When the OFF light is on, the
air conditioning is always dis-
engaged. Other functions are still controlled
automatically. When defroster is selected, the
air conditioning system is set for maximum
blower speed and dehumidification.
Defroster
This function defrosts/de-ices
the windshield and front side
windows. The indicator light
in the defroster button lights
when the function is active.
•
Blower speed increases automatically and
the air conditioning will switch on (if not
already on and if the passenger compart-
ment blower is not turned off) to dehumid-
ify the air in the passenger compartment.
Air conditioning can be switched off by
pressing the AC button.
•
Recirculation will not function while defrost
is engaged.
The climate system will return to its previous
settings when the defroster function is
switched off.
Recirculation/air quality system
Recirculation
This function can be used to
shut out exhaust fumes,
smoke, etc from the passen-
ger compartment. The air in
the passenger compartment
is then recirculated, i.e., no air
from outside the car is taken
into the car when this function is activated. The
indicator light in the button will illuminate when
recirculation is selected.
If the air in the car recirculates for too long,
there is a risk of condensation forming on the
insides of the windows, especially in winter.
TimerThe timer function minimizes the risk of fog-
ging, or stale air when the recirculation function
is selected by automatically switching off the
function after a certain length of time, depend-
ing on the ambient temperature. Activate/
deactivate the function under Climate control
settings
Recirculation timer. For a
description of the menu system, see
page 120.
NOTE
When Defroster is selected, recirculation is
always deactivated.
ProCarManuals.com

04 Comfort and driving pleasure
Climate system
04``129
Interior Air Quality System–IAQS (option)
This system consists of a mul-
tifilter and an air quality sen-
sor. The filter helps remove
gases and particles from the
incoming air, thereby reduc-
ing the amounts of odors and
contaminants entering the
vehicle. The air quality sensor detects
increased levels of contaminants in the outside
air. When the air quality sensor detects conta-
minated outside air, the air intake closes and
the air inside the passenger compartment is
recirculated, i.e., no outside air enters the vehi-
cle. The filter also cleans recirculated passen-
ger compartment air. When the AUTO button
is depressed the air quality sensor is always
engaged.
Activating the air quality sensor
Switch between the three
functions by pressing the but-
ton repeatedly.
•
The left orange light comes on – the air
quality sensor is disengaged.
•
The center green light comes on – recircu-
lation not engaged, providing it is not
required for cooling in hot weather.
•
The right orange light comes on – recircu-
lation is engaged.
NOTE
•
The air quality sensor should always be
engaged in order to obtain the best air
in the passenger compartment.
•
Recirculation is limited in cold weather
to avoid fogging.
•
If the insides of the windows start fog-
ging, disengage the air quality sensor.
Use the defroster function to increase
airflow to the front, side, and rear win-
dows.
ProCarManuals.com

04 Comfort and driving pleasureClimate system
04130

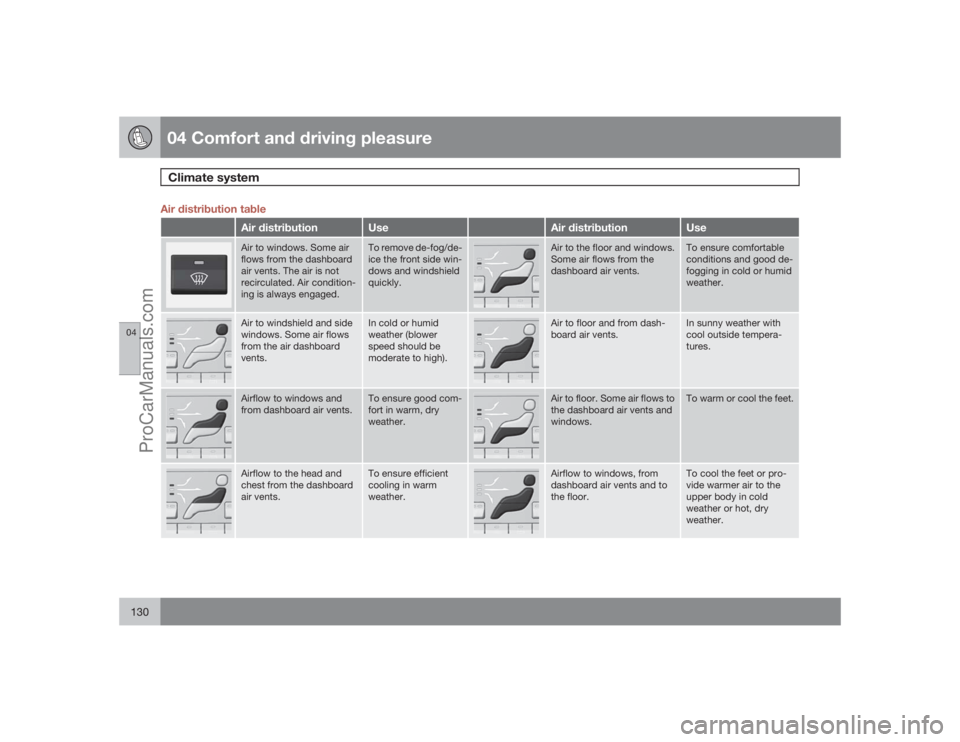

Air distribution table
Air distribution
Use
Air distribution
Use
Air to windows. Some air
flows from the dashboard
air vents. The air is not
recirculated. Air condition-
ing is always engaged.
To remove de-fog/de-
ice the front side win-
dows and windshield
quickly.
Air to the floor and windows.
Some air flows from the
dashboard air vents.
To ensure comfortable
conditions and good de-
fogging in cold or humid
weather.
Air to windshield and side
windows. Some air flows
from the air dashboard
vents.
In cold or humid
weather (blower
speed should be
moderate to high).
Air to floor and from dash-
board air vents.
In sunny weather with
cool outside tempera-
tures.
Airflow to windows and
from dashboard air vents.
To ensure good com-
fort in warm, dry
weather.
Air to floor. Some air flows to
the dashboard air vents and
windows.
To warm or cool the feet.
Airflow to the head and
chest from the dashboard
air vents.
To ensure efficient
cooling in warm
weather.
Airflow to windows, from
dashboard air vents and to
the floor.
To cool the feet or pro-
vide warmer air to the
upper body in cold
weather or hot, dry
weather.
ProCarManuals.com
