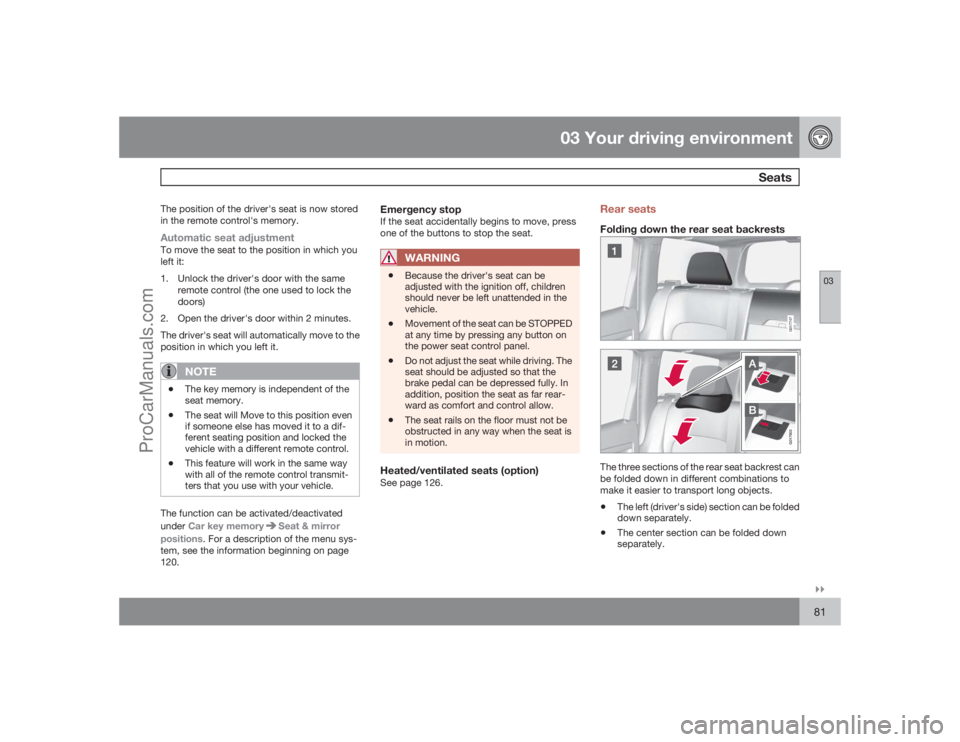

03 Your driving environment
Seats
03``81
The position of the driver's seat is now stored
in the remote control's memory.Automatic seat adjustmentTo move the seat to the position in which you
left it:
1. Unlock the driver's door with the same
remote control (the one used to lock the
doors)
2. Open the driver's door within 2 minutes.
The driver's seat will automatically move to the
position in which you left it.
NOTE
•
The key memory is independent of the
seat memory.
•
The seat will Move to this position even
if someone else has moved it to a dif-
ferent seating position and locked the
vehicle with a different remote control.
•
This feature will work in the same way
with all of the remote control transmit-
ters that you use with your vehicle.
The function can be activated/deactivated
underCar key memory
Seat & mirror
positions. For a description of the menu sys-
tem, see the information beginning on page
120.
Emergency stopIf the seat accidentally begins to move, press
one of the buttons to stop the seat.
WARNING
•
Because the driver's seat can be
adjusted with the ignition off, children
should never be left unattended in the
vehicle.
•
Movement of the seat can be STOPPED
at any time by pressing any button on
the power seat control panel.
•
Do not adjust the seat while driving. The
seat should be adjusted so that the
brake pedal can be depressed fully. In
addition, position the seat as far rear-
ward as comfort and control allow.
•
The seat rails on the floor must not be
obstructed in any way when the seat is
in motion.
Heated/ventilated seats (option)See page 126.
Rear seatsFolding down the rear seat backrests
G017747G017903
The three sections of the rear seat backrest can
be folded down in different combinations to
make it easier to transport long objects.•
The left (driver's side) section can be folded
down separately.
•
The center section can be folded down
separately.
ProCarManuals.com

03 Your driving environmentSeats
0382
•
The right (passenger's side) section can be
folded down together with the center sec-
tion.
•
All three sections can be folded down
together.Release and lower the center head
restraint (see page 82) if the center and/
or right section of the backrest is to be
lowered. The outboard head restraints fold
down automatically.Pull up the backrest release control on the
respective section(s) and fold the sec-
tion(s) down.NOTE
It may be necessary to move the front seats
forward or put their backrests in a more
upright position before folding down the
rear seat backrests.
WARNING
•
When the backrest(s) are returned to the
upright position, check that it is properly
locked in place. The red indicators
should not be visible.
•
Return the outboard head restraints to
the upright position.
•
Long loads should always be securely
anchored to help avoid injury in the
event of a sudden stop.
•
Always turn the engine off and apply the
parking brake when loading/unloading
the vehicle.
•
Place the transmission in the Park (P)
position to help prevent inadvertent
movement of the gear selector.
•
On hot days, the temperature in the
vehicle interior can rise very quickly.
Exposure of people to these high tem-
peratures for even a short period of time
can cause heat-related injury or death.
Small children are particularly at risk.
Rear center head restraint
G017624
The center head restraint should be adjusted
according to the passenger's height. The
restraint should be carefully adjusted to sup-
port the occupant's head.•
Pull the head restraint up as required.
•
To lower, press and hold the button
(located at the center, between the back-
rest and the head restraint) while pressing
the head restrain down.WARNING
The center rear seat head restraint should
only be in its lowest position when this seat
is NOT occupied. When the center position
is occupied, the head restraint should be
correctly adjusted to the passenger’s
height.
ProCarManuals.com

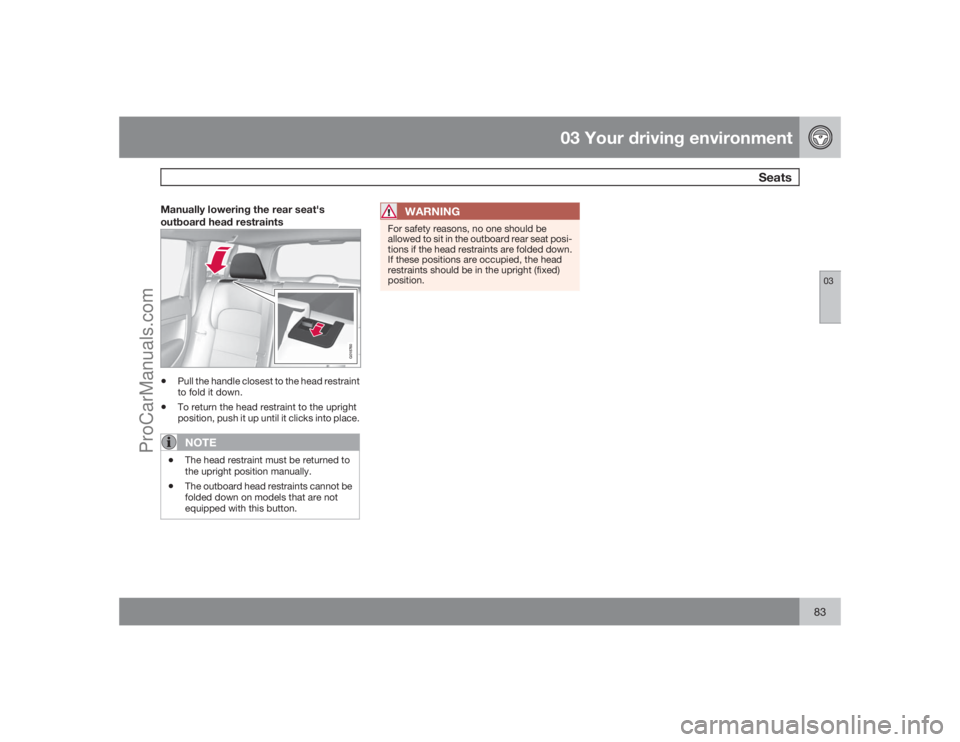

03 Your driving environment
Seats
0383
Manually lowering the rear seat's
outboard head restraints
G018760
•
Pull the handle closest to the head restraint
to fold it down.
•
To return the head restraint to the upright
position, push it up until it clicks into place.NOTE
•
The head restraint must be returned to
the upright position manually.
•
The outboard head restraints cannot be
folded down on models that are not
equipped with this button.
WARNING
For safety reasons, no one should be
allowed to sit in the outboard rear seat posi-
tions if the head restraints are folded down.
If these positions are occupied, the head
restraints should be in the upright (fixed)
position.
ProCarManuals.com

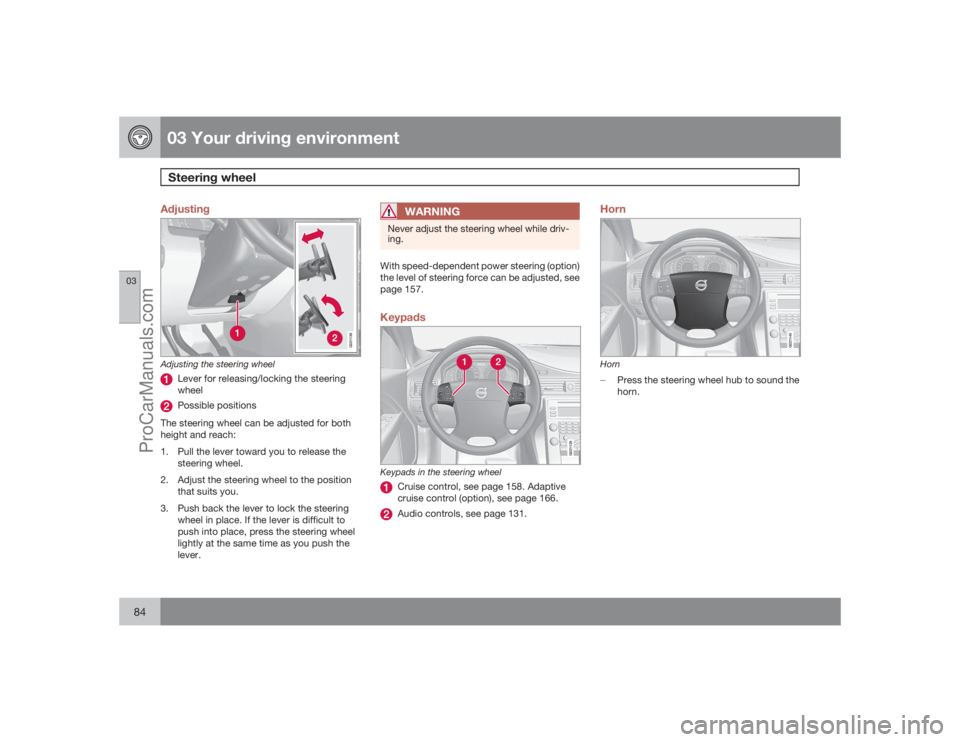

03 Your driving environmentSteering wheel
0384
Adjusting
G021138
Adjusting the steering wheel
Lever for releasing/locking the steering
wheelPossible positions
The steering wheel can be adjusted for both
height and reach:
1. Pull the lever toward you to release the
steering wheel.
2. Adjust the steering wheel to the position
that suits you.
3. Push back the lever to lock the steering
wheel in place. If the lever is difficult to
push into place, press the steering wheel
lightly at the same time as you push the
lever.
WARNING
Never adjust the steering wheel while driv-
ing.With speed-dependent power steering (option)
the level of steering force can be adjusted, see
page 157.Keypads
G021139
Keypads in the steering wheel
Cruise control, see page 158. Adaptive
cruise control (option), see page 166.Audio controls, see page 131.
Horn
G021140
Horn±
Press the steering wheel hub to sound the
horn.
ProCarManuals.com

03 Your driving environment
Lighting
03``85 Lighting panel
G022854
Overview, light switches
Thumb wheel for adjusting display and
instrument lightingRear fog lightFront fog lightsHeadlights/parking lights
Instrument lightingIllumination of the display and instrument lights
will vary, depending on ignition mode.
The display lighting is automatically subdued
in darkness and the sensitivity is set with the
thumb wheel.
The intensity of the instrument lighting is
adjusted with the thumb wheel.
High/low beam headlights
21
G022855
Headlight switch and lever
Daytime running lights/no
high beamsParking lightsLow beams
Low beamsWhen the engine is started, the low beams are
activated automatically (daytime running lights)
if the headlight control is in position 0 or
.Daytime running lights can be deactivated by
a trained and qualified Volvo service techni-
cian.
NOTE
•
The use of daytime running lights is
mandatory in Canada.
•
Continuous high beams cannot be acti-
vated when the headlight switch is in
position
or
. High beam
flash will function in these positions.
High beam flash±
Move the lever toward the steering wheel
to position
. The high beams come on
until the lever is released.
High/low beam headlights
Continuous high beams1.
Set the ignition to mode II.
2.
With the light switch in position
,
pull the turn signal lever toward the steer-
ing wheel to position
to toggle between
high and low beams (this also applies on
models equipped with the optional Active
Bi-XenonŸ headlights).
ProCarManuals.com

03 Your driving environmentLighting
0386
>
The symbol
illuminates in the
instrument panel to indicate that the
high beams are on.
Active Bi-Xenon LightsŸ (ABL)–option
G021143
Headlight pattern with ABL deactivated (left) and
activated (right) respectivelyWhen the ABL function is activated, the head-
light beams adjust laterally to help light up a
curve according to movements of the steering
wheel (see the right-pointing beam in the illus-
tration).
This function is activated automatically when
the engine is started and can be deactivated/
reactivated by pressing the ABL button
in the center console. This buttonlights up when the ABL function is activated,
and will flash if there is a fault in the system.
NOTE
This function is only active in twilight or dark
conditions, and only when the vehicle is in
motion.Parking lights
G022907
Headlight control in position for parking lightsThe front and rear parking lights can be turned
on even when the ignition is switched off.
Turn the headlight control to the center posi-
tion (the license plate lighting comes on at the
same time).The lighting also comes on when the tailgate is
opened in order to alert anyone traveling
behind your vehicle.
Brake lightsThe brake lights come on automatically when
the brakes are applied.Emergency brake lights (EBL)Emergency Brake Lights, EBL, activate in the
event of sudden braking or if the ABS system
is activated. This function causes an additional
taillight on each side of the vehicle to illuminate
to help alert vehicles traveling behind.
The EBL function activates if:•
The ABS system activates for more than
approximately a half second
•
In the event of sudden braking while the
vehicle is moving at speeds above approx-
imately 6 mph (10 km/h)
When the vehicle has come to a stop, the brake
lights and additional taillights remain on for as
long as the brake pedal is depressed or until
braking force on the vehicle is reduced.
ProCarManuals.com

03 Your driving environment
Lighting
03``87 Front fog lights
G014402
Button for front fog lightsThe front fog lights can be switched on
together with high/low beams or the parking
lights.
±
Press the button to switch the fog lights on/
off. The light in the button comes on when
the fog lights are on.
NOTE
Regulations regarding the use of the front
fog lights may vary, depending on where
you drive.
Rear fog light
G014403
Button for rear fog lightThe single rear fog light is located in the driver's
side taillight cluster. The rear fog light will only
function in combination with the high/low
beam headlights or the optional front fog lights.
±
Press the button to switch the rear fog light
on/off.
> The rear fog light indicator symbol
on the instrument panel and the
light in the button come on when the
rear fog light is switched on.
NOTE
The rear fog light is considerably brighter
than the normal tail lights and should be
used only when conditions such as fog, rain,
snow, smoke or dust reduce visibility for
other vehicles to less than 500 ft.
(150 meters).Hazard warning flashers
G018707
Location of the hazard warning flasher buttonThe hazard warning flasher should be used to
indicate that the vehicle has become a traffic
hazard.
±
To activate the flashers, press the button
in the center dash. Press the button again
to turn off the flashers.
ProCarManuals.com

03 Your driving environmentLighting
0388
NOTE
•
Regulations regarding the use of the
hazard warning flasher may vary,
depending on where you live.
•
The hazard warning flashers will be acti-
vated automatically if an airbag
deploys.
Turn signals
2121
G023315
Turn signalsWhen changing lanes The driver can automatically flash the turn
signals 3 times by moving the turn signal lever
up or down to the first position and releasing it.
When turning Move the lever as far up or down as possi-
ble to start the turn signals. The turn signals will
be cancelled automatically by the movement of
the steering wheel, or the lever can be returned
to its initial position by hand.
NOTE
•
This automatic flashing sequence can
be interrupted by immediately moving
the lever in the opposite direction.
•
If the turn signal indicator flashes faster
than normal, check for a burned-out
turn signal bulb.
Interior lighting, front
G021149
Light switches, front roof lighting
Drivers side front reading light, on/offPassenger's side front reading light, on/offOverhead courtesy lighting.
The lighting in the front part of the passenger
compartment is controlled with the buttons (1)
and (2) in the roof console.
Switch (3) has three positions for all passenger
compartment lighting:
•
Off – right side depressed, automatic light-
ing off.
•
Neutral position.
•
On – left side depressed, passenger com-
partment lighting on.
ProCarManuals.com

03 Your driving environment
Lighting
03``89 Interior lighting, rear
G021150
Rear reading lightsThe lights are switched on or off by pressing
each respective button.Courtesy lights/door step lighting
(option)The courtesy lights/door step lighting switch
on/off automatically when one of the front
doors is opened/closed.Glove compartment lightingThe glove compartment lighting switches on/
off automatically when the lid is opened/
closed.
Overhead courtesy lightingThe passenger compartment lighting is
switched on and off automatically when button
(3) is in the neutral position.
The lighting comes on and remains on for
30 seconds if:•
the vehicle is unlocked from the outside
with the key or remote control
•
the engine is switched off and the ignition
is in mode 0.
The lighting switches off when:
•
the engine is started
•
the vehicle is locked from the outside.
The lighting comes on and remains on for two
minutes if one of the doors is open.
The passenger compartment lighting can be
switched on and off manually within 30 minutes
after the vehicle has been unlocked.
If the lighting is switched on manually and the
vehicle is locked, the courtesy lighting will
switch off automatically after one minute.
Home safe lightingWhen you leave your vehicle at night, you can
make use of the home safe lighting function to
illuminate the area in front of the vehicle.
1. Remove the key from the ignition slot.
2. Pull the direction indicator lever as far as
possible towards the steering wheel and
release it.
3. Exit the vehicle and lock the doors.
The headlights, parking lights, turn signals,
lights in the door mirrors, license plate lights,
and footwell lighting will illuminate and remain
on for 30
1, 60 or 90 seconds. The time interval
can be set under Car settings
Light
settings
Home safe lighting. For a
description of the menu system, see
page 120.
Approach lightingApproach lighting is activated by pressing the
approach light button on the remote key (see
the illustration on page 54).
When the function has been activated, the
parking lights, indicator lights, door mirror
lights, license plate lighting, dome lighting and
door step lighting come on.
1Factory setting
ProCarManuals.com

03 Your driving environmentLighting
0390
The time interval for this lighting can be set
underCar settings
Light settings
Approach lighting. For a description of the
menu system, see page 120.
ProCarManuals.com
