05 During your trip
Refueling
05
201
CAUTION
•
Do not refuel with the engine running
1.
Turn the ignition off or to position I. If the
ignition is on, an incorrect reading could
occur in the fuel gauge.
•
Avoid overfilling the fuel tank. Do not
press the handle on the filler nozzle
more than one extra time. Too much
fuel in the tank in hot weather conditions
can cause the fuel to overflow. Overfill-
ing could also cause damage to the
emission control systems.
Emission controlsThree-way catalytic converter•
Keep your engine properly tuned. Certain
engine malfunctions, particularly involving
the electrical, fuel or distributor ignition
systems, may cause unusually high three-
way catalytic converter temperatures. Do
not continue to operate your vehicle if you
detect engine misfire, noticeable loss of
power or other unusual operating condi-
tions, such as engine overheating or back-
firing. A properly tuned engine will helpavoid malfunctions that could damage the
three-way catalytic converter.
•
Do not park your vehicle over combustible
materials, such as grass or leaves, which
can come into contact with the hot exhaust
system and cause such materials to ignite
under certain wind and weather condi-
tions.
•
Excessive starter cranking (in excess of
one minute), or an intermittently firing or
flooded engine can cause three-way cata-
lytic converter or exhaust system over-
heating.
•
Remember that tampering or unauthorized
modifications to the engine, the Engine
Control Module, or the vehicle may be ille-
gal and can cause three-way catalytic con-
verter or exhaust system overheating. This
includes: altering fuel injection settings or
components, altering emission system
components or location or removing com-
ponents, and/or repeated use of leaded
fuel.NOTE
Unleaded fuel is required for vehicles with
three-way catalytic converters.
Heated oxygen sensorsThe heated oxygen sensors monitor the oxy-
gen content of the exhaust gases. Readings
are fed into a control module that continuously
monitors engine functions and controls fuel
injection. The ratio of fuel to air into the engine
is continuously adjusted for efficient combus-
tion to help reduce harmful emissions.
1If the fuel filler cap is not closed tightly or if the engine is running when the vehicle is refueled, the Check Engine Light (malfunction indicator lamp) may indicate a fault. However, your vehicle's
performance will not be affected. Use only Volvo original or approved fuel filler caps.
ProCarManuals.com
Page 202 of 286

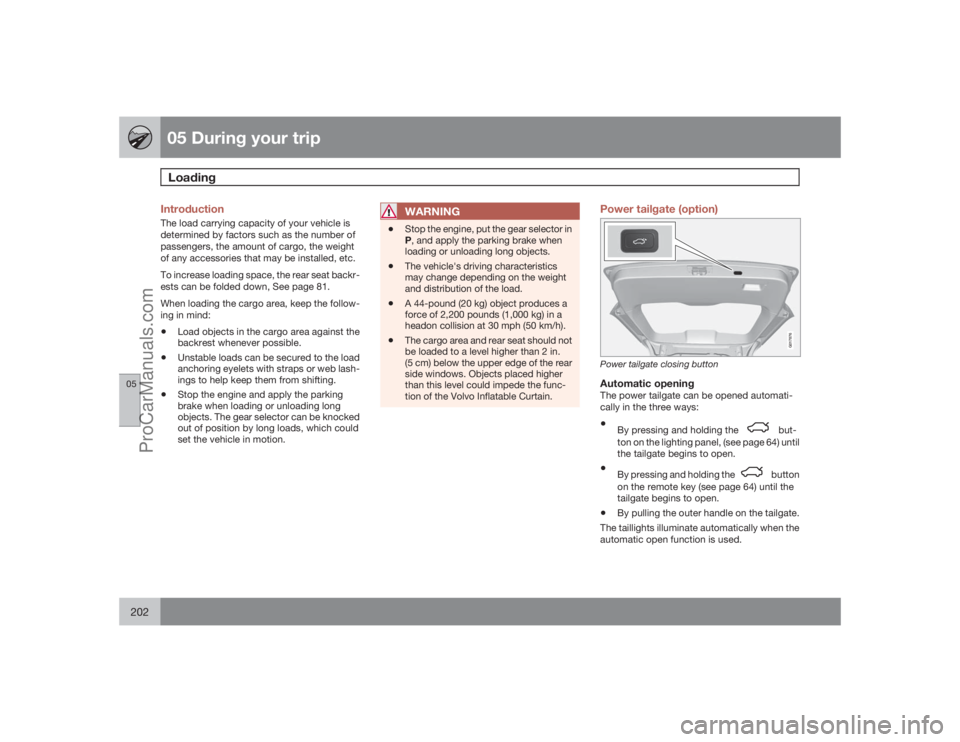

05 During your tripLoading
05202
IntroductionThe load carrying capacity of your vehicle is
determined by factors such as the number of
passengers, the amount of cargo, the weight
of any accessories that may be installed, etc.
To increase loading space, the rear seat backr-
ests can be folded down, See page 81.
When loading the cargo area, keep the follow-
ing in mind:•
Load objects in the cargo area against the
backrest whenever possible.
•
Unstable loads can be secured to the load
anchoring eyelets with straps or web lash-
ings to help keep them from shifting.
•
Stop the engine and apply the parking
brake when loading or unloading long
objects. The gear selector can be knocked
out of position by long loads, which could
set the vehicle in motion.
WARNING
•
Stop the engine, put the gear selector in
P, and apply the parking brake when
loading or unloading long objects.
•
The vehicle's driving characteristics
may change depending on the weight
and distribution of the load.
•
A 44-pound (20 kg) object produces a
force of 2,200 pounds (1,000 kg) in a
headon collision at 30 mph (50 km/h).
•
The cargo area and rear seat should not
be loaded to a level higher than 2 in.
(5 cm) below the upper edge of the rear
side windows. Objects placed higher
than this level could impede the func-
tion of the Volvo Inflatable Curtain.
Power tailgate (option)
G017876
Power tailgate closing buttonAutomatic openingThe power tailgate can be opened automati-
cally in the three ways:•
By pressing and holding the
but-
ton on the lighting panel, (see page 64) until
the tailgate begins to open.
•
By pressing and holding the
button
on the remote key (see page 64) until the
tailgate begins to open.
•
By pulling the outer handle on the tailgate.
The taillights illuminate automatically when the
automatic open function is used.
ProCarManuals.com
Page 203 of 286

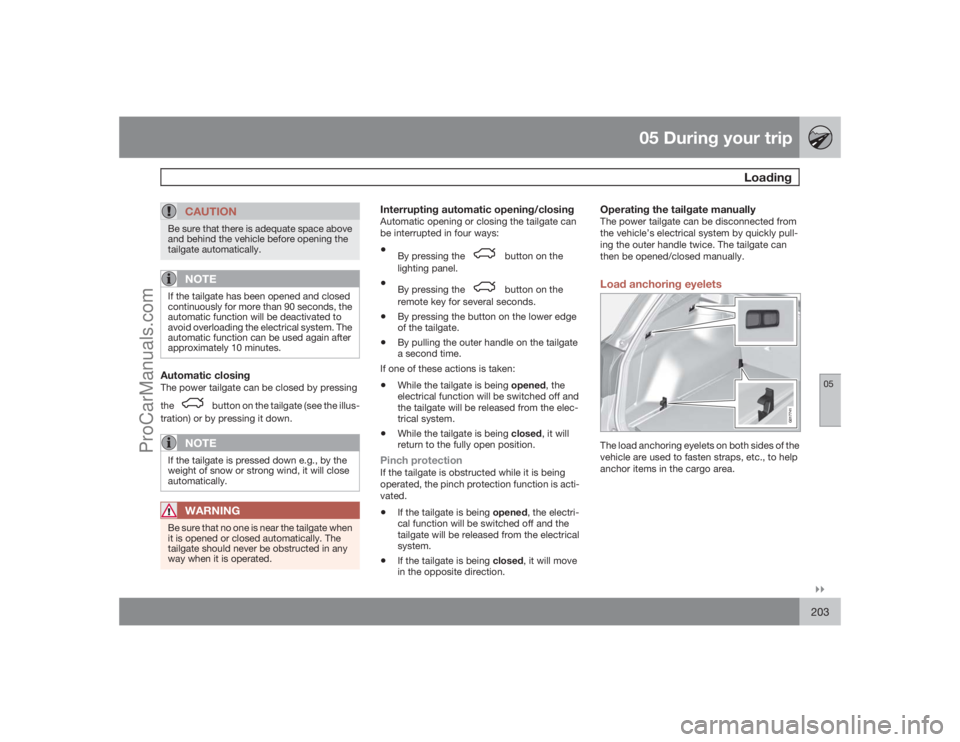

05 During your trip
Loading
05 ` `203
CAUTION
Be sure that there is adequate space above
and behind the vehicle before opening the
tailgate automatically.
NOTE
If the tailgate has been opened and closed
continuously for more than 90 seconds, the
automatic function will be deactivated to
avoid overloading the electrical system. The
automatic function can be used again after
approximately 10 minutes.Automatic closingThe power tailgate can be closed by pressing
the
button on the tailgate (see the illus-
tration) or by pressing it down.
NOTE
If the tailgate is pressed down e.g., by the
weight of snow or strong wind, it will close
automatically.
WARNING
Be sure that no one is near the tailgate when
it is opened or closed automatically. The
tailgate should never be obstructed in any
way when it is operated.
Interrupting automatic opening/closingAutomatic opening or closing the tailgate can
be interrupted in four ways:•
By pressing the
button on the
lighting panel.
•
By pressing the
button on the
remote key for several seconds.
•
By pressing the button on the lower edge
of the tailgate.
•
By pulling the outer handle on the tailgate
a second time.
If one of these actions is taken:
•
While the tailgate is being opened, the
electrical function will be switched off and
the tailgate will be released from the elec-
trical system.
•
While the tailgate is being closed, it will
return to the fully open position.
Pinch protectionIf the tailgate is obstructed while it is being
operated, the pinch protection function is acti-
vated.•
If the tailgate is being opened, the electri-
cal function will be switched off and the
tailgate will be released from the electrical
system.
•
If the tailgate is being closed, it will move
in the opposite direction.
Operating the tailgate manuallyThe power tailgate can be disconnected from
the vehicle’s electrical system by quickly pull-
ing the outer handle twice. The tailgate can
then be opened/closed manually.Load anchoring eyelets
G000000G017741
The load anchoring eyelets on both sides of the
vehicle are used to fasten straps, etc., to help
anchor items in the cargo area.
ProCarManuals.com
Page 204 of 286

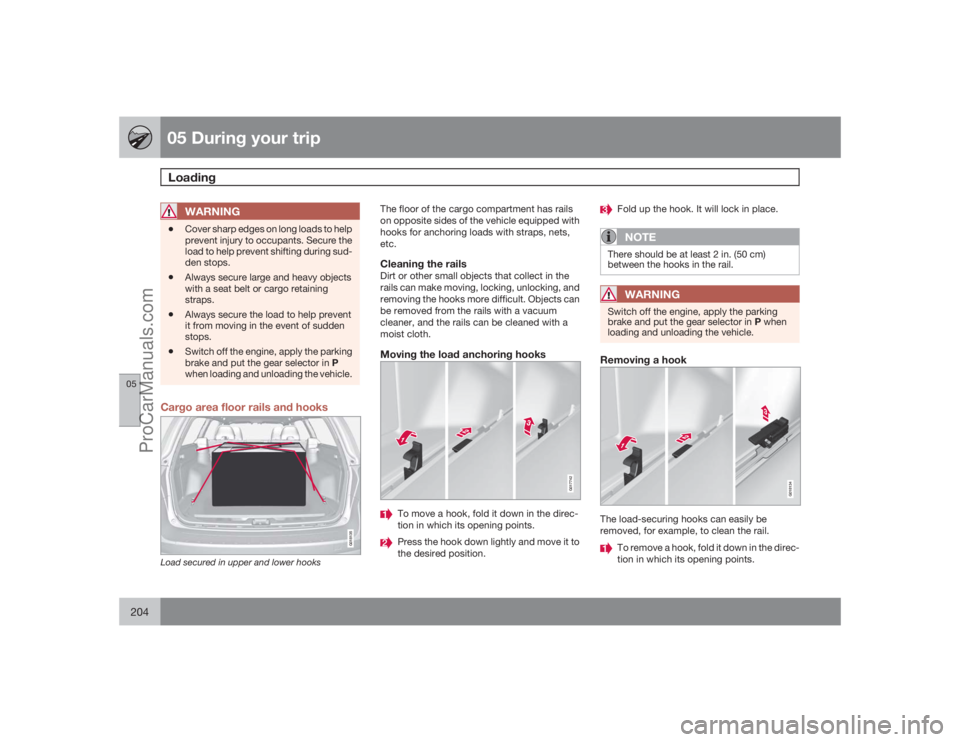

05 During your tripLoading
05204
WARNING
•
Cover sharp edges on long loads to help
prevent injury to occupants. Secure the
load to help prevent shifting during sud-
den stops.
•
Always secure large and heavy objects
with a seat belt or cargo retaining
straps.
•
Always secure the load to help prevent
it from moving in the event of sudden
stops.
•
Switch off the engine, apply the parking
brake and put the gear selector in P
when loading and unloading the vehicle.
Cargo area floor rails and hooks
G018135
Load secured in upper and lower hooks
The floor of the cargo compartment has rails
on opposite sides of the vehicle equipped with
hooks for anchoring loads with straps, nets,
etc.Cleaning the railsDirt or other small objects that collect in the
rails can make moving, locking, unlocking, and
removing the hooks more difficult. Objects can
be removed from the rails with a vacuum
cleaner, and the rails can be cleaned with a
moist cloth.Moving the load anchoring hooks
G017742
To move a hook, fold it down in the direc-
tion in which its opening points.Press the hook down lightly and move it to
the desired position.
Fold up the hook. It will lock in place.NOTE
There should be at least 2 in. (50 cm)
between the hooks in the rail.
WARNING
Switch off the engine, apply the parking
brake and put the gear selector in P when
loading and unloading the vehicle.Removing a hook
G018134
The load-securing hooks can easily be
removed, for example, to clean the rail.
To remove a hook, fold it down in the direc-
tion in which its opening points.
ProCarManuals.com
Page 205 of 286

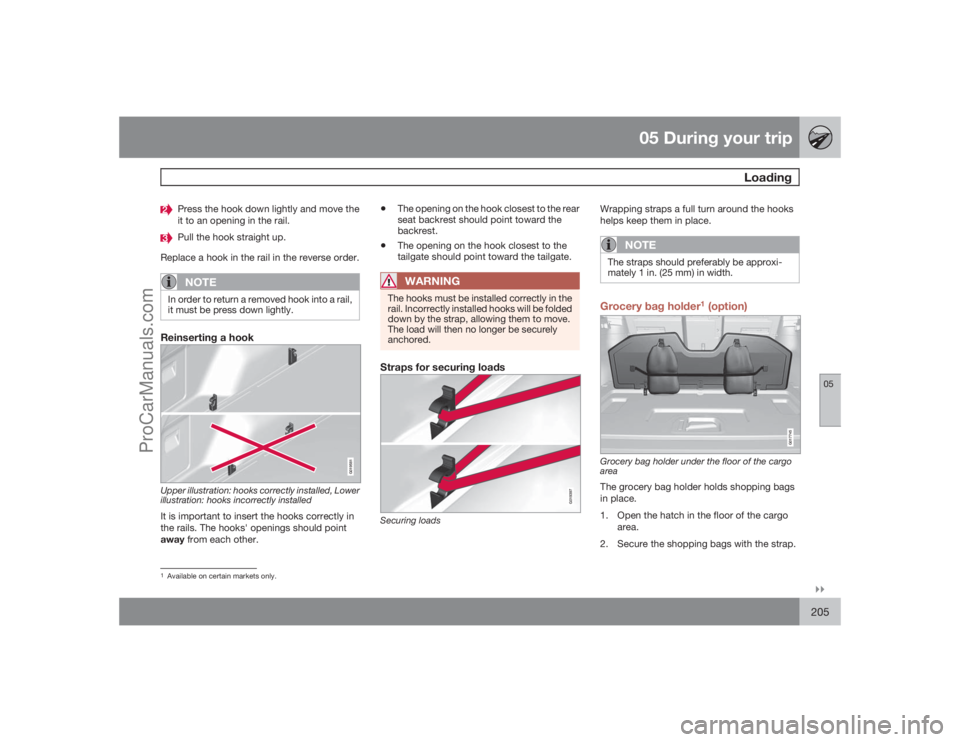

05 During your trip
Loading
05 ` `205
Press the hook down lightly and move the
it to an opening in the rail.Pull the hook straight up.
Replace a hook in the rail in the reverse order.NOTE
In order to return a removed hook into a rail,
it must be press down lightly.Reinserting a hook
G019581
Upper illustration: hooks correctly installed, Lower
illustration: hooks incorrectly installedIt is important to insert the hooks correctly in
the rails. The hooks' openings should point
away from each other.
•
The opening on the hook closest to the rear
seat backrest should point toward the
backrest.
•
The opening on the hook closest to the
tailgate should point toward the tailgate.WARNING
The hooks must be installed correctly in the
rail. Incorrectly installed hooks will be folded
down by the strap, allowing them to move.
The load will then no longer be securely
anchored.Straps for securing loads
G019397
Securing loads
Wrapping straps a full turn around the hooks
helps keep them in place.
NOTE
The straps should preferably be approxi-
mately 1 in. (25 mm) in width.Grocery bag holder
1 (option)
G017745
Grocery bag holder under the floor of the cargo
areaThe grocery bag holder holds shopping bags
in place.
1. Open the hatch in the floor of the cargo
area.
2. Secure the shopping bags with the strap.
1Available on certain markets only.
ProCarManuals.com
Page 206 of 286
05 During your tripLoading
05206
Roof loadsUsing load carriersLoad carriers are available as Volvo accesso-
ries. Observe the following points when in use:•
To avoid damaging your vehicle and to
achieve maximum safety when driving, we
recommend using the load carriers that
Volvo has developed especially for your
vehicle.
•
Volvo-approved removable roof racks are
designed to carry the maximum allowable
roof load for this vehicle: 220 lbs (100 kg).
For non-Volvo roof racks, check the man-
ufacturer's weight limits for the rack.
•
Never exceed the rack manufacturer's
weigh limits and never exceed the maxi-
mum rated roof load of 220 lbs (100 kg).
•
Avoid single-point loads. Distribute loads
evenly.
•
Place heavier cargo at the bottom of the
load.
•
Secure the cargo correctly with appropri-
ate tie-down equipment.
•
Check periodically that the load carriers
and load are properly secured.
•
Remember that the vehicle's center of
gravity and handling change when you
carry a load on the roof.
•
The vehicle's wind resistance and fuel con-
sumption will increase with the size of the
load.
•
Drive smoothly. Avoid rapid starts, fast
cornering and hard braking.
ProCarManuals.com
Page 207 of 286
05 During your trip
Cargo area
05 ` `207 Steel cargo grid (option)
G017748
Your vehicle can be equipped with a steel grid
that helps prevent objects in the cargo area
from moving forward into the passenger com-
partment.Folding the grid up/downGrasp the lowering edge of the grid and pull it
rearward/upward, or push it downward/for-
ward.
NOTE
If the steel grid is to be used with the
optional cargo area cover, the grid must be
folded down before the cargo area cover is
put in place.

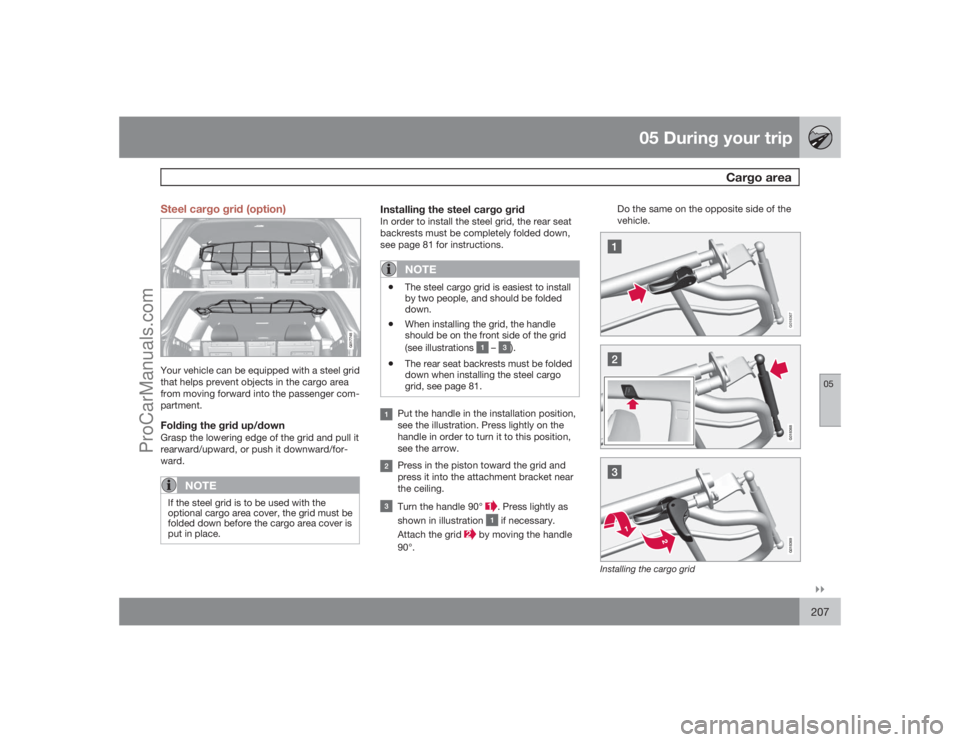

Installing the steel cargo gridIn order to install the steel grid, the rear seat
backrests must be completely folded down,
see page 81 for instructions.
NOTE
•
The steel cargo grid is easiest to install
by two people, and should be folded
down.
•
When installing the grid, the handle
should be on the front side of the grid
(see illustrations
–
).
•
The rear seat backrests must be folded
down when installing the steel cargo
grid, see page 81.Put the handle in the installation position,
see the illustration. Press lightly on the
handle in order to turn it to this position,
see the arrow.Press in the piston toward the grid and
press it into the attachment bracket near
the ceiling.Turn the handle 90°
. Press lightly as
shown in illustration if necessary.
Attach the grid
by moving the handle
90°.Do the same on the opposite side of the
vehicle.
G018367G018368G018369
Installing the cargo grid
ProCarManuals.com
Page 208 of 286
05 During your tripCargo area
05208

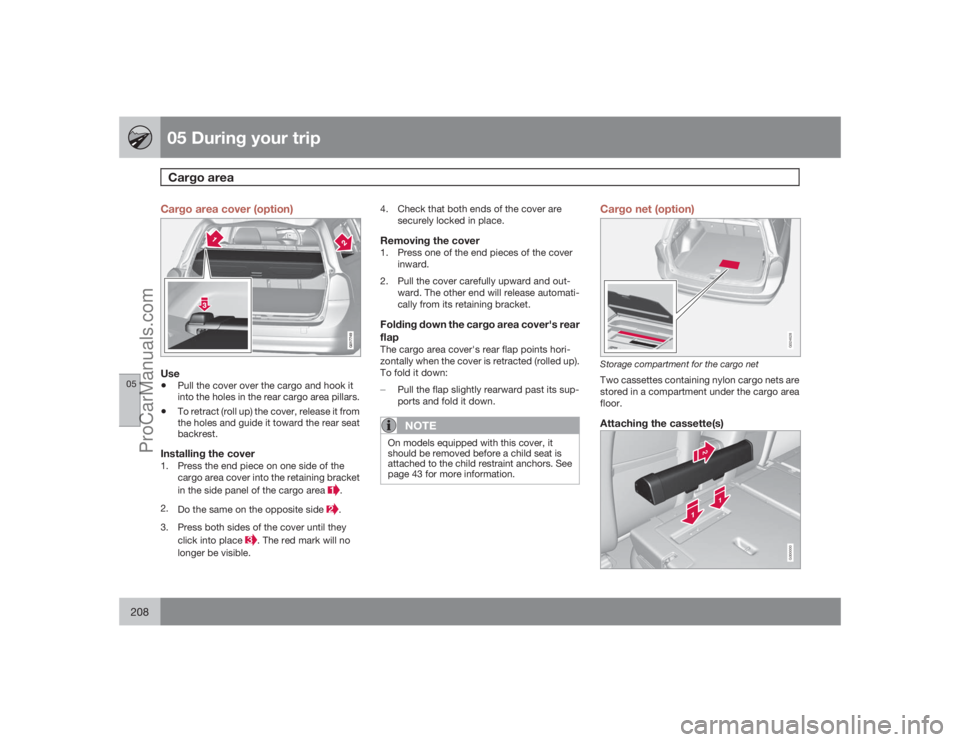

Cargo area cover (option)
G017749
Use•
Pull the cover over the cargo and hook it
into the holes in the rear cargo area pillars.
•
To retract (roll up) the cover, release it from
the holes and guide it toward the rear seat
backrest.
Installing the cover1. Press the end piece on one side of the
cargo area cover into the retaining bracket
in the side panel of the cargo area
.
2.
Do the same on the opposite side .
3. Press both sides of the cover until they
click into place
. The red mark will no
longer be visible.4. Check that both ends of the cover are
securely locked in place.
Removing the cover1. Press one of the end pieces of the cover
inward.
2. Pull the cover carefully upward and out-
ward. The other end will release automati-
cally from its retaining bracket.Folding down the cargo area cover's rear
flapThe cargo area cover's rear flap points hori-
zontally when the cover is retracted (rolled up).
To fold it down:
±
Pull the flap slightly rearward past its sup-
ports and fold it down.
NOTE
On models equipped with this cover, it
should be removed before a child seat is
attached to the child restraint anchors. See
page 43 for more information.
Cargo net (option)
G024628
Storage compartment for the cargo netTwo cassettes containing nylon cargo nets are
stored in a compartment under the cargo area
floor.Attaching the cassette(s)
G000000
ProCarManuals.com
Page 209 of 286
05 During your trip
Cargo area
05
209

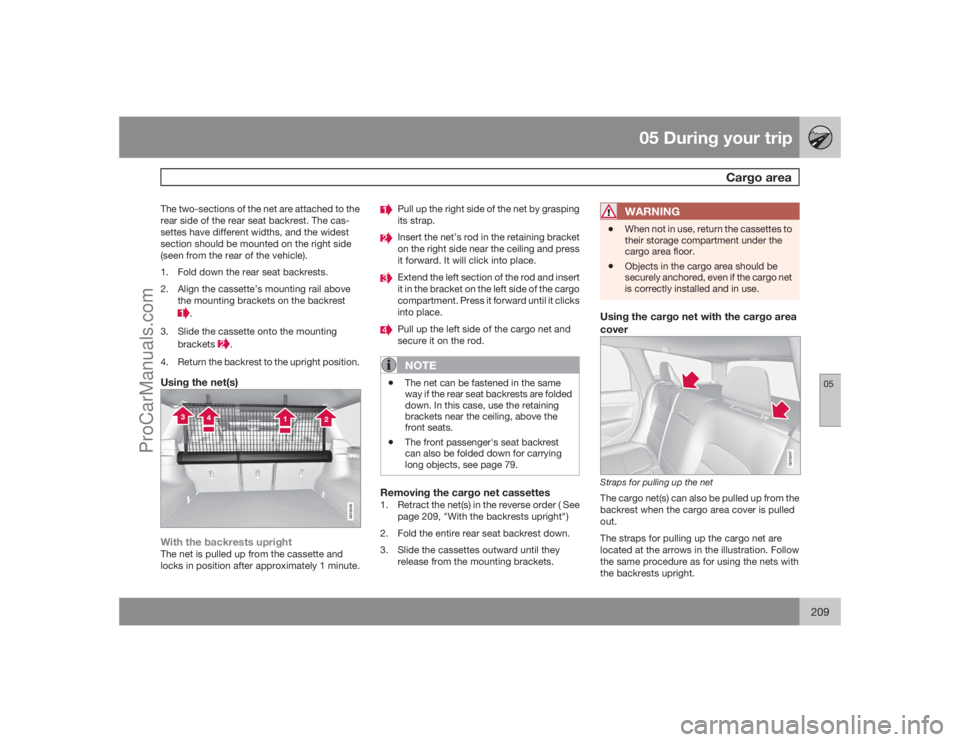

The two-sections of the net are attached to the
rear side of the rear seat backrest. The cas-
settes have different widths, and the widest
section should be mounted on the right side
(seen from the rear of the vehicle).
1. Fold down the rear seat backrests.
2. Align the cassette’s mounting rail above
the mounting brackets on the backrest
.
3. Slide the cassette onto the mounting
brackets
.
4. Return the backrest to the upright position.
Using the net(s)
G018246
With the backrests uprightThe net is pulled up from the cassette and
locks in position after approximately 1 minute.
Pull up the right side of the net by grasping
its strap.Insert the net’s rod in the retaining bracket
on the right side near the ceiling and press
it forward. It will click into place.Extend the left section of the rod and insert
it in the bracket on the left side of the cargo
compartment. Press it forward until it clicks
into place.Pull up the left side of the cargo net and
secure it on the rod.NOTE
•
The net can be fastened in the same
way if the rear seat backrests are folded
down. In this case, use the retaining
brackets near the ceiling, above the
front seats.
•
The front passenger's seat backrest
can also be folded down for carrying
long objects, see page 79.
Removing the cargo net cassettes1. Retract the net(s) in the reverse order ( See
page 209, "With the backrests upright")
2. Fold the entire rear seat backrest down.
3. Slide the cassettes outward until they
release from the mounting brackets.
WARNING
•
When not in use, return the cassettes to
their storage compartment under the
cargo area floor.
•
Objects in the cargo area should be
securely anchored, even if the cargo net
is correctly installed and in use.
Using the cargo net with the cargo area
cover
G018247
Straps for pulling up the netThe cargo net(s) can also be pulled up from the
backrest when the cargo area cover is pulled
out.
The straps for pulling up the cargo net are
located at the arrows in the illustration. Follow
the same procedure as for using the nets with
the backrests upright.
ProCarManuals.com
Page 210 of 286
05 During your tripTowing a trailer
05210
IntroductionVolvo recommends the use of Volvo trailer
hitches that are specially designed for the vehi-
cle.
NOTE
See page 271 for the maximum trailer and
tongue weights recommended by Volvo.•
Observe the legal requirements of the
state/province in which the vehicles are
•
All Volvo models are equipped with
energy-absorbing shock-mounted bump-
ers. Trailer hitch installation should not
interfere with the proper operation of this
bumper system.
Trailer towing does not normally present any
particular problems, but take into considera-
tion:
•
Increase tire pressure to recommended
full. See the tire inflation tables on pages
248 and 249.
•
When your vehicle is new, avoid towing
heavy trailers during the first 620 miles
(1,000 km).
•
Maximum speed when towing a trailer:
50 mph (80 km/h).
•
Engine and transmission are subject to
increased loads. Therefore, engine coolant
temperature should be closely watchedwhen driving in hot climates or hilly terrain.
Use a lower gear and turn off the air con-
ditioner if the temperature gauge needle
enters the red range.
•
If the automatic transmission begins to
overheat, a message will be displayed in
the text window.
•
Avoid overload and other abusive opera-
tion.
•
Hauling a trailer affects handling, durabil-
ity, and economy.
•
It is necessary to balance trailer brakes
with the towing vehicle brakes to provide a
safe stop (check and observe state/local
regulations).
•
Do not connect the trailer's brake system
directly to the vehicle's brake system.
•
More frequent vehicle maintenance is
required.
•
Remove the ball and drawbar assembly
when the hitch is not being used.
•
Volvo recommends the use of synthetic
engine oil when towing a trailer over long
distances or in mountainous areas.
WARNING
•
Bumper-attached trailer hitches must
not be used on Volvos, nor should
safety chains be attached to the
bumper.
•
Trailer hitches attaching to the vehicle
rear axle must not be used.
•
Never connect a trailer's hydraulic
brake system directly to the vehicle
brake system, nor a trailer's lighting
system directly to the vehicle lighting
system. Consult your nearest author-
ized Volvo retailer for correct installa-
tion.
•
When towing a trailer, the trailer's safety
wire must be correctly fastened to the
hole or hook provided in the trailer hitch
on the vehicle. The safety wire should
never be fastened to or wound around
the drawbar ball.
ProCarManuals.com
