VOLVO XC70 2009 Owners Manual

06 Maintenance and specifications
Engine oil
06
221
WARNING
Do not allow oil to spill onto or come into
contact with hot exhaust pipe surfaces.
NOTE
Synthetic oil is not used when the oil is
changed at the normal maintenance inter-
vals except at owner request and at addi-
tional charge. Please consult your Volvo
retailer.
ProCarManuals.com

06 Maintenance and specificationsFluids
06222
Coolant
G021738
Location of the coolant reservoirNormally, the coolant does not need to be
changed. If the system must be drained, con-
sult a trained and qualified Volvo service tech-
nician.
See page 274 for information on cooling sys-
tem capacities.
CAUTION
•
If necessary, top up the cooling system
with Volvo Genuine Coolant/Antifreeze
only (a 50/50 mix of water and anti-
freeze).
•
Different types of antifreeze/coolant
may not be mixed.
•
If the cooling system is drained, it
should be flushed with clean water or
premixed anti-freeze before it is refilled
with the correct mixture of water/anti-
freeze.
•
The cooling system must always be
kept filled to the correct level, and the
level must be between the MIN and
MAX marks. If it is not kept filled, there
can be high local temperatures in the
engine which could result in damage.
Check coolant regularly!
•
Do not top up with water only. This
reduces the rust-protective and anti-
freeze qualities of the coolant and has a
lower boiling point. It can also cause
damage to the cooling system if it
should freeze.
•
Do not use chlorinated tap water in the
vehicles cooling system.
WARNING
•
Never remove the radiator cap while the
engine is warm. Wait until the vehicle
cools.
•
If it is necessary to top off the coolant
when the engine is warm, unscrew the
expansion tank cap slowly so that the
overpressure dissipates.
Brake fluid
G021739
Location of the brake fluid reservoirChecking the levelThe fluid reservoir is concealed under the
round cover at the rear of the engine compart-
ment. The round cover must be removed first
before the reservoir cap can be accessed.
ProCarManuals.com

06 Maintenance and specifications
Fluids
06
223
The brake fluid should always be between the
MIN and MAX marks on the inside of the res-
ervoir. Check, without removing the cap, that
there is sufficient fluid in the reservoir.
Fluid type: DOT 4+ boiling point >536 °F
(280 °C), P/N 9437433
Replace: The fluid should be replaced accord-
ing to the intervals specified in the Warranty
and Service Records Information booklet.
When driving under extremely hard conditions
(mountain driving, etc), it may be necessary to
replace the fluid more often. Consult a trained
and qualified Volvo service technician.
Always entrust brake fluid changing to a
trained and qualified Volvo service technician.
WARNING
If the fluid level is below the MIN mark in the
reservoir or if a brake-related message is
shown in the information display:
DO NOT
DRIVE
. Have the car towed to a trained and
qualified Volvo service technician and have
the brake system inspected.
Filling1. Turn and open the cover.
2. Unscrew the reservoir cap and fill the fluid.
The level must be between the MIN and
MAX marks.
Power steering fluid
G021740
Check the level frequently. The fluid does not
require changing. The fluid level must be
between the MIN and MAX marks. For capaci-
ties and recommended fluid grade, see
page 274.
WARNING
If a problem should occur in the power
steering system or if the vehicle has no elec-
trical current and must be towed, it is still
possible to steer the vehicle. However, keep
in mind that greater effort will be required to
turn the steering wheel.
CAUTION
Keep the area around the power steering
fluid reservoir clean when checking.
ProCarManuals.com

06 Maintenance and specificationsReplacing bulbs
06224

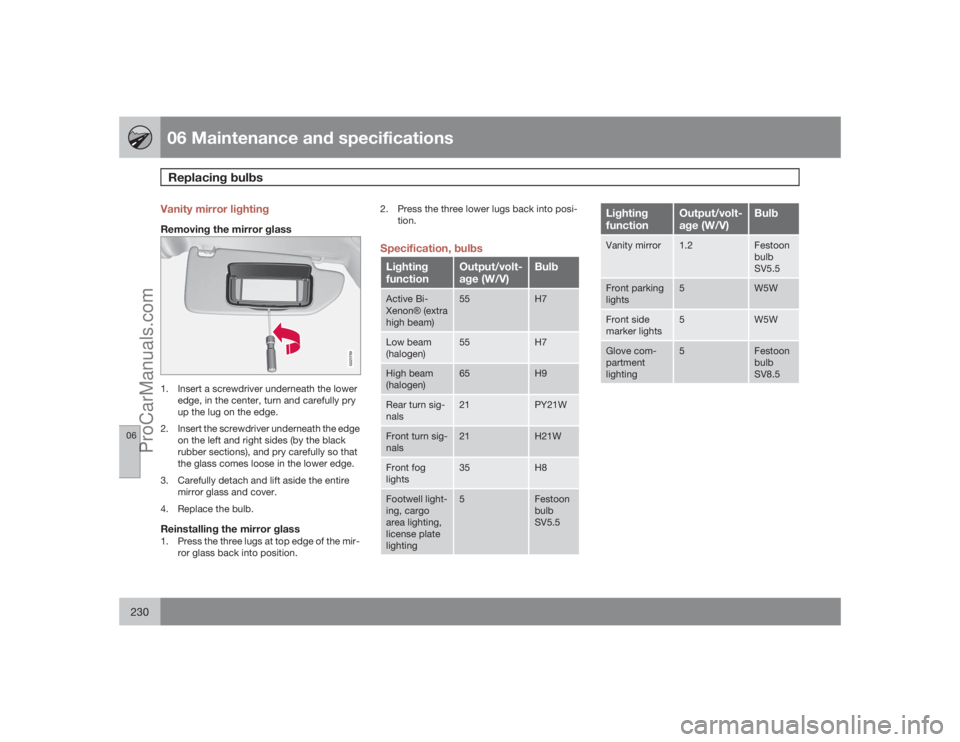

IntroductionAll bulb specifications are listed on page 230.
The following bulbs should only be replaced by
a trained and qualified Volvo service techni-
cian:•
Dome lighting
•
Reading lights
•
Glove compartment lighting
•
Turn signals in the door mirror
•
Approach lighting in the door mirror
•
Brake/fog/taillights
•
Rear side parking lights
•
Active Bi-XenonŸ and LED bulbsNOTE
For information regarding any other bulbs
not mentioned in this section, please con-
tact your Volvo retailer or a trained and
authorized Volvo service technician.
WARNING
•
Active Bi-XenonŸ headlights (option) –
due to the high voltage used by these
headlights, these bulbs should only be
replaced by a trained and qualified
Volvo service technician.
•
Turn off the lights and remove the
remote key from the ignition before
changing any bulbs.
Headlight housing
G010479
G010325
WARNING
•
The engine should not be running when
changing bulbs.
•
When changing in the headlight hous-
ing, if the engine has been running just
prior to replacing bulbs, please be
aware that components in the engine
compartment will be hot.
The entire headlight housing must be lifted out
when replacing all front bulbs (except for the
fog lights).
ProCarManuals.com

06 Maintenance and specifications
Replacing bulbs
06``225
CAUTION
Never touch the glass of bulbs with your fin-
gers. Grease and oils from your fingers
vaporize in the heat and will leave a deposit
on the reflector, which will damage it.
NOTE
•
Always switch off the ignition before
starting to replace a bulb.
•
The optional active Bi-XenonŸ head-
light bulbs contain trace amounts of
mercury. These bulbs should always be
disposed of by a trained and qualified
Volvo service technician.
Removing the headlight housing1. Switch off the ignition by pressing quickly
on the START/STOP ENGINE button and
remove the remote key from the ignition
slot
1.
2. (Upper illustration under "Headlight hous-
ing") Withdraw the headlight housing's lock-
ing pins. Pull the headlight housing straight out .
CAUTION
When disconnecting the connector, pull on
the connector itself and not on the wiring.3. (Lower illustration under "Headlight hous-
ing")
Unplug the wiring connector by holding
down the clip with your thumb. Pull out the connector with the other
hand.
4. Lift out the housing and place it on a soft
surface to avoid scratching the lens.
5. Replace the defective bulb(s), see
page 230.
Reinserting the headlight housing1. Plug in the connector until it clicks into
place.
2. Reinstall the headlight housing and locking
pins. Check that they are correctly
inserted. The headlight housing must be
properly inserted and secured in place
before the lighting is switched on or the
remote key is inserted into the ignition slot.
3. Check that the lights function properly.
Removing the cover to access the
headlights and parking lights
G021745
NOTE
Before starting to replace a bulb, see
page 224.1. Open the retaining clamp by pressing it to
the side.
2. Press down the clips on the upper edge of
the cover and remove it.
Reinstall the cover in the reverse order.
1Does not apply to vehicles with the optional keyless drive.
ProCarManuals.com

06 Maintenance and specificationsReplacing bulbs
06226

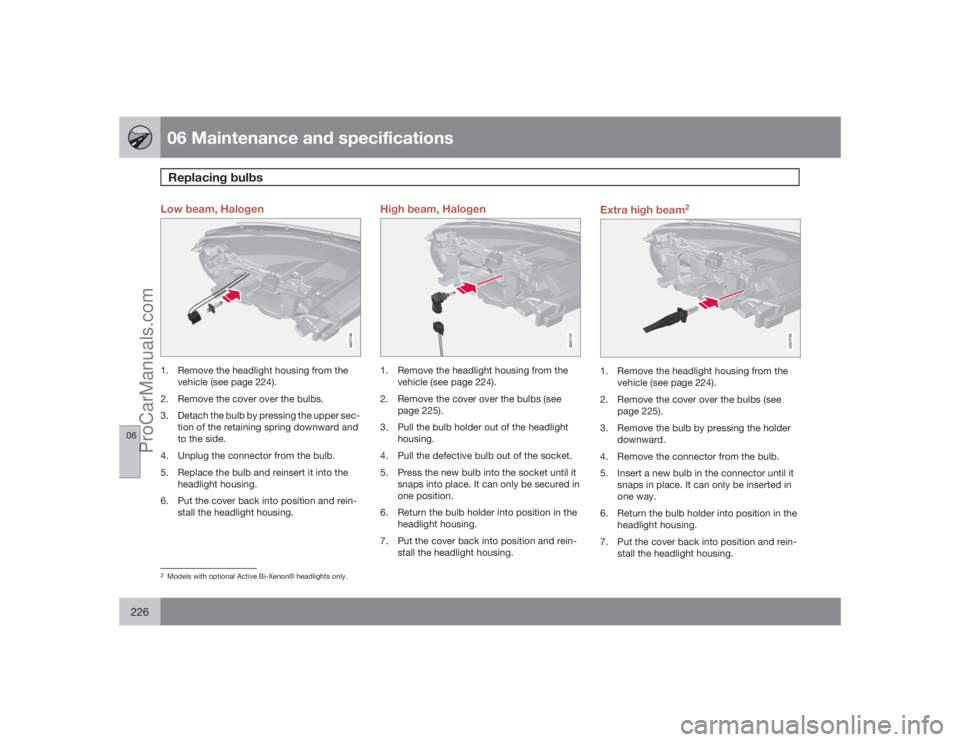

Low beam, Halogen
G021746
1. Remove the headlight housing from the
vehicle (see page 224).
2. Remove the cover over the bulbs.
3. Detach the bulb by pressing the upper sec-
tion of the retaining spring downward and
to the side.
4. Unplug the connector from the bulb.
5. Replace the bulb and reinsert it into the
headlight housing.
6. Put the cover back into position and rein-
stall the headlight housing.
High beam, Halogen
G021747
1. Remove the headlight housing from the
vehicle (see page 224).
2. Remove the cover over the bulbs (see
page 225).
3. Pull the bulb holder out of the headlight
housing.
4. Pull the defective bulb out of the socket.
5. Press the new bulb into the socket until it
snaps into place. It can only be secured in
one position.
6. Return the bulb holder into position in the
headlight housing.
7. Put the cover back into position and rein-
stall the headlight housing.
Extra high beam
2
G021748
1. Remove the headlight housing from the
vehicle (see page 224).
2. Remove the cover over the bulbs (see
page 225).
3. Remove the bulb by pressing the holder
downward.
4. Remove the connector from the bulb.
5. Insert a new bulb in the connector until it
snaps in place. It can only be inserted in
one way.
6. Return the bulb holder into position in the
headlight housing.
7. Put the cover back into position and rein-
stall the headlight housing.
2Models with optional Active Bi-XenonŸ headlights only.
ProCarManuals.com

06 Maintenance and specifications
Replacing bulbs

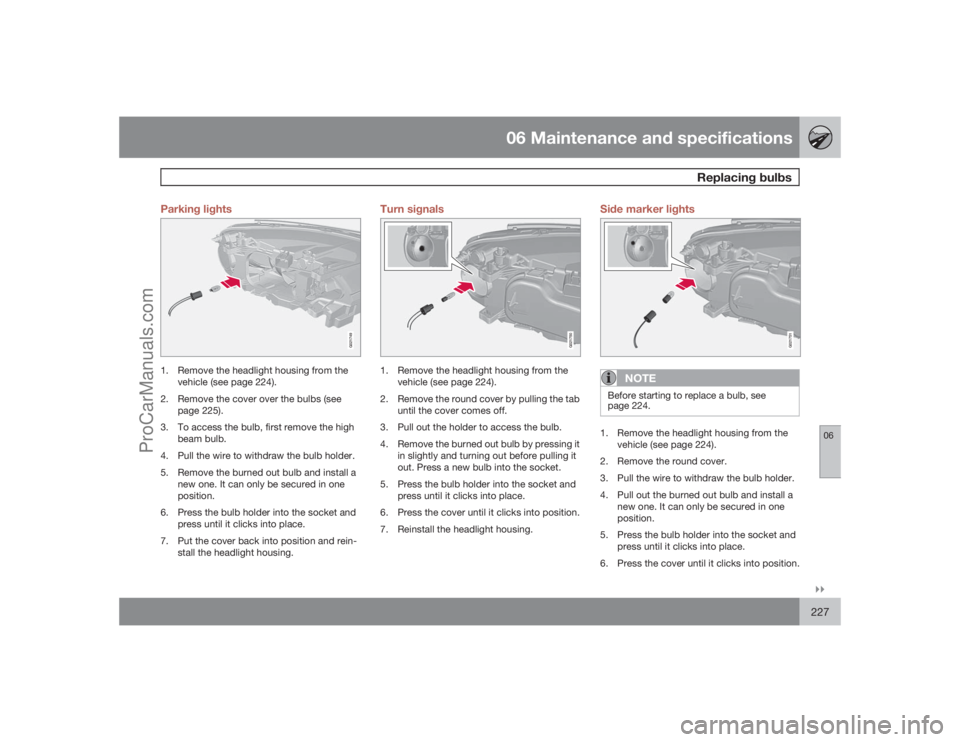

06``227 Parking lights
G021749
1. Remove the headlight housing from the
vehicle (see page 224).
2. Remove the cover over the bulbs (see
page 225).
3. To access the bulb, first remove the high
beam bulb.
4. Pull the wire to withdraw the bulb holder.
5. Remove the burned out bulb and install a
new one. It can only be secured in one
position.
6. Press the bulb holder into the socket and
press until it clicks into place.
7. Put the cover back into position and rein-
stall the headlight housing.
Turn signals
G021750
1. Remove the headlight housing from the
vehicle (see page 224).
2. Remove the round cover by pulling the tab
until the cover comes off.
3. Pull out the holder to access the bulb.
4. Remove the burned out bulb by pressing it
in slightly and turning out before pulling it
out. Press a new bulb into the socket.
5. Press the bulb holder into the socket and
press until it clicks into place.
6. Press the cover until it clicks into position.
7. Reinstall the headlight housing.
Side marker lights
G021751
NOTE
Before starting to replace a bulb, see
page 224.1. Remove the headlight housing from the
vehicle (see page 224).
2. Remove the round cover.
3. Pull the wire to withdraw the bulb holder.
4. Pull out the burned out bulb and install a
new one. It can only be secured in one
position.
5. Press the bulb holder into the socket and
press until it clicks into place.
6. Press the cover until it clicks into position.
ProCarManuals.com

06 Maintenance and specificationsReplacing bulbs
06228

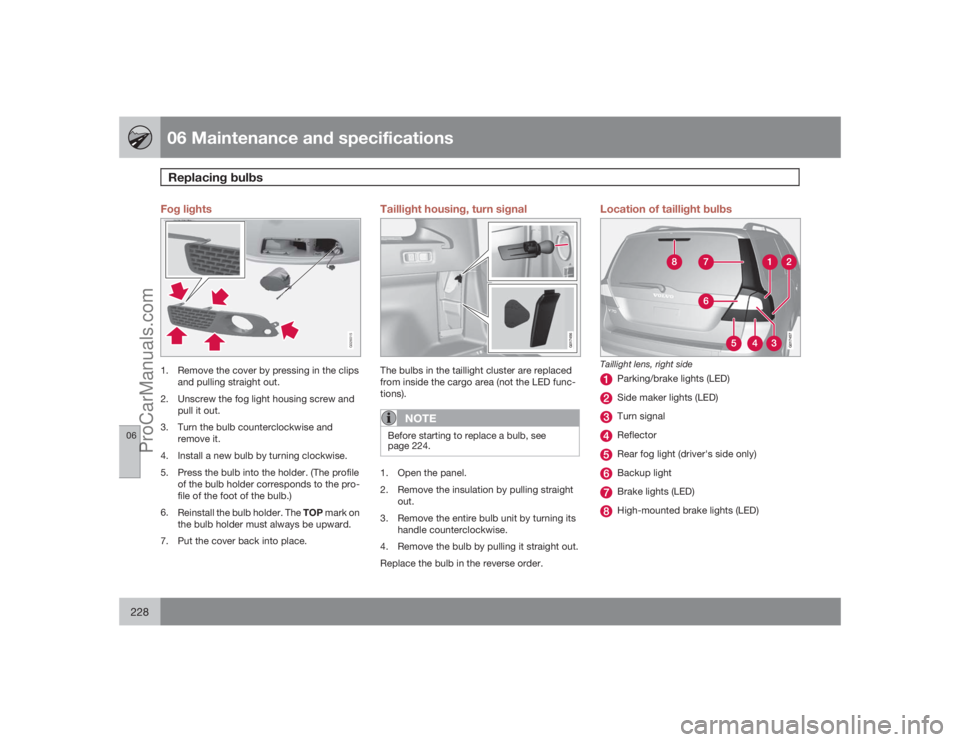

Fog lights
G026015
1. Remove the cover by pressing in the clips
and pulling straight out.
2. Unscrew the fog light housing screw and
pull it out.
3. Turn the bulb counterclockwise and
remove it.
4. Install a new bulb by turning clockwise.
5. Press the bulb into the holder. (The profile
of the bulb holder corresponds to the pro-
file of the foot of the bulb.)
6.
Reinstall the bulb holder. The TOP mark on
the bulb holder must always be upward.
7. Put the cover back into place.
Taillight housing, turn signal
G017456
The bulbs in the taillight cluster are replaced
from inside the cargo area (not the LED func-
tions).
NOTE
Before starting to replace a bulb, see
page 224.1. Open the panel.
2. Remove the insulation by pulling straight
out.
3. Remove the entire bulb unit by turning its
handle counterclockwise.
4. Remove the bulb by pulling it straight out.
Replace the bulb in the reverse order.
Location of taillight bulbs
G017457
Taillight lens, right side
Parking/brake lights (LED)Side maker lights (LED)Turn signalReflectorRear fog light (driver's side only)Backup lightBrake lights (LED)High-mounted brake lights (LED)
ProCarManuals.com

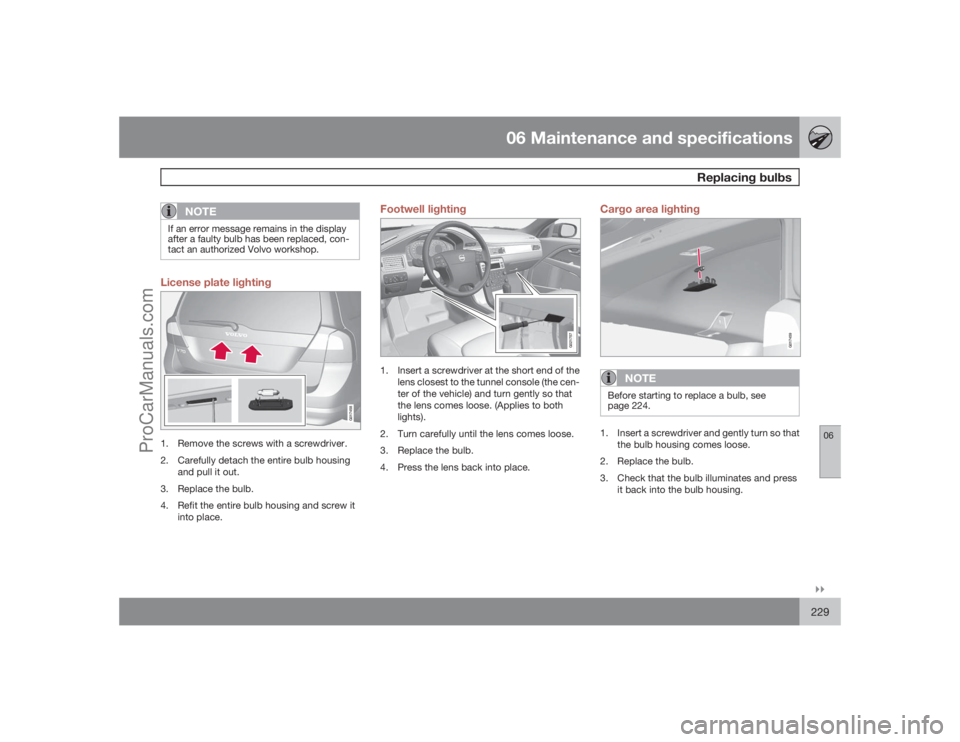

06 Maintenance and specifications
Replacing bulbs
06``229
NOTE
If an error message remains in the display
after a faulty bulb has been replaced, con-
tact an authorized Volvo workshop.License plate lighting
G017458
1. Remove the screws with a screwdriver.
2. Carefully detach the entire bulb housing
and pull it out.
3. Replace the bulb.
4. Refit the entire bulb housing and screw it
into place.
Footwell lighting
G021757
1. Insert a screwdriver at the short end of the
lens closest to the tunnel console (the cen-
ter of the vehicle) and turn gently so that
the lens comes loose. (Applies to both
lights).
2. Turn carefully until the lens comes loose.
3. Replace the bulb.
4. Press the lens back into place.
Cargo area lighting
G017459
NOTE
Before starting to replace a bulb, see
page 224.1. Insert a screwdriver and gently turn so that
the bulb housing comes loose.
2. Replace the bulb.
3. Check that the bulb illuminates and press
it back into the bulb housing.
ProCarManuals.com

06 Maintenance and specificationsReplacing bulbs
06230
Vanity mirror lightingRemoving the mirror glass
G021759
1. Insert a screwdriver underneath the lower
edge, in the center, turn and carefully pry
up the lug on the edge.
2. Insert the screwdriver underneath the edge
on the left and right sides (by the black
rubber sections), and pry carefully so that
the glass comes loose in the lower edge.
3. Carefully detach and lift aside the entire
mirror glass and cover.
4. Replace the bulb.Reinstalling the mirror glass1. Press the three lugs at top edge of the mir-
ror glass back into position.2. Press the three lower lugs back into posi-
tion.
Specification, bulbsLighting
function
Output/volt-
age (W/V)
Bulb
Active Bi-
XenonŸ (extra
high beam)
55
H7
Low beam
(halogen)
55
H7
High beam
(halogen)
65
H9
Rear turn sig-
nals
21
PY21W
Front turn sig-
nals
21
H21W
Front fog
lights
35
H8
Footwell light-
ing, cargo
area lighting,
license plate
lighting
5
Festoon
bulb
SV5.5
Lighting
function
Output/volt-
age (W/V)
Bulb
Vanity mirror
1.2
Festoon
bulb
SV5.5
Front parking
lights
5
W5W
Front side
marker lights
5
W5W
Glove com-
partment
lighting
5
Festoon
bulb
SV8.5
ProCarManuals.com
