06 Maintenance and specifications
Wiper blades and washer fluid
06``231 Wiper blades
G021763
The windshield wiper blades are different
lengths. The blade on the driver’s side is longer
than the one on the passenger side.Service positionThe wiper blades must be in the service (verti-
cal) position for replacement or washing.
1.
Switch off the ignition (ignition mode 0, see
page 77) and keep the remote key in the
ignition slot
1.
2. Move the right steering wheel lever up and
hold it for at least 1 second. The wipers will
then move to the vertical position on the
windshield.The wipers will return to the normal position
when the vehicle is started.
Replacing the windshield wiper blades
G021760G021761
G021762
With the wipers in the service position, fold
out the wiper arm from the windshield.
Press the button on the wiper blade attach-
ment and pull the wiper blade straight out,
parallel with the wiper arm.Slide in the new wiper blade until it clicks
into place.Check that the blade is securely in place.
CleaningKeeping the windshield and wiper blades clean
helps improve visibility and prolongs the serv-
ice life of the wiper blades. Clean the wiper
blades with a stiff-bristle brush and lukewarm
soap solution or car washing detergent.
1Does not apply to vehicles with the optional keyless drive.
ProCarManuals.com

06 Maintenance and specificationsWiper blades and washer fluid
06232
Replacing the tailgate wiper blade
G032770
1. Fold the wiper arm outward.
2. Grasp the inner section of wiper blade (at
the arrow).
3. Pull out the blade to release it from the
wiper arm.
4. Press the new wiper blade into place and
check that it seats securely.
5. Fold the wiper arm back toward the tailgate
window.
Filling washer fluid
G021764
Location of the washer fluid reservoirThe windshield and headlight washers share a
common reservoir.
The washer fluid reservoir is located on the
driver's side of the engine compartment. Dur-
ing cold weather, the reservoir should be filled
with windshield washer solvent containing
antifreeze. For capacities, see page 274.
ProCarManuals.com

06 Maintenance and specifications
Battery
06``233 Warning symbols on the battery
Wear protective goggles.Keep away from children.Avoid smoking, open flames,
and/or sparks.See the owner's manual.Contains corrosive acid.Risk of explosion
NOTE
A used battery should be disposed of in an
environmentally responsible manner. Con-
sult your Volvo retailer or take the battery to
a recycling station.Handling•
Check that the battery cables are correctly
connected and tightened.
•
Never disconnect the battery when the
engine is running (for example, when
replacing the battery).
The service life and function of the battery is
influenced by factors such as the number of
starts, discharging, driving style, driving con-
ditions, climatic conditions etc.
Never use a quick charger to charge the bat-
tery.
WARNING
•
Never expose the battery to open flame
or electric spark.
•
Do not smoke near the battery.
•
Battery fluid contains sulfuric acid. Do
not allow battery fluid to contact eyes,
skin, fabrics or painted surfaces. If con-
tact occurs, flush the affected area
immediately with water. Obtain medical
help immediately if eyes are affected.NOTE
The life of the battery is shortened if it
becomes discharged repeatedly.Maintenance•
Regularly check that the electrolyte level is
correct and never fill above the level mark.
•
Check all cells. Use a large screwdriver or
a coin to remove the cell caps. Each cell
has its own maximum and minimum level
mark.
•
If necessary, top up with distilled water to
the battery's maximum mark.
•
Tighten the cell caps thoroughly.
ProCarManuals.com

06 Maintenance and specificationsBattery
06234
CAUTION
•
Always use distilled or deionized water
(battery water).
•
Never fill above the level mark in the cell.
Changing
G021768G021769
WARNING
Connect and disconnect the positive and
negative cables in the correct sequence.RemovalSwitch off the ignition and wait at least
5 minutes before disconnecting the battery so
that all information in the vehicle's electrical
system can be stored in the control modules.
Open the clips on the front cover and
remove the cover.Release the rubber moulding so that the
rear cover is free.Remove the rear cover by pulling it away. Detach the black negative cable. Detach the red positive cable Detach the ventilation hose from the
battery Loosen the screw holding the battery
clamp.Move the battery to the side and lift it up.
ProCarManuals.com

06 Maintenance and specifications
Battery
06
235
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related acces-
sories contain lead and lead compounds,
chemicals known to the state of California
to cause cancer and reproductive harm.
Wash hands after handling.Installation1. Lower the battery into the battery box.
G021771
2. Move the battery inward and to the side
until it reaches the rear edge of the box.
3. Screw in the battery with the screw in the
clamp.
4. Connect the ventilation hose.
5. Connect the red positive cable.6. Connect the black negative cable.
7. Press in the rear cover. (See Removal).
8. Reinstall the cold section moulding. (See
Removal).
9. Reinstall the front cover and secure it with
the clips. (See Removal).
ProCarManuals.com

06 Maintenance and specificationsFuses
06236
Replacing fusesThere are relay/fuse boxes located in the
engine compartment, the passenger compart-
ment, and the cargo area.
If an electrical component fails to function, this
may be due to a blown fuse. The easiest way
to see if a fuse is blown is to remove it.
To do so:
1. Pull the fuse straight out. If a fuse is difficult
to remove, special fuse removal tools are
located on the inside of the fuse box cov-
ers.
2. From the side, examine the curved metal
wire in the fuse to see if it is intact.
If the wire is broken, insert a new fuse of the
same color and amperage (written on the fuse).
If fuses burn out repeatedly, have the electrical
system inspected by a trained and qualified
Volvo service technician.
WARNING
Never use metal objects or fuses with higher
amperage than those stated on the follow-
ing pages. Doing so could seriously damage
or overload the vehicle's electrical system.

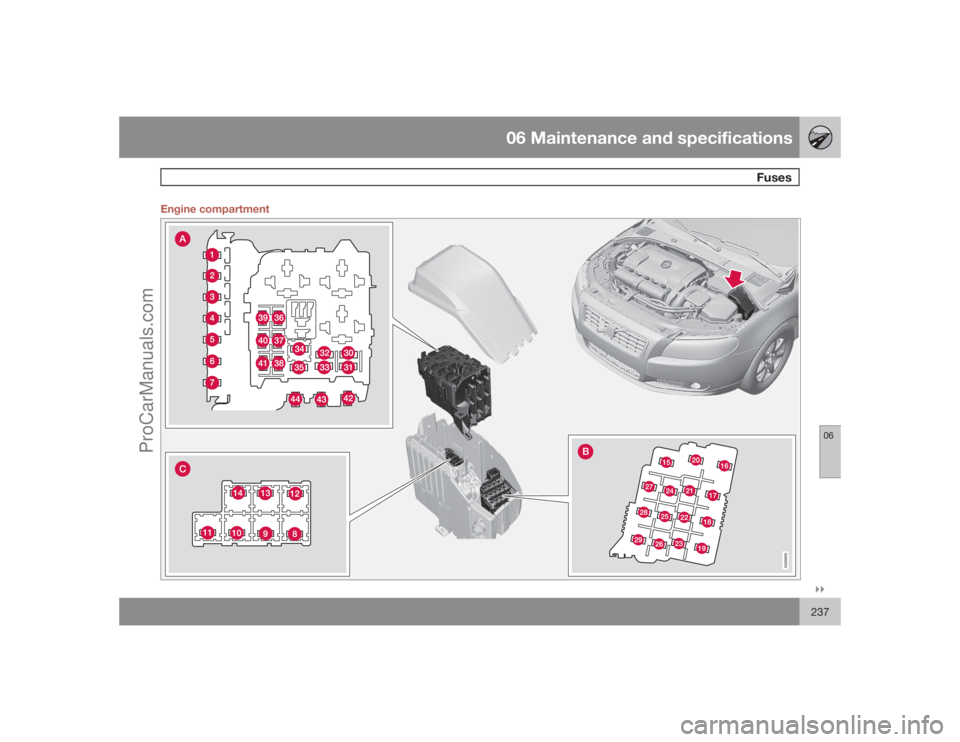

Location of the fuse boxes
G017461
Under the glove compartmentEngine compartmentCargo area
ProCarManuals.com

06 Maintenance and specifications
Fuses
06``237 Engine compartment
G025600
ProCarManuals.com

06 Maintenance and specificationsFuses
06238
Engine compartment, upperEngine compartment, frontEngine compartment, lower
PositionsThese fuses are all located in the engine com-
partment box. Fuses in
are located under
.
NOTE
•
Fuses 16 – 33 and 35 – 41 may be
changed at any time when necessary.
•
Fuses 1 – 15, 34 and 42 – 44 are relays/
circuit breakers and should only be
removed or replaced by a trained and
qualified Volvo service technician.
•
There is a special fuse removal tool on
the underside of the cover.
Function
A
Circuit breaker
50
Circuit breaker
50
Circuit breaker
60
Circuit breaker
60
Function
A
Circuit breaker
50
–––Windshield wipers
30
–Climate system blower
40
–ABS pump
40
ABS valves
20
–Active Bi-XenonŸ Lights.
Headlight leveling (option)
10
Central electrical module
20
Radar. ACC control module
(option)
5
Speed related power steering
5
Function
A
Engine Control Module (ECM),
transmission, SRS
10
Heated washer nozzles
10
Vacuum pump I5T
20
Lighting panel
5
Headlight washers
15
12-volt socket, front and rear
seat
15
Moonroof (option), ceiling con-
sole/ECC (option)
10
Engine compartment box
5
Auxiliary lights (option)
20
Horn
15
Engine Control Module (ECM)
10
Control module, automatic
transmission
15
Compressor A/C
15
Coils
5
ProCarManuals.com

06 Maintenance and specifications
Fuses
06``239
Function
A
Starter motor relay
30
Ignition coils
20
Engine Control Module (ECM),
throttle
10
Injection system
15
Engine valves
10
EVAP/heated oxygen sensor/
Injection
15
Crank case ventilation heater
20
Fuel leakage detection
5
–-Cooling fan
80
ProCarManuals.com

06 Maintenance and specificationsFuses
06240
Under the glove compartment
10
11
12
13
14
1
2
3
4
56
7
8
923
22
21
20
19
18 17 16
15
24
25
26
27
28
G032918
Fold aside the iupholstery covering the fuse
box.
1. Press the cover's lock and fold it up.
2. The fuses are accessible.Positions
Function
A
Rain sensor (option)
5
SRS system
10
ABS brakes. Electric parking
brake
5
Function
A
Accelerator pedal, heated
seats (option)
7.5
–ICM display, CD & Radio
15
Steering wheel module
7.5
–High beam
15
Function
A
Moonroof (option)
20
Backup lights
7.5
–Front fog light (option)
15
Windshield washers
15
Adaptive cruise control ACC
(option)
10
