Page 71 of 286
03 Your driving environment
Instruments and controls
03 ` `71
Function
Page
Menus and mes-
sages, turn signals,
high/low beams,
trip computer
120, 88,
85, 152
Cruise control
158
Horn, airbag
84, 18
Main instrument
panel
71
Menu system, audio
controls
131
Ignition slot
77
START/STOP
ENGINE button
77
Hazard warning
flashers
87
Door handle
–
In-door control pan-
els (power win-
dows, mirrors,
power child safety
locks, central lock-
ing button)
94, 96,
48, 63
Function
Page
Menu controls,
audio and climate
control systems
120, 134,
126
Center console but-
tons
120
Gear selector
107
Controls for active
chassis (Four-C) -
certain models only
157
Wipers and washers
91, 92
Steering wheel
adjustment
84
Parking brake
114
Hood opening con-
trol
219
Seat adjustment
controls
79
Lighting panel, but-
tons for opening
fuel filler door and
unlocking the tail-
gate
85, 200,
64
Information displays
G010604
Information displays in the instrument panelThe information displays (1) show information
on some of the vehicle's functions, such as
cruise control, the trip computer and mes-
sages. The information is shown with text and
symbols.
More detailed information can be found in the
descriptions of the functions that use the infor-
mation displays.
ProCarManuals.com
Page 72 of 286
03 Your driving environmentInstruments and controls
0372
Gauges
G010605
Gauges in the instrument panel
SpeedometerFuel gauge. Please note that the fuel level
indicator in the gauge moves from right to
left as the amount of fuel in the tank
decreases. See also the section on refuel-
ing beginning on page 198. See page
152 for more information on fuel level and
consumption.The tachometer shows engine speed in
thousands of revolutions per minute (rpm).
Do not drive continuously with the needle
in the red area of the gauge. The engine
management system will automatically
prevent excessively high engines speeds.
This will be noticeable as a pronounced
unevenness in engine speed.
Indicator, information, and warning
symbols
G010604
Indicator and warning symbols
Indicator and information symbolsIndicator and warning symbolsHigh beam and turn signal indicators
Function checkAll indicator and warning symbols light up in
ignition mode II or when the engine is started.
When the engine has started, all the symbols
should go out except the parking brake sym-
bol, which only goes out when the brake is
disengaged.
If the engine does not start or if the function
check is carried out in ignition mode II, all sym-
bols go out after 5 seconds except the symbolfor faults in the vehicle's emissions system and
the symbol for low oil pressure.
Certain symbols may not have their functions
illustrated, depending on the vehicle's equip-
ment.
Indicator and warning symbolsSymbol
DescriptionTrailer turn signal indicator
CHECK
ENGINE
Malfunction indicator lightAnti-lock brake system (ABS)Rear fog light onStability systemTire pressure monitoring sen-
sor (TPMS)Low fuel levelInformation symbol, see text
in information displayHigh beam indicator
ProCarManuals.com
Page 73 of 286
03 Your driving environment
Instruments and controls
03 ` `73
Symbol
DescriptionLeft turn signal indicatorRight turn signal indicator
Trailer turn signal indicator
If you are towing a trailer, this light will flash
simultaneously with the trailer's turn signals. If
the light does not flash, or if they flash faster
than usual when signaling a turn, the turn sig-
nals on the trailer or on the vehicle are not
functioning properly.CHECK
ENGINE
Malfunction Indicator Light
As you drive, a computer called On-Board
Diagnostics II (OBDII) monitors your vehicle's
engine, transmission, electrical and emission
systems.
The malfunction indicator (CHECK ENGINE)
light will illuminate if the computer senses a
condition that potentially may need correcting.
When this happens, please have your vehicle
checked by a trained and qualified Volvo serv-
ice technician as soon as possible.
A malfunction indicator (CHECK ENGINE) light
may have many causes. Sometimes, you may
not notice a change in your car's behavior.
Even so, an uncorrected condition could hurtfuel economy, emission controls, and drivabil-
ity. Extended driving without correcting the
cause could even damage other components
in your vehicle.
This light may illuminate if the fuel filler cap is
not closed tightly or if the engine was running
while the vehicle was refueled.
Canadian models are equipped with this sym-
bol:
Anti-lock Brake System (ABS)
warning light
If the warning light comes on, there may be a
malfunction in the ABS system (the standard
braking system will still function). Check the
system by:
1. Stopping in a safe place and switching off
the ignition.
2. Restart the engine.
3. If the warning light goes off, no further
action is required.
If the warning light remains on, the vehicle
should be driven to a trained and qualified
Volvo service technician for inspection, see
page 110 for additional information.
Canadian models are equipped with this sym-
bol:
Rear fog light
This symbol indicates that the rear fog light
(located in the driver's side tail light cluster) is
on.
Stability system
This indicator symbol flashes when the DSTC
(Dynamic Stability and Traction Control sys-
tem) is actively working to stabilize the vehicle,
see page 155 for more detailed information.
Tire pressure monitoring system
(TPMS) – option
This symbol illuminates to indicate that tire
pressure in one or more tires is low, see
page 259 for detailed information.
Low fuel level
When this light comes on, the vehicle should
be refueled as soon as possible.
Information symbol
The information symbol illuminates and a text
message is displayed if a fault is detected in
one of the vehicle's systems. The message can
be erased and the symbol can be turned off by
pressing the READ button (see page 121 for
information) or this will take place automati-
cally after a short time (the length of time varies,
depending on the function affected).
ProCarManuals.com
Page 74 of 286
03 Your driving environmentInstruments and controls
0374
The information symbol may also illuminate
together with other symbols.
High beam indicator
This symbol illuminates when the high beam
headlights are on, or if the high beam flash
function is used.
Left turn signal indicator Right turn signal indicatorNOTE
•
Both turn signal indicators will flash
when the hazard warning flashers are
used.
•
If either of these indicators flash faster
than normal, the direction indicators are
not functioning properly.
Indicator and warning symbolsSymbol
DescriptionLow oil pressureParking brake appliedSRS airbags
Symbol
DescriptionSeat belt reminderGenerator not chargingFault in the brake systemWarning symbol
Low oil pressure
If the light comes on while driving, stop the
vehicle, stop the engine immediately, and
check the engine oil level. If the oil level is nor-
mal and the light stays on after restart, have the
vehicle towed to the nearest trained and quali-
fied Volvo service technician. This is normal,
provided it goes off when the engine speed is
increased.
Parking brake applied
This symbol illuminates when the parking
brake is applied. On models equipped with the
electric parking brake, this symbol flashes
while the brake is being applied and then glows
steadily.
A flashing symbol means that a fault has been
detected. See the message in the information
display.Canadian models are equipped with this sym-
bol:
NOTE
This symbol also comes on when the
mechanical parking brake is only slightly
applied.
Airbags – SRS
If this light comes on while the vehicle is being
driven, or remains on for longer than approxi-
mately 10 seconds after the vehicle has been
started, the SRS system's diagnostic functions
have detected a fault in a seat belt lock or pre-
tensioner, a front airbag, side impact airbag,
and/or an inflatable curtain. Have the system(s)
inspected by a trained and qualified Volvo
service technician as soon as possible.
Seat belt reminder
This symbol comes on for approximately 6 sec-
onds if the driver has not fastened his or her
seat belt.
Generator not charging
This symbol comes on during driving if a fault
has occurred in the electrical system. Contact
an authorized Volvo workshop.
ProCarManuals.com
Page 75 of 286
03 Your driving environment
Instruments and controls
03 ` `75
Engine temperatureEngine overheating can result from low oil or
coolant levels, towing or hard driving at high
heat and altitude, or mechanical malfunction.
Engine overheating will be signaled with text
and a red warning triangle in the middle of the
instrument display. The exact text will depend
on the degree of overheating. It may range from
"HIGH ENGINE TEMP – SLOW DOWN
" to
"
HIGH ENGINE TEMP – STOP ENGINE
." If
appropriate, other messages, such as
"
COOLANT LEVEL LOW
" will also be dis-
played. If your engine does overheat so that
you must stop the engine, always allow the
engine to cool before attempting to check oil
and coolant levels.
Fault in brake system
If this symbol lights, the brake fluid level may
be too low. Stop the vehicle in a safe place and
check the level in the brake fluid reservoir, see
page 219. If the level in the reservoir is below
MIN, the vehicle should be transported to an
authorized Volvo workshop to have the brake
system checked.
Canadian models are equipped with this sym-
bol:If the
and
symbols come on at
the same time, there may be a fault in the brake
force distribution system.1. Stop the vehicle in a safe place and turn off
the engine.
2. Restart the engine.
•
If both symbols extinguish, continue driv-
ing.
•
If the symbols remain on, check the level in
the brake fluid reservoir, see page 219. If
the brake fluid level is normal but the sym-
bols are still lit, the vehicle can be driven,
with great care, to an authorized Volvo
workshop to have the brake system
checked.
•
If the level in the reservoir is below MIN, the
vehicle should be transported to an author-
ized Volvo workshop to have the brake
system checked.WARNING
•
If the fluid level is below the MIN mark
in the reservoir or if a warning message
is displayed in the text window:
DO
NOT DRIVE
. Have the vehicle towed to
a trained and qualified Volvo service
technician and have the brake system
inspected.
•
If the ABS and Brake system lights are
on at the same time, there is a risk of
reduced vehicle stability.
Warning symbol
The red warning symbol comes on when a fault
has been indicated which could affect the
safety and/or drivability of the vehicle. An
explanatory text is shown on the information
display at the same time. The symbol remains
visible until the fault has been rectified but the
text message can be cleared with the READ
button, see page 121. The warning symbol can
also come on in conjunction with other sym-
bols.
Action:
1. Stop in a safe place. Do not drive the vehi-
cle further.
2. Read the information on the information
display. Implement the action in accord-
ance with the message in the display. Clear
the message using READ.Reminder – doors not closedIf one of the doors, the hood or tailgate is not
closed properly, the information or warning
symbol comes on together with an explanatory
text message in the instrument panel. Stop the
vehicle in a safe place as soon as possible and
close the door, hood or tailgate.
If the vehicle is driven at a speed
lower than approximately 5 mph
(7 km/h), the information symbol comes on.
ProCarManuals.com
Page 76 of 286
03 Your driving environmentInstruments and controls
0376
If the vehicle is driven at a speed
higher than approximately 5 mph
(7 km/h), the warning symbol comes on.
Trip odometers
G010608
Trip odometers and reset button
Odometer displayButton for toggling between T1 and T2,
and for resetting the odometer
The trip odometers are used to measure short
distances. A short press the button toggles
between the two trip odometers T1 and T2. A
long press (more than 2 seconds) resets an
active trip odometer to zero. The distance is
shown in the display.
Clock
G010609
Clock and setting control
DisplayControl for setting the clock
Turn the control clockwise/counterclockwise
to set the time. The set time is shown in the
information display.
The clock may be temporarily replaced by a
symbol in conjunction with a message, see
page 121.
ProCarManuals.com
Page 77 of 286
03 Your driving environment
Ignition modes
03 ` `77 Functions
G024099
Ignition slot with remote key, start/stop buttonInserting and removing the remote keyThe various ignition modes are accessed by
inserting the remote key into the ignition slot.
The remote key can be removed from the igni-
tion slot by pressing the key in. It will then be
ejected slightly and can be removed from the
slot. The gear selector must be in position P
(Park).
NOTE
The brake pedal must not be depressed
when accessing ignition modes I or II.
CAUTION
Foreign objects in the ignition slot can
impair function or damage the lock.Ignition mode 0 ±
Insert the remote key in the ignition slot.Ignition mode I ±
Press the remote key into the ignition slot
and press START/STOP ENGINE.Ignition mode II ±
Press the remote key into the ignition slot
and press START/STOP ENGINE for
approx. 2 seconds.Ignition mode III (engine start)Start the engine, see page 103.Stopping the engine ±
PressSTART/STOP ENGINE. (If the
engine is running and the vehicle is mov-
ing, keep the button depressed until the
engine stops).Return to ignition mode 0 ±
PressSTART/STOP ENGINE to return
fromI,II, or III to ignition mode 0.
Posi-
tion
Function
0
Odometer, clock and tempera-
ture gauge are illuminated. Steer-
ing lock is deactivated. The audio
system can be used.
I
Moonroof, power windows, cli-
mate system blower, ECC, wind-
shield wipers can be used.
II
The headlights come on. Warn-
ing/indicator lights come on for
5 seconds. All equipment oper-
ates apart from heated seats and
rear window defroster, which
only work when the engine is run-
ning.
III
The starter motor will operate
until the engine has started.
Functions with timerThe audio system can be operated without a
key for 15 minutes at a time by pressing the
POWER button. The power windows work for
several minutes after the key has been
removed, although not after the door has been
opened.
ProCarManuals.com
Page 78 of 286

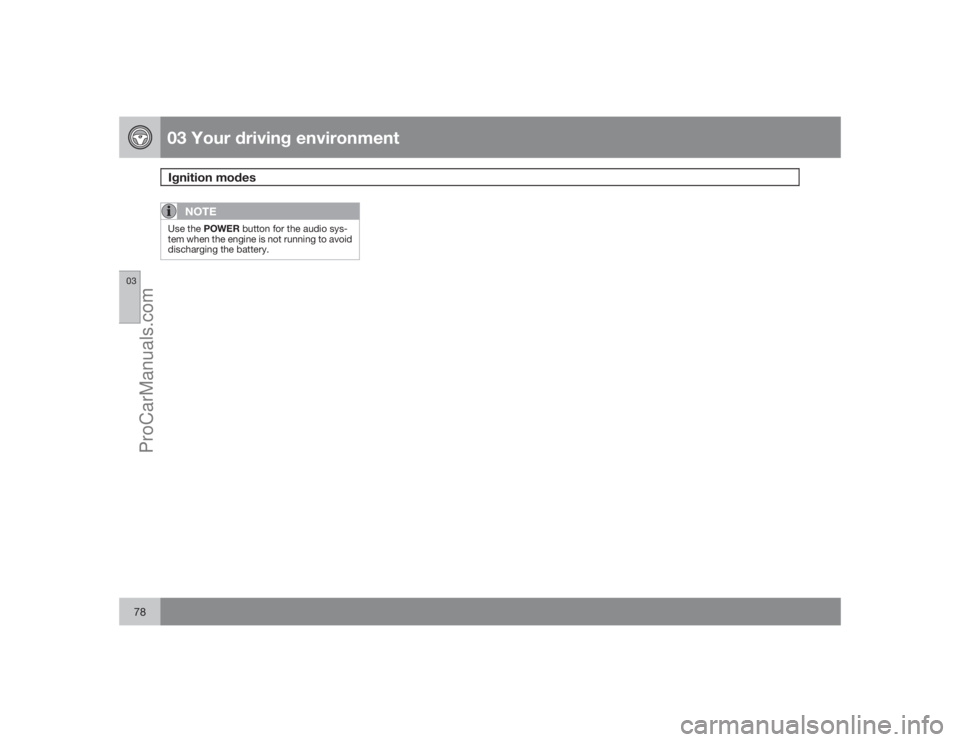

03 Your driving environmentIgnition modes
0378
NOTE
Use the POWER button for the audio sys-
tem when the engine is not running to avoid
discharging the battery.
ProCarManuals.com
Page 79 of 286
03 Your driving environment
Seats
03 ` `79 Front seats
G021127
Lumbar support: turn the control for firmer
or softer lumbar support.Front-rear adjustment: lift the bar and
move the seat to the position of your
choice.Raise/lower front edge of seat cushion,
pump up/down.Backrest tilt: turn the control to adjust the
angle of the backrest.Raise/lower the seat, pump up/down.Control panel for power seat.
WARNING
•
Do not adjust the seat while driving. The
seat should be adjusted so that the
brake pedal can be depressed fully. In
addition, position the seat as far rear-
ward as comfort and control allow.
•
Check that the seat is securely locked
into position after adjusting.
Folding the front seat backrest
G021129
The front passenger seat backrest can be
folded to a horizontal position to make room for
a long load. Fold the backrest as follows:
Move the seat as far back as possible.Adjust the backrest to an upright position.
Lift the catches on the rear of the backrest.Without releasing the catches, push the
backrest forward.
Move the seat as far forward as possible
so that the head restraint slides under the
glove compartment.WARNING
Cover sharp edges on the load to help pre-
vent injury to occupants. Secure the load to
help prevent shifting during sudden stops.Power seat (option)
G021133
Front edge of seat cushion up/downSeat forward/rearward and up/downBackrest tilt
ProCarManuals.com
Page 80 of 286
03 Your driving environmentSeats
0380
OperationThe seats can be adjusted for a short period
after unlocking the door with the remote con-
trol without the key in the ignition slot. Seat
adjustment is normally made when the ignition
is on and can always be made when the engine
is running.
NOTE
•
Only one of the power seat's controls
can be used at the same time.
•
The power seats have an overload pro-
tector that activates if a seat is blocked
by any object. If this occurs, switch off
the ignition (key in position 0) and wait
for a short period before operating the
seat again.
Seat with memory function (option)
G021134
Stored seat positionStored seat positionStored seat positionMemory button
Programming the memoryThree different seating and door mirror posi-
tions can be stored in the driver seat's memory.
The following example explains how button 1
can be programmed. Buttons 2 and 3 can be
programmed in the same way.
To program (store) a seat position and door
mirror position in button 1:1. Move the seat (and door mirrors) to the
desired position using the seat and mirror
adjustment controls.
2.
Press and hold down the M (memory) but-
ton.
3. With the memory button depressed, press
button1 briefly to store the current position
for the seat/mirrors.
To move the seat and mirrors to the position
that they were in when a button was pro-
grammed:
±
Press and hold down button 1 until the seat
and mirrors stop moving.
NOTE
As a safety precaution, the seat will stop
automatically if the button is released before
the seat has reached the preset position.Remote keyless entry system and the
driver's seatThe remote control transmitter also controls
the position of the power driver's seat in the
following way:
1. Adjust the seat to your preferences.
2. When you leave your vehicle, lock it using
the remote control.
ProCarManuals.com
