VOLVO XC70 2009 Workshop Manual
Manufacturer: VOLVO, Model Year: 2009, Model line: XC70, Model: VOLVO XC70 2009Pages: 286, PDF Size: 6.57 MB

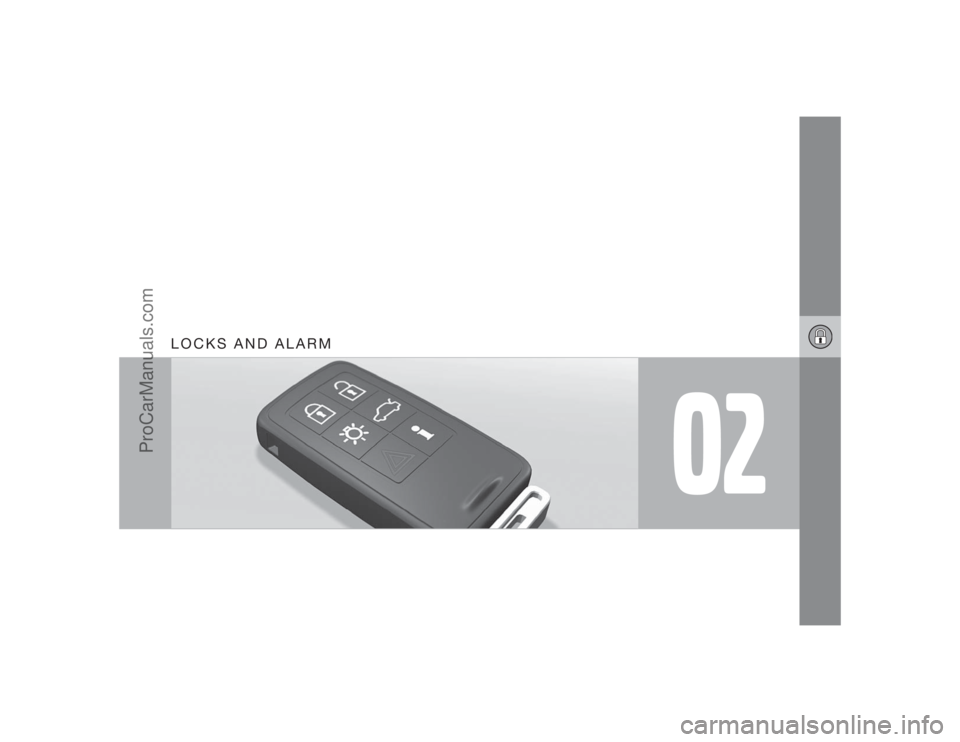

Page 51 of 286
02
LOCKS AND ALARM
ProCarManuals.com
Page 52 of 286
02 Locks and alarmRemote key and key blade
0252
IntroductionTwo remote keys or optional Personal Car
Communicators (PCC) are provided with your
vehicle. They enable you to unlock the doors
and tailgate, and also function as ignition keys
to start the vehicle or operate electrical com-
ponents. The remote keys contain detachable
metal key blades for manually locking or
unlocking the driver's door and the glove com-
partment. Up to six remotes can be pro-
grammed for use on the same vehicle.
The PCCs have enhanced functionality com-
pared with the standard remote control.
NOTE
In the remainder of this chapter, all referen-
ces to the remote key also pertain to the
PCC unless otherwise stated.
WARNING
Never leave the remote key in the ignition if
children are to remain in the vehicle.Detachable key bladeEach remote key or PCC contains a detachable
metal key blade for mechanically locking or
unlocking the driver's door and the glove com-
partment, and to enable the private locking
function. See page 57 for more information
on the key blade and page 59 for informationon the private locking function. The key blades
have a unique code, which is used if new ones
need to be produced. This code is available at
an authorized Volvo retailer.
Loss of a remote keyIf a remote key is lost, the other one must be
taken with the vehicle to a trained and qualified
Volvo service technician. As an anti-theft
measure, the code of the lost remote must be
erased from the system.
The number of registered keys for the vehicle
can be found in the vehicle's menu under Car
settings
Car key memory
Number of
keys. See page 120 for a description of the
menu system.
USA-5WK49264
FCC ID:KR55WK49264 + Siemens VDO
5WK49236
FCC ID:KR55WK49236, 5WK49266
FCC ID:KR55WK49266 + Siemens VDO
5WK49233
FCC ID:KR55WK49233
This device complies with part 15 of the FCC
rules and RSS-210. Operation is subject to the
following conditions: (1) This device may not
cause harmful interference, and (2) this device
must accept any interference received, includ-ing interference that may cause undesired
operation.
Canada-5WK49264
IC:267T-5WK49264 + Siemens VDO
5WK49236
IC:267T-5WK49236, 5WK49266
IC:267T-5WK49266 + Siemens VDO
5WK49233
IC:267T-5WK49233
Operation is subject to the following condi-
tions: (1) this device may not cause interfer-
ence, and (2) this device must accept any
interference, including interference that may
cause undesired operation of the device.
Key memory – door mirrors and driver's
seatThe position of the side door mirrors and
optional power driver's seat are stored in the
remote keys when the vehicle is locked. The
next time the driver's door is unlocked with the
same remote key and the door is opened within
2 minutes, the power driver's seat and side
door mirrors will automatically move to the
position that they were in when the doors were
most recently locked with the same remote
key. See page 80 for more information.
ProCarManuals.com

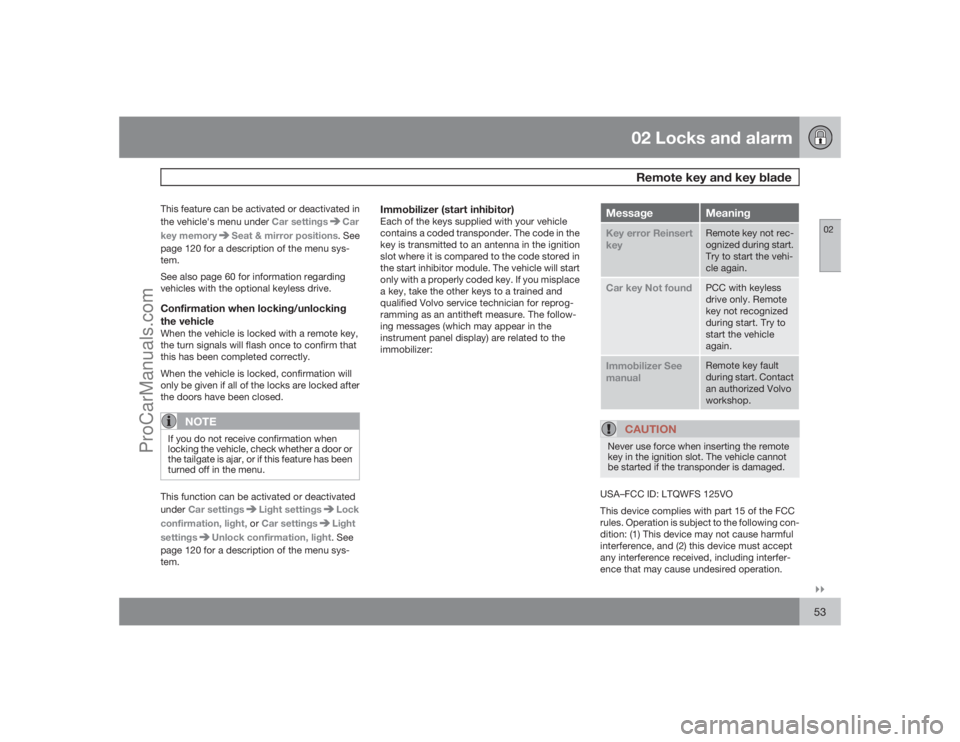

Page 53 of 286
02 Locks and alarmRemote key and key blade
02 ` `53
This feature can be activated or deactivated in
the vehicle's menu under Car settings
Car
key memory
Seat & mirror positions. See
page 120 for a description of the menu sys-
tem.
See also page 60 for information regarding
vehicles with the optional keyless drive.
Confirmation when locking/unlocking
the vehicleWhen the vehicle is locked with a remote key,
the turn signals will flash once to confirm that
this has been completed correctly.
When the vehicle is locked, confirmation will
only be given if all of the locks are locked after
the doors have been closed.
NOTE
If you do not receive confirmation when
locking the vehicle, check whether a door or
the tailgate is ajar, or if this feature has been
turned off in the menu.This function can be activated or deactivated
underCar settings
Light settings
Lock
confirmation, light, or Car settingsLight
settings
Unlock confirmation, light. See
page 120 for a description of the menu sys-
tem.
Immobilizer (start inhibitor)Each of the keys supplied with your vehicle
contains a coded transponder. The code in the
key is transmitted to an antenna in the ignition
slot where it is compared to the code stored in
the start inhibitor module. The vehicle will start
only with a properly coded key. If you misplace
a key, take the other keys to a trained and
qualified Volvo service technician for reprog-
ramming as an antitheft measure. The follow-
ing messages (which may appear in the
instrument panel display) are related to the
immobilizer:
Message
Meaning
Key error Reinsert
key
Remote key not rec-
ognized during start.
Try to start the vehi-
cle again.
Car key Not found
PCC with keyless
drive only. Remote
key not recognized
during start. Try to
start the vehicle
again.
Immobilizer See
manual
Remote key fault
during start. Contact
an authorized Volvo
workshop.
CAUTION
Never use force when inserting the remote
key in the ignition slot. The vehicle cannot
be started if the transponder is damaged.USA–FCC ID: LTQWFS 125VO
This device complies with part 15 of the FCC
rules. Operation is subject to the following con-
dition: (1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
ProCarManuals.com

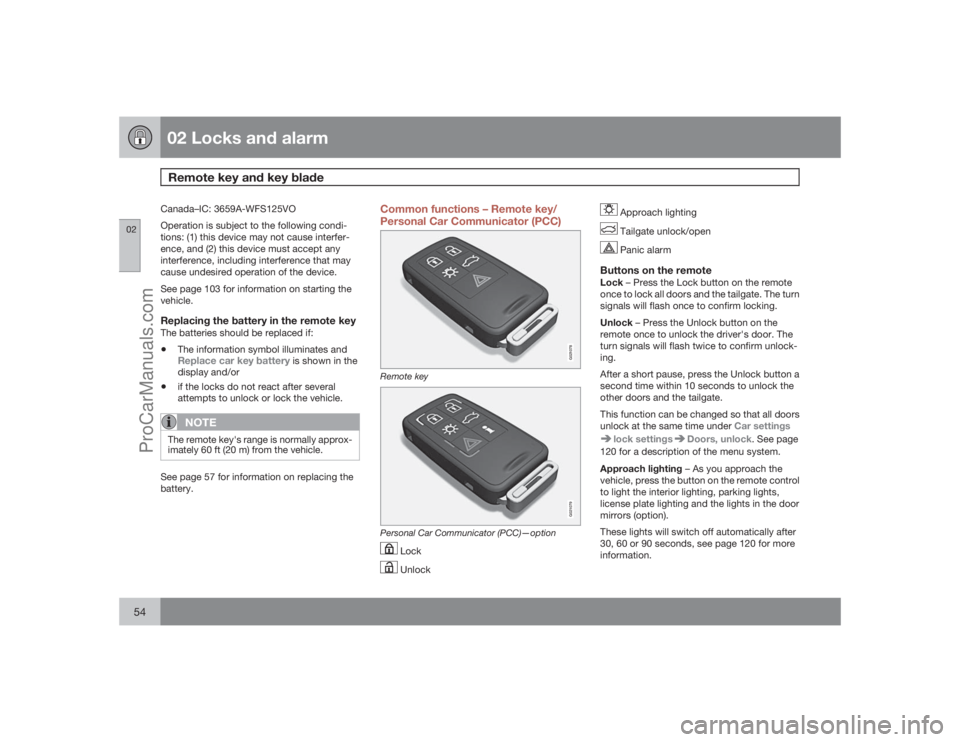

Page 54 of 286
02 Locks and alarmRemote key and key blade
0254
Canada–IC: 3659A-WFS125VO
Operation is subject to the following condi-
tions: (1) this device may not cause interfer-
ence, and (2) this device must accept any
interference, including interference that may
cause undesired operation of the device.
See page 103 for information on starting the
vehicle.Replacing the battery in the remote keyThe batteries should be replaced if:•
The information symbol illuminates andReplace car key battery
is shown in the
display and/or
•
if the locks do not react after several
attempts to unlock or lock the vehicle.NOTE
The remote key's range is normally approx-
imately 60 ft (20 m) from the vehicle.See page 57 for information on replacing the
battery.
Common functions – Remote key/
Personal Car Communicator (PCC)
G021078
Remote key
G021079
Personal Car Communicator (PCC)—option
Lock Unlock
Approach lighting Tailgate unlock/open Panic alarm
Buttons on the remoteLock – Press the Lock button on the remote
once to lock all doors and the tailgate. The turn
signals will flash once to confirm locking.
Unlock – Press the Unlock button on the
remote once to unlock the driver's door. The
turn signals will flash twice to confirm unlock-
ing.
After a short pause, press the Unlock button a
second time within 10 seconds to unlock the
other doors and the tailgate.
This function can be changed so that all doors
unlock at the same time under Car settings
lock settings
Doors, unlock. See page
120 for a description of the menu system.
Approach lighting – As you approach the
vehicle, press the button on the remote control
to light the interior lighting, parking lights,
license plate lighting and the lights in the door
mirrors (option).
These lights will switch off automatically after
30, 60 or 90 seconds, see page 120 for more
information.
ProCarManuals.com

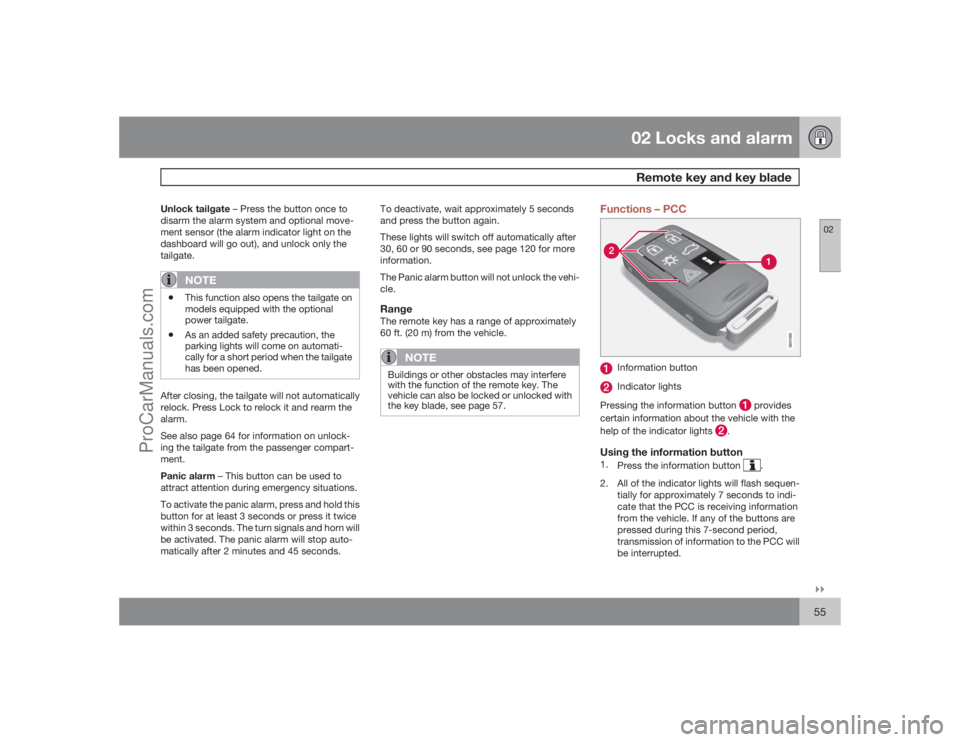

Page 55 of 286
02 Locks and alarmRemote key and key blade
02 ` `55
Unlock tailgate – Press the button once to
disarm the alarm system and optional move-
ment sensor (the alarm indicator light on the
dashboard will go out), and unlock only the
tailgate.
NOTE
•
This function also opens the tailgate on
models equipped with the optional
power tailgate.
•
As an added safety precaution, the
parking lights will come on automati-
cally for a short period when the tailgate
has been opened.
After closing, the tailgate will not automatically
relock. Press Lock to relock it and rearm the
alarm.
See also page 64 for information on unlock-
ing the tailgate from the passenger compart-
ment.
Panic alarm – This button can be used to
attract attention during emergency situations.
To activate the panic alarm, press and hold this
button for at least 3 seconds or press it twice
within 3 seconds. The turn signals and horn will
be activated. The panic alarm will stop auto-
matically after 2 minutes and 45 seconds.To deactivate, wait approximately 5 seconds
and press the button again.
These lights will switch off automatically after
30, 60 or 90 seconds, see page 120 for more
information.
The Panic alarm button will not unlock the vehi-
cle.
RangeThe remote key has a range of approximately
60 ft. (20 m) from the vehicle.
NOTE
Buildings or other obstacles may interfere
with the function of the remote key. The
vehicle can also be locked or unlocked with
the key blade, see page 57.
Functions – PCC
G021080
Information buttonIndicator lights
Pressing the information button
provides
certain information about the vehicle with the
help of the indicator lights
.
Using the information button1.
Press the information button
.
2. All of the indicator lights will flash sequen-
tially for approximately 7 seconds to indi-
cate that the PCC is receiving information
from the vehicle. If any of the buttons are
pressed during this 7-second period,
transmission of information to the PCC will
be interrupted.
ProCarManuals.com
Page 56 of 286
02 Locks and alarmRemote key and key blade
0256
NOTE
If none of the indicator lights flash when the
information button has been pressed sev-
eral times from different places in relation to
the vehicle, contact an authorized Volvo
service technician.The indicator lights
provide information
according to the illustration:
G030262
Steady green light: the vehicle is correctly
locked.Steady yellow light: the vehicle is not
locked.Alternatively flashing red lights (Heartbeat
sensor): if the two heartbeat sensor lights
flash, this indicates that someone may beinside the vehicle. These lights are only
activated if the alarm has been triggered.
Steady red light: the alarm has been trig-
gered.
RangeThe PCC's lock and unlock functions have a
range of approximately 60 ft. (20 m) from the
vehicle.
NOTE
•
The approach lighting, panic alarm, and
the functions controlled by the informa-
tion button have a range of approxi-
mately 300 ft (100 m) from the vehicle.
•
Buildings or other obstacles may inter-
fere with the function of the PCC.
Outside of the PCC´s rangeIf the PCC is more than approximately 300 ft
(100 m) from the vehicle when the information
button is pressed, no new information will be
received. The PCC most recently used to lock
or unlock the vehicle will show the vehicle's
most recently received status. The indicator
lights will not flash when the information button
is pressed while the PCC is out of range.If more than one PCC is used to lock/unlock
the vehicle, only the one used most recently will
show the correct locking status.
NOTE
If none of the indicator lights illuminate when
the information button is pressed, this may
be because the most recent transmission
between the vehicle and the PCC was inter-
rupted or impeded by buildings or other
objects.Heartbeat SensorThe heartbeat sensor function
is a comple-
ment to the vehicle's standard alarm, and indi-
cates at a distance of up to 300 ft (100 m) that
someone may be in the vehicle. The heartbeat
sensor only functions if the alarm has been
triggered.
NOTE
The heartbeat sensor registers a person's
heartbeat in the form of vibrations in the
vehicle's chassis. For this reason, the sen-
sor's function may be impaired in areas with
high levels of noise or vibrations.Keyless driveVehicles equipped with the optional Personal
Car Communicator have the keyless drive
ProCarManuals.com
Page 57 of 286

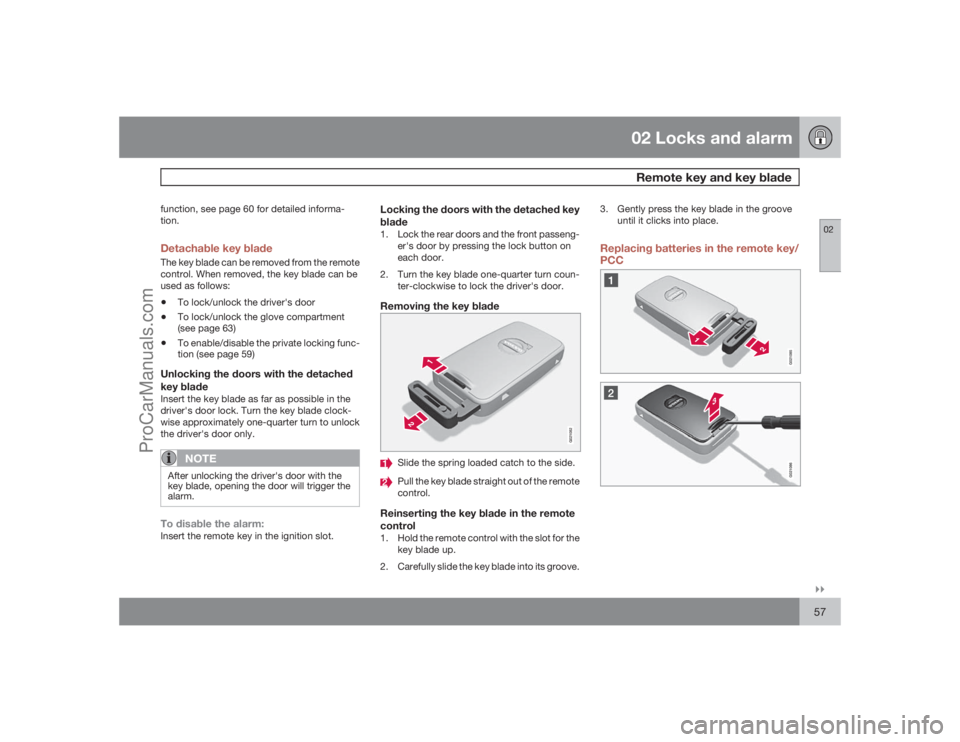

02 Locks and alarmRemote key and key blade
02 ` `57
function, see page 60 for detailed informa-
tion.Detachable key bladeThe key blade can be removed from the remote
control. When removed, the key blade can be
used as follows:•
To lock/unlock the driver's door
•
To lock/unlock the glove compartment
(see page 63)
•
To enable/disable the private locking func-
tion (see page 59)
Unlocking the doors with the detached
key bladeInsert the key blade as far as possible in the
driver's door lock. Turn the key blade clock-
wise approximately one-quarter turn to unlock
the driver's door only.
NOTE
After unlocking the driver's door with the
key blade, opening the door will trigger the
alarm.To disable the alarm:Insert the remote key in the ignition slot.
Locking the doors with the detached key
blade1. Lock the rear doors and the front passeng-
er's door by pressing the lock button on
each door.
2. Turn the key blade one-quarter turn coun-
ter-clockwise to lock the driver's door.Removing the key blade
G021082
Slide the spring loaded catch to the side.Pull the key blade straight out of the remote
control.
Reinserting the key blade in the remote
control1. Hold the remote control with the slot for the
key blade up.
2. Carefully slide the key blade into its groove.3. Gently press the key blade in the groove
until it clicks into place.
Replacing batteries in the remote key/
PCC
ProCarManuals.com
Page 58 of 286

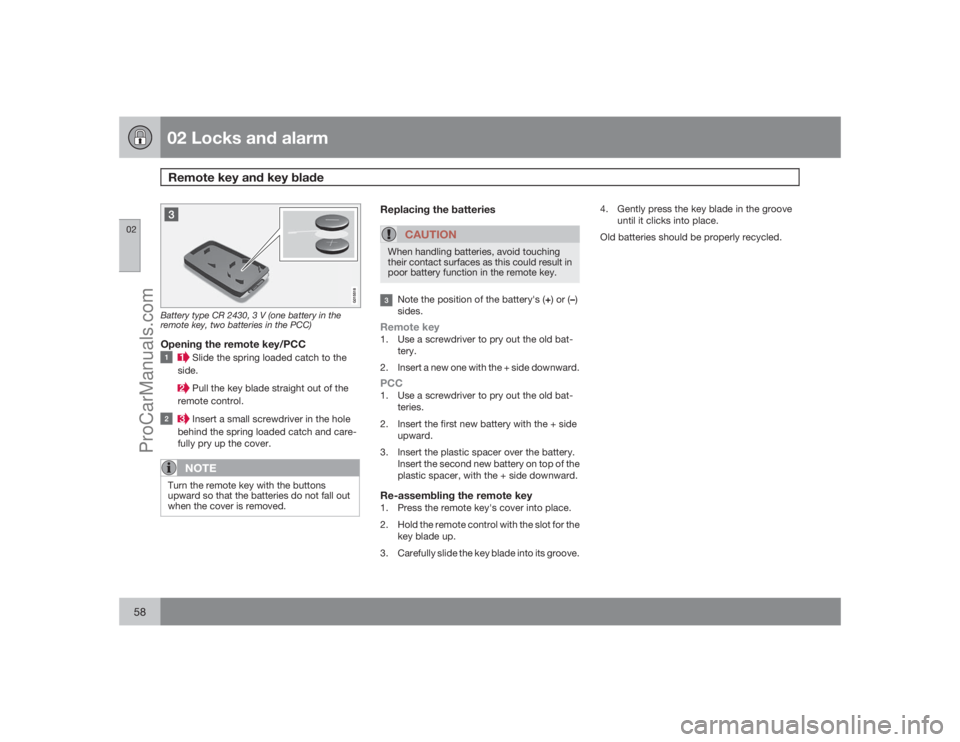

02 Locks and alarmRemote key and key blade
0258
Battery type CR 2430, 3 V (one battery in the
remote key, two batteries in the PCC)Opening the remote key/PCC
Slide the spring loaded catch to the
side. Pull the key blade straight out of the
remote control. Insert a small screwdriver in the hole
behind the spring loaded catch and care-
fully pry up the cover.NOTE
Turn the remote key with the buttons
upward so that the batteries do not fall out
when the cover is removed.
Replacing the batteries
CAUTION
When handling batteries, avoid touching
their contact surfaces as this could result in
poor battery function in the remote key.Note the position of the battery's (+) or (–)
sides.
Remote key1. Use a screwdriver to pry out the old bat-
tery.
2. Insert a new one with the + side downward.PCC1. Use a screwdriver to pry out the old bat-
teries.
2. Insert the first new battery with the + side
upward.
3. Insert the plastic spacer over the battery.
Insert the second new battery on top of the
plastic spacer, with the + side downward.Re-assembling the remote key1. Press the remote key's cover into place.
2. Hold the remote control with the slot for the
key blade up.
3. Carefully slide the key blade into its groove.4. Gently press the key blade in the groove
until it clicks into place.
Old batteries should be properly recycled.
ProCarManuals.com
Page 59 of 286

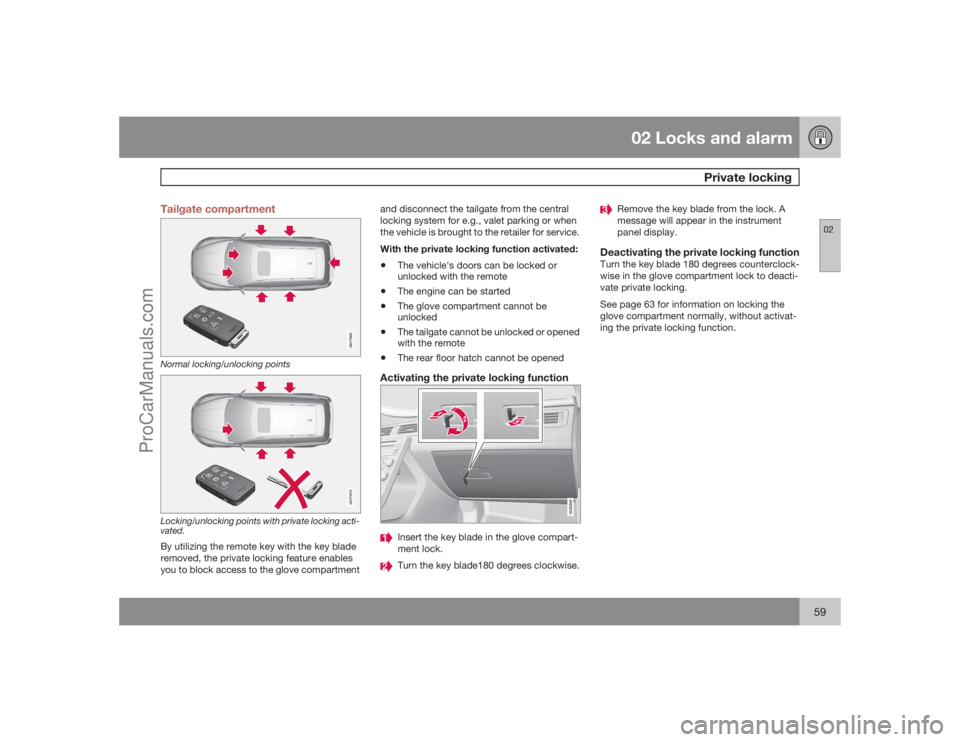

02 Locks and alarm
Private locking
0259 Tailgate compartment
G017869
Normal locking/unlocking points
G017870
Locking/unlocking points with private locking acti-
vated.By utilizing the remote key with the key blade
removed, the private locking feature enables
you to block access to the glove compartmentand disconnect the tailgate from the central
locking system for e.g., valet parking or when
the vehicle is brought to the retailer for service.
With the private locking function activated:
•
The vehicle's doors can be locked or
unlocked with the remote
•
The engine can be started
•
The glove compartment cannot be
unlocked
•
The tailgate cannot be unlocked or opened
with the remote
•
The rear floor hatch cannot be opened
Activating the private locking function
G020508
Insert the key blade in the glove compart-
ment lock.Turn the key blade180 degrees clockwise.
Remove the key blade from the lock. A
message will appear in the instrument
panel display.
Deactivating the private locking functionTurn the key blade 180 degrees counterclock-
wise in the glove compartment lock to deacti-
vate private locking.
See page 63 for information on locking the
glove compartment normally, without activat-
ing the private locking function.
ProCarManuals.com
Page 60 of 286

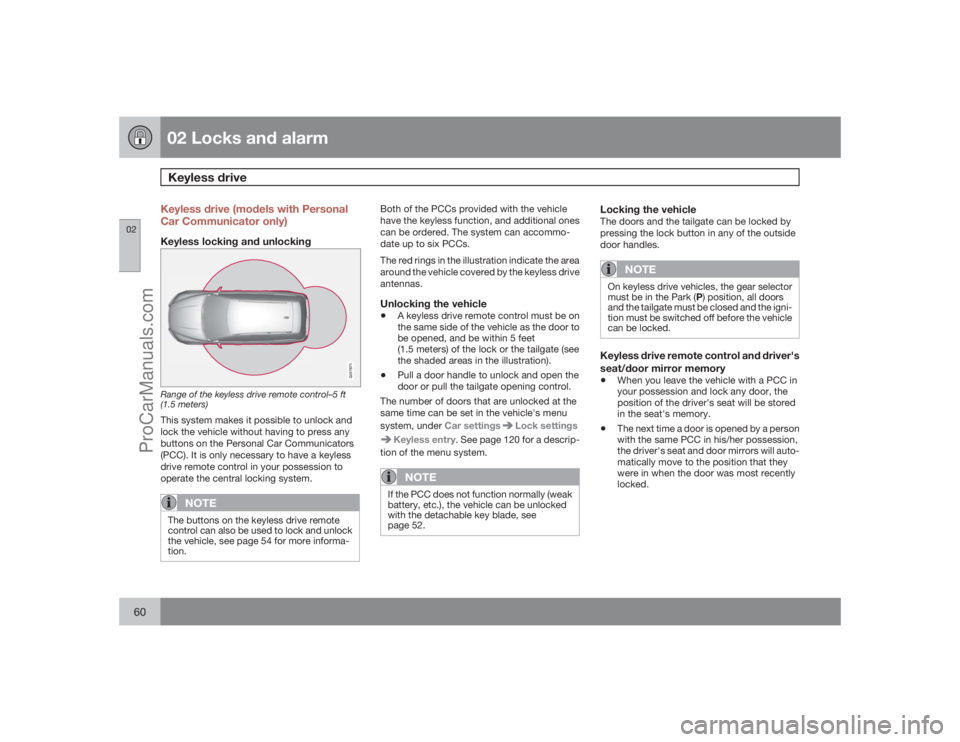

02 Locks and alarmKeyless drive
0260
Keyless drive (models with Personal
Car Communicator only)Keyless locking and unlocking
G017871
Range of the keyless drive remote control–5 ft
(1.5 meters)This system makes it possible to unlock and
lock the vehicle without having to press any
buttons on the Personal Car Communicators
(PCC). It is only necessary to have a keyless
drive remote control in your possession to
operate the central locking system.
NOTE
The buttons on the keyless drive remote
control can also be used to lock and unlock
the vehicle, see page 54 for more informa-
tion.
Both of the PCCs provided with the vehicle
have the keyless function, and additional ones
can be ordered. The system can accommo-
date up to six PCCs.
The red rings in the illustration indicate the area
around the vehicle covered by the keyless drive
antennas.Unlocking the vehicle•
A keyless drive remote control must be on
the same side of the vehicle as the door to
be opened, and be within 5 feet
(1.5 meters) of the lock or the tailgate (see
the shaded areas in the illustration).
•
Pull a door handle to unlock and open the
door or pull the tailgate opening control.
The number of doors that are unlocked at the
same time can be set in the vehicle's menu
system, under Car settings
Lock settings
Keyless entry. See page 120 for a descrip-
tion of the menu system.NOTE
If the PCC does not function normally (weak
battery, etc.), the vehicle can be unlocked
with the detachable key blade, see
page 52.
Locking the vehicleThe doors and the tailgate can be locked by
pressing the lock button in any of the outside
door handles.
NOTE
On keyless drive vehicles, the gear selector
must be in the Park (P) position, all doors
and the tailgate must be closed and the igni-
tion must be switched off before the vehicle
can be locked.Keyless drive remote control and driver's
seat/door mirror memory•
When you leave the vehicle with a PCC in
your possession and lock any door, the
position of the driver's seat will be stored
in the seat's memory.
•
The next time a door is opened by a person
with the same PCC in his/her possession,
the driver's seat and door mirrors will auto-
matically move to the position that they
were in when the door was most recently
locked.
ProCarManuals.com
