VOLVO XC70 2013 Owner´s Manual

05 Comfort and driving pleasure
Passenger compartment convenience
05
* Option/accessory, for more information, see Introduction.209 Vanity mirror
G021438
Vanity mirror with lighting
The light comes on automatically when the
cover is lifted.
12-volt sockets
G021439
12-volt socket in the front tunnel console
G021440
12-volt socket in the rear center console
The electrical sockets can be used for 12-volt
accessories such as cell phone chargers and
coolers. For the socket to supply current, theignition must be in at least mode I, see
page 82.
The maximum current consumption is 10A
(120W) if only one of the 12-volt sockets in the
passenger compartment is in use. If both the
front and rear sockets are used at the same
time, the maximum current consumption per
socket is 7.5A (90W).
The auxiliary sockets can also be used to
power a cigarette lighter. Accessory cigarette
lighters and ashtrays can be purchased from
your Volvo retailer.
WARNING
Always keep the sockets covered when not
in use.
12-volt socket in the cargo area*

05 Comfort and driving pleasure
Passenger compartment convenience
05
210
Fold down the cover to access the electrical
socket.
NOTE
The 12-volt socket in the cargo area pro-
vides electrical current even when the igni-
tion is switched off. Using the socket while
the engine is not running will drain the bat-
tery.

05 Comfort and driving pleasure

05
211

212* Option/accessory, for more information, see Introduction.
Introduction........................................................................................... 214
Radio..................................................................................................... 225
Media player......................................................................................... 234
AUX/USB sockets................................................................................. 238
Bluetooth
Ÿ media ................................................................................. 241
Bluetooth
® hands-free connection ...................................................... 243
Cell phone voice control....................................................................... 251
Rear Seat Entertainment (RSE)* ........................................................... 255
Remote control*.................................................................................... 264

INFOTAINMENT

06 Infotainment
Introduction
06
214* Option/accessory, for more information, see Introduction.
General information
The infotainment system consists of radio and
media player features and also makes it pos-
sible to communicate via a cell phone. The
information is displayed on a 7" screen in the
center console. Infotainment functions can be
controlled from the center console or via the
buttons on the steering wheel keypad. On
models equipped with the optional navigation
system, voice commands can also be used to
e.g., set destinations, make calls from a
Bluetooth
Ÿ-connected cell phone, etc.
If the infotainment system was on when the
ignition was switched off, the most recently
used source (
FM1, etc.) will restart the next
time the ignition is put in mode I or higher. The
driver's door must also be closed on vehicles
with keyless drive*.
The infotainment system can be operated for
15 minutes at a time while the engine is
switched off by pressing the On/Off button.
While the engine is being started, the infotain-
ment system will be temporarily interrupted
and will resume when the engine has started.
NOTE
To help avoid excessive battery drain,
remove the remote key from the ignition slot
if the infotainment system is used while the
engine is switched off.
Dolby Pro Logic
The system is manufactured under license
from Dolby Laboratories Licensing
Corporation.
Dolby Pro Logic II and the
symbol are
trademarks of Dolby Laboratories Licensing
Corporation.
Audyssey MultEQ1
The Audyssey MultEQ system has been used
to optimize sound quality to help ensure a
world-class listening experience.
1Applies only to models with Premium Sound Multimedia.

06 Infotainment
Introduction
06

* Option/accessory, for more information, see Introduction.215 Infotainment system overview
Sockets for external audio sources (AUX
and USB)
Steering wheel keypad
Center console control panel
7" display
Rear seat control panel with headphone
socket*
Not in use
Basic infotainment functions
Infotainment controls in the center console
Corresponding controls - keypad and center con-
sole
SOUND: press to access the menu for
adjusting bass, treble, etc., see page 220
for additional information.
VOL: turn to raise or lower the volume level.
ON/OFF/MUTE: short press - switch
the system ON. Press and hold (until the
screen turns black) - switch the system
OFF. A short press when the infotainment
system is on will mute/unmute the sound.
The entire infotainment system, including
the navigation* and telephone functions, is
switched on/off at the same time by using
this button.
Mode buttons: select a mode (e.g.,
RADIO, MEDIA, TEL, etc.) by pressing its
button on the center console. The most

06 Infotainment
Introduction
06
216* Option/accessory, for more information, see Introduction.
recent source in the selected mode (e.g.,
FM1) will be displayed. The location of
these buttons on the center console may
vary slightly from model to model.
OK/MENU: confirm a menu selection. This
leads to the selected mode’s (RADIO,
MEDIA) menu view. Arrows at the right of
the screen indicate submenus.
TUNE: turn to scroll among tracks/folders,
radio stations, phone contacts or to navi-
gate among the alternatives shown on the
screen.
EXIT: short press - go upward in the menu
system, cancel a current function, reject an
incoming phone call or erase characters
that have been entered on the screen.
Press and hold - from a mode’s main view
to come to the infotainment system's main
view, see page 218.
# INFO: if more information is available
than is currently displayed on the screen,
press # INFO to display the remaining
information.
Keypad (for preset stations, entering let-
ters or numbers, etc).
* FAV: this button can be used to store a
shortcut to a commonly used function in
AM/FM/SIRIUS/DISC, etc. See the section"* FAV—storing a shortcut" on page 220
for information on using this button.
Steering wheel keypad
The buttons on the right-hand steering wheel
keypad can be used in the same way as some
of the controls on the center console. There are
two versions of the keypad, depending on your
vehicle's specifications.
Left/right arrow keys: a short press moves
between preset radio stations or tracks on
a disc. Press and hold to search within
tracks or to tune to the next/previous
strong radio station.
Volume
EXIT: a short press takes you upward in
the menu system, cancels a current func-
tion, rejects an incoming phone call or era-
ses characters that have been entered on
the screen. Press and hold from a mode’s
main view to come to the infotainment sys-
tem's main view.
Thumb wheel: pressing functions in the
same way OK/MENU on the center con-
sole. Turning the thumb wheel functions in
the same way as TUNE on the center con-
sole.
Voice button: 2 press to voice-activate cer-
tain functions on a BluetoothŸ-connected
cell phone and the navigation system.
Main view
From a mode’s normal view, pressing and
holding EXIT will display the infotainment sys-
tem's main view, which enables you to select
a mode.
NAV: Navigation system*
RADIO
2Models with the optional navigation system only. On models without navigation, this button mutes/unmutes the infotainment system.

06 Infotainment
Introduction
06

* Option/accessory, for more information, see Introduction.217
MEDIA: (DISC, USB, etc.)
TEL: BluetoothŸ hands-free
MY CAR: Driving-related settings
CAM: Park assist camera*

06 Infotainment
Introduction
06
218

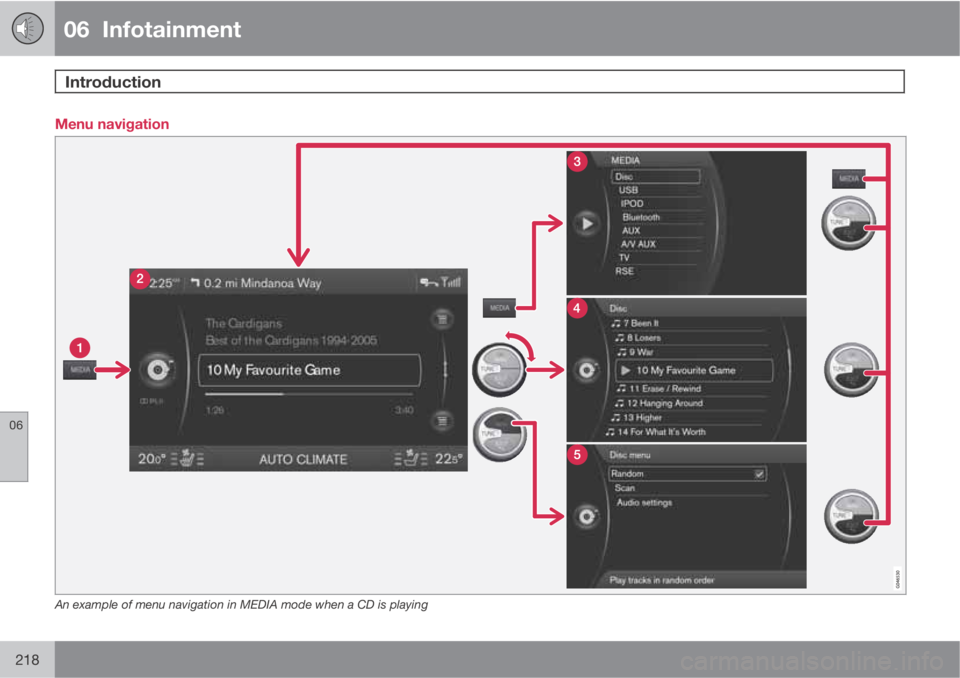

Menu navigation
An example of menu navigation in MEDIA mode when a CD is playing
