VOLVO XC70 2013 Owner´s Manual

06 Infotainment
Bluetooth® hands-free connection
06

249

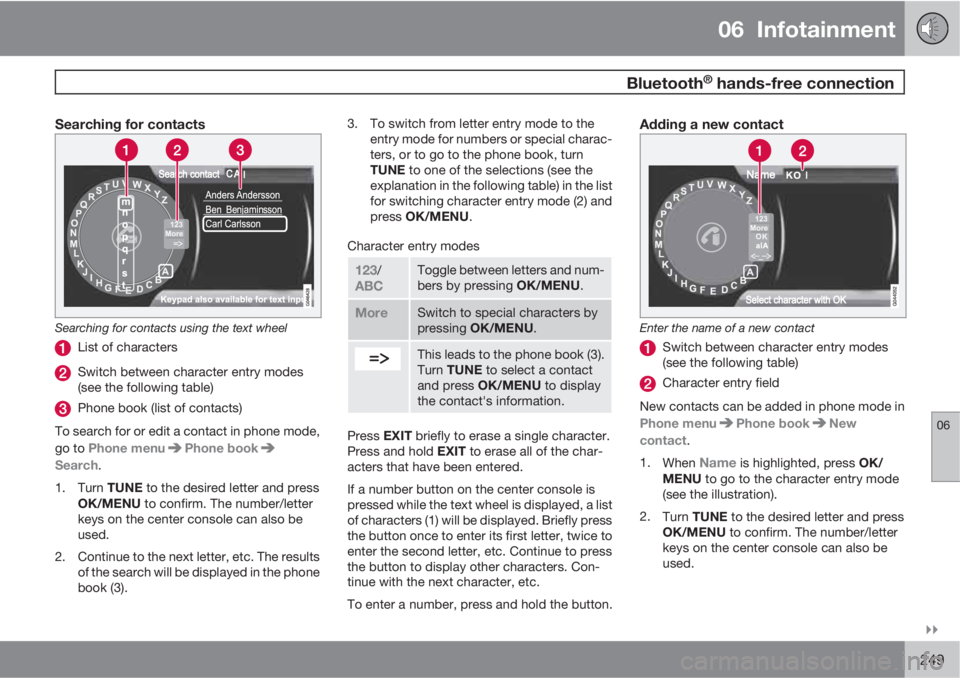

Searching for contacts
Searching for contacts using the text wheel
List of characters
Switch between character entry modes
(see the following table)
Phone book (list of contacts)
To search for or edit a contact in phone mode,
go to Phone menu
Phone book
Search.
1.
Turn TUNE to the desired letter and press
OK/MENU to confirm. The number/letter
keys on the center console can also be
used.
2. Continue to the next letter, etc. The results
of the search will be displayed in the phone
book (3).3. To switch from letter entry mode to the
entry mode for numbers or special charac-
ters, or to go to the phone book, turn
TUNE to one of the selections (see the
explanation in the following table) in the list
for switching character entry mode (2) and
press OK/MENU.
Character entry modes
123/ABC
Toggle between letters and num-
bers by pressing OK/MENU.
MoreSwitch to special characters by
pressing OK/MENU.
This leads to the phone book (3).
Turn TUNE to select a contact
and press OK/MENU to display
the contact's information.
Press EXIT briefly to erase a single character.
Press and hold EXIT to erase all of the char-
acters that have been entered.
If a number button on the center console is
pressed while the text wheel is displayed, a list
of characters (1) will be displayed. Briefly press
the button once to enter its first letter, twice to
enter the second letter, etc. Continue to press
the button to display other characters. Con-
tinue with the next character, etc.
To enter a number, press and hold the button.
Adding a new contact
Enter the name of a new contact
Switch between character entry modes
(see the following table)
Character entry field
New contacts can be added in phone mode in
Phone menu
Phone bookNew
contact.
1.
When
Name is highlighted, press OK/
MENU to go to the character entry mode
(see the illustration).
2.
Turn TUNE to the desired letter and press
OK/MENU to confirm. The number/letter
keys on the center console can also be
used.

06 Infotainment
Bluetooth® hands-free connection
06
250

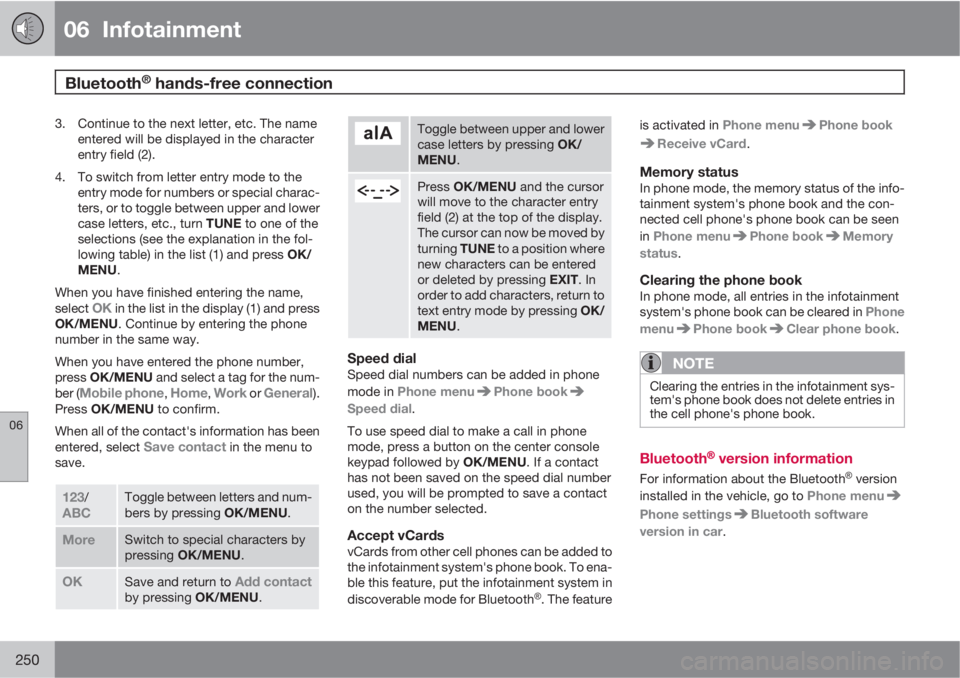

3. Continue to the next letter, etc. The name
entered will be displayed in the character
entry field (2).
4. To switch from letter entry mode to the
entry mode for numbers or special charac-
ters, or to toggle between upper and lower
case letters, etc., turn TUNE to one of the
selections (see the explanation in the fol-
lowing table) in the list (1) and press OK/
MENU.
When you have finished entering the name,
select
OK in the list in the display (1) and press
OK/MENU. Continue by entering the phone
number in the same way.
When you have entered the phone number,
press OK/MENU and select a tag for the num-
ber (
Mobile phone, Home, Work or General).
Press OK/MENU to confirm.
When all of the contact's information has been
entered, select
Save contact in the menu to
save.
123/ABC
Toggle between letters and num-
bers by pressing OK/MENU.
MoreSwitch to special characters by
pressing OK/MENU.
OKSave and return to Add contactby pressing OK/MENU.
Toggle between upper and lower
case letters by pressing OK/
MENU.
Press OK/MENU and the cursor
will move to the character entry
field (2) at the top of the display.
The cursor can now be moved by
turning TUNE to a position where
new characters can be entered
or deleted by pressing EXIT. In
order to add characters, return to
text entry mode by pressing OK/
MENU.
Speed dialSpeed dial numbers can be added in phone
mode in Phone menu
Phone book
Speed dial.
To use speed dial to make a call in phone
mode, press a button on the center console
keypad followed by OK/MENU. If a contact
has not been saved on the speed dial number
used, you will be prompted to save a contact
on the number selected.
Accept vCardsvCards from other cell phones can be added to
the infotainment system's phone book. To ena-
ble this feature, put the infotainment system in
discoverable mode for Bluetooth
Ÿ. The featureis activated in Phone menu
Phone book
Receive vCard.
Memory statusIn phone mode, the memory status of the info-
tainment system's phone book and the con-
nected cell phone's phone book can be seen
in Phone menu
Phone bookMemory
status.
Clearing the phone bookIn phone mode, all entries in the infotainment
system's phone book can be cleared in Phone
menu
Phone bookClear phone book.
NOTE
Clearing the entries in the infotainment sys-
tem's phone book does not delete entries in
the cell phone's phone book.
BluetoothŸ version information
For information about the BluetoothŸ version
installed in the vehicle, go to Phone menu
Phone settingsBluetooth software
version in car.

06 Infotainment
Cell phone voice control
06
251 Introduction
The infotainment system's voice control fea-
ture1 enables the driver to voice-activate cer-
tain functions in a BluetoothŸ-connected cell
phone or the navigation system.
NOTE
•The information in this section applies
to using voice commands to operate a
Bluetooth
Ÿ-connected cell phone.
See also the section "BluetoothŸ
hands-free connection" beginning on
page 243 for detailed information about
using a cell phone with the vehicle's
infotainment system.
•The navigation system has a separate
user's guide containing information
about voice commands for operating
that system.
Voice commands offer convenience and help
avoid distractions so that you can concentrate
on driving and focus your attention on road and
traffic conditions.
WARNING
As the driver, you have full responsibility for
operating the vehicle safely and adhering to
all applicable traffic regulations.
The voice control feature provides access to a
number of functions in the BluetoothŸ hands-
free and navigation systems while allowing you
to keep your hands on the steering wheel. Input
is in dialogue form using spoken commands
from the user and verbal prompts from the sys-
tem. Voice control uses the same microphone
as the Bluetooth
Ÿ hands-free system (see the
illustration on page 243) and system prompts
are provided through the infotainment sys-
tem's front speakers.
Languages
List of languages.
Voice control is not available for all languages.
The available languages are indicated by the
icon. The language can be changed in the
MY CAR menu system under MY CAR
SettingsSystem optionsLanguage.
1Available in vehicles equipped with the optional Volvo Navigation System only

06 Infotainment
Cell phone voice control
06
252

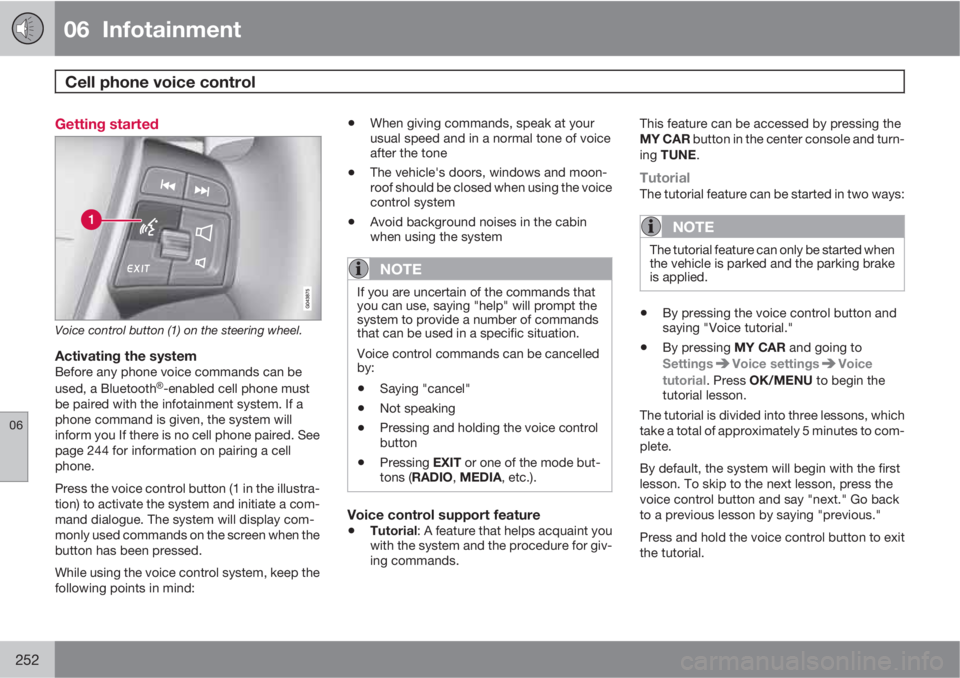

Getting started
Voice control button (1) on the steering wheel.
Activating the systemBefore any phone voice commands can be
used, a BluetoothŸ-enabled cell phone must
be paired with the infotainment system. If a
phone command is given, the system will
inform you If there is no cell phone paired. See
page 244 for information on pairing a cell
phone.
Press the voice control button (1 in the illustra-
tion) to activate the system and initiate a com-
mand dialogue. The system will display com-
monly used commands on the screen when the
button has been pressed.
While using the voice control system, keep the
following points in mind:
•When giving commands, speak at your
usual speed and in a normal tone of voice
after the tone
•The vehicle's doors, windows and moon-
roof should be closed when using the voice
control system
•Avoid background noises in the cabin
when using the system
NOTE
If you are uncertain of the commands that
you can use, saying "help" will prompt the
system to provide a number of commands
that can be used in a specific situation.
Voice control commands can be cancelled
by:
•Saying "cancel"
•Not speaking
•Pressing and holding the voice control
button
•Pressing EXIT or one of the mode but-
tons (RADIO, MEDIA, etc.).
Voice control support feature
•Tutorial: A feature that helps acquaint you
with the system and the procedure for giv-
ing commands.This feature can be accessed by pressing the
MY CAR button in the center console and turn-
ing TUNE.
TutorialThe tutorial feature can be started in two ways:
NOTE
The tutorial feature can only be started when
the vehicle is parked and the parking brake
is applied.
•By pressing the voice control button and
saying "Voice tutorial."
•By pressing MY CAR and going to
Settings
Voice settingsVoice
tutorial. Press OK/MENU to begin the
tutorial lesson.
The tutorial is divided into three lessons, which
take a total of approximately 5 minutes to com-
plete.
By default, the system will begin with the first
lesson. To skip to the next lesson, press the
voice control button and say "next." Go back
to a previous lesson by saying "previous."
Press and hold the voice control button to exit
the tutorial.

06 Infotainment
Cell phone voice control
06

253
Voice output volume
Press MY CAR and go to SettingsVoice
settings
Voice output volume. Press OK/
MENU and turn TUNE to raise or lower the
volume. Press EXIT to save the change and
exit the menu.
Using voice commands
The driver initiates a voice command dialogue
by pressing the voice control button (see the
illustration on page 252).
When a dialogue has been initiated, commonly
used commands will be shown in the display.
Grayed-out texts or texts in parentheses are
not part of the spoken command.
Once you become familiar with the system, you
can speed up the command dialogue by briefly
pressing the voice control button to skip
prompts from the system.
Commands can be given in several ways.
For example, the command "Phone call con-
tact" can be spoken as:
•"Phone > Call contact"—say "Phone," wait
for a system response, and then continue
by saying "Call contact."
•"Phone call contact"—give the entire com-
mand at one timeThe following is a list of features that can be
voice-controlled with a Bluetooth
Ÿ-connected
cell phone.
ShortcutsShortcut commands for using the phone can
be found in the MY CAR menu system, under
Settings
Voice settingsVoice
command list
Phone commands and
General commands. See page 189 for more
information on the menu system.
Dialing a numberThe system understands the digits zero to nine.
These numbers can be spoken individually, in
groups of several digits at a time, or the entire
number can be given at once. Numbers above
nine will not be recognized.
The following is an example of a voice com-
mand dialogue. The system's response may
vary depending on the situation.
The user initiates the dialogue by saying:Phone > dial number
or
Phone dial number
System responseNumber please
User actionBegin saying the digits in the phone number. If
you say several digits and pause, the system
will repeat them and prompt you by saying
"Continue."
Continue saying the digits. When you have fin-
ished, complete the command by saying
"Dial."
•You can also change the number by using
the commands "Correction" (which dele-
tes the last group of digits spoken) or
"Delete" (which will erase the entire phone
number).
Dialing from a call listThe dialogue below enables you make a call
from one of your cell phone's call lists.
The user initiates the dialogue by saying:Phone > dial from call list
or
Phone dial from call list
Continue by responding to the system's
prompts.
Calling a contactThe dialogue below enables you to call the pre-
defined contacts in your cell phone. See the
phone's user's guide if necessary.

06 Infotainment
Cell phone voice control
06
254
The user initiates the dialogue by saying:Phone > call contact
or
Phone call contact
Continue by responding to the system's
prompts.
When calling contacts, keep the following in
mind:
•If there are several contacts with similar
names, they will be presented in the dis-
play in numbered lines and the system will
prompt you to pick a line number
•If there are more lines in the list than can
be displayed at one time, saying "Down"
will enable you to scroll downward in the
list (and saying "up" will take you back up
through the list).
Dialing voice mailThe dialogue below enables you to call your
voice mail to check any messages that you
may have received. Your voice mail phone
number must be registered in the Bluetooth
Ÿ
function, see page 247.
The user initiates the dialogue by saying:Phone > dial voice mail
or
Phone dial voice mailContinue by responding to the system's
prompts.

06 Infotainment
Rear Seat Entertainment (RSE)*
06

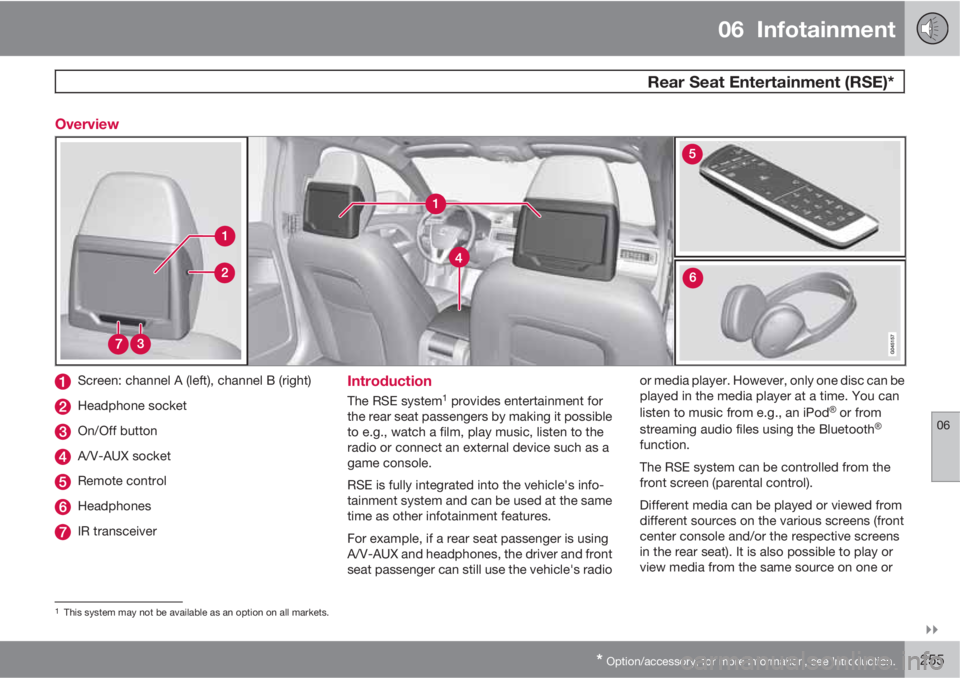

* Option/accessory, for more information, see Introduction.255 Overview
Screen: channel A (left), channel B (right)
Headphone socket
On/Off button
A/V-AUX socket
Remote control
Headphones
IR transceiver
Introduction
The RSE system1 provides entertainment for
the rear seat passengers by making it possible
to e.g., watch a film, play music, listen to the
radio or connect an external device such as a
game console.
RSE is fully integrated into the vehicle's info-
tainment system and can be used at the same
time as other infotainment features.
For example, if a rear seat passenger is using
A/V-AUX and headphones, the driver and front
seat passenger can still use the vehicle's radioor media player. However, only one disc can be
played in the media player at a time. You can
listen to music from e.g., an iPodŸ or from
streaming audio files using the BluetoothŸ
function.
The RSE system can be controlled from the
front screen (parental control).
Different media can be played or viewed from
different sources on the various screens (front
center console and/or the respective screens
in the rear seat). It is also possible to play or
view media from the same source on one or
1This system may not be available as an option on all markets.

06 Infotainment
Rear Seat Entertainment (RSE)*
06
256* Option/accessory, for more information, see Introduction.
more of the screens. However, it is not possible
to play a film from USB while a CD or DVD is
being played.
CAUTION
When transporting large objects in the rear
seat, be sure that there is adequate space
between the object(s) and the RSE screens
to help avoid scratching or damaging these
screens.
If necessary, cover the screens with a suit-
able material.
NOTE
•The RSE screens and remote control
may not function in very low or very high
cabin temperatures. They will become
operable again after the climate control
system has created a comfortable tem-
perature in the cabin.
•Keep the IR transceivers' lenses clean
by wiping them regularly with a damp
cloth. A dirty lens could affect the func-
tion of the remote control.
Ignition modes and electrical current to
RSE
RSE can be activated with the ignition in
modes I or II (and when the engine is running).See page 82 for detailed information about the
various ignition modes. If a film is being played,
it will stop momentarily while the engine is
being started and will resume when the engine
is running.
NOTE
Using RSE for more than approx.
10 minutes when the engine is not running
will drain the vehicle's battery and may
make the engine difficult or impossible to
start.
A message will be displayed on the screen
if the battery's charge level becomes too
low.
Using the system's menusSelections in the RSE menus are made using
the remote control. See page 261 for more
information about the RSE menus.
Remote control
A remote control is included with the RSE sys-
tem, which can be used to control both screens
in the rear seat as well as other infotainment
system functions.
See page 264 for more detailed information
about the remote control.
Cordless headphones
Switch for selecting channel A (CH.A) or
channel B (CH.B)
On/Off button
Volume
On/Off indicator light
Two sets of cordless headphones are included
with the RSE system.
The cordless headphones are activated using
the On/Off button (2). The indicator light (4) will
illuminate when the headphones are on. Select
CH.A (channel A) or CH.B (channel B) with
switch (1). Use control (3) to adjust the volume.

06 Infotainment
Rear Seat Entertainment (RSE)*
06
* Option/accessory, for more information, see Introduction.257

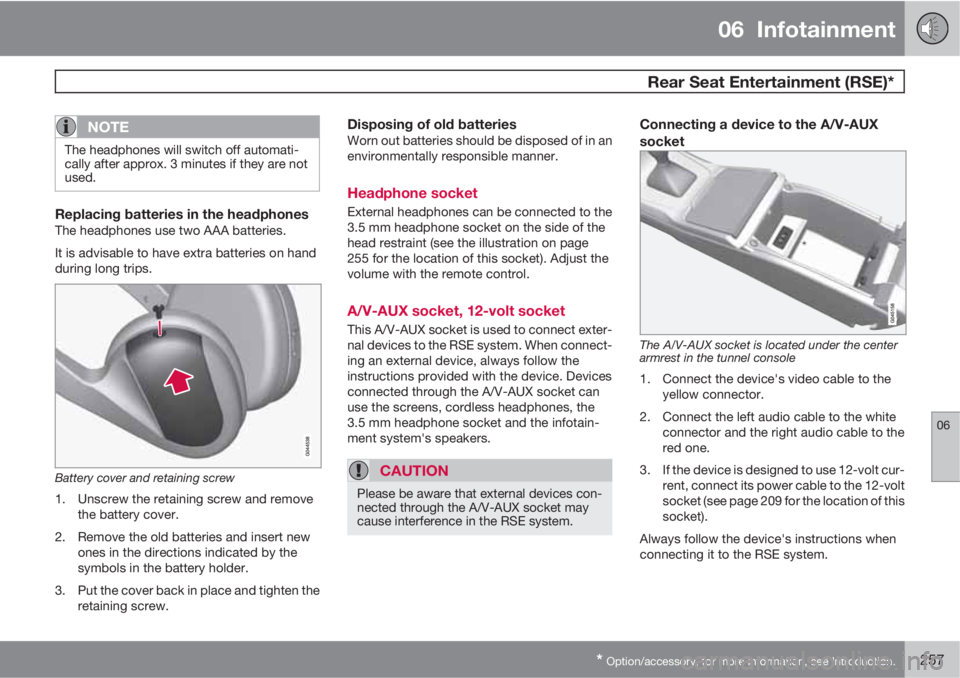

NOTE
The headphones will switch off automati-
cally after approx. 3 minutes if they are not
used.
Replacing batteries in the headphonesThe headphones use two AAA batteries.
It is advisable to have extra batteries on hand
during long trips.
Battery cover and retaining screw
1. Unscrew the retaining screw and remove
the battery cover.
2. Remove the old batteries and insert new
ones in the directions indicated by the
symbols in the battery holder.
3. Put the cover back in place and tighten the
retaining screw.
Disposing of old batteriesWorn out batteries should be disposed of in an
environmentally responsible manner.
Headphone socket
External headphones can be connected to the
3.5 mm headphone socket on the side of the
head restraint (see the illustration on page
255 for the location of this socket). Adjust the
volume with the remote control.
A/V-AUX socket, 12-volt socket
This A/V-AUX socket is used to connect exter-
nal devices to the RSE system. When connect-
ing an external device, always follow the
instructions provided with the device. Devices
connected through the A/V-AUX socket can
use the screens, cordless headphones, the
3.5 mm headphone socket and the infotain-
ment system's speakers.
CAUTION
Please be aware that external devices con-
nected through the A/V-AUX socket may
cause interference in the RSE system.
Connecting a device to the A/V-AUX
socket
The A/V-AUX socket is located under the center
armrest in the tunnel console
1. Connect the device's video cable to the
yellow connector.
2. Connect the left audio cable to the white
connector and the right audio cable to the
red one.
3. If the device is designed to use 12-volt cur-
rent, connect its power cable to the 12-volt
socket (see page 209 for the location of this
socket).
Always follow the device's instructions when
connecting it to the RSE system.

06 Infotainment
Rear Seat Entertainment (RSE)*
06
258* Option/accessory, for more information, see Introduction.
Audio/video playback through the A/V-
AUX socket
1. Switch on one of the rear screens by press-
ing its On/Off button.
2.
Use the remote control's
button to
select a screen (L: left rear screen, F: front
screen, or R: right rear screen). Point the
remote control toward the selected
screen's IR transceiver and press the
button several times to come to A/V
AUX
. Release the button and wait several
seconds to confirm your choice.
3. Switch on the connected device and press
PLAY (or the device's equivalent button).
Input volumeAdjust the input volume in the RSE menu,
under A/V AUX input volume.
Activating RSE
The RSE system can be activated using con-
trols on the front or rear screens.
From the front seat, press MEDIA (see the fol-
lowing illustration) and select
RSE.
From the rear seat, press the screen's On/Off
button. Use the remote control's
button
to select a screen (L: left rear screen or R: right
rear screen). Point the remote control toward
the selected screen's IR transceiver and con-tinue by pressing the
or button on
the remote control to select a source such as
Disc, etc.
Settings made from the front center
control panel
MEDIA
TUNE
OK/MENU
EXIT
Selecting a source for the rear screens
from the front center control panel
An audio/video source for the rear screen(s)
can be selected from the front center control
panel. The same source can be selected forboth rear screens or different sources can be
selected for the respective screens.
1.
Press MEDIA several times to come to
RSE on the front screen. Wait several sec-
onds for your selection to be confirmed.
2.
Turn TUNE to select one or both of the rear
screens and confirm by pressing OK/
MENU.
3.
Turn TUNE to select
RADIO, MEDIA (orRSE settings). Press OK/MENU to con-
firm.
4.
Turn TUNE to the desired source (for
example,
Disc) and confirm by pressing
OK/MENU. The selected source will begin
playing automatically (if there is a disc in
the media player).
Cancel and return by pressing EXIT.
Settings can also be made with the remote
control. See page 264 for more detailed infor-
mation.
MutingAudio for the rear screens can be muted from
the front center control panel. This function can
be activated under RSE settings
Mute as
explained in points 2-4 in the section "Select-
ing a source for the rear screens from the front
center control panel."
