Loading
07
279
Fold up the hook. It will lock in place.
NOTE
There should be at least 2 in. (50 cm)
between the hooks in the rail.
WARNING
Switch off the engine, apply the parking
brake and put the gear selector in P when
loading and unloading the vehicle.
Removing a hook
G018134
The load-securing hooks can easily be
removed, for example, to clean the rail.
To remove a hook, fold it down in the direc-
tion in which its opening points.
Press the hook down lightly and move the
it to an opening in the rail.
Pull the hook straight up.
Replace a hook in the rail in the reverse order.
NOTE
In order to return a removed hook into a rail,
it must be pressed down lightly.
Reinserting a hook
G019581
Upper illustration: hooks correctly installed, Lower
illustration: hooks incorrectly installed
It is important to insert the hooks correctly in
the rails. The hooks' openings should point
away from each other.
•The opening on the hook closest to the rear
seat backrest should point toward the
backrest.
•The opening on the hook closest to the
tailgate should point toward the tailgate.
WARNING
The hooks must be installed correctly in the
rail. Incorrectly installed hooks will be folded
down by the strap, allowing them to move.
The load will then no longer be securely
anchored.
Straps for securing loads
G019397
Securing loads
Wrapping straps a full turn around the hooks
helps keep them in place.

07 During your trip
Loading
07
280* Option/accessory, for more information, see Introduction.
NOTE
The straps should preferably be approxi-
mately 1 in. (25 mm) in width.
Grocery bag holder*
G017745
Grocery bag holder under the floor of the cargo
area
The grocery bag holder holds shopping bags
in place.
1. Open the hatch in the floor of the cargo
area.
2. Secure the shopping bags with the strap.
Roof loads
Using load carriersLoad carriers are available as Volvo accesso-
ries. Observe the following points when in use:
•To avoid damaging your vehicle and to
achieve maximum safety when driving, we
recommend using the load carriers that
Volvo has developed especially for your
vehicle.
•Volvo-approved removable roof racks are
designed to carry the maximum allowable
roof load for this vehicle: 220 lbs (100 kg).
For non-Volvo roof racks, check the man-
ufacturer's weight limits for the rack.
•Never exceed the rack manufacturer's
weigh limits and never exceed the maxi-
mum rated roof load of 220 lbs (100 kg).
•Avoid single-point loads. Distribute loads
evenly.
•Place heavier cargo at the bottom of the
load.
•Secure the cargo correctly with appropri-
ate tie-down equipment.
•Check periodically that the load carriers
and load are properly secured.
•Remember that the vehicle's center of
gravity and handling change when you
carry a load on the roof.
•The vehicle's wind resistance and fuel con-
sumption will increase with the size of the
load.
•Drive smoothly. Avoid rapid starts, fast
cornering and hard braking.

07 During your trip
Cargo area
07
* Option/accessory, for more information, see Introduction.281 Steel cargo grid*
G017748
Your vehicle can be equipped with a steel grid
that helps prevent objects in the cargo area
from moving forward into the passenger com-
partment.
Folding the grid up/downGrasp the lowering edge of the grid and pull it
rearward/upward, or push it downward/for-
ward.
NOTE
If the steel grid is to be used with the
optional cargo area cover, the grid must be
folded down before the cargo area cover is
put in place.
Installing the steel cargo gridIn order to install the steel grid, the rear seat
backrests must be completely folded down,
see page 89 for instructions.
NOTE
•The steel cargo grid is easiest to install
by two people, and should be folded
down.
•When installing the grid, the handle
should be on the front side of the grid
(see illustrations
– ).
Put the handle in the installation position,
see the illustration. Press lightly on the
handle in order to turn it to this position,
see the arrow.
Press in the piston toward the grid and
press it into the attachment bracket near
the ceiling.
Turn the handle 90° . Press lightly as
shown in illustration
if necessary.
Attach the grid
by moving the handle
90°.
Do the same on the opposite side of the
vehicle.
G018367
G018368
G018369
Installing the cargo grid

07 During your trip
Cargo area
07
282* Option/accessory, for more information, see Introduction.
Cargo area cover*
G031977
G017749
Use
•Pull the cover over the cargo and hook it
into the holes in the rear cargo area pillars.
•To retract (roll up) the cover, release it from
the holes and guide it toward the rear seat
backrest.
Installing the cover1. Press the end piece on one side of the
cargo area cover into the retaining bracket
in the side panel of the cargo area
.
2.
Do the same on the opposite side
.
3. Press both sides of the cover until they
click into place
. The red mark will no
longer be visible.
4. Check that both ends of the cover are
securely locked in place.
Removing the cover1. Press one of the end pieces of the cover
inward.
2. Pull the cover carefully upward and out-
ward. The other end will release automati-
cally from its retaining bracket.
Folding down the cargo area cover's rear
flap
The cargo area cover's rear flap points hori-
zontally when the cover is retracted (rolled up).
To fold it down:–Pull the flap slightly rearward past its sup-
ports and fold it down.
NOTE
On models equipped with this cover, it
should be removed before a child seat is
attached to the child restraint anchors.
Cargo net*
Storage compartment for the cargo net
Two cassettes containing nylon cargo nets are
stored in a compartment under the cargo area
floor.

07 During your trip
Cargo area
07
283
Attaching the cassette(s)
The two-sections of the net are attached to the
rear side of the rear seat backrest. The cas-
settes have different widths, and the widest
section should be mounted on the right side
(seen from the rear of the vehicle).
1. Fold down the rear seat backrests.
2. Align the cassette’s mounting rail above
the mounting brackets on the backrest
.
3. Slide the cassette onto the mounting
brackets
.
4. Return the backrest to the upright position.
Using the net(s)
G018246
With the backrests uprightThe net is pulled up from the cassette and locks
in position after approximately 1 minute.
Pull up the right side of the net by grasping
its strap.
Insert the net’s rod in the retaining bracket
on the right side near the ceiling and press
it forward. It will click into place.
Extend the left section of the rod and insert
it in the bracket on the left side of the cargo
compartment. Press it forward until it clicks
into place.
Pull up the left side of the cargo net and
secure it on the rod.
NOTE
•The net can be fastened in the same
way if the rear seat backrests are folded
down. In this case, use the retaining
brackets near the ceiling, above the
front seats.
•The front passenger's seat backrest
can also be folded down for carrying
long objects, see page 84.
Removing the cargo net cassettes1. Retract the net(s) in the reverse order.
2. Fold the entire rear seat backrest down.
3. Slide the cassettes outward until they
release from the mounting brackets.
WARNING
•When not in use, return the cassettes to
their storage compartment under the
cargo area floor.
•Objects in the cargo area should be
securely anchored, even if the cargo net
is correctly installed and in use.

07 During your trip
Cargo area
07
284
Using the cargo net with the cargo area
cover
G018247
Straps for pulling up the net
The cargo net(s) can also be pulled up from the
backrest when the cargo area cover is pulled
out.
The straps for pulling up the cargo net are
located at the arrows in the illustration. Follow
the same procedure as for using the nets with
the backrests upright.

07 During your trip
Towing a trailer
07
285 Introduction
Volvo recommends the use of Volvo trailer
hitches that are specially designed for the vehi-
cle.
NOTE
See page 361 for the maximum trailer and
tongue weights recommended by Volvo.
•Observe the legal requirements of the
state/province in which the vehicles are
•All Volvo models are equipped with
energy-absorbing shock-mounted bump-
ers. Trailer hitch installation should not
interfere with the proper operation of this
bumper system.
Trailer towing does not normally present any
particular problems, but take into considera-
tion:
•Increase tire pressure to recommended full
pressure. See the tire inflation table on
page 299.
•When your vehicle is new, avoid towing
heavy trailers during the first 620 miles
(1,000 km).
•Maximum speed when towing a trailer:
50 mph (80 km/h).
•Engine and transmission are subject to
increased loads. Therefore, engine coolant
temperature should be closely watchedwhen driving in hot climates or hilly terrain.
Use a lower gear and turn off the air con-
ditioner if the temperature gauge needle
enters the red range.
•If the automatic transmission begins to
overheat, a message will be displayed in
the text window.
•Avoid overload and other abusive opera-
tion.
•Hauling a trailer affects handling, durabil-
ity, and economy.
•It is necessary to balance trailer brakes
with the towing vehicle brakes to provide a
safe stop (check and observe state/local
regulations).
•Do not connect the trailer's brake system
directly to the vehicle's brake system.
•More frequent vehicle maintenance is
required.
•Remove the ball holder when the hitch is
not being used.
•Volvo recommends the use of synthetic
engine oil when towing a trailer over long
distances or in mountainous areas.
WARNING
•Bumper-attached trailer hitches must
not be used on Volvos, nor should
safety chains be attached to the
bumper.
•Trailer hitches attaching to the vehicle
rear axle must not be used.
•Never connect a trailer's hydraulic
brake system directly to the vehicle
brake system, nor a trailer's lighting
system directly to the vehicle lighting
system. Consult your nearest author-
ized Volvo retailer for correct installa-
tion.
•When towing a trailer, the trailer's safety
wire must be correctly fastened to the
hole or hook provided in the trailer hitch
on the vehicle. The safety wire should
never be fastened to or wound around
the drawbar ball.

07 During your trip
Towing a trailer
07
286
NOTE
•When parking the vehicle with a trailer
on a hill, apply the parking brake before
putting the gear selector in P. Always
follow the trailer manufacturer's recom-
mendations for wheel chocking.
•When starting on a hill, put the gear
selector in D before releasing the park-
ing brake. See also page 125 for more
detailed information about starting off
on a hill while towing a trailer.
•If you use the manual (Geartronic) shift
positions while towing a trailer, make
sure the gear you select does not put
too much strain on the engine (using too
high a gear).
•The drawbar assembly/trailer hitch may
be rated for trailers heavier than the
vehicle is designed to tow. Please
adhere to Volvo's recommended trailer
weights.
•Avoid driving with a trailer on inclines of
more than 15%.
Trailer cableAn adapter is required if the vehicle's trailer
hitch has a 13-pin connector and the trailer has
7 pins. Use an adapter cable approved by
Volvo. Make sure the cable does not drag on
the ground.
Detachable trailer hitch (accessory)
A
C
EDBG010496
Ball holder
Locking bolt
Cotter pin
Hitch assembly
Safety wire attachment
Installing the ball holder1. If necessary, remove the cotter pin from
the locking bolt and slide the locking bolt
out of the hitch assembly.
2. Slide the ball holder into the hitch assem-
bly.
3. Align the hole in the ball holder with the one
in the hitch assembly.4. Slide the locking bolt through the hitch
assembly/ball holder.
5. Insert the cotter pin in the hole at the end
of the locking bolt.
Removing the ball holder1. Remove the cotter pin from the locking bolt
and slide the locking bolt out of the ball
holder/hitch assembly.
2. Pull the ball holder out of the hitch assem-
bly.
NOTE
A cover for the hitch assembly is also
included in the kit.
Trailer Stability Assist (TSA)
Trailer Stability Assist is a system designed to
help stabilize a vehicle that is towing a trailer
when the vehicle and trailer have begun to
sway and is part of the Dynamic Stability and
Traction Control system (DSTC). See page
132 for information on DSTC.

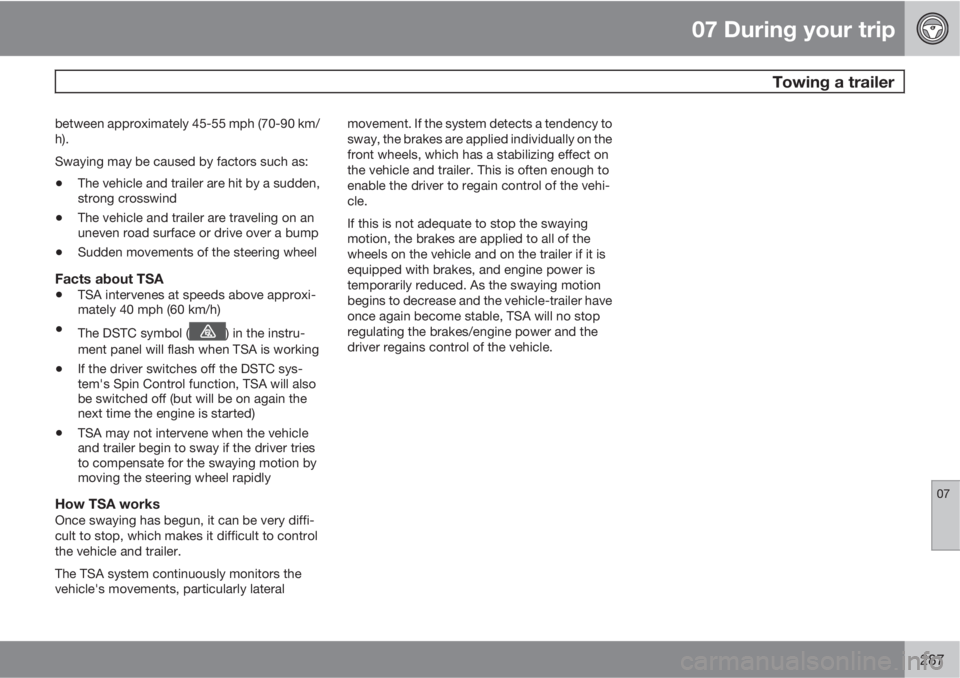

FunctionA vehicle towing a trailer may begin to sway for
various reasons. Normally this only occurs at
high speeds but, for example, if the trailer is
overloaded or if the load is unevenly distributed
in the trailer, there is risk of swaying at speeds

07 During your trip
Towing a trailer
07
287
between approximately 45-55 mph (70-90 km/
h).
Swaying may be caused by factors such as:
•The vehicle and trailer are hit by a sudden,
strong crosswind
•The vehicle and trailer are traveling on an
uneven road surface or drive over a bump
•Sudden movements of the steering wheel
Facts about TSA
•TSA intervenes at speeds above approxi-
mately 40 mph (60 km/h)
•The DSTC symbol () in the instru-
ment panel will flash when TSA is working
•If the driver switches off the DSTC sys-
tem's Spin Control function, TSA will also
be switched off (but will be on again the
next time the engine is started)
•TSA may not intervene when the vehicle
and trailer begin to sway if the driver tries
to compensate for the swaying motion by
moving the steering wheel rapidly
How TSA worksOnce swaying has begun, it can be very diffi-
cult to stop, which makes it difficult to control
the vehicle and trailer.
The TSA system continuously monitors the
vehicle's movements, particularly lateralmovement. If the system detects a tendency to
sway, the brakes are applied individually on the
front wheels, which has a stabilizing effect on
the vehicle and trailer. This is often enough to
enable the driver to regain control of the vehi-
cle.
If this is not adequate to stop the swaying
motion, the brakes are applied to all of the
wheels on the vehicle and on the trailer if it is
equipped with brakes, and engine power is
temporarily reduced. As the swaying motion
begins to decrease and the vehicle-trailer have
once again become stable, TSA will no stop
regulating the brakes/engine power and the
driver regains control of the vehicle.

07 During your trip
Emergency towing
07
288

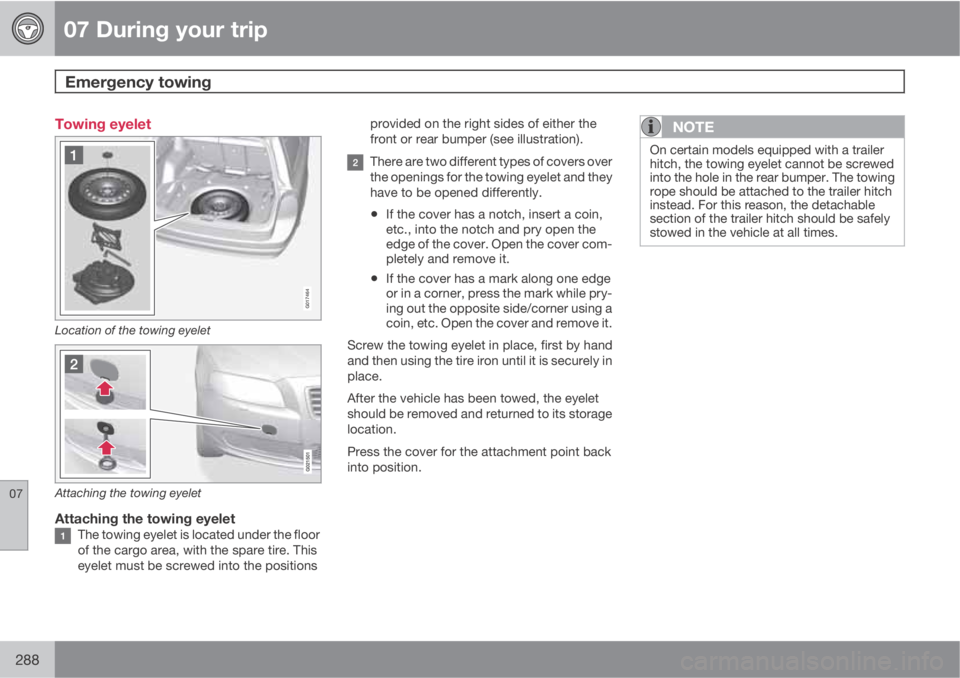

Towing eyelet
G017464
Location of the towing eyelet
Attaching the towing eyelet
Attaching the towing eyeletThe towing eyelet is located under the floor
of the cargo area, with the spare tire. This
eyelet must be screwed into the positionsprovided on the right sides of either the
front or rear bumper (see illustration).
There are two different types of covers over
the openings for the towing eyelet and they
have to be opened differently.
•If the cover has a notch, insert a coin,
etc., into the notch and pry open the
edge of the cover. Open the cover com-
pletely and remove it.
•If the cover has a mark along one edge
or in a corner, press the mark while pry-
ing out the opposite side/corner using a
coin, etc. Open the cover and remove it.
Screw the towing eyelet in place, first by hand
and then using the tire iron until it is securely in
place.
After the vehicle has been towed, the eyelet
should be removed and returned to its storage
location.
Press the cover for the attachment point back
into position.
NOTE
On certain models equipped with a trailer
hitch, the towing eyelet cannot be screwed
into the hole in the rear bumper. The towing
rope should be attached to the trailer hitch
instead. For this reason, the detachable
section of the trailer hitch should be safely
stowed in the vehicle at all times.
