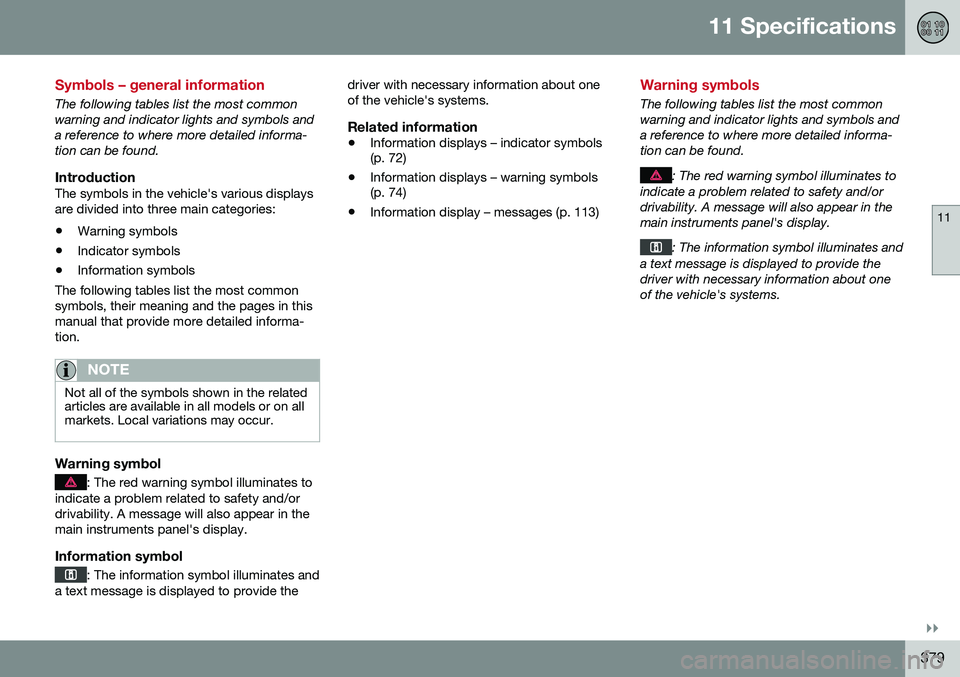

Symbols – general information
The following tables list the most common warning and indicator lights and symbols anda reference to where more detailed informa-tion can be found.
IntroductionThe symbols in the vehicle's various displaysare divided into three main categories:• Warning symbols
• Indicator symbols
• Information symbols
The following tables list the most commonsymbols, their meaning and the pages in thismanual that provide more detailed informa-tion.
NOTE
Not all of the symbols shown in the related articles are available in all models or on allmarkets. Local variations may occur.
Warning symbol
: The red warning symbol illuminates to
indicate a problem related to safety and/or drivability. A message will also appear in themain instruments panel's display.
Information symbol
: The information symbol illuminates and
a text message is displayed to provide the driver with necessary information about one of the vehicle's systems.
Related information
•
Information displays – indicator symbols (p. 72)
• Information displays – warning symbols(p. 74)
• Information display – messages (p. 113)
Warning symbols
The following tables list the most common warning and indicator lights and symbols anda reference to where more detailed informa-tion can be found.
: The red warning symbol illuminates to
indicate a problem related to safety and/or drivability. A message will also appear in themain instruments panel's display.
: The information symbol illuminates and
a text message is displayed to provide the driver with necessary information about oneof the vehicle's systems.

||
11 Specifications
11
380* Option/accessory, for more information, see Introduction.

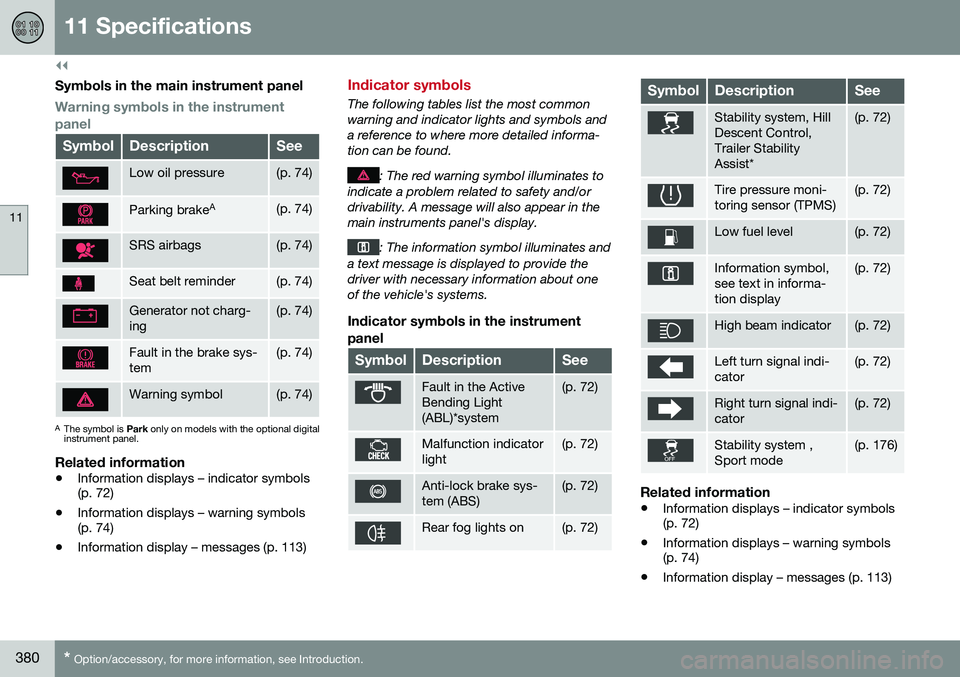

Symbols in the main instrument panel
Warning symbols in the instrument panel
SymbolDescriptionSee
Low oil pressure(p. 74)
Parking brake A(p. 74)
SRS airbags(p. 74)
Seat belt reminder(p. 74)
Generator not charg- ing(p. 74)
Fault in the brake sys- tem(p. 74)
Warning symbol(p. 74)
A
The symbol is Park only on models with the optional digital
instrument panel.
Related information
• Information displays – indicator symbols (p. 72)
• Information displays – warning symbols(p. 74)
• Information display – messages (p. 113)
Indicator symbols
The following tables list the most common warning and indicator lights and symbols anda reference to where more detailed informa-tion can be found.
: The red warning symbol illuminates to
indicate a problem related to safety and/or drivability. A message will also appear in themain instruments panel's display.
: The information symbol illuminates and
a text message is displayed to provide the driver with necessary information about oneof the vehicle's systems.
Indicator symbols in the instrument
panel
SymbolDescriptionSee
Fault in the Active Bending Light(ABL)*system(p. 72)
Malfunction indicator light(p. 72)
Anti-lock brake sys- tem (ABS)(p. 72)
Rear fog lights on(p. 72)
SymbolDescriptionSee
Stability system, Hill Descent Control,Trailer StabilityAssist*(p. 72)
Tire pressure moni- toring sensor (TPMS)(p. 72)
Low fuel level(p. 72)
Information symbol, see text in informa-tion display(p. 72)
High beam indicator(p. 72)
Left turn signal indi- cator(p. 72)
Right turn signal indi- cator(p. 72)
Stability system , Sport mode(p. 176)
Related information
• Information displays – indicator symbols (p. 72)
• Information displays – warning symbols(p. 74)
• Information display – messages (p. 113)

11 Specifications
11
* Option/accessory, for more information, see Introduction.381

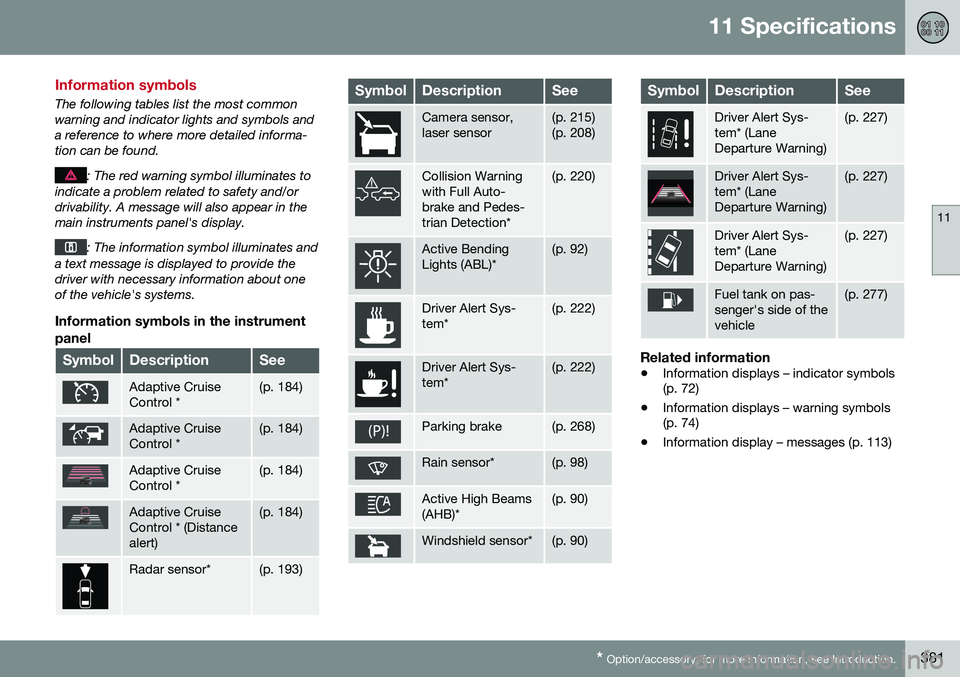

Information symbols
The following tables list the most common warning and indicator lights and symbols anda reference to where more detailed informa-tion can be found.
: The red warning symbol illuminates to
indicate a problem related to safety and/or drivability. A message will also appear in themain instruments panel's display.
: The information symbol illuminates and
a text message is displayed to provide the driver with necessary information about oneof the vehicle's systems.
Information symbols in the instrument
panel
SymbolDescriptionSee
Adaptive Cruise Control *(p. 184)
Adaptive Cruise Control *(p. 184)
Adaptive Cruise Control *(p. 184)
Adaptive Cruise Control * (Distancealert)(p. 184)
Radar sensor*(p. 193)
SymbolDescriptionSee
Camera sensor, laser sensor(p. 215) (p. 208)
Collision Warning with Full Auto-brake and Pedes-trian Detection*(p. 220)
Active Bending Lights (ABL)*(p. 92)
Driver Alert Sys- tem*(p. 222)
Driver Alert Sys- tem*(p. 222)
Parking brake(p. 268)
Rain sensor*(p. 98)
Active High Beams (AHB)*(p. 90)
Windshield sensor*(p. 90)
SymbolDescriptionSee
Driver Alert Sys- tem* (LaneDeparture Warning)(p. 227)
Driver Alert Sys- tem* (LaneDeparture Warning)(p. 227)
Driver Alert Sys- tem* (LaneDeparture Warning)(p. 227)
Fuel tank on pas- senger's side of thevehicle(p. 277)
Related information
• Information displays – indicator symbols (p. 72)
• Information displays – warning symbols(p. 74)
• Information display – messages (p. 113)

11 Specifications
11
382* Option/accessory, for more information, see Introduction.

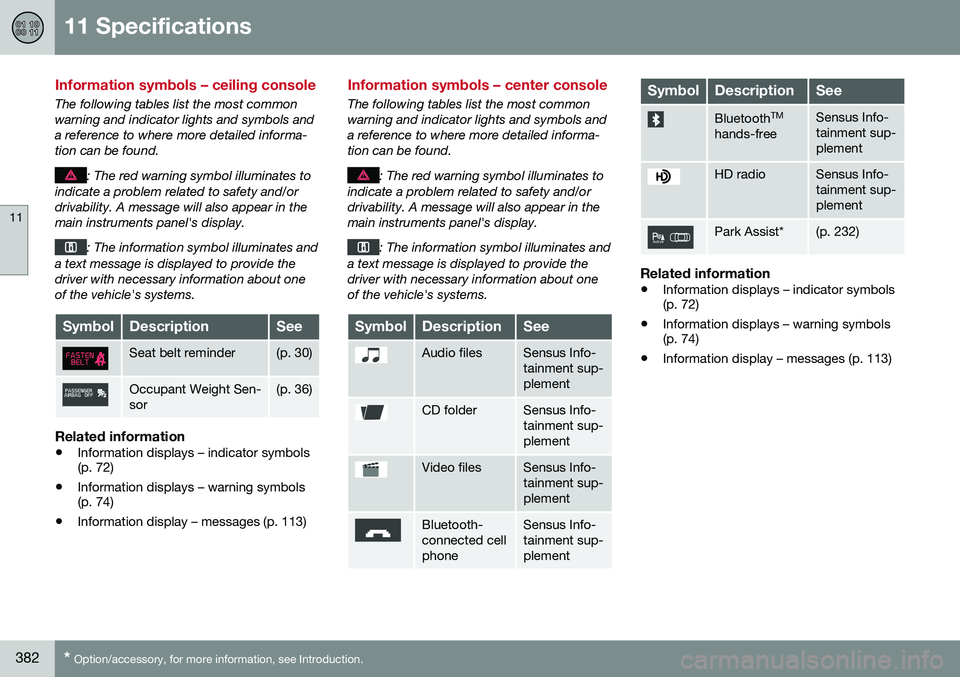

Information symbols – ceiling console
The following tables list the most common warning and indicator lights and symbols anda reference to where more detailed informa-tion can be found.
: The red warning symbol illuminates to
indicate a problem related to safety and/or drivability. A message will also appear in themain instruments panel's display.
: The information symbol illuminates and
a text message is displayed to provide the driver with necessary information about oneof the vehicle's systems.
SymbolDescriptionSee
Seat belt reminder(p. 30)
Occupant Weight Sen- sor(p. 36)
Related information
• Information displays – indicator symbols (p. 72)
• Information displays – warning symbols(p. 74)
• Information display – messages (p. 113)
Information symbols – center console
The following tables list the most common warning and indicator lights and symbols anda reference to where more detailed informa-tion can be found.
: The red warning symbol illuminates to
indicate a problem related to safety and/or drivability. A message will also appear in themain instruments panel's display.
: The information symbol illuminates and
a text message is displayed to provide the driver with necessary information about oneof the vehicle's systems.
SymbolDescriptionSee
Audio filesSensus Info- tainment sup-plement
CD folderSensus Info- tainment sup-plement
Video filesSensus Info- tainment sup-plement
Bluetooth- connected cellphoneSensus Info- tainment sup-plement
SymbolDescriptionSee
Bluetooth TM
hands-freeSensus Info- tainment sup-plement
HD radioSensus Info- tainment sup-plement
Park Assist*(p. 232)
Related information
• Information displays – indicator symbols (p. 72)
• Information displays – warning symbols(p. 74)
• Information display – messages (p. 113)

11 Specifications
11
383

12 Index
12
384
A
ABS (anti-lock brake system).................. 267
Accessory installation warning.................. 23
Active chassis system............................. 175
Active high beams..................................... 90Active yaw control........................... 175, 176
Adaptive brake lights............................... 267
Adaptive cruise control.................... 184, 185Airbags disconnecting the front passenger’s
side....................................................... 36
front...................................................... 32
inflatable curtain................................... 41
side impact........................................... 39
Air conditioning........................................ 131
Air distribution.................................. 126, 133
Air distribution table................................. 135
Air vents................................................... 126
Alarm........................................ 171, 172, 173
All Wheel Drive......................................... 263
Ambient temperature sensor..................... 77
Anti-freeze....................................... 274, 331Anti-lock brake system warning light......................................... 73
Anti-lock Brake System (ABS)................. 267 Approach lighting.............................. 97, 155
Auto-dim rearview mirror......................... 104
Automatic locking retractor....................... 47Automatic transmission
Eco (driving function).......................... 261
Geartronic........................................... 253
general description..................... 251, 253
oil........................................................ 376
shiftlock override................................ 255
Axle weight.............................................. 301
B
Battery maintenance............................... 346, 347
remote key, replacing......................... 160
replacing............................................. 347
specifications...................................... 378
start/stop............................................ 378
warning symbols................................. 345
Blind Spot Information System (BLIS)..... 240
Booster cushion, integrated.......... 57, 59, 60
Booster cushions....................................... 53
Brake lights.............................................. 267Brake system ABS..................................................... 267
Brake pad inspection.......................... 265 checking fluid level............................. 332
emergency brake assistance.............. 268
fluid..................................................... 376
general information............................. 265
Hill Descent Control.................... 263, 264
Bulbs cargo area lighting.............................. 340
headlights... 334, 335, 336, 337, 338, 339
introduction......................................... 334
license plate lights.............................. 340
side marker lights............................... 339
specifications...................................... 341
taillight................................................ 339C
Camera, Park Assist................................ 236
Capacity weight....................................... 301Cargo area changing bulbs................................... 340
floor rails............................................. 144
hooks for securing loads............ 144, 145
steel grid............................................. 149
Cargo area cover..................................... 149
Cargo area net......................................... 147
Cargo net................................................. 147
Catalytic converter................................... 279

12 Index
12
385
Central locking system, introduction 152,
153, 156, 159
Chains...................................................... 304
Check Engine warning light....................... 73Child restraints recalls and registration......................... 47
Child restraint systems.............................. 47 booster cushions.................................. 53
convertible seats.................................. 51
infant seats........................................... 49
ISOFIX/LATCH anchors........................ 54
top tether anchors................................ 56
Child safety................................................ 45 booster cushions.................................. 53
child restraint systems.......................... 47
convertible seats.................................. 51
infant seats........................................... 49
Child safety locks...................................... 61
City safety........................................ 202, 203
Climate system........................................ 132 air distribution..................... 126, 133, 135
air vents.............................................. 126
Interior Air Quality System.................. 125
introduction......................................... 124
passenger compartment filter............ 125
refrigerant........................................... 124
Clock, setting............................................. 78
Cold weather driving................................ 274 Collision warning system.. 209, 211, 214,
215, 217, 218
Compass in rearview mirror..................... 105
Connected service booking..................... 325
Conserving electrical current................... 273
Convertible seats....................................... 51
Coolant............................................ 331, 376
Cooling system, general information....... 273
Courtesy lighting........................................ 96
Crash event data....................................... 18
Crash mode......................................... 44, 45
Cruise control.................................. 181, 183 adaptive.............................................. 184
Curb weight............................................. 301
Current, conserving................................. 273
Cyclist detection.............................. 213, 217
D
Daytime running lights............................... 89
Defroster.................................................. 132
Detachable key blade...................... 157, 158Dimensions XC70................................................... 370 Disconnecting the front passenger’s air-
bag............................................................. 36
Distance Alert.......................................... 198
Dome lighting............................................. 96
Door mirrors..................................... 102, 103
Driver alert....................... 222, 223, 224, 225
Lane Departure Warning..... 227, 229, 230
Driver distraction warning.......................... 23
Driving economically................................ 279
Driving in cold weather............................ 274
Driving through water.............................. 272
E
ECC......................................... 129, 130, 131
Eco (driving function)............................... 261
Eco coast................................................. 261
Eco guide................................................... 71
Economical driving.................................. 279
Electrically heated steering wheel............. 88
Electrical sockets..................................... 140
Electric parking brake...... 268, 269, 270, 271
Electronic Climate Control............... 128, 131 air distribution table............................ 135

12 Index
12
386
Interior Air Quality System.................. 125
ventilated seats................................... 130
Electronic oil level sensor........................ 330
Electronic stability control....................... 175
Emergency locking retractor...................... 47
Emergency starting.................................. 250
Emergency towing........................... 284, 285
Emission inspection readiness................ 325Engine overheating........................................... 75
specifications...................................... 373
Start/Stop........... 256, 257, 258, 259, 260
starting................................................ 246
switching off............................... 248, 249
Engine compartment overview................ 328
Engine oil................................................. 374 checking............................................. 329
low pressure warning light.................... 74
volumes.............................................. 375
Engine remote start (ERS)........................ 248
Environment............................................... 22F
Federal Clean Air Act............................... 322 Flat tires repairing with tire sealing system....... 313
Floor mats cleaning.............................................. 363
placing correctly................................. 246
Floor rails................................................. 144
Fluid specifications.......................... 376, 377
Fog lights................................................... 73 rear........................................................ 94
Four C (active chassis system)................ 175
Front airbags.............................................. 32 disconnecting passenger’s side airbag 36
Front park assist.............................. 232, 236
Front seats................................................. 80 heated................................................. 129
Fuel filler cap........................................... 278
Fuel filler door, opening................... 277, 278
Fuel level warning light.............................. 73
Fuel requirements............................ 275, 276
Fuel tank volume..................................... 377
Fuses....................................... 348, 350, 357
G
Garage door opener HomeLink ®
Wireless Control
System........................................ 108, 109
Gasoline requirements............................. 276
Gas tank volume...................................... 377
Gauges...................................................... 68
Geartronic................................................ 253
Geartronic automatic transmission.......... 253
Generator warning light............................. 75
Glossary of tire terminology..................... 302
Grocery bag holder.................................. 146
Gross vehicle weight............................... 301
H
Hazard warning flashers............................ 94 Headlights Active Bending Lights........................... 92
active high beams................................. 90
changing bulbs... 335, 336, 337, 338, 339
daytime running lights.......................... 89
high/low beams.................................... 90
high beam flash.................................... 90
tunnel detection.................................... 92

12 Index
12
387
Headlight washers..................................... 99
Head restraints, rear seat.................... 84, 85
Heated front seats................................... 129
Heated oxygen sensors........................... 279
Heated rear seats.................................... 129
Heated steering wheel............................... 88
Heated windshield........................... 104, 132
High beams................................................ 90 active.................................................... 90
Hill Descent Control......................... 263, 264
Hill Start Assist (HSA).............................. 251
Hoisting the vehicle................................. 324 HomeLink ®
Wireless Control
System............................................. 108, 109
Home safe lighting..................................... 97
Hood, opening/closing............................ 327
Horn........................................................... 88
I
ID, Volvo.................................................... 21
Ignition modes..................................... 78, 79
Immobilizer.............................................. 154
Important information.......................... 13, 14 Indicator lights............................... 68, 70, 74
Infant seats................................................ 49
Inflatable Curtain........................................ 41
Inflation pressure............................. 296, 297
Inflation pressure table............................ 300Information and warning symbols, table
of.............................................................. 379
Information lights........................... 68, 70, 74
Inspection readiness................................ 325
Instrument lighting..................................... 93
"theater" lighting................................... 93
Instrument overview............................ 64, 68
Instrument panel........................ 68, 112, 113Integrated two-stage booster
cushion.......................................... 57, 59, 60
Interior Air Quality System....................... 125
Interior lighting........................................... 96Internet connection booking service.................................. 325
ISOFIX/LATCH anchors............................. 54
J
Jack attaching............................................. 291
location of........................................... 291
Jump starting........................................... 250
K
Key blade. 152, 153, 156, 157, 158, 159, 162 private locking.................................... 158
Keyless drive............................................ 161 general description............. 162, 163, 164
starting the vehicle............................. 246
Keyless locking/unlocking....................... 161
L
Labels list of................................................... 369
location of........................................... 368
Lane Departure Warning (LDW) 227, 229, 230
LATCH anchors......................................... 54
Leather care............................................. 362
Lighting panel............................................ 89

12 Index
12
388
Loadingfloor rails............................................. 144
hooks for securing loads............ 144, 145
Loading the vehicle.................. 142, 143, 301 roof loads............................................ 142
Locking.................................... 165, 166, 167 tailgate................................................ 168
Locking the vehicle.................................. 155
Locks, child safety..................................... 61
Low beams................................................ 90
Low oil pressure warning light................... 74
M
Main instrument panel..................... 112, 113
Maintenance............................................ 322 hoisting the vehicle............................. 324
performed by the owner..................... 323
Malfunction indicator light......................... 73
Messages in the instrument panel... 112, 113Mirrors defroster............................................. 104
power door................................. 102, 103
rearview, auto-dim function................ 104
retractable................................... 102, 103
vanity.................................................. 141 Moonroof......................................... 106, 107 Motor oil
checking............................................. 329
volumes.............................................. 375
N
Net in cargo area..................................... 147
O
Occupant safety........................................ 26
Occupant weight sensor............................ 36
Octane recommendations....................... 276
Odometer, trip........................................... 78Oil checking............................................. 329
volumes.............................................. 375
Oil level sensor........................................ 330
Oil quality................................................. 374
OK button........................................ 112, 113
On Call Roadside Assistance.................... 24
Outside temperature sensor...................... 77
Overhead courtesy lighting........................ 96
Overheating, engine................................... 75 Ownership, changing................................. 18
Oxygen sensors, heated.......................... 279
P
Paint, touching up.................................... 364
Park assist....................................... 232, 236
Park Assist Camera................................. 236Parking brake
electric, applying/releasing. 268, 269,
270, 271
warning light......................................... 74
Parking lights............................................. 93
Pedestrian detection........................ 214, 217
Polishing.................................................. 361Power front seat memory function................................... 81
Power meter.............................................. 71
Power mirrors.................................. 102, 103 defroster............................................. 104
Power moonroof.............................. 106, 107Power steering adjustable........................................... 179
fluid..................................................... 333
Power steering fluid................................. 377
Power tailgate.................................. 169, 170
