VOLVO XC90 2004 Owners Manual

2004 VOLVO XC90
Nylon cargo net (option)
The Volvo XC90 can be equipped with a cargo net made of strong nylon fab\
ric.
This net can be installed in two places:
l Behind the rear seat backrests (the second row of seats in seven-seat m\
odels)
l Behind the front seat backrests if the rear seat backrests (the second \
row of seats in seven-seat models) have been folded
down.
If the vehicle is equipped with the cargo area cover, lift the cover out\
of the vehicle before installing the cargo net.
1. The upper and lower rods of the cargo net are hinged. Position the ro\
ds so that they are straight and lock in position.
2. Insert the end of the upper rod in one of the attachment brackets (s\
ee illustration above).
3. Insert the other end of the rod in the attachment bracket on the oppo\
site side of the vehicle.
4. Attach the lower straps to the eyelets on the floor if the net has be\
en installed in the rear attachment brackets.
Use the eyelets in the front seat rails if the net has been installed in\
the forward attachment brackets.
NOTE: On seven-seat models: When using the net in the rear attachment brackets\
, be sure it is installed in front of the side
armrests.
5. Adjust the straps to pull the net taut.
file:///K|/ownersdocs/2004/2004_XC90/04xc90_04b.htm (6 of 9)12/30/2006\
4:35:19 PM

2004 VOLVO XC90
Folding and storing the cargo net
Press the release buttons on the hinges (1 in the illustration above) \
and fold the net.
The cargo net can be stored under the floor of the cargo area on five-se\
at models.
WARNING!
Be sure the cargo net is properly inserted in the attachment brackets an\
d the straps are correctly attached to the eyelets
and pulled taut.
Do not use the net if it is damaged in any way.
When it is not in use, store the net so that it cannot be thrown forward\
in the event of sudden braking, etc.
pg. 69 Interior
Steel grid (accessory)
To install the grid:
Upper attachments
1. Lift in the grid through the tailgate or through one of the rear pass\
enger doors (in this case, fold down the rear seat
backrests/backrests in second row of seats in seven-seat models).
2. Insert one of the grid's upper attachments into an attachment bracket\
above one of the rear passenger doors (see
illustration above).
3. Push the grid's attachment into the forward position in the attachmen\
t bracket (see inset illustration above) to lock the
attachment in place.
4. Insert the grid's other upper attachment in the attachment bracket ab\
ove the opposite rear passenger door, and press the
attachment into the forward position in the attachment bracket to lock i\
t in place.
file:///K|/ownersdocs/2004/2004_XC90/04xc90_04b.htm (7 of 9)12/30/2006\
4:35:19 PM

2004 VOLVO XC90

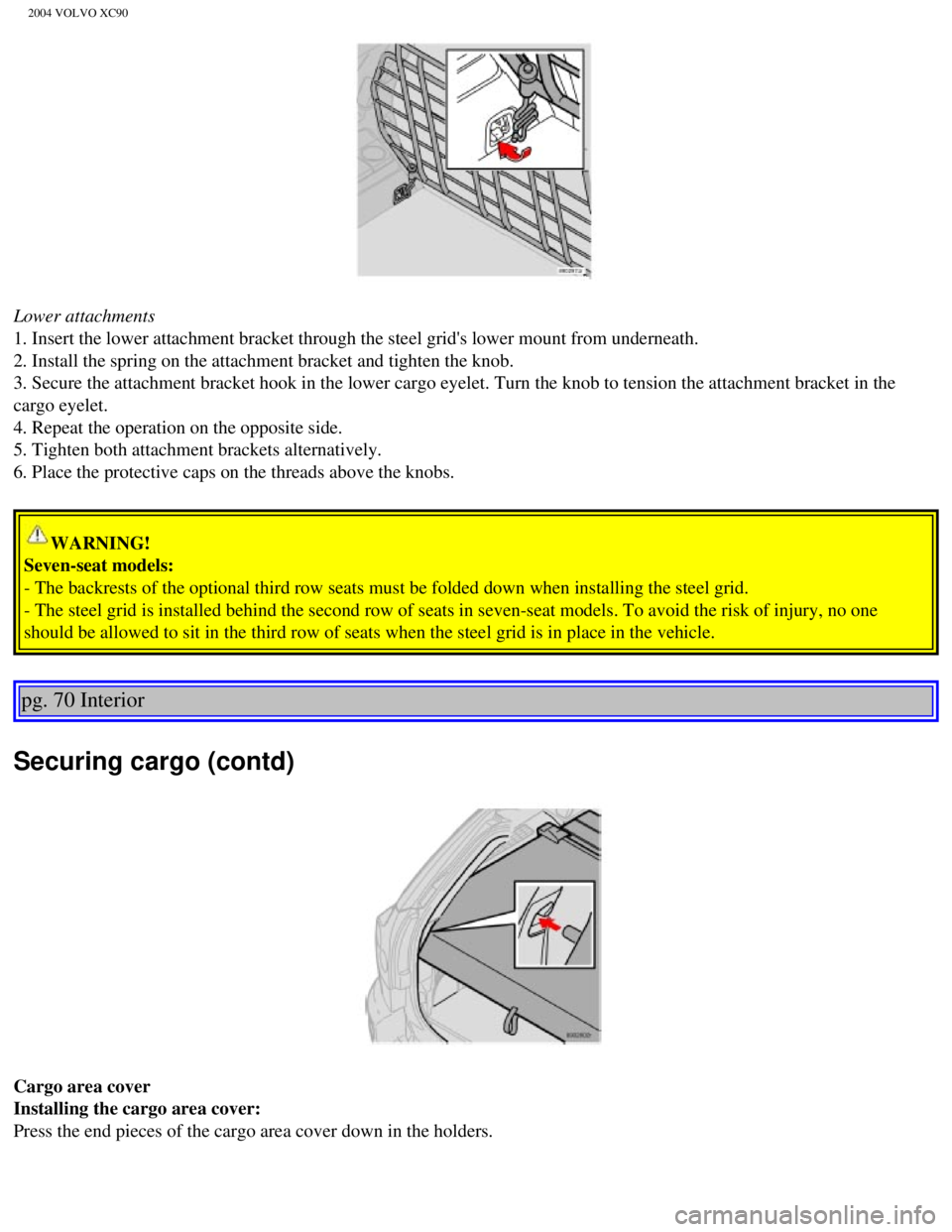

Lower attachments
1. Insert the lower attachment bracket through the steel grid's lower mo\
unt from underneath.
2. Install the spring on the attachment bracket and tighten the knob.
3. Secure the attachment bracket hook in the lower cargo eyelet. Turn th\
e knob to tension the attachment bracket in the
cargo eyelet.
4. Repeat the operation on the opposite side.
5. Tighten both attachment brackets alternatively.
6. Place the protective caps on the threads above the knobs.
WARNING!
Seven-seat models:
- The backrests of the optional third row seats must be folded down when\
installing the steel grid.
- The steel grid is installed behind the second row of seats in seven-se\
at models. To avoid the risk of injury, no one
should be allowed to sit in the third row of seats when the steel grid i\
s in place in the vehicle.
pg. 70 Interior
Securing cargo (contd)
Cargo area cover
Installing the cargo area cover:
Press the end pieces of the cargo area cover down in the holders.
file:///K|/ownersdocs/2004/2004_XC90/04xc90_04b.htm (8 of 9)12/30/2006\
4:35:19 PM

2004 VOLVO XC90
Pull out the cargo area cover and hook it in the holes in the rear cargo\
area pillars (see illustration above).
Removing the cargo area cover:
Press the end pieces of the cover inward. Pull up and lift out.
Grocery bag holder (five-seat models only)
1. Fold down the lower section of the tailgate.
2. Fold up the rear section of the cargo compartment floor.
3. Hang or secure your grocery bags by means of the straps or holders. \



Contents | Top of Page
file:///K|/ownersdocs/2004/2004_XC90/04xc90_04b.htm (9 of 9)12/30/2006\
4:35:19 PM

2004 VOLVO XC90
2 0 0 4
VOLVO XC90
Locks and Alarms

pg. 71 Locks and Alarms
Keys and remote controls72
Locking and unlocking75
Child safety locks77
Alarm78
pg. 72 Locks and Alarms
Keys and remote controls
file:///K|/ownersdocs/2004/2004_XC90/04xc90_05.htm (1 of 12)12/30/2006\
4:35:20 PM

2004 VOLVO XC90

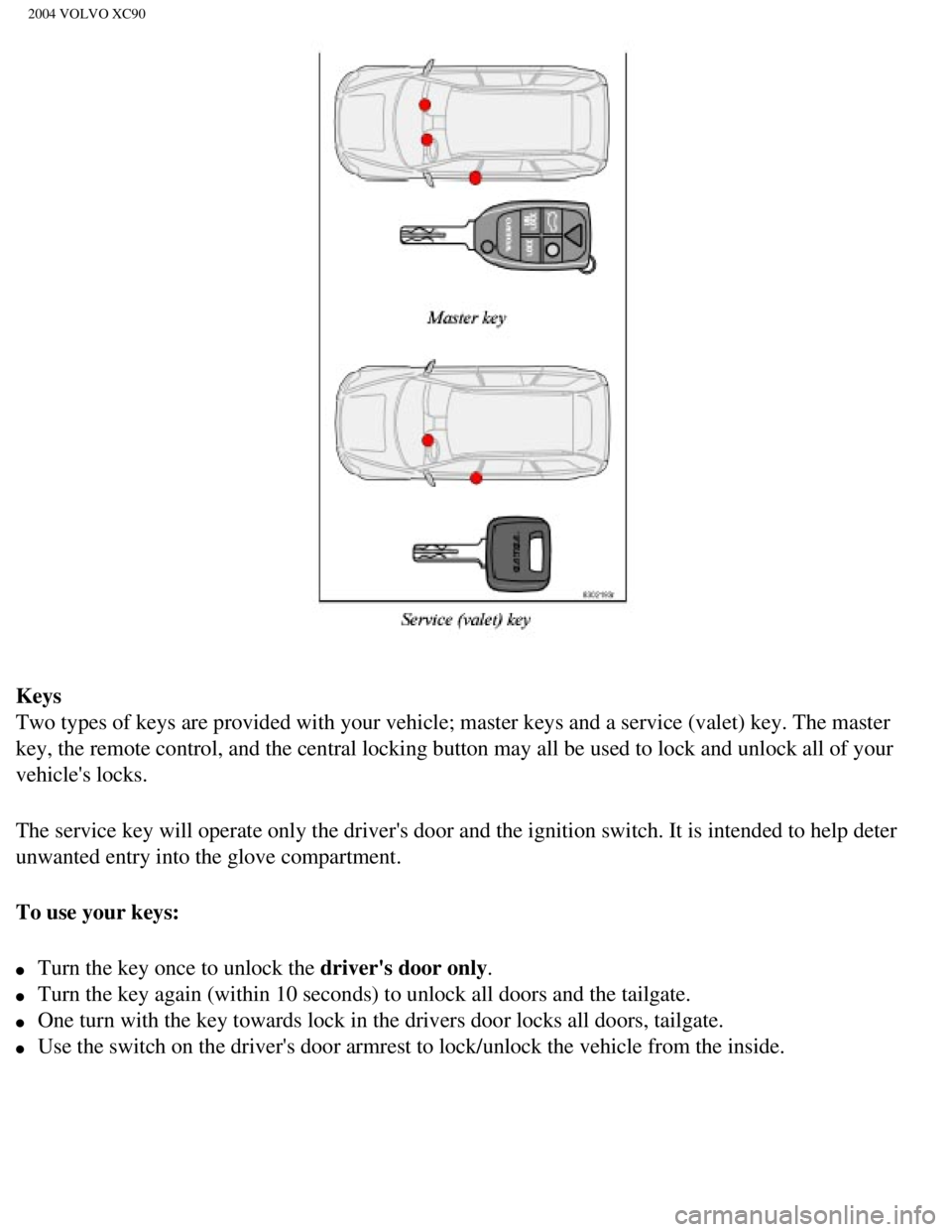

Keys
Two types of keys are provided with your vehicle; master keys and a serv\
ice (valet) key. The master
key, the remote control, and the central locking button may all be used \
to lock and unlock all of your
vehicle's locks.
The service key will operate only the driver's door and the ignition swi\
tch. It is intended to help deter
unwanted entry into the glove compartment.
To use your keys:
l Turn the key once to unlock the driver's door only.
l Turn the key again (within 10 seconds) to unlock all doors and the tai\
lgate.
l One turn with the key towards lock in the drivers door locks all doors, \
tailgate.
l Use the switch on the driver's door armrest to lock/unlock the vehicle f\
rom the inside.
file:///K|/ownersdocs/2004/2004_XC90/04xc90_05.htm (2 of 12)12/30/2006\
4:35:20 PM

2004 VOLVO XC90
WARNING!
If the doors are locked while driving, this may hinder rapid access to t\
he occupants of the vehicle in
the event of an accident. (Also see information on "Child safety locks"\
).
NOTE: To help prevent accidentally locking the keys in the vehicle, the centra\
l locking system is
designed to unlock the doors immediately if the key is left in the ignit\
ion switch, the vehicle is locked
using the lock button on the door and the door is then closed. A sound f\
rom the lock will be audible at
this time.
Please note that this function will not unlock the doors if the engine i\
s running.
Immobilizer (start inhibitor)
Each of the keys supplied with your vehicle contains a coded transmitter\
. The code in the key is
transmitted to an antenna in the ignition switch where it is compared to\
the code stored in the start
inhibitor module. The vehicle will start only with a properly coded key.\
If you misplace a key, take the other keys to an authorized Volvo retail\
er for reprogramming as an
antitheft measure.
NOTE: If two of the keys to your vehicle are close together, e.g., on the same\
key ring, when you try to
start the vehicle, this could cause interference in the immobilizer syst\
em and result in the vehicle not
starting. If this should occur, remove one of the keys from the key ring\
before trying to start the vehicle
again.
This device complies with part 15 of the FCC rules. Operation is subject\
to the following condition: (1)
This device may not cause harmful interference, and (2) this device mu\
st accept any interference
received, including interference that may cause undesired operation.
pg. 73 Locks and Alarms
file:///K|/ownersdocs/2004/2004_XC90/04xc90_05.htm (3 of 12)12/30/2006\
4:35:20 PM

2004 VOLVO XC90
Remote controls
Your vehicle is equipped with two coded remote control transmitters with\
integrated ignition keys called
Key Integrated Remote (KIR). These transmitters use a radio frequency \
that will enable you to lock/
unlock all doors and the tailgate from a distance of 10-15 feet (3-5 me\
ters).
The transmitters will also activate or allow 'keyless' entry into the pa\
ssenger compartment or the tailgate.
They will also activate or deactivate the vehicle's alarm system(s). T\
he car can also be locked/unlocked
with the key.
If one of the transmitters is misplaced, contact your nearest authorized\
Volvo retailer for replacement.

Buttons in remote control:
1 -Fold key in/out, 2 - Lock, 3 - Approach lighting,
4 - 'Panic' function, 5 - Unlock tailgate, 6 - Unlock
Using the remote control
Button 1: Press to extend the key. This button must also be pressed when the key \
is folded back into the
slot in the side of the remote control unit.
Button 2 (Lock): Press once to lock all doors, and the tailgate.
file:///K|/ownersdocs/2004/2004_XC90/04xc90_05.htm (4 of 12)12/30/2006\
4:35:20 PM

2004 VOLVO XC90
Button 3 (Approach lighting): Press this button when approaching the car at night to light up the
interior courtesy light, parking lights, license plate lights and the li\
ghts in the sideview mirrors.
Button 4 (Panic): See
page 78 for more information on this function.
Button 5 (Tailgate unlock): Press this button twice within 3 seconds to unlock the tailgate (witho\
ut
unlocking the other doors).
Button 6 (Unlock): Press this button once to unlock the driver's door only. Wait for at le\
ast 1 second
and press the button again (within 10 seconds) to unlock all doors, an\
d the tailgate.
NOTE:
l Airbag deployment will automatically unlock the doors.
l The keys may also be used to lock and unlock the doors, and to activate \
and deactivate the alarm
system.
l To avoid leaving your keys in the vehicle, make a habit of always lockin\
g the vehicle with the remote
control.
Automatic re-locking If the doors are unlocked, the locks will automatically reengage (re-l\
ock) and the
alarm will rearm after 2 minutes unless a door or the tailgate has been \
opened.
pg. 74 Locks and Alarms
l FCC ID:LQNP2T-APU This device complies with part 15 of the FCC rules. Op\
eration is subject to
the following conditions: (1) This device may not cause harmful interf\
erence, and (2) this device must
accept any interference received, including interference that may cause \
undesired operation.
l Canadian 2306104388 Model 504 2927 by Donnelly Operation is subject to t\
he following conditions:
(1) this device may not cause interference, and (2) this device must\
accept any interference, including
interference that may cause undesired operation of the device.
l Canadian 2306104388A Model 509 977 by Connaught Electronics Operation is\
subject to the
following conditions: (1) this device may not cause interference, and \
(2) this device must accept any
interference, including interference that may cause undesired operation \
of the device.
file:///K|/ownersdocs/2004/2004_XC90/04xc90_05.htm (5 of 12)12/30/2006\
4:35:20 PM

2004 VOLVO XC90
WARNING!
Never use the transmitter to lock the doors from inside the vehicle.
Doing so would ACTIVATE:
- the break-in alarm, which would sound if one of the doors were opened \
- the optional interior motion and inclination alarm sensors.
Doing so would DEACTIVATE:
- the moonroof and interior courtesy light controls.
- the central locking buttons on the front door armrests, although the i\
nterior door handles would still
function to allow occupants to leave the vehicle.
Disabled features would remain disabled until the remote were used again\
to unlock the vehicle.
In addition, locking an occupied vehicle would hinder rapid access to th\
e occupants in an accident or
emergency.
Replacing the battery in the remote control
If the range of the transmitter is noticeably reduced, this indicates th\
at the battery is weak and should be
replaced.
To replace the battery
1. Carefully pry open the rear edge of the cover with a small screwdrive\
r.
2. Insert a new 3-volt, CR2032 battery, with the battery's plus side up.\
Avoid touching the contact
surfaces of the battery with your fingers.
3. Press the cover back into place. Ensure that the rubber seal is corre\
ctly positioned to help keep out
moisture.

NOTE: The old battery should be disposed of properly at a recycling center or\
at your Volvo retailer.
file:///K|/ownersdocs/2004/2004_XC90/04xc90_05.htm (6 of 12)12/30/2006\
4:35:20 PM
