VOLVO XC90 2005 User Guide

2005 VOLVO XC90

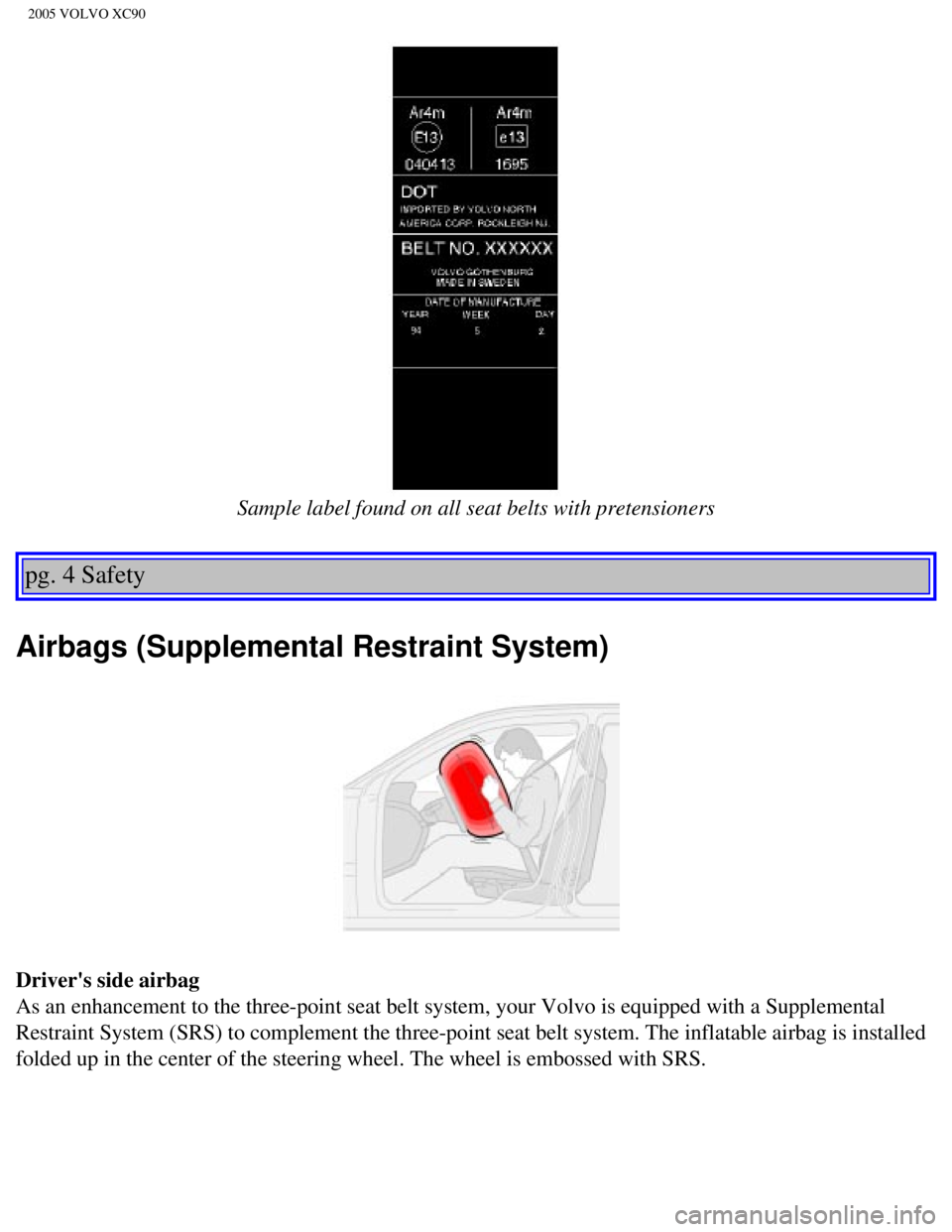

Sample label found on all seat belts with pretensioners
pg. 4 Safety
Airbags (Supplemental Restraint System)
Driver's side airbag
As an enhancement to the three-point seat belt system, your Volvo is equ\
ipped with a Supplemental
Restraint System (SRS) to complement the three-point seat belt system.\
The inflatable airbag is installed
folded up in the center of the steering wheel. The wheel is embossed wit\
h SRS.
file:///K|/ownersdocs/2005/2005_XC90/05xc90_01a.htm (4 of 15)12/30/200\
6 4:42:24 PM

2005 VOLVO XC90
WARNING!
Never drive an SRS equipped vehicle with your hands on the steering whee\
l pad/airbag
housing.
Passenger side airbag
The airbag on the front passenger side is folded up in a compartment abo\
ve the glove compartment. The
panel is embossed SRS.
WARNING!
No objects, accessory equipment or stickers may be placed on, attached t\
o, or installed near the SRS
cover in the center of the steering wheel, the SRS cover above the glove\
compartment or the area
affected by airbag deployment.

Passenger side airbag - location
file:///K|/ownersdocs/2005/2005_XC90/05xc90_01a.htm (5 of 15)12/30/200\
6 4:42:24 PM

2005 VOLVO XC90
WARNING!
As its name implies, SRS is designed to be a SUPPLEMENT to - not a repla\
cement for - the three-
point belt system. For maximum protection, wear seat belts at all times.\
Be aware that no system can
prevent all possible injuries that may occur in an accident.
When installing any accessory equipment, make sure that the SRS system i\
s not damaged. Do not
attempt to service any component of the SRS yourself. Attempting to do s\
o may result in serious
personal injury. If a problem arises, take your vehicle to the nearest a\
uthorized Volvo retailer for
inspection as soon as possible.
pg. 5 Safety
file:///K|/ownersdocs/2005/2005_XC90/05xc90_01a.htm (6 of 15)12/30/200\
6 4:42:24 PM

2005 VOLVO XC90
NOTE:
l Deployment of SRS components occurs only one time during an accident. In\
a collision where
deployment occurs, the airbags and seat belt pretensioners activate. Som\
e noise occurs and a small
amount of powder is released. The release of the powder may appear as sm\
oke-like matter. This is a
normal characteristic and does not indicate fire.
l Volvo's dual-threshold, dual-stage airbags use special sensors to contro\
l deployment. The point at
which the airbag deploys is determined by whether or not the seat belt i\
s being used, as well as the
severity of the collision. Collisions can occur where only one of the ai\
rbags deploys.
l If the impact is less severe, but severe enough to present a clear injur\
y risk, the dual-stage airbags are
triggered at 70-80% of their total capacity. If the impact is more sever\
e, the dualstage airbags are
triggered at full capacity.
WARNING!
Do not use child safety seats or child booster cushions/backrests in the\
front passenger's seat. We also
recommend that occupants under 4 feet 7 inches (140 cm) in height who \
have outgrown these devices
sit in the rear seat with the seat belt fastened.
Never drive with the airbags deployed. The fact that they hang out can i\
mpair the steering of your
vehicle. Other safety systems can also be damaged. The smoke and dust fo\
rmed when the airbags are
deployed can cause skin and eye irritation in the event of prolonged exp\
osure.
pg. 6 Safety
Airbags (Supplemental Restraint System) (contd)
file:///K|/ownersdocs/2005/2005_XC90/05xc90_01a.htm (7 of 15)12/30/200\
6 4:42:24 PM

2005 VOLVO XC90
WARNING!
Children must never be allowed in the front passenger's seat. Volvo reco\
mmends that ALL occupants
(adults and children) shorter than 4 feet 7 inches (140 cm) be seate\
d in the back seat of any vehicle
with a front passenger-side airbag. See
page 22 for guidelines.
Occupants in the front passenger's seat must never sit on the edge of th\
e seat, sit leaning toward the
instrument panel or otherwise sit out of position. The occupant's back m\
ust be as upright as comfort
allows and be against the seat back with the seat belt properly fastened\
.
Feet must be on the floor, e.g. not on the dash, seat or out of the wind\
ow.
No objects or accessory equipment, e.g. dashboard covers, may be placed \
on, attached to, or installed
near the SRS hatch (the area above the glove compartment) or the area \
affected by airbag deployment
(see illustration on
page 4).
There should be no loose articles, e.g. coffee cups, on the floor, seat \
or dashboard area.
Never try to open the SRS cover on the steering wheel or the passenger s\
ide dash. This should only be
done by an authorized Volvo service technician.
Failure to follow these instructions can result in injury to the vehicle\
occupants.
Safety system warning light in the instrument panel
A self-diagnostic system incorporated in the sensor monitors certain saf\
ety system components. A check
is performed on components such as seat belt locks, SRS, Occupant Weight\
Sensor, SIPS, and/or the
VIC system. If a fault is detected, the warning light will illuminate. T\
he light is included in the warning/
indicator light cluster in the instrument panel. Normally, the safety sy\
stem warning lamp should light up
when the ignition key is turned to positions I, II or III and should go \
out after approximately 7 seconds
or when the engine is started. Check that this light is functioning prop\
erly every time the vehicle is
started.
WARNING!
If the SRS warning light stays on after the engine has started or if it \
comes on while you are driving,
drive the vehicle to the nearest authorized Volvo retailer for inspectio\
n as soon as possible.
file:///K|/ownersdocs/2005/2005_XC90/05xc90_01a.htm (8 of 15)12/30/200\
6 4:42:24 PM

2005 VOLVO XC90
pg. 7 Safety
Disabling the passenger's side front airbag.
Volvo recommends that ALL occupants (adults and children) shorter than\
four feet seven inches (140
cm) be seated in the back seat of any vehicle with a front passenger si\
de airbag, and be properly
restrained for their size and weight. See also the child safety recommen\
dations on
page 22.
The passenger's side front airbag is automatically enabled/disabled by t\
he Occupant Weight Sensor
(OWS), a system that monitors the weight of the person or object in th\
e front passenger's seat. The
system consists of a silicon-filled bag located under the padding in the\
front passenger's seat cushion, a
control module located under this seat, and a seat belt tension sensor, \
located on the outboard side of the
seat.
file:///K|/ownersdocs/2005/2005_XC90/05xc90_01a.htm (9 of 15)12/30/200\
6 4:42:24 PM

2005 VOLVO XC90
If the system is functioning normally, the status of the front passenger\
's side airbag (enabled/ disabled)
will be shown by the OWS indicator light as explained in the table to th\
e left. The OWS indicator light is
separate and in addition to the SRS warning light in the instrument pane\
l.
NOTE: When the ignition is switched on, the OWS indicator light will go on fo\
r up to 10 seconds while
the system performs a self diagnostic test and then go out. However, if \
a fault is detected in the system:
l The OWS indicator light will stay on
l The safety system warning light (see page 6) will come on and stay on
l The message PASS. AIRBAG OFF SERVICE URGENT will be displayed in the inf\
ormation display.
file:///K|/ownersdocs/2005/2005_XC90/05xc90_01a.htm (10 of 15)12/30/20\
06 4:42:24 PM

2005 VOLVO XC90
WARNING! If a fault in the system is detected and indicated as explained above, \
be aware that
the passenger's side front airbag will not deploy in the event of a coll\
ision. In this case, the safety
systems and Occupant Weight Sensor should be inspected by an authorized \
Volvo retailer as soon as
possible.
pg. 8 Safety
WARNING!
Never try to open, remove, or repair any components in the OWS system. T\
his could result in system
malfunction. Maintenance or repairs should only be carried out by an aut\
horized Volvo service
technician.
WARNING!
Keep the following points in mind with respect to the OWS system. Failur\
e to follow these
instructions could adversely affect the system's function and result in \
serious injury to the occupant of
the front passenger's seat:
The full weight of the front seat passenger should always be on the seat\
cushion. The passenger
should never lift him/herself off the seat cushion using the armrest in \
the door or the center console,
by pressing the feet on the floor, by sitting on the edge of the seat cu\
shion, or by pressing against the
backrest in a way that reduces pressure on the seat cushion. This could \
cause OWS to disable the
front, passenger's side airbag.
The front passenger's seat should not be modified in any way. This could\
reduce pressure on the seat
cushion, which might interfere with the OWS system's function.
Do not place any type of object on the front passenger's seat in such a \
way that jamming, pressing, or
squeezing occurs between the object and the front seat, other than as a \
direct result of the correct use
of the ALR/ELR seat belt (see
page 22).
No objects should be placed under the front passenger's seat. This could\
interfere with the OWS
system's function.
file:///K|/ownersdocs/2005/2005_XC90/05xc90_01a.htm (11 of 15)12/30/20\
06 4:42:24 PM

2005 VOLVO XC90
WARNING!
No objects that add to the total weight on the seat should be placed on \
the front passenger's seat. If a
child is seated in the front passenger's seat with any additional weight\
, this extra weight could cause
the OWS system to enable the airbag, which might cause it to deploy in t\
he event of a collision,
thereby injuring the child. The seat belt should never be wrapped around\
an object on the front
passenger's seat. This could interfere with the OWS system's function.
The front passenger's seat belt should never be used in a way that exert\
s more pressure on the
passenger than normal. This could increase the pressure exerted on the w\
eight sensor by a child, and
could result in the airbag being enabled, which might cause it to deploy\
in the event of a collision,
thereby injuring the child.
pg. 9 Safety
When are the airbags deployed?
The information on this page pertains to SRS (front) airbags only. For\
information about Side Impact
Protection System (SIPS) airbags, please see
page 12. For Inflatable Curtain (IC) airbags, please see
page 14.
The SRS system is designed to deploy during certain frontal or front-ang\
ular collisions, impacts, or
decelerations, depending on the crash severity, angle, speed and object \
impacted. The SRS sensor is
designed to react to both the impact of the collision and the inertial f\
orces generated by it and to
determine if the intensity of the collision is sufficient for the seat b\
elt pretensioners or airbags to be
deployed.
If the airbags have been deployed, we recommend the following:
l Have the vehicle towed to an authorized Volvo retailer. Never drive with\
the airbags deployed.
l Have an authorized Volvo retailer replace the SRS system components.
l Use only new, Genuine Volvo Parts when replacing SRS components (airbag\
s, seat belts,
pretensioners, etc.).
When are the airbags NOT deployed?
Not all frontal collisions activate the SRS system. If the collision inv\
olves a nonrigid object (e.g., a snow
drift or bush), or a rigid, fixed object at a low speed, the SRS system\
will not necessarily deploy. Front
airbags do not normally deploy in a side impact collision, in a collisio\
n from the rear or in a rollover
situation. The amount of damage to the bodywork does not reliably indica\
te if the airbags should have
deployed or not.
Seat belts - the heart of the Volvo safety system
The heart of the Volvo safety system is the three-point seat belt (a Vo\
lvo invention)! In order for the
SRS system to provide the protection intended, seat belts must be worn a\
t all times by everyone in the
file:///K|/ownersdocs/2005/2005_XC90/05xc90_01a.htm (12 of 15)12/30/20\
06 4:42:24 PM

2005 VOLVO XC90
vehicle. The SRS system is a supplement to the seat belts.
WARNING!
Never drive with the airbags deployed. The fact that they hang out can i\
mpair the steering of your
vehicle. Other safety systems can also be damaged. The smoke and dust fo\
rmed when the airbags are
deployed can cause skin and eye irritation in the event of prolonged exp\
osure.
pg. 10 Safety
Airbags (Supplemental Restraint System) (contd)
WARNING!
If your vehicle has been subjected to flood conditions (e.g. soaked car\
peting/standing water on the
floor of the vehicle) or if your vehicle has become flood-damaged in an\
y way, do not attempt to start
the vehicle or put the key in the ignition before disconnecting the batt\
ery (see below). This may cause
airbag deployment which could result in personal injury. Have the vehicle towed to an authorized
Volvo retailer for repairs.
Automatic transmission:
Before attempting to tow the vehicle, use the following procedure to ove\
rride the shiftlock system to
move the gear selector to the neutral position.
l Switch off the ignition for at least 10 minutes and disconnect the batte\
ry
l Wait at least one minute
l Insert the key in the ignition and turn it to position II
l Press firmly on the brake pedal.
l Move the gear selector from (P)ark to the (N)eutral position.
There is no maintenance to perform on the SRS yourself. The month and ye\
ar shown on the decal on the
door pillar indicate when you should contact your Volvo retailer for spe\
cific servicing or replacement of
airbags and seat belt pretensioners. This maintenance must be performed \
by an authorized Volvo retailer.
Should you have any questions about the SRS system, please contact your \
authorized Volvo retailer or
Volvo Customer Support: In the U.S.A In Canada:
Volvo Cars of North America Volvo Cars of Canada Ltd.
Customer Care Center National Customer Service
file:///K|/ownersdocs/2005/2005_XC90/05xc90_01a.htm (13 of 15)12/30/20\
06 4:42:24 PM
