VOLVO XC90 2005 Workshop Manual

2005 VOLVO XC90
E - Rear fog light
By design, there is one rear fog light only, located in the driver's sid\
e tail light cluster.
The rear fog light is considerably brighter than the normal tail lights \
and should be used only when
conditions such as fog, rain, snow, smoke or dust reduce visibility for \
other vehicles to less than 500 ft
(150 meters).
A light in the switch indicates when the rear fog light is on.
The rear fog light will only function in combination with the high/low b\
eam headlights.

Panel on passenger's side of cargo area
Manually unlocking the fuel filler door
1. Open the upper and lower sections of the tailgate, and fold up the re\
ar section of the cargo area floor.
2. If the vehicle is equipped with the optional grocery bag holder, deta\
ch the holder's bands.

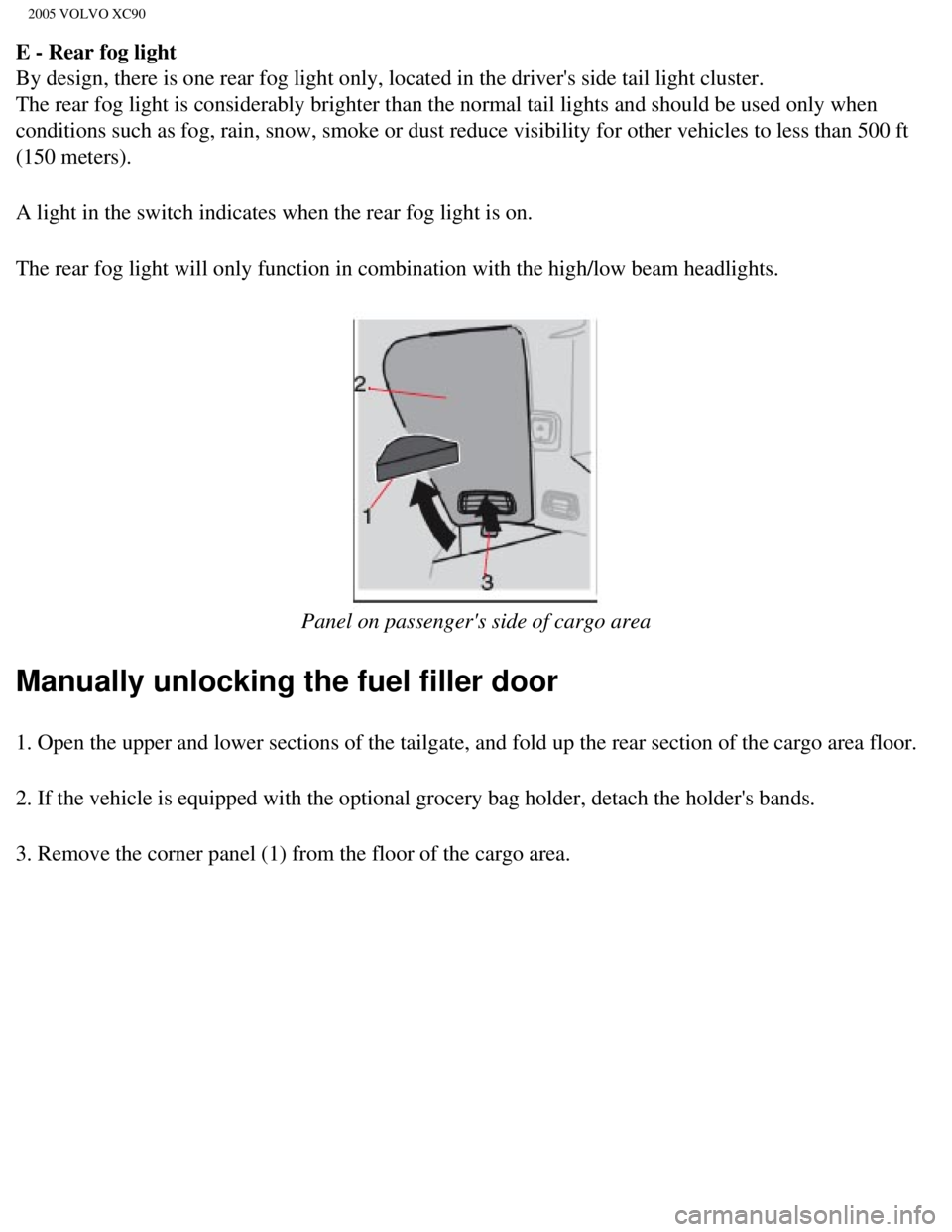

3. Remove the corner panel (1) from the floor of the cargo area.
file:///K|/ownersdocs/2005/2005_XC90/05xc90_02a.htm (13 of 17)12/30/20\
06 4:42:27 PM

2005 VOLVO XC90
4. Open the cover (2) in the side panel by pulling the tab (3) upwar\
d/outward.

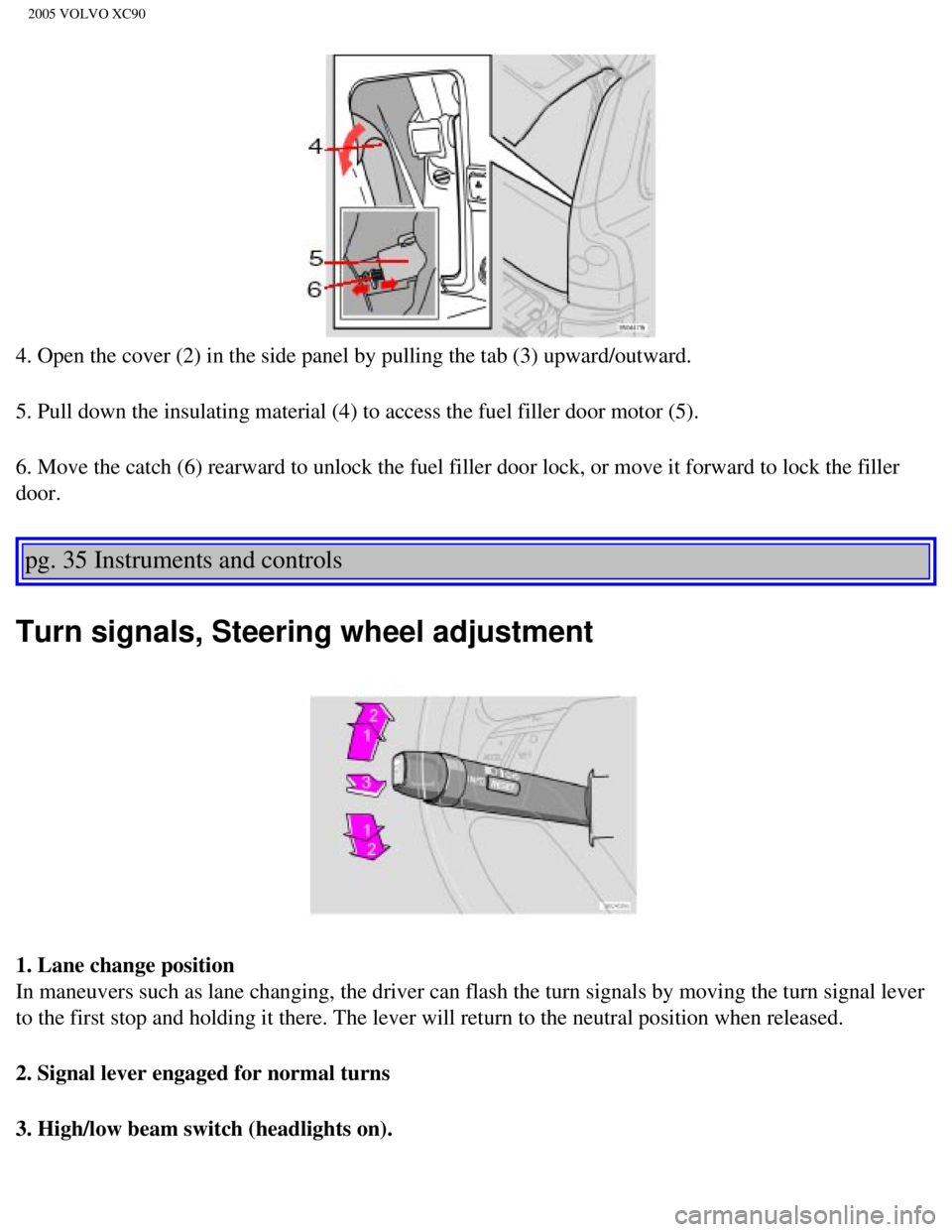

5. Pull down the insulating material (4) to access the fuel filler doo\
r motor (5).
6. Move the catch (6) rearward to unlock the fuel filler door lock, or\
move it forward to lock the filler
door.
pg. 35 Instruments and controls
Turn signals, Steering wheel adjustment
1. Lane change position
In maneuvers such as lane changing, the driver can flash the turn signal\
s by moving the turn signal lever
to the first stop and holding it there. The lever will return to the neu\
tral position when released.
2. Signal lever engaged for normal turns
3. High/low beam switch (headlights on).
file:///K|/ownersdocs/2005/2005_XC90/05xc90_02a.htm (14 of 17)12/30/20\
06 4:42:27 PM

2005 VOLVO XC90
Move the lever towards the steering wheel and release it.
Headlight flasher (headlights off).
Move the lever towards the steering wheel. The headlight high beam will \
be on until the lever is
released.
NOTE: If the turn signal indicator flashes faster than normal, check for a bur\
ned-out turn signal bulb.
4. Exterior courtesy lights.
Home safe lighting
When you leave your vehicle at night, you can make use of the courtesy l\
ighting function:
l Remove the key from the ignition switch.
l Pull the turn signal lever towards the steering wheel (as when using th\
e headlight flasher function).
l Exit the vehicle and lock the doors.
The headlights, parking lights, license plate lights and the lights in t\
he sideview mirrors will now come
on and remain on for 30, 60 or 90 seconds (the time interval is at your\
discretion and can be changed by
an authorized Volvo retailer).
Approach lighting
When approaching the vehicle at night, press the yellow button in the ce\
ntral locking remote control (see
illustration on
page 77). This lights up the interior courtesy lights, parking lights, license\
plate lights and
the lights in the sideview mirrors.
Steering wheel adjustment
Both the height and the reach of the steering wheel can be adjusted to a\
comfortable position for the
driver. Pull down the lever on the left of the steering column. Adjust t\
he steering wheel to a suitable
position and press the lever back into place to lock the steering wheel \
in the new position. Check that the
steering wheel is locked in the new position.
file:///K|/ownersdocs/2005/2005_XC90/05xc90_02a.htm (15 of 17)12/30/20\
06 4:42:27 PM

2005 VOLVO XC90
WARNING!
The Never adjust the steering wheel while
driving.
pg. 36 Instruments and controls

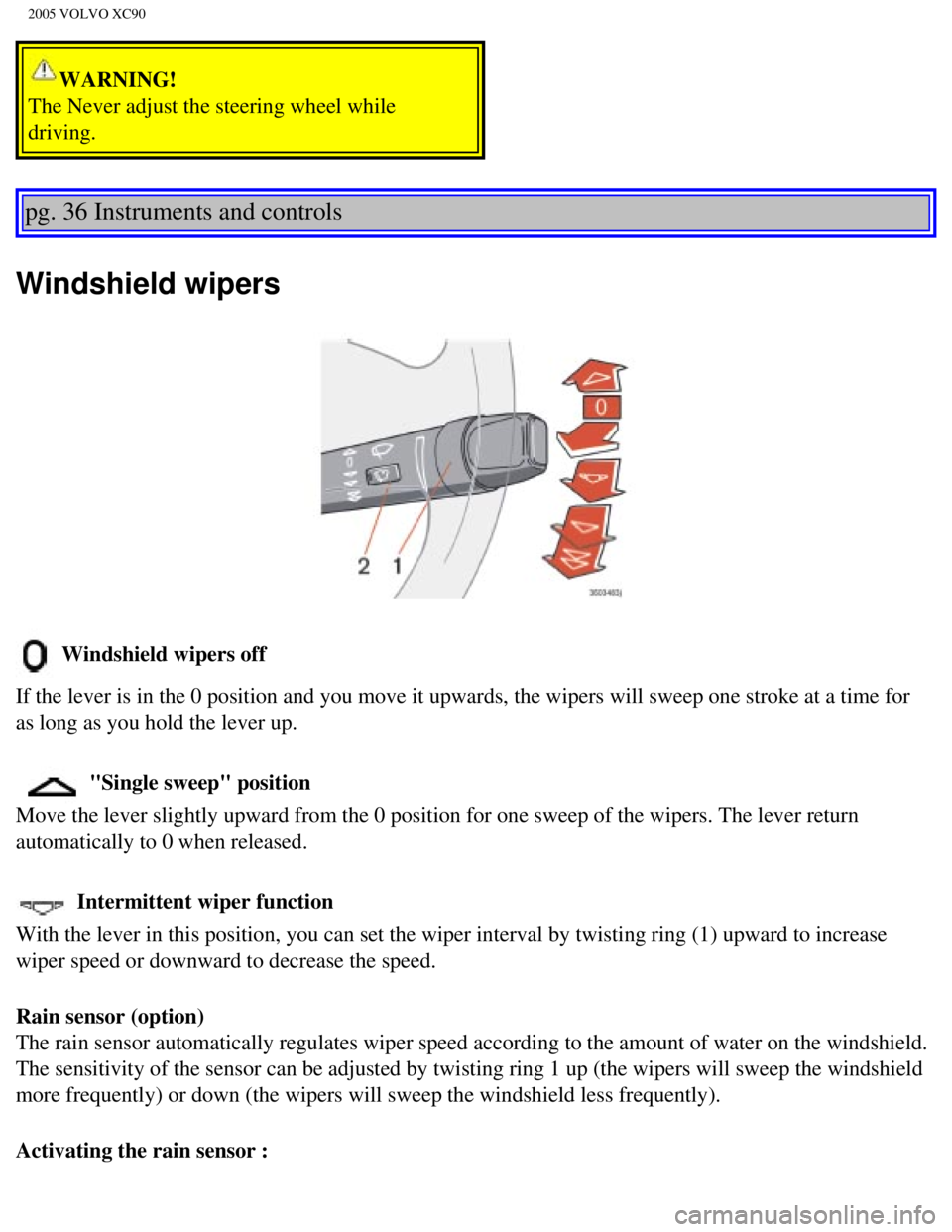

Windshield wipers
Windshield wipers off
If the lever is in the 0 position and you move it upwards, the wipers wi\
ll sweep one stroke at a time for
as long as you hold the lever up.
"Single sweep" position
Move the lever slightly upward from the 0 position for one sweep of the \
wipers. The lever return
automatically to 0 when released.
Intermittent wiper function
With the lever in this position, you can set the wiper interval by twist\
ing ring (1) upward to increase
wiper speed or downward to decrease the speed.
Rain sensor (option)
The rain sensor automatically regulates wiper speed according to the amo\
unt of water on the windshield.
The sensitivity of the sensor can be adjusted by twisting ring 1 up (th\
e wipers will sweep the windshield
more frequently) or down (the wipers will sweep the windshield less fr\
equently).
Activating the rain sensor :
file:///K|/ownersdocs/2005/2005_XC90/05xc90_02a.htm (16 of 17)12/30/20\
06 4:42:27 PM

2005 VOLVO XC90
1. Turn the ignition key to at least position I and put the windshield w\
iper lever in position 0.
2. Press button 2. An LED in the button will light up to indicate that t\
he rain sensor is active.
Deactivating the rain sensor:
l Press button 2. or
l Move the windshield wiper lever down to another position. Moving the lev\
er up will not deactivate
the rain sensor. Doing so will cause the wipers to sweep the windshield \
until the lever is released, at
which time the wipers return to rain sensor mode.
The rain sensor is also deactivated when the key is removed from the ign\
ition.
CAUTION
The rain sensor should be deactivated when washing the car in an automat\
ic car wash, etc. If the rain
sensor function is left on, the wipers will start inadvertently in the c\
ar wash and could be damaged.
Wipers operate at "normal" speed
Wipers operate at "high" speed
3 - Windshield washer/headlight washer (certain models)
Pull the lever toward you and release it. High pressure jets mounted in \
the bumper will spray the
headlights.
NOTE:
l To conserve washer fluid in driving conditions where the windshield wash\
ers are used frequently, the
headlights will only be washed once for every five times the windshield \
is washed within a 10- minute
period.
l When approximately 1 US quart (1 liter) remains in the washer fluid re\
servoir, the rear window and
headlights will not be washed when the lever is pulled to conserve washe\
r fluid for the windshield.



Contents | Top of Page
file:///K|/ownersdocs/2005/2005_XC90/05xc90_02a.htm (17 of 17)12/30/20\
06 4:42:27 PM

2005 VOLVO XC90
pg. 37 Instruments and controls
Tailgate wiper/washer, Water repellant glass
Tailgate wiper/washer
A - Intermittent wiping
B - Normal wiping
Move the lever forward to start the tailgate washer.
Tailgate wiper and reverse gear
If the front wipers are on and the car is put into reverse gear, then th\
e tailgate wiper will go into
intermittent wiping function*.
If the tailgate wiper is already in normal wiping function, the normal w\
iping function will continue.
* Consult your Volvo retailer if you would like to have this function de\
activated.
Water repellent glass (sideview mirrors) - option
The sideview mirrors may be treated with a water repellent coating. This\
improves vision by causing
water to run off quickly. See
page 131 for information on cleaning this type of glass.
CAUTION:
- Use only suitable plastic scrapers to remove ice or snow from the mirr\
ors. Using a metal ice scraper
could damage the water repellent coating.
- Use the heating function to remove ice, snow, or mist from the mirrors\
file:///K|/ownersdocs/2005/2005_XC90/05xc90_02b.htm (1 of 17)12/30/200\
6 4:42:28 PM

2005 VOLVO XC90
pg. 38 Instruments and controls
Hazard warning flashers, rear window/sideview mirror
defroster, heated front seats

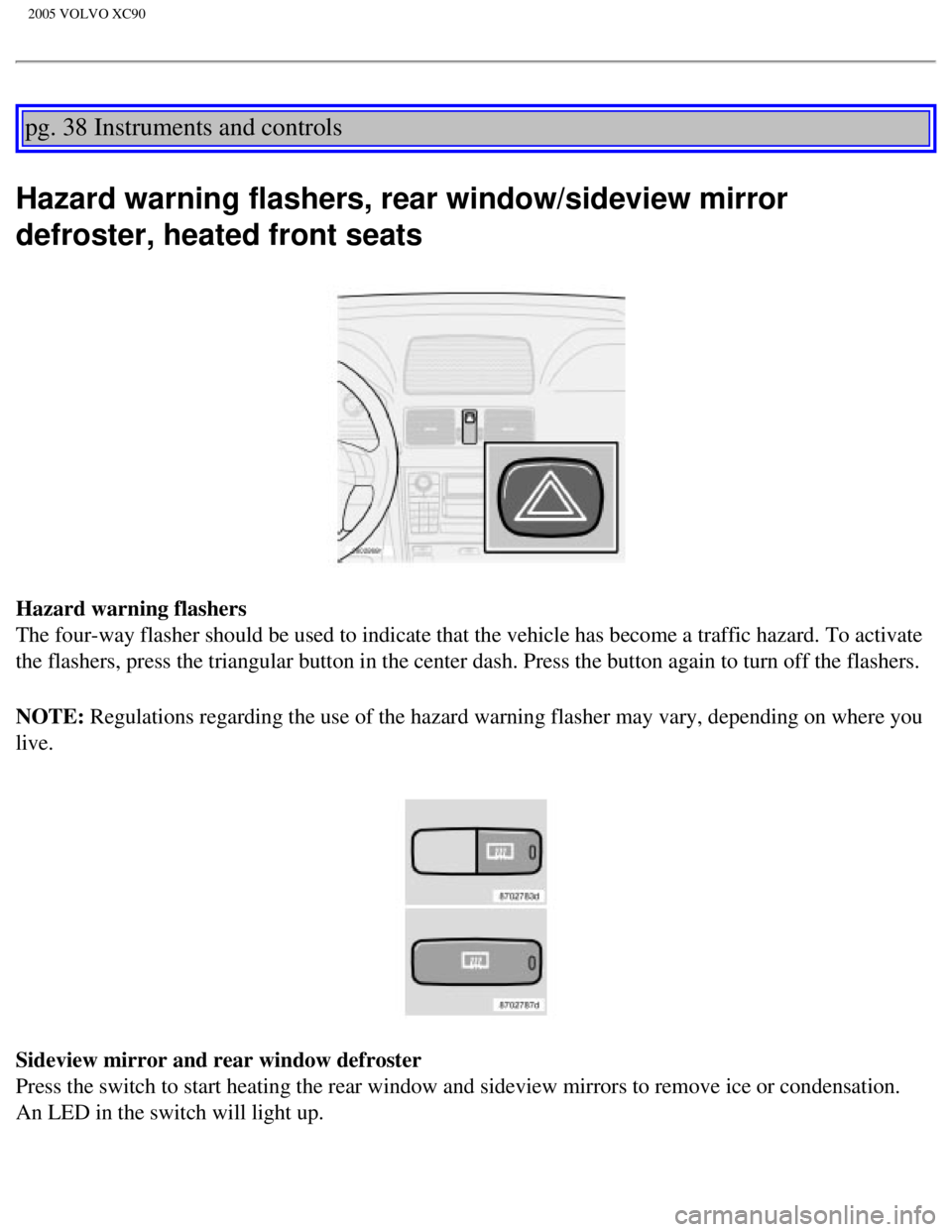

Hazard warning flashers
The four-way flasher should be used to indicate that the vehicle has bec\
ome a traffic hazard. To activate
the flashers, press the triangular button in the center dash. Press the \
button again to turn off the flashers.
NOTE: Regulations regarding the use of the hazard warning flasher may vary, de\
pending on where you
live.
Sideview mirror and rear window defroster
Press the switch to start heating the rear window and sideview mirrors t\
o remove ice or condensation.
An LED in the switch will light up.
file:///K|/ownersdocs/2005/2005_XC90/05xc90_02b.htm (2 of 17)12/30/200\
6 4:42:28 PM

2005 VOLVO XC90
A timer automatically switches off the heating to the sideview mirrors a\
fter approximately 4 minutes and
to the rear window after approximately 12 minutes. The LED will go out c\
orrespondingly.

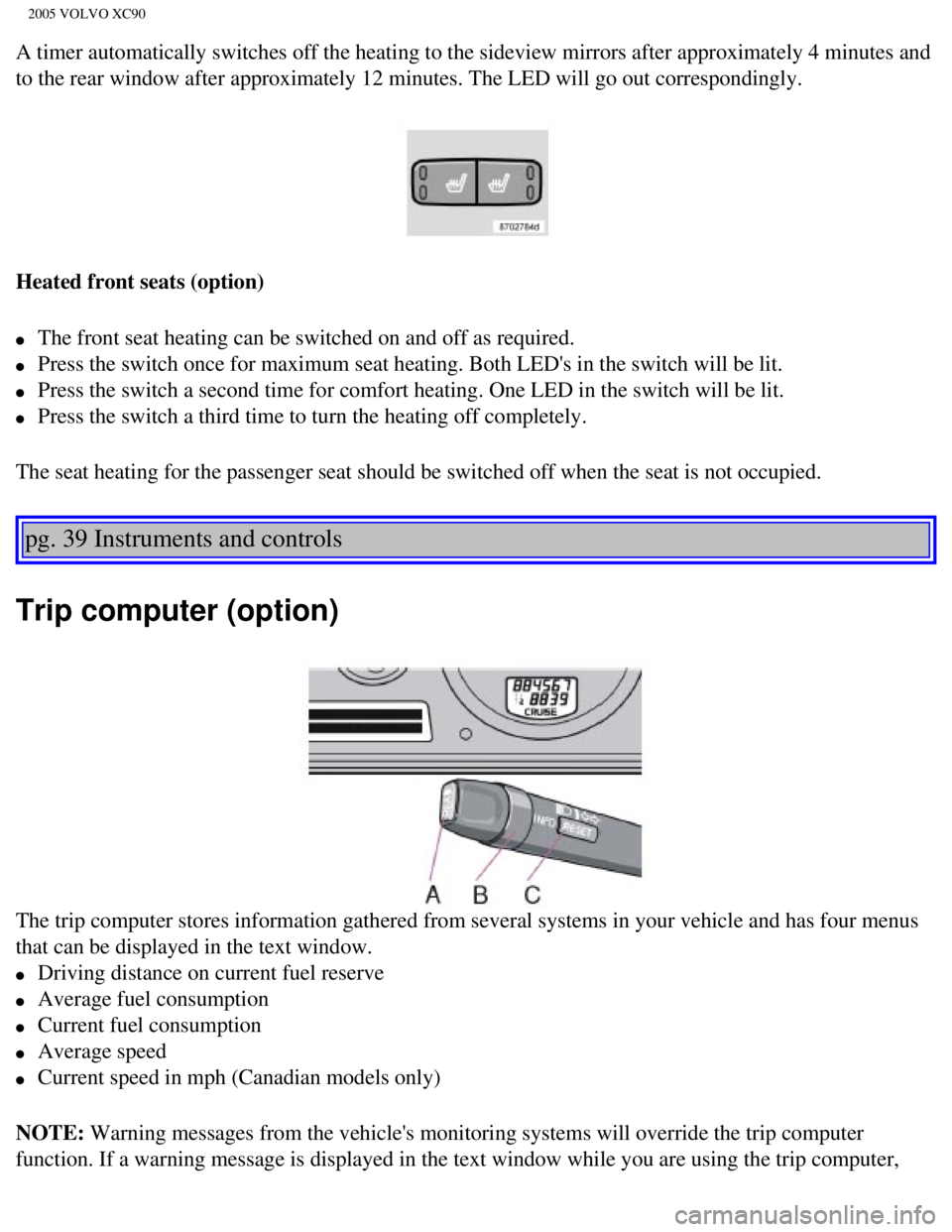

Heated front seats (option)
l The front seat heating can be switched on and off as required.
l Press the switch once for maximum seat heating. Both LED's in the switch\
will be lit.
l Press the switch a second time for comfort heating. One LED in the switc\
h will be lit.
l Press the switch a third time to turn the heating off completely.
The seat heating for the passenger seat should be switched off when the \
seat is not occupied.
pg. 39 Instruments and controls
Trip computer (option)
The trip computer stores information gathered from several systems in yo\
ur vehicle and has four menus
that can be displayed in the text window.
l Driving distance on current fuel reserve
l Average fuel consumption
l Current fuel consumption
l Average speed
l Current speed in mph (Canadian models only)
NOTE: Warning messages from the vehicle's monitoring systems will override the\
trip computer
function. If a warning message is displayed in the text window while you\
are using the trip computer,
file:///K|/ownersdocs/2005/2005_XC90/05xc90_02b.htm (3 of 17)12/30/200\
6 4:42:28 PM

2005 VOLVO XC90
you must acknowledge the message by pressing button A. Press button A ag\
ain to return to the trip
computer function.
Trip computer controls and functions.
The four* trip computer functions can be accessed by twisting control B \
one step at a time in either
direction. Twisting a fifth** time returns you to the original function.\
The trip computer can be reset (current data will be erased from system\
memory) by pressing RESET
(button C).
1. Driving distance on current fuel reserve
This function shows the approximate distance that can be driven on the f\
uel remaining in the tank. This
calculation is based on average fuel consumption during the last 12 mile\
s (20 km) of driving and the
amount of fuel remaining in the tank when the reading was taken.
When the driving distance on current fuel reserve is less than 12 miles \
(20 km), "----" will be displayed
in the text window.
2. Average fuel consumption
This value indicates fuel consumption since the last time the trip compu\
ter was reset (by pressing
RESET, button C). When the engine is switched off, information on fuel \
consumption is stored and
remains in system memory until the RESET (button C) is pressed again.
3. Current fuel consumption
This value indicates the current fuel consumption, based on readings tak\
en once per second. When the
vehicle is not moving, "----" will be displayed.
4. Average speed
This value indicates average speed since the last time the trip computer\
was reset (by pressing RESET,
button C). When the engine is switched off, information on average spee\
d is stored and remains in
system memory until the RESET (button C) is pressed again.
5. Current speed in miles per hour (Canadian models only)
This function provides the driver with an instantaneous conversion of th\
e vehicle's current speed from
km/h to mph.
NOTE: Trip computer readings may vary slightly depending on the circumference\
of the tires on the
vehicle.
* Five functions on Canadian models
** A sixth time on Canadian models
file:///K|/ownersdocs/2005/2005_XC90/05xc90_02b.htm (4 of 17)12/30/200\
6 4:42:28 PM

2005 VOLVO XC90
pg. 40 Instruments and controls

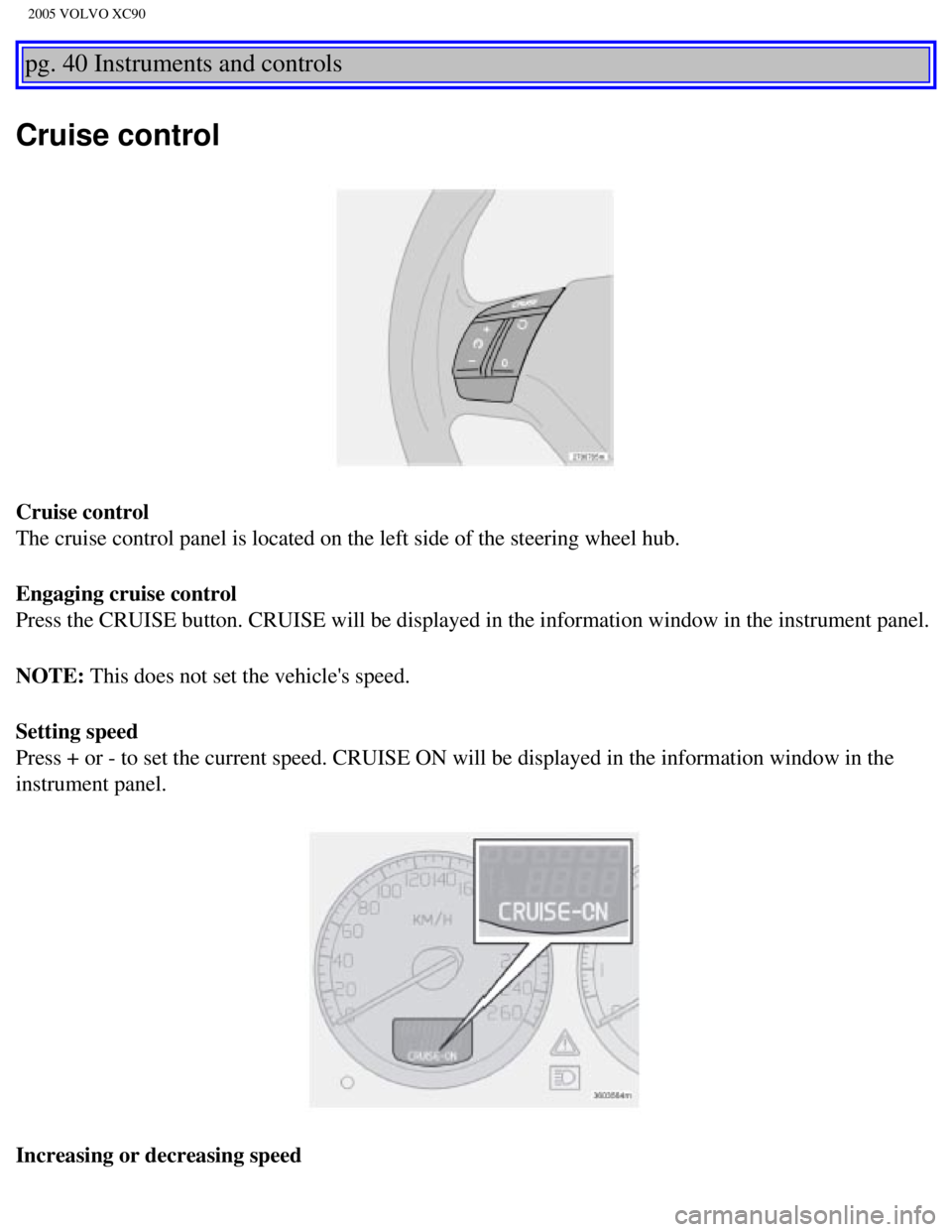

Cruise control
Cruise control
The cruise control panel is located on the left side of the steering whe\
el hub.
Engaging cruise control
Press the CRUISE button. CRUISE will be displayed in the information win\
dow in the instrument panel.
NOTE: This does not set the vehicle's speed.
Setting speed
Press + or - to set the current speed. CRUISE ON will be displayed in th\
e information window in the
instrument panel.
Increasing or decreasing speed
file:///K|/ownersdocs/2005/2005_XC90/05xc90_02b.htm (5 of 17)12/30/200\
6 4:42:28 PM
