VOLVO XC90 2006 User Guide

2006 VOLVO XC90
l if the vehicle is leaning excessively
l when driving in turns
When wearing the seat belt remember:
l The belt should not be twisted or turned.
l The lap section of the belt must be positioned low on the hips (not pre\
ssing against the abdomen).
l Make sure that the shoulder belt is rolled up into its retractor and tha\
t the shoulder and lap belts are
taut.
Unbuckling the seat belt
To remove the seat belt, press the red section on the seat belt receptac\
le. Before exiting the vehicle,
check that the seat belt retracts fully after being unbuckled. If necess\
ary, guide the belt back into the
retractor slot.

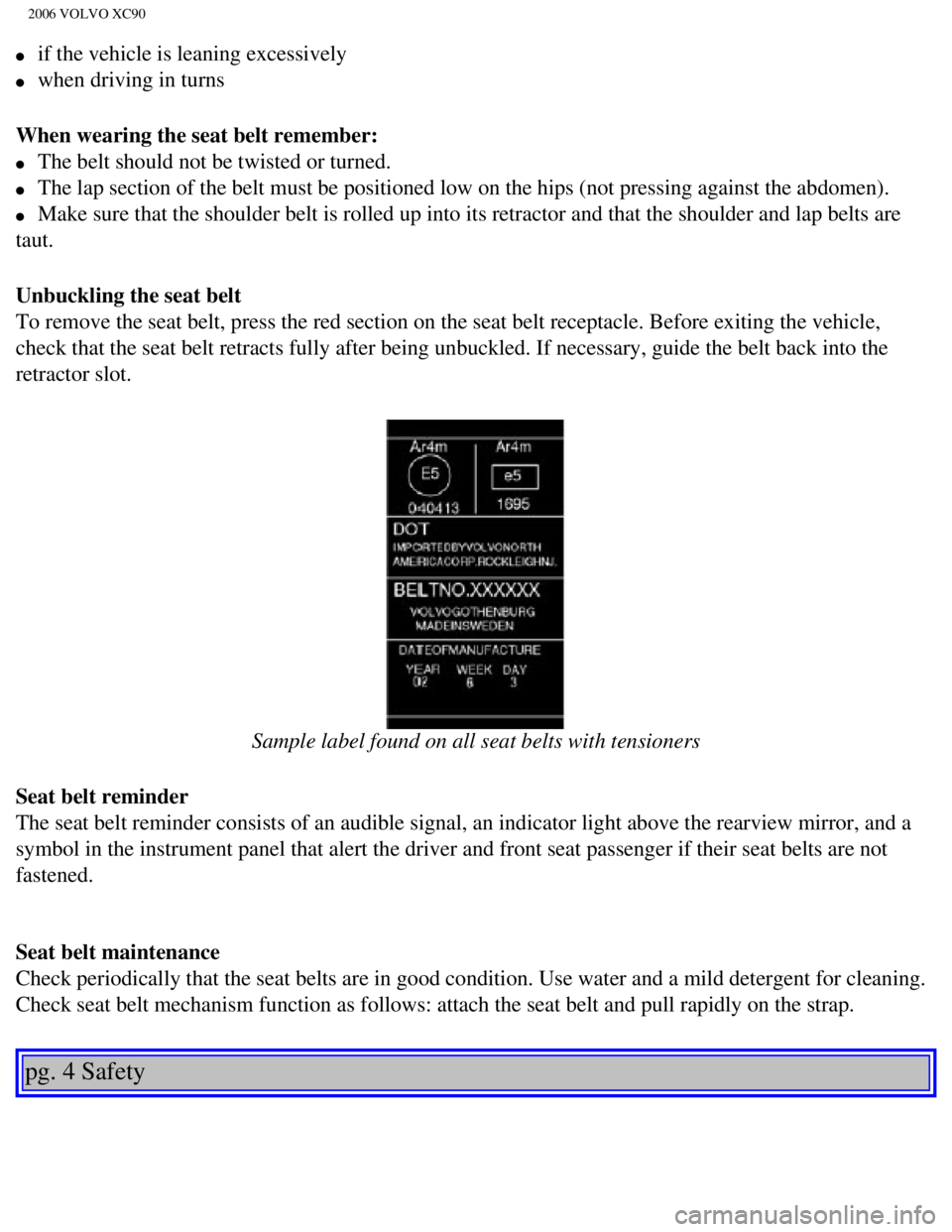

Sample label found on all seat belts with tensioners
Seat belt reminder
The seat belt reminder consists of an audible signal, an indicator light\
above the rearview mirror, and a
symbol in the instrument panel that alert the driver and front seat pass\
enger if their seat belts are not
fastened.

Seat belt maintenance
Check periodically that the seat belts are in good condition. Use water \
and a mild detergent for cleaning.
Check seat belt mechanism function as follows: attach the seat belt and \
pull rapidly on the strap.
pg. 4 Safety
file:///K|/ownersdocs/2006/2006_XC90/06xc90_01a.htm (4 of 17)12/30/200\
6 5:32:36 PM

2006 VOLVO XC90
WARNING!
l Never use a seat belt for more than one occupant.
l Never wear the shoulder portion of the belt under the arm, behind the ba\
ck or otherwise out of
position. Such use could cause injury in the event of an accident.
l Seat belts lose much of their strength when exposed to violent stretchin\
g and should be replaced
after any collision, even if they appear to be undamaged.
l Never repair the belt yourself; have this work done by an authorized Vol\
vo service technician only.
l Any device used to induce slack into the shoulder belt portion of the th\
ree-point belt system will
have a detrimental effect on the amount of protection available to you i\
n the event of a collision.
l The seat back should not be tilted too far back. The shoulder belt must \
be taut in order to function
properly.
l Do not use child safety seats or child booster cushions/backrests in the\
front passenger's seat. We
also recommend that children who have outgrown these devices sit in the \
rear seat with the seat belt
properly fastened.

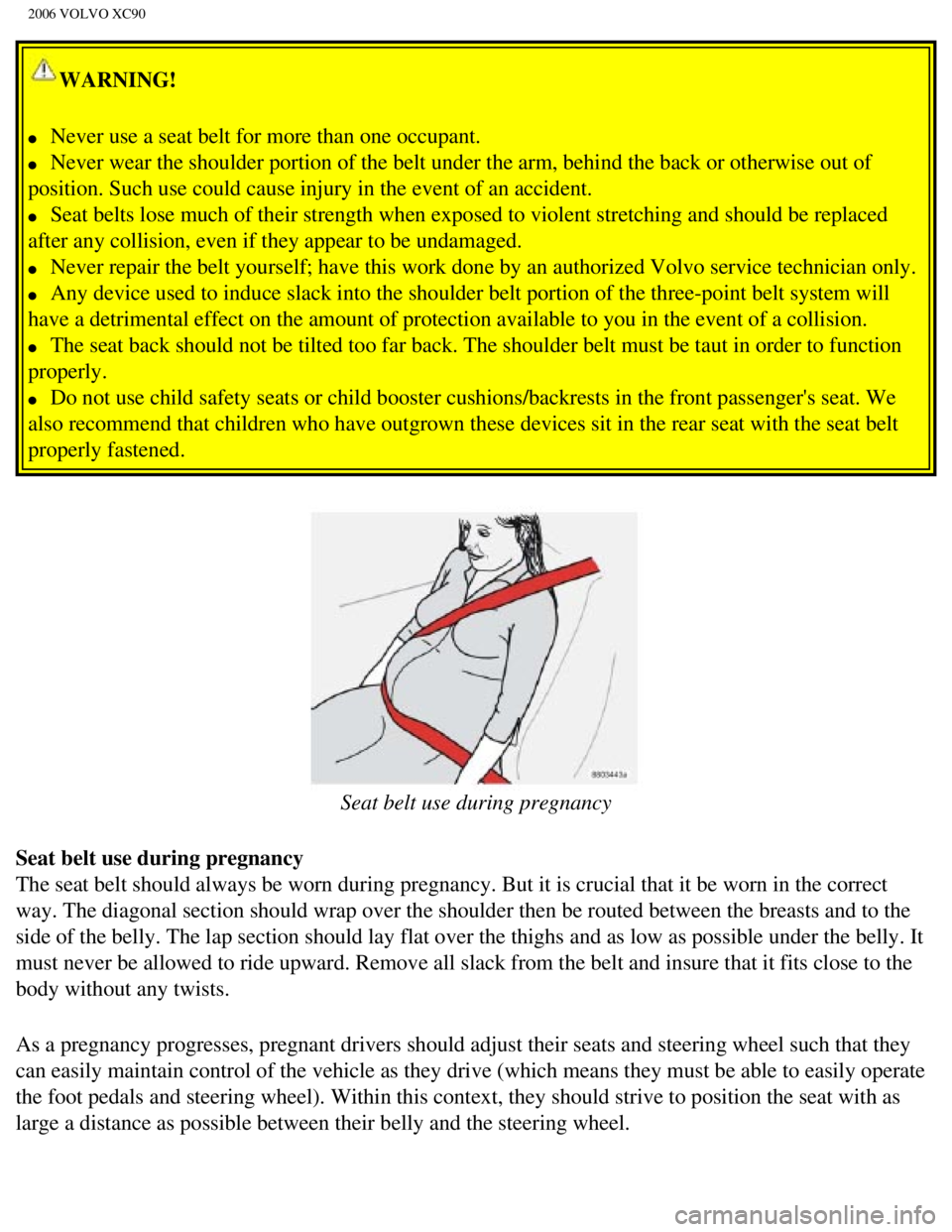

Seat belt use during pregnancy
Seat belt use during pregnancy
The seat belt should always be worn during pregnancy. But it is crucial \
that it be worn in the correct
way. The diagonal section should wrap over the shoulder then be routed b\
etween the breasts and to the
side of the belly. The lap section should lay flat over the thighs and a\
s low as possible under the belly. It
must never be allowed to ride upward. Remove all slack from the belt and\
insure that it fits close to the
body without any twists.
As a pregnancy progresses, pregnant drivers should adjust their seats an\
d steering wheel such that they
can easily maintain control of the vehicle as they drive (which means t\
hey must be able to easily operate
the foot pedals and steering wheel). Within this context, they should s\
trive to position the seat with as
large a distance as possible between their belly and the steering wheel.\

file:///K|/ownersdocs/2006/2006_XC90/06xc90_01a.htm (5 of 17)12/30/200\
6 5:32:36 PM

2006 VOLVO XC90
Child seats
Please refer to
page 19 for information on securing child seats with the seat belts.
pg. 5 Safety
Supplemental Restraint System (SRS)

SRS warning light
Supplemental Restraint System
As an enhancement to the three-point seat belts, your Volvo is equipped \
with a Supplemental Restraint
System (SRS). Volvo's SRS consists of seat belt tensioners, front airb\
ags, side impact airbags, the
occupant weight sensor, and inflatable curtains. All of these systems ar\
e monitored by the SRS control
module. An SRS warning light in the instrument panel (see the illustrat\
ion above) illuminates when the
ignition key is turned to position I, II, or III, and will normally go o\
ut after approximately 7 seconds if
no faults are detected in the system.
Where applicable, a text message will also be displayed when the SRS war\
ning light illuminates. If this
warning symbol is not functioning properly, the general warning symbol
illuminates and a text
message will be displayed.
WARNING!
l If the SRS warning light stays on after the engine has started or if it \
illuminates while you are
driving, have the vehicle inspected by a trained and qualified Volvo ser\
vice technician as soon as
possible.
l Never try to repair any component or part of the SRS yourself. Any inter\
ference in the system
could cause malfunction and serious injury. All work on these systems sh\
ould be performed by an
authorized Volvo service technician.
file:///K|/ownersdocs/2006/2006_XC90/06xc90_01a.htm (6 of 17)12/30/200\
6 5:32:36 PM

2006 VOLVO XC90
WARNING!
If your vehicle has been subjected to flood conditions (e.g. soaked car\
peting/standing water on the
floor of the vehicle) or if your vehicle has become flood-damaged in an\
y way, do not attempt to start
the vehicle or put the key in the ignition before disconnecting the batt\
ery (see below). This may cause
airbag deployment which could result in personal injury. Have the vehicl\
e towed to a trained and
qualified Volvo service technician for repairs.
Automatic transmission:
Before attempting to tow the vehicle, use the following procedure to ove\
rride the shiftlock system to
move the gear selector to the neutral position:
l Switch off the ignition for at least 10 minutes and disconnect the batte\
ry
l Wait at least one minute.
l Insert the key in the ignition and turn it to position II.
l Press firmly on the brake pedal.
l Move the gear selector from (P)ark to the (N)eutral position.
pg. 6 Safety
Front airbags
The front airbag system
The front airbags supplement the three-point seat belts. For these airba\
gs to provide the protection
intended, seat belts must be worn at all times.
The front airbag system includes gas generators (1) surrounded by the \
airbags (2) and a deceleration
sensor (3) that activates the gas generators, causing the airbags to b\
e inflated with nitrogen gas.
As the movement of the seats' occupants compresses the airbags, some of \
the gas is expelled at a
file:///K|/ownersdocs/2006/2006_XC90/06xc90_01a.htm (7 of 17)12/30/200\
6 5:32:36 PM

2006 VOLVO XC90
controlled rate to provide better cushioning. Both seat belt tensioners \
also deploy, minimizing seat belt
slack. The entire process, including inflation and deflation of the airb\
ags, takes approximately one fifth
of a second.

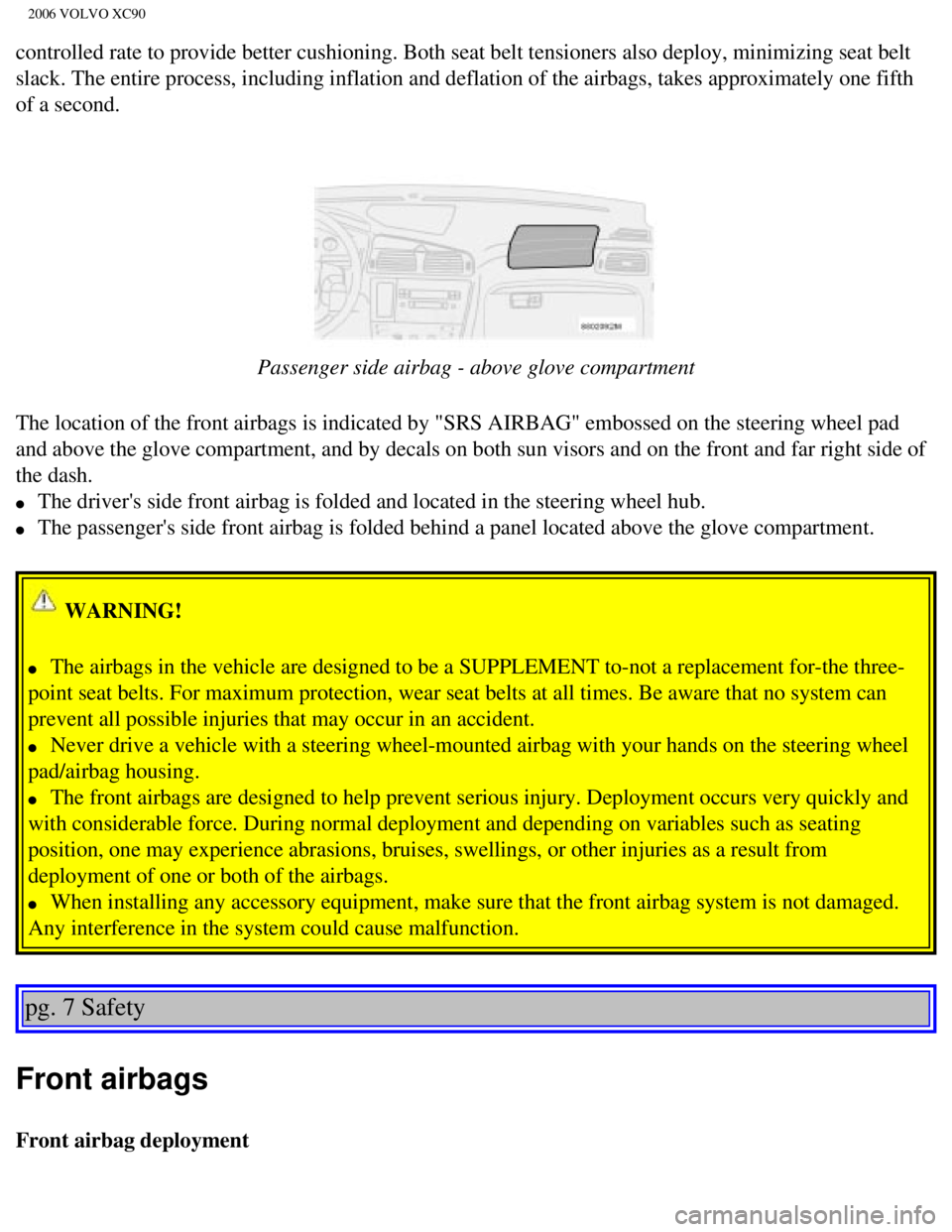

Passenger side airbag - above glove compartment
The location of the front airbags is indicated by "SRS AIRBAG" embossed \
on the steering wheel pad
and above the glove compartment, and by decals on both sun visors and on\
the front and far right side of
the dash.
l The driver's side front airbag is folded and located in the steering whe\
el hub.
l The passenger's side front airbag is folded behind a panel located above\
the glove compartment.
WARNING!
l The airbags in the vehicle are designed to be a SUPPLEMENT to-not a repl\
acement for-the three-
point seat belts. For maximum protection, wear seat belts at all times. \
Be aware that no system can
prevent all possible injuries that may occur in an accident.
l Never drive a vehicle with a steering wheel-mounted airbag with your han\
ds on the steering wheel
pad/airbag housing.
l The front airbags are designed to help prevent serious injury. Deploymen\
t occurs very quickly and
with considerable force. During normal deployment and depending on varia\
bles such as seating
position, one may experience abrasions, bruises, swellings, or other inj\
uries as a result from
deployment of one or both of the airbags.
l When installing any accessory equipment, make sure that the front airbag\
system is not damaged.
Any interference in the system could cause malfunction.
pg. 7 Safety
Front airbags
Front airbag deployment
file:///K|/ownersdocs/2006/2006_XC90/06xc90_01a.htm (8 of 17)12/30/200\
6 5:32:36 PM

2006 VOLVO XC90
l The front airbags are designed to deploy during certain frontal or front\
-angular collisions, impacts, or
decelerations, depending on the crash severity, angle, speed and object \
impacted. The airbags may also
deploy in certain non-frontal collisions where rapid deceleration occurs\
.
l The SRS sensors, which trigger the front airbags, are designed to react \
to both the impact of the
collision and the inertial forces generated by it, and to determine if t\
he intensity of the collision is
sufficient for the seat belt tensioners and/or airbags to be deployed.
However, not all frontal collisions activate the front airbags.
l If the collision involves a nonrigid object (e.g., a snow drift or bush\
), or a rigid, fixed object at a low
speed, the front airbags will not necessarily deploy.
l Front airbags do not normally deploy in a side impact collision, in a co\
llision from the rear or in a
rollover situation.
l The amount of damage to the bodywork does not reliably indicate if the a\
irbags should have deployed
or not.
NOTE:
l Deployment of front airbags occurs only one time during an accident. In \
a collision where deployment
occurs, the airbags and seat belt tensioners activate. Some noise occurs\
and a small amount of powder is
released. The release of the powder may appear as smoke-like matter. Thi\
s is a normal characteristic and
does not indicate fire.
l Volvo's dual-threshold, dual-stage front airbags use special sensors to \
control deployment. The point
at which the airbag deploys is determined by whether or not the seat bel\
t is being used, as well as the
severity of the collision.
l Collisions can occur where only one of the airbags deploys. If the impac\
t is less severe, but severe
enough to present a clear injury risk, the dual-stage airbags are trigge\
red at 70-80% of their total
capacity. If the impact is more severe, the dual-stage airbags are trigg\
ered at full capacity.
Should you have questions about any component in the SRS system, please \
contact a trained and
qualified Volvo service technician or Volvo Customer Support:
In the USA:
Volvo Cars of North America
Customer Care Center
P.O. Box 914
Rockleigh, New Jersey 07647-0914
1-800-458-1552
http://www.volvocars.us
In Canada:
Volvo Cars of Canada Ltd.
National Customer Service
175 Gordon Baker Road
North York, Ontario M2H 2N7
file:///K|/ownersdocs/2006/2006_XC90/06xc90_01a.htm (9 of 17)12/30/200\
6 5:32:36 PM

2006 VOLVO XC90
1-800-663-8255
http://www.volvocanada.com
WARNING!
l Do not use child safety seats or child booster cushions/backrests in the\
front passenger's seat. We
also recommend that occupants under 4 feet 7 inches (140 cm) in height\
who have outgrown these
devices sit in the rear seat with the seat belt fastened
a.
l Never drive with the airbags deployed. The fact that they hang out can i\
mpair the steering of your
vehicle. Other safety systems can also be damaged.
l The smoke and dust formed when the airbags are deployed can cause skin a\
nd eye irritation in the
event of prolonged exposure.
a. See also the Occupant Weight Sensor information on
page 9.
pg. 8 Safety
Front airbags (contd)
file:///K|/ownersdocs/2006/2006_XC90/06xc90_01a.htm (10 of 17)12/30/20\
06 5:32:36 PM

2006 VOLVO XC90
WARNING!
l Children must never be allowed in the front passenger's seat. Volvo reco\
mmends that ALL
occupants (adults and children) shorter than 4 feet 7 inches (140 cm)\
be seated in the back seat of any
vehicle with a passengerside front airbag. See
page 19 for guidelines.
l Occupants in the front passenger's seat must never sit on the edge of th\
e seat, sit leaning toward the
instrument panel or otherwise sit out of position.
l The occupant's back must be as upright as comfort allows and be against \
the seat back with the seat
belt properly fastened.
l Feet must be on the floor, e.g., not on the dash, seat or out of the win\
dow.
WARNING!
l No objects or accessory equipment, e.g. dashboard covers, may be placed \
on, attached to, or
installed near the air bag hatch (the area above the glove compartment)\
or the area affected by airbag
deployment (see the illustration on
page 6).
l There should be no loose articles, e.g. coffee cups, on the floor, seat,\
or dashboard area.
l Never try to open the airbag cover on the steering wheel or the passenge\
r's side dashboard. This
should only be done by a trained and qualified Volvo service technician.\

Failure to follow these instructions can result in injury to the vehicle\
occupants.
pg. 9 Safety
Occupant Weight Sensor (OWS)
file:///K|/ownersdocs/2006/2006_XC90/06xc90_01a.htm (11 of 17)12/30/20\
06 5:32:36 PM

2006 VOLVO XC90
Disabling the passenger's side front airbag
Volvo recommends that ALL occupants (adults and children) shorter than\
four feet seven inches (140
cm) be seated in the back seat of any vehicle with a front passenger si\
de airbag, and be properly
restrained for their size and weight. See also the child safety recommen\
dations on
page 19.
The passenger's side front airbag is automatically enabled/disabled by t\
he Occupant Weight Sensor
(OWS), a system that monitors the weight of the person or object in th\
e front passenger's seat. The
system consists of a silicone-filled bag located under the padding in th\
e front passenger's seat cushion, a
control module located under this seat, and a seat belt tension sensor, \
located on the outboard side of the
seat.
The OWS system continuously monitors the pressure on the front passenger\
's seat cushion and the
tension applied to the seat belt. Based on this data, OWS assesses the w\
eight of the occupant or object in
the front passenger's seat. This information is transmitted to the SRS s\
ystem control module, which
enables or disables the passenger's side front airbag accordingly, as in\
dicated in the table below.
If the system is functioning normally, the status of the front passenger\
's side airbag (enabled/ disabled)
will be shown by the OWS indicator light as explained in the table to th\
e right. The OWS indicator light
is separate and in addition to the SRS warning light in the instrument p\
anel.
NOTE: When the ignition is switched on, the OWS indicator light will go on fo\
r up to 10 seconds while
the system performs a selfdiagnostic test and then go out. However, if a\
fault is detected in the system:
l The OWS indicator light will stay on
l The SRS warning light (see page 5) will come on and stay on
l The message PASS. AIRBAG OFF SERVICE URGENT will be displayed in the inf\
ormation display.
file:///K|/ownersdocs/2006/2006_XC90/06xc90_01a.htm (12 of 17)12/30/20\
06 5:32:36 PM

2006 VOLVO XC90
(contd. on following page)
pg. 10 Safety
Occupant Weight Sensor (OWS)
file:///K|/ownersdocs/2006/2006_XC90/06xc90_01a.htm (13 of 17)12/30/20\
06 5:32:36 PM
