VOLVO XC90 2006 Workshop Manual

2006 VOLVO XC90
Continuous high beams
l Turn the ignition key to position II.
l With the light switch (1) in position , (see page 29) pull the turn signal lever toward the
steering wheel (position 4) to toggle between high and low beams (thi\
s also applies on models equipped
with the optional Bi-Xenon headlights).
High beam flash
l Turn the ignition key to position II.
l Pull the turn signal lever to position 3. The high beams will remain on \
until the lever is released.
Home safe lighting
When you leave your car at night, you can make use of the home safe ligh\
ting function to illuminate the
area in front of the car.
l Remove the key from the ignition switch.
l Pull the direction indicator lever as far as possible towards the steeri\
ng wheel (to position 4) and
release it.
l Exit the car and lock the doors.
The headlights and parking lights will illuminate and remain on for 30
1, 60 or 90 seconds. The time
interval can be changed by an authorized Volvo retailer.
1. Factory setting

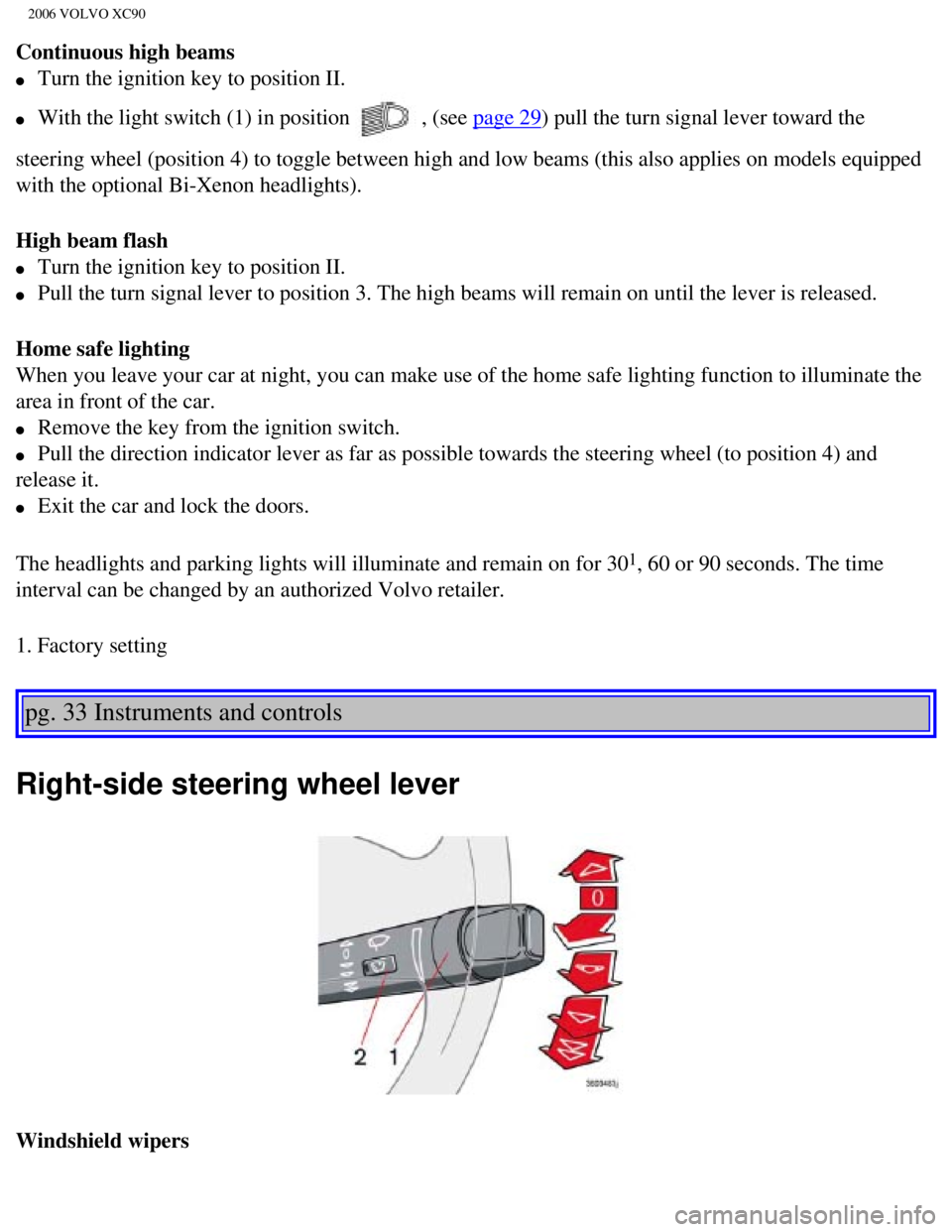

pg. 33 Instruments and controls
Right-side steering wheel lever
Windshield wipers
file:///K|/ownersdocs/2006/2006_XC90/06xc90_02a.htm (16 of 18)12/30/20\
06 5:32:38 PM

2006 VOLVO XC90
Windshield wipers off
If the lever is in the 0 position and you move it upwards, the wipers wi\
ll sweep one stroke at a time for
as long as you hold the lever up.
"Single sweep" position
Move the lever slightly upward from the 0 position for one sweep of the \
wipers. The lever return
automatically to 0 when released.
Intermittent wiper function
With the lever in this position, you can set the wiper interval by twist\
ing ring (1) upward to increase
wiper speed or downward to decrease the speed.
Rain sensor (option)
The rain sensor automatically regulates wiper speed according to the amo\
unt of water on the windshield.
The sensitivity of the sensor can be adjusted by twisting ring 1 up (th\
e wipers will sweep the windshield
more frequently) or down (the wipers will sweep the windshield less fr\
equently).
Activating the rain sensor :
1. Turn the ignition key to at least position I and put the windshield w\
iper lever in position 0.
2. Press button 2. An LED in the button will light up to indicate that t\
he rain sensor is active.
Deactivating the rain sensor:
l Press button 2. or
l Move the windshield wiper lever down to another position.
Moving the lever up will not deactivate the rain sensor. Doing so will c\
ause the wipers to sweep the
windshield until the lever is released, at which time the wipers return \
to rain sensor mode.
The rain sensor is also deactivated when the key is removed from the ign\
ition.
CAUTION
The rain sensor should be deactivated when washing the car in an automat\
ic car wash, etc. If the rain
sensor function is left on, the wipers will start inadvertently in the c\
ar wash and could be damaged.
Continuous wiper function
Wipers operate at "high" speed
file:///K|/ownersdocs/2006/2006_XC90/06xc90_02a.htm (17 of 18)12/30/20\
06 5:32:38 PM

2006 VOLVO XC90
pg. 34 Instruments and controls
Windshield washer/headlight washer (certain models)
Pull the lever toward you and release it. High pressure jets mounted in \
the bumper will spray the
headlights.
CAUTION
Use ample washer fluid when washing the windshield to avoid scratching t\
he
glass.
NOTE:
l To conserve washer fluid in driving conditions where the windshield wash\
ers are used frequently, the
headlights will only be washed once for every five times the windshield \
is washed within a 10- minute
period.
l When approximately 1 US quart (1 liter) remains in the washer fluid re\
servoir, the rear window and
headlights will not be washed when the lever is pulled to conserve washe\
r fluid for the windshield.



Contents | Top of Page
file:///K|/ownersdocs/2006/2006_XC90/06xc90_02a.htm (18 of 18)12/30/20\
06 5:32:38 PM

2006 VOLVO XC90
pg. 35 Instruments and controls
Tailgate wiper/washer
Tailgate wiper/washer
A - Intermittent wiping
B - Normal wiping
Move the lever forward to start the tailgate washer.
Tailgate wiper and reverse gear
If the front wipers are on and the car is put into reverse gear, then th\
e tailgate wiper will go into
intermittent wiping function*.
If the tailgate wiper is already in normal wiping function, the normal w\
iping function will continue.
* Consult your Volvo retailer if you would like to have this function de\
activated.
pg. 36 Instruments and controls
Hazard warning flashers, rear window/sideview mirror
defroster, heated front seats
file:///K|/ownersdocs/2006/2006_XC90/06xc90_02b.htm (1 of 17)12/30/200\
6 5:32:40 PM

2006 VOLVO XC90

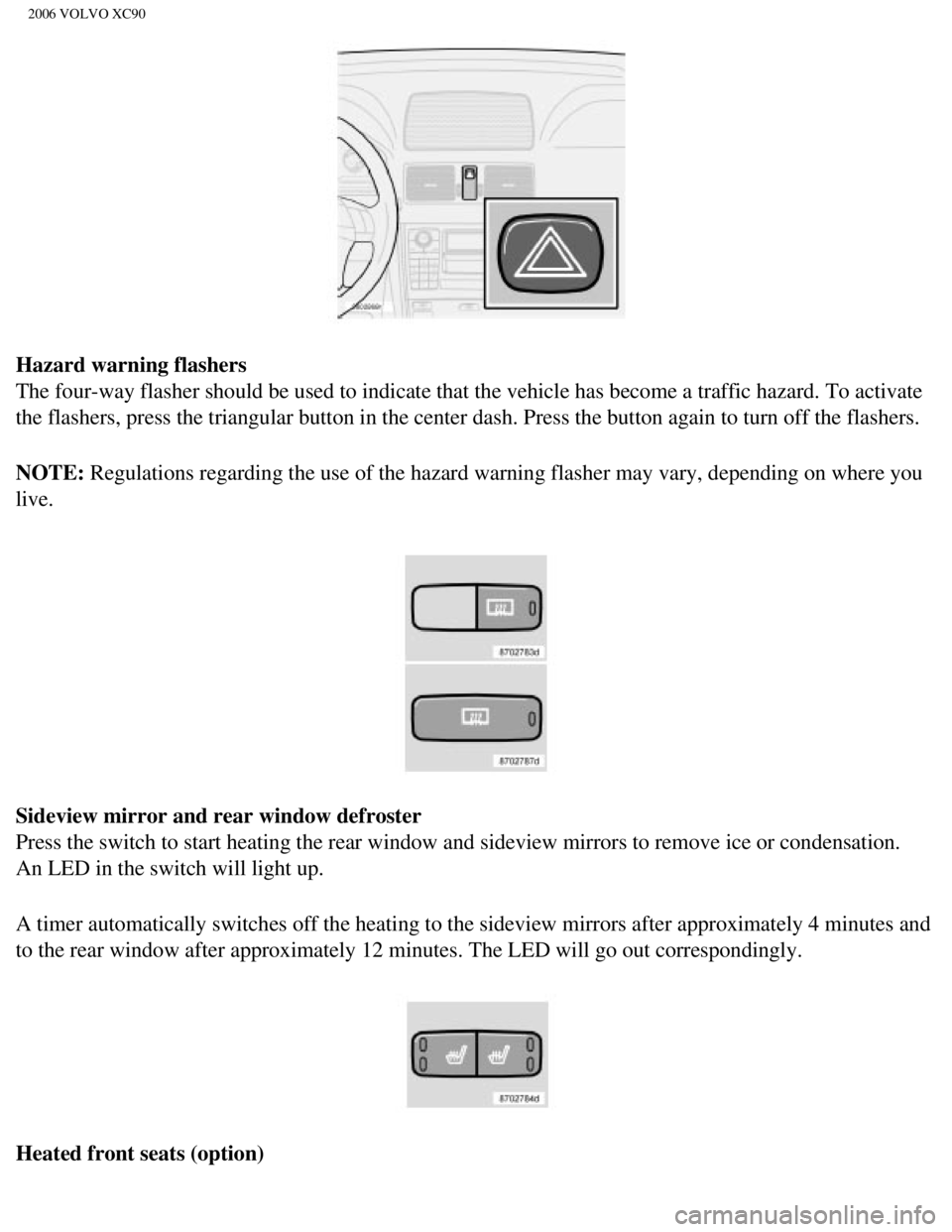

Hazard warning flashers
The four-way flasher should be used to indicate that the vehicle has bec\
ome a traffic hazard. To activate
the flashers, press the triangular button in the center dash. Press the \
button again to turn off the flashers.
NOTE: Regulations regarding the use of the hazard warning flasher may vary, de\
pending on where you
live.
Sideview mirror and rear window defroster
Press the switch to start heating the rear window and sideview mirrors t\
o remove ice or condensation.
An LED in the switch will light up.
A timer automatically switches off the heating to the sideview mirrors a\
fter approximately 4 minutes and
to the rear window after approximately 12 minutes. The LED will go out c\
orrespondingly.
Heated front seats (option)
file:///K|/ownersdocs/2006/2006_XC90/06xc90_02b.htm (2 of 17)12/30/200\
6 5:32:40 PM

2006 VOLVO XC90
l The front seat heating can be switched on and off as required.
l Press the switch once for maximum seat heating. Both LED's in the switch\
will be lit.
l Press the switch a second time for comfort heating. One LED in the switc\
h will be lit.
l Press the switch a third time to turn the heating off completely.
The seat heating for the passenger seat should be switched off when the \
seat is not occupied.
pg. 37 Instruments and controls
Trip computer (option)
The trip computer stores information gathered from several systems in yo\
ur vehicle and has four menus
that can be displayed in the text window.
l Driving distance on current fuel reserve
l Average fuel consumption
l Current fuel consumption
l Average speed
l Current speed in mph (Canadian models only)
NOTE: Warning messages from the vehicle's monitoring systems will override the\
trip computer
function. If a warning message is displayed in the text window while you\
are using the trip computer,
you must acknowledge the message by pressing button A. Press button A ag\
ain to return to the trip
computer function.
Trip computer controls and functions.
The four* trip computer functions can be accessed by twisting control B \
one step at a time in either
direction. Twisting a fifth** time returns you to the original function.\
The trip computer can be reset (current data will be erased from system\
memory) by pressing RESET
file:///K|/ownersdocs/2006/2006_XC90/06xc90_02b.htm (3 of 17)12/30/200\
6 5:32:40 PM

2006 VOLVO XC90
(button C).
1. Driving distance on current fuel reserve
This function shows the approximate distance that can be driven on the f\
uel remaining in the tank. This
calculation is based on average fuel consumption during the last 12 mile\
s (20 km) of driving and the
amount of fuel remaining in the tank when the reading was taken.
When the driving distance on current fuel reserve is less than 12 miles \
(20 km), "----" will be displayed
in the text window.
2. Average fuel consumption
This value indicates fuel consumption since the last time the trip compu\
ter was reset (by pressing
RESET, button C). When the engine is switched off, information on fuel \
consumption is stored and
remains in system memory until the RESET (button C) is pressed again.
3. Current fuel consumption
This value indicates the current fuel consumption, based on readings tak\
en once per second. When the
vehicle is not moving, "----" will be displayed.
4. Average speed
This value indicates average speed since the last time the trip computer\
was reset (by pressing RESET,
button C). When the engine is switched off, information on average spee\
d is stored and remains in
system memory until the RESET (button C) is pressed again.
5. Current speed in miles per hour (Canadian models only)
This function provides the driver with an instantaneous conversion of th\
e vehicle's current speed from
km/h to mph.
NOTE: Trip computer readings may vary slightly depending on the circumference\
of the tires on the
vehicle.
* Five functions on Canadian models
** A sixth time on Canadian models
pg. 38 Instruments and controls
Cruise control
file:///K|/ownersdocs/2006/2006_XC90/06xc90_02b.htm (4 of 17)12/30/200\
6 5:32:40 PM

2006 VOLVO XC90

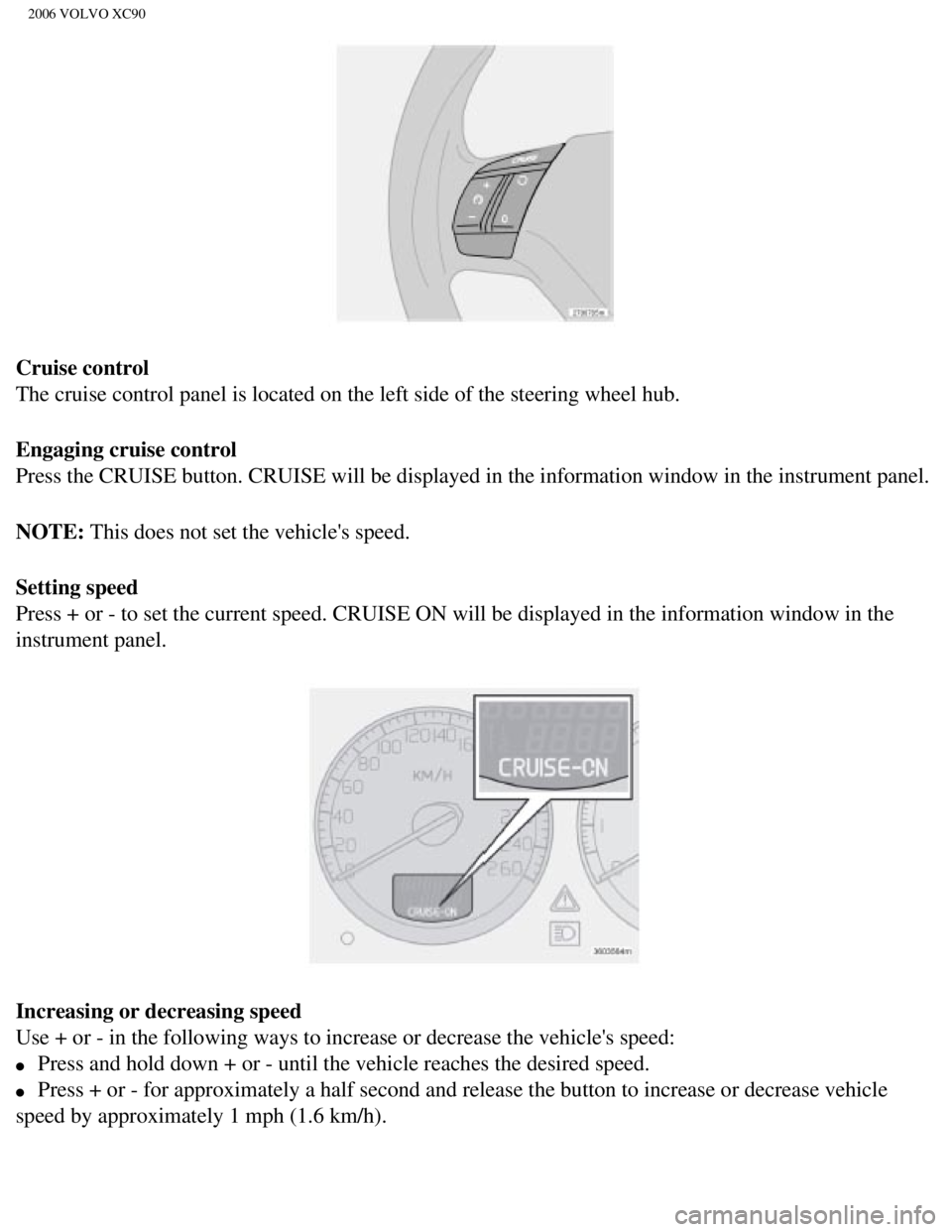

Cruise control
The cruise control panel is located on the left side of the steering whe\
el hub.
Engaging cruise control
Press the CRUISE button. CRUISE will be displayed in the information win\
dow in the instrument panel.
NOTE: This does not set the vehicle's speed.
Setting speed
Press + or - to set the current speed. CRUISE ON will be displayed in th\
e information window in the
instrument panel.
Increasing or decreasing speed
Use + or - in the following ways to increase or decrease the vehicle's s\
peed:
l Press and hold down + or - until the vehicle reaches the desired speed. \
l Press + or - for approximately a half second and release the button to i\
ncrease or decrease vehicle
speed by approximately 1 mph (1.6 km/h).
file:///K|/ownersdocs/2006/2006_XC90/06xc90_02b.htm (5 of 17)12/30/200\
6 5:32:40 PM

2006 VOLVO XC90
NOTE: Cruise control will not function at speeds below approximately 20 mph (\
30 km/h).
Braking
l Cruise control is automatically disengaged when the brake pedal is depre\
ssed. The currently set speed
is stored in memory.
l Pressing resume will return the vehicle to the previously set speed.
Acceleration
Momentary acceleration, such as when passing another vehicle, does not a\
ffect cruise control operation.
The vehicle will automatically return to the previously set speed when y\
ou release the accelerator pedal.
Disengaging cruise control
To disengage cruise control, press the CRUISE button. CRUISE or CRUISE-O\
N will no longer be
displayed in the information window in the instrument panel.
NOTE: Cruise control is automatically disengaged if:
l the engine is switched off
l the gear selector is placed in (N)eutral
l the wheels start to spin or lock
l if an increase in speed is maintained for more than one minute
l if the vehicle's speed falls below approximately 20 mph (30 km/h).
Temporarily disengaging cruise control
l Press 0 to temporarily disengage cruise control. CRUISE will be displaye\
d in the information window
in the instrument panel.
l Press the brake pedal.
pg. 39 Instruments and controls
Press "resume"
to return to the previously set speed.
WARNING!
The Cruise control should not be used in heavy traffic or when driving o\
n wet or slippery roads, or
when driving on unpaved or uneven road surfaces. Cruise control may not \
maintain set speed on steep
downgrades.
pg. 40 Instruments and controls
file:///K|/ownersdocs/2006/2006_XC90/06xc90_02b.htm (6 of 17)12/30/200\
6 5:32:40 PM

2006 VOLVO XC90
Opening the tailgate, Auxiliary 12-volt sockets
Opening the tailgate
To open the upper section of the tailgate, pull the handle (A) downwar\
d.
To fold down the lower section of the tailgate, pull handle (B) upward\
.

12-volt socket at the rear of the center console (option)
Auxiliary 12-volt sockets
These 12 volt sockets can be used to plug in certain accessories such as\
cellular telephones, etc.
12-volt socket in the cargo compartment
Fold down the lid to use the socket.
NOTE!
l If the 12-volt sockets are used while the engine is not running, there i\
s a risk that the vehicle's battery
will be discharged.
file:///K|/ownersdocs/2006/2006_XC90/06xc90_02b.htm (7 of 17)12/30/200\
6 5:32:40 PM
