VOLVO XC90 2007 Owner's Guide

2007 Volvo XC90
seat, even if he or she is properly belted or strapped into a child safe\
ty seat. Volvo has been an innovator
in safety for over seventy-five years, and we'll continue to do our part\
. But we need your help. Please
remember to put your children in the back seat, and buckle them up.
Volvo has some very specific recommendations:
l Always wear your seat belt.
l Airbags are a SUPPLEMENTAL safety device which, when used with a three-p\
oint seat belt can help
reduce serious injuries during certain types of accidents. Volvo recomme\
nds that you do not disconnect
the airbag system in your vehicle.
l Volvo strongly recommends that everyone in the vehicle be properly restr\
ained.
l Volvo recommends that ALL occupants (adults and children) shorter than\
4 feet 7 inches (140 cm) be
seated in the back seat of any vehicle with a front passenger side airba\
g.
Drive safely!
pg. 31 Safety
Child restraint systems
Child restraints
There are three main types of child restraint systems: infant seats, con\
vertible seats, and booster
cushions. They are classified according to the child's age and size.
The following section provides general information on securing a child restraint using a three-point
seat belt. Refer to
pages 39-40 for information on securing a child restraint using ISOFIX lower anchor\
s
and/or top tether anchorages.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_01.htm (24 of 39)12/30/200\
6 5:53:33 PM

2007 Volvo XC90

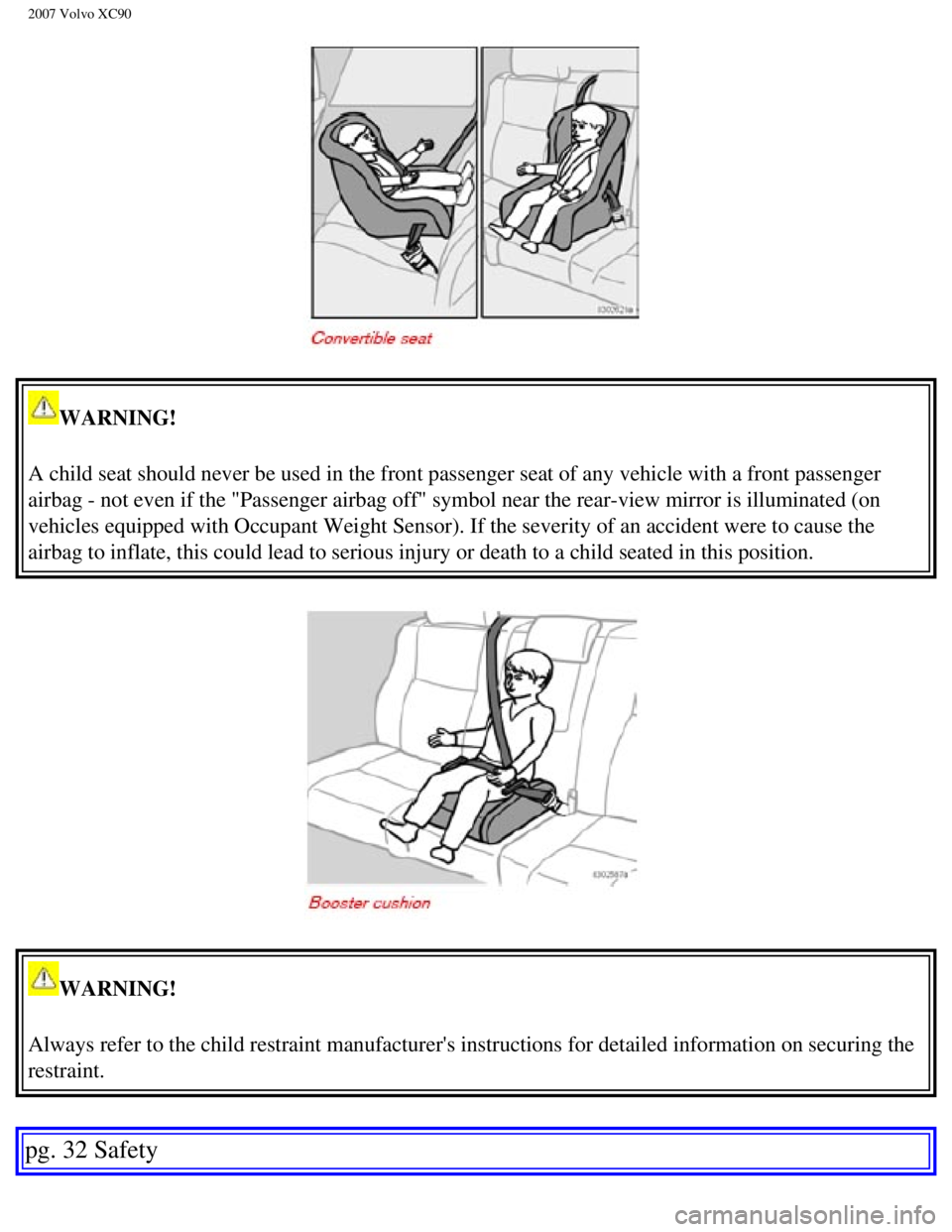

WARNING!
A child seat should never be used in the front passenger seat of any veh\
icle with a front passenger
airbag - not even if the "Passenger airbag off" symbol near the rear-vie\
w mirror is illuminated (on
vehicles equipped with Occupant Weight Sensor). If the severity of an a\
ccident were to cause the
airbag to inflate, this could lead to serious injury or death to a child\
seated in this position.
WARNING!
Always refer to the child restraint manufacturer's instructions for deta\
iled information on securing the
restraint.
pg. 32 Safety
file:///K|/ownersdocs/2007/2007_XC90/07xc90_01.htm (25 of 39)12/30/200\
6 5:53:33 PM

2007 Volvo XC90
Child restraint systems
WARNING!
l When not in use, keep the child restraint system secured or remove it fr\
om the passenger
compartment to help prevent it from injuring passengers in the event of \
a sudden stop or collision.
l A small child's head represents a considerable part of its total weight \
and its neck is still very weak.
Volvo recommends that children up to age 4 travel, properly restrained, \
facing rearward. In addition,
Volvo recommends that children should ride rearward facing, properly res\
trained, as long as possible.
pg. 33 Safety
Infant seats
Securing an infant seat with a seat belt
NOTE: Refer to
pages 38-39 for information on securing a child restraint using ISOFIX lower anchor\
s
and/or top tether anchorages.
1. Place the infant seat in the rear seat of the vehicle.
2. Attach the seat belt to the infant seat according to the manufacturer\
's instructions.
3. Fasten the seat belt by inserting the latch plate into the buckle (l\
ock) until a distinct click is audible.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_01.htm (26 of 39)12/30/200\
6 5:53:33 PM

2007 Volvo XC90

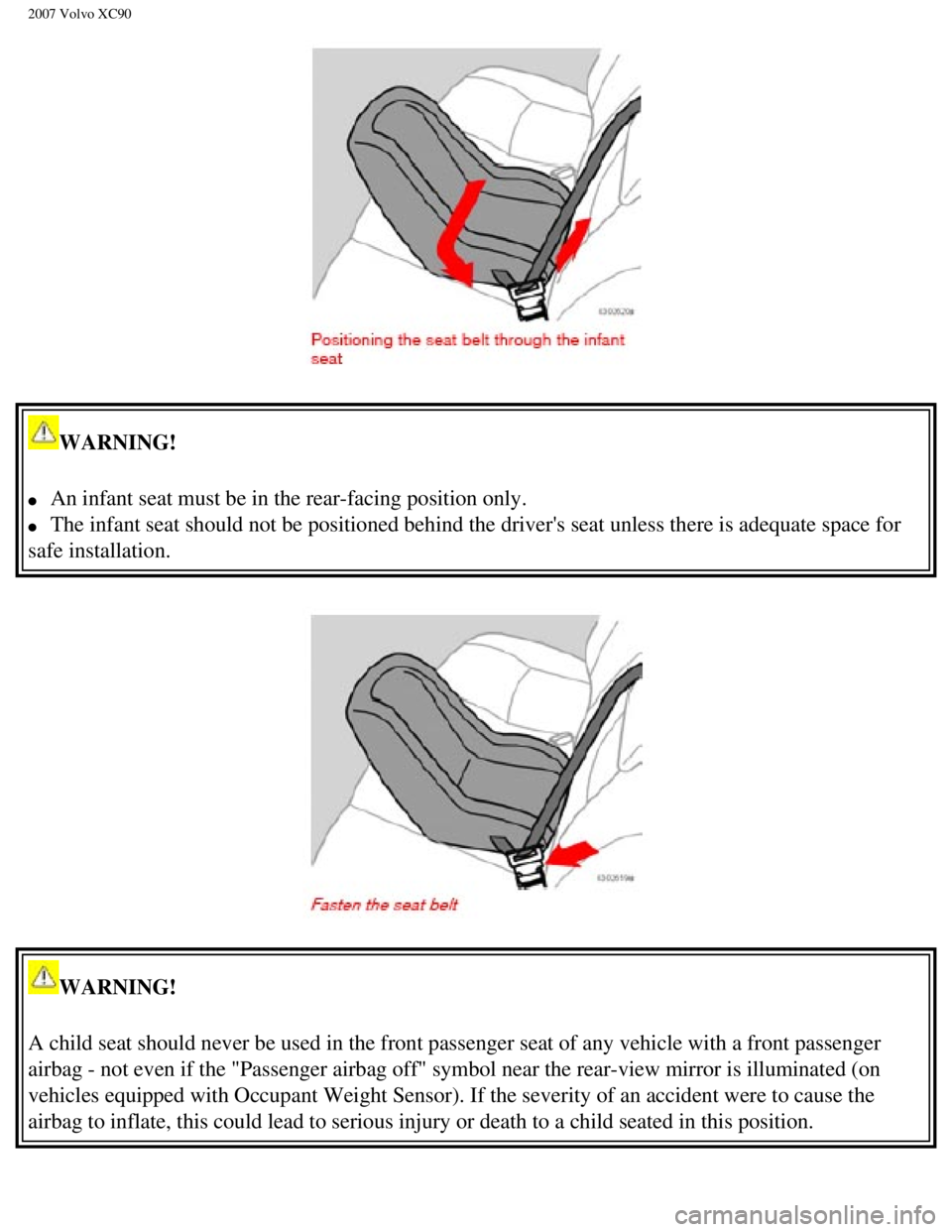

WARNING!
l An infant seat must be in the rear-facing position only.
l The infant seat should not be positioned behind the driver's seat unless\
there is adequate space for
safe installation.
WARNING!
A child seat should never be used in the front passenger seat of any veh\
icle with a front passenger
airbag - not even if the "Passenger airbag off" symbol near the rear-vie\
w mirror is illuminated (on
vehicles equipped with Occupant Weight Sensor). If the severity of an a\
ccident were to cause the
airbag to inflate, this could lead to serious injury or death to a child\
seated in this position.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_01.htm (27 of 39)12/30/200\
6 5:53:33 PM

2007 Volvo XC90
pg. 34 Safety
Infant seats
4. Pull the shoulder section of the seat belt out as far as possible to \
activate the belt's automatic locking
function.
5. Press the infant seat firmly in place, let the seat belt retract and \
pull it taut. A sound from the seat belt
retractor's automatic locking function will be audible at this time and \
is normal. The seat belt should
now be locked in place.
NOTE: The locking retractor will automatically release when the seat belt is \
unbuckled and allowed to
retract fully.
6. Push and pull the infant seat to ensure that it is held securely in p\
lace by the seat belt.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_01.htm (28 of 39)12/30/200\
6 5:53:33 PM

2007 Volvo XC90
WARNING! It should not be possible to move the child restraint more than 1 in. (\
2.5 cm) in any
direction.
The infant seat can be removed by unbuckling the seat belt and letting i\
t retract completely.
pg. 35 Safety
Convertible seats
Securing a convertible seat with a seat belt
NOTE: Refer to
pages 38-39 for information on securing a child restraint using ISOFIX lower anchor\
s
and/or top tether anchorages.
Convertible seats can be used in either a forward or rearward-facing pos\
ition, depending on the age and
size of the child.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_01.htm (29 of 39)12/30/200\
6 5:53:33 PM

2007 Volvo XC90
WARNING!
Always use a convertible seat that is suitable for the child's age and s\
ize. See the convertible seat
manufacturer's recommendations.
1. Place the convertible seat in the rear seat of the vehicle.
2. Attach the seat belt to the convertible seat according to the manufac\
turer's instructions.
WARNING!
l A small child's head represents a considerable part of its total weight \
and its neck is still very weak.
Volvo recommends that children up to age 4 travel, properly restrained, \
facing rearward. In addition,
Volvo recommends that children should ride rearward facing, properly res\
trained, as long as possible.
l Convertible child seats should be installed in the rear seat only.
l A rear-facing convertible seat should not be positioned behind the drive\
r's seat unless there is
adequate space for safe installation.
pg. 36 Safety
Convertible seats
file:///K|/ownersdocs/2007/2007_XC90/07xc90_01.htm (30 of 39)12/30/200\
6 5:53:33 PM

2007 Volvo XC90
3. Fasten the seat belt by inserting the latch plate into the buckle (l\
ock) until a distinct click is audible.
4. Pull the shoulder section of the seat belt out as far as possible to \
activate the belt's automatic locking
function.
5. Press the convertible seat firmly in place, let the seat belt retract\
and pull it taut. A sound from the seat
belt retractor's automatic locking function will be audible at this time\
and is normal. The seat belt should
now be locked in place.
NOTE: The locking retractor will automatically release when the seat belt is \
unbuckled and allowed to
retract fully.
6. Push and pull the convertible seat to ensure that it is held securely\
in place by the seat belt.
WARNING!
It should not be possible to move the child restraint more than 1 in. (\
2.5 cm) in any
direction.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_01.htm (31 of 39)12/30/200\
6 5:53:33 PM

2007 Volvo XC90
The convertible seat can be removed by unbuckling the seat belt and lett\
ing it retract completely.
WARNING!
A child seat should never be used in the front passenger seat of any veh\
icle with a front passenger
airbag - not even if the "Passenger airbag off" symbol near the rear-vie\
w mirror is illuminated (on
vehicles equipped with Occupant Weight Sensor). If the severity of an a\
ccident were to cause the
airbag to inflate, this could lead to serious injury or death to a child\
seated in this position.
pg. 37 Safety
Booster cushions
file:///K|/ownersdocs/2007/2007_XC90/07xc90_01.htm (32 of 39)12/30/200\
6 5:53:34 PM

2007 Volvo XC90
Securing a booster cushion
1. Booster cushions are recommended for children who have outgrown conve\
rtible seats.
2. Place the booster cushion in the rear seat of the vehicle.
3. With the child properly seated on the booster cushion, attach the sea\
t belt to or around the cushion
according to the manufacturer's instructions.
Fasten the seat belt by inserting the latch plate into the buckle (lock\
) until a distinct click is audible.
4. Ensure that the seat belt is pulled taut and fits snugly around the c\
hild.
WARNING!
l The hip section of the three-point seat belt must fit snugly across the \
child's hips, not across the
stomach.
l The shoulder section of the three-point seat belt should be positioned a\
cross the chest and shoulder.
l The shoulder belt must never be placed behind the child's back or under \
the arm.
pg. 38 Safety
ISOFIX lower anchors
