2007 Volvo XC90
8. High beam indicator
9. Tachometer
The tachometer shows engine speed in thousands of revolutions per minute\
(rpm). Do not drive
continuously with the needle in the red area of the dial, which indicate\
s maximum allowable engine rpm
range. Instead, shift to a higher gear or slow the vehicle down. The eng\
ine management system will
automatically prevent excessively high engines speeds. This will be noti\
ceable as a pronounced
unevenness in engine speed.
10. Gear and driving mode indicator
The currently selected driving mode is displayed here. If you use the Ge\
artronic function on the
automatic transmission, the currently selected gear will be displayed.
11. Ambient temperature gauge
This display indicates the air temperature outside your vehicle. A "snow\
flake" symbol in the text
window is displayed when the temperature is in the range of 23 - 36 °\
F (-5 - +2 °C). Please note that this
symbol does not indicate a fault with your vehicle. At low speeds or whe\
n the vehicle is not moving, the
temperature readings may be slightly higher than the actual ambient temp\
erature.
12. Clock/set button
Turn the button to set the clock.
13. Fuel gauge
The fuel tank holds approximately 21.1 US gals. (80 liters).
When the warning light in the gauge comes on, there are approximately 2.\
1 US gal. (8 liters) of fuel
remaining in the tank.
14. Indicator and warning symbols
pg. 47 Instruments and controls
Indicator and warning symbols
file:///K|/ownersdocs/2007/2007_XC90/07xc90_02.htm (5 of 40)12/30/2006\
5:53:37 PM

2007 Volvo XC90
The indicator and warning symbols light up when you turn the ignition ke\
y to the driving position
(position II) before starting. This shows that the symbols are functio\
ning. When the engine starts, all
symbols go out. If the engine is not started within 5 seconds, all symbo\
ls except CHECK ENGINE and
go out. Certain symbols may not have their functions illustrated, depen\
ding on the vehicle's
equipment. The symbol for the parking brake goes out when the parking br\
ake is released.
Warning symbol
in center of the instrument panel
This symbol shines as a red or yellow light depending on the severity of\
the discovered fault.
Red symbol - Stop the vehicle as soon as possible in a suitable location and read t\
he message shown in
the text window. The symbol and accompanying text will remain on until t\
he fault has been corrected.
Yellow symbol - Follow the instructions shown in the text window. The text can be eras\
ed by pressing
the READ button (see
page 50), or will disappear automatically after two minutes.
NOTE: When the message "TIME FOR REGULAR SERVICE" is displayed, the text can \
be erased and
the yellow symbol light can be turned off by pressing the READ button. T\
he text will disappear and the
symbol light will go out automatically after two minutes.
Seat belt reminder
This symbol lights up to indicate that the driver has not fastened his/h\
er seat belt.
Supplemental Restraint System SRS
If this light comes on while the vehicle is being driven, or remains on \
for longer than approximately 10
seconds after the vehicle has been started, the SRS system's diagnostic \
functions have detected a fault in
a seat belt lock or tensioner, a front airbag, side impact airbag, and/o\
r an inflatable curtain. Have the
system(s) inspected by a trained and qualified Volvo service technicia\
n as soon as possible.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_02.htm (6 of 40)12/30/2006\
5:53:37 PM

2007 Volvo XC90
pg. 48 Instruments and controls
Indicator and warning symbols

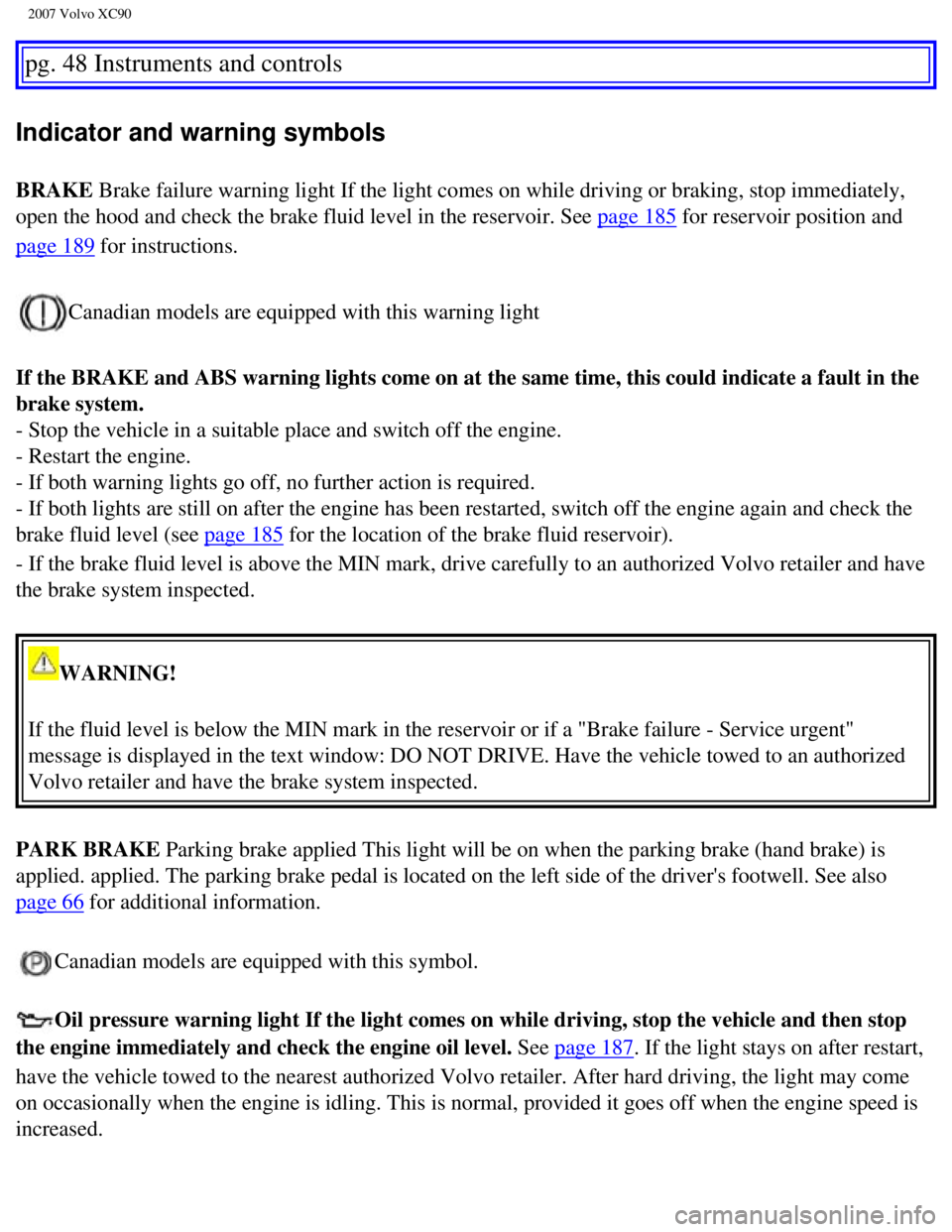

BRAKE Brake failure warning light If the light comes on while driving or brak\
ing, stop immediately,
open the hood and check the brake fluid level in the reservoir. See
page 185 for reservoir position and
page 189 for instructions.
Canadian models are equipped with this warning light
If the BRAKE and ABS warning lights come on at the same time, this could\
indicate a fault in the
brake system.
- Stop the vehicle in a suitable place and switch off the engine.
- Restart the engine.
- If both warning lights go off, no further action is required.
- If both lights are still on after the engine has been restarted, switc\
h off the engine again and check the
brake fluid level (see
page 185 for the location of the brake fluid reservoir).
- If the brake fluid level is above the MIN mark, drive carefully to an \
authorized Volvo retailer and have
the brake system inspected.
WARNING!
If the fluid level is below the MIN mark in the reservoir or if a "Brake\
failure - Service urgent"
message is displayed in the text window: DO NOT DRIVE. Have the vehicle \
towed to an authorized
Volvo retailer and have the brake system inspected.
PARK BRAKE Parking brake applied This light will be on when the parking brake (ha\
nd brake) is
applied. applied. The parking brake pedal is located on the left side of\
the driver's footwell. See also
page 66 for additional information.
Canadian models are equipped with this symbol.
Oil pressure warning light If the light comes on while driving, stop the\
vehicle and then stop
the engine immediately and check the engine oil level. See
page 187. If the light stays on after restart,
have the vehicle towed to the nearest authorized Volvo retailer. After h\
ard driving, the light may come
on occasionally when the engine is idling. This is normal, provided it g\
oes off when the engine speed is
increased.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_02.htm (7 of 40)12/30/2006\
5:53:37 PM

2007 Volvo XC90
Generator warning light
If the light comes on while the engine is running, have the charging sys\
tem checked.
Rear fog light
This light indicates that the fog light is on.
CHECK ENGINE Malfunction indicator light
On-Board Diagnostics II (OBDII): As you drive, a computer called "OBDI\
I" monitors your vehicle's
engine, transmission, electrical and emission systems. The CHECK ENGINE \
light will light up if the
computer senses a condition that potentially may need correcting. When t\
his happens, please have your
vehicle checked by a Volvo retailer as soon as possible.
A CHECK ENGINE light may have many causes. Sometimes, you may not notice\
a change in your
vehicle's behavior. Even so, an uncorrected condition could hurt fuel ec\
onomy, emission cleanliness, and
driveability. Extended driving without correcting the cause could even d\
amage other components in
your vehicle.
Canadian models are equipped with this warning light.
pg. 49 Instruments and controls
Indicator and warning symbols
Anti-lock brake system ABS
If the warning light comes on, there is a malfunction of the ABS system \
(the standard braking system
will still function). The vehicle should be driven to a Volvo retailer \
for inspection. See
page 128 for
additional information.
DSTC system
The Dynamic Stability and Traction Control system (DSTC) is explained \
in greater detail on
page 130.
Tire pressure monitoring light
See
page 154 for more information on this function.
Turn signal indicator - trailer (certain models)
If you are towing a trailer, this light will flash simultaneously with t\
he turn signals on the trailer. If the
light does not flash when signaling, neither the trailer's turn signals \
nor the vehicle's turn signals are
functioning.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_02.htm (8 of 40)12/30/2006\
5:53:37 PM

2007 Volvo XC90
pg. 50 Instruments and controls
Indicator and warning symbols

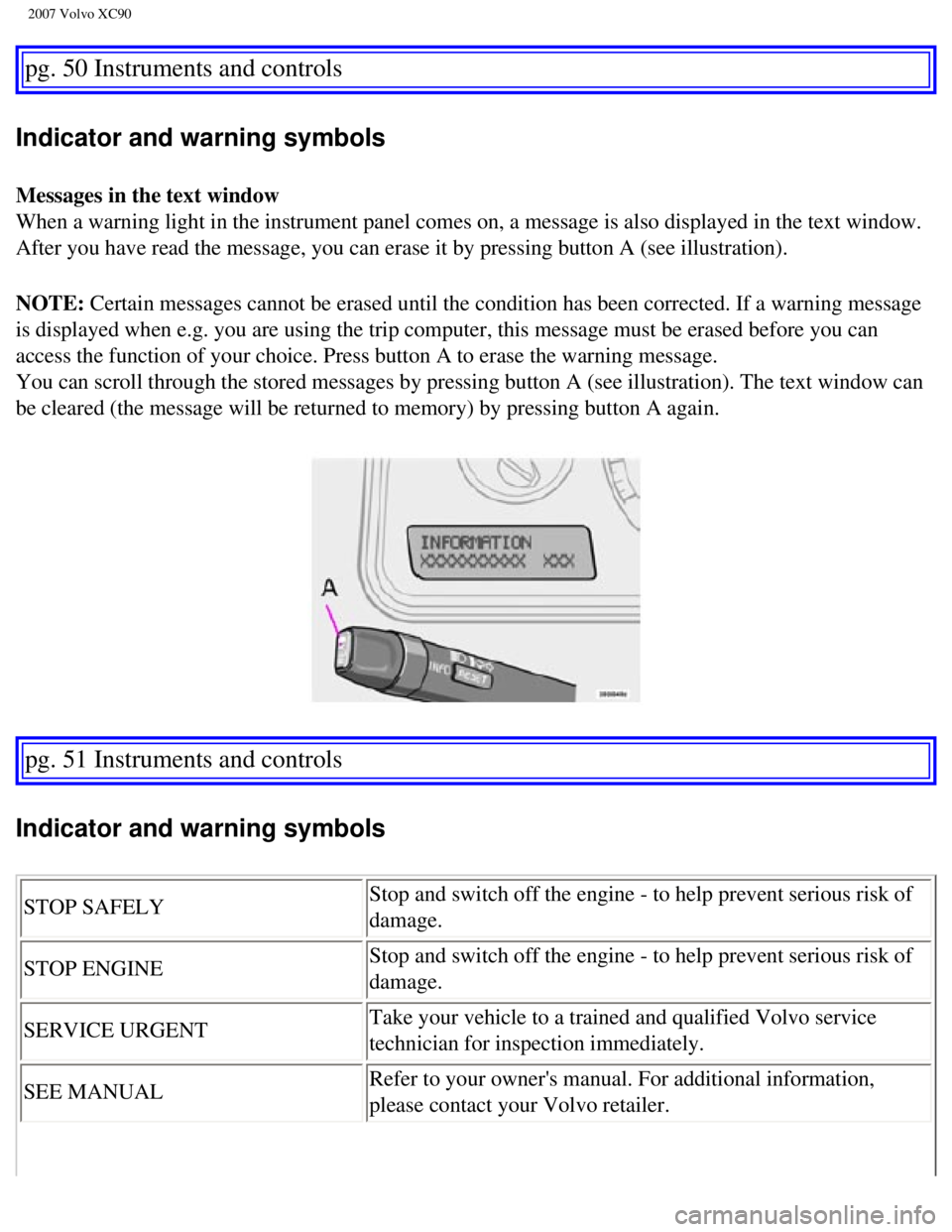

Messages in the text window
When a warning light in the instrument panel comes on, a message is also\
displayed in the text window.
After you have read the message, you can erase it by pressing button A (\
see illustration).
NOTE: Certain messages cannot be erased until the condition has been correcte\
d. If a warning message
is displayed when e.g. you are using the trip computer, this message mus\
t be erased before you can
access the function of your choice. Press button A to erase the warning \
message.
You can scroll through the stored messages by pressing button A (see il\
lustration). The text window can
be cleared (the message will be returned to memory) by pressing button\
A again.
pg. 51 Instruments and controls
Indicator and warning symbols
STOP SAFELYStop and switch off the engine - to help prevent serious risk of
damage.
STOP ENGINE Stop and switch off the engine - to help prevent serious risk of
damage.
SERVICE URGENT Take your vehicle to a trained and qualified Volvo service
technician for inspection immediately.
SEE MANUAL Refer to your owner's manual. For additional information,
please contact your Volvo retailer.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_02.htm (9 of 40)12/30/2006\
5:53:37 PM

2007 Volvo XC90

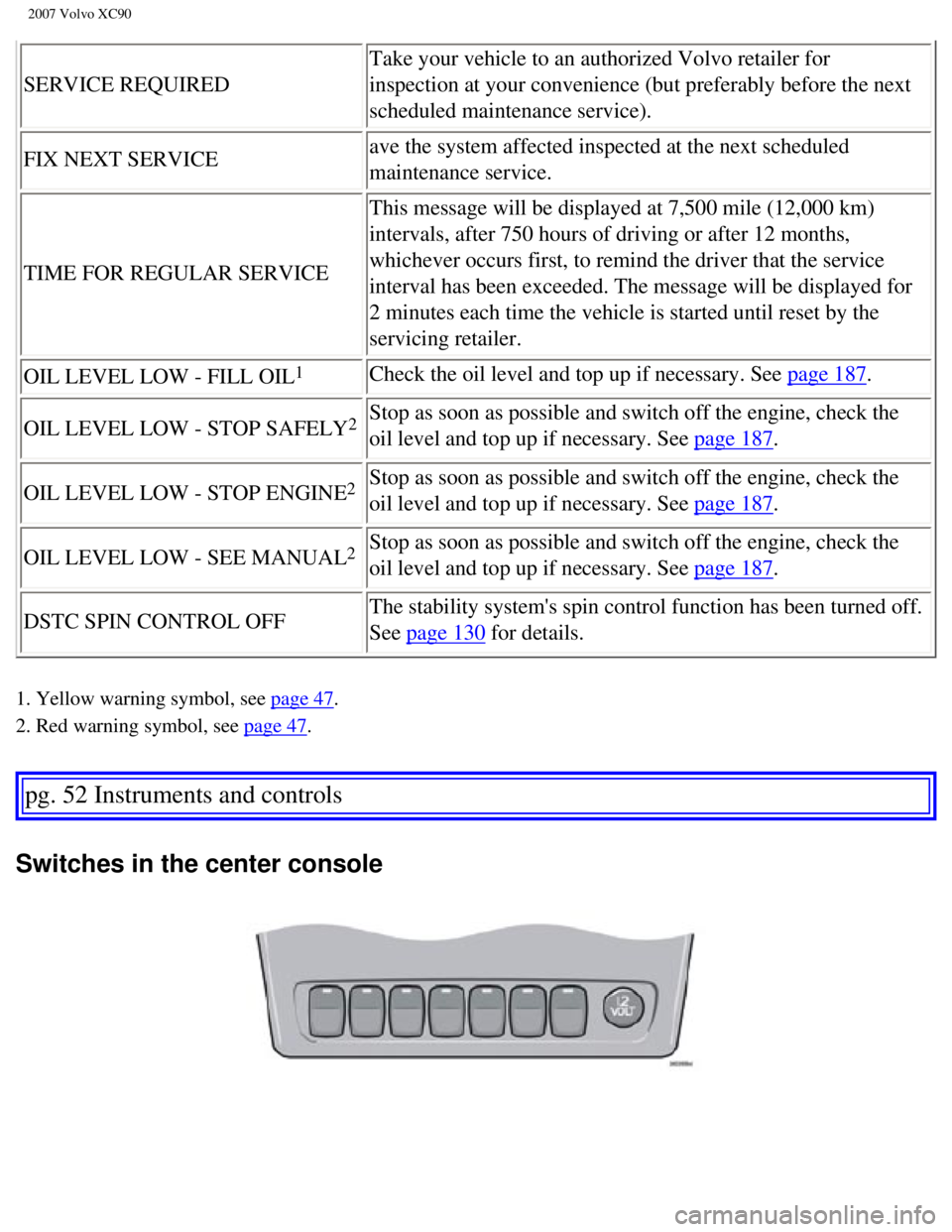

SERVICE REQUIRED Take your vehicle to an authorized Volvo retailer for
inspection at your convenience (but preferably before the next
scheduled maintenance service).
FIX NEXT SERVICE ave the system affected inspected at the next scheduled
maintenance service.
TIME FOR REGULAR SERVICE This message will be displayed at 7,500 mile (12,000 km)
intervals, after 750 hours of driving or after 12 months,
whichever occurs first, to remind the driver that the service
interval has been exceeded. The message will be displayed for
2 minutes each time the vehicle is started until reset by the
servicing retailer.
OIL LEVEL LOW - FILL OIL
1 Check the oil level and top up if necessary. See page 187.
OIL LEVEL LOW - STOP SAFELY
2Stop as soon as possible and switch off the engine, check the
oil level and top up if necessary. See
page 187.
OIL LEVEL LOW - STOP ENGINE
2Stop as soon as possible and switch off the engine, check the
oil level and top up if necessary. See
page 187.
OIL LEVEL LOW - SEE MANUAL
2Stop as soon as possible and switch off the engine, check the
oil level and top up if necessary. See
page 187.
DSTC SPIN CONTROL OFF The stability system's spin control function has been turned off.
See
page 130 for details.
1. Yellow warning symbol, see page 47.
2. Red warning symbol, see
page 47.
pg. 52 Instruments and controls
Switches in the center console

file:///K|/ownersdocs/2007/2007_XC90/07xc90_02.htm (10 of 40)12/30/200\
6 5:53:37 PM

2007 Volvo XC90
Active Bi-Xenon headlights (ABL) - option
The beams of ABL headlights adjust laterally to help light up a curve ac\
cording to movements of the
steering wheel when the vehicle is turning. This function is activated a\
utomatically when the engine is
started and can be deactivated/reactivated by pressing the button. The i\
ndicator light in the button is on
when the function is activated. See also
page 55.
Rear seat air conditioning (option)
This button controls the optional rear seat air conditioning system on s\
even-seat models.
Folding sideview mirrors (option)
Press the button and release it to fold the sideview mirrors in or out. \
On certain models, when the button
is pressed, there may be a long pause before the mirrors move. Pressing \
the button again during this
pause may erase your first button press. If this happens, wait ten secon\
ds and press the button one more
time.
The mirrors cannot be adjusted during the first ten seconds after they h\
ave been folded out.
NOTE: If the sideview mirrors have been inadvertently pushed out of position \
(in a car wash, parking
lot, etc.) manually return them to normal position. If mirror adjustmen\
t does not seem to operate after
manual folding, reset the folding mirrors as follows:
- Turn the ignition key to position II.
- Manually fold the mirror(s) to the normal position.
- Press the button to fold both mirrors in.
- Press the button again to fold the mirrors out to their normal positio\
n.
Park Assist (option/ accessory as available)
This system provides an audible warning when the vehicle is being parked\
or if it is driven close to a
person or object. See
page 131 for more information.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_02.htm (11 of 40)12/30/200\
6 5:53:37 PM

2007 Volvo XC90
NOTE: The system activates automatically when the engine is started, and can \
be deactivated by
pressing this button (e.g. when towing a trailer) or reactivated if ne\
cessary.
pg. 53 Instruments and controls

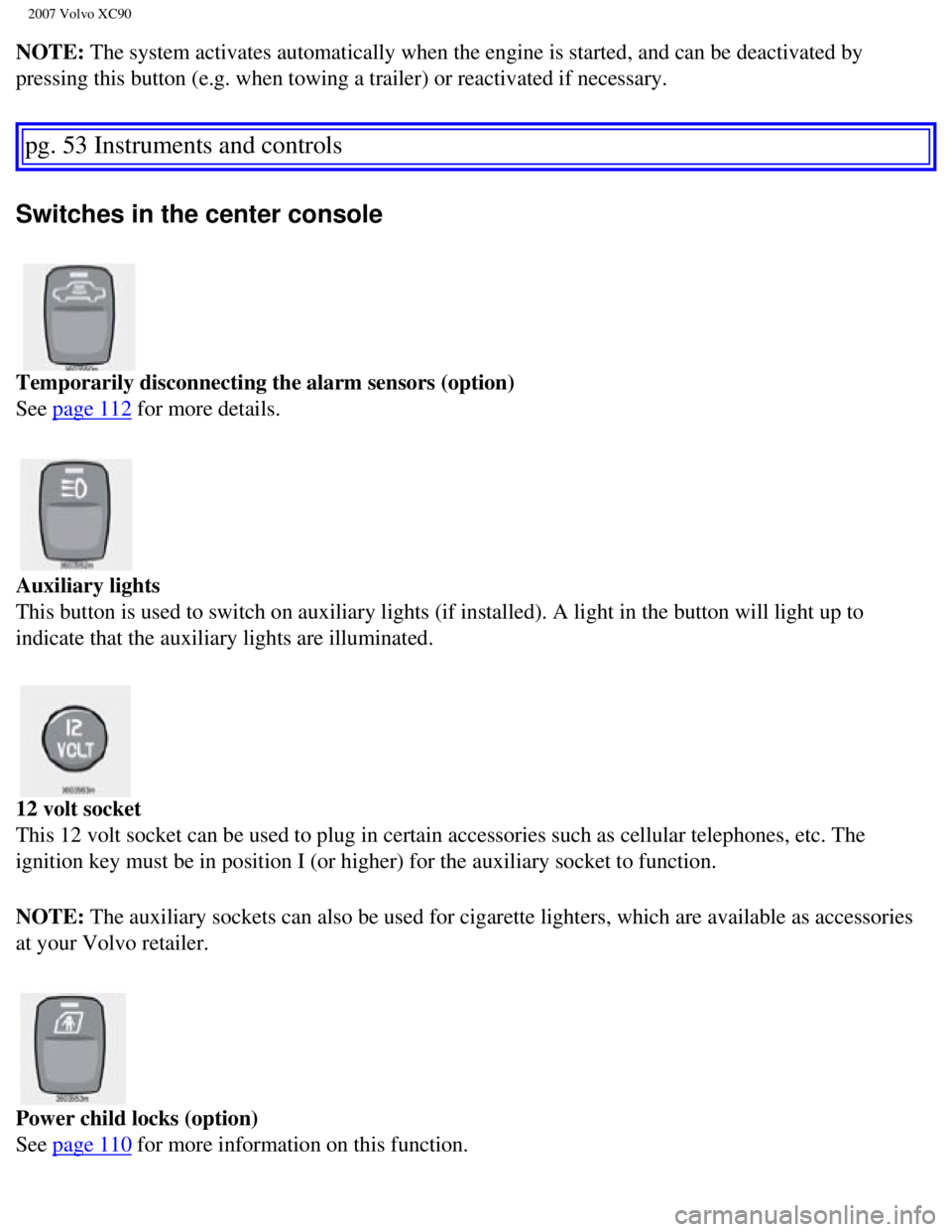

Switches in the center console

Temporarily disconnecting the alarm sensors (option)
See
page 112 for more details.

Auxiliary lights
This button is used to switch on auxiliary lights (if installed). A li\
ght in the button will light up to
indicate that the auxiliary lights are illuminated.

12 volt socket
This 12 volt socket can be used to plug in certain accessories such as c\
ellular telephones, etc. The
ignition key must be in position I (or higher) for the auxiliary socke\
t to function.
NOTE: The auxiliary sockets can also be used for cigarette lighters, which ar\
e available as accessories
at your Volvo retailer.

Power child locks (option)
See
page 110 for more information on this function.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_02.htm (12 of 40)12/30/200\
6 5:53:37 PM

2007 Volvo XC90
pg. 54 Instruments and controls
Steering wheel adjustment
Both the height and the reach of the steering wheel can be adjusted to a\
comfortable position for the
driver. Pull down the lever on the left of the steering column. Adjust t\
he steering wheel to a suitable
position and press the lever back into place to lock the steering wheel \
in the new position. Check that the
steering wheel is locked in the new position.
WARNING!
Never adjust the steering wheel while
driving.
pg. 55 Instruments and controls
Lighting panel
file:///K|/ownersdocs/2007/2007_XC90/07xc90_02.htm (13 of 40)12/30/200\
6 5:53:37 PM

2007 Volvo XC90
1. Headlight/parking light switch
2. Front fog lights
3. Rear fog light
4. Instrument panel lighting
5. Fuel filler door unlock button
Parking lights
The front and rear parking lights can be turned on even when the ignitio\
n is switched off.
- Turn switch 1 to position
. The license plate lights also illuminate when the parking lights are
switched on.
Headlights
- Turn the ignition key to position II.
- The low beam headlights (daytime running lights) illuminate automati\
cally, except when the light
switch (1) is in position
1.
See
page 58 for information on switching between high and low beams.
NOTE: Active Bi-Xenon headlights (option): Turn the headlight switch to pos\
ition 0 to activate a
daylight sensor, which automatically switches the low beams on or off, d\
epending on ambient light
conditions. When driving in daylight, the headlights will switch off and\
the daytime running lights will
come on. In darkness, the daytime running lights will switch off and the\
Active Bi-Xenon headlights
will switch on.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_02.htm (14 of 40)12/30/200\
6 5:53:37 PM
