VOLVO XC90 2009 Owner´s Manual

01 Safety

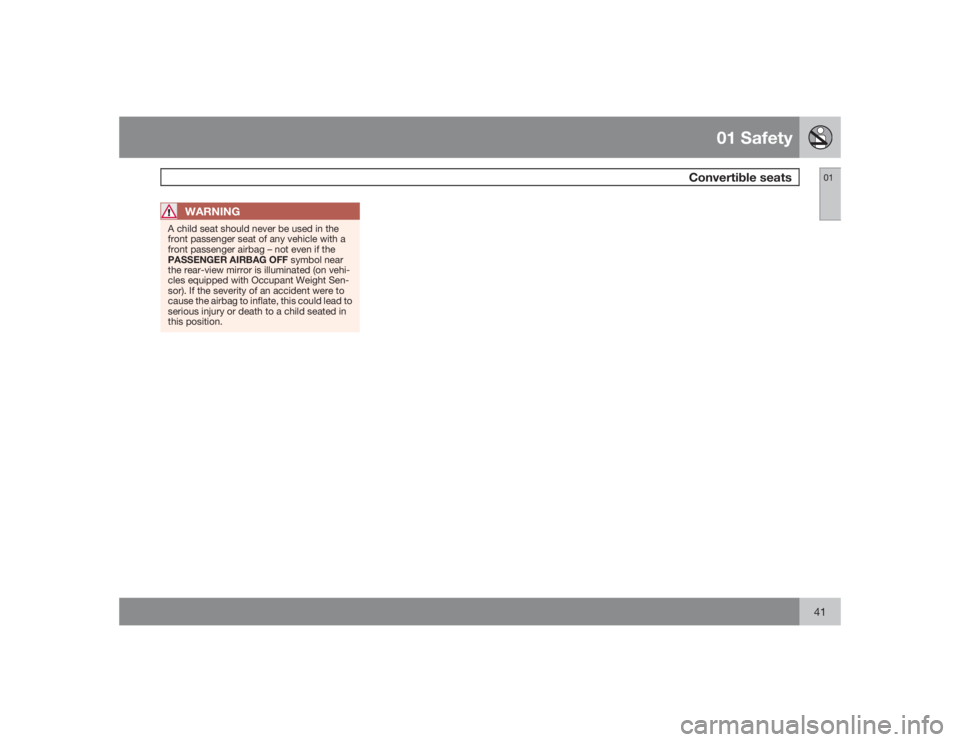

Convertible seats
0141
WARNING
A child seat should never be used in the
front passenger seat of any vehicle with a
front passenger airbag – not even if the
PASSENGER AIRBAG OFF symbol near
the rear-view mirror is illuminated (on vehi-
cles equipped with Occupant Weight Sen-
sor). If the severity of an accident were to
cause the airbag to inflate, this could lead to
serious injury or death to a child seated in
this position.

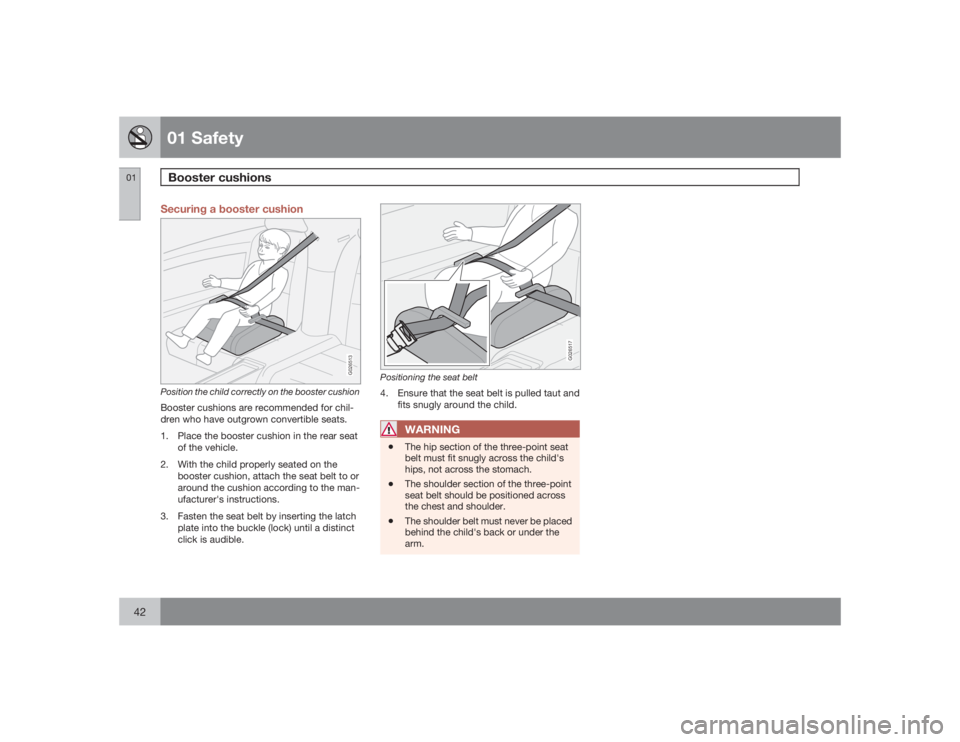

01 SafetyBooster cushions
0142
Securing a booster cushion
G026513
Position the child correctly on the booster cushionBooster cushions are recommended for chil-
dren who have outgrown convertible seats.
1. Place the booster cushion in the rear seat
of the vehicle.
2. With the child properly seated on the
booster cushion, attach the seat belt to or
around the cushion according to the man-
ufacturer's instructions.
3. Fasten the seat belt by inserting the latch
plate into the buckle (lock) until a distinct
click is audible.
G026517
Positioning the seat belt4. Ensure that the seat belt is pulled taut and
fits snugly around the child.
WARNING
•
The hip section of the three-point seat
belt must fit snugly across the child's
hips, not across the stomach.
•
The shoulder section of the three-point
seat belt should be positioned across
the chest and shoulder.
•
The shoulder belt must never be placed
behind the child's back or under the
arm.

01 Safety
ISOFIX lower anchors
01``43 Using the ISOFIX lower child seat
anchors
G015268
ISOFIX lower child restraint anchorsLower anchors for ISOFIX-equipped child
seats are located in the second row, outboard
seats, hidden below the backrest cushions.
Symbols on the seat back upholstery mark the
anchor positions (see the illustration).To access the anchors:1. Put the child restraint in position.
2. Kneel on the child restraint to press down
the seat cushion and locate the anchors by
feel.3. Fasten the attachment on the child
restraint's lower straps to the ISOFIX lower
anchors.
4. Firmly tension the lower child seat straps
according to the manufacturer's instruc-
tions.
WARNING
The ISOFIX lower child restraint anchors are
only intended for use with child seats posi-
tioned in the outboard seating positions.
These anchors are not certified for use with
any child restraint that is positioned in the
center seating position. When securing a
child restraint in the center seating position,
use only the vehicle's center seat belt.
NOTE
•
The rear seat's center position is not
equipped with ISOFIX lower anchors.
When installing a child restraint in this
position, attach the restraint's top tether
strap (if it is so equipped) to the top
tether anchorage point and secure the
restraint with the vehicle's center seat
belt.
•
Always follow your child seat manufac-
turer's installation instructions, and use
both ISOFIX lower anchors and top
tethers whenever possible.
G031682
Fasten the attachment correctly to the ISOFIX
lower anchors

01 SafetyISOFIX lower anchors
0144
WARNING
Be sure to fasten the attachment correctly
to the anchor (see the illustration). If the
attachment is not correctly fastened, the
child restraint may not be properly secured
in the event of a collision.

01 Safety
Top tether anchors
0145 Top tether anchors
G027032
Top tether anchorage pointsYour vehicle is equipped with child restraint top
tether anchorages in all second row seat posi-
tions (second-row seats only in 7-seat models).Using the top tether anchorages•
Place the child restraint on the rear seat.
•
Route the top tether strap under the head
restraint and fasten its attachment to the
anchorage.
WARNING
Be sure to fasten the child tether attachment
correctly to the anchor. If it is not correctly
fastened, the child seat may not be properly
restrained in the event of a collision.•
Firmly tension the top tether strap accord-
ing to the child restraint manufacturer's
instructions. Tension the top tether strap
only after the lower anchor straps or the
seat belt have been firmly tensioned.
For securing the child restraint to ISOFIX lower
anchors,see page 43.
WARNING
•
Never route a top tether strap over the
top or around the head restraint. It
should always be routed under the head
restraint.
•
Child restraint anchorages are designed
to withstand only those loads imposed
by correctly fitted child restraints. Under
no circumstances are they to be used
for adult seat belts or harnesses. The
anchorages are not able to withstand
excessive forces on them in the event of
collision if full harness seat belts or adult
seat belts are installed to them. An adult
who uses a belt anchored in a child
restraint anchorage runs a great risk of
suffering severe injuries should a colli-
sion occur.
•
Do not install rear speakers that require
the removal of the top tether anchors or
interfere with the proper use of the top
tether strap.

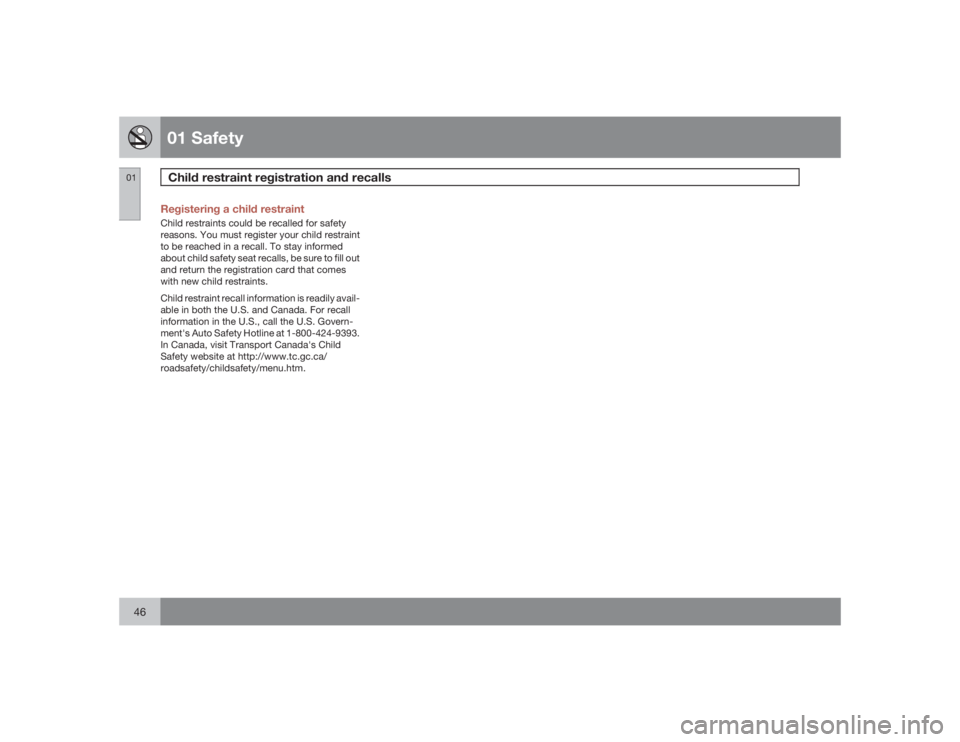

01 SafetyChild restraint registration and recalls
0146
Registering a child restraintChild restraints could be recalled for safety
reasons. You must register your child restraint
to be reached in a recall. To stay informed
about child safety seat recalls, be sure to fill out
and return the registration card that comes
with new child restraints.
Child restraint recall information is readily avail-
able in both the U.S. and Canada. For recall
information in the U.S., call the U.S. Govern-
ment's Auto Safety Hotline at 1-800-424-9393.
In Canada, visit Transport Canada's Child
Safety website at http://www.tc.gc.ca/
roadsafety/childsafety/menu.htm.

01 Safety

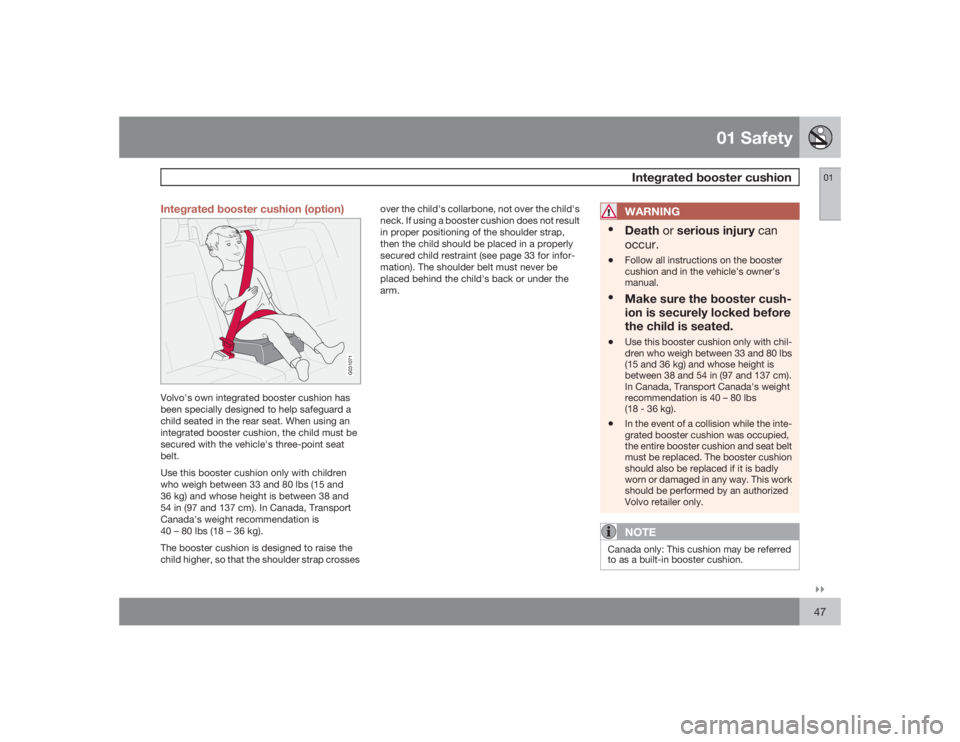

Integrated booster cushion
01``47 Integrated booster cushion (option)
G031071
Volvo's own integrated booster cushion has
been specially designed to help safeguard a
child seated in the rear seat. When using an
integrated booster cushion, the child must be
secured with the vehicle's three-point seat
belt.
Use this booster cushion only with children
who weigh between 33 and 80 lbs (15 and
36 kg) and whose height is between 38 and
54 in (97 and 137 cm). In Canada, Transport
Canada's weight recommendation is
40 – 80 lbs (18 – 36 kg).
The booster cushion is designed to raise the
child higher, so that the shoulder strap crossesover the child's collarbone, not over the child's
neck. If using a booster cushion does not result
in proper positioning of the shoulder strap,
then the child should be placed in a properly
secured child restraint (see page 33 for infor-
mation). The shoulder belt must never be
placed behind the child's back or under the
arm.
WARNING
•
Death or serious injury can
occur.
•
Follow all instructions on the booster
cushion and in the vehicle's owner's
manual.
•
Make sure the booster cush-
ion is securely locked before
the child is seated.
•
Use this booster cushion only with chil-
dren who weigh between 33 and 80 lbs
(15 and 36 kg) and whose height is
between 38 and 54 in (97 and 137 cm).
In Canada, Transport Canada's weight
recommendation is 40 – 80 lbs
(18 - 36 kg).
•
In the event of a collision while the inte-
grated booster cushion was occupied,
the entire booster cushion and seat belt
must be replaced. The booster cushion
should also be replaced if it is badly
worn or damaged in any way. This work
should be performed by an authorized
Volvo retailer only.NOTE
Canada only: This cushion may be referred
to as a built-in booster cushion.

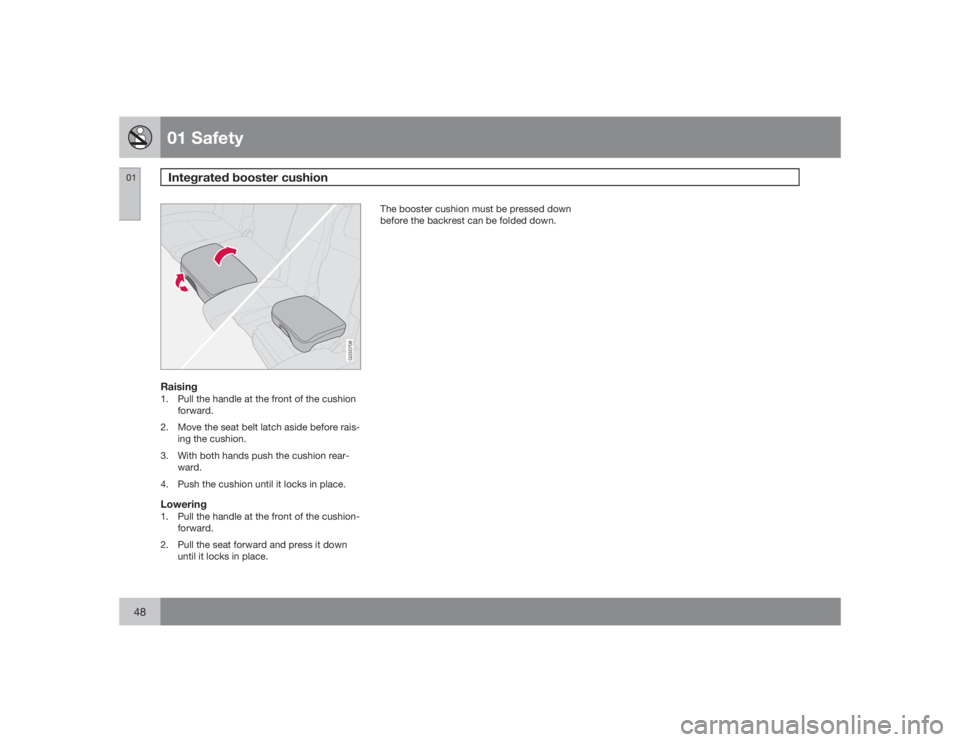

01 SafetyIntegrated booster cushion
0148
G030708
Raising1. Pull the handle at the front of the cushion
forward.
2. Move the seat belt latch aside before rais-
ing the cushion.
3. With both hands push the cushion rear-
ward.
4. Push the cushion until it locks in place.Lowering1. Pull the handle at the front of the cushion-
forward.
2. Pull the seat forward and press it down
until it locks in place.The booster cushion must be pressed down
before the backrest can be folded down.

01 Safety
0149

G020901
50

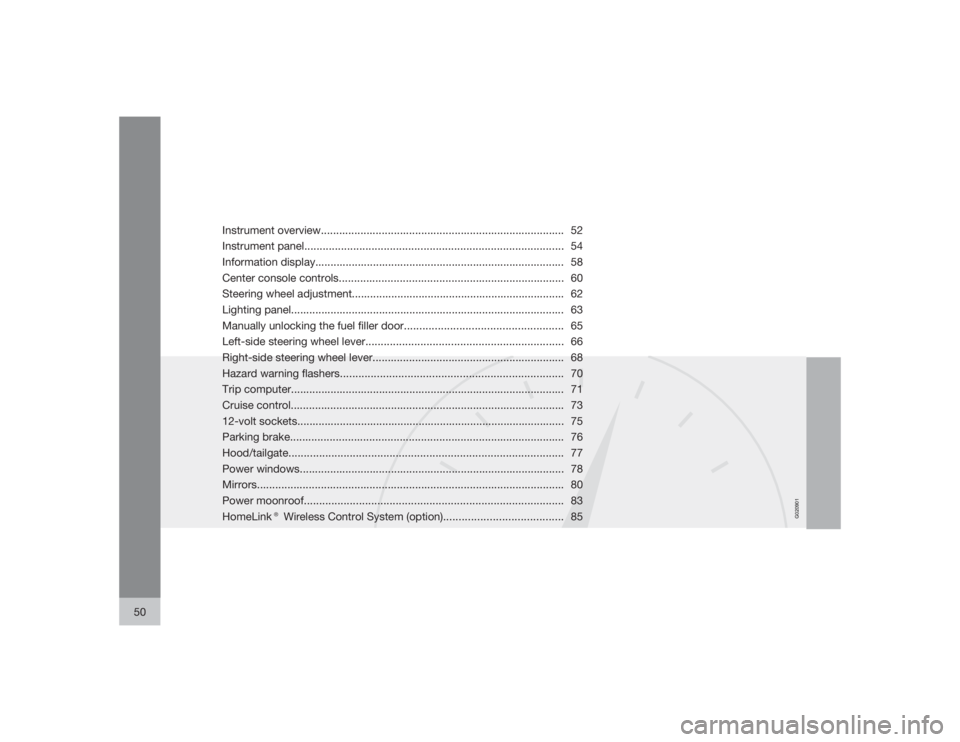

Instrument overview................................................................................ 52
