02
INSTRUMENTS AND CONTROLS

02 Instruments and controlsInstrument overview
0252
G000000

02 Instruments and controls

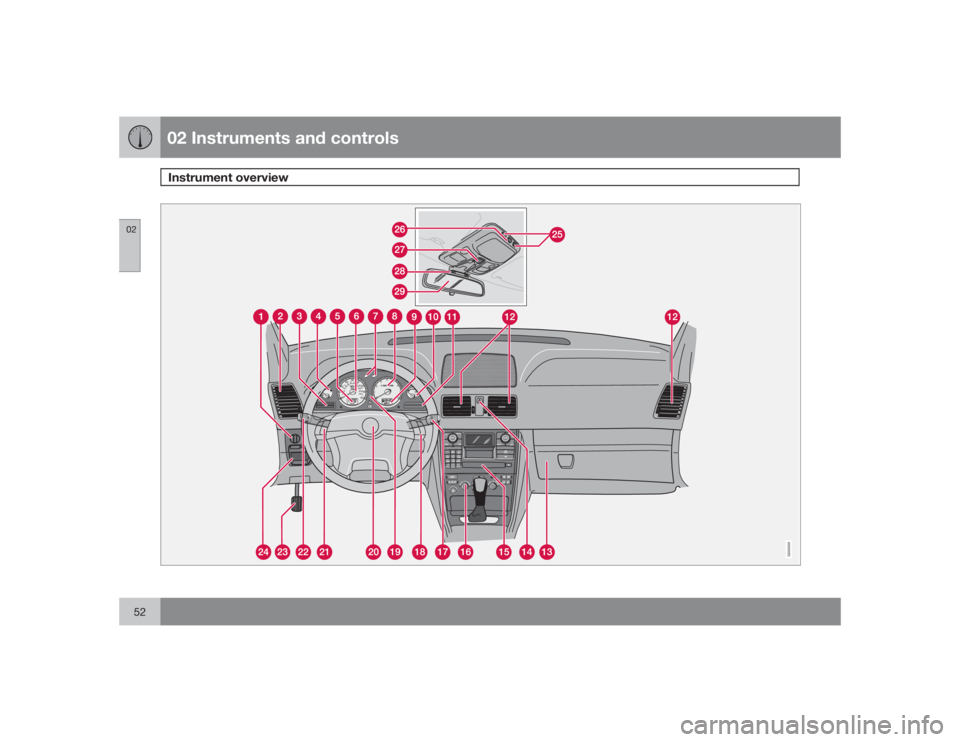

Instrument overview
0253
Headlights/Parking lightsPanel ventsDisplayTemperature gaugeOdometer/Trip odometer/Cruise control
indicatorSpeedometerTurn signal indicator lightsTachometerAmbient temperature gauge, clock, gear
indicatorFuel gaugeIndicator and warning symbolsPanel ventsGlove compartmentHazard warning flashersAudio systemClimate system controlsWindshield wiper/washer leverAudio control buttons in steering wheelInstrument panel
HornCruise control buttons in steering wheelTurn signals, High/low beams, READ-but-
tonParking brake pedalParking brake release handleReading lightsCourtesy lightMoonroof control (option)Seat belt reminderRearview mirror
Control panel in the driver's door
G029570
Central locking buttonLockout switch for rear seat power win-
dowsPower window controlsDoor mirror controls

02 Instruments and controlsInstrument panel
0254
Instrument panel
G027133
Turn signal indicators – right/leftText window – The text window displays
information and warning messages.Temperature gauge – The pointer should
be approximately midway on the gauge
when driving. Do not drive the vehicle if
the warning light is on. The text window
will provide you with additional informa-
tion. If the engine temperature remains
high, check coolant level – see page 211.Trip odometer – The trip odometers are
used for measuring shorter distances. The
right-hand digit gives tenth of a mile/kilo-
meter. Press the button for more than
2 seconds to reset. Change between tripodometers 1 and 2 using one short press
on the button. – The display presents infor-
mation and warning messages, the ambi-
ent temperature, and the clock, etc. When
the ambient temperature is between 23°
and 36 °F (–5° and +2 °C), a snowflake
symbol is shown in the display. This sym-
bol serves as a warning for possible slip-
pery road surfaces. Please note that this
symbol does not indicate a fault with your
car. At low speeds, or when the car is not
moving, the temperature readings may be
slightly higher than the actual ambient tem-
perature.
Odometer
SpeedometerWarning symbolHigh beam indicatorTachometer – The tachometer shows
engine speed in thousands of revolutions
per minute (rpm). Do not drive continuously
with the needle in the red area of the dial,
which indicates maximum allowable
engine rpm range. Instead, shift to a higher
gear or slow the vehicle down. The engine
management system will automatically
prevent excessively high engines speeds.
This will be noticeable as a pronounced
unevenness in engine speed.

02 Instruments and controls
Instrument panel
02``55
Gear and driving mode indicator – The cur-
rently selected driving mode is displayed
here. If you use the Geartronic function on
the automatic transmission, the currently
selected gear will be displayed.Ambient temperature gauge – This display
indicates the air temperature outside your
vehicle. A "snowflake" symbol in the text
window is displayed when the temperature
is in the range of 23 – 36 °F (–5 – +2 °C).
Please note that this symbol does not indi-
cate a fault with your vehicle. At low
speeds or when the vehicle is not moving,
the temperature readings may be slightly
higher than the actual ambient tempera-
ture.Clock/set button – Turn the button to set
the clock.Fuel gauge – see page 265 for fuel tank
volume. When the warning light in the
gauge comes on, the vehicle should be
refueled as soon as possible. The trip com-
puter section (see page 71) provides
more information on fuel level and con-
sumption.Indicator and warning symbols – The indi-
cator and warning symbols
1light up when
you turn the ignition key to the driving posi-
tion (position II) before starting.
G027134
This shows that the symbols are functioning.
When the engine starts, all symbols go out. If
the engine is not started within 5 seconds, all
symbols except CHECK ENGINE and
go out. Certain symbols may not
have their functions illustrated, depending on
the vehicle's equipment. The symbol for the
parking brake goes out when the parking brake
is released.
Warning symbol in center of the
instrument panel
This symbol shines as a red or yel-
low light depending on the severity
of the discovered fault.
Red symbol – Stop the vehicle as soon as
possible in a suitable location and read the
message shown in the text window. The sym-
bol and accompanying text will remain on until
the fault has been corrected.
Yellow symbol – Follow the instructions
shown in the text window. The text can be
erased by pressing the READ button (see
page 58), or will disappear automatically after
two minutes.
NOTE
When the message
TIME FOR REGULAR
SERVICE
is displayed, the text can be
erased and the yellow symbol light can be
turned off by pressing the READ button.
The text will disappear and the symbol light
will go out automatically after two minutes.
1On certain engines, the symbol for low oilpressure is not used. Instead, a text warning is provided in the information display, see page 209.

02 Instruments and controlsInstrument panel
0256
Seat belt reminder
This symbol lights up to indicate
that the driver has not fastened his/
her seat belt.
Supplemental Restraint System (SRS)
If this light comes on while the
vehicle is being driven, or remains
on for longer than approximately
10 seconds after the vehicle has
been started, the SRS system's
diagnostic functions have detected a fault in a
seat belt lock or pretensioner, a front airbag,
side impact airbag, and/or an inflatable curtain.
Have the system(s) inspected by a trained and
qualified Volvo service technician as soon as
possible.
BRAKE – Brake failure warning lightIf the light comes on while driving or braking,
stop immediately, open the hood and check
the brake fluid level in the reservoir. see
page 212.
Canadian models are equipped
with this warning light.
If the BRAKE and ABS warning lights come
on at the same time, this could indicate a
fault in the brake system.•
Stop the vehicle in a suitable place and
switch off the engine.
•
Restart the engine.
•
If both warning lights go off, no further
action is required.
•
If both lights are still on after the engine has
been restarted, switch off the engine again
and check the brake fluid level (see
page 212 for the location of the brake fluid
reservoir).
If the brake fluid level is above the MIN mark,
drive carefully to a trained and qualified Volvo
service technician and have the brake system
inspected.WARNING
If the fluid level is below the MIN mark in the
reservoir or if a
Brake failure – Service
urgent
message is displayed in the text
window:DO NOT DRIVE
. Have the vehicle
towed to a trained and qualified Volvo serv-
ice technician and have the brake system
inspected.
PARK BRAKE Parking brake appliedThis light will be on when the parking brake
(hand brake) is applied. The parking brake
pedal is located on the left side of the driver's
footwell, see page 75 for more information.
Canadian models are equipped
with this symbol.Oil pressure warning light
2
If the light comes on while driv-
ing, stop the vehicle and then
stop the engine immediately and
check the engine oil level, see
page 58. If the light stays on after
restart, have the vehicle towed to the nearest
trained and qualified Volvo service technician.
After hard driving, the light may come on occa-
sionally when the engine is idling. This is nor-
mal, provided it goes off when the engine
speed is increased.
Generator warning light
If the light comes on while the
engine is running, have the charg-
ing system checked.
2On certain engines, the symbol for low oilpressure is not used. Instead, a text warningis provided in the information display, see page 58.

02 Instruments and controls
Instrument panel
0257
Rear fog light
This light indicates that the fog
light is on.
CHECK ENGINE Malfunction indicator
lightOn-Board Diagnostics II (OBDII): As you drive,
a computer called "OBDII" monitors your vehi-
cle's engine, transmission, electrical and emis-
sion systems. The CHECK ENGINE light will
light up if the computer senses a condition that
potentially may need correcting. When this
happens, please have your vehicle checked by
a trained and qualified Volvo service technician
as soon as possible.
ACHECK ENGINE light may have many cau-
ses. Sometimes, you may not notice a change
in your vehicle's behavior. Even so, an uncor-
rected condition could hurt fuel economy,
emission cleanliness, and driveability.
Extended driving without correcting the cause
could even damage other components in your
vehicle.
Canadian models are equipped
with this warning light.
ABS (Anti-lock brake system)
If the warning light comes on, there
is a malfunction of the ABS system
(the standard braking system will
still function). The vehicle should
be driven to a trained and qualified
Volvo service technician for inspection. See
page 143 for additional information.
DSTC system
The Dynamic Stability and Traction
Control system (DSTC) is
explained in greater detail on page
145.
Tire pressure monitoring light
See page 190 for more informa-
tion on this function.
Turn signal indicator – trailer (certain
models)
If you are towing a trailer, this light
will flash simultaneously with the
turn signals on the trailer. If the
light does not flash when signaling,
neither the trailer's turn signals nor
the vehicle's turn signals are functioning.

02 Instruments and controlsInformation display
0258
Message in the text windows
G026979
When a warning light in the instrument panel
comes on, a message is also displayed in the
text window. After you have read the message,
you can erase it by pressing button A (see illus-
tration).
NOTE
Certain messages cannot be erased until
the condition has been corrected.If a warning message is displayed when e.g.
you are using the trip computer, this message
must be erased before you can access thefunction of your choice. Press button A to erase
the warning message.
You can scroll through the stored messages by
pressing button A (see illustration). The text
window can be cleared (the message will be
returned to memory) by pressing button A
again.
Message
Meaning
STOP SAFELY
Stop the car in a safe place and switch off the engine to help prevent the risk of serious damage.
STOP ENGINE
Stop the car in a safe place and switch off the engine to help prevent the risk of serious damage.
SERVICE URGENT
Take your vehicle to a trained and qualified Volvo service technician for inspection immediately.
SEE MANUAL
Refer to your owner's manual. For additional information, please contact your Volvo retailer.
SERVICE REQUIRED
Take your vehicle to a trained and qualified Volvo service technician for inspection at your convenience
(but preferably before the next scheduled maintenance service).
FIX NEXT SERVICE
Have the system affected inspected at the next scheduled maintenance service.

02 Instruments and controls
Information display
0259
Message
Meaning
TIME FOR REGULAR SERVICE
This message will be displayed at 7,500 mile (12,000 km) intervals, after 750 hours of driving or after
12 months, whichever occurs first, to remind the driver that the service interval has been exceeded. The
message will be displayed for 2 minutes each time the vehicle is started until reset by a trained and qualified
Volvo service technician.
OIL LEVEL LOW – FILL OIL
A
Check the oil level and top up if necessary, see page 209.
OIL LEVEL LOW – STOP SAFELY
B
Stop as soon as possible and switch off the engine, check the oil level and top up if necessary, see
page 209.
OIL LEVEL LOW – STOP ENGINE
B
Stop as soon as possible and switch off the engine, check the oil level and top up if necessary, see
page 209.
OIL LEVEL LOW – SEE MANUAL
B
Stop as soon as possible and switch off the engine, check the oil level and top up if necessary, see
page 209.
DSTC SPIN CONTROL OFF
The stability system's spin control function has been turned off, see page 145 for details.
AThe yellow warning symbol also lights up (see page 54).BThe red warning symbol also lights up (see page 54).

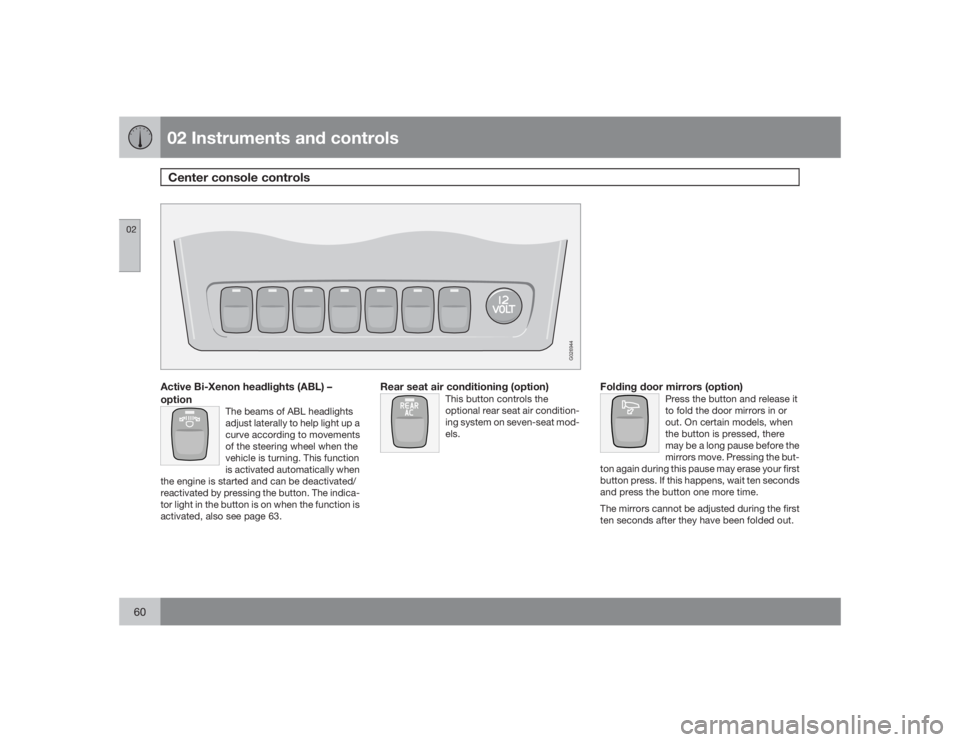

02 Instruments and controlsCenter console controls
0260
G026944
Active Bi-Xenon headlights (ABL) –
option
The beams of ABL headlights
adjust laterally to help light up a
curve according to movements
of the steering wheel when the
vehicle is turning. This function
is activated automatically when
the engine is started and can be deactivated/
reactivated by pressing the button. The indica-
tor light in the button is on when the function is
activated, also see page 63.
Rear seat air conditioning (option)
This button controls the
optional rear seat air condition-
ing system on seven-seat mod-
els.
Folding door mirrors (option)
Press the button and release it
to fold the door mirrors in or
out. On certain models, when
the button is pressed, there
may be a long pause before the
mirrors move. Pressing the but-
ton again during this pause may erase your first
button press. If this happens, wait ten seconds
and press the button one more time.
The mirrors cannot be adjusted during the first
ten seconds after they have been folded out.
