VOLVO XC90 2011 Owner´s Manual

03 Climate
Electronic climate control (ECC)
03
101
OperationPress to operate the air quality sensor (normal
setting).
or:
Select one of the following three functions by
pressing 1, 2 or 3 times.
1.
The AUT LED lights. The air quality sensor
is now activated.
2. No LED lights. Recirculation is not acti-
vated unless needed to cool the passenger
compartment in a warm climate.
3.
The MAN LED lights. Recirculation is now
activated.
Keep in mind the following:
•Make it a rule to have the air quality sensor
activated at all times.
•Recirculation is limited in cold climates to
avoid fogging.
•If window fogging occurs, you should
deactivate the air quality sensor. Also use
the defroster functions for the windshield,
side windows and rear window, see
page 98.
•The filter should be changed at the inter-
vals recommended in the service sched-
ule. However, if the vehicle is used in a
severely contaminated environment, it may
be necessary to change the filter more fre-
quently.

102
Front seats............................................................................................ 104
Rear seats............................................................................................. 108
Interior lighting...................................................................................... 111
Storage compartments......................................................................... 113
Securing cargo...................................................................................... 118

INTERIOR

04 Interior
Front seats
04
104* Option/accessory, for more information, see Introduction.

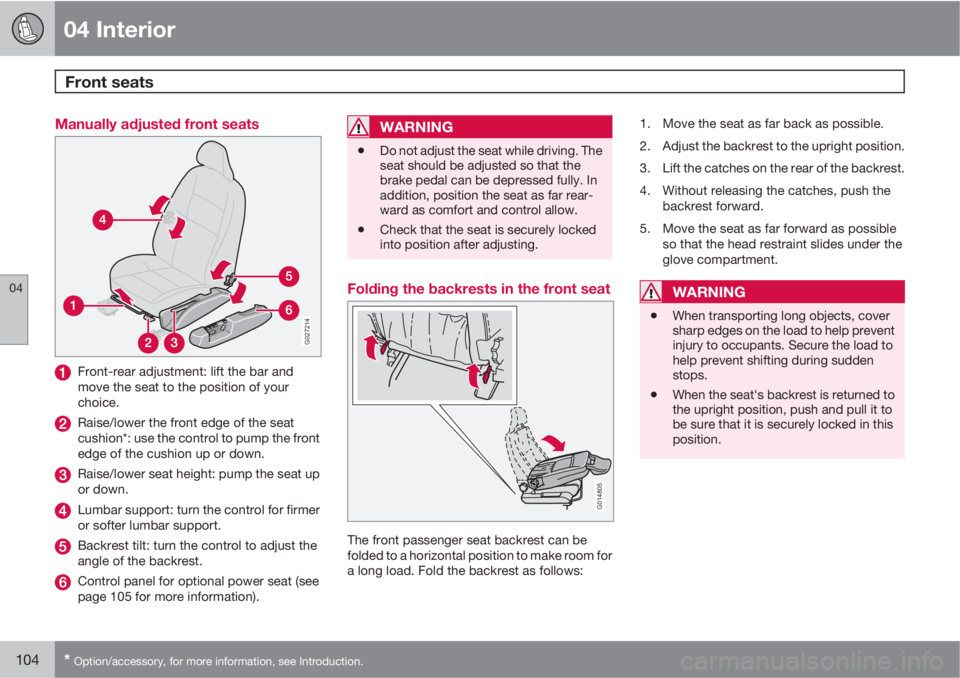

Manually adjusted front seats
G027214
Front-rear adjustment: lift the bar and
move the seat to the position of your
choice.
Raise/lower the front edge of the seat
cushion*: use the control to pump the front
edge of the cushion up or down.
Raise/lower seat height: pump the seat up
or down.
Lumbar support: turn the control for firmer
or softer lumbar support.
Backrest tilt: turn the control to adjust the
angle of the backrest.
Control panel for optional power seat (see
page 105 for more information).
WARNING
•Do not adjust the seat while driving. The
seat should be adjusted so that the
brake pedal can be depressed fully. In
addition, position the seat as far rear-
ward as comfort and control allow.
•Check that the seat is securely locked
into position after adjusting.
Folding the backrests in the front seat
G014805
The front passenger seat backrest can be
folded to a horizontal position to make room for
a long load. Fold the backrest as follows:1. Move the seat as far back as possible.
2. Adjust the backrest to the upright position.
3. Lift the catches on the rear of the backrest.
4. Without releasing the catches, push the
backrest forward.
5. Move the seat as far forward as possible
so that the head restraint slides under the
glove compartment.
WARNING
•When transporting long objects, cover
sharp edges on the load to help prevent
injury to occupants. Secure the load to
help prevent shifting during sudden
stops.
•When the seat's backrest is returned to
the upright position, push and pull it to
be sure that it is securely locked in this
position.

04 Interior
Front seats
04

* Option/accessory, for more information, see Introduction.105 Power seat*
OperationDriver's seat: The seat can be adjusted if the
ignition key is in position I, II or if the engine is
running. It can also be adjusted as follows with
the ignition off:
•Within several minutes after the driver's
door has been unlocked from the outside,
has been opened, and remains open.
•Within a short period if the driver's door has
just been closed.
•Within a short period if the driver's door has
not been opened after the ignition has
been switched off.
Passenger seat: The seat can only be
adjusted if the ignition key is in position I, II or
if the engine is running.G027036
Power seat adjustment controls
Seat adjustmentAdjust the power seat(s) with the two controls
at the side of the seat as follows:
Front edge of seat (raise/lower)
Forward – rearward
Rear edge of seat (raise/lower)
Backrest tilt
NOTE
The power seats have an overload protector
that activates if a seat is blocked by any
object. If this occurs, switch off the ignition
(key in position 0 ) and wait for a short period
before operating the seat again.
Emergency stopIf the seat accidentally begins to move, press
any of the buttons to stop the seat.
NOTE
Please refer to the following page for infor-
mation on programming the memory func-
tion in the driver's seat.
Remote keyless entry system and the
driver's seat
The remote key transmitter also controls the
position of the electrically operated driver's
seat in the following way:
•Adjust the seat to your preferences.
•When you leave your vehicle, lock it using
the remote key.
The position of the seat is now stored in the
remote key.
Automatic seat adjustmentTo move the seat to the position in which you
left it:

04 Interior
Front seats
04
106

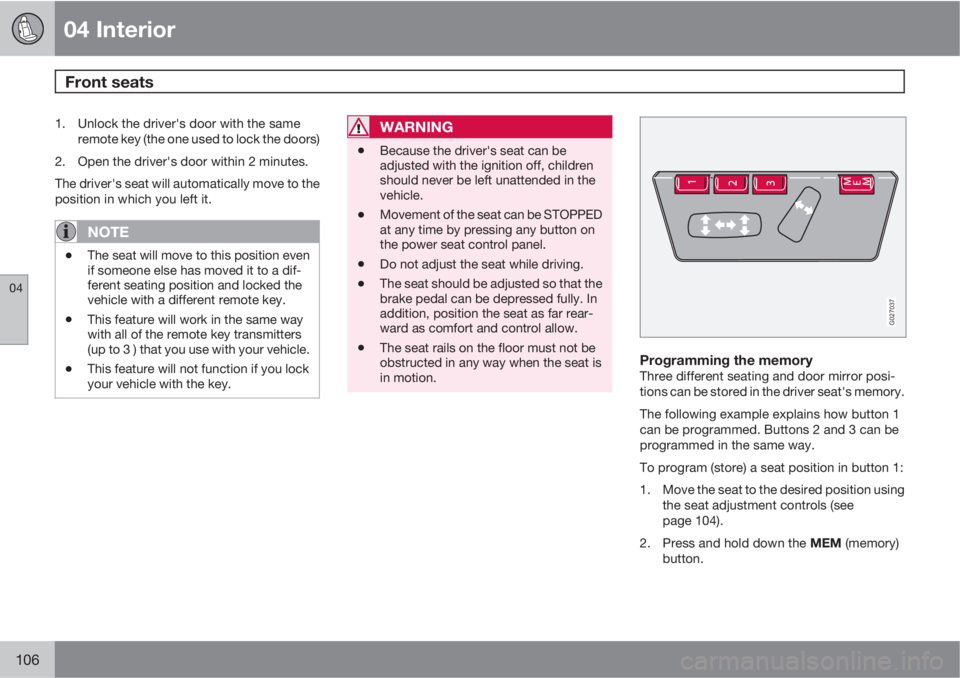

1. Unlock the driver's door with the same
remote key (the one used to lock the doors)
2. Open the driver's door within 2 minutes.
The driver's seat will automatically move to the
position in which you left it.
NOTE
•The seat will move to this position even
if someone else has moved it to a dif-
ferent seating position and locked the
vehicle with a different remote key.
•This feature will work in the same way
with all of the remote key transmitters
(up to 3 ) that you use with your vehicle.
•This feature will not function if you lock
your vehicle with the key.
WARNING
•Because the driver's seat can be
adjusted with the ignition off, children
should never be left unattended in the
vehicle.
•Movement of the seat can be STOPPED
at any time by pressing any button on
the power seat control panel.
•Do not adjust the seat while driving.
•The seat should be adjusted so that the
brake pedal can be depressed fully. In
addition, position the seat as far rear-
ward as comfort and control allow.
•The seat rails on the floor must not be
obstructed in any way when the seat is
in motion.
G027037
Programming the memoryThree different seating and door mirror posi-
tions can be stored in the driver seat's memory.
The following example explains how button 1
can be programmed. Buttons 2 and 3 can be
programmed in the same way.
To program (store) a seat position in button 1:
1. Move the seat to the desired position using
the seat adjustment controls (see
page 104).
2.
Press and hold down the MEM (memory)
button.

04 Interior
Front seats
04
* Option/accessory, for more information, see Introduction.107
3.
With the MEM button depressed, press
button 1 briefly to store the seat's current
position.
To move the seat to the position that it was in
when button 1 was programmed:
Press and hold down button 1 until the seat
stops moving.
As a safety precaution, the seat will stop auto-
matically if the button is released before the
seat has reached the preset position.
Front seats*
G030180
Massage
Lumbar support
Massage
G030183
Massage control
Firm massage
Gentle massage
Each front seat has a massage function in its
backrest. The massage action is done with air
cushions, which can be adjusted to a firm or
gentle setting. When the setting has been
made, the massaging action is carried out in
cycles as follows: massage 6 minutes – pause
4 minutes – massage 6 minutes, etc.
When the button is in the center position or if
the ignition is in position 0, the massage func-
tion is switched off.
Lumbar support
G030229
Lumbar support control
The lumbar support uses the same air cushions
as the massage function. The button can be
used to adjust the amount of support in four
directions, as shown in the illustration.
Lumbar support can be only be adjusted when
the massage function is switched off.
A memory function stores the lumbar support
setting and this support will resume after the
massage function has been switched off or
after the vehicle has been parked for an
extended period of time.

04 Interior
Rear seats
04
108
Entering the third row of seats
G027027
Tilting the outboard backrests in the
second row of seats:
•Pull up the handle (1), hold it up, and tilt the
backrest forward to move the seat.
•Return the backrest to the upright position
to slide the seat back to its original posi-
tion.
Forward/rearward seat adjustmentLift the adjustment bar (2) to move the seat for-
ward or rearward.
Removing the center console1
G028445
In order to make it possible to move the center
seat in the second row of seats as far forward
as possible (seven-seat models only), the rear
section of the center console can be removed.
•Pull the handle (see illustration) and lift out
the console.
•To return the console to its original posi-
tion, slide it back into position until it clicks
into place.
G027033
Sliding center seat – second row (seven-
seat models only)
The center seat in the second row can be
moved farther forward than the outboard
seats. This makes it possible for a child seated
in this position to sit closer to the people in the
front seats.
1The center console cannot be removed on vehicles equipped with the optional Rear Seat Entertainment System.

04 Interior
Rear seats
04

109
G027015
Head restraint – second row, center
position
The head restraint in the center position can be
adjusted to 4 different heights.
To raise – pull the restraint up until it clicks into
one of the four heights positions.
To lower – press the button at the base of the
support (see illustration above) and press the
head restraint down.
WARNING
The center rear seat head restraint should
only be in its lowest position when this seat
is NOT occupied. When the center position
is occupied, the head restraint should be
correctly adjusted to the passenger’s
height. The upper edge of the head restraint
should be at least on a level with the upper-
most point of the seat occupant's ear.G027022
Folding the backrests – second row of
seats
CAUTION
To help avoid damage to the upholstery,
there should be no objects on the rear seat
and the seat belt should not be buckled
when the backrest is folded down.
1. Move the seat(s) to their rearmost position
(seven-seat models only).
2. Pull the loop to fold down an outboard
head restraint. Press down the center head
restraint if necessary (see page 109).

04 Interior
Rear seats
04
110
3. Pull the handle (1) outward to release the
backrest. The backrests are designed to
lock at a 45 degree angle. Pull the handle
again to continue pressing it down until it
locks in the horizontal position.
To return the backrests to the upright position,
pull handle 1 and pull the backrest up.
G027016
Folding the backrests—third row of
seats
Folding down the backrest
If necessary, fold in the load anchorage eyelets
before folding down the backrests.1. Move the seats in the second row as far
forward as possible, see page 108.
2. Pull up the handle, illustration 1 above.
3. Push the seat cushion firmly rearward,
under the backrest.
4.
Fold down the backrests
2 (the head
restraints fold down automatically) to the
horizontal position.
WARNING
The seats in the third row are not equipped
with top tether anchors or ISOFIX/LATCH
lower child seat anchors. Child restraint sys-
tems should never be used on these seats.
Returning the backrest to the upright
position
1. Fold up the backrest to the upright posi-
tion.
2. Grasp the strap (see illustration 3 above)
and pull the seat cushion out until it locks
in place. This also locks the backrest in the
upright position.
WARNING
•When one or more sections of the back-
rest is returned to the upright position,
check that it is properly locked in place
by pushing and pulling it. The red indi-
cators should also not be visible.
•Return the outboard head restraints to
the upright position.
•Long loads should always be securely
anchored to help avoid injury in the
event of a sudden stop.
•Always turn the engine off and apply the
parking brake when loading/unloading
the vehicle.
•Place the transmission in the Park (P)
position to help prevent inadvertent
movement of the gear selector.
•On hot days, the temperature in the
vehicle interior can rise very quickly.
Exposure of people to these high tem-
peratures for even a short period of time
can cause heat-related injury or death.
Small children are particularly at risk.
2Please note that the head restraints in this row cannot be vertically adjusted.
