VOLVO XC90 2013 Owner´s Manual

03 Climate
Electronic climate control (ECC)
03

99

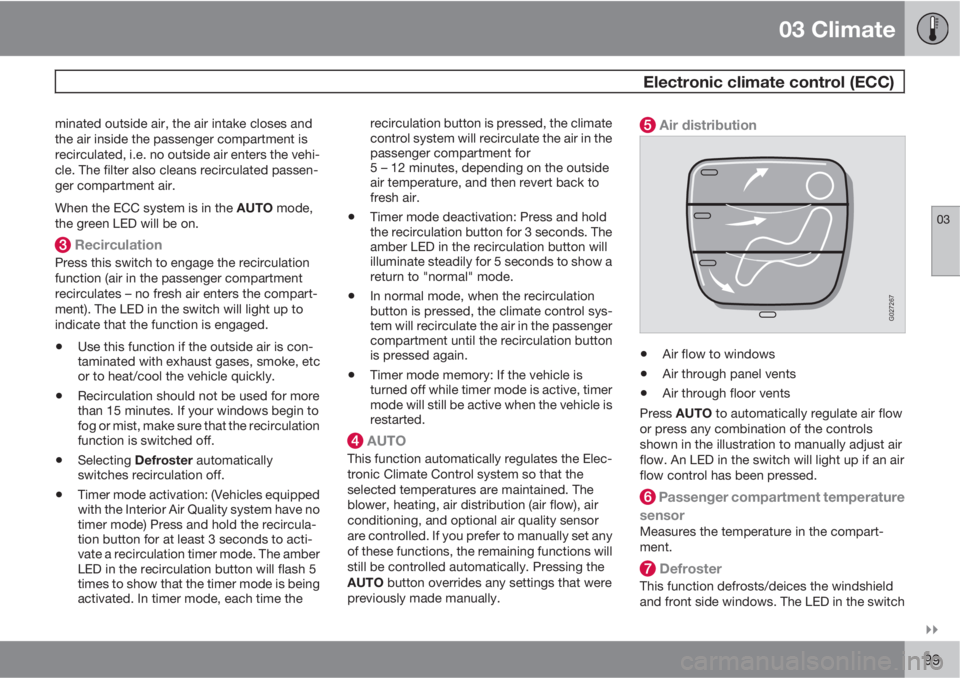

minated outside air, the air intake closes and
the air inside the passenger compartment is
recirculated, i.e. no outside air enters the vehi-
cle. The filter also cleans recirculated passen-
ger compartment air.
When the ECC system is in the AUTO mode,
the green LED will be on.
Recirculation
Press this switch to engage the recirculation
function (air in the passenger compartment
recirculates – no fresh air enters the compart-
ment). The LED in the switch will light up to
indicate that the function is engaged.
•Use this function if the outside air is con-
taminated with exhaust gases, smoke, etc
or to heat/cool the vehicle quickly.
•Recirculation should not be used for more
than 15 minutes. If your windows begin to
fog or mist, make sure that the recirculation
function is switched off.
•Selecting Defroster automatically
switches recirculation off.
•Timer mode activation: (Vehicles equipped
with the Interior Air Quality system have no
timer mode) Press and hold the recircula-
tion button for at least 3 seconds to acti-
vate a recirculation timer mode. The amber
LED in the recirculation button will flash 5
times to show that the timer mode is being
activated. In timer mode, each time therecirculation button is pressed, the climate
control system will recirculate the air in the
passenger compartment for
5 – 12 minutes, depending on the outside
air temperature, and then revert back to
fresh air.
•Timer mode deactivation: Press and hold
the recirculation button for 3 seconds. The
amber LED in the recirculation button will
illuminate steadily for 5 seconds to show a
return to "normal" mode.
•In normal mode, when the recirculation
button is pressed, the climate control sys-
tem will recirculate the air in the passenger
compartment until the recirculation button
is pressed again.
•Timer mode memory: If the vehicle is
turned off while timer mode is active, timer
mode will still be active when the vehicle is
restarted.
AUTO
This function automatically regulates the Elec-
tronic Climate Control system so that the
selected temperatures are maintained. The
blower, heating, air distribution (air flow), air
conditioning, and optional air quality sensor
are controlled. If you prefer to manually set any
of these functions, the remaining functions will
still be controlled automatically. Pressing the
AUTO button overrides any settings that were
previously made manually.
Air distribution
G027267
•Air flow to windows
•Air through panel vents
•Air through floor vents
Press AUTO to automatically regulate air flow
or press any combination of the controls
shown in the illustration to manually adjust air
flow. An LED in the switch will light up if an air
flow control has been pressed.
Passenger compartment temperature
sensor
Measures the temperature in the compart-
ment.
Defroster
This function defrosts/deices the windshield
and front side windows. The LED in the switch

03 Climate
Electronic climate control (ECC)
03
100* Option/accessory, for more information, see Introduction.
will light up to indicate that the defrost function
is engaged.
•Blower speed increases automatically and
the air conditioning will switch on (if not
already on and if the passenger compart-
ment blower is not turned off) to dehumid-
ify the air in the passenger compartment.
•Recirculation will not function while defrost
is engaged.
The climate system will return to its previous
settings when the defroster function is
switched off.
Rear window and door mirror
defrosters
This function defrosts/deices the rear window
and door mirrors. The LED in the switch will
light up to indicate that the heating function is
engaged. For additional information on this
function see page 75.
Never use ice scrapers made of metal as they
can easily scratch the mirror surface.
Heated front seats*
1. Press the switch once for maximum seat
heating. Both LEDs in the switch will be lit.
2. Press the switch a second time for comfort
heating. One LED in the switch will be lit.3. Press the switch a third time to turn the
heating off completely. The LED will go off.
The seat heating for the passenger seat should
be switched off when the seat is not occupied.
Heated rear seats (XC90 Executive*)
G030976
Button for rear seat heating
Heating for the respective outboard rear seats
can be switched on or off with buttons on either
side of the center console (see the illustration).
To switch on rear seat heating:
–Press the button.
> The symbol in the button will illuminate.To switch off rear seat heating:
–Press the button.
> The symbol in the button will go out.
Temperature
These controls are used to individually set the
temperature for both sides of the passenger
compartment. Please note that the compart-
ment will not be heated or cooled faster by set-
ting the temperature higher or lower than nec-
essary.
Set the control to the temperature you prefer.
Blower control1
Turn the control clockwise to increase or coun-
terclockwise to decrease the blower speed.
Pressing the AUTO switch will automatically
regulate blower speed and override manual
adjustment.
Turning the blower control counterclockwise
until an orange LED comes on will turn both the
blower and the air conditioning off.
Blower control for rear climate
system*
Turn the control to increase or decrease blower
speed.
1See also see page 94.

03 Climate
Electronic climate control (ECC)
03
101
OperationPress to operate the air quality sensor (normal
setting).
or:
Select one of the following three functions by
pressing 1, 2 or 3 times.
1.
The AUT LED lights. The air quality sensor
is now activated.
2. No LED lights. Recirculation is not acti-
vated unless needed to cool the passenger
compartment in a warm climate.
3.
The MAN LED lights. Recirculation is now
activated.
Keep in mind the following:
•Make it a rule to have the air quality sensor
activated at all times.
•Recirculation is limited in cold climates to
avoid fogging.
•If window fogging occurs, you should
deactivate the air quality sensor. Also use
the defroster functions for the windshield,
side windows and rear window, see
page 98.
•The filter should be changed at the inter-
vals recommended in the service sched-
ule. However, if the vehicle is used in a
severely contaminated environment, it may
be necessary to change the filter more fre-
quently.

102
Front seats............................................................................................ 104
Rear seats............................................................................................. 108
Interior lighting...................................................................................... 111
Storage compartments......................................................................... 114
Securing cargo...................................................................................... 119

INTERIOR

04 Interior
Front seats
04
104* Option/accessory, for more information, see Introduction.

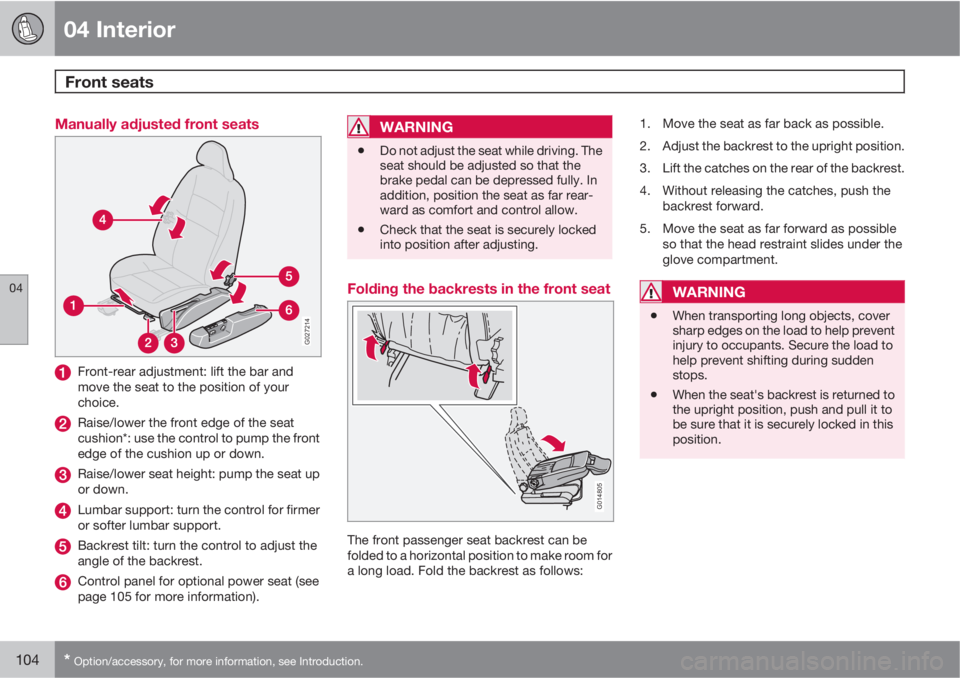

Manually adjusted front seats
G027214
Front-rear adjustment: lift the bar and
move the seat to the position of your
choice.
Raise/lower the front edge of the seat
cushion*: use the control to pump the front
edge of the cushion up or down.
Raise/lower seat height: pump the seat up
or down.
Lumbar support: turn the control for firmer
or softer lumbar support.
Backrest tilt: turn the control to adjust the
angle of the backrest.
Control panel for optional power seat (see
page 105 for more information).
WARNING
•Do not adjust the seat while driving. The
seat should be adjusted so that the
brake pedal can be depressed fully. In
addition, position the seat as far rear-
ward as comfort and control allow.
•Check that the seat is securely locked
into position after adjusting.
Folding the backrests in the front seat
G014805
The front passenger seat backrest can be
folded to a horizontal position to make room for
a long load. Fold the backrest as follows:1. Move the seat as far back as possible.
2. Adjust the backrest to the upright position.
3. Lift the catches on the rear of the backrest.
4. Without releasing the catches, push the
backrest forward.
5. Move the seat as far forward as possible
so that the head restraint slides under the
glove compartment.
WARNING
•When transporting long objects, cover
sharp edges on the load to help prevent
injury to occupants. Secure the load to
help prevent shifting during sudden
stops.
•When the seat's backrest is returned to
the upright position, push and pull it to
be sure that it is securely locked in this
position.

04 Interior
Front seats
04
* Option/accessory, for more information, see Introduction.105 Power seat*
OperationDriver's seat: The seat can be adjusted if the
ignition key is in position I, II or if the engine is
running. It can also be adjusted as follows with
the ignition off:
•Within several minutes after the driver's
door has been unlocked from the outside,
has been opened, and remains open.
•Within a short period if the driver's door has
just been closed.
•Within a short period if the driver's door has
not been opened after the ignition has
been switched off.
Passenger seat: The seat can only be
adjusted if the ignition key is in position I, II or
if the engine is running.G027036
Power seat adjustment controls
Seat adjustmentAdjust the power seat(s) with the two controls
at the side of the seat as follows:
Front edge of seat (raise/lower)
Forward – rearward
Rear edge of seat (raise/lower)
Backrest tilt
NOTE
The power seats have an overload protector
that activates if a seat is blocked by any
object. If this occurs, switch off the ignition
(key in position 0 ) and wait for a short period
before operating the seat again.
Emergency stopIf the seat accidentally begins to move, press
any of the buttons to stop the seat.
NOTE
Please refer to the following page for infor-
mation on programming the memory func-
tion in the driver's seat.
Remote keyless entry system and the
driver's seat
The remote key transmitter also controls the
position of the electrically operated driver's
seat in the following way:
•Adjust the seat to your preferences.
•When you leave your vehicle, lock it using
the remote key.
The position of the seat is now stored in the
remote key.
Automatic seat adjustmentTo move the seat to the position in which you
left it:

04 Interior
Front seats
04
106

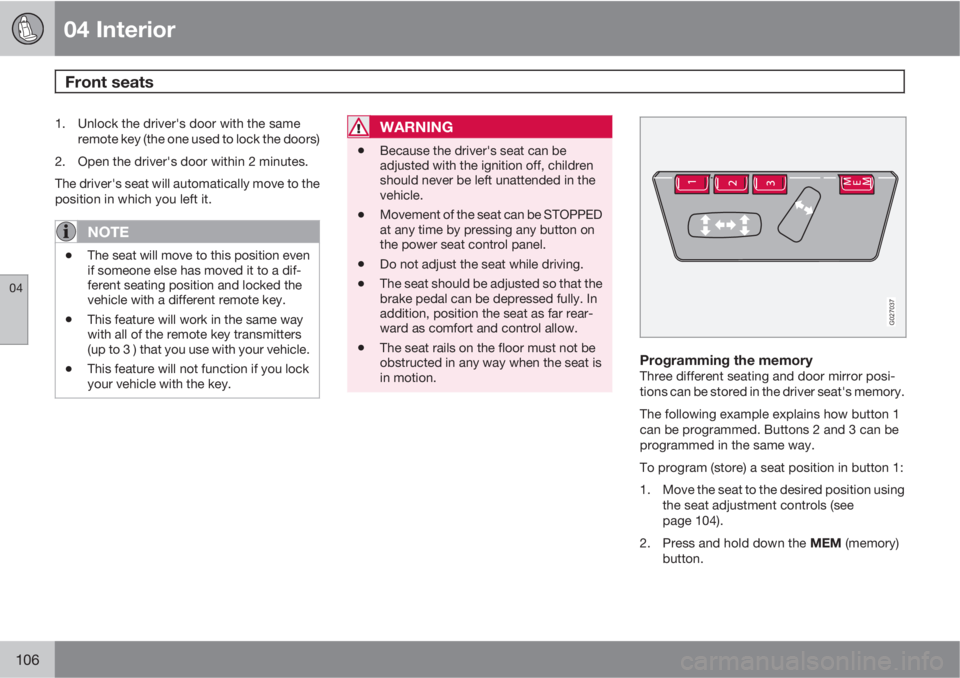

1. Unlock the driver's door with the same
remote key (the one used to lock the doors)
2. Open the driver's door within 2 minutes.
The driver's seat will automatically move to the
position in which you left it.
NOTE
•The seat will move to this position even
if someone else has moved it to a dif-
ferent seating position and locked the
vehicle with a different remote key.
•This feature will work in the same way
with all of the remote key transmitters
(up to 3 ) that you use with your vehicle.
•This feature will not function if you lock
your vehicle with the key.
WARNING
•Because the driver's seat can be
adjusted with the ignition off, children
should never be left unattended in the
vehicle.
•Movement of the seat can be STOPPED
at any time by pressing any button on
the power seat control panel.
•Do not adjust the seat while driving.
•The seat should be adjusted so that the
brake pedal can be depressed fully. In
addition, position the seat as far rear-
ward as comfort and control allow.
•The seat rails on the floor must not be
obstructed in any way when the seat is
in motion.
G027037
Programming the memoryThree different seating and door mirror posi-
tions can be stored in the driver seat's memory.
The following example explains how button 1
can be programmed. Buttons 2 and 3 can be
programmed in the same way.
To program (store) a seat position in button 1:
1. Move the seat to the desired position using
the seat adjustment controls (see
page 104).
2.
Press and hold down the MEM (memory)
button.

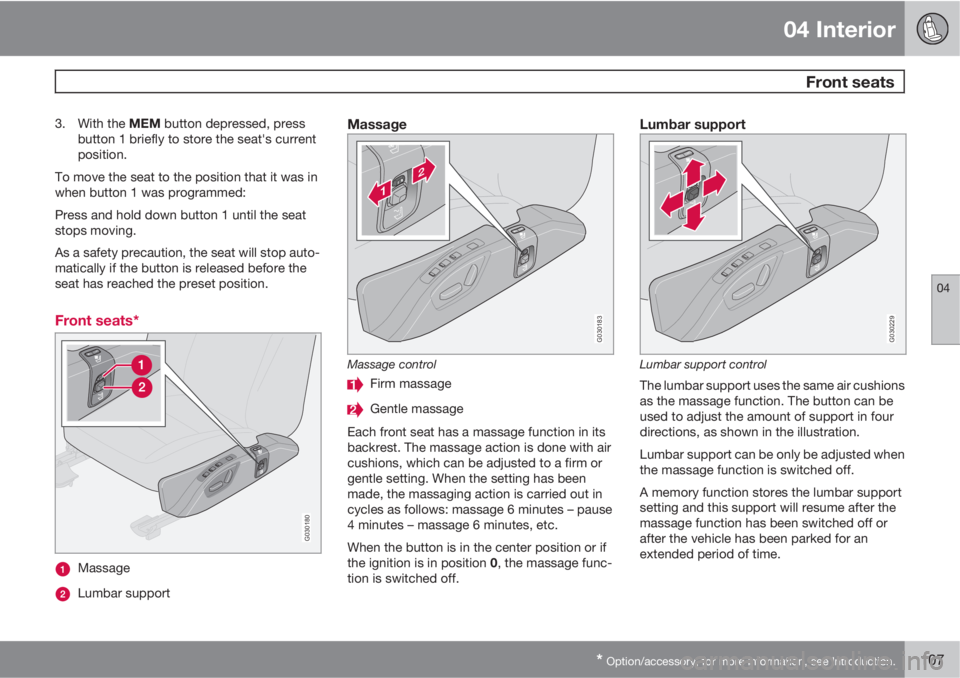

04 Interior
Front seats
04
* Option/accessory, for more information, see Introduction.107
3.
With the MEM button depressed, press
button 1 briefly to store the seat's current
position.
To move the seat to the position that it was in
when button 1 was programmed:
Press and hold down button 1 until the seat
stops moving.
As a safety precaution, the seat will stop auto-
matically if the button is released before the
seat has reached the preset position.
Front seats*
G030180
Massage
Lumbar support
Massage
G030183
Massage control
Firm massage
Gentle massage
Each front seat has a massage function in its
backrest. The massage action is done with air
cushions, which can be adjusted to a firm or
gentle setting. When the setting has been
made, the massaging action is carried out in
cycles as follows: massage 6 minutes – pause
4 minutes – massage 6 minutes, etc.
When the button is in the center position or if
the ignition is in position 0, the massage func-
tion is switched off.
Lumbar support
G030229
Lumbar support control
The lumbar support uses the same air cushions
as the massage function. The button can be
used to adjust the amount of support in four
directions, as shown in the illustration.
Lumbar support can be only be adjusted when
the massage function is switched off.
A memory function stores the lumbar support
setting and this support will resume after the
massage function has been switched off or
after the vehicle has been parked for an
extended period of time.

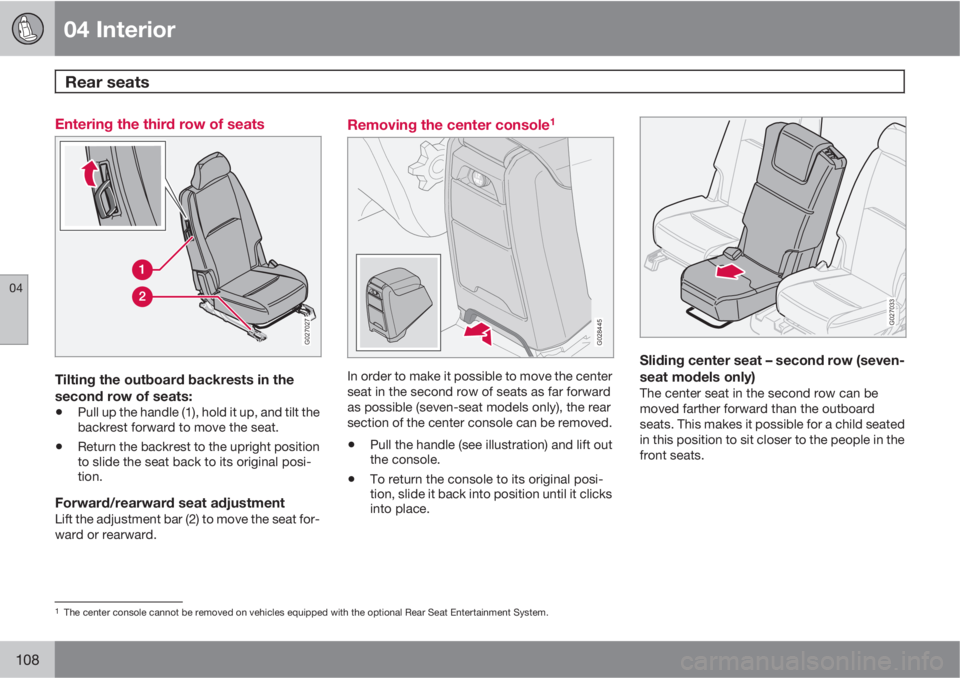

04 Interior
Rear seats
04
108
Entering the third row of seats
G027027
Tilting the outboard backrests in the
second row of seats:
•Pull up the handle (1), hold it up, and tilt the
backrest forward to move the seat.
•Return the backrest to the upright position
to slide the seat back to its original posi-
tion.
Forward/rearward seat adjustmentLift the adjustment bar (2) to move the seat for-
ward or rearward.
Removing the center console1
G028445
In order to make it possible to move the center
seat in the second row of seats as far forward
as possible (seven-seat models only), the rear
section of the center console can be removed.
•Pull the handle (see illustration) and lift out
the console.
•To return the console to its original posi-
tion, slide it back into position until it clicks
into place.
G027033
Sliding center seat – second row (seven-
seat models only)
The center seat in the second row can be
moved farther forward than the outboard
seats. This makes it possible for a child seated
in this position to sit closer to the people in the
front seats.
1The center console cannot be removed on vehicles equipped with the optional Rear Seat Entertainment System.
