VOLVO XC90 2013 Owner´s Manual

02 Instruments and controls
Instrument panel
02
59
Gear and driving mode indicator – The cur-
rently selected driving mode is displayed
here. If you use the Geartronic function on
the automatic transmission, the currently
selected gear will be displayed.
Ambient temperature gauge – This display
indicates the air temperature outside your
vehicle. A "snowflake" symbol in the text
window is displayed when the temperature
is in the range of 23 – 36 °F (–5 – +2 °C).
Please note that this symbol does not indi-
cate a fault with your vehicle. At low
speeds or when the vehicle is not moving,
the temperature readings may be slightly
higher than the actual ambient tempera-
ture.
Clock/set button – Turn the button to set
the clock.
Fuel gauge – see page 290 for fuel tank
volume. When the warning light in the
gauge comes on, the vehicle should be
refueled as soon as possible. The trip com-
puter section (see page 76) provides
more information on fuel level and con-
sumption.
Indicator and warning symbols – The indi-
cator and warning symbols1light up when
you turn the ignition key to the driving posi-
tion (position II) before starting.
G027134
This shows that the symbols are functioning.
When the engine starts, all symbols go out. If
the engine is not started within 5 seconds, all
symbols except CHECK ENGINE and
go out. Certain symbols may not have their
functions illustrated, depending on the vehi-
cle's equipment. The symbol for the parking
brake goes out when the parking brake is
released.
Warning/information symbol in center of
the instrument panel
This symbol shines as a red or yel-
low light depending on the nature
of the information displayed.
Red symbol – Stop the vehicle as soon as
possible in a suitable location and read the
message shown in the text window. The sym-
bol and accompanying text will remain on until
the fault has been corrected.
Yellow symbol – Follow the instructions
shown in the text window. The text can be
erased by pressing the READ button (see
page 62), or will disappear automatically after
two minutes.
NOTE
When the message TIME FOR REGULAR
SERVICE is displayed, the text can be
erased and the yellow symbol light can be
turned off by pressing the READ button.
The text will disappear and the symbol light
will go out automatically after two minutes.
1On certain engines, the symbol for low oil pressure is not used. Instead, a text warning is provided in the information display, see page 220.

02 Instruments and controls
Instrument panel
02
60
Seat belt reminderThis symbol lights up to indicate
that the driver has not fastened his/
her seat belt.
Supplemental Restraint System (SRS)If this light comes on while the
vehicle is being driven, or remains
on for longer than approximately
10 seconds after the vehicle has
been started, the SRS system's
diagnostic functions have detected a fault in a
seat belt lock or pretensioner, a front airbag,
side impact airbag, and/or an inflatable curtain.
Have the system(s) inspected by a trained and
qualified Volvo service technician as soon as
possible.
BRAKE – Brake failure warning lightIf the light comes on while driving or braking,
stop immediately, open the hood and check
the brake fluid level in the reservoir. see
page 223.
Canadian models are equipped
with this warning light.
If the BRAKE and ABS warning lights come
on at the same time, this could indicate a
fault in the brake system.
•Stop the vehicle in a suitable place and
switch off the engine.
•Restart the engine.
•If both warning lights go off, no further
action is required.
•If both lights are still on after the engine has
been restarted, switch off the engine again
and check the brake fluid level (see
page 223 for the location of the brake fluid
reservoir).
If the brake fluid level is above the MIN mark,
drive carefully to a trained and qualified Volvo
service technician and have the brake system
inspected.
WARNING
If the fluid level is below the MIN mark in the
reservoir or if a Brake failure – Service
urgent message is displayed in the text
window: DO NOT DRIVE. Have the vehicle
towed to a trained and qualified Volvo serv-
ice technician and have the brake system
inspected.
PARK BRAKE Parking brake appliedThis light will be on when the parking brake
(hand brake) is applied. The parking brake
pedal is located on the left side of the driver's
footwell, see page 80 for more information.
Canadian models are equipped
with this symbol.
Oil pressure warning light2
If the light comes on while driv-
ing, stop the vehicle and then
stop the engine immediately and
check the engine oil level, see
page 62. If the light stays on after
restart, have the vehicle towed to the nearest
trained and qualified Volvo service technician.
After hard driving, the light may come on occa-
sionally when the engine is idling. This is nor-
mal, provided it goes off when the engine
speed is increased.
Generator warning lightIf the light comes on while the
engine is running, have the charg-
ing system checked.
2On certain engines, the symbol for low oil pressure is not used. Instead, a text warning is provided in the information display, see page 62.

02 Instruments and controls
Instrument panel
02
61
Rear fog lightThis light indicates that the fog
light is on.
CHECK ENGINE Malfunction indicator
light
On-Board Diagnostics II (OBDII): As you drive,
a computer called "OBDII" monitors your vehi-
cle's engine, transmission, electrical and emis-
sion systems. The CHECK ENGINE light will
light up if the computer senses a condition that
potentially may need correcting. When this
happens, please have your vehicle checked by
a trained and qualified Volvo service technician
as soon as possible.
A CHECK ENGINE light may have many cau-
ses. Sometimes, you may not notice a change
in your vehicle's behavior. Even so, an uncor-
rected condition could hurt fuel economy,
emission cleanliness, and driveability.
Extended driving without correcting the cause
could even damage other components in your
vehicle.
Canadian models are equipped
with this symbol for the Malfunc-
tion Indicator Light.
ABS (Anti-lock brake system)If the warning light comes on, there
is a malfunction of the ABS system
(the standard braking system will
still function). The vehicle should
be driven to a trained and qualified
Volvo service technician for inspection. See
page 153 for additional information.
DSTC systemThe Dynamic Stability and Traction
Control system (DSTC) is
explained in greater detail on page
157.
Tire pressure monitoring lightSee page 200 for more informa-
tion on this function.
Turn signal indicator – trailer (certain
models)
If you are towing a trailer, this light
will flash simultaneously with the
turn signals on the trailer. If the
light does not flash when signaling,
neither the trailer's turn signals nor
the vehicle's turn signals are functioning.

02 Instruments and controls
Information display
02
62
Message in the text windows
G026979
When a warning light in the instrument panel
comes on, a message is also displayed in the
text window. After you have read the message,
you can erase it by pressing button A (see illus-
tration).
NOTE
Certain messages cannot be erased until
the condition has been corrected.
If a warning message is displayed when e.g.
you are using the trip computer, this message
must be erased before you can access thefunction of your choice. Press button A to erase
the warning message.
You can scroll through the stored messages by
pressing button A (see illustration). The text
window can be cleared (the message will be
returned to memory) by pressing button A
again.
MessageMeaning
BRAKE FAILURE STOP SAFELYAStop the car in a safe place and switch off the engine to help prevent the risk of serious damage.
COOLANT LOW STOP ENGINE BStop the car in a safe place and switch off the engine to help prevent the risk of serious damage.
BRAKE FLUID LOW SERVICE
URGENT CTake your vehicle to a trained and qualified Volvo service technician for inspection immediately.
HIGH ENGINE TEMP SEE MAN-
UAL DRefer to your owner's manual. For additional information, please contact your Volvo retailer.
ABS SERVICE REQUIREDETake your vehicle to a trained and qualified Volvo service technician for inspection at your convenience
(but preferably before the next scheduled maintenance service).

02 Instruments and controls
Information display
02
63

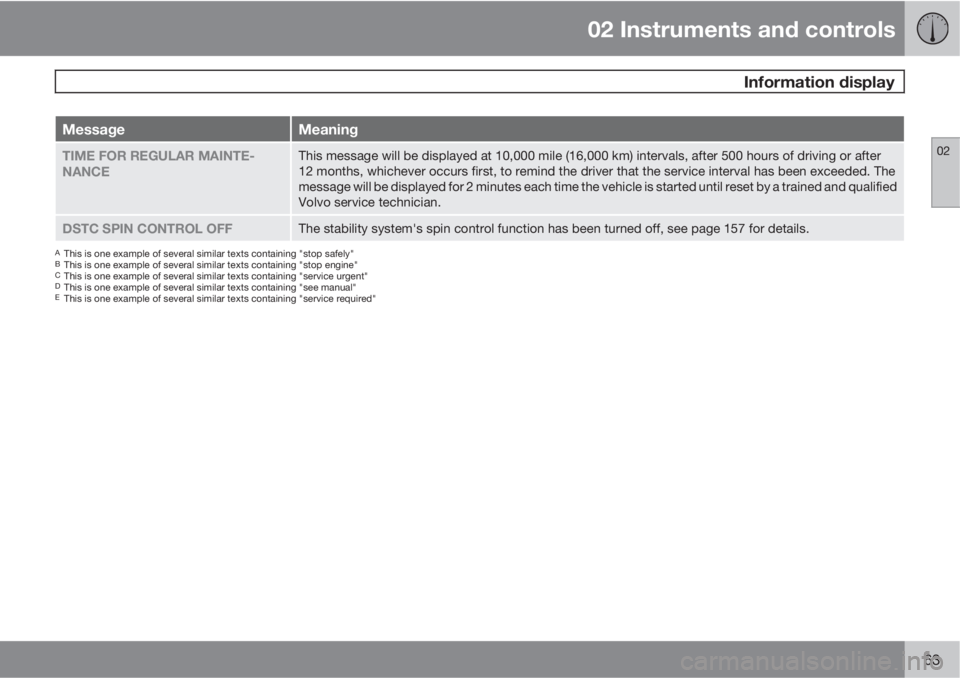

MessageMeaning
TIME FOR REGULAR MAINTE-
NANCEThis message will be displayed at 10,000 mile (16,000 km) intervals, after 500 hours of driving or after
12 months, whichever occurs first, to remind the driver that the service interval has been exceeded. The
message will be displayed for 2 minutes each time the vehicle is started until reset by a trained and qualified
Volvo service technician.
DSTC SPIN CONTROL OFFThe stability system's spin control function has been turned off, see page 157 for details.
AThis is one example of several similar texts containing "stop safely"BThis is one example of several similar texts containing "stop engine"CThis is one example of several similar texts containing "service urgent"DThis is one example of several similar texts containing "see manual"EThis is one example of several similar texts containing "service required"

02 Instruments and controls
Center console buttons
02
64* Option/accessory, for more information, see Introduction.
G026944
Active Bending Lights*The beams of these headlights
adjust laterally to help light up a
curve according to movements
of the steering wheel when the
vehicle is turning. This function
is activated automatically when
the engine is started and can be deactivated/
reactivated by pressing the button. The indica-
tor light in the button is on when the function is
activated, also see page 67.Rear seat air conditioning*This button controls the
optional rear seat air condition-
ing system.Folding door mirrors*Press the button and release it
to fold the door mirrors in or
out. On certain models, when
the button is pressed, there
may be a long pause before the
mirrors move. Pressing the but-
ton again during this pause may erase your first
button press. If this happens, wait ten seconds
and press the button one more time.
The mirrors cannot be adjusted during the first
ten seconds after they have been folded out.

02 Instruments and controls
Center console buttons
02
* Option/accessory, for more information, see Introduction.65
NOTE
If the door mirrors have been inadvertently
pushed out of position (in a car wash, park-
ing lot, etc.) manually return them to normal
position. If mirror adjustment does not seem
to operate after manual folding, reset the
folding mirrors as follows:
•Turn the ignition key to position II.
•Manually fold the mirror(s) to the normal
position.
•Press the button to fold both mirrors in.
•Press the button again to fold the mir-
rors out to their normal position.
Park Assist*This system provides an audi-
ble warning when the vehicle is
being parked or if it is driven
close to a person or object. For
more information see
page 159.
NOTE
The system activates automatically when
the engine is started, and can be deacti-
vated by pressing this button (e.g. when
towing a trailer) or reactivated if necessary.
Auxiliary lightsThis button is used to switch on
auxiliary lights (if installed). A
light in the button will light up to
indicate that the auxiliary lights
are illuminated.
12-volt socketsThe 12-volt sockets can be
used to plug in certain acces-
sories such as cell phones, etc.
The ignition key must be in
position I (or higher) for the aux-
iliary socket to function.
The maximum current consumption is 10A
(120W) if only one of the 12-volt sockets is in
use. If both the front and rear sockets are used
at the same time, the maximum current con-
sumption per socket is 7.5A (90W).
NOTE
The auxiliary sockets can also be used for
cigarette lighters, which are available as
accessories at your Volvo retailer.
Power child locks*For more information on this
function, see page 132.

02 Instruments and controls

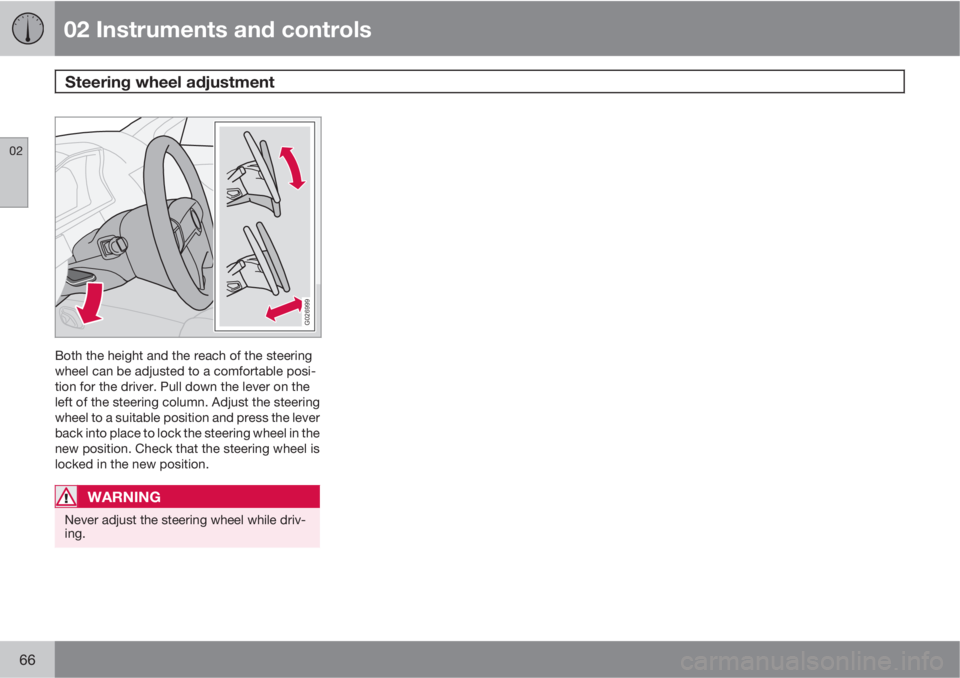

Steering wheel adjustment
02
66
G026999
Both the height and the reach of the steering
wheel can be adjusted to a comfortable posi-
tion for the driver. Pull down the lever on the
left of the steering column. Adjust the steering
wheel to a suitable position and press the lever
back into place to lock the steering wheel in the
new position. Check that the steering wheel is
locked in the new position.
WARNING
Never adjust the steering wheel while driv-
ing.

02 Instruments and controls

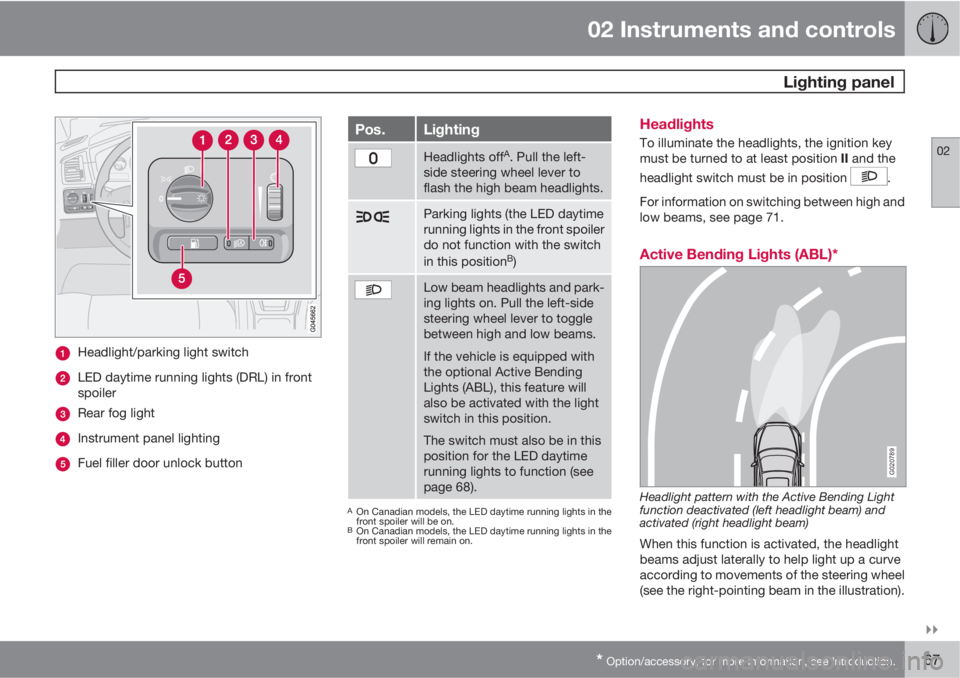

Lighting panel
02

* Option/accessory, for more information, see Introduction.67
Headlight/parking light switch
LED daytime running lights (DRL) in front
spoiler
Rear fog light
Instrument panel lighting
Fuel filler door unlock button
Pos.Lighting
Headlights offA. Pull the left-
side steering wheel lever to
flash the high beam headlights.
Parking lights (the LED daytime
running lights in the front spoiler
do not function with the switch
in this position
B)
Low beam headlights and park-
ing lights on. Pull the left-side
steering wheel lever to toggle
between high and low beams.
If the vehicle is equipped with
the optional Active Bending
Lights (ABL), this feature will
also be activated with the light
switch in this position.
The switch must also be in this
position for the LED daytime
running lights to function (see
page 68).
AOn Canadian models, the LED daytime running lights in the
front spoiler will be on.
BOn Canadian models, the LED daytime running lights in the
front spoiler will remain on.
Headlights
To illuminate the headlights, the ignition key
must be turned to at least position II and the
headlight switch must be in position
.
For information on switching between high and
low beams, see page 71.
Active Bending Lights (ABL)*
G020789
Headlight pattern with the Active Bending Light
function deactivated (left headlight beam) and
activated (right headlight beam)
When this function is activated, the headlight
beams adjust laterally to help light up a curve
according to movements of the steering wheel
(see the right-pointing beam in the illustration).

02 Instruments and controls
Lighting panel
02
68

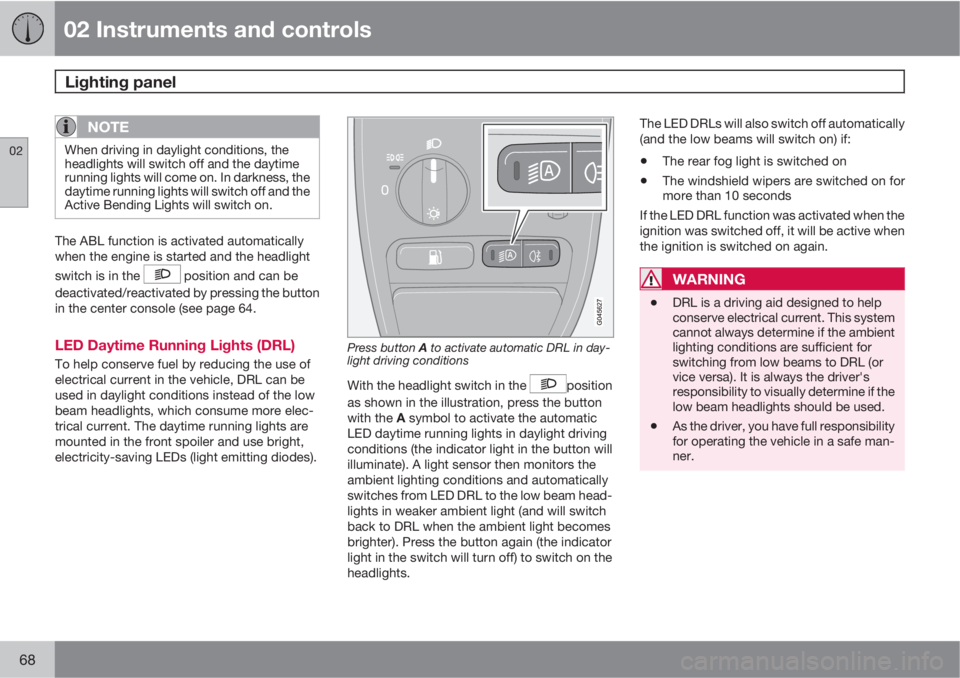

NOTE
When driving in daylight conditions, the
headlights will switch off and the daytime
running lights will come on. In darkness, the
daytime running lights will switch off and the
Active Bending Lights will switch on.
The ABL function is activated automatically
when the engine is started and the headlight
switch is in the
position and can be
deactivated/reactivated by pressing the button
in the center console (see page 64.
LED Daytime Running Lights (DRL)
To help conserve fuel by reducing the use of
electrical current in the vehicle, DRL can be
used in daylight conditions instead of the low
beam headlights, which consume more elec-
trical current. The daytime running lights are
mounted in the front spoiler and use bright,
electricity-saving LEDs (light emitting diodes).
Press button A to activate automatic DRL in day-
light driving conditions
With the headlight switch in the position
as shown in the illustration, press the button
with the A symbol to activate the automatic
LED daytime running lights in daylight driving
conditions (the indicator light in the button will
illuminate). A light sensor then monitors the
ambient lighting conditions and automatically
switches from LED DRL to the low beam head-
lights in weaker ambient light (and will switch
back to DRL when the ambient light becomes
brighter). Press the button again (the indicator
light in the switch will turn off) to switch on the
headlights.The LED DRLs will also switch off automatically
(and the low beams will switch on) if:
•The rear fog light is switched on
•The windshield wipers are switched on for
more than 10 seconds
If the LED DRL function was activated when the
ignition was switched off, it will be active when
the ignition is switched on again.
WARNING
•DRL is a driving aid designed to help
conserve electrical current. This system
cannot always determine if the ambient
lighting conditions are sufficient for
switching from low beams to DRL (or
vice versa). It is always the driver's
responsibility to visually determine if the
low beam headlights should be used.
•As the driver, you have full responsibility
for operating the vehicle in a safe man-
ner.
