VOLVO XC90 2014 Owner´s Manual

04 Interior

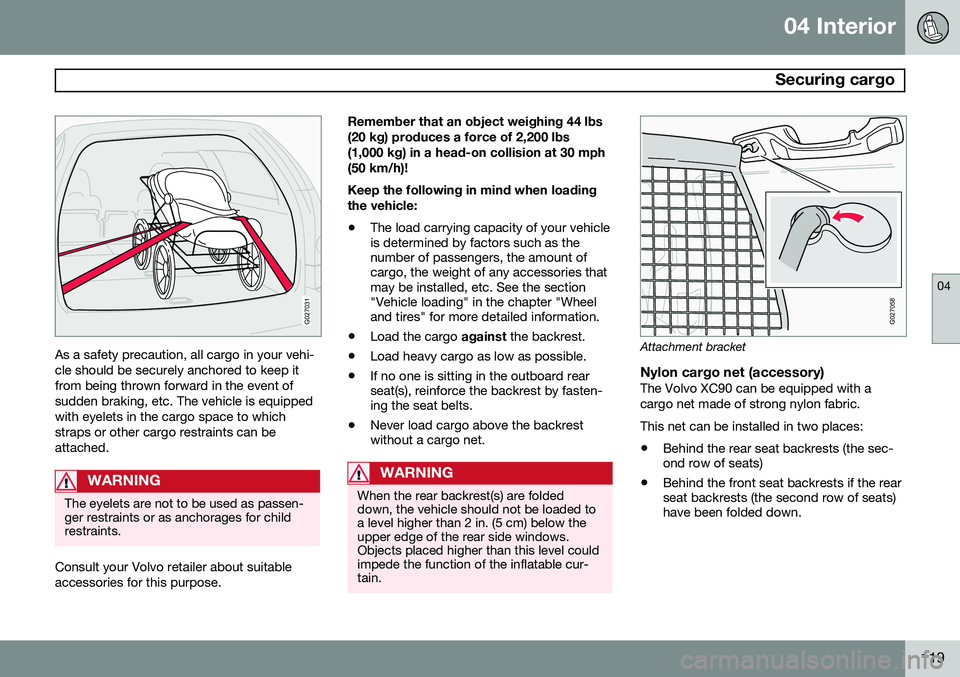

Securing cargo
04
119
G027031
As a safety precaution, all cargo in your vehi- cle should be securely anchored to keep itfrom being thrown forward in the event ofsudden braking, etc. The vehicle is equippedwith eyelets in the cargo space to whichstraps or other cargo restraints can beattached.
WARNING
The eyelets are not to be used as passen- ger restraints or as anchorages for childrestraints.
Consult your Volvo retailer about suitable accessories for this purpose.Remember that an object weighing 44 lbs(20 kg) produces a force of 2,200 lbs(1,000 kg) in a head-on collision at 30 mph(50 km/h)! Keep the following in mind when loading the vehicle:
• The load carrying capacity of your vehicle is determined by factors such as thenumber of passengers, the amount ofcargo, the weight of any accessories thatmay be installed, etc. See the section"Vehicle loading" in the chapter "Wheeland tires" for more detailed information.
• Load the cargo
against the backrest.
• Load heavy cargo as low as possible.
• If no one is sitting in the outboard rearseat(s), reinforce the backrest by fasten-ing the seat belts.
• Never load cargo above the backrestwithout a cargo net.
WARNING
When the rear backrest(s) are folded down, the vehicle should not be loaded toa level higher than 2 in. (5 cm) below theupper edge of the rear side windows.Objects placed higher than this level couldimpede the function of the inflatable cur-tain.
G027058
Attachment bracket
Nylon cargo net (accessory)The Volvo XC90 can be equipped with a cargo net made of strong nylon fabric. This net can be installed in two places:
• Behind the rear seat backrests (the sec- ond row of seats)
• Behind the front seat backrests if the rearseat backrests (the second row of seats)have been folded down.

04 Interior
Securing cargo
04
120

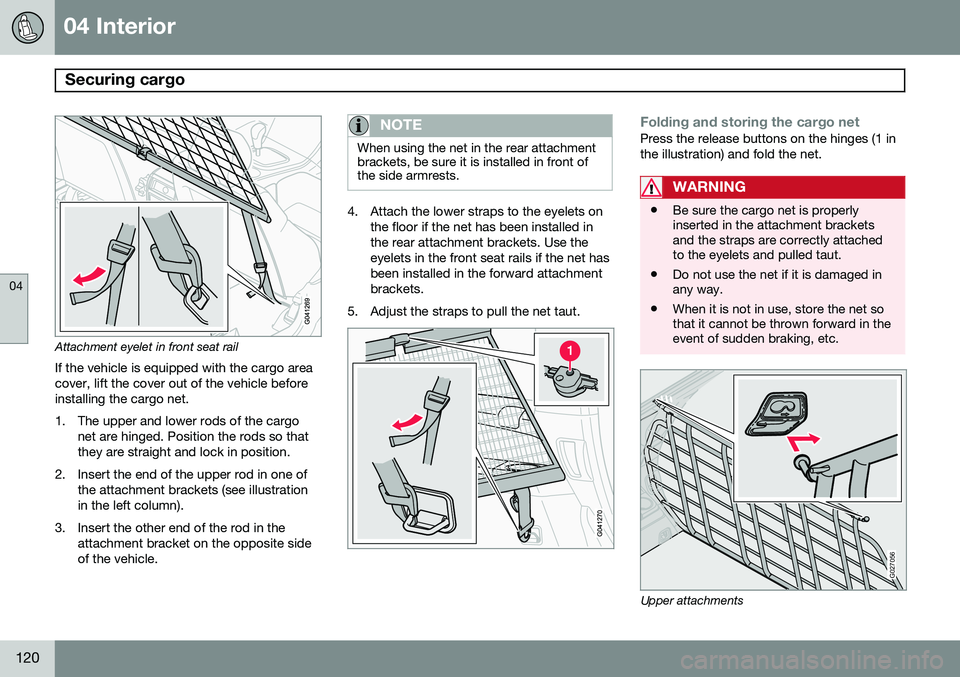

Attachment eyelet in front seat rail
If the vehicle is equipped with the cargo area cover, lift the cover out of the vehicle beforeinstalling the cargo net.
1. The upper and lower rods of the cargo net are hinged. Position the rods so that they are straight and lock in position.
2. Insert the end of the upper rod in one of the attachment brackets (see illustrationin the left column).
3. Insert the other end of the rod in the attachment bracket on the opposite sideof the vehicle.
NOTE
When using the net in the rear attachment brackets, be sure it is installed in front ofthe side armrests.
4. Attach the lower straps to the eyelets onthe floor if the net has been installed in the rear attachment brackets. Use theeyelets in the front seat rails if the net hasbeen installed in the forward attachmentbrackets.
5. Adjust the straps to pull the net taut.
Folding and storing the cargo netPress the release buttons on the hinges (1 in the illustration) and fold the net.
WARNING
• Be sure the cargo net is properly inserted in the attachment bracketsand the straps are correctly attachedto the eyelets and pulled taut.
• Do not use the net if it is damaged inany way.
• When it is not in use, store the net sothat it cannot be thrown forward in theevent of sudden braking, etc.
G027056
Upper attachments

04 Interior
Securing cargo
04
121

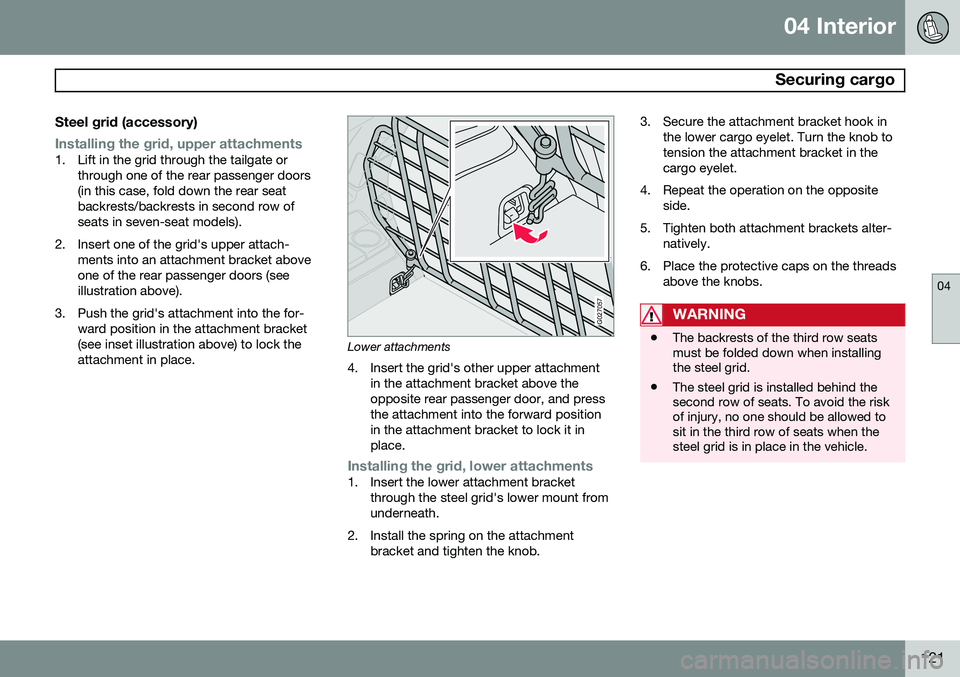

Steel grid (accessory)
Installing the grid, upper attachments1. Lift in the grid through the tailgate orthrough one of the rear passenger doors (in this case, fold down the rear seatbackrests/backrests in second row ofseats in seven-seat models).
2. Insert one of the grid's upper attach- ments into an attachment bracket aboveone of the rear passenger doors (seeillustration above).
3. Push the grid's attachment into the for- ward position in the attachment bracket(see inset illustration above) to lock theattachment in place.
G027057
Lower attachments
4. Insert the grid's other upper attachment in the attachment bracket above the opposite rear passenger door, and pressthe attachment into the forward positionin the attachment bracket to lock it inplace.
Installing the grid, lower attachments1. Insert the lower attachment bracketthrough the steel grid's lower mount from underneath.
2. Install the spring on the attachment bracket and tighten the knob. 3. Secure the attachment bracket hook in
the lower cargo eyelet. Turn the knob totension the attachment bracket in thecargo eyelet.
4. Repeat the operation on the opposite side.
5. Tighten both attachment brackets alter- natively.
6. Place the protective caps on the threads above the knobs.
WARNING
•The backrests of the third row seats must be folded down when installingthe steel grid.
• The steel grid is installed behind thesecond row of seats. To avoid the riskof injury, no one should be allowed tosit in the third row of seats when thesteel grid is in place in the vehicle.

04 Interior
Securing cargo
04
122* Option/accessory, for more information, see Introduction.
G027055

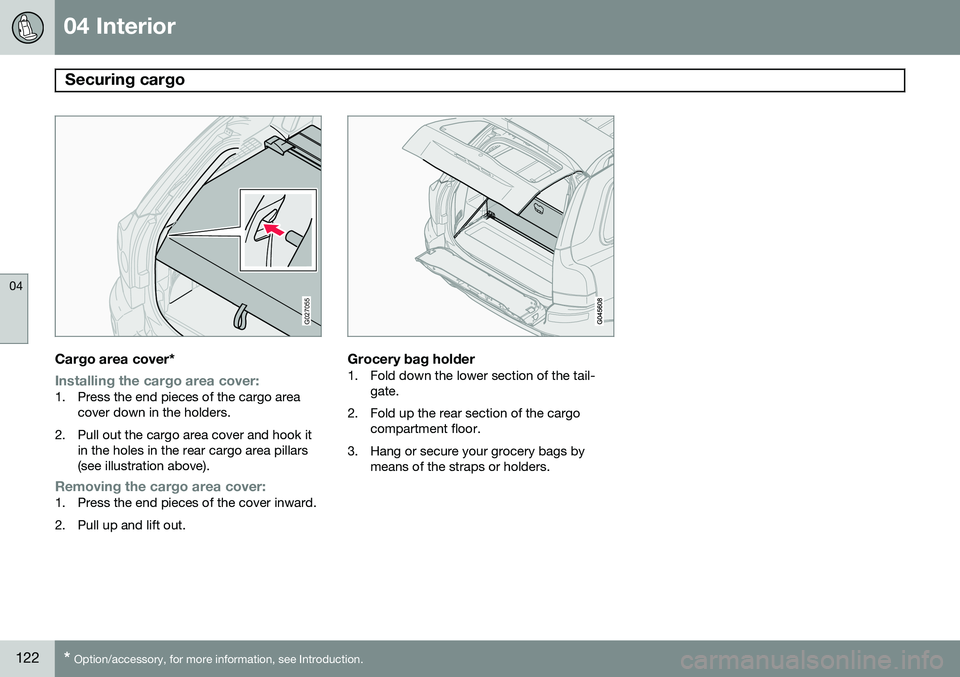

Cargo area cover*
Installing the cargo area cover:1. Press the end pieces of the cargo area
cover down in the holders.
2. Pull out the cargo area cover and hook it in the holes in the rear cargo area pillars (see illustration above).
Removing the cargo area cover:1. Press the end pieces of the cover inward.
2. Pull up and lift out.
Grocery bag holder1. Fold down the lower section of the tail-gate.
2. Fold up the rear section of the cargo compartment floor.
3. Hang or secure your grocery bags by means of the straps or holders.

04 Interior

04
123

124

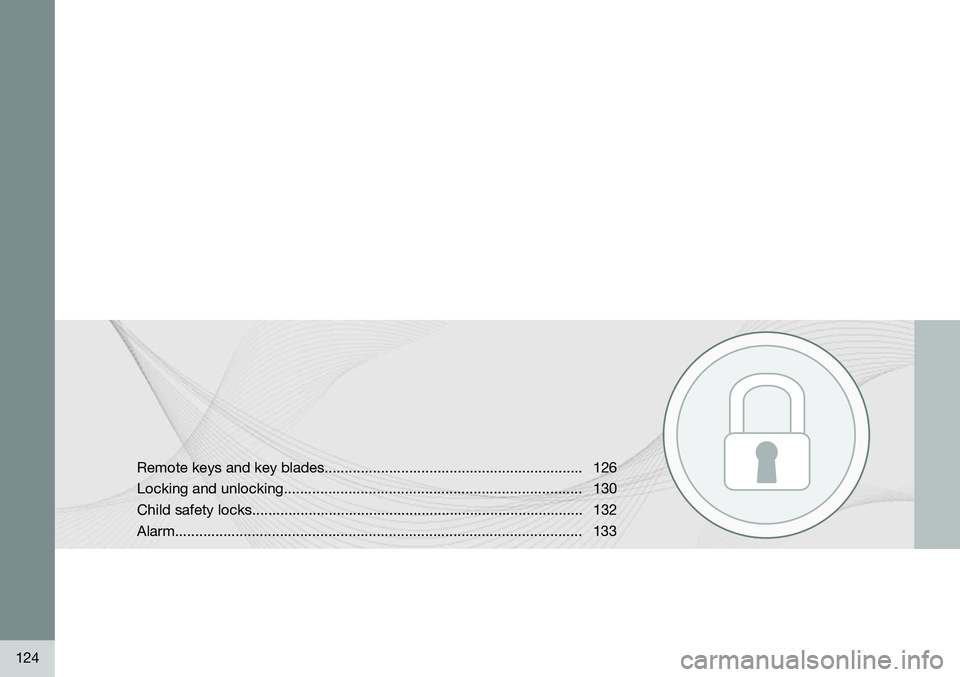

Remote keys and key blades................................................................ 126
Locking and unlocking.......................................................................... 130
Child safety locks..................................................................................132Alarm..................................................................................................... 133

L O C K S A N D A L A R M

05 Locks and alarm
Remote keys and key blades
05
126
Key blades
Your vehicle is equipped with two coded remote key transmitters with integrated igni-tion key blades called Key Integrated Remote(KIR). To unlock/lock the vehicle using the key blade:
1. If necessary, press button (1) to fold outthe key blade.
2. Insert the key blade in the driver's door lock and turn it once to unlock the driv-
er's door only .
3. Turn the key blade again (within 10 sec- onds) to unlock all doors and the tailgate. 4. Turn the key blade once in the opposite
direction to lock all doors and the tailgate.
Use the switch on the driver's door armrest to lock/unlock the vehicle from the inside.
WARNING
If the doors are locked while driving, this may hinder rapid access to the occupantsof the vehicle in the event of an accident.(Also see information on "Child safetylocks".)
NOTE
To help prevent accidentally locking the keys in the vehicle, the central locking sys-tem is designed to unlock the doors imme-diately if the key is left in the ignitionswitch, the vehicle is locked using the lockbutton on the door and the door is thenclosed. A sound from the lock will be audi-ble at this time. Please note that this function will not unlock the doors if the engine is running.
Immobilizer (start inhibitor)Each of the keys supplied with your vehicle contains a coded transmitter. The code in thekey is transmitted to an antenna in the igni-tion switch where it is compared to the code stored in the start inhibitor module. The vehi-cle will start only with a properly coded key. Each key has a unique code, which your Volvo retailer uses if new keys are required. Amaximum of six remote keys can be pro-grammed and used for one vehicle. If you misplace a key, take the other keys to an authorized Volvo retailer for reprogram-ming as an antitheft measure. If two of the keys to your vehicle are close together, e.g., on the same key ring, whenyou try to start the vehicle, this could causeinterference in the immobilizer system andresult in the vehicle not starting. If this shouldoccur, remove one of the keys from the keyring before trying to start the vehicle again.
NOTE
This device complies with part 15 of the FCC rules. Operation is subject to the fol-lowing condition: (1) This device may notcause harmful interference, and (2) thisdevice must accept any interferencereceived, including interference that maycause undesired operation.

05 Locks and alarm
Remote keys and key blades
05
127

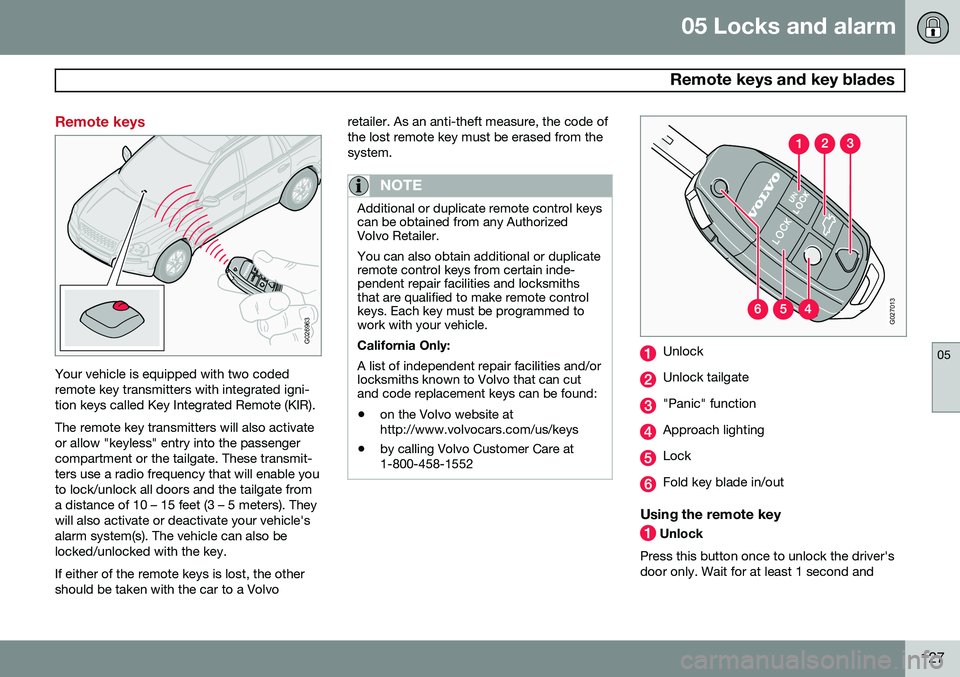

Remote keys
G026963
Your vehicle is equipped with two coded remote key transmitters with integrated igni-tion keys called Key Integrated Remote (KIR). The remote key transmitters will also activate or allow "keyless" entry into the passengercompartment or the tailgate. These transmit-ters use a radio frequency that will enable youto lock/unlock all doors and the tailgate froma distance of 10 – 15 feet (3 – 5 meters). Theywill also activate or deactivate your vehicle'salarm system(s). The vehicle can also belocked/unlocked with the key. If either of the remote keys is lost, the other should be taken with the car to a Volvoretailer. As an anti-theft measure, the code ofthe lost remote key must be erased from thesystem.
NOTE
Additional or duplicate remote control keys can be obtained from any AuthorizedVolvo Retailer. You can also obtain additional or duplicate remote control keys from certain inde-pendent repair facilities and locksmithsthat are qualified to make remote controlkeys. Each key must be programmed towork with your vehicle. California Only: A list of independent repair facilities and/or locksmiths known to Volvo that can cutand code replacement keys can be found:
• on the Volvo website at http://www.volvocars.com/us/keys
• by calling Volvo Customer Care at1-800-458-1552
G027013
Unlock
Unlock tailgate
"Panic" function
Approach lighting
Lock
Fold key blade in/out
Using the remote key
Unlock
Press this button once to unlock the driver's door only. Wait for at least 1 second and

05 Locks and alarm
Remote keys and key blades
05
128
press the button again (within 10 seconds) to unlock all doors, and the tailgate.
Tailgate unlock
Press this button to unlock the tailgate (with- out unlocking the other doors). This functionwill not open the tailgate.
Panic function
For more information on this function, see page 133.
Approach lighting
Press this button when approaching the vehi- cle at night to light up the interior courtesylight, parking lights, license plate lights andthe lights in the door mirrors.
Lock
Press once to lock all doors, and the tailgate.
Fold key blade in/out
Press to extend the key blade. This button must also be pressed when the key blade isfolded back into the slot in the side of theremote key unit.
NOTE
• If an airbag deploys, your vehicle's SRS control module will attempt toautomatically unlock all doors.
• The key blade may also be used tolock and unlock the doors, and to acti-vate and deactivate the alarm system.
• To avoid leaving your keys in the vehi-cle, make a habit of always locking thevehicle with the remote key.
• If the key blade section of the remoteis not fully folded out when starting thevehicle, the immobilizer function maymake it impossible to start the engine.
• The vehicle can be locked even if adoor is open. When the door(s) areclosed, they will be locked. Please beaware that the keys could be locked inthe car when this is done.
Automatic re-lockingIf the doors are unlocked, the locks will auto- matically reengage (re-lock) and the alarm willrearm after 2 minutes unless a door or thetailgate has been opened. This helps preventthe car from inadvertently being left unlocked. FCC ID: LQNP2T-APU This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device may not causeharmful interference, and (2) this device mustaccept any interference received, includinginterference that may cause undesired opera-tion. Canadian 2306104388 Model 504 2927 by Donnelly Operation is subject to the following condi- tions: (1) this device may not cause interfer-ence, and (2) this device must accept anyinterference, including interference that maycause undesired operation of the device. Canadian 2306104388A Model 509 977 by Connaught Electronics Operation is subject to the following condi- tions: (1) this device may not cause interfer-ence, and (2) this device must accept anyinterference, including interference that maycause undesired operation of the device.
