VOLVO XC90 2014 Owner´s Manual

04 Interior
Rear seats
04
109
G027015

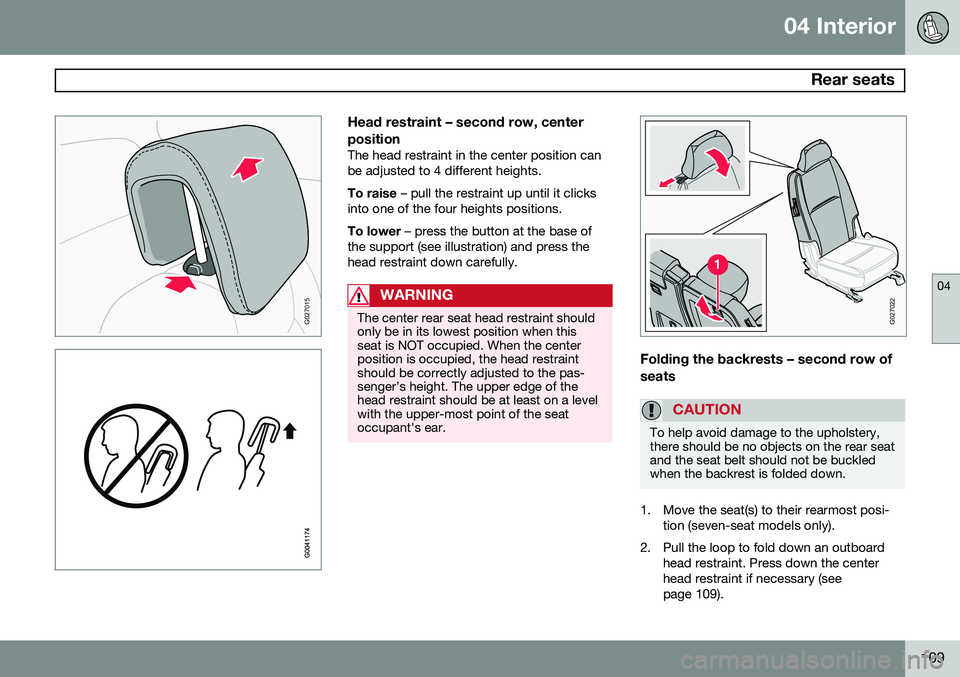

Head restraint – second row, center position
The head restraint in the center position can be adjusted to 4 different heights. To raise – pull the restraint up until it clicks
into one of the four heights positions.To lower – press the button at the base of
the support (see illustration) and press the head restraint down carefully.
WARNING
The center rear seat head restraint should only be in its lowest position when thisseat is NOT occupied. When the centerposition is occupied, the head restraintshould be correctly adjusted to the pas-senger’s height. The upper edge of thehead restraint should be at least on a levelwith the upper-most point of the seatoccupant's ear.G027022
Folding the backrests – second row of seats
CAUTION
To help avoid damage to the upholstery, there should be no objects on the rear seatand the seat belt should not be buckledwhen the backrest is folded down.
1. Move the seat(s) to their rearmost posi- tion (seven-seat models only).
2. Pull the loop to fold down an outboard head restraint. Press down the center head restraint if necessary (seepage 109).

04 Interior
Rear seats
04
110
3. Pull the handle (1) outward to release thebackrest. The backrests are designed to lock at a 45 degree angle. Pull the handleagain to continue pressing it down until itlocks in the horizontal position.
To return the backrests to the upright posi-tion, pull handle 1 and pull the backrest up.
G027016
Folding the backrests—third row of seats
Folding down the backrest If necessary, fold in the load anchorage eye- lets before folding down the backrests. 1. Move the seats in the second row as far
forward as possible, see page 108.
2. Pull up the handle (see illustration 1).
3. Push the seat cushion firmly rearward, under the backrest (see illustration 2).
4. Fold down the backrests 2
(the head
restraints fold down automatically) to the horizontal position.
WARNING
The seats in the third row are not equipped with top tether anchors or ISOFIX/LATCHlower child seat anchors. Child restraintsystems should never be used on theseseats.
Returning the backrest to the upright position
1. Fold up the backrest to the upright posi- tion.
2. Grasp the strap (see illustration 3) and pull the seat cushion out until it locks in place. This also locks the backrest in theupright position.
WARNING
•When one or more sections of the backrest is returned to the uprightposition, check that it is properlylocked in place by pushing and pullingit. The red indicators should also notbe visible.
• Return the outboard head restraints tothe upright position.
• Long loads should always be securelyanchored to help avoid injury in theevent of a sudden stop.
• Always turn the engine off and applythe parking brake when loading/unloading the vehicle.
• Place the transmission in the Park (
P)
position to help prevent inadvertentmovement of the gear selector.
• On hot days, the temperature in thevehicle interior can rise very quickly.Exposure of people to these high tem-peratures for even a short period oftime can cause heat-related injury ordeath. Small children are particularly atrisk.
2
Please note that the head restraints in this row cannot be vertically adjusted.

04 Interior
Interior lighting
04
}}
111

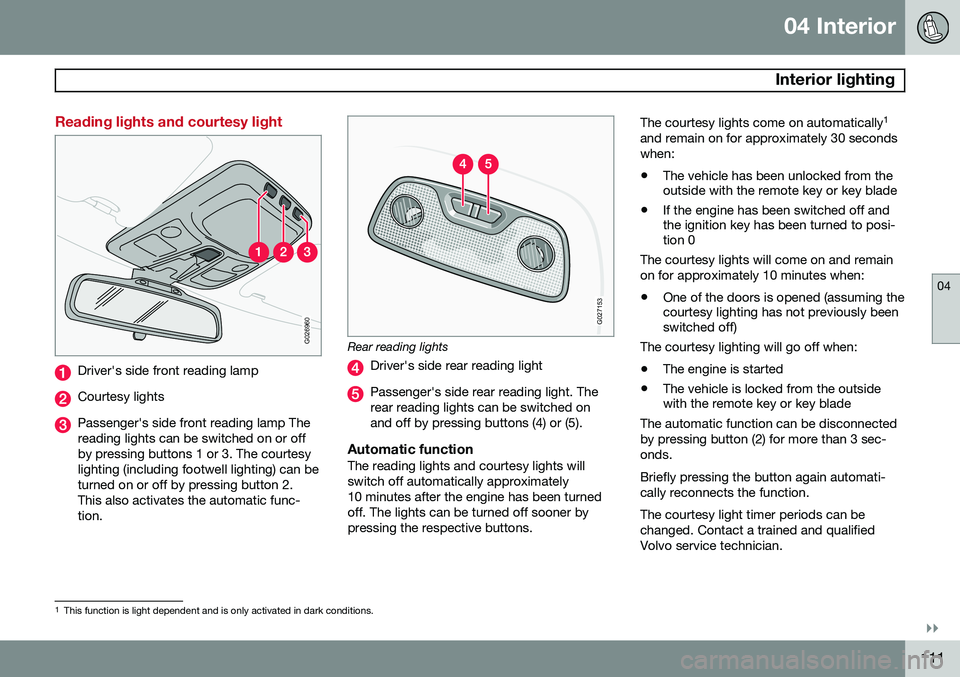

Reading lights and courtesy light
G026960
Driver's side front reading lamp
Courtesy lights
Passenger's side front reading lamp The reading lights can be switched on or offby pressing buttons 1 or 3. The courtesylighting (including footwell lighting) can beturned on or off by pressing button 2.This also activates the automatic func-tion.
G027153
Rear reading lights
Driver's side rear reading light
Passenger's side rear reading light. The rear reading lights can be switched onand off by pressing buttons (4) or (5).
Automatic functionThe reading lights and courtesy lights willswitch off automatically approximately10 minutes after the engine has been turnedoff. The lights can be turned off sooner bypressing the respective buttons.The courtesy lights come on automatically
1
and remain on for approximately 30 secondswhen: • The vehicle has been unlocked from the outside with the remote key or key blade
• If the engine has been switched off andthe ignition key has been turned to posi-tion 0
The courtesy lights will come on and remain on for approximately 10 minutes when:
• One of the doors is opened (assuming the courtesy lighting has not previously beenswitched off)
The courtesy lighting will go off when:
• The engine is started
• The vehicle is locked from the outsidewith the remote key or key blade
The automatic function can be disconnected by pressing button (2) for more than 3 sec-onds. Briefly pressing the button again automati- cally reconnects the function. The courtesy light timer periods can be changed. Contact a trained and qualifiedVolvo service technician.
1 This function is light dependent and is only activated in dark conditions.

04 Interior
Interior lighting
04
112

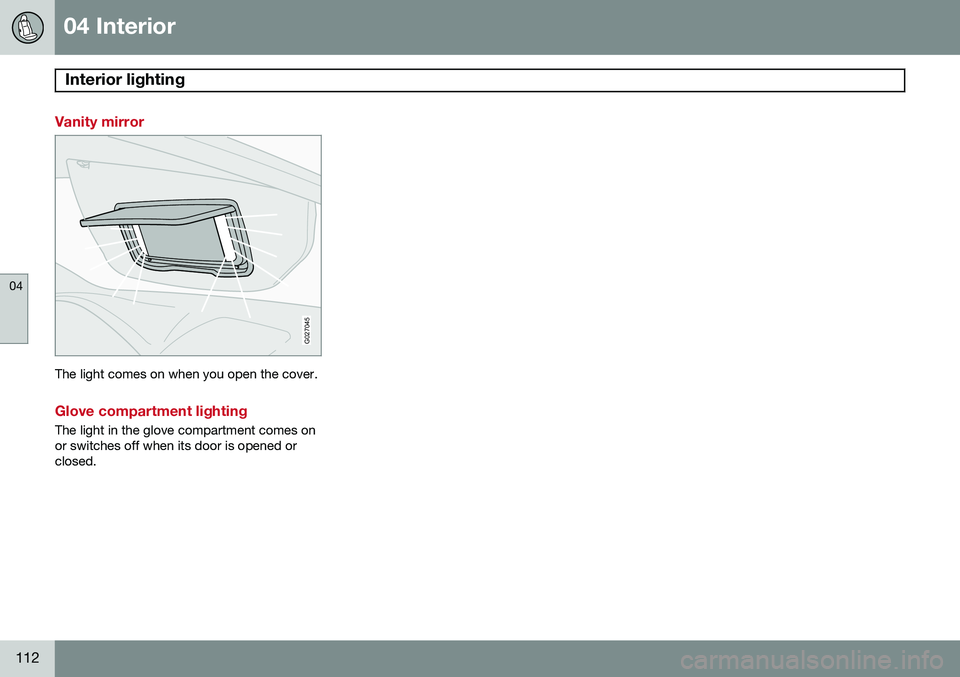

Vanity mirror
G027045
The light comes on when you open the cover.
Glove compartment lighting
The light in the glove compartment comes on or switches off when its door is opened orclosed.

04 Interior
Interior lighting
04
113

04 Interior
Storage compartments
04
114

04 Interior
Storage compartments
04
* Option/accessory, for more information, see Introduction.115

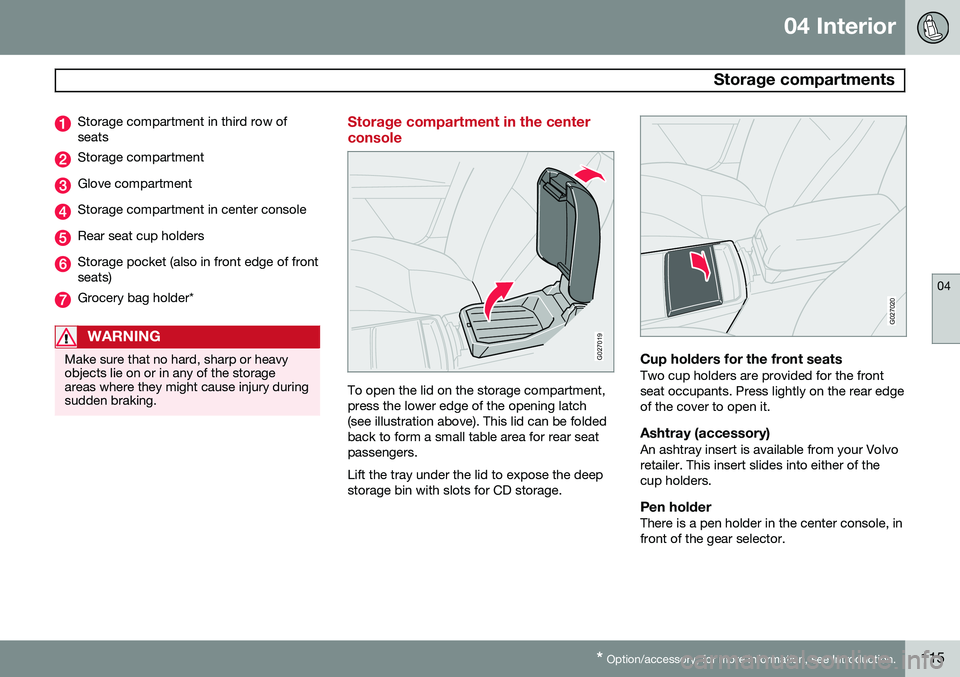

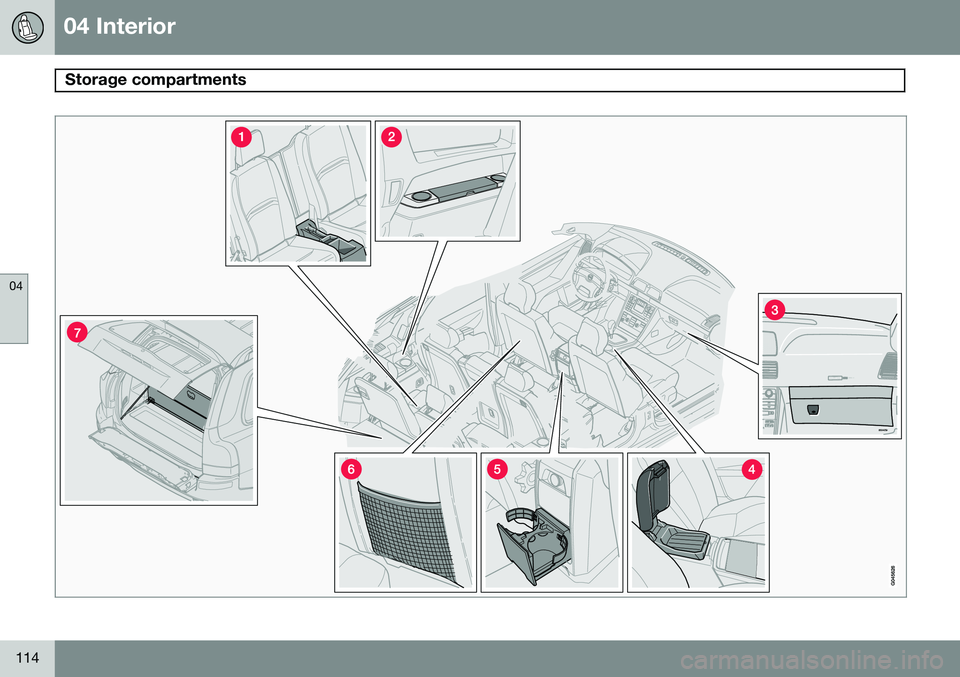

Storage compartment in third row of seats
Storage compartment
Glove compartment
Storage compartment in center console
Rear seat cup holders
Storage pocket (also in front edge of front seats)
Grocery bag holder*
WARNING
Make sure that no hard, sharp or heavy objects lie on or in any of the storageareas where they might cause injury duringsudden braking.
Storage compartment in the center console
G027019
To open the lid on the storage compartment, press the lower edge of the opening latch(see illustration above). This lid can be foldedback to form a small table area for rear seatpassengers. Lift the tray under the lid to expose the deep storage bin with slots for CD storage.
G027020
Cup holders for the front seatsTwo cup holders are provided for the front seat occupants. Press lightly on the rear edgeof the cover to open it.
Ashtray (accessory)An ashtray insert is available from your Volvoretailer. This insert slides into either of thecup holders.
Pen holderThere is a pen holder in the center console, infront of the gear selector.

04 Interior
Storage compartments
04
116
G027018

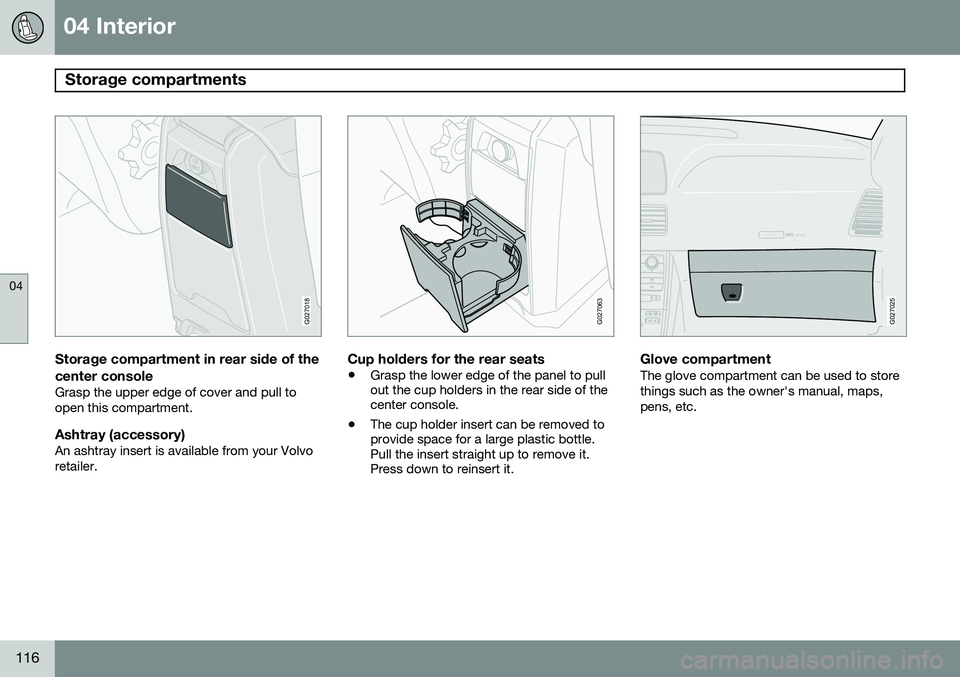

Storage compartment in rear side of the
center console
Grasp the upper edge of cover and pull to open this compartment.
Ashtray (accessory)An ashtray insert is available from your Volvoretailer.
G027063
Cup holders for the rear seats
• Grasp the lower edge of the panel to pull out the cup holders in the rear side of thecenter console.
• The cup holder insert can be removed toprovide space for a large plastic bottle.Pull the insert straight up to remove it.Press down to reinsert it.
ATTENTIONPakjdskdl ioiuip kjöpp opoodidåuswi
CSOUND
MENU
80
ENTERLSEEEXITMY KEYRTO
AIRBAG
G027025
Glove compartmentThe glove compartment can be used to store things such as the owner's manual, maps,pens, etc.

04 Interior
Storage compartments
04
117
G027028

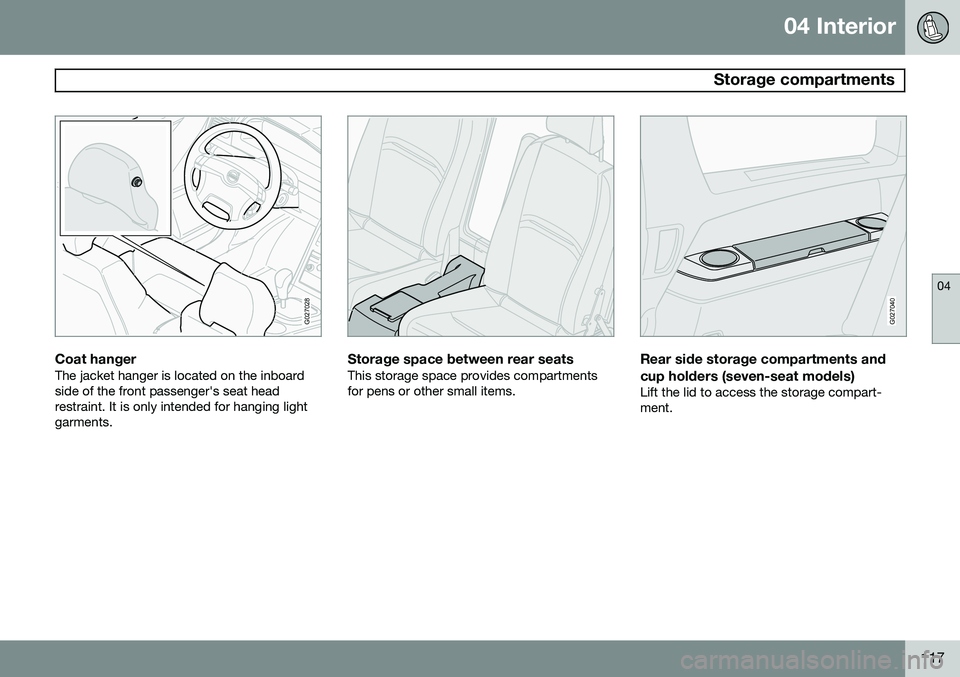

Coat hangerThe jacket hanger is located on the inboard side of the front passenger's seat headrestraint. It is only intended for hanging lightgarments.
G027026
Storage space between rear seatsThis storage space provides compartments for pens or other small items.
G027040
Rear side storage compartments and cup holders (seven-seat models)
Lift the lid to access the storage compart- ment.

04 Interior
Storage compartments
04
118* Option/accessory, for more information, see Introduction.

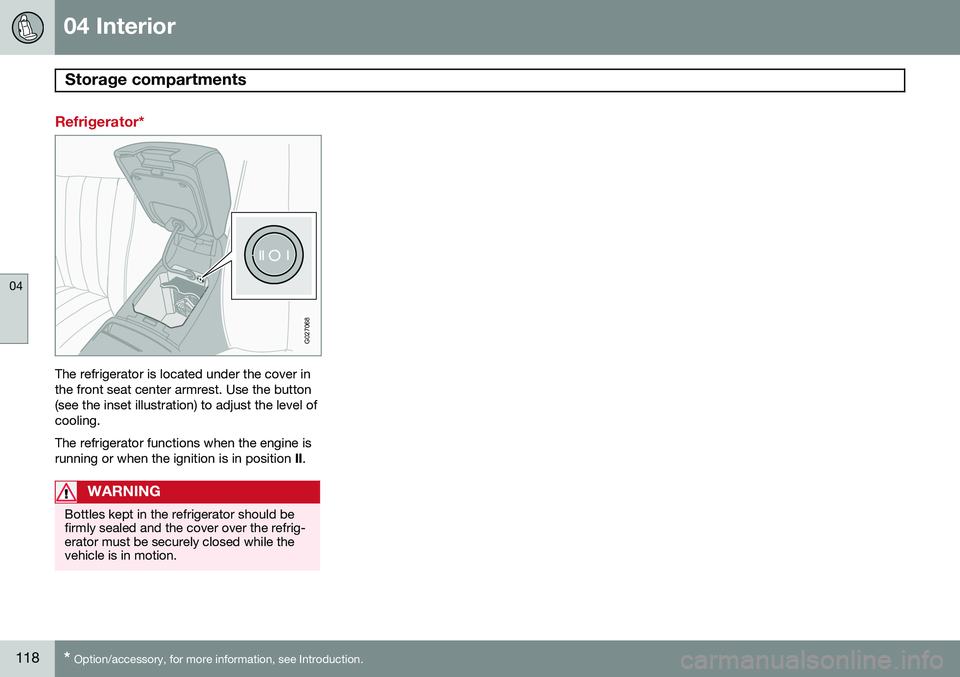

Refrigerator*
G027068
The refrigerator is located under the cover in the front seat center armrest. Use the button(see the inset illustration) to adjust the level ofcooling. The refrigerator functions when the engine is running or when the ignition is in position II.
WARNING
Bottles kept in the refrigerator should be firmly sealed and the cover over the refrig-erator must be securely closed while thevehicle is in motion.
