MAINTENANCE AND SERVICING
}}
* Option/accessory, for more information, see Introduction.547
Refilling the windshield washer fluidreservoir
Washer fluid helps keep the windshield andheadlights clean.
The windshield and headlight washers* share acommon reservoir. Open the blue cap to refillwasher fluid (see the illustration for the locationof the reservoir).
During cold weather, the reservoir should be filledwith windshield washer solvent containing anti-freeze. Use Volvo Original Washer Fluid or theequivalent with a recommended pH valuebetween 6 and 8 in a 1:1 solution.
When there is approx. 1 qt (1 liter) of washerfluid remaining in the reservoir, a text message
and the symbol will be displayed in theinstrument panel.

Related information
•Opening and closing the hood (p. 539)
•Engine compartment overview (p. 540)
Cleaning the exterior
The vehicle should be washed at regular inter-vals since dirt, dust, insects and tar spotsadhere to the paint and may cause damage. Tohelp prevent corrosion, it is particularly importantto wash the car frequently in the wintertime.

Hand washing
The following points should be kept in mind whenwashing and cleaning the car:

CAUTION
Avoid using car washing detergents with a pHvalue lower than 3.5 or higher than 11.5.Doing so could result in discoloring of ano-dized aluminum surfaces on e.g., roof rails orthe frames around the side windows.
•Avoid washing your car in direct sunlight.Doing so may cause detergents and wax todry out and become abrasive. To avoidscratching, use lukewarm water to soften thedirt before you wash with a soft sponge, andplenty of sudsy water.
•Bird droppings: Remove from paintwork assoon as possible. Otherwise the finish maybe permanently damaged.
•A car washing detergent can be used tofacilitate the softening of dirt and oil.

MAINTENANCE AND SERVICING
549

CAUTION
When using an automatic car wash in whichthe vehicle has to be able to roll freely, theauto-hold brake function must be deactivated.If this is not done, the brakes will automati-cally be applied when the vehicle is stationary.
To deactivate this function:
1.Drive the vehicle into the car wash
2. Turn off the auto-hold function using thecontrol on the center console
3. Turn off the parking brake's automaticfunction in the center display's Top view
(tap Settings, tap My CarElectricParking Brake and deselect AutoActivate Parking Brake)
4.Put the gear selector in N
5.Switch off the ignition by turning the startknob to STOP and holding it in this posi-tion for at least 4 seconds
The vehicle will then be able to roll freely.
CAUTION
•Before driving into an automatic carwash, turn off the optional rain sensor toavoid damaging the windshield wipers.
•Make sure that side view mirrors, auxiliarylamps, etc, are secure, and that anyantenna(s) are retracted or removed. Oth-erwise there is risk of the machine dis-lodging them.
•Chromed wheels: Clean chrome-platedwheels using the same detergents usedfor the body of the vehicle. Aggressivewheel-cleaning agents can permanentlystain chrome-plated wheels.

WARNING
•When the vehicle is driven immediatelyafter being washed, apply the brakes,including the parking brake, several timesin order to remove any moisture from thebrake linings.
•Engine cleaning agents should not beused when the engine is warm. This con-stitutes a fire risk.

Exterior components
Volvo recommends the use of special cleaningproducts, available at your Volvo retailer, forcleaning colored plastic, rubber, or ornamentalcomponents such as chromed strips on the exte-
rior of your vehicle. The instructions for usingthese products should be followed carefully. Sol-vents or stain removers should not be used.
CAUTION
•Avoid waxing or polishing plastic or rub-ber components
•Polishing chromed strips can wear awayor damage the surface
•Polishes containing abrasive substancesshould not be used

Related information
•Paint damage (p. 553)
•Corrosion protection (p. 552)
•Polishing and waxing (p. 554)
•Windshield wipers in the service position(p. 543)

MAINTENANCE AND SERVICING
* Option/accessory, for more information, see Introduction.551
2. Finish by rubbing the wheel with absorbentpaper or a towel.
Type 3 (dry soil or dust)
1. Remove the soil/dust with a soft brush.
2. Same procedure as for type I stains.

CAUTION
Sharp objects, such as rings, could damagethe leather on the steering wheel.

Leather panels *
Leather should be allowed to breath. Never coverthe upper side of the dashboard or door panelswith a plastic protector. Ask your Volvo retailerabout Leather Care Kit 951 0251 and LeatherSoftener 943 7429.

Spots on interior plastic, metal, or wood
surfaces
Cleaning interior plastic components should bedone with a moist microfiber cloth. Consult yourVolvo retailer.
CAUTION
•Do not use cleaning agents with highalcohol content such as washer fluid toclean instrument panel glass.
•Never spray cleaning agents or waterdirectly onto components with electricalbuttons or controls. Clean components ofthis type by applying the cleaning agent/water sparingly to a cloth and wiping thecomponents so that no liquid penetratesinto these components.

Cleaning the seat belts
Clean only with lukewarm water and a mild soapsolution.

Cleaning floor mats
The floor mats should be vacuumed or brushedclean regularly, especially during winter whenthey should be taken out for drying. Spots on tex-tile mats can be removed with a mild detergent.For best protection in winter, Volvo recommendsthe use of Volvo rubber floor mats. Consult yourVolvo retailer.
WARNING
•Never use more than one floor mat at atime on the driver's floor. Before driving,remove the original mat from the driver'sseat floor before using any other type offloor mat. Any mat used in this positionshould be securely and properly anchoredin the attaching pins. An extra mat on thedriver's floor can cause the acceleratorand/or brake pedal to catch. Check thatthe movement of these pedals is notimpeded.
•Volvo's floor mats are specially manufac-tured for your car. They must be firmlysecured in the clips on the floor so thatthey cannot slide and become trappedunder the pedals on the driver's side.

Related information
•Cleaning the center display (p. 552)

MAINTENANCE AND SERVICING
552

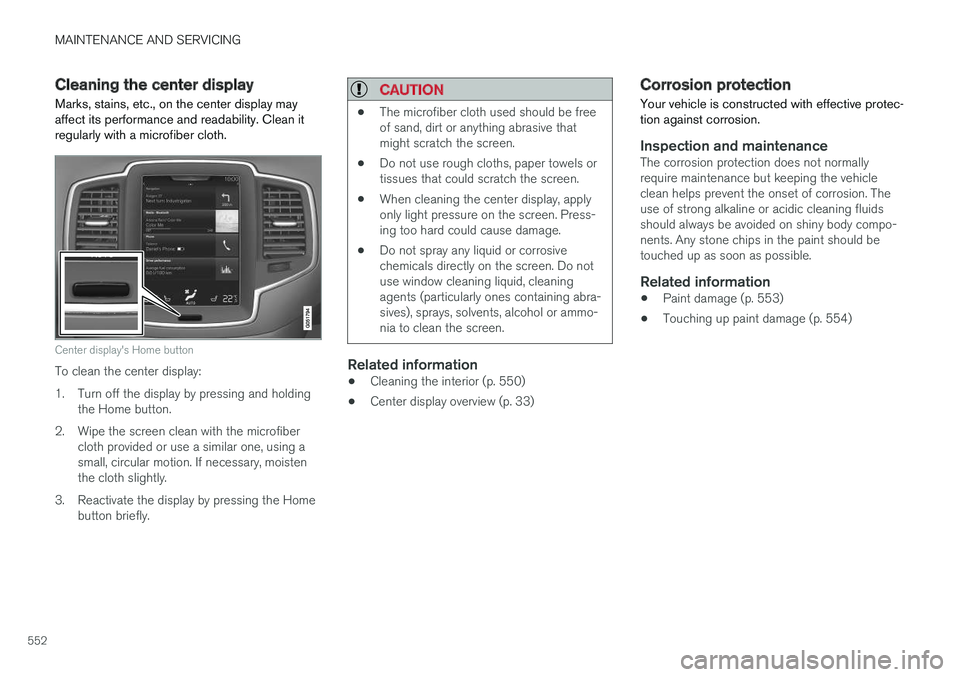

Cleaning the center display
Marks, stains, etc., on the center display mayaffect its performance and readability. Clean itregularly with a microfiber cloth.
Center display's Home button
To clean the center display:
1.Turn off the display by pressing and holdingthe Home button.
2. Wipe the screen clean with the microfibercloth provided or use a similar one, using asmall, circular motion. If necessary, moistenthe cloth slightly.
3. Reactivate the display by pressing the Homebutton briefly.

CAUTION
•The microfiber cloth used should be freeof sand, dirt or anything abrasive thatmight scratch the screen.
•Do not use rough cloths, paper towels ortissues that could scratch the screen.
•When cleaning the center display, applyonly light pressure on the screen. Press-ing too hard could cause damage.
•Do not spray any liquid or corrosivechemicals directly on the screen. Do notuse window cleaning liquid, cleaningagents (particularly ones containing abra-sives), sprays, solvents, alcohol or ammo-nia to clean the screen.

Related information
•Cleaning the interior (p. 550)
•Center display overview (p. 33)
Corrosion protection
Your vehicle is constructed with effective protec-tion against corrosion.
Inspection and maintenance
The corrosion protection does not normallyrequire maintenance but keeping the vehicleclean helps prevent the onset of corrosion. Theuse of strong alkaline or acidic cleaning fluidsshould always be avoided on shiny body compo-nents. Any stone chips in the paint should betouched up as soon as possible.

Related information
•Paint damage (p. 553)
•Touching up paint damage (p. 554)
